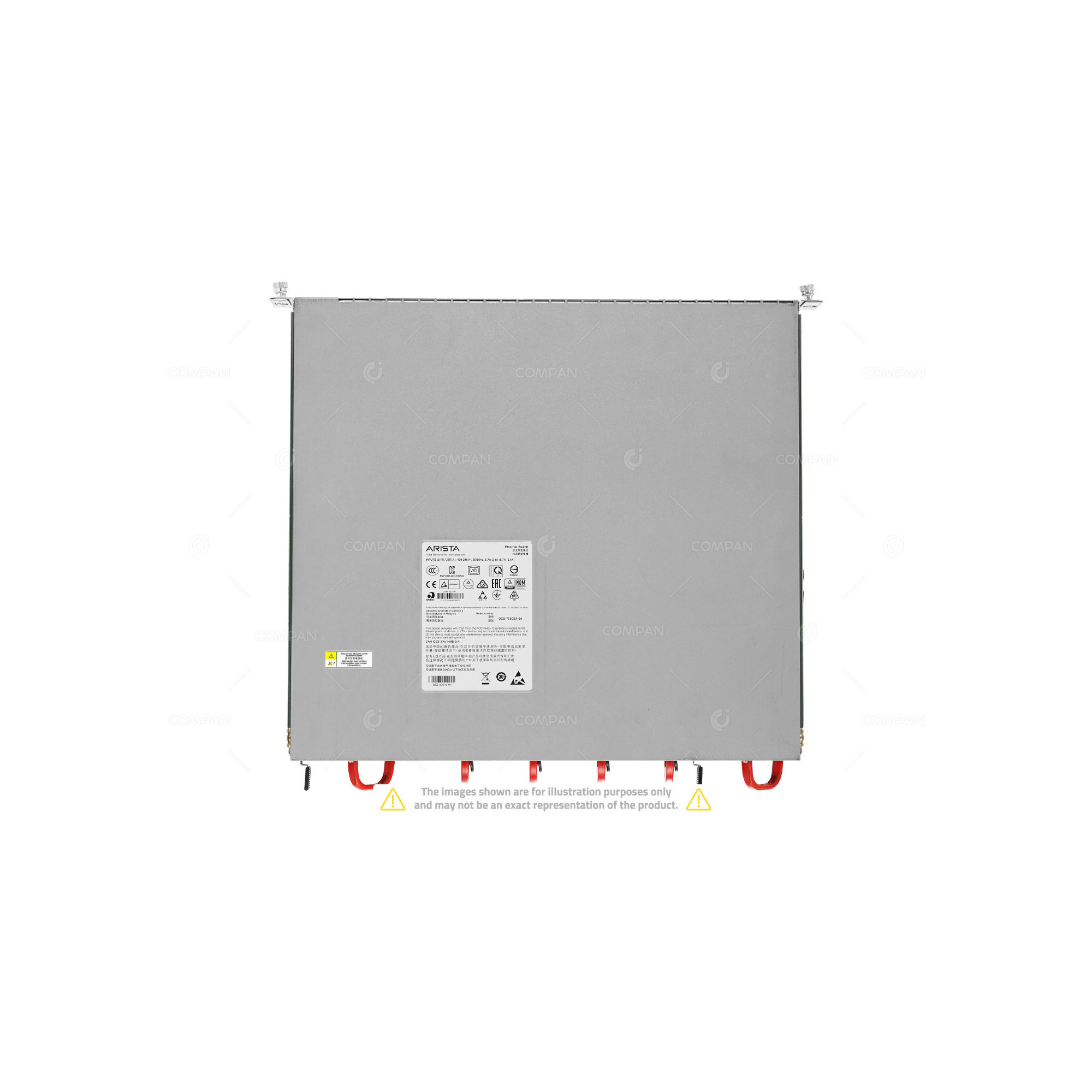

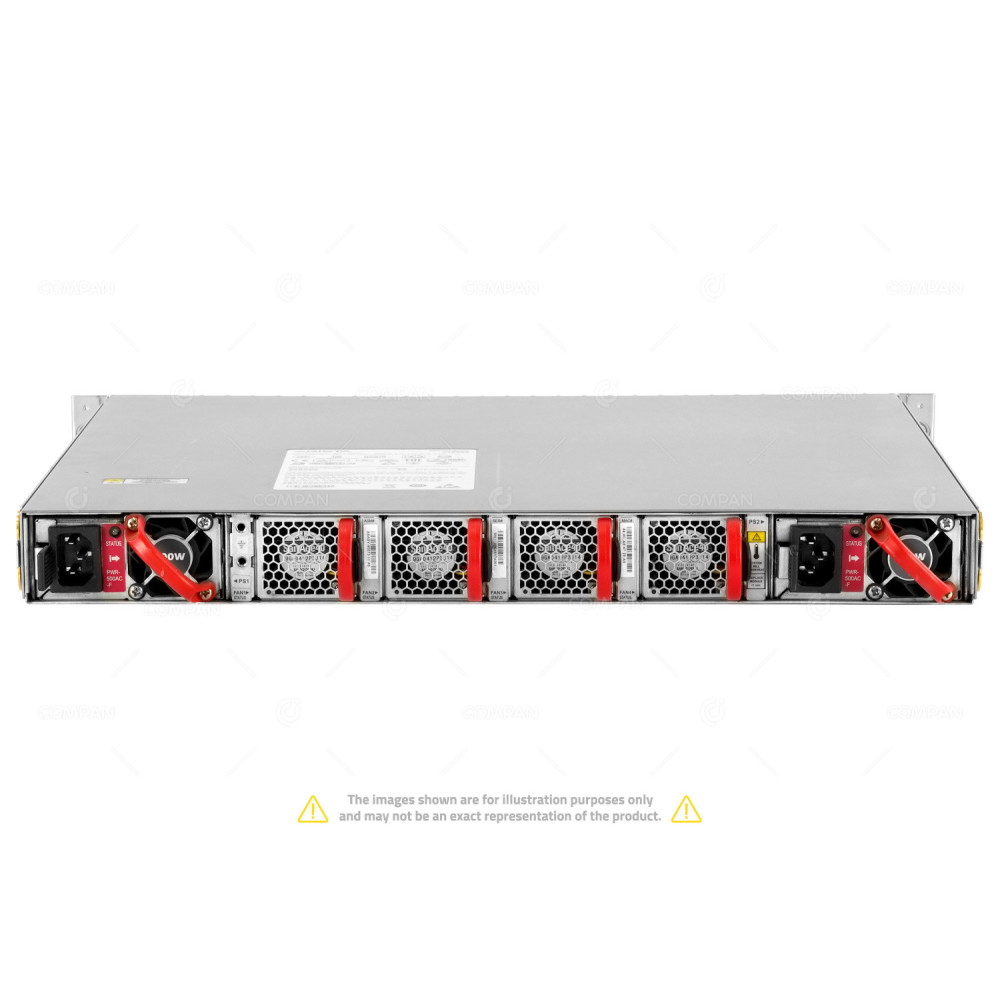

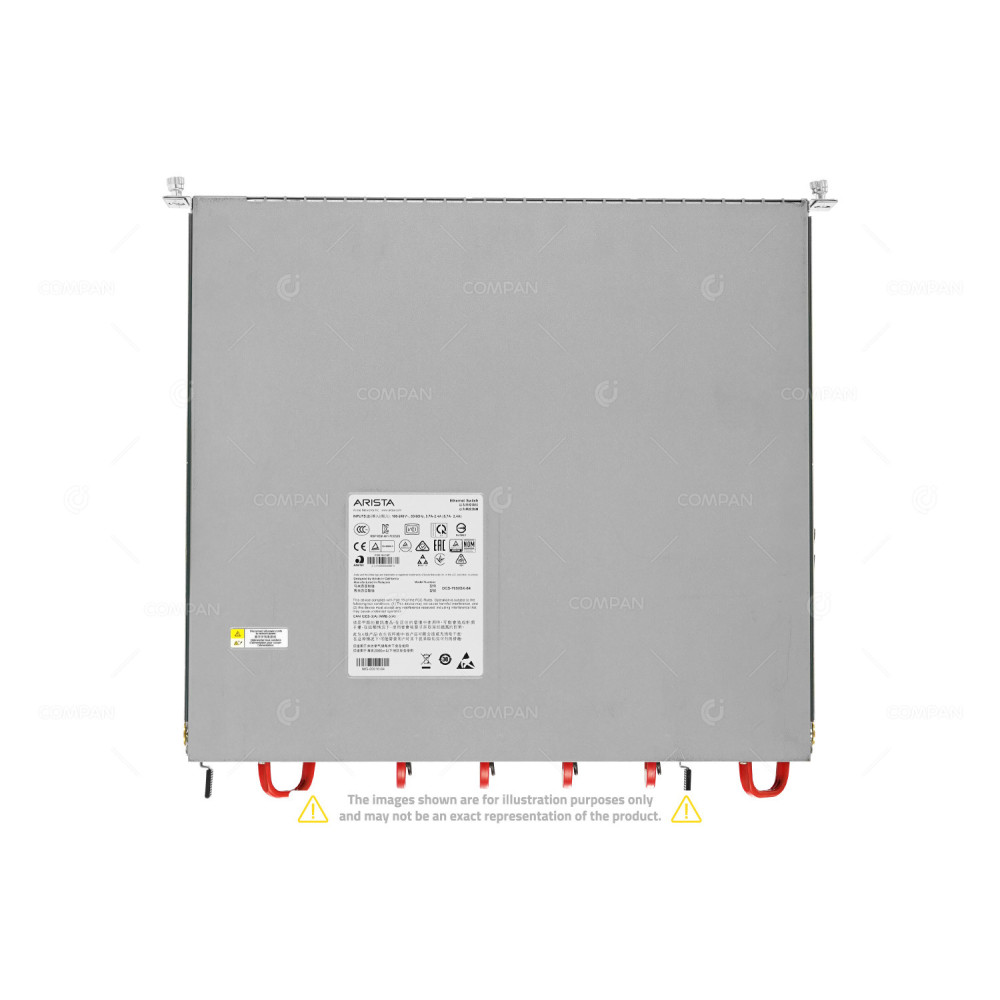

Arista DCS-7050SX-64 48x SFP+ 10Gb 4x QSFP+ 40Gb - Ethernet Switch
Marka:
ARISTA
|
Numer produktu: DCS-7050SX-64
Opis
The Arista 7050SX are members of the Arista 7050X Series and key components of the Arista portfolio of data center switches. The Arista 7050X Series are purpose built 10/40GbE data center switches in compact and energy efficient form factors with wire speed layer 2 and layer 3 features combined with low latency and advanced features for software defined cloud networking. Increased adoption of 10 Gigabit Ethernet servers coupled with applications using higher bandwidth is accelerating the need for dense 10 and 40 Gigabit Ethernet switching. The 7050SX Series support flexible combinations of 10G and 40G that allow customers to design large leaf and spine networks to accommodate both east-west traffic patterns found in modern data centers, high performance compute and big data environments. Featuring a choice of three different 1RU models and one 2RU model the 7050SX Series deliver high density 1/10G SFP+ based ports and 10/40G ports using QSFP+. or embedded optics with MXP multi-speed ports for higher density. Each MXP port can enable a choice of 3x 40GbE or 12x 10GbE.
All models in the 7050SX Series delivers rich layer 2 and layer 3 features with wire speed performance up to a maximum performance of 2.56Tbps. The Arista 7050SX switches offer low latency from 550ns in cut-through mode, and a shared 12 MB packet buffer pool that is allocated dynamically to ports that are congested. With typical power consumption of less than 2 watts per 10GbE port the 7050SX Series provide industry leading power efficiency with airflow choices for back to front, or front to back. An optional built-in SSD supports advanced logging, data captures and other services directly on the switch.
It is a perfect choice for:- Data Center Top-of-Rack (ToR) This is the primary use case for the DCS-7050SX-64. It is an ideal fit for connecting servers and other devices within a single rack. With 48 x 10GbE SFP+ ports for server connectivity and 4 x 40GbE QSFP+ uplink ports to connect to spine or core switches, it forms a core component of a high-performance, low-latency leaf-spine architecture.
- High-Performance Computing (HPC) and Big Data The switch's low latency (as low as 550ns) and wire-speed Layer 2 and Layer 3 forwarding make it well-suited for high-performance computing clusters and big data environments. These applications often require a non-blocking or minimally oversubscribed network to move large data sets quickly between compute nodes.
- Enterprise Access and Aggregation The DCS-7050SX-64 can be deployed as an access or aggregation switch in a traditional enterprise network. It offers a dense number of 10GbE ports for connecting high-bandwidth devices like servers and network-attached storage (NAS) systems, and its 40GbE uplinks can be used to connect to the core network.
- Cloud and Virtualized Networks With support for technologies like VXLAN, the switch is a great option for building scalable and efficient cloud and virtualized network environments. It can act as a wirespeed VXLAN gateway, enabling seamless integration between physical and virtual networks and allowing for multi-tenant architectures.
Future proof Hardware
Power Up Your Connectivity
Boost your network's speed and reliability with brand-new devices. It's not just an upgrade, it's a solid foundation for your infrastructure needs, now and in the future. Enjoy faster connections for all your devices today, and rest easy knowing your network is ready for whatever comes next.
RELIABLE DELIVERY
Packaged Securely
Your product will arrive packaged carefully, according to internal standards of item protection. The item is handled professionally, you can be sure that your order will arrive in perfect condition.
ALWAYS ON TIME
With Our Own Logistics
Thanks to our own fleet of vehicles, we are able to ensure fast and reliable delivery of very large goods, such as complete server systems and data centers. We offer individual service and full control over the transport of your goods. Trust us to take care of your transport needs and deliver your products on time within Europe
SPECIFICATION
| Manufacturer | Arista |
| Product Line | 7050SX Series |
| Model | DCS-7050SX-64 |
| Ports | 48x 10Gb SFP+ |
| Uplink Ports | 4x 40Gb QSFP+ |
| Management | Fully Managed |
| Stackable | No |
| Internal Ports | Not Applicable |
| Form Factor | 1U Rack Mountable |
| Layer | 2/3 |
| POE Standard | No |
| POE Power | N/A |
| Switching Capacity | 1.28 Tbps |
| Mounting | YES |
| PSU | 2x 495W (PN: PWR-00159-03) |
| Cooling | 4x Front-to-Rear, Redundant Fans (PN: ASY-00232-10) |
| Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
| Warranty | 1 Year |
DETAILED SPECIFICATION
| Feature / Characteristic | Specification |
|---|---|
| 10 Gigabit Ethernet SFP+ Ports | 48 |
| 40 Gigabit Ethernet QSFP+ Ports | 4 |
| Switching Capacity | 1.28 Tbps |
| Forwarding Rate | 960 Mpps |
| Packet Buffer Capacity | 12 MB (shared) |
| Latency | < 550ns (cut-through mode) |
| MAC Address Table Size | 288K entries |
| IPv4 Host Table Size | 144K entries |
| IPv6 Host Table Size | 72K entries |
| IPv4 Route Table Size | 144K entries |
| VLAN IDs | 4094 |
| Power Supplies | Dual (2) redundant, hot-swappable |
| Fans | Redundant, hot-swappable |
| Height (RU) | 1 RU |
| Software | Arista EOS |
Specyfikacja
- Product Line:
- 7050SX Series
- Type:
- Ethernet Switch
- model:
- Arista DCS-7050SX-64
- Switching Capacity:
- 1.28 Tbps
- Form Factor :
- 1U Rack Mountable
- Ports Quantity:
- 48
- Ports Interface:
- SFP+
- Ports Speed:
- 10Gb
- Uplink Ports Quantity:
- 4
- Uplink Ports Interface:
- QSFP+
- Uplink Ports Speed:
- 40Gb
- Network Management Type:
- Fully Managed
- Stackable:
- No
- Internal Ports Quantity:
- Not Applicable
- Layer:
- 2/3
- POE Standard:
- No
- POE Power:
- N/A
- Cooling:
- Front-to-Rear, Redundant Fans
- RAILS:
- YES
- PSU PN:
- PWR-00159-03
- FAN PN:
- ASY-00232-10
- PSU Quantity:
- 2
- PSU Power:
- 495W
- Fan Quantity:
- 4
- License:
- -
