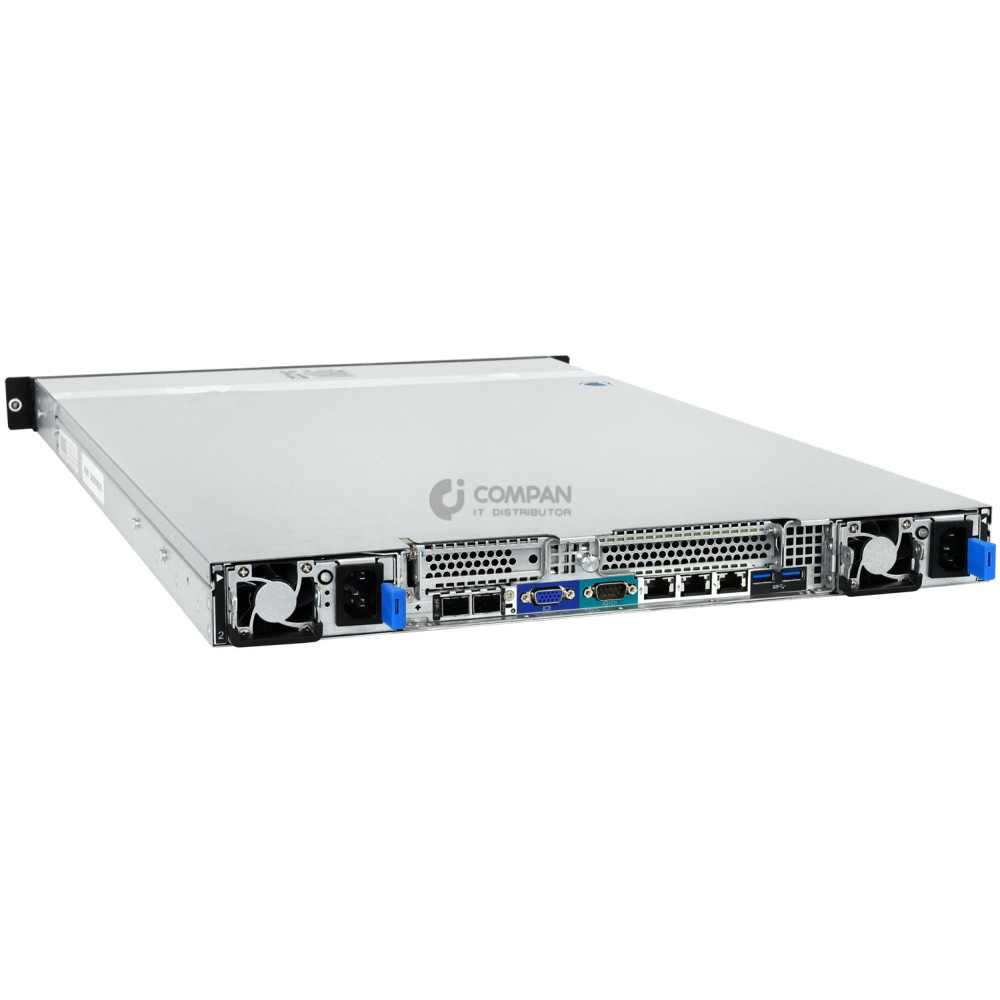

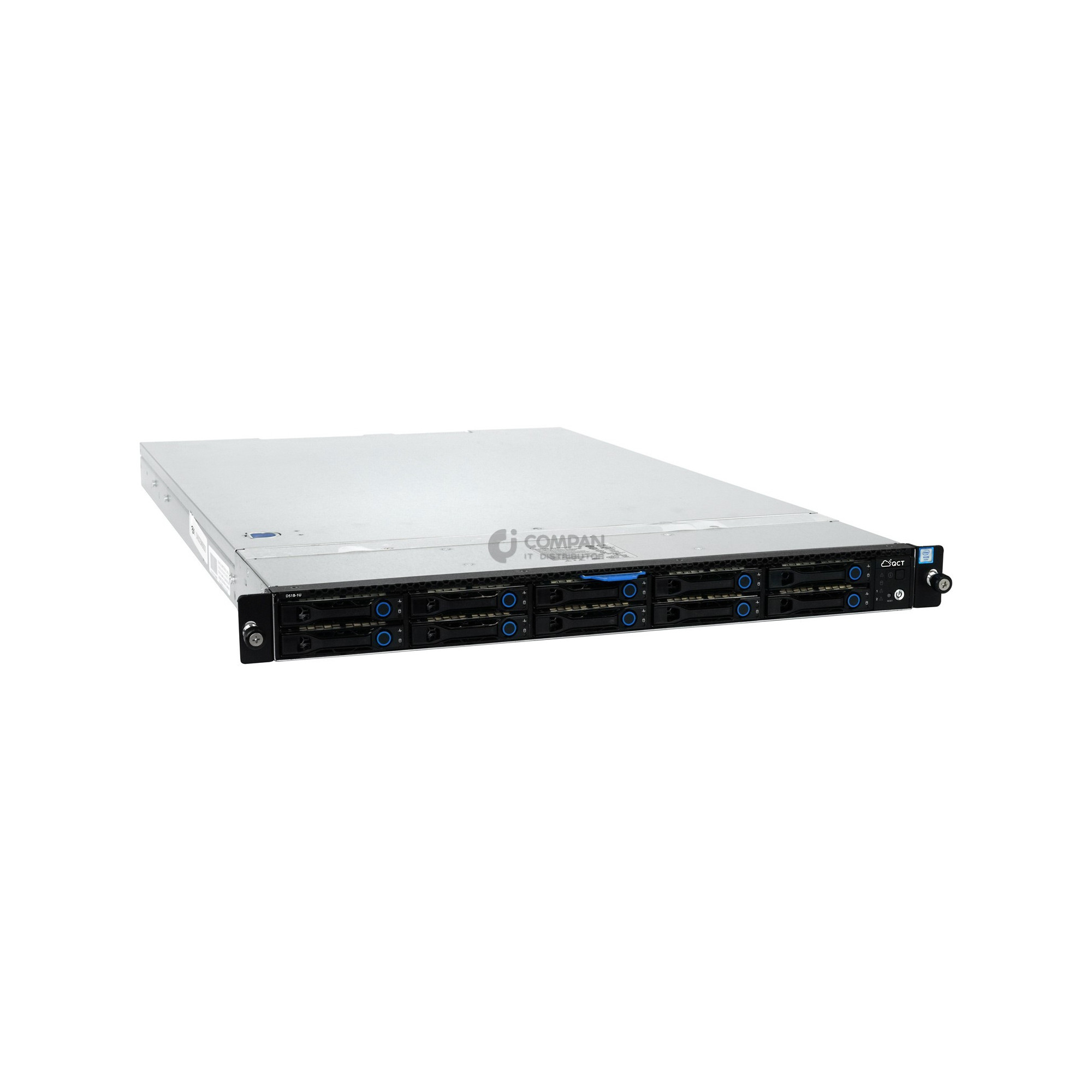

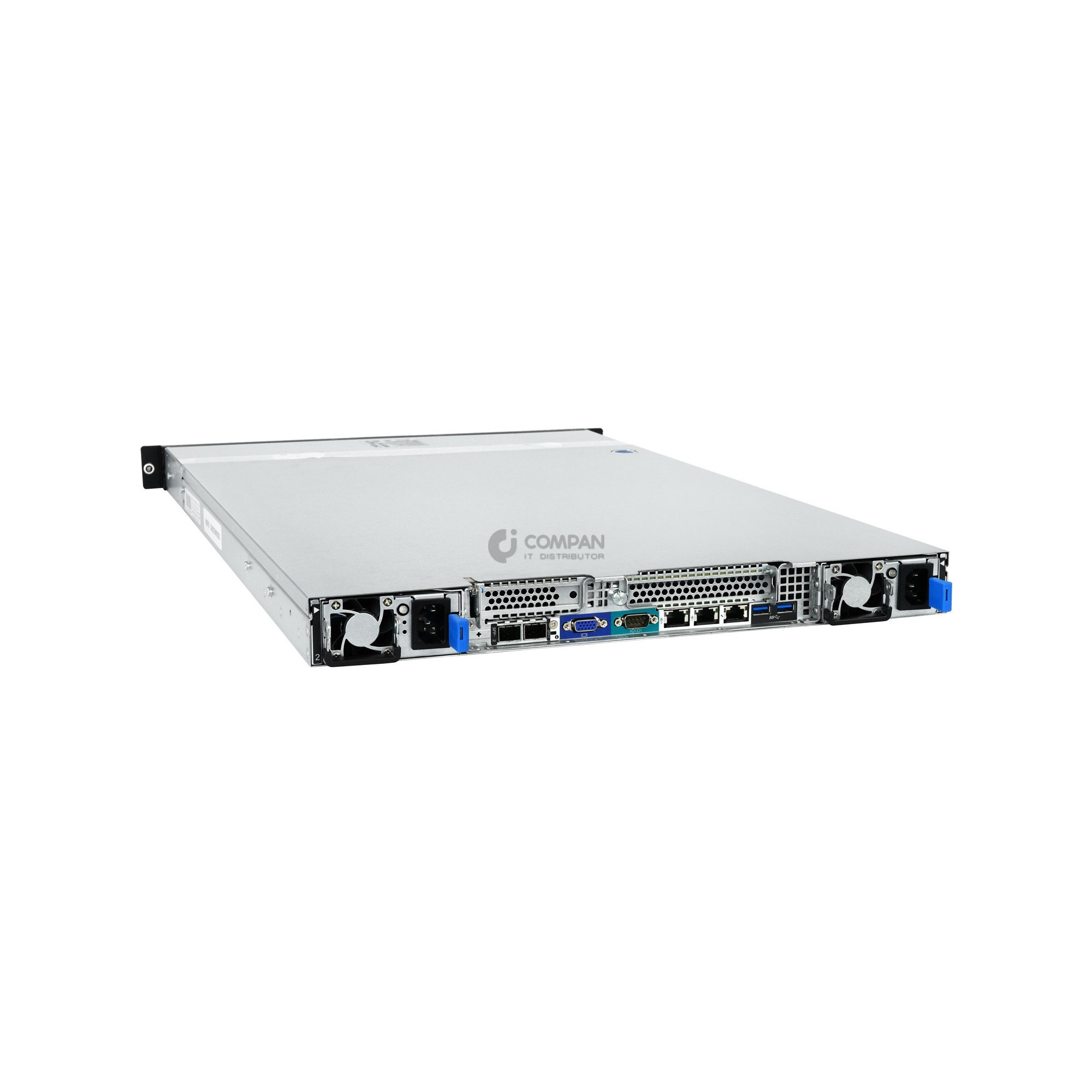

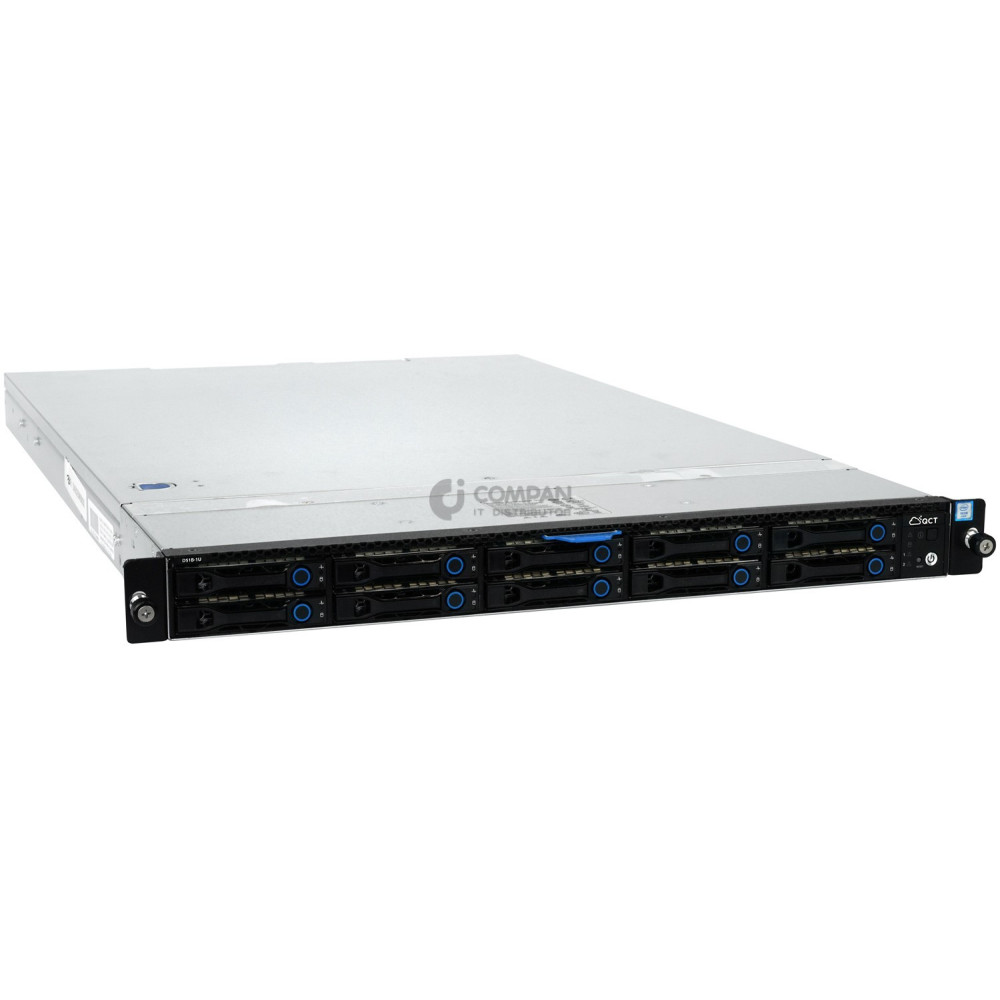

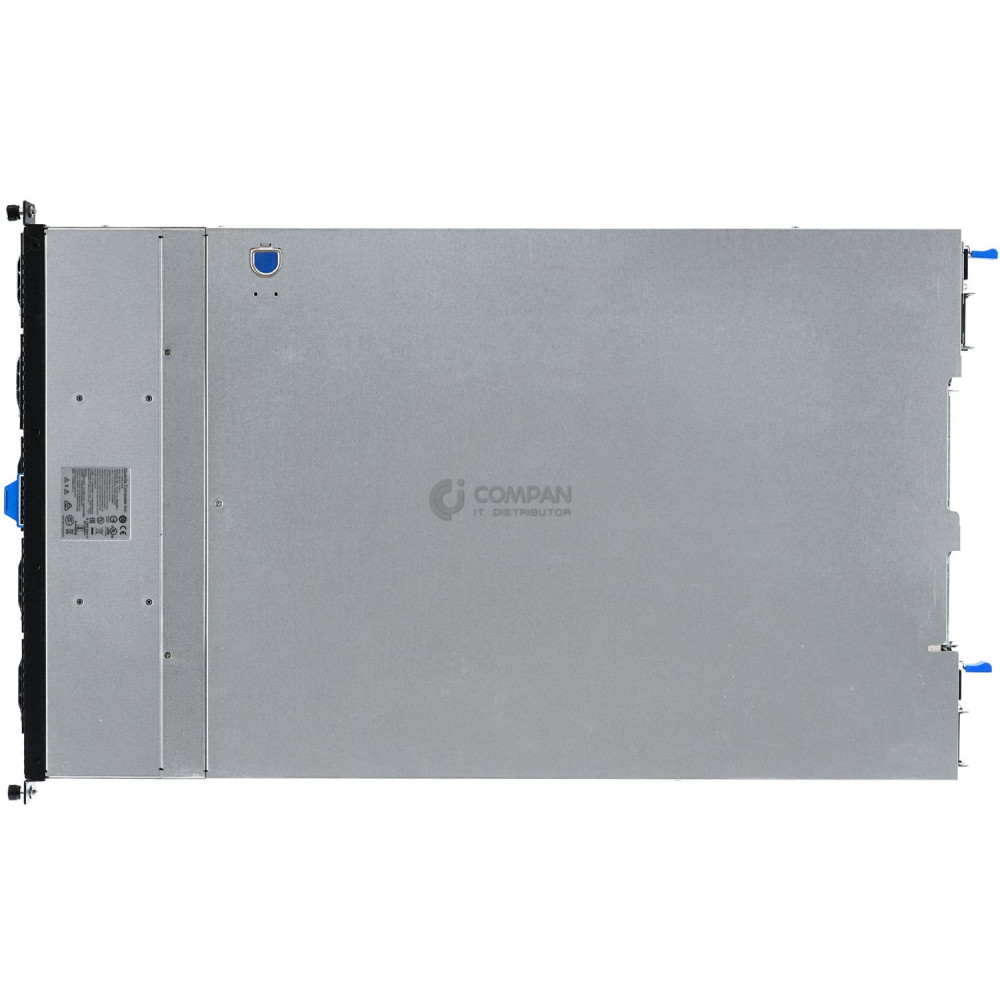

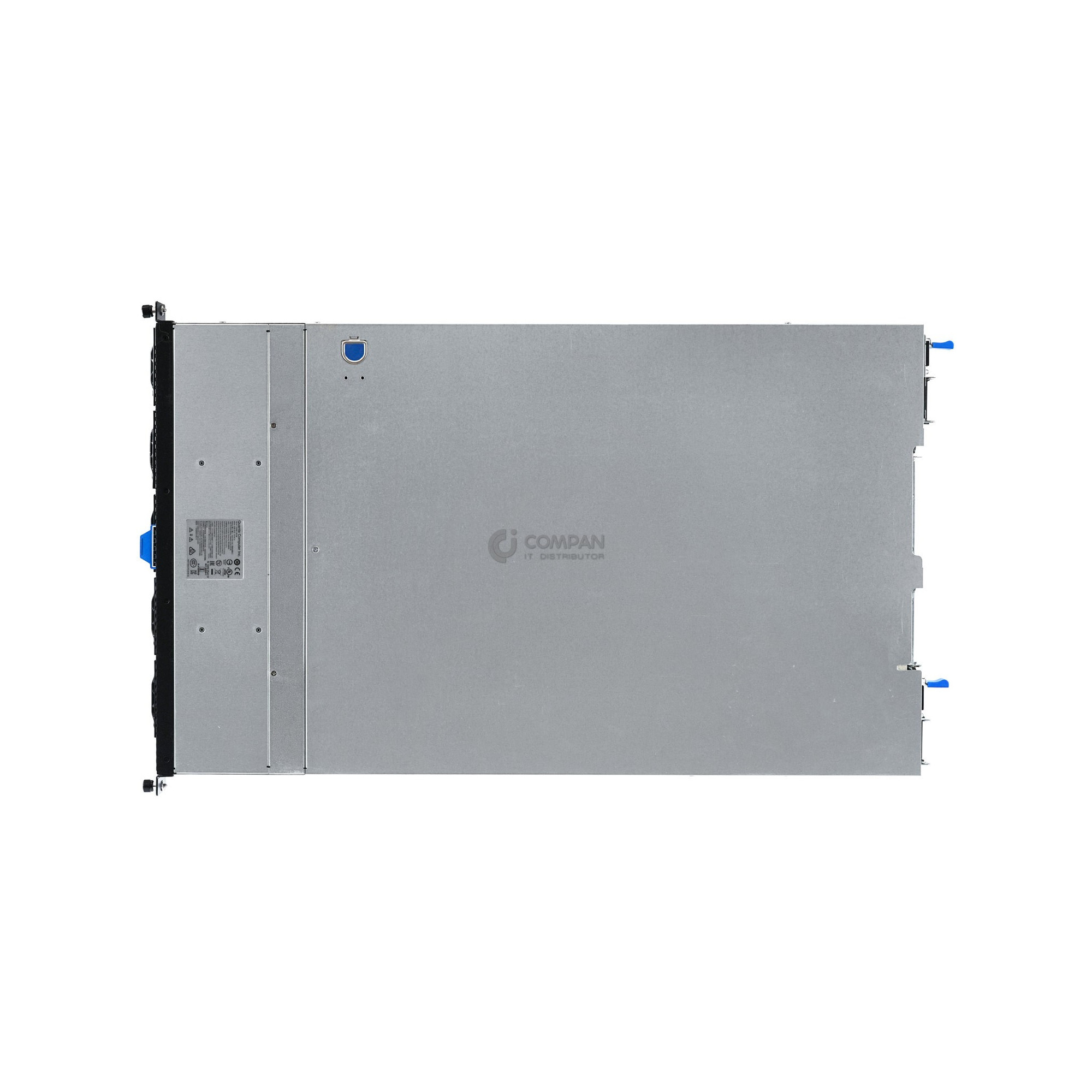

QUANTA D51B-1U-10SFF 2x INTEL XEON E5-2609 128GB RAM 2 x 120GB SATA SSD

QuantaGrid D51B-1U is a general -purpose rackmount server designed for optimal performance and power efficiency. It is based on the dual Intel® Xeon® processor E5-2600 v3, v4 product family and features up to 1.5 TB memory capacity in a 1U chassis.

Powered by the Intel® Xeon® processor E5-2600 v3, v4 product family and DDR4 memory technology, the QuantaGrid D51B-1U allows owners to upgrade computing performance without overextending power consumption. With QCT’s enhanced thermal design, the server can operate under ambient temperatures as high as 40˚C. This allows owners to save unnecessary costs associated with datacenter cooling needs and to achieve higher data center infrastructure efficiency (DCIE) value.

With 24 dual in-line memory module (DIMM) slots, QuantaGrid D51B-1U offers non-latency support to virtualization environments that require the maximum memory capacity. The D51B-1U also has two 2.5” PCIe Non-Volatile Memory Express (NVMe) SSDs on certain configuration options (with a 2.5” PtP backplane) to accelerate for today’s demanding cloud storage and computing workload.

QuantaGrid D51B-1U provides flexible I/O scalability for today’s diverse data center application requirements. It features OCP LAN mezzanine card solutions in addition to dual GbE or 10GbE (LAN on motherboards (LoM). With various controller vendors and different speed and technology options, customers can choose from 1GbE to 56GbE bandwidth, copper or fiber-optic cabling, basic Ethernet function or FCoE and iSCSI SAN connectivity. The on-board SAS controller offers multiple QCT SAS mezzanine card

options, with different RAID levels, and data transfer bandwidth, so customers can tailor the SAS controller for specific application needs.
