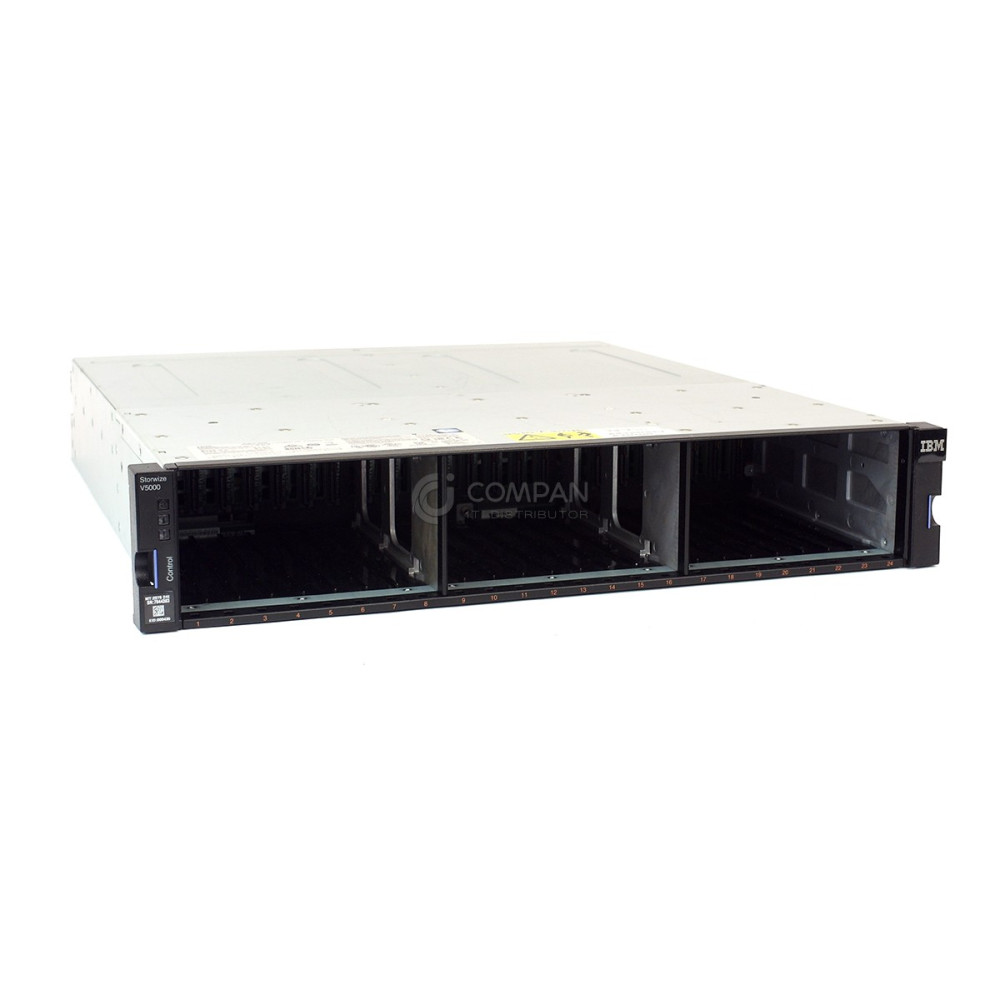

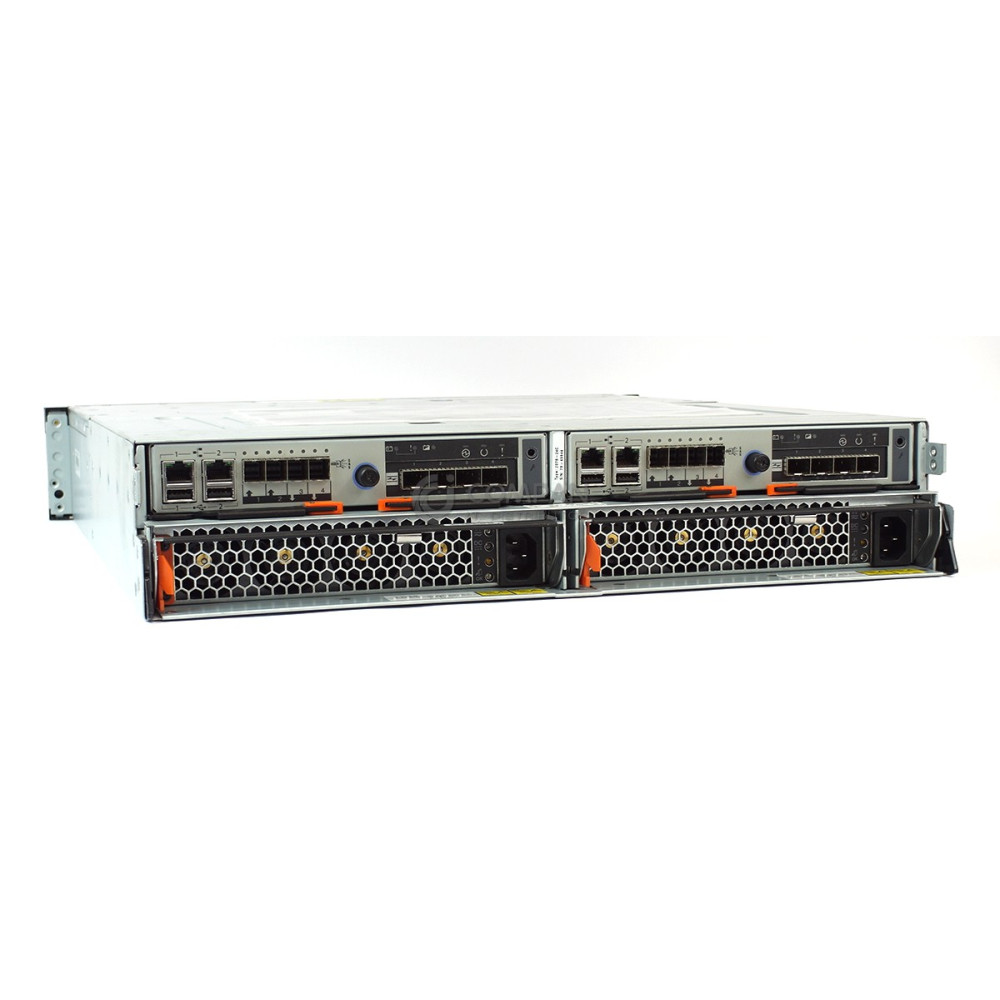

2078-24C IBM STORWIZE V5000 G1 24BAY SFF CONTROLLER ENCLOSURE 00Y5761

Marka: IBM | Numer produktu: 2078-24C
help_outline Zapytaj o cenę
Dostępność : 23 szt.
Stan: Refurbished help_outline
Gwarancja:  1 rok


Polityka bezpieczeństwa



Zasady dostawy



Zasady zwrotu

Ilość

Trustpilot
  • Wysyłamy na cały świat
  • Wszystkie przedmioty wysyłane z naszego magazynu
  • Łatwe i szybkie zamawianie 24/7
  • Ekspresowa wysyłka międzynarodowa w 24h
  • Ekspresowa dostawa wynosząca nawet 1-2 dni roboczych
Jeśli zamówisz teraz wyślemy za:
godzin
minut
sekund
Opis
2078-24C IBM STORWIZE V5000 G1 24BAY SFF CONTROLLER ENCLOSURE 00Y5761

Specification

Manufacturer part number 2078-24C
Manufacturer part option 00Y5761
Brand IBM
Product type Storage
Form factor Rack mountable 2U
Include 2 x IBM node canister battery for V3700 3500 V5000 G1
2 x IBM Storwize V5000 G1 8GB FC node canister
2 x IBM 800W power supply for EXP2524 EXP2512 V3700 V5000 V7000
RAID levels RAID 0, 1, 5, 6, 10
Cache 16 GB
Drive bays Up to 480 SFF drive bays per single system (up to 960 SFF drive bays per cluster):
  - 24 SFF drive bays in the control enclosure
  - 24 SFF drive bays in the expansion enclosure; up to 19x expansion enclosures

Up to 240 LFF drive bays per single system (up to 480 LFF drive bays per cluster):
  - 12 LFF drive bays in the control enclosure
  - 12 LFF drive bays in the expansion enclosure; up to 19x expansion enclosures

Intermix of SFF and LFF enclosures is supported.
Drive technology SAS and NL SAS HDDs and SAS SSDs. Intermix of HDDs and SSDs is supported.
Drive connectivity Dual-ported 6 Gb SAS drive attachment infrastructure.

Control enclosure with two node canisters (ports per one node canister):
  - 24x 6 Gb SAS internal drive ports (SFF chassis)
  - 12x 6 Gb SAS internal drive ports (LFF chassis)
  - 2x 6 Gb SAS x4 (Mini-SAS SFF-8644) expansion port for the attachment of the external enclosures

Expansion enclosure with two expansion canisters (ports per one expansion canister):
  - 24x 6 Gb SAS internal drive ports (SFF chassis)
  - 12x 6 Gb SAS internal drive ports (LFF chassis)
  - 2x 6 Gb SAS x4 (Mini-SAS SFF-8644) expansion ports (IN and OUT) for the daisy chained attachment of the external enclosures
Drives SFF drives:
  - 200 GB, 400 GB, 800 GB, 1.6 TB, and 3.2 TB SAS SSDs
  - 300 GB and 600 GB 15K rpm SAS HDDs
  - 600 GB, 900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS HDDs
  - 2 TB 7.2K rpm NL SAS HDDs

LFF drives:
  - 300 GB and 600 GB 15K rpm SAS HDDs
  - 900 GB, 1.2 TB, and 1.8 GB 10K rpm SAS HDDs
  - 4 TB, 6 TB, and 8 TB 7.2K rpm NL SAS HDDs
Storage capacity Up to 1.92 PB (240x 8 TB NL SAS HDDs) per single system
Up to 3.84 PB (480x 8 TB NL SAS HDDs) per cluster
Host connectivity Standard ports (per control enclosure with two node canisters):
  - 4x 6 Gb SAS host ports (Mini-SAS HD, SFF-8644) (2 ports per node canister)
  - 4x 1 Gb iSCSI host ports (UTP, RJ-45) (2 ports per node canister)

Extra ports must be configured by selecting one of the following host port options (per control enclosure with two node canisters):
  - 4x 10 Gb iSCSI or FCoE SFP+ host ports (SW fiber optics, LC) (2 ports per node canister)
  - 8x 8 Gb FC SFP host ports (SW or LW fiber optics, LC) (4 ports per node canister)
Gwarancja
Produkt objęty jest roczną gwarancją. Jeśli potrzebują Państwo przedłużenia opieki gwarancyjnej lub jej rozszerzenia, prosimy o kontakt.
