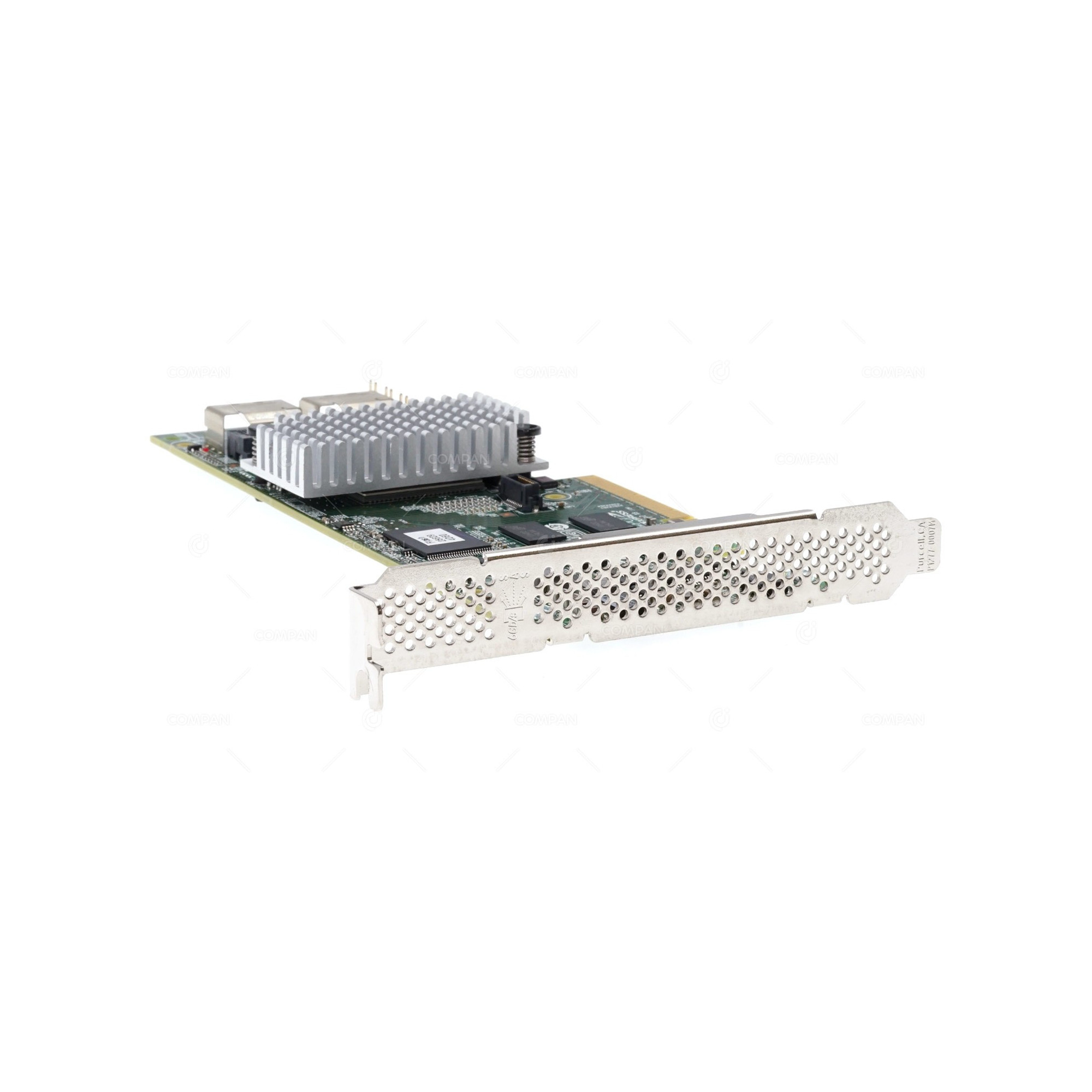

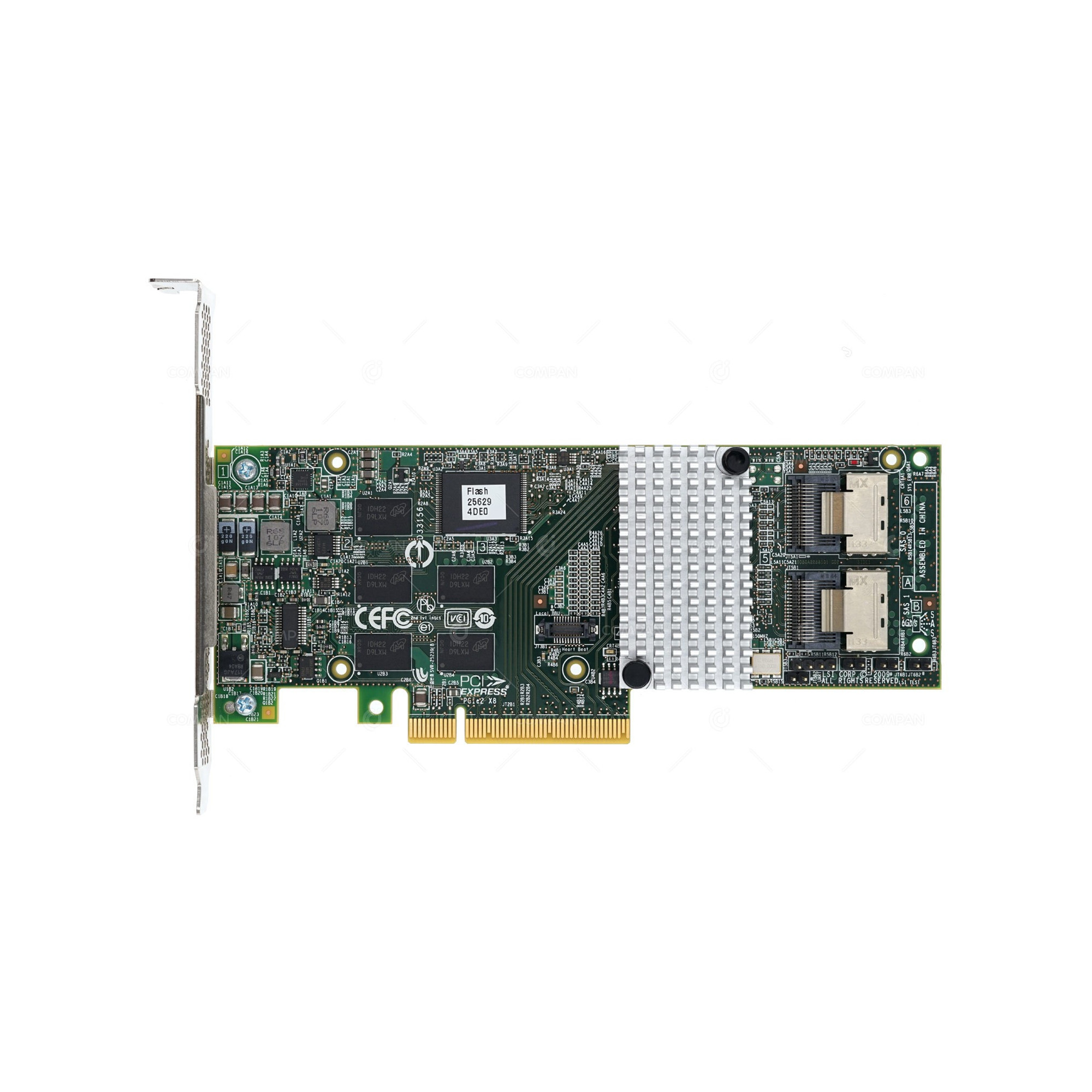

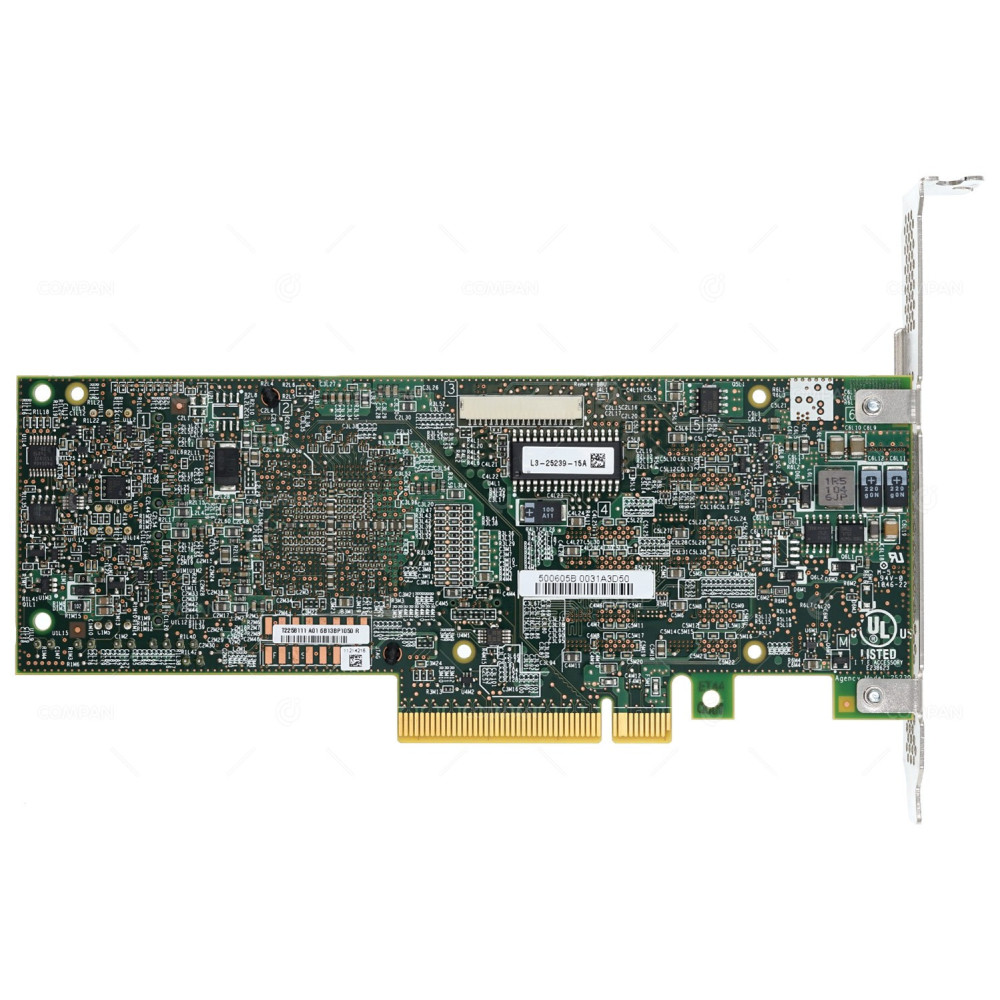

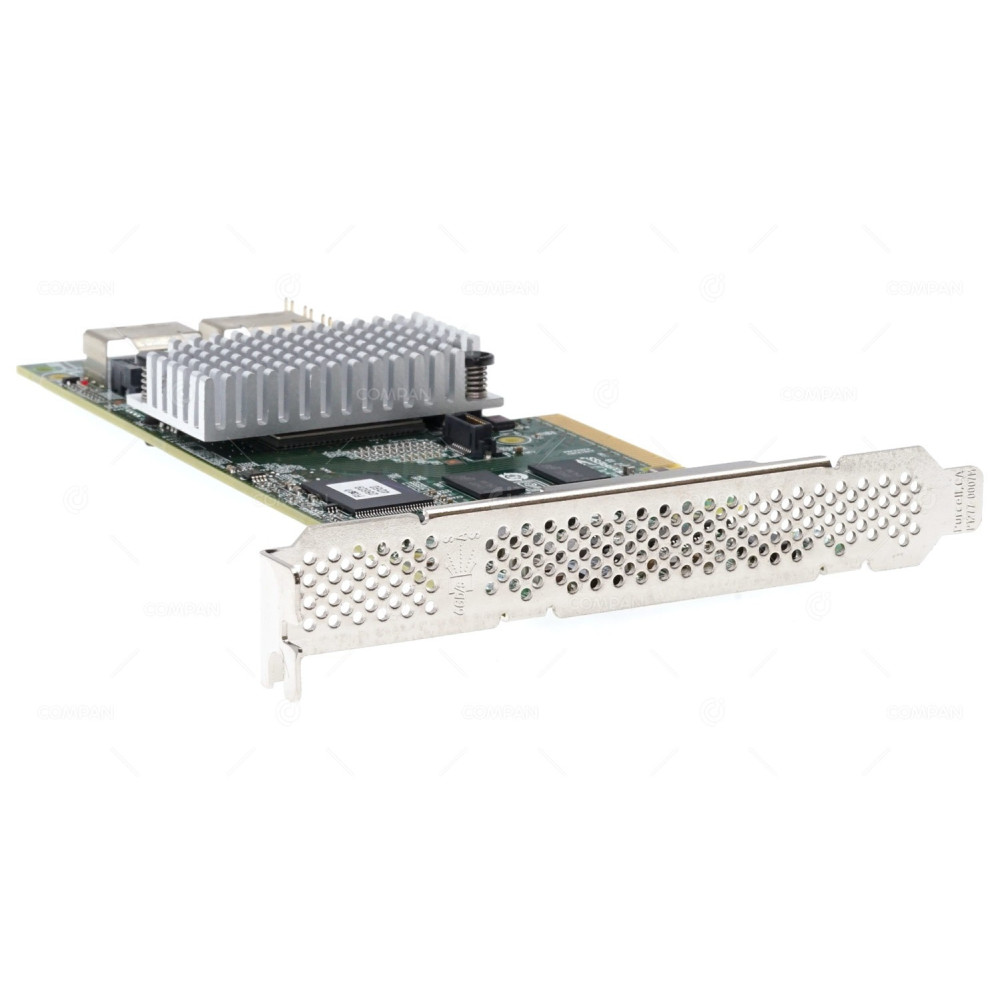

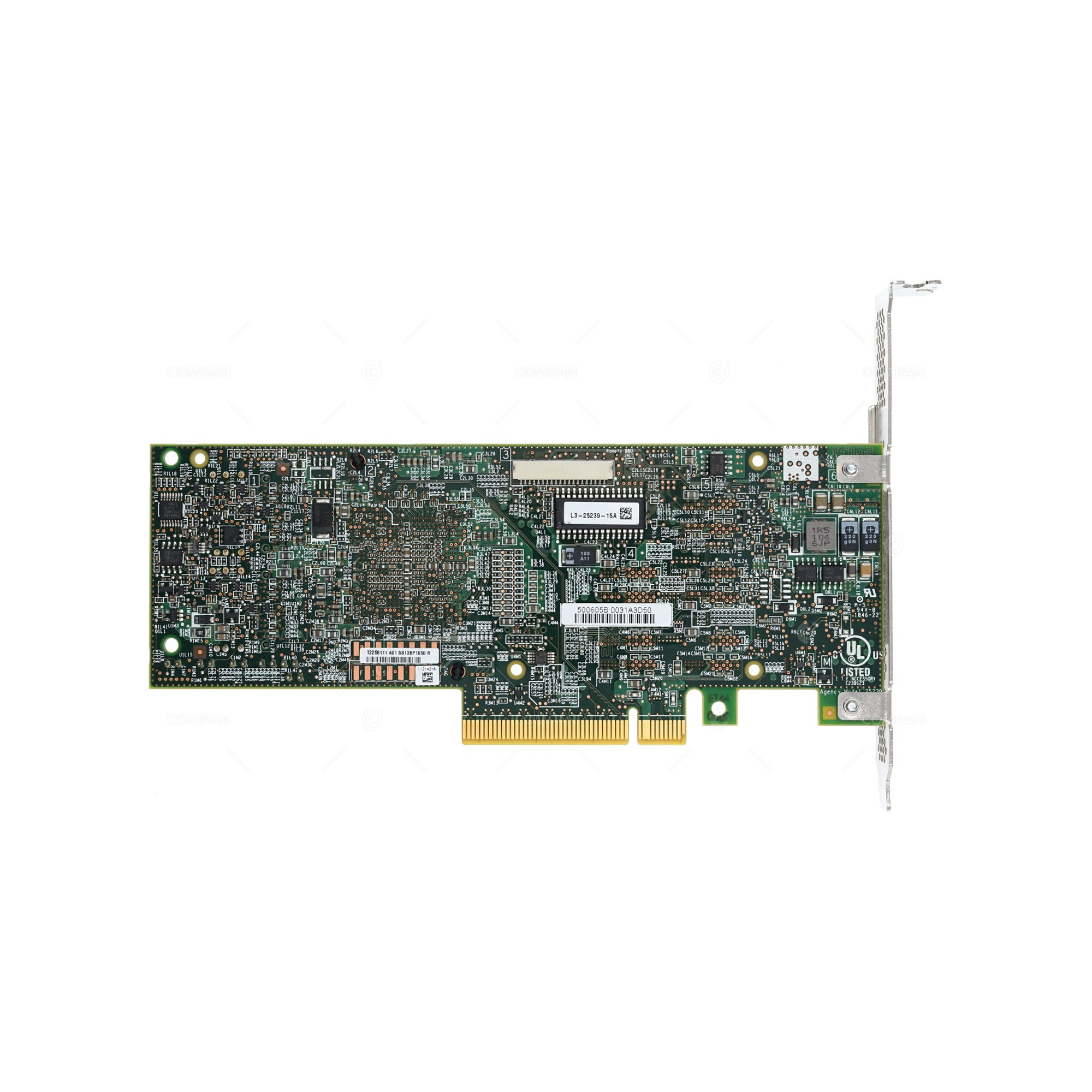

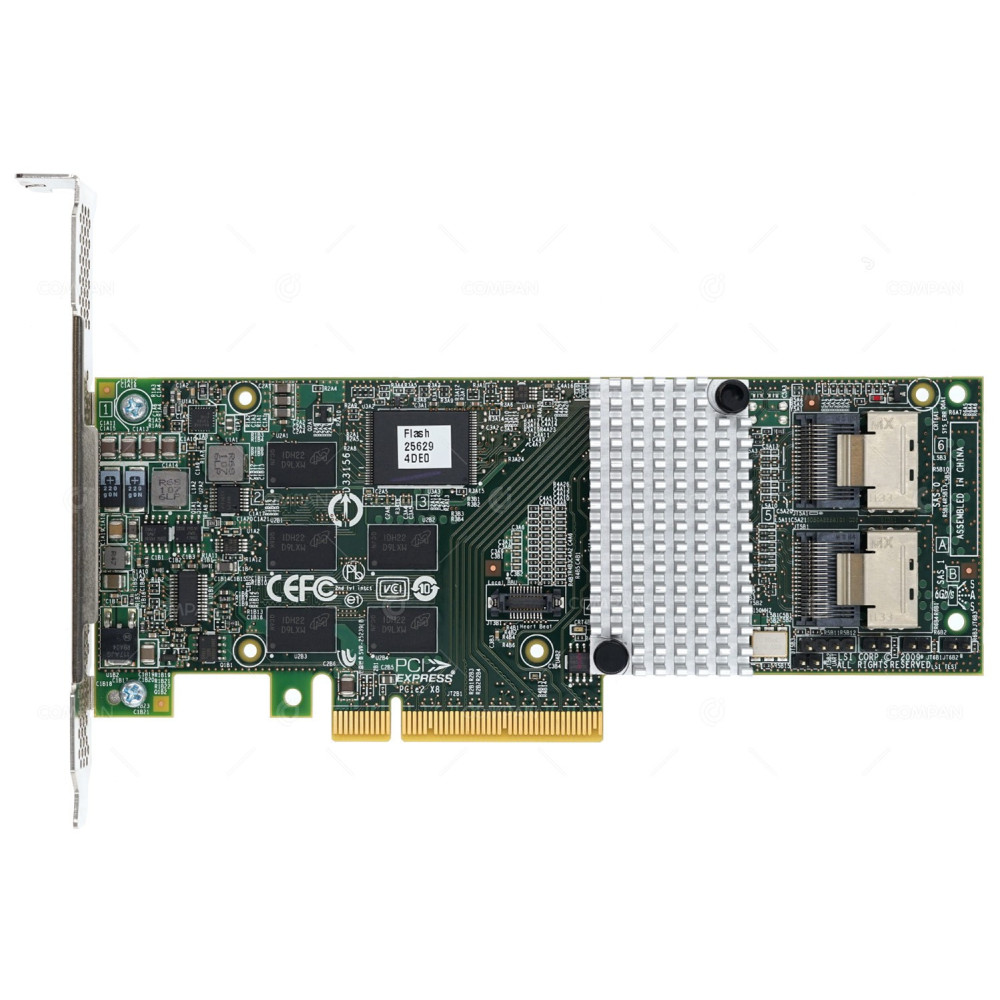

L3-25239-15A LSI LOGIC MEGARAID 9261-8I 6G SATA/SAS RAID CONTROLLER - 9261-8I

Detail overview

Lsi Logic L3-25239-15a Megaraid 9261-8i 6gb 8port Pci Express 2.0 X8 Sata/sas Raid Controller With 512mb Cache.

Overview The Eight-port Megaraid Sas 9261-8i Provides A New Level Of Performance And Data Protection For Internal Storage Systems Using Up To 32 Sata Or Sas Hard Drives Or Solid State Drives. With Data Transfer Rates Of Up To 6gb/s Per Port, The Megaraid Sas 9261-8i Brings Users New Features And Improved Performance While Continuing To Support All The Features Of The Previous 3gb/s Sata And Sas Generation. This Value Line Controller, Ideal For Inside-the-box Connectivity, Employs The Latest In Raid-on-chip (roc) Technology And Complies With The Pci Express 2.0 Specification For High-bandwidth Applications.

Specifications

- Device Type: Sas Raid Controller
- Controller Interface Type: Serial Attached Scsi . Serial Ata/600
- Interface Type : Pci Express 2.0 X8
- Data Transfer Rate: 6gb/s Throughput Per Port
- Form Factor: Low-profile Plug-in Card
- Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
- Standard Memory: 512 Mb Ddr2 Sdram
- Max Drive Support: 32
- Ports: 2 X Sff-8087 Mini Sas 600 - Serial Attached Scsi Internal

Dimensions

Width: 6.60 In.
Height: 2.54 In.
