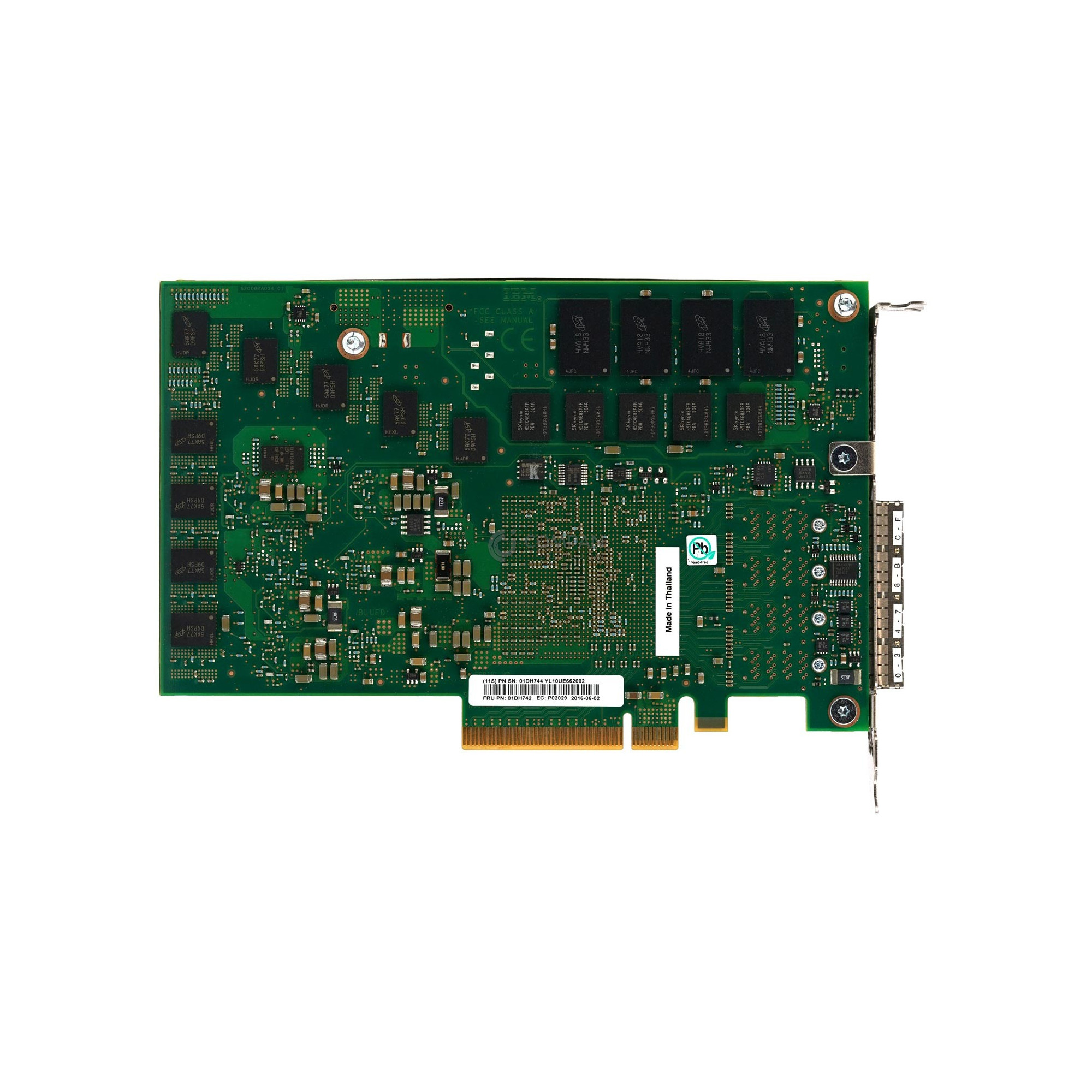

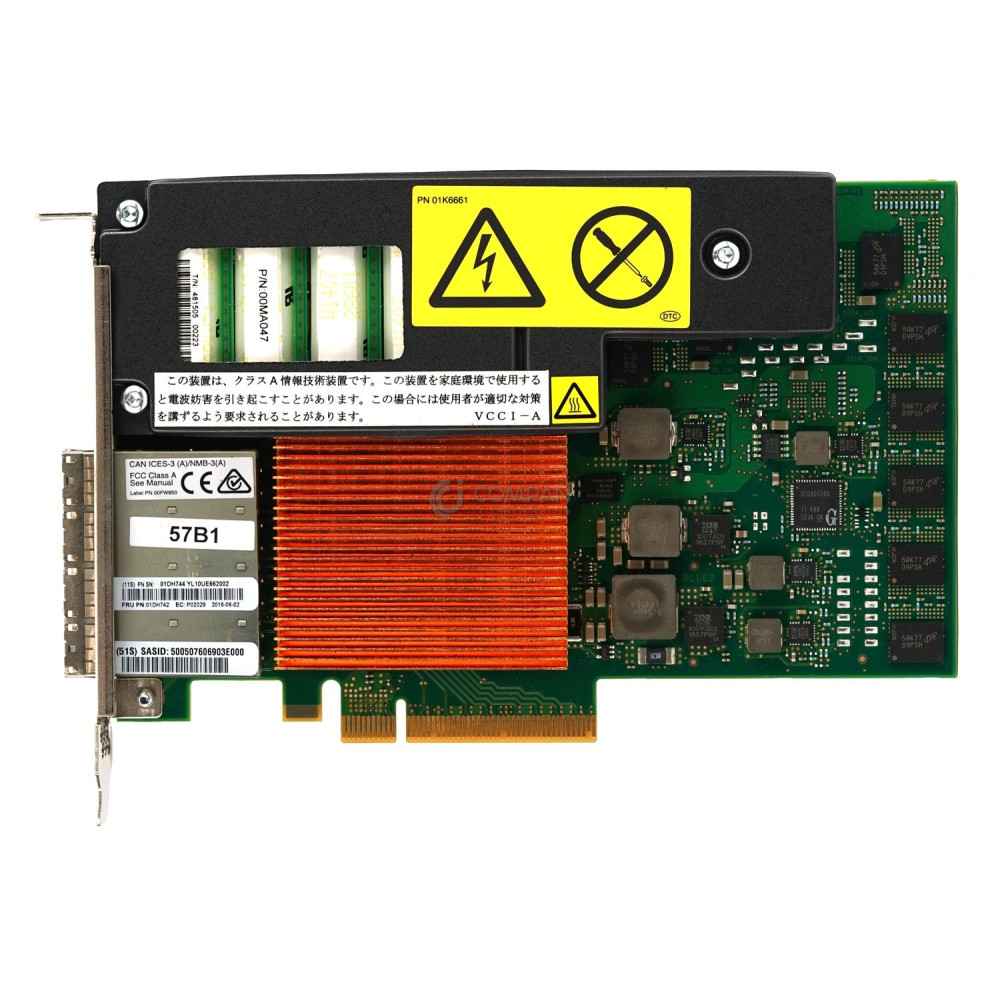

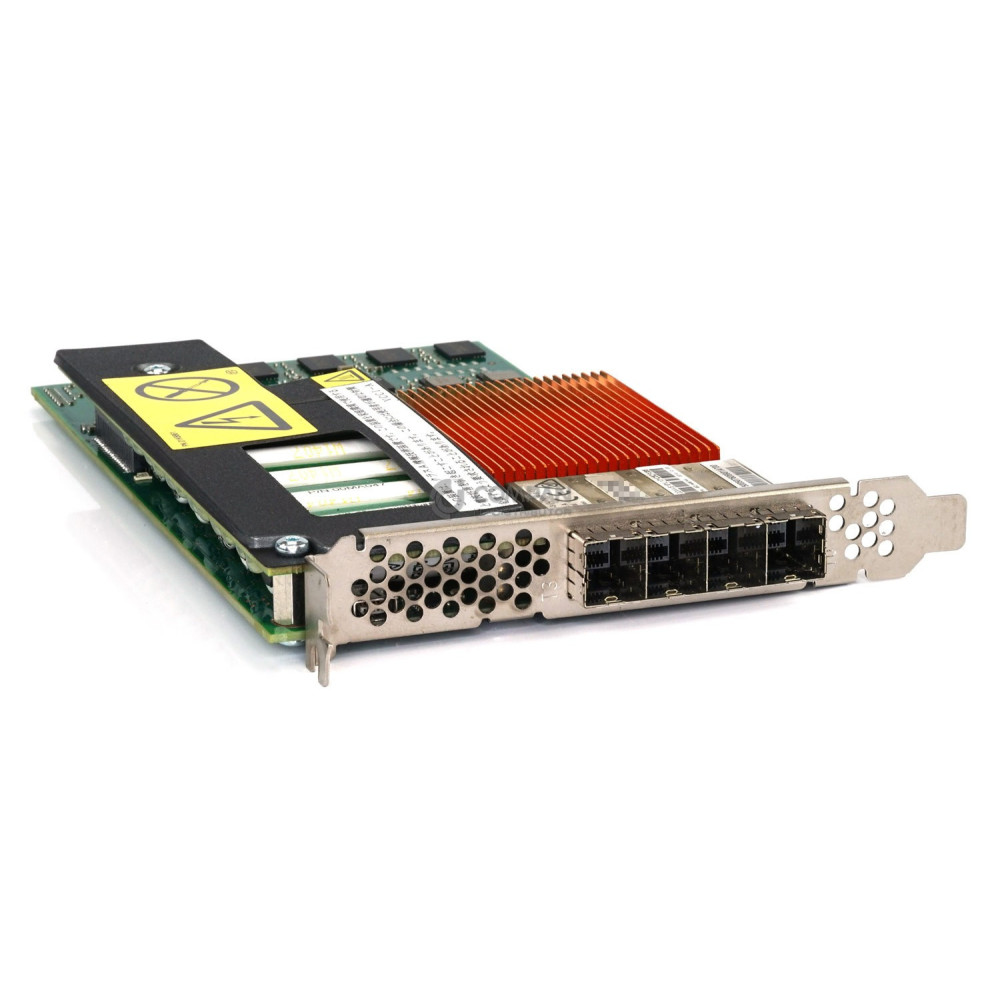

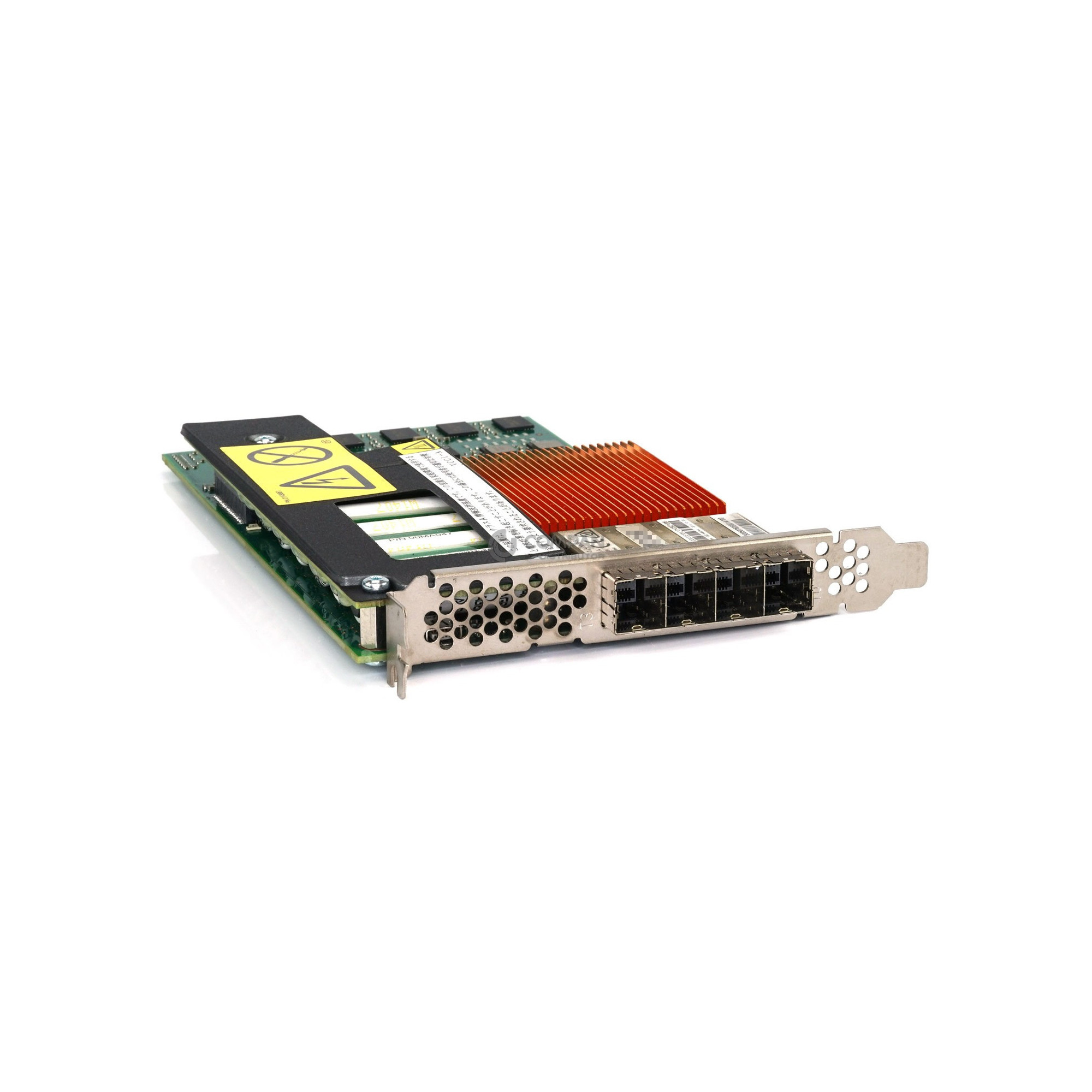

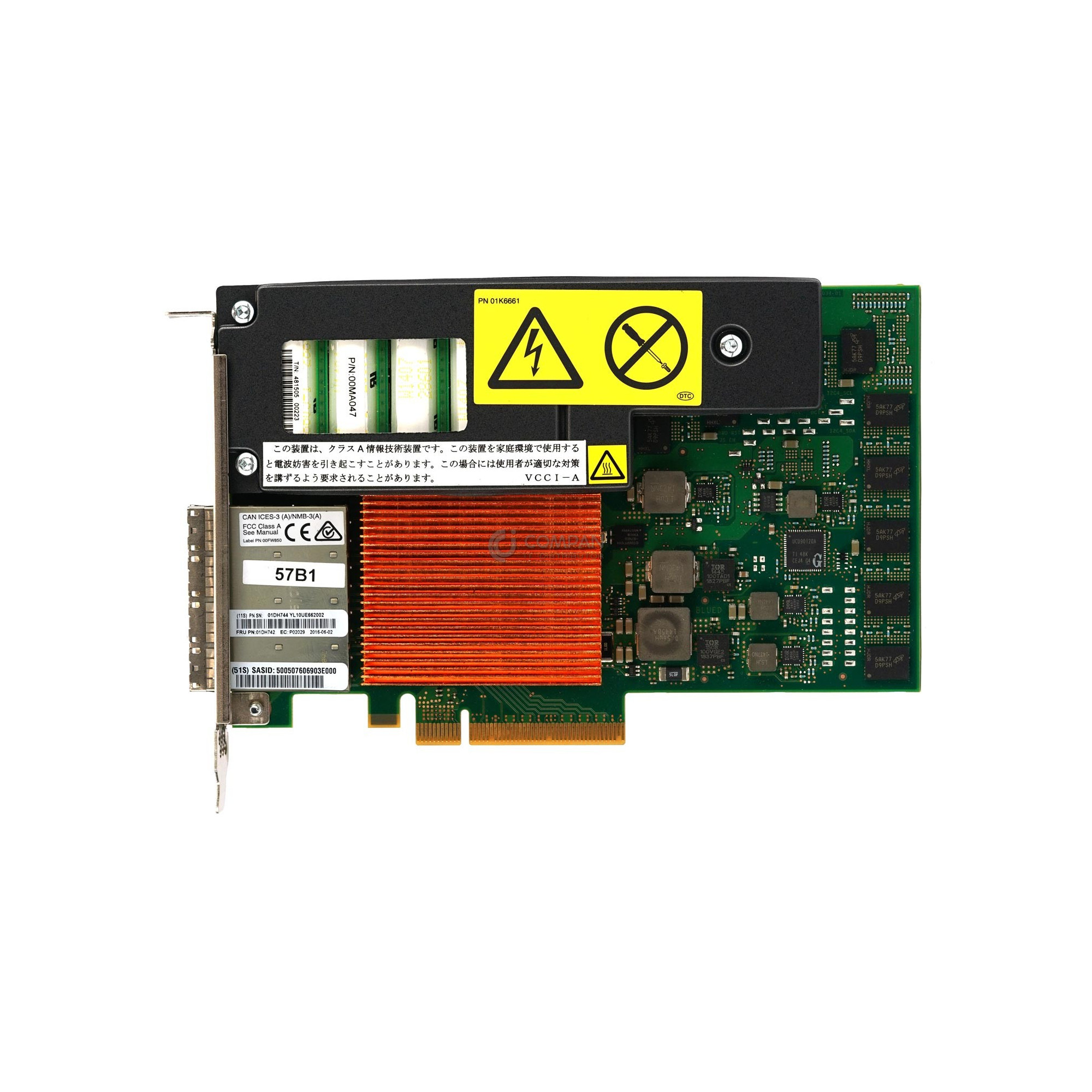

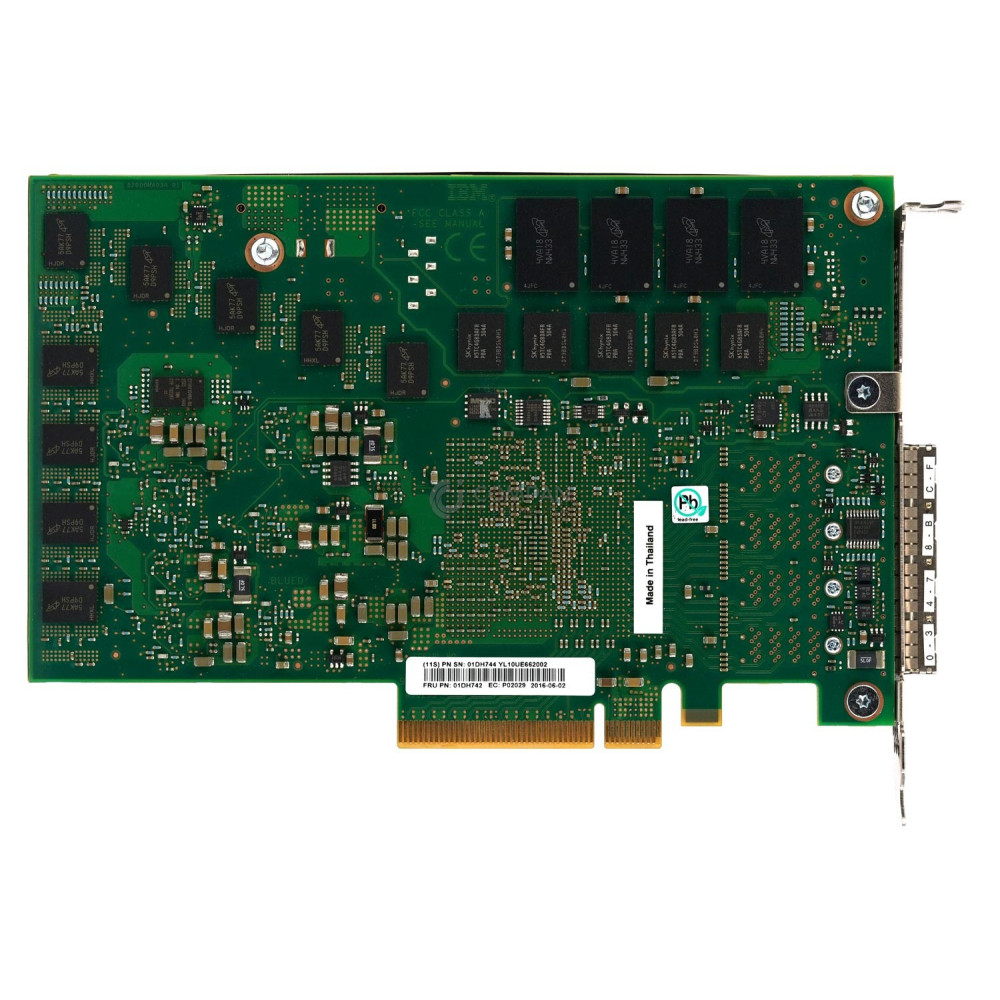

57B1 IBM PCIE3 RAID 6G + SAS ADAPTER QUAD-PORT 12 GB CACHE FOR PSERIES POWER8 - 01DH742, 01DH744

57B1 IBM PCIE3 RAID 6G + SAS ADAPTER QUAD-PORT 12 GB CACHE FOR PSERIES POWER8 - 01DH742, 01DH744
Brand: IBM
Description: PCIE3 RAID 6G + SAS ADAPTER QUAD-PORT
12 GB Cache
PCIe3
The PCIe3 12GB Cache RAID SAS Adapter provides high performance HDD and/or SSD controller function using PCIe Gen3 technology. A pair of adapters are required to provide mirrored write cache data and adapter redundancy. Integrated flash memory provides protection of the write cache without batteries in case of power failure. Effectively up to 12GB of write cache is provided using compression of 4 GB of physical cache.
The #EJ0L provides four Mini-SAS HD (high density) narrow connectors for the attachment of SAS drives located in the SAS EXP24S expansion drawer or#5802/5803/EL36 12X PCIe I/O drawers. X, YO or AT SAS cables with HD narrow connectors are used to attach to these drawers. A max of 4 EXP24S can be attached with a maximum of 96 HDD or a maximum of 48 SSD. If controlling drives in a #5802/5803/ EL36 at least one of he #EJ0L pairs must be located in that #5802/ 5803/EL36. Two AA SAS cable with HD narrow connectors are attached to the #EJ0L pair to communicate status and cache content information and are required unless three or four ports are being used to attach HDD/SSD.
Variations: 01DH742, 01DH744
Compatibile With: PSERIES POWER8
