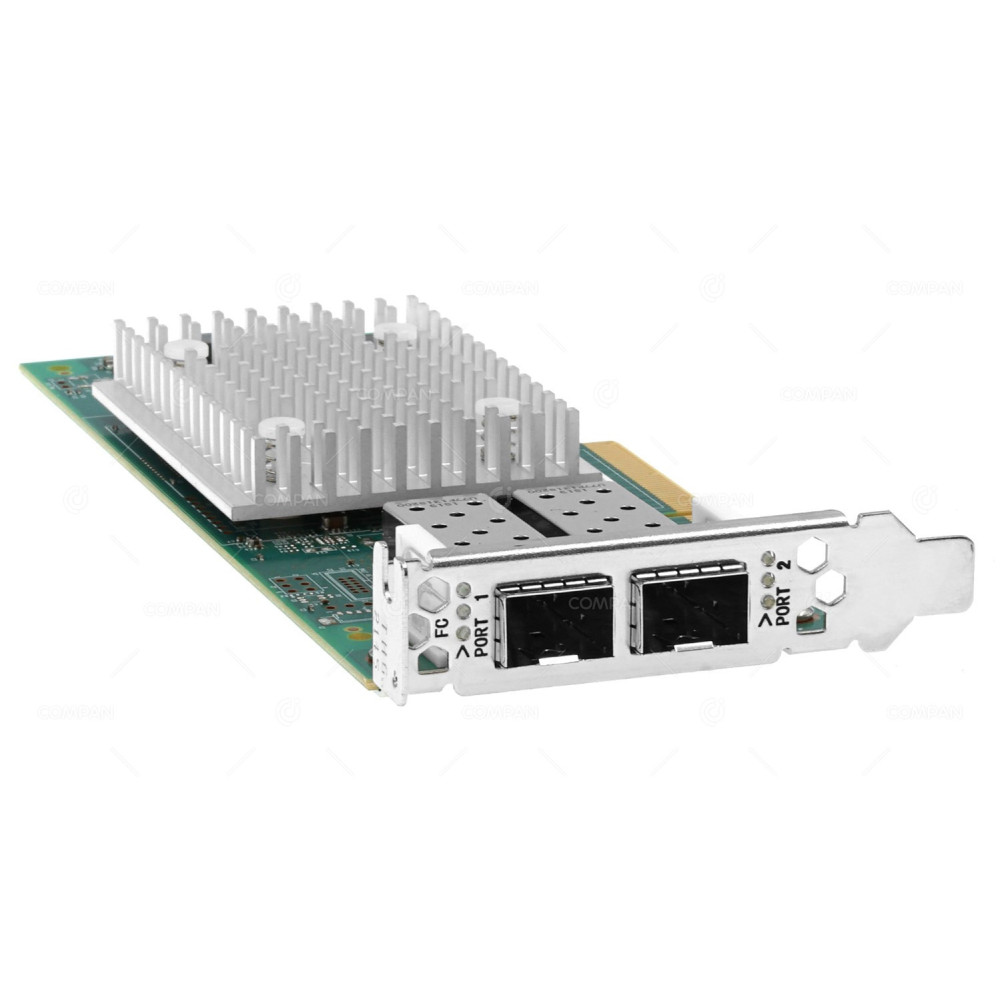

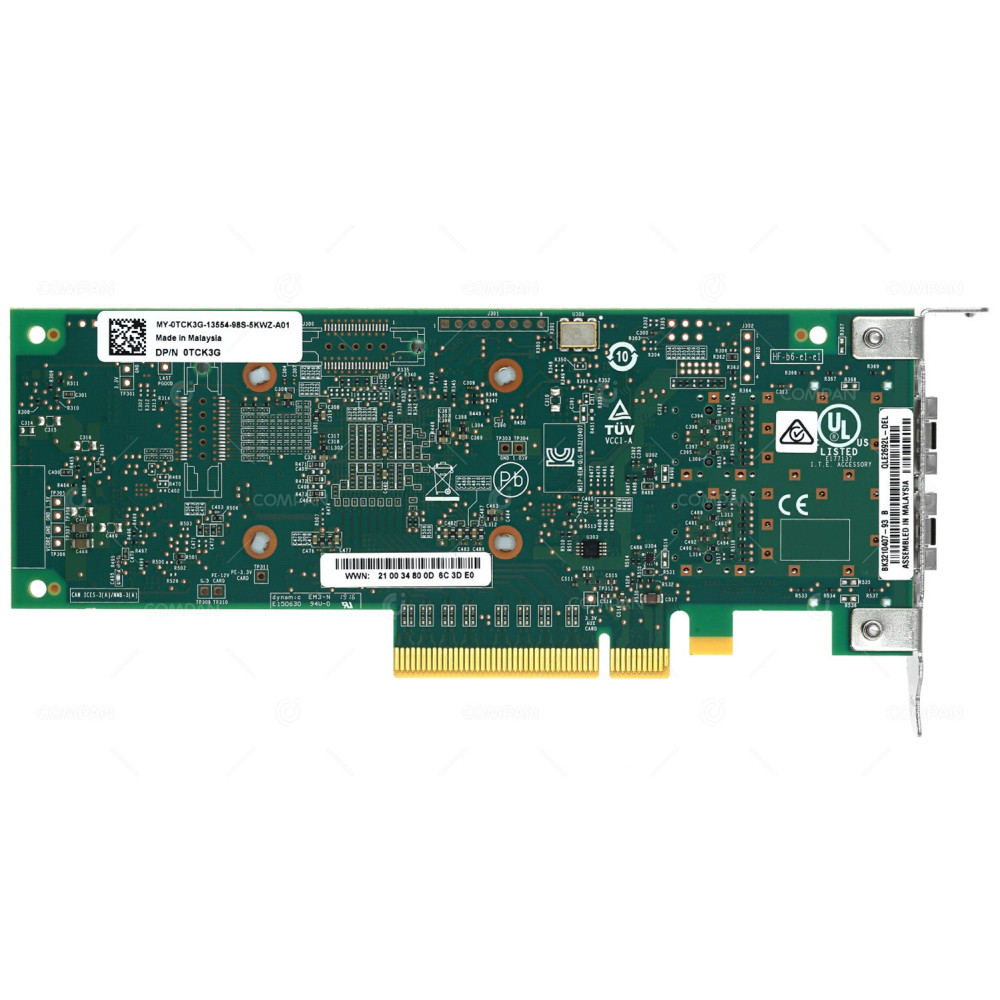

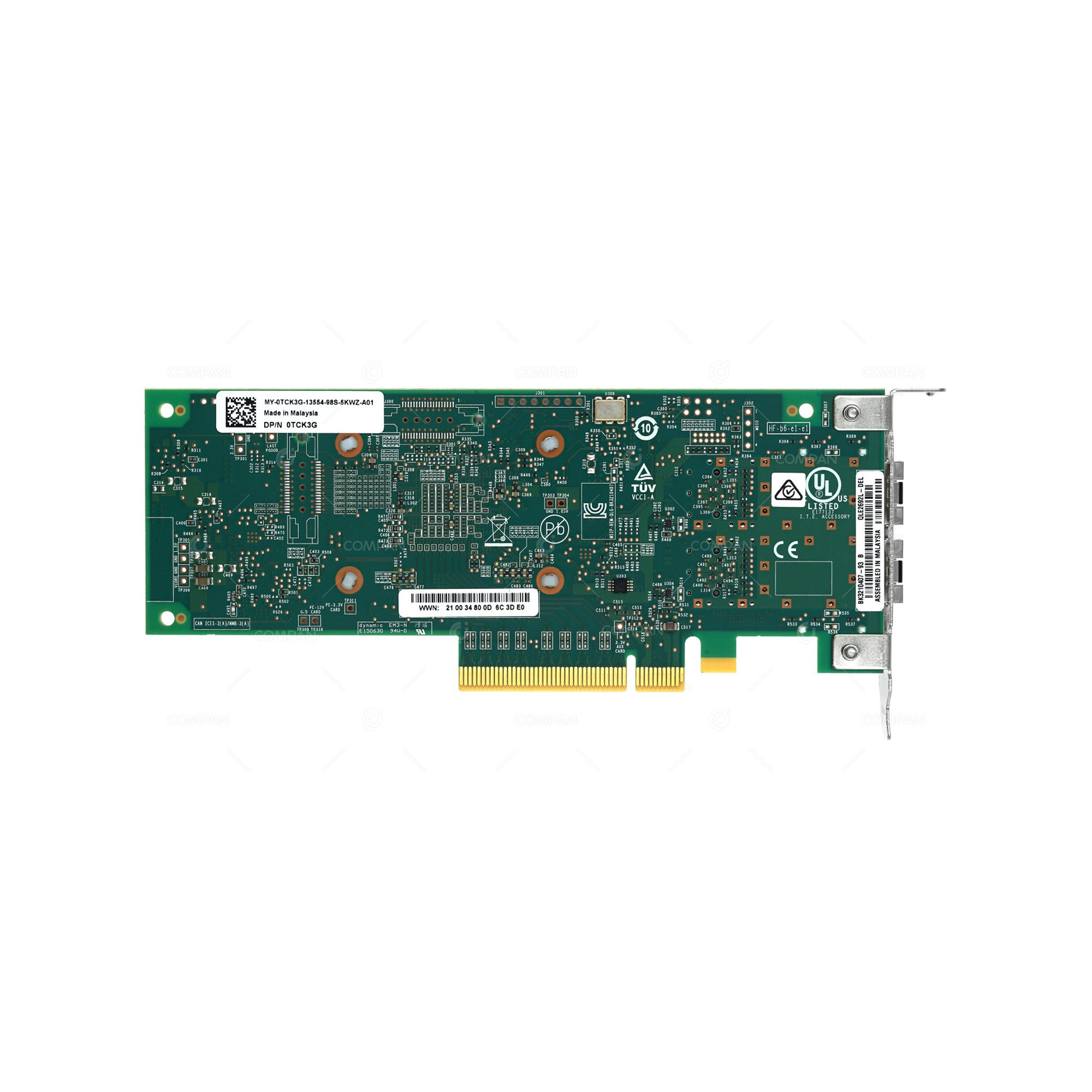

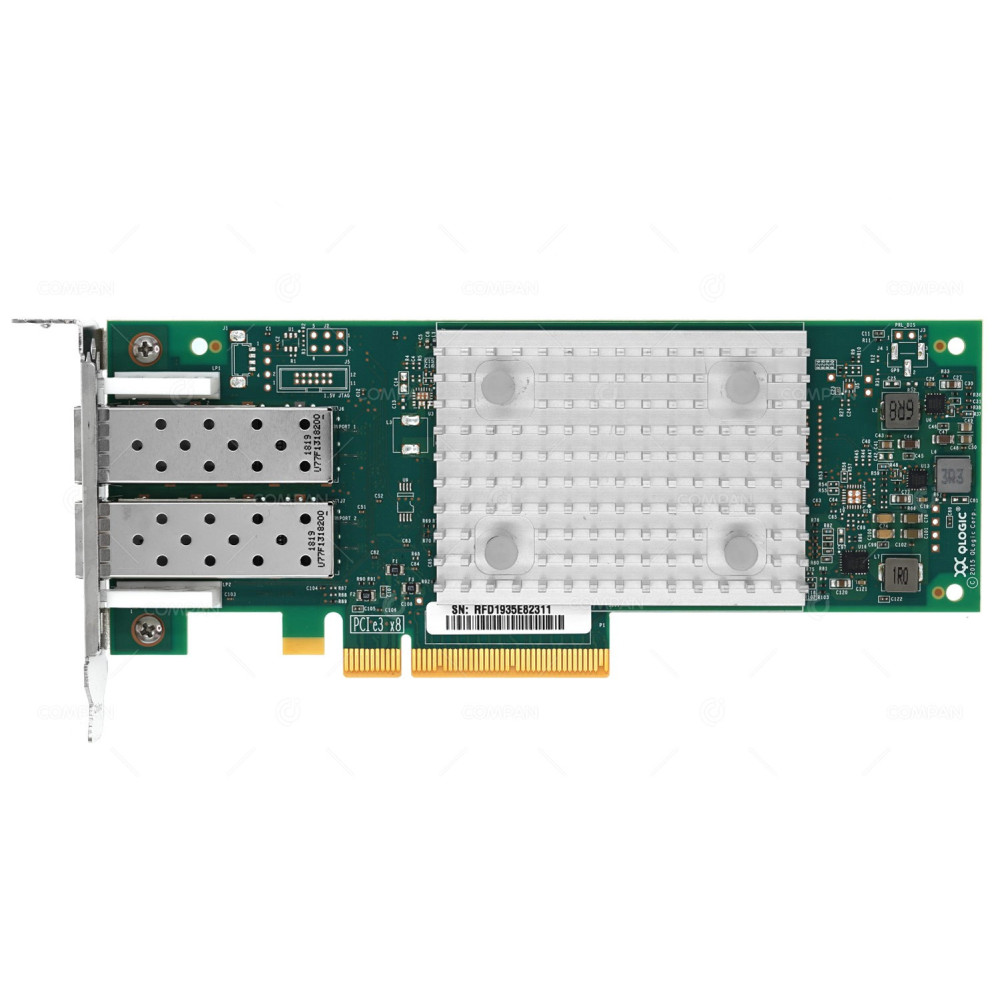

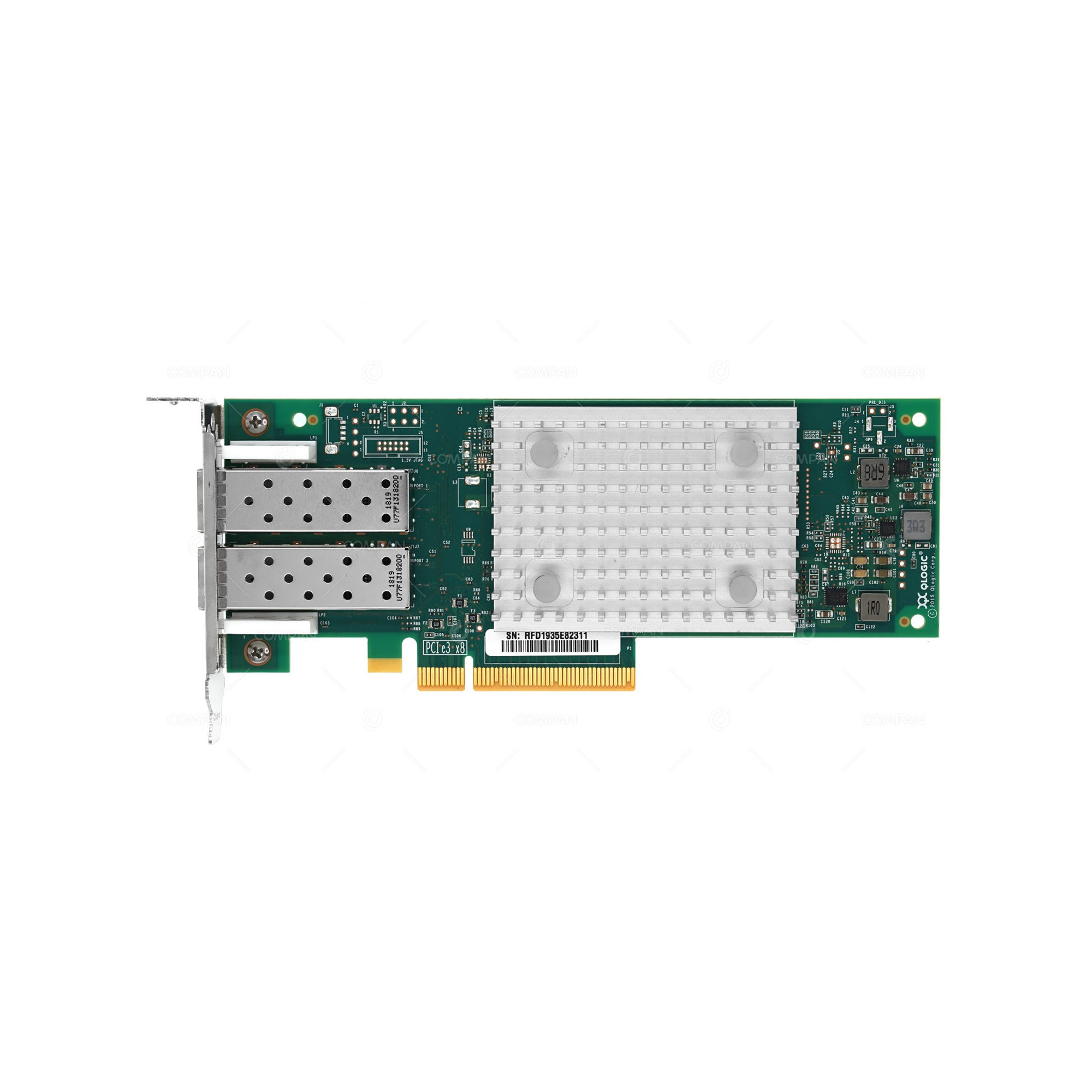

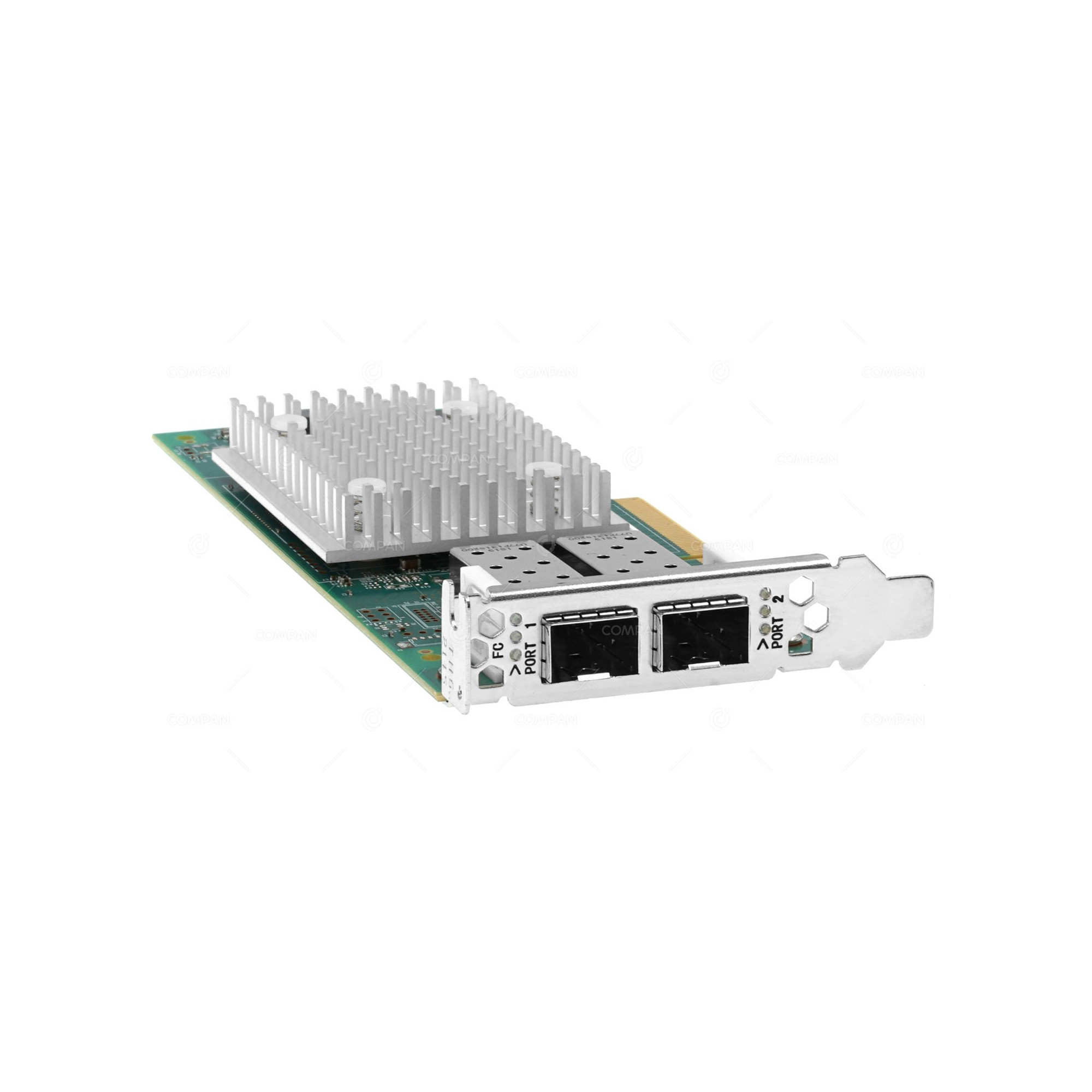

The QLogic 2692 Host Bus Adapter from Dell™ offers an exceptional performance and advanced management functionality that can shave days off installing and managing adapters. It is coupled with better IOPS performance per watt, which makes Dell 16 GB Fibre Channel (16GFC) host bus adapters the clear choice for the toughest virtualized, cloud and mission-critical deployments.
| type | Host bus adapter |
| form factor | Plug-in card - low profile |
| ports | 16Gb Fibre Channel x 2 |
| connectivity technology | Wired |
| data link protocol | 16Gb Fibre Channel |
| Interfaces | 16Gb Fibre Channel x2 |
| series | QLogic |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Fibre Channel | FC-GS-2, FC-GS-3, FCP-2, FC-PI-5, FC-Tape, SCSI-FCP |
| Data Transfer Rate | 16 GBps |
| Dell PowerEdge: | C4130, FC430, FC630, FC640, FC830, R440, R530, R540, R630, R640, R6415, R650, R650xs, R6515, R6525, R730, R730XD, R730xd XL, R740, R740XD, R740xd2, R7415, R7425, R750, R750xa, R750xs, R7515, R7525, R830, R840, R940xa |
| Dell PowerVault: | ME4012, ME4024, ME4084, ME5012, ME5024, ME5084, NX3240, NX3340 |
