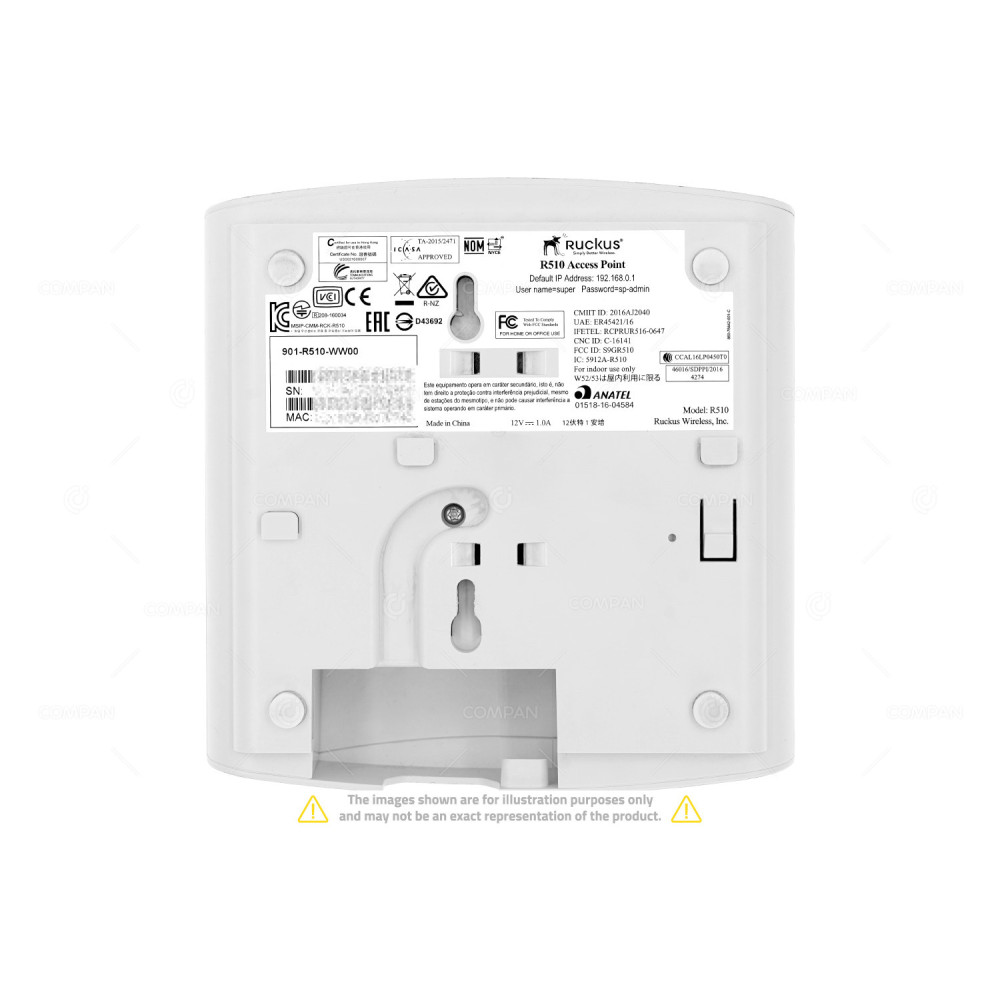

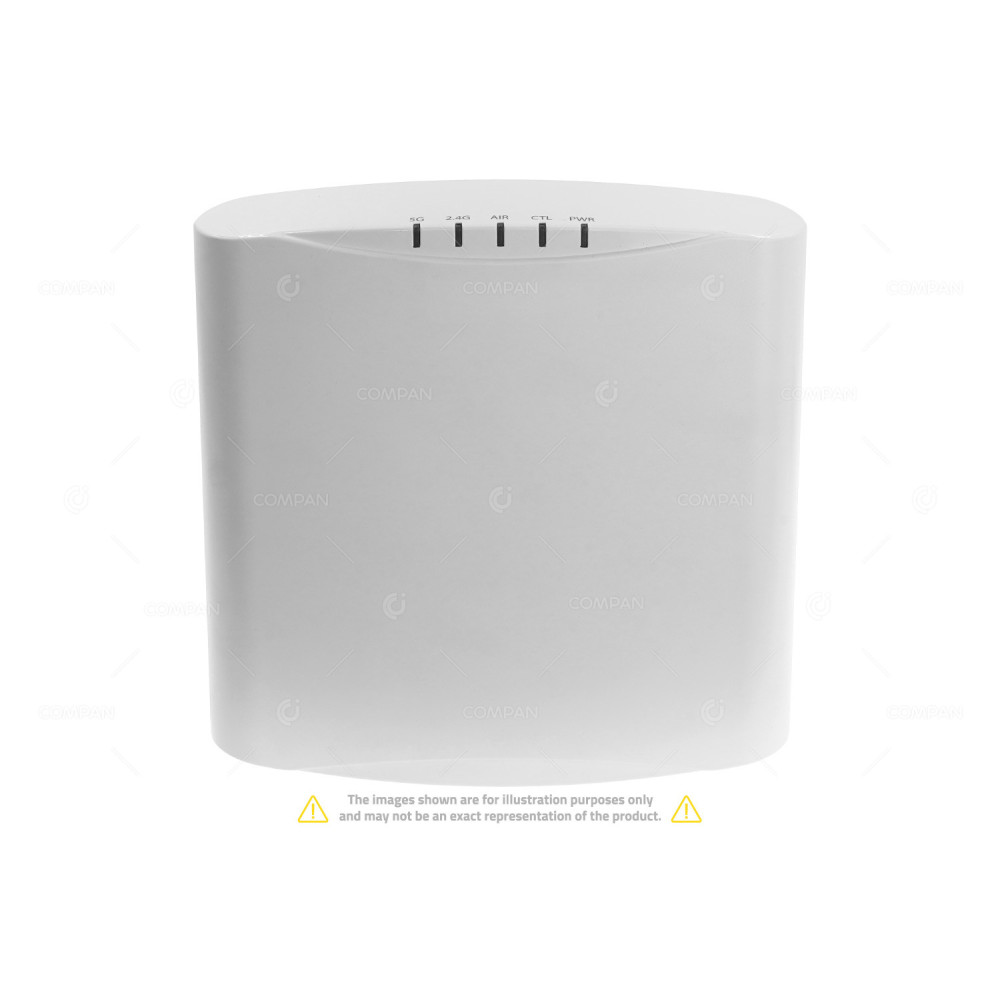

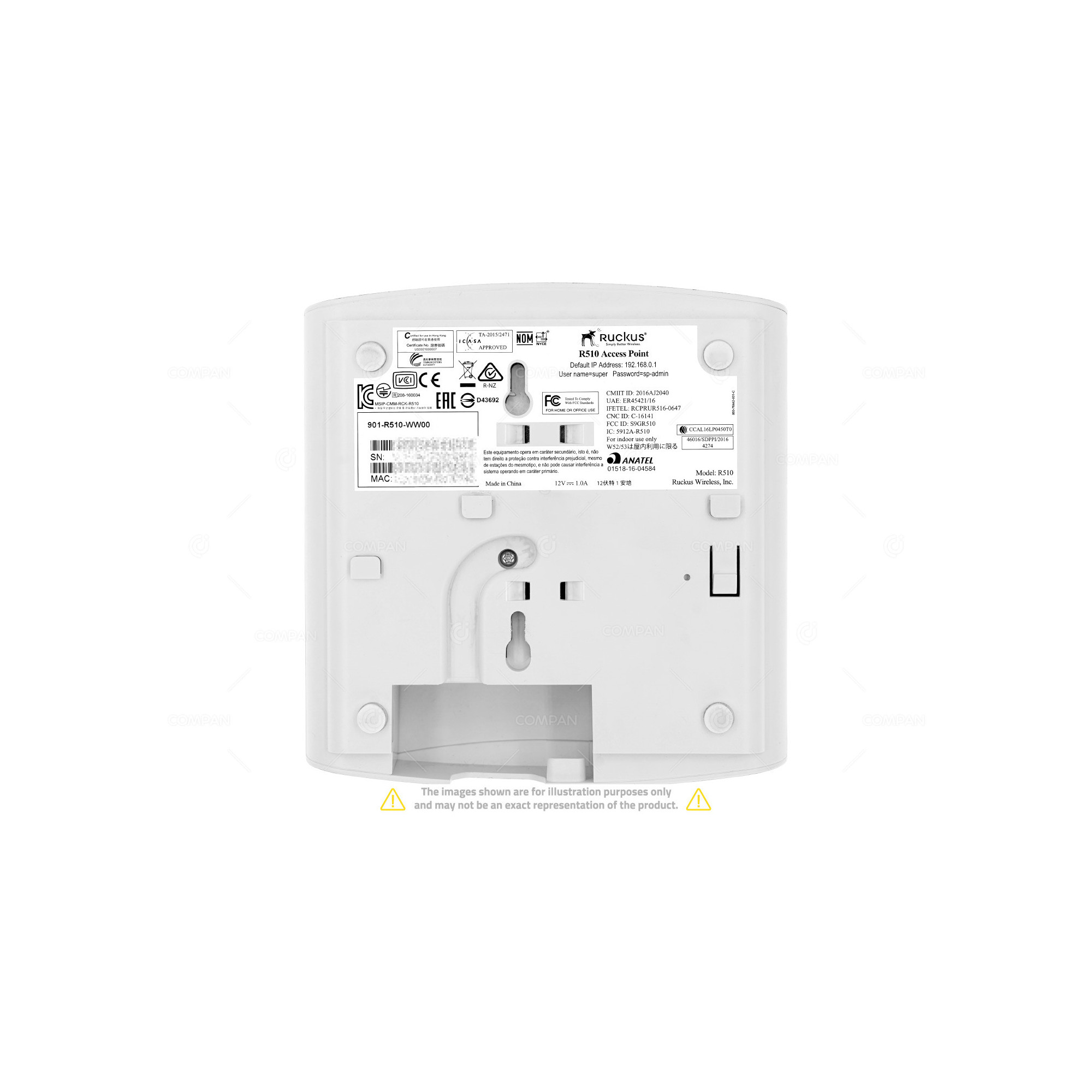

901-R510-WW00 RUCKUS R510 2X2 INDOOR ACCESS POINT 802.11 A/B/G/N/AC

RUCKUS 901-R510-WW00 INDOOR ACCESS POINT 802.11 AC WAVE 2

General Information

MPN	901-R510-WW00
Manufacturer	Ruckus
Model	ZoneFlex R510
Product Type	Indoor Access Point
Wi-Fi Standard	802.11ac Wave 2
Frequency Bands	2.4 GHz and 5 GHz
Form Factor	Wall/Ceiling mount

Wireless Features

Max PHY Rate	867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
Concurrent Clients Supported	Up to 512
Spatial Streams	2x2:2 MU-MIMO
Channel Width	20/40/80 MHz
Antenna Technology	BeamFlex+ adaptive antenna
ChannelFly	Yes (Dynamic Channel Selection)
SmartMesh Networking	Supported
MU-MIMO	Yes
Supported Standards	802.11a/b/g/n/ac Wave 2
Transmit Power	Up to 23 dBm per chain (region dependent)
Receiver Sensitivity	-99 dBm (varies by data rate and band)

Physical & Environmental Specifications

Dimensions (H x W x D)	19.8 x 19.8 x 3.5 cm (7.8 x 7.8 x 1.4 inches)
Weight	Approx. 580 grams (1.28 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	5% to 95% non-condensing
Storage Temperature	-20°C to 70°C (-4°F to 158°F)

Interfaces & Ports

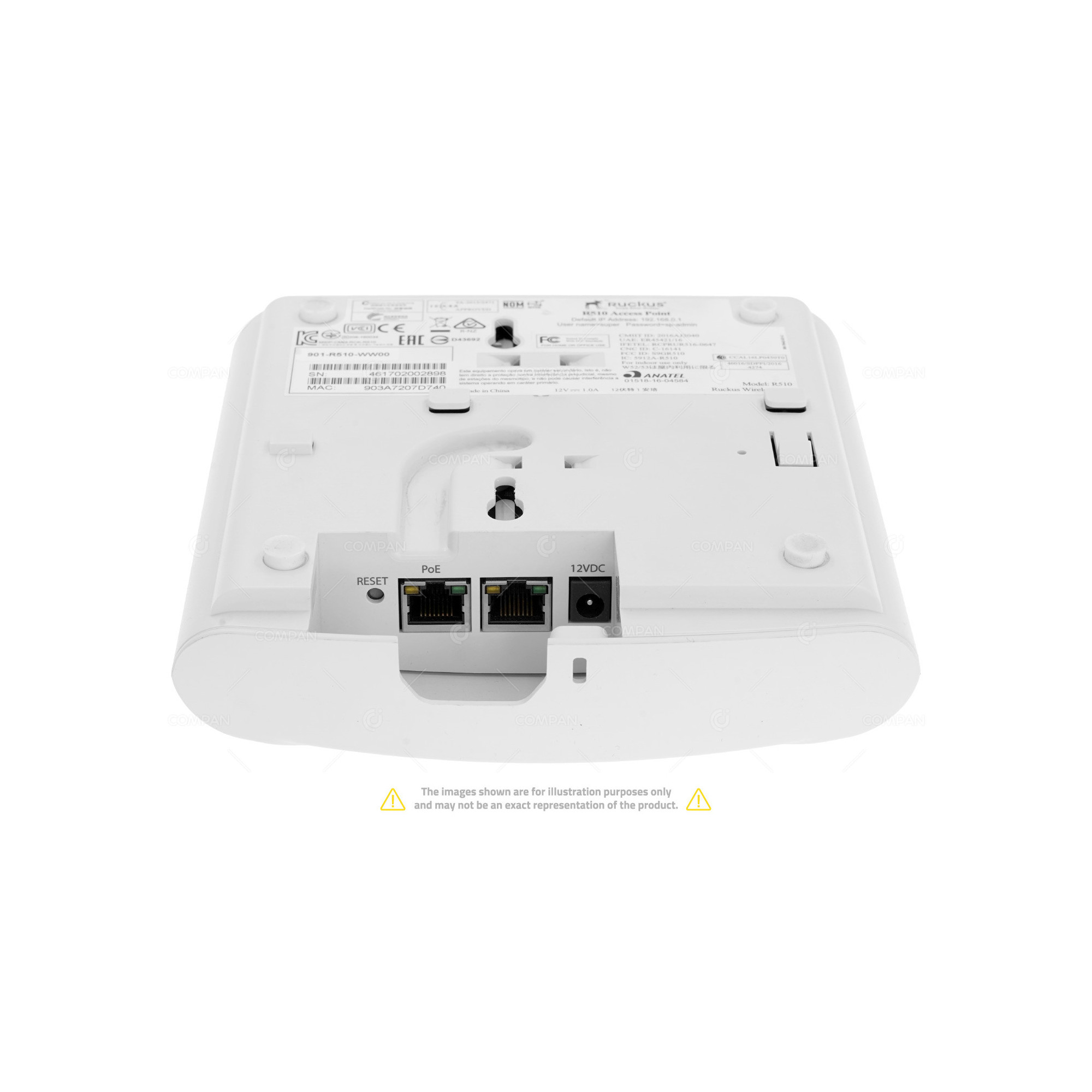

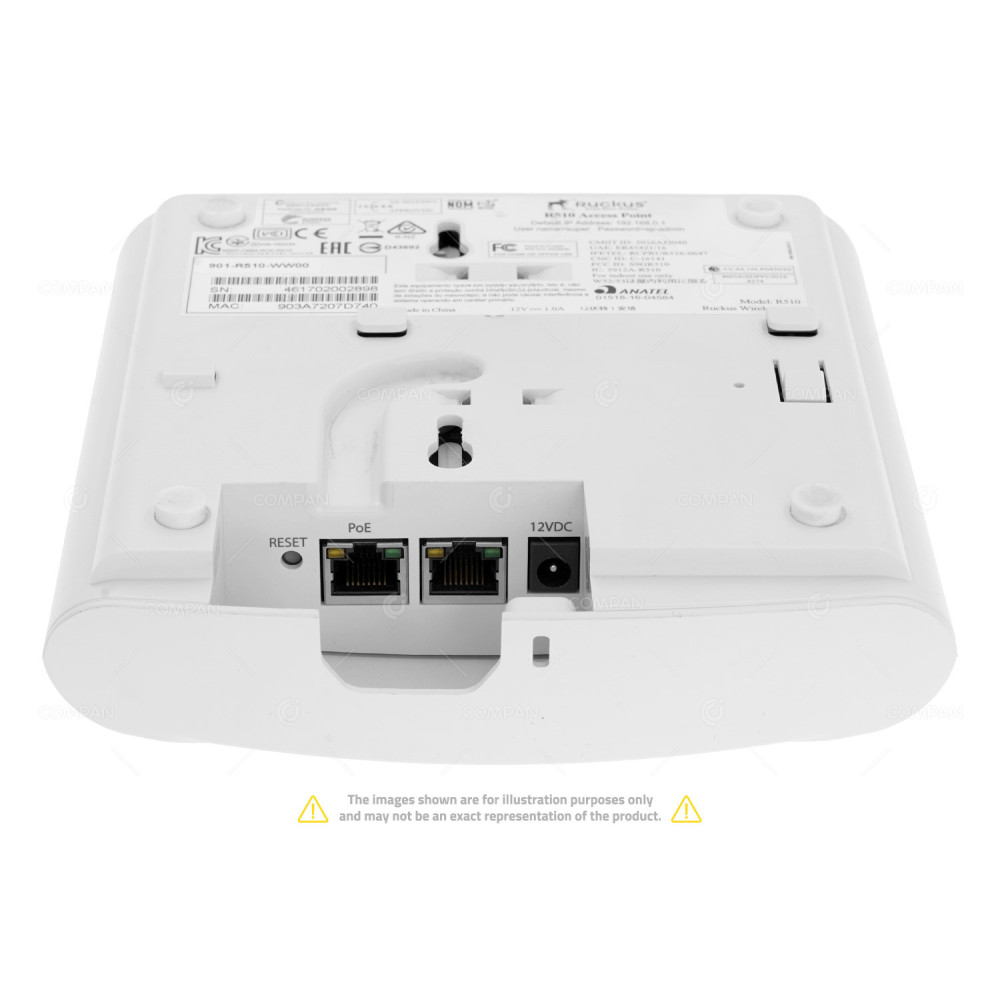

Ethernet Ports	2 × 1 Gigabit Ethernet (RJ-45) ports
Power over Ethernet (PoE)	802.3af PoE supported
BLE / ZigBee	Integrated (for IoT applications)

Power

Power Source	PoE (802.3af) or DC adapter (optional)
Power Consumption	Max 12.95 W

Management & Security

Management Options	ZoneDirector, SmartZone, Unleashed, Ruckus Cloud
Security Protocols	WPA2, WPA3, 802.1X, AES Encryption
Guest Access	Supported

Compliance & Certifications

Certifications

FCC, IC, CE, RCM, Wi-Fi Alliance Certified

All products purchased in our store come with a one-year warranty against manufacturing defects. The warranty begins on the date of purchase and applies to all items in our inventory. If you encounter any issues, please contact our customer service team for assistance. Complaints can be submitted within 14 days of discovering a defect, and a proof of purchase is required for processing the request. In the event that a complaint is approved, we will repair or replace the item with a new one. For detailed information about the complaint procedure, please refer to the "Return Policies" section on our website.
