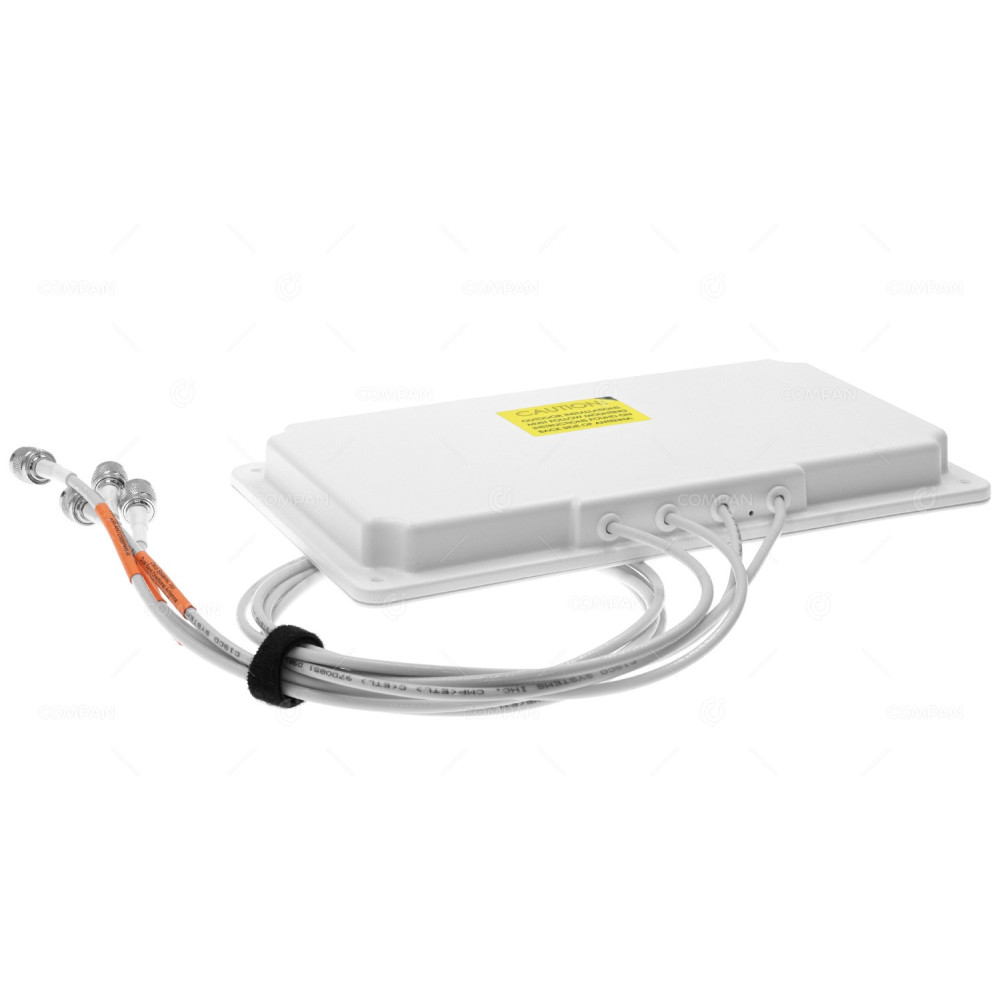

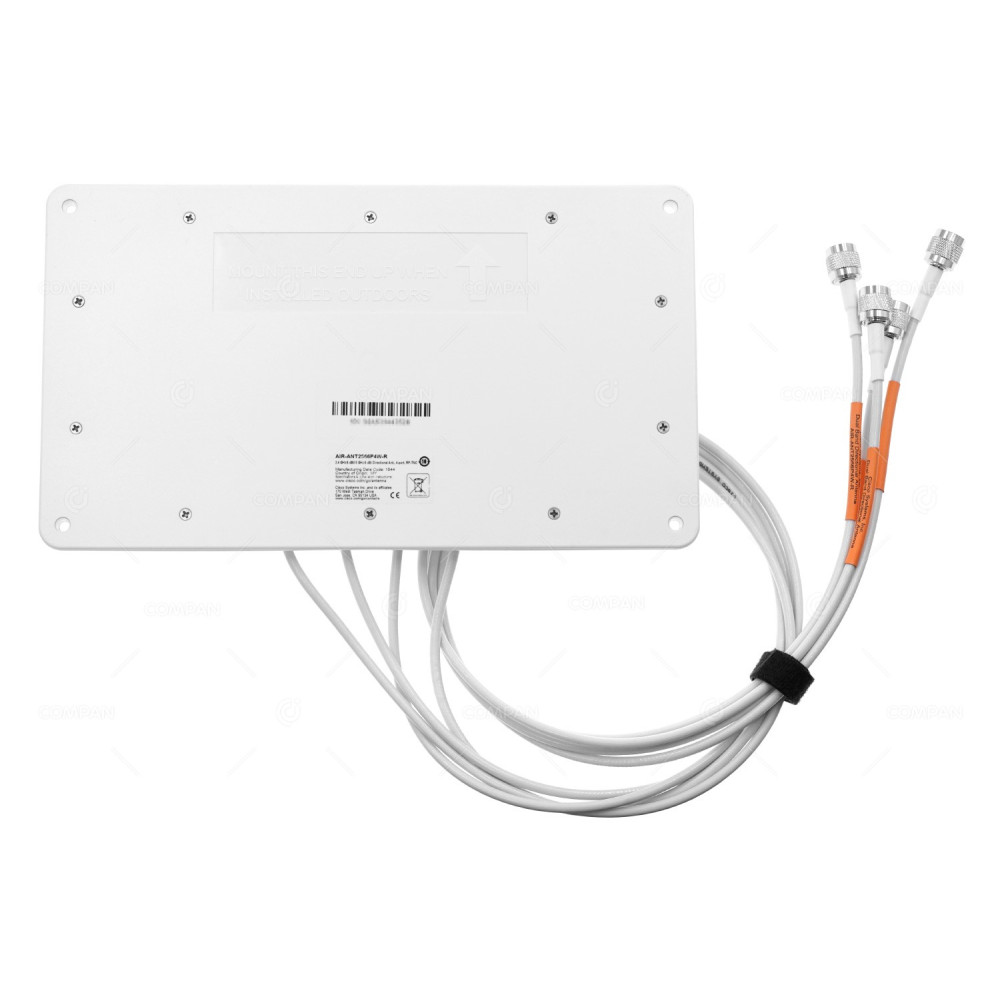

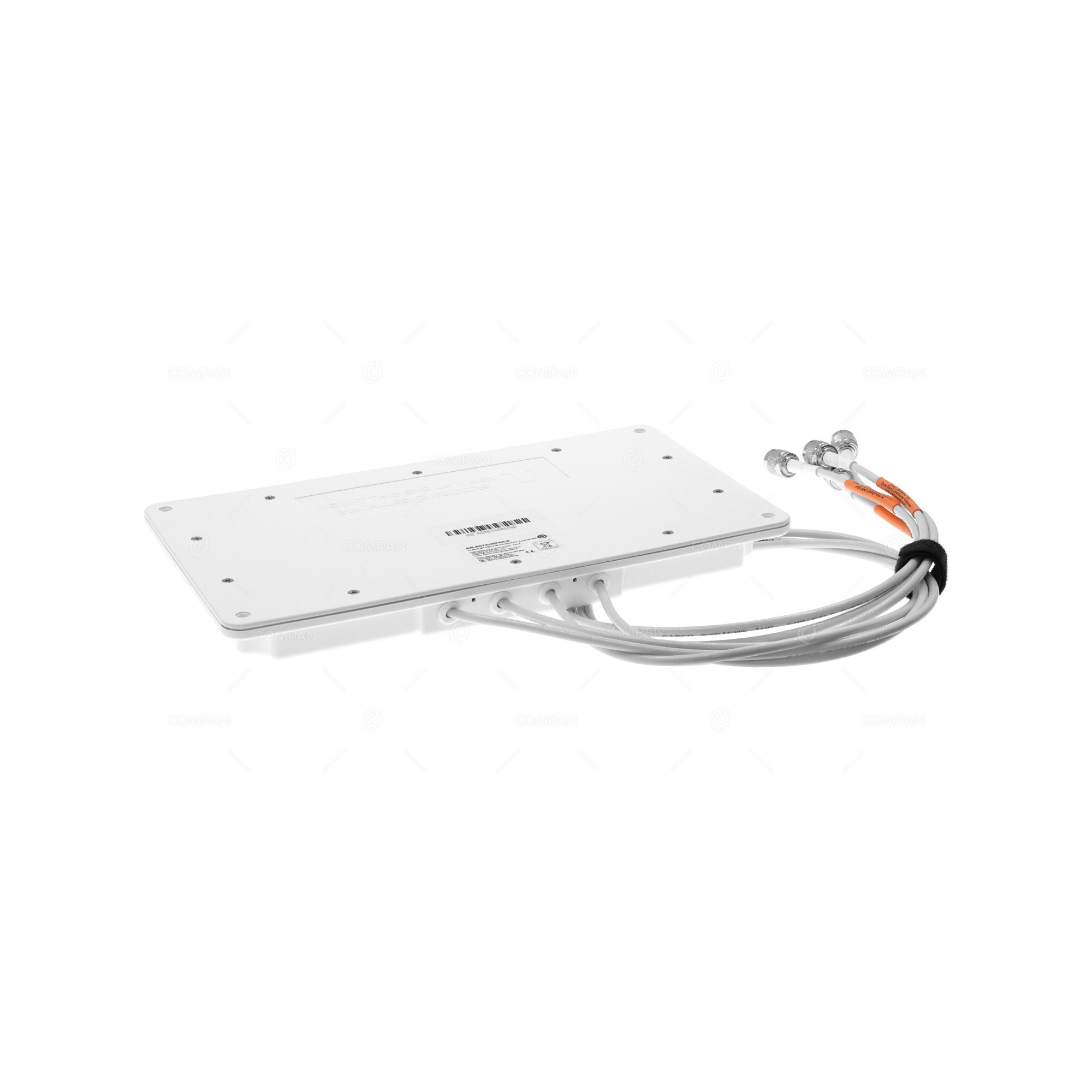

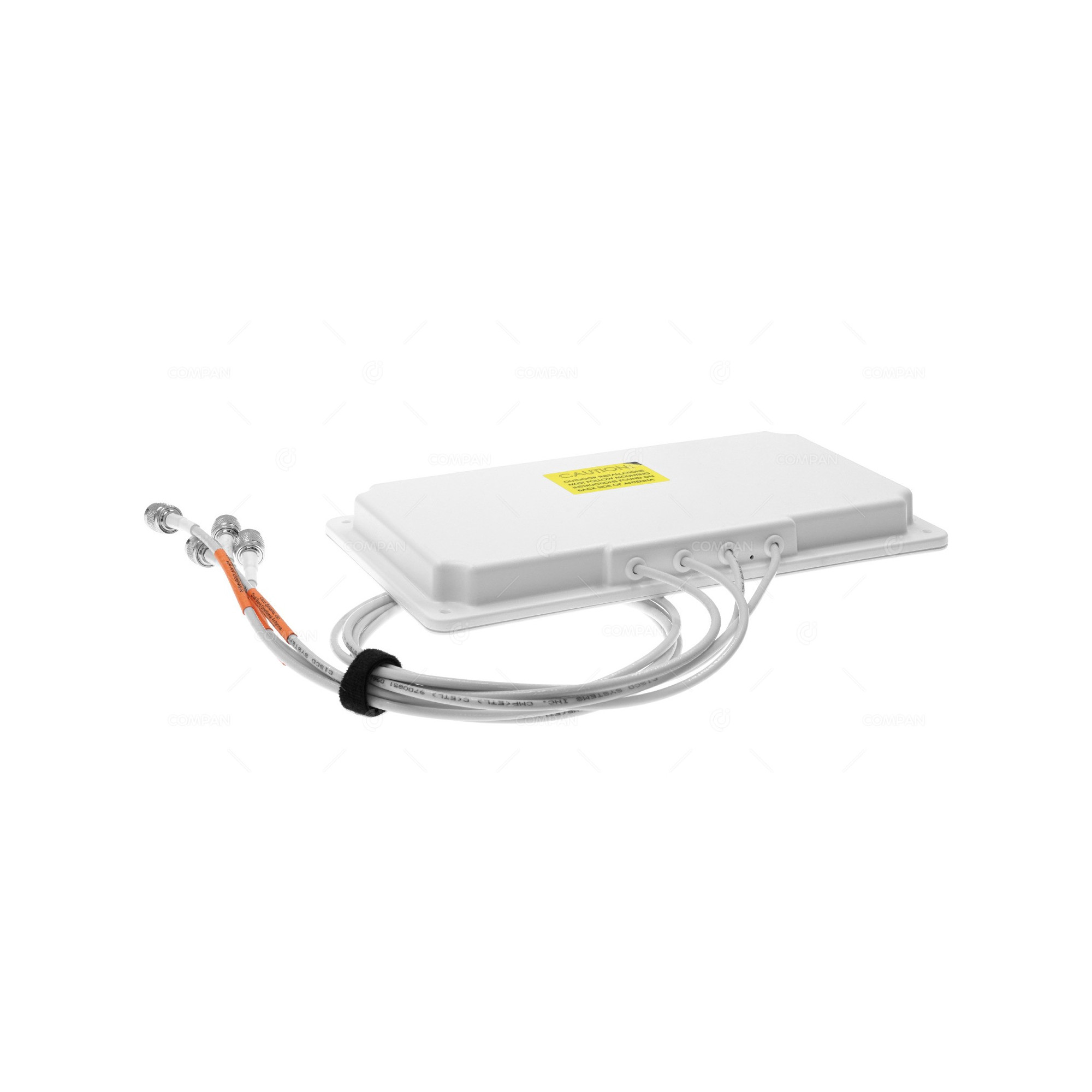

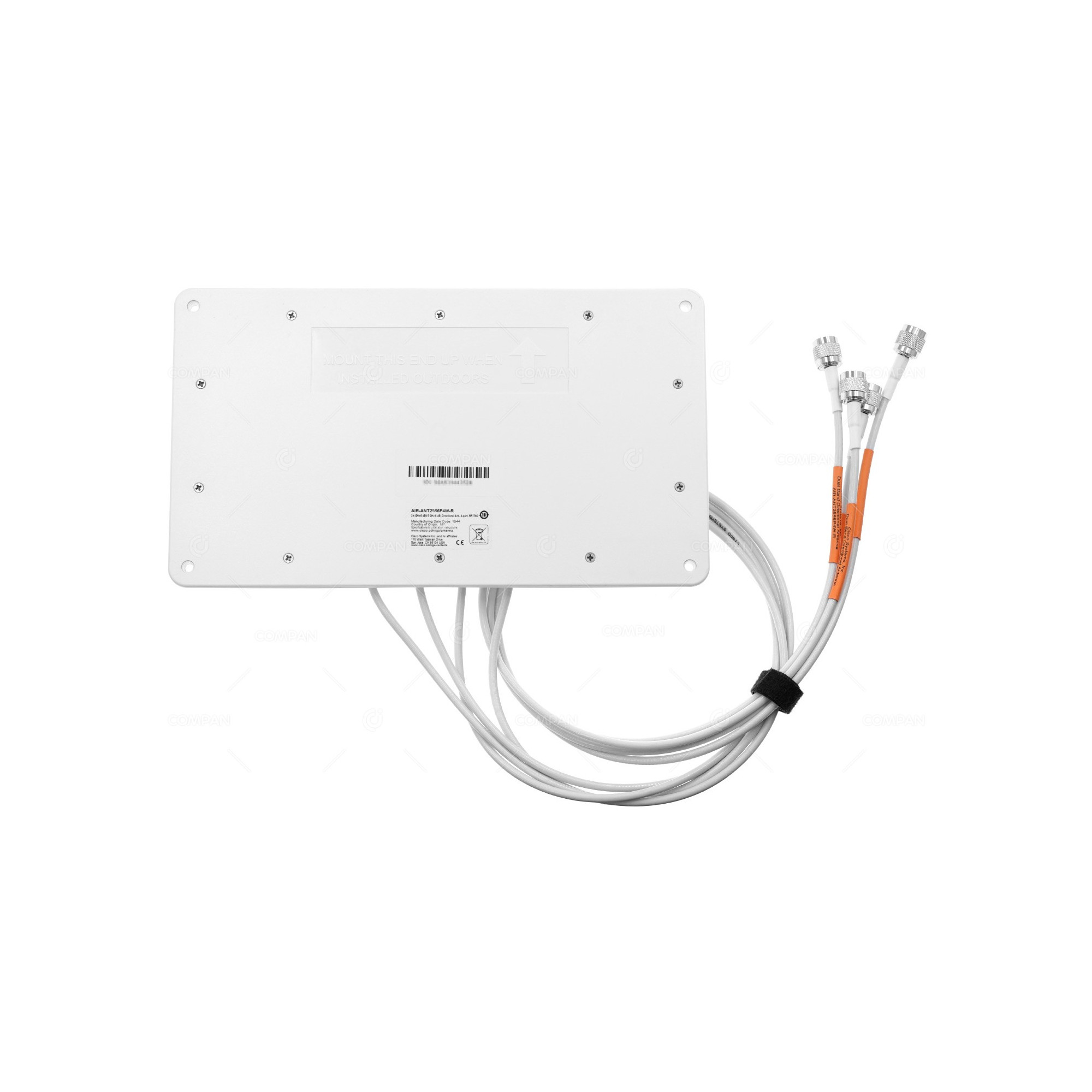

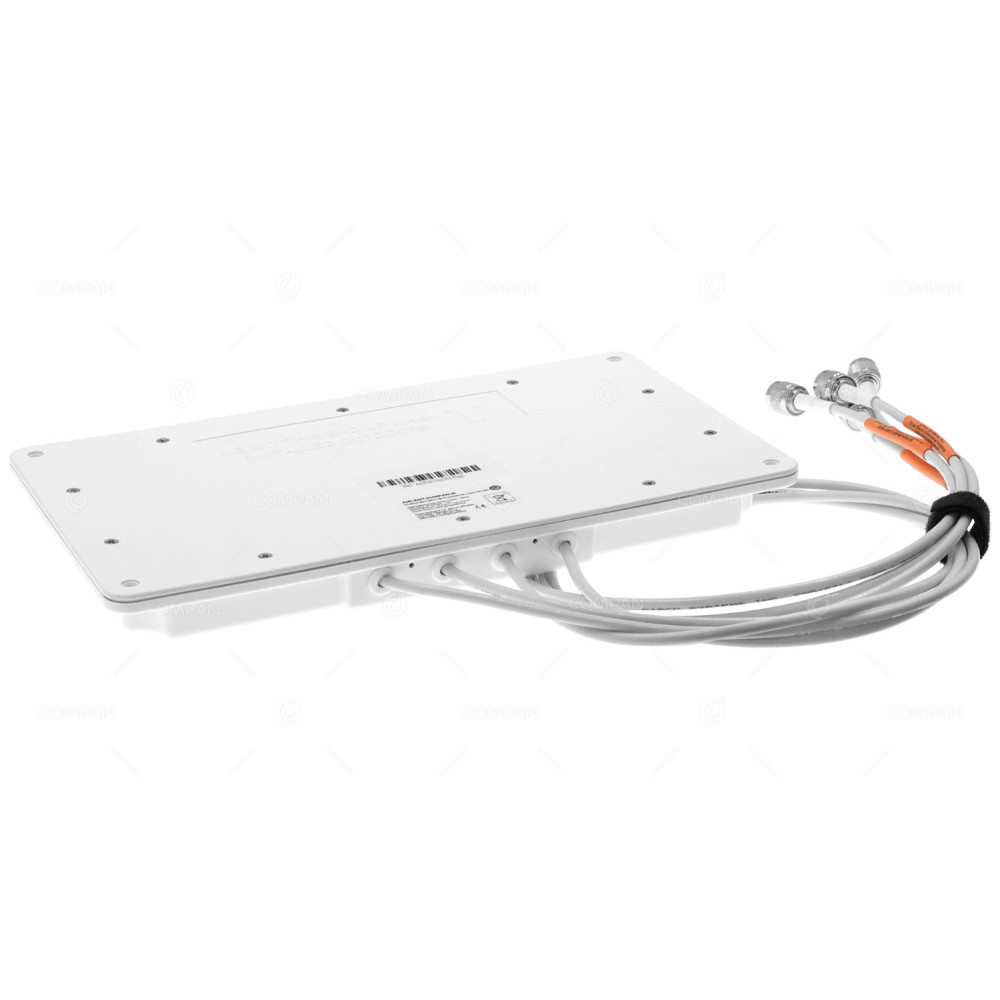

AIR-ANT2566P4W-R CISCO AIRONET 2.4GHZ 5GHZ DUAL BAND DIRECTIONAL ANTENNA

General Information

MPN	AIR-ANT2566P4W-R
Brand	CISCO
Model	AIR-ANT2566P4W-R

Specification

Antenna type	4-element dual-band MIMO
Operating frequency range	2400 to 2484 MHz 5150 to 5850 MHz
VSWR	2:1 or less
Gain	6 dBi in both bands
Polarization	Linear, vertical
Azimuth Plane 3-dB Beamwidth	2.4 GHz band: 105° 5 GHz band: 110°
Elevation Plane 3-dB Beamwidth	2.4 GHz band: 65° 5 GHz band: 55°
Cable length and type	3 ft. (91.4 cm) plenum rated
Connector	RP-TNC
Standard	IEEE 802.11n
