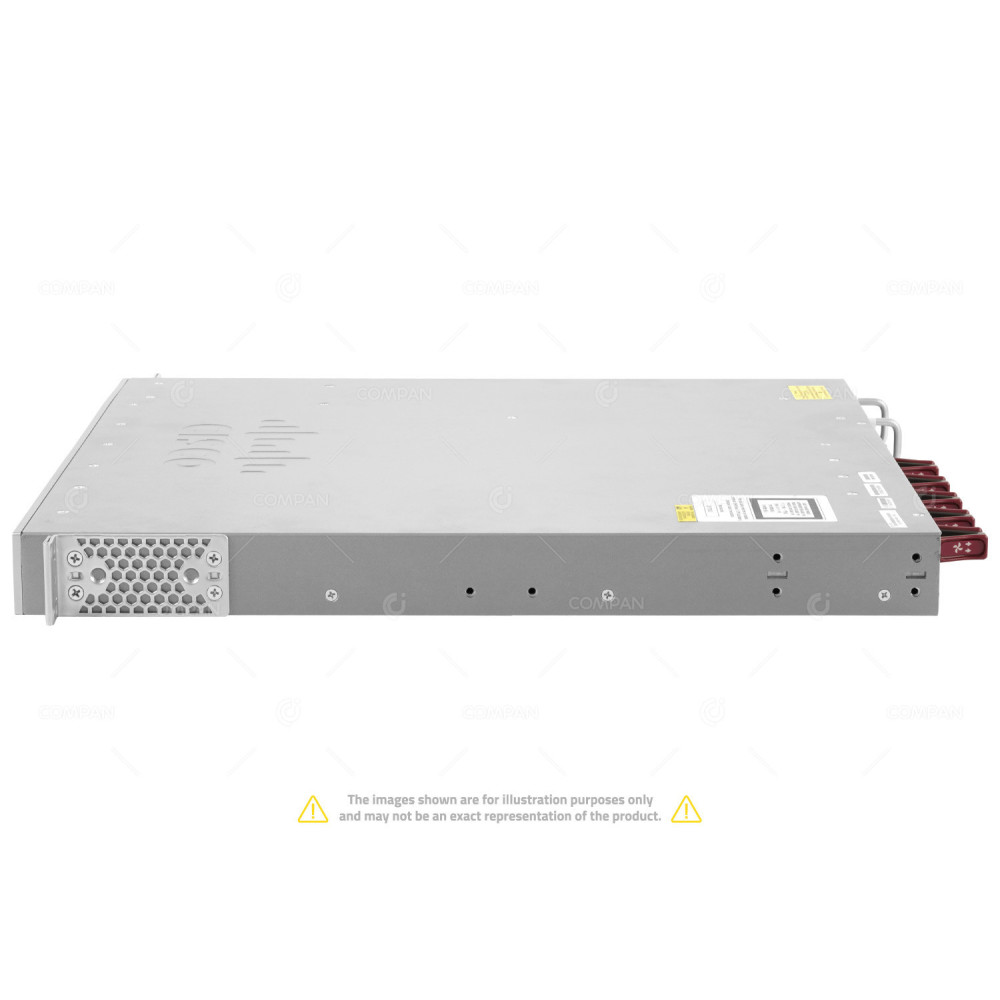

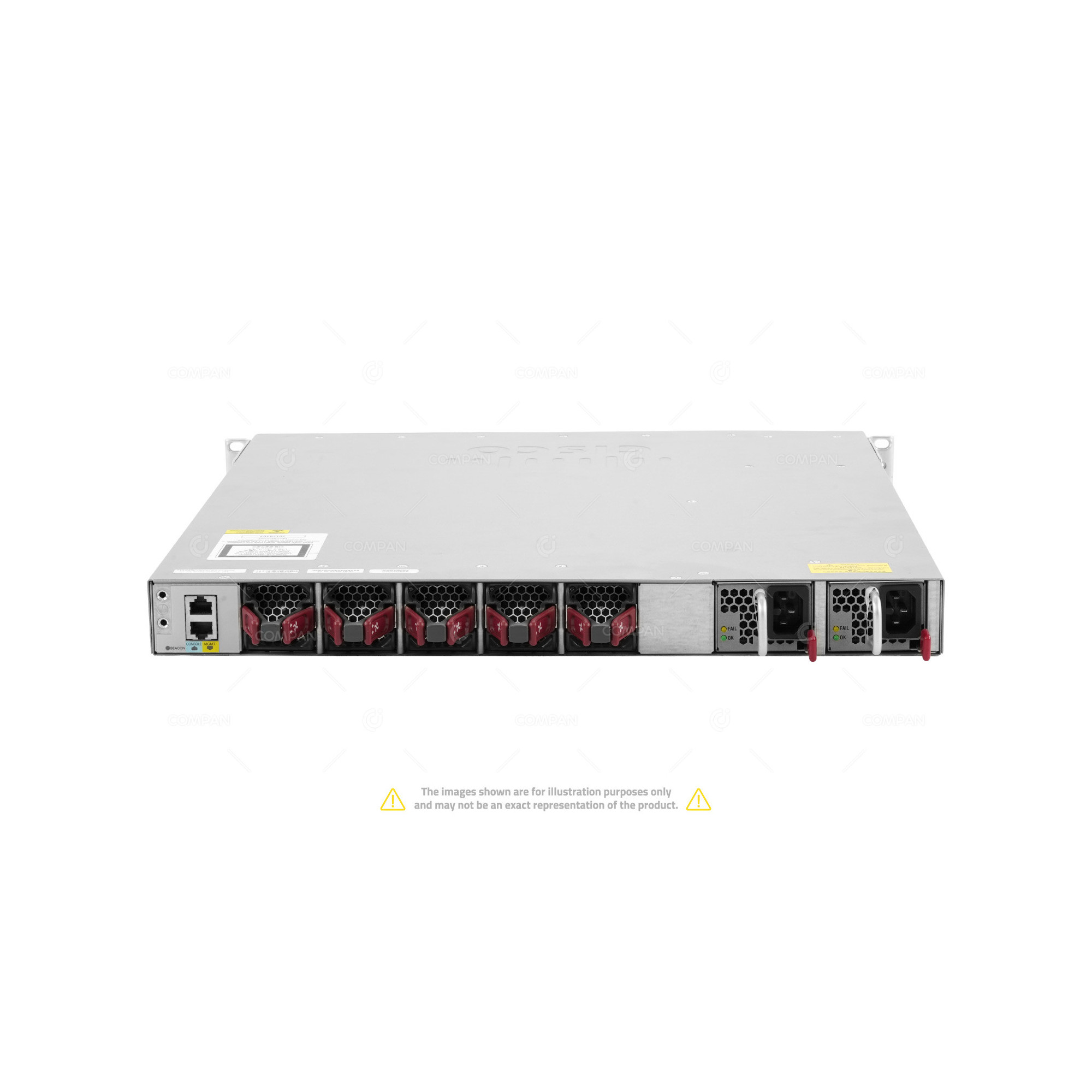

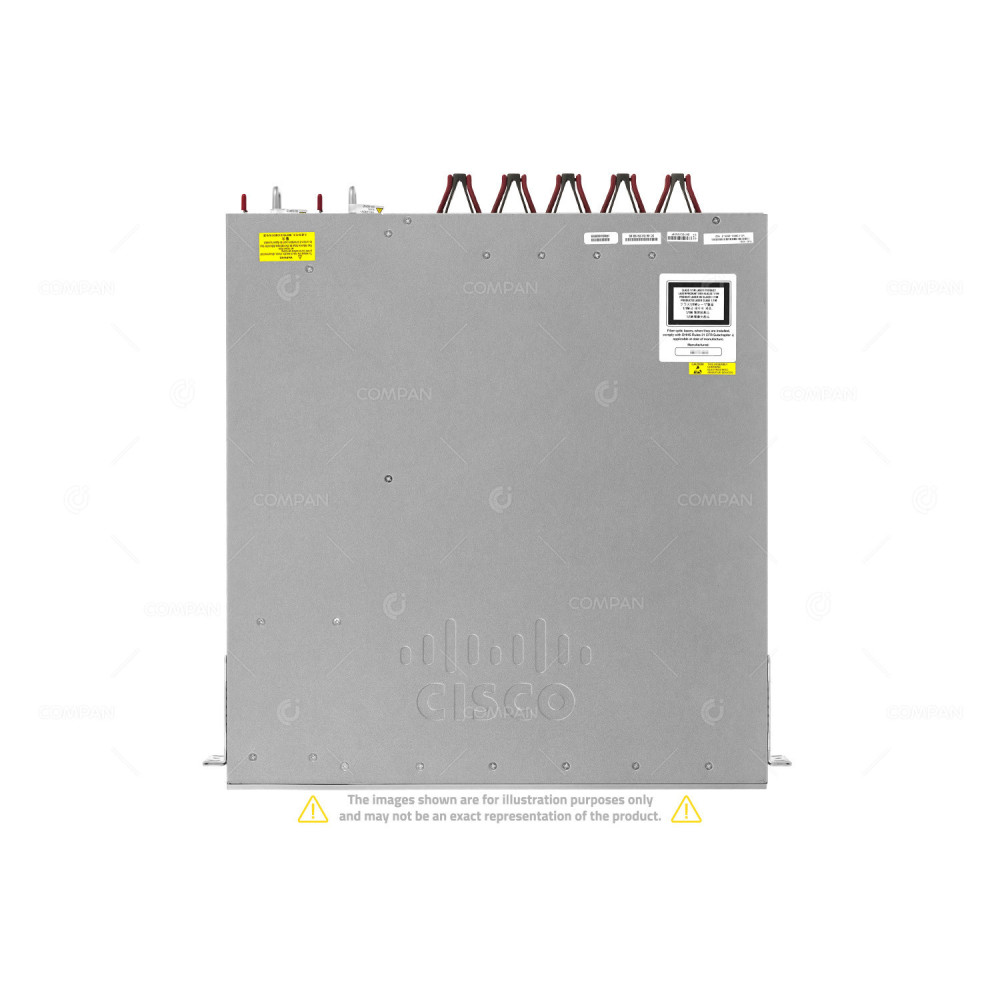

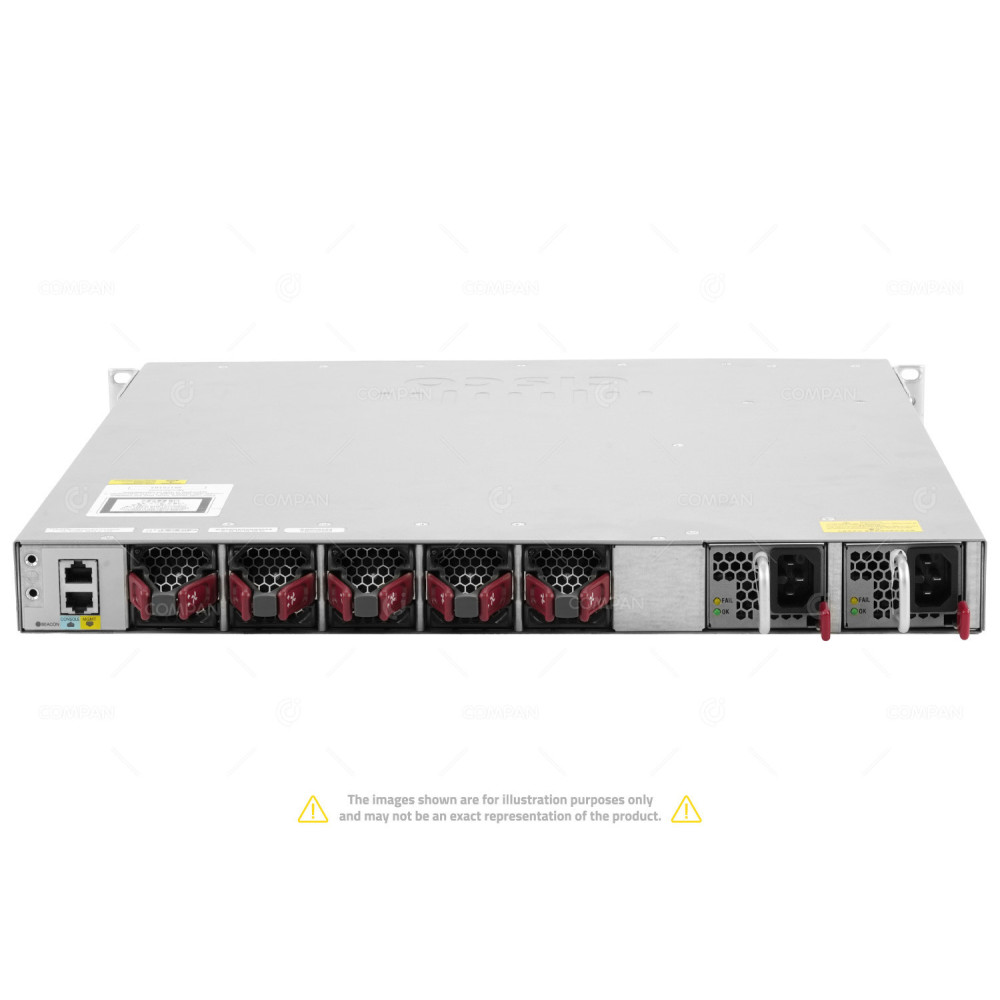

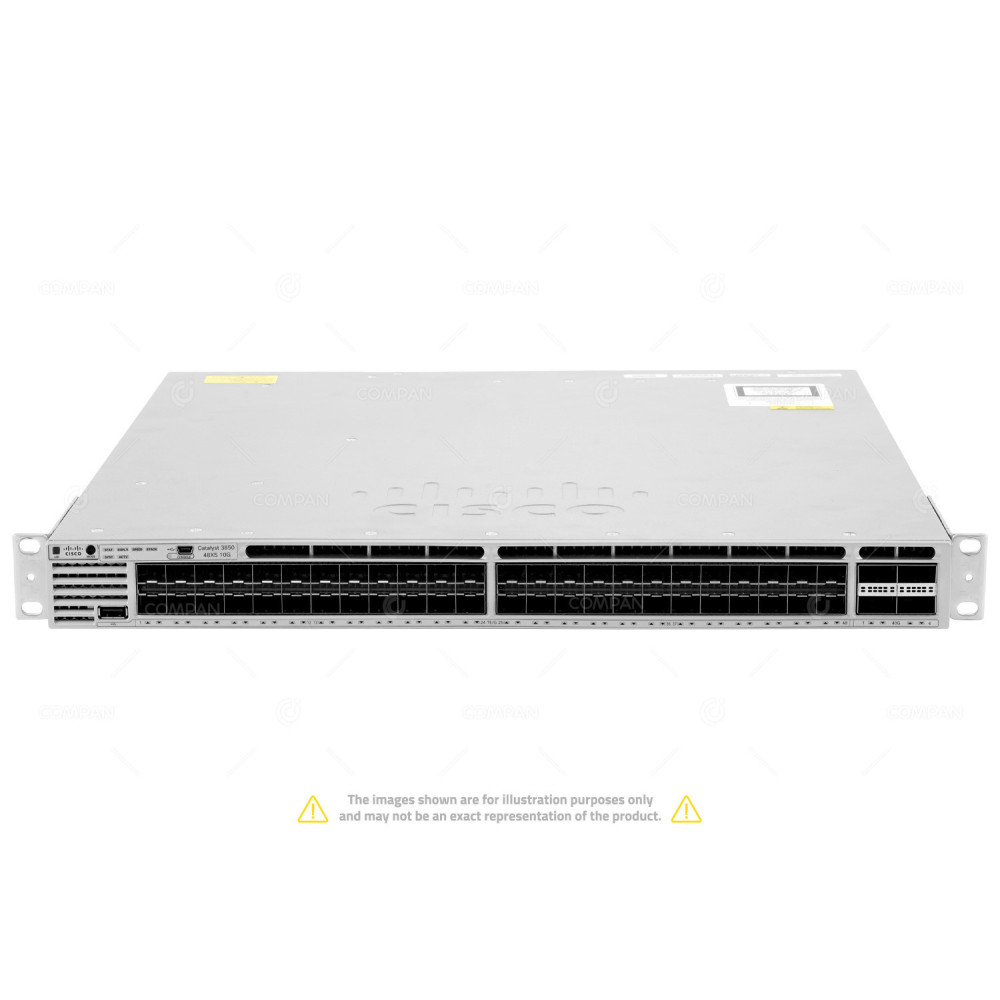

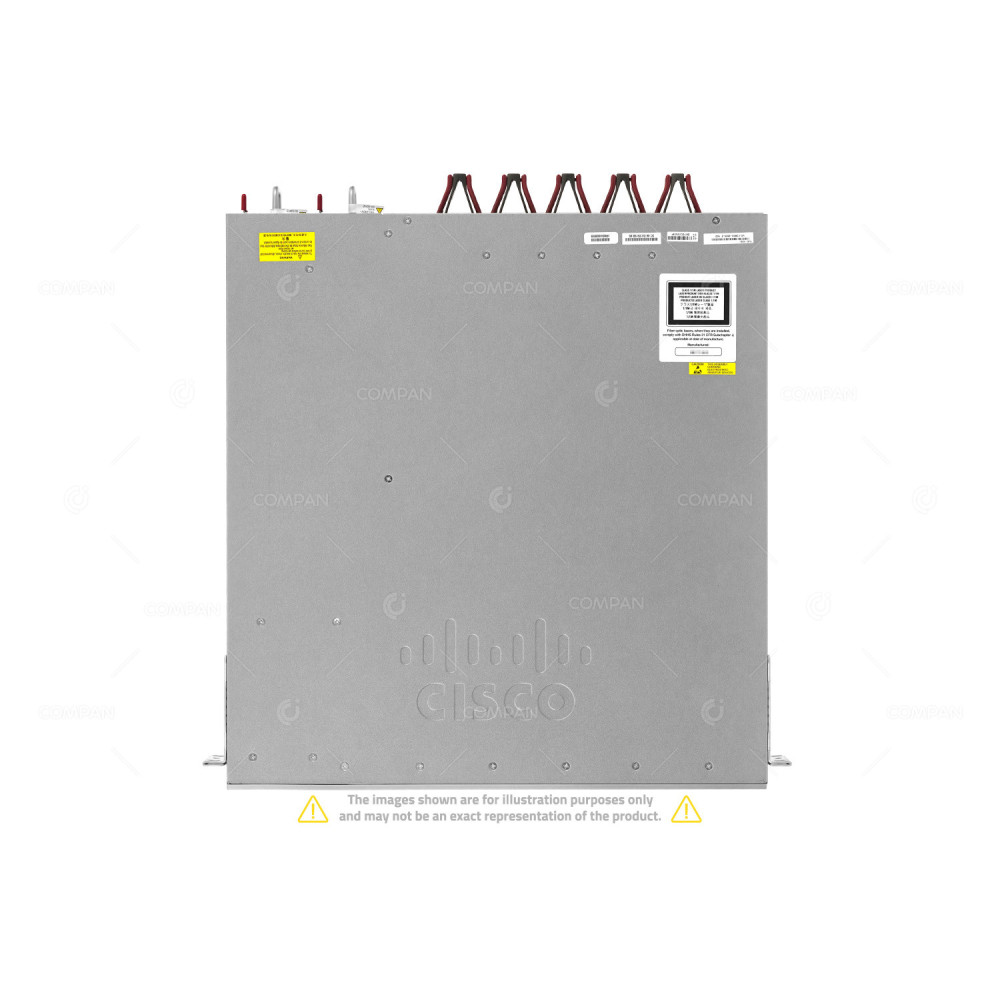

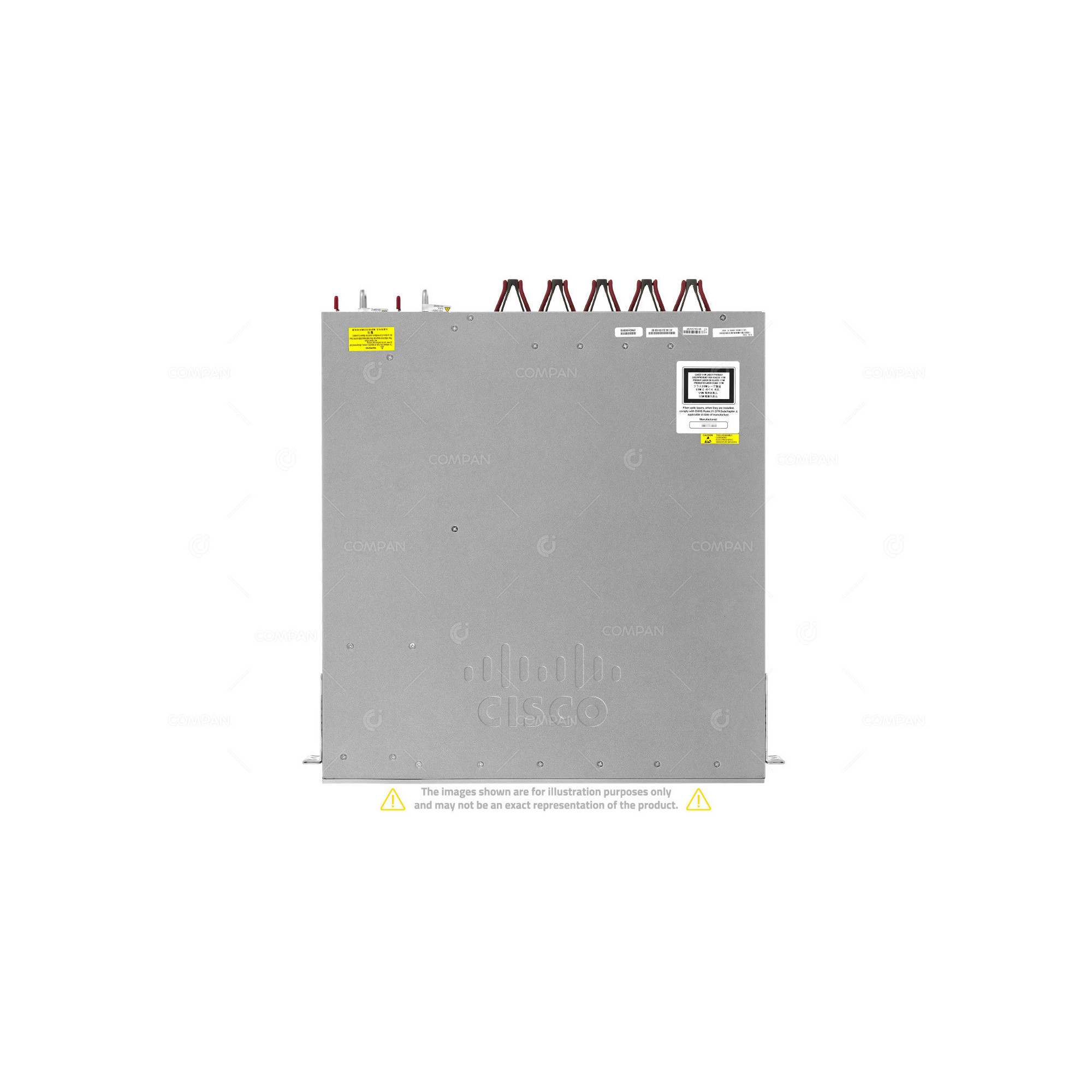

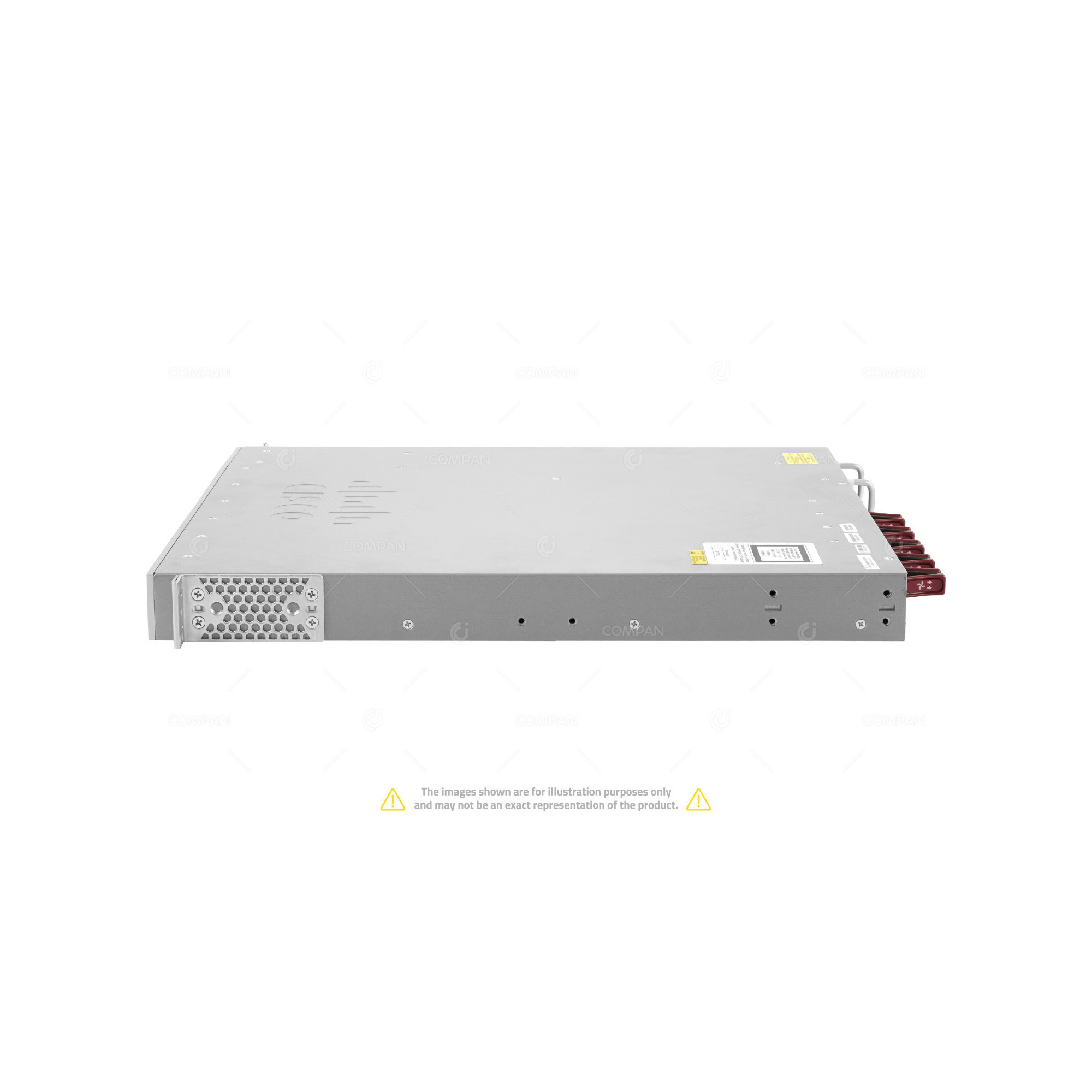

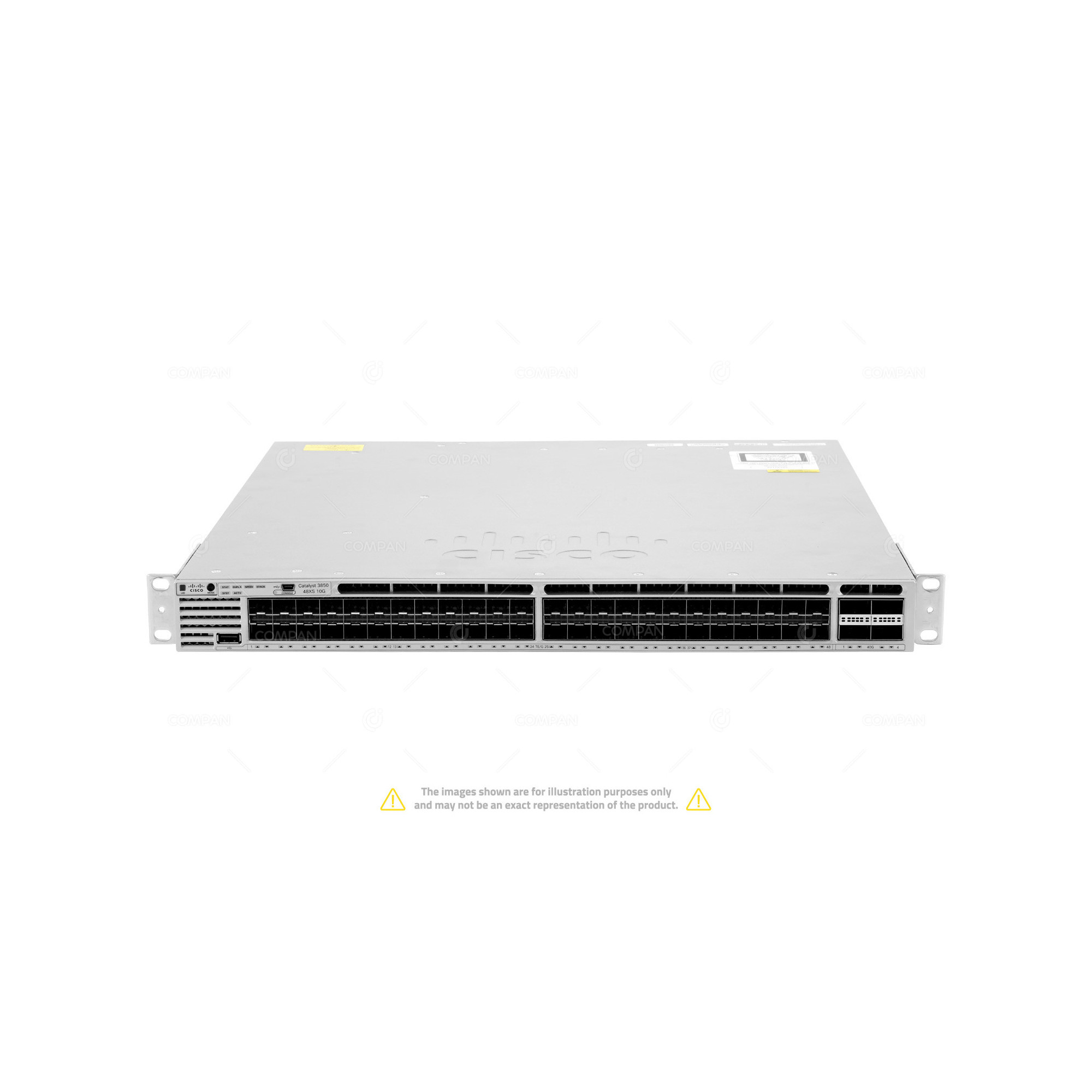

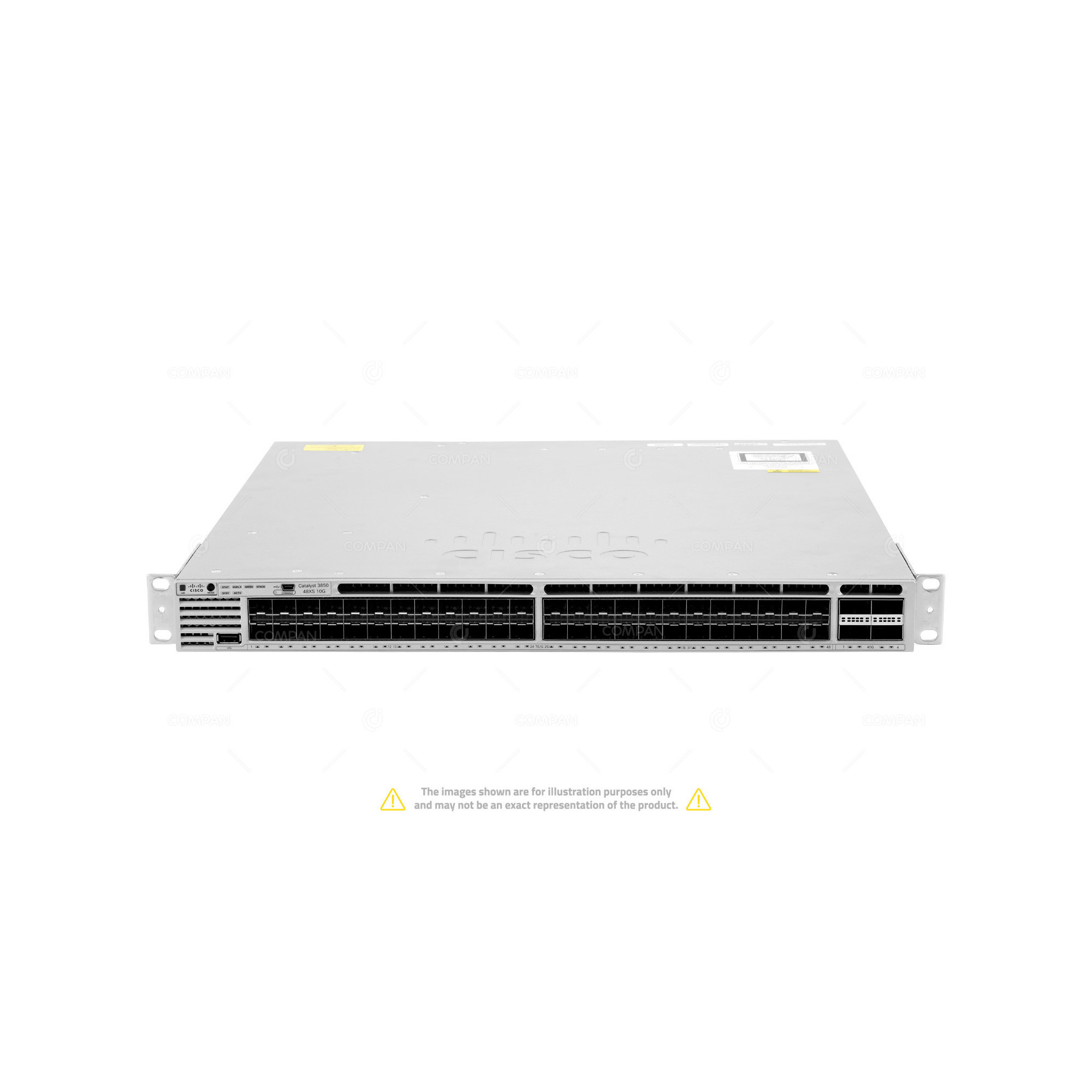

Cisco WS-C3850-48XS-E 48x SFP+ 10Gb 4x QSFP+ 40Gb - Ethernet Switch
Brand:
CISCO
|
Part Number: WS-C3850-48XS-E
Description
The Cisco Catalyst 3850-48XS-E is an enterprise-class, stackable, Layer 3 switch designed for wired and wireless network convergence on a single platform. This device provides high performance and resiliency for demanding network environments, from the access layer to small-scale aggregation. With 48 x 10-Gigabit SFP+ ports, it delivers high-speed, non-blocking connectivity for servers, storage, and other network devices. A key feature is its integrated wireless LAN controller, which allows it to support up to 50 access points and 2,000 wireless clients, thereby simplifying network management by consolidating wired and wireless policies. The switch also supports Cisco StackWise-480 technology, enabling you to stack up to nine units to create a single logical switch with a stacking bandwidth of 480 Gbps, which ensures both simplified management and superior resiliency. Furthermore, it offers full Layer 3 routing capabilities, including OSPF, EIGRP, and RIP, making it suitable for routing traffic between VLANs and connecting to the core network. For high availability, it is built with modular and redundant power supplies and fans. The switch runs on the Cisco IOS XE operating system and comes with the Network Essentials software feature set. It is a perfect solution for
Enterprise Access Layer: Its high-density 10G SFP+ ports make it a great choice for providing high-speed connectivity to powerful workstations, servers, and other network devices within a large enterprise or campus network. Wired and Wireless Convergence: The integrated wireless LAN controller functionality allows it to manage and control access points directly, making it an ideal choice for organizations looking to simplify their wired and wireless network infrastructure and enforce a single set of policies. Small-Scale Aggregation Layer: The 10G SFP+ ports and Layer 3 routing capabilities make it a strong option for a small-scale aggregation layer, connecting multiple access switches to the network core. Demanding Workload Connectivity: It's well-suited for providing connectivity to devices that require high bandwidth, such as storage area networks (SANs), virtualization hosts, and high-performance computing clusters. Simplified Network Management: By consolidating wired and wireless management, and through its StackWise-480 technology, it simplifies the administration and operation of a network, reducing the number of devices and interfaces that need to be managed individually.Future proof Hardware
Power Up Your Connectivity
Boost your network's speed and reliability with brand-new devices. It's not just an upgrade, it's a solid foundation for your infrastructure needs, now and in the future. Enjoy faster connections for all your devices today, and rest easy knowing your network is ready for whatever comes next.
RELIABLE DELIVERY
Packaged Securely
Your product will arrive packaged carefully, according to internal standards of item protection. The item is handled professionally, you can be sure that your order will arrive in perfect condition.
ALWAYS ON TIME
With Our Own Logistics
Thanks to our own fleet of vehicles, we are able to ensure fast and reliable delivery of very large goods, such as complete server systems and data centers. We offer individual service and full control over the transport of your goods. Trust us to take care of your transport needs and deliver your products on time within Europe
SPECIFICATION
| Manufacturer | Cisco |
| Product Line | Catalyst 3850 Series |
| Model | WS-C3850-48XS-E |
| Ports | 48x 10Gb SFP+ |
| Uplink Ports | 4x 40Gb QSFP+ |
| Management | Fully Managed |
| Stackable | Yes |
| Internal Ports | Not Applicable |
| Form Factor | 1U Rack Mountable |
| Layer | 3 |
| POE Standard | No |
| POE Power | N/A |
| Switching Capacity | 480 Gbps |
| Mounting | YES |
| PSU | 2x 1100W (PN: PWR-C1-1100WAC) |
| Cooling | 5x Front-to-Rear, Redundant Fans (PN: FAN-T1) |
| Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
| Warranty | 1 Year |
| Shipping | 40€ in European Union 200€ outside European Union |
DETAILED SPECIFICATION
| Feature / Characteristic | Specification |
|---|---|
| 10 Gigabit Ethernet SFP+ Ports | 48 |
| 40 Gigabit Ethernet QSFP+ Ports | 4 |
| Expansion Slot | None (fixed ports) |
| Serial Console Port | 1 x RJ-45 (RS-232), 1 x mini-USB (Type B) |
| Management Ethernet Port | 1 x 10/100/1000BASE-T RJ-45 |
| USB Ports | 1 x USB Type A |
| Switching Capacity | 1280 Gbps |
| Forwarding Rate | 909 Mpps |
| MAC Address Table Size | 32K entries |
| IPv4 Host Table Size | Up to 256K entries |
| IPv6 Host Table Size | Up to 128K entries |
| IPv4 Route Table Size | Up to 256K entries |
| VLAN IDs | 4000 |
| Virtual Switching System (VSS) | No (not stackable) |
| Power Supplies | Dual (2) redundant, hot-swappable |
| Fans | Integrated, field-replaceable (hot-swappable) |
| Height (RU) | 1 RU |
| Software | Cisco IOS XE Software, IP Services feature set |
Specifications
- Product Line:
- Catalyst 3850 Series
- Type:
- Ethernet Switch
- model:
- Cisco WS-C3850-48XS-E
- brand:
- CISCO
- Series:
- Catalyst 3850
- SFP Ports:
- 48 x 10G
- Switching Capacity:
- 480 Gbps
- QSFP Ports:
- 4 x 40G
- Form Factor :
- 1U Rack Mountable
- Ports Quantity:
- 48
- Ports Interface:
- SFP+
- Ports Speed:
- 10Gb
- Uplink Ports Quantity:
- 4
- Uplink Ports Interface:
- QSFP+
- Uplink Ports Speed:
- 40Gb
- Network Management Type:
- Fully Managed
- Stackable:
- Yes
- Internal Ports Quantity:
- Not Applicable
- Layer:
- 3
- POE Standard:
- N/A
- Cooling:
- Front-to-Rear, Redundant Fans
- RAILS:
- YES
- PSU PN:
- PWR-C1-1100WAC
- FAN PN:
- FAN-T1
- PSU Quantity:
- 2
- PSU Power:
- 1100W
- Fan Quantity:
- 5
- License:
- -
Warranty
All products purchased in our store come with a one-year warranty against manufacturing defects. The warranty begins on the date of purchase and applies to all items in our inventory. If you encounter any issues, please contact our customer service team for assistance. Complaints can be submitted within 14 days of discovering a defect, and a proof of purchase is required for processing the request. In the event that a complaint is approved, we will repair or replace the item with a new one. For detailed information about the complaint procedure, please refer to the "Return Policies" section on our website.
