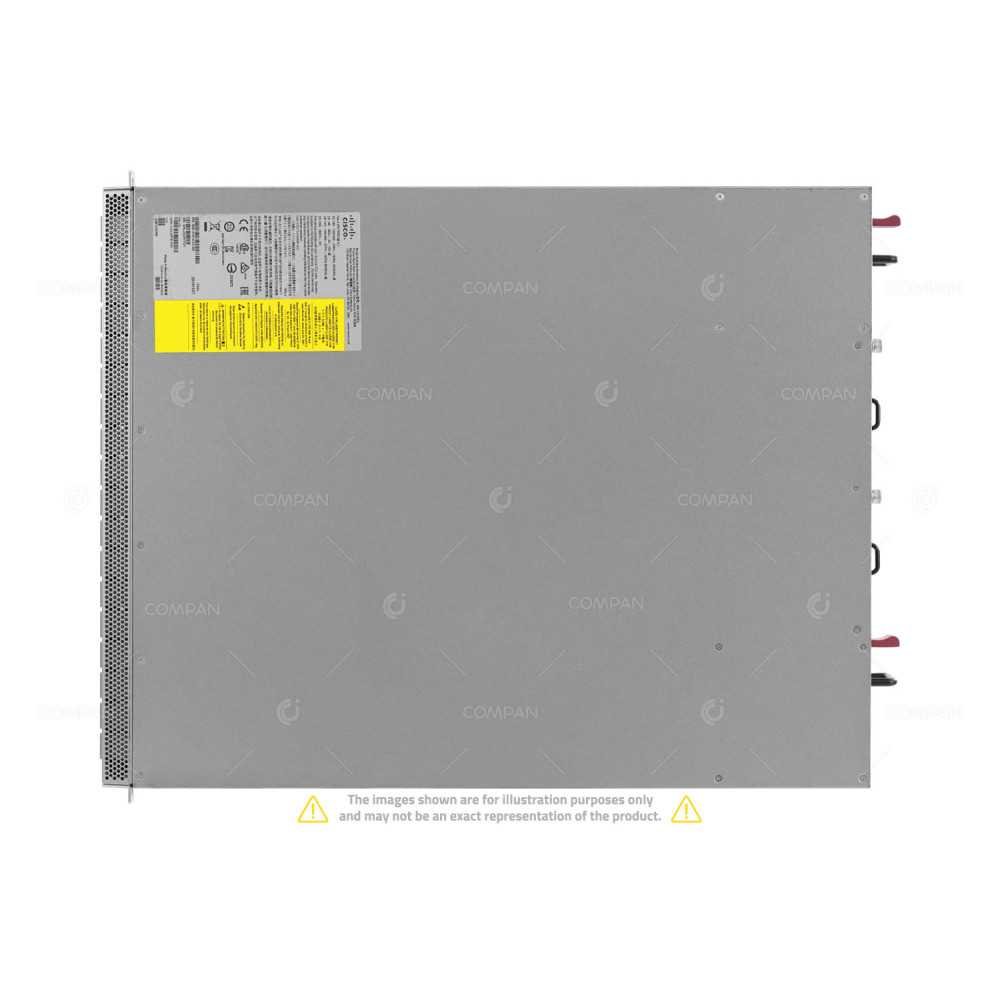

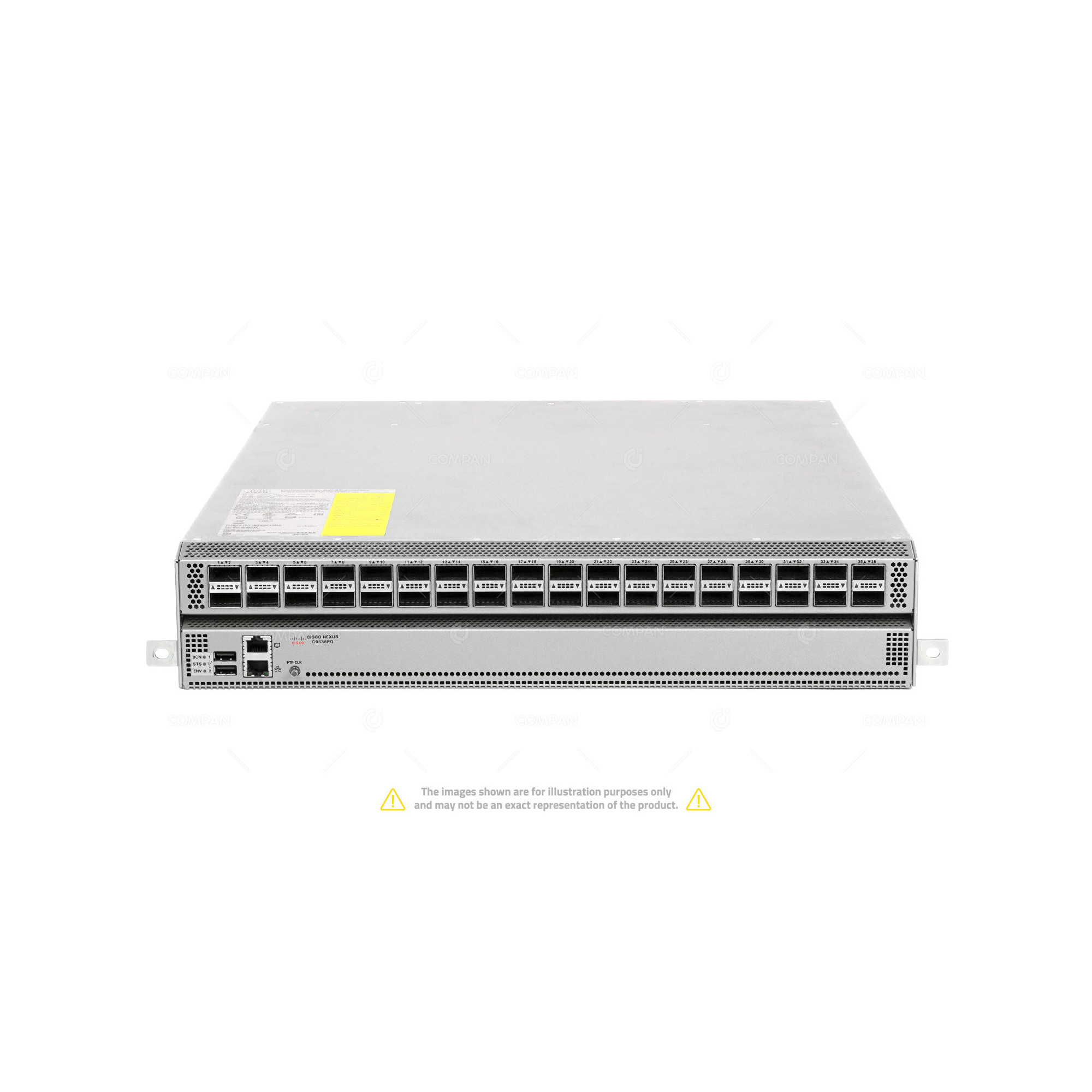

Cisco Nexus N9K-C9336PQ 36x QSFP+ 40Gb ACI Spine - Ethernet Switch
Brand:
CISCO
|
Part Number: N9K-C9336PQ
Description
Cisco N9K-C9336PQ 36x QSFP+ 40Gb - Ethernet Switch
The N9K-C9336PQ is a high-density, 2-rack-unit (2RU) switch engineered for the Cisco Cloud Scale ASIC architecture. It serves primarily as a spine switch in Application Centric Infrastructure (ACI) leaf-spine fabrics or as a high-performance aggregation node in standalone NX-OS environments. The hardware features 36 fixed 40 Gigabit Ethernet QSFP+ ports, providing a non-blocking switching fabric of 2.88 Tbps and a throughput of 2.3 Bpps. The system architecture supports natively integrated VXLAN bridging and routing, enabling large-scale Layer 2 domains across Layer 3 boundaries. It features deep buffer spaces and a shared 40MB buffer pool to mitigate congestion in high-traffic data center environments. For reliability, the chassis supports N+1 redundancy via three hot-swappable fan trays and dual N+N redundant, hot-swappable power supplies. Airflow is strictly determined by the installed modular components, supporting either Port-Side Intake (Blue) or Port-Side Exhaust (Red) configurations.
RELIABLE DELIVERY
Packaged Securely
Your product will arrive packaged carefully, according to internal standards of item protection. The item is handled professionally, you can be sure that your order will arrive in perfect condition.
ALWAYS ON TIME
With Our Own Logistics
Thanks to our own fleet of vehicles, we are able to ensure fast and reliable delivery of very large goods, such as complete server systems and data centers. We offer individual service and full control over the transport of your goods. Trust us to take care of your transport needs and deliver your products on time within Europe
SPECIFICATION
| Manufacturer | Cisco |
| Product Line | Nexus 9300 Series |
| Model | N9K-C9336PQ |
| Ports | 36 x 40Gb QSFP+ |
| Management | Fully Managed |
| Stackable | No |
| Operating Mode | ACI Spine |
| Form Factor | 2U Rack Mountable |
| Layer | 2/3 |
| POE Standard | No |
| POE Power | N/A |
| Switching Capacity | 2.88 Tbps |
| Mounting | NO |
| PSU | 2x 1200W (PN: N9K-PAC-1200W) |
| Cooling | 2x Rear-to-Front, Redundant Fans (PN: N9K-C9300-FAN3) |
| Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
| Warranty | 1 Year |
DETAILED SPECIFICATION
| Feature / Characteristic | Specification |
|---|---|
| Ports | 36 x 40 Gbps QSFP+ |
| Switching Capacity | 2.88 Tbps |
| Throughput (64-byte packets) | 2.3 billion packets per second (2,300 Mpps) |
| Latency | < 2.0 µs (Nominal) |
| MAC Address Table Size | 96,000 entries |
| Routing Table Size | 16,000 IPv4 entries (LPM); 88,000 Host entries |
| Maximum Power Rating | 450 W |
| Idle Power Consumption | 192 W |
| Maximum Heat Dissipation | 1535 BTU/hr |
| Form Factor | 2U rack-mountable |
| Dimensions (W x D x H) | 44.2 x 56.9 x 8.7 cm (17.4 x 22.4 x 3.4 in) |
| Weight | 15.6 kg (34.4 lb) with 2 PSUs and 3 Fans |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity | 5% to 95%, non-condensing |
| Storage Relative Humidity | 5% to 95%, non-condensing |
| Compliance | FCC Class A, EN55022 Class A, VCCI Class A, AS/NZS CISPR22 Class A, CE Mark |
Specifications
- Product Line:
- Nexus 9300 Series
- Type:
- Ethernet Switch
- model:
- CIsco N9K-C9336PQ
- brand:
- CISCO
- Series:
- Nexus 9300
- Switching Capacity:
- 2.88 Tbps
- QSFP Ports:
- 36 x 40G
- Form Factor :
- 2U Rack Mountable
- Ports Quantity:
- 36
- Ports Interface:
- QSFP+
- Ports Speed:
- 40Gb
- Uplink Ports Quantity:
- -
- Network Management Type:
- Fully Managed
- Stackable:
- No
- Internal Ports Quantity:
- Not Applicable
- Layer:
- 2/3
- POE Standard:
- No
- POE Power:
- N/A
- Cooling:
- Rear-to-Front, Redundant Fans
- RAILS:
- NO
- PSU PN:
- N9K-PAC-1200W
- FAN PN:
- N9K-C9300-FAN3
- PSU Quantity:
- 2
- PSU Power:
- 1200W
- Fan Quantity:
- 2
- License:
- -
