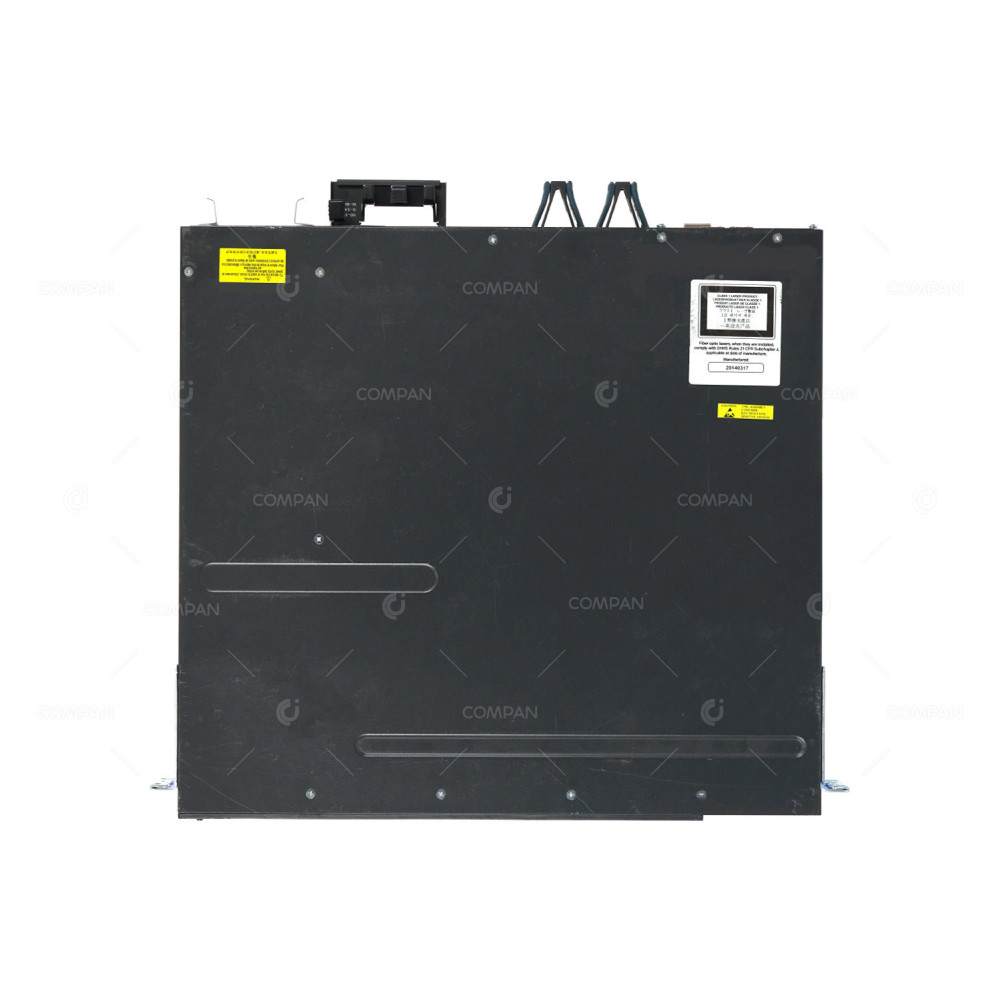

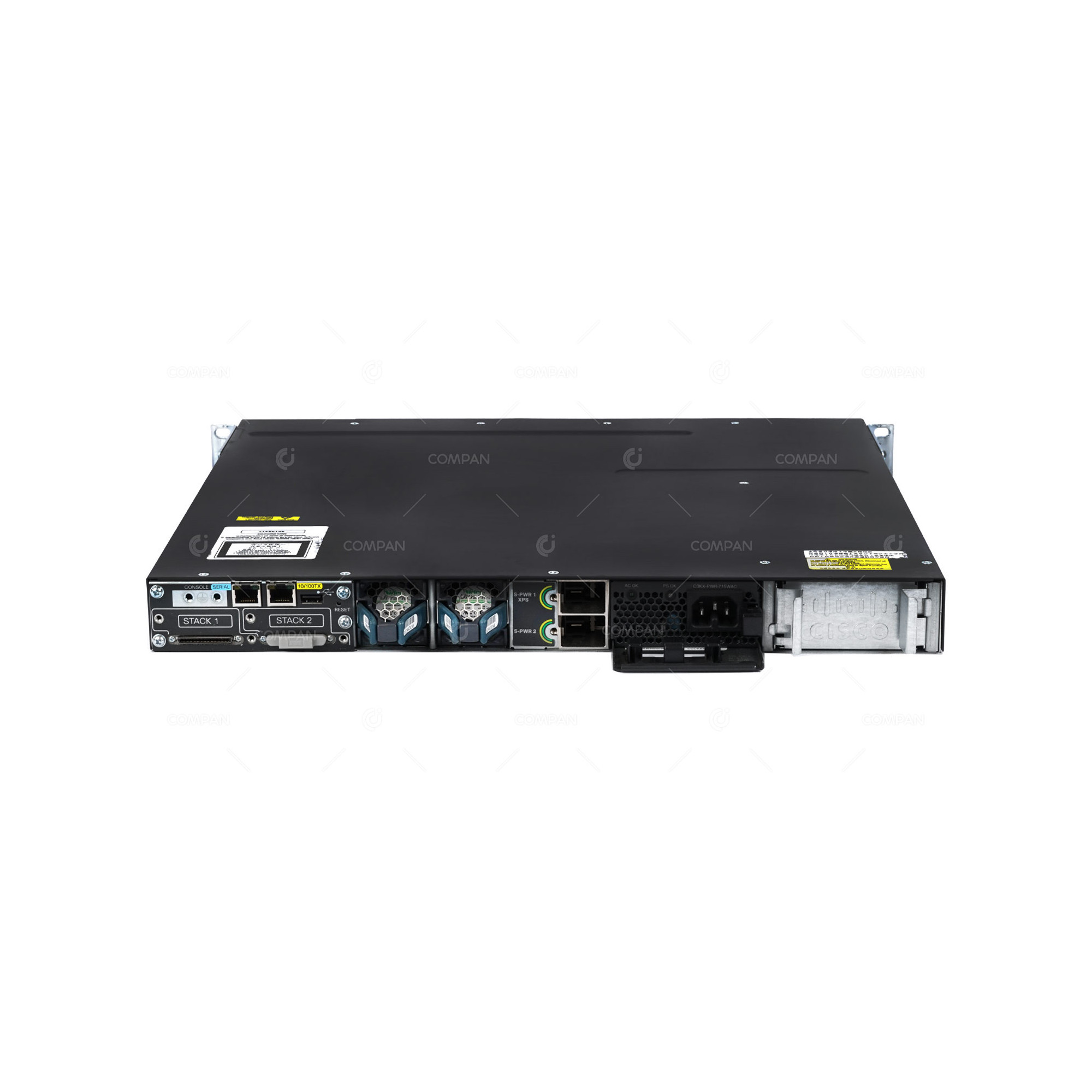

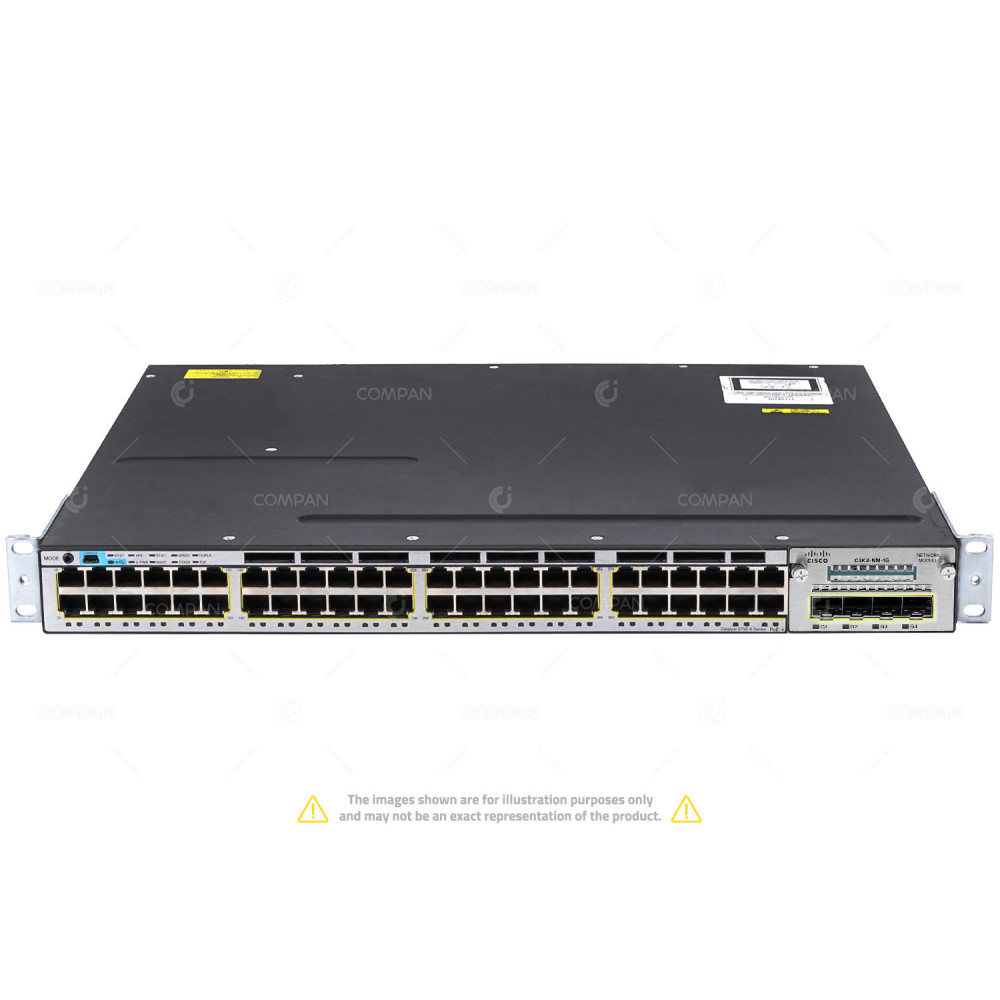

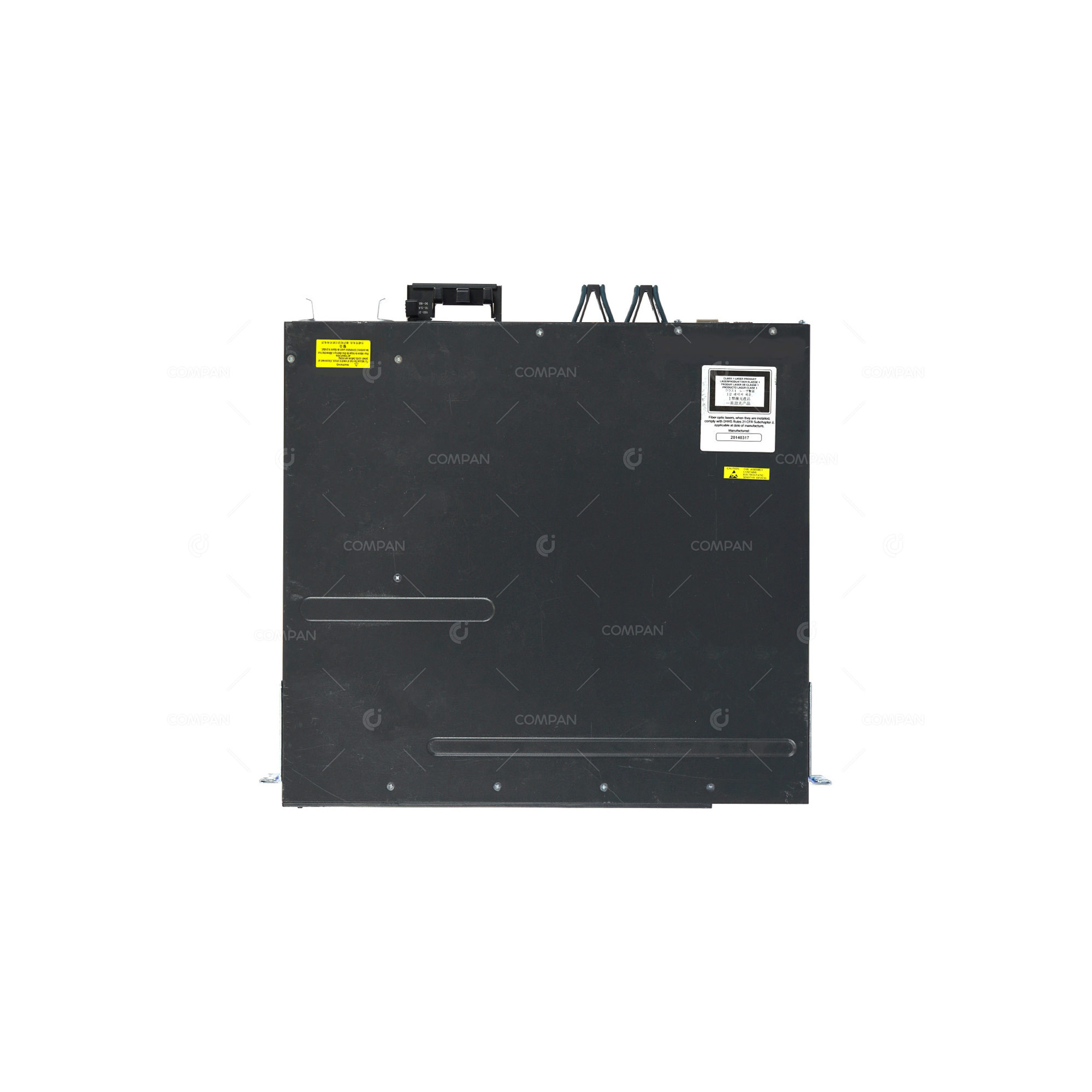

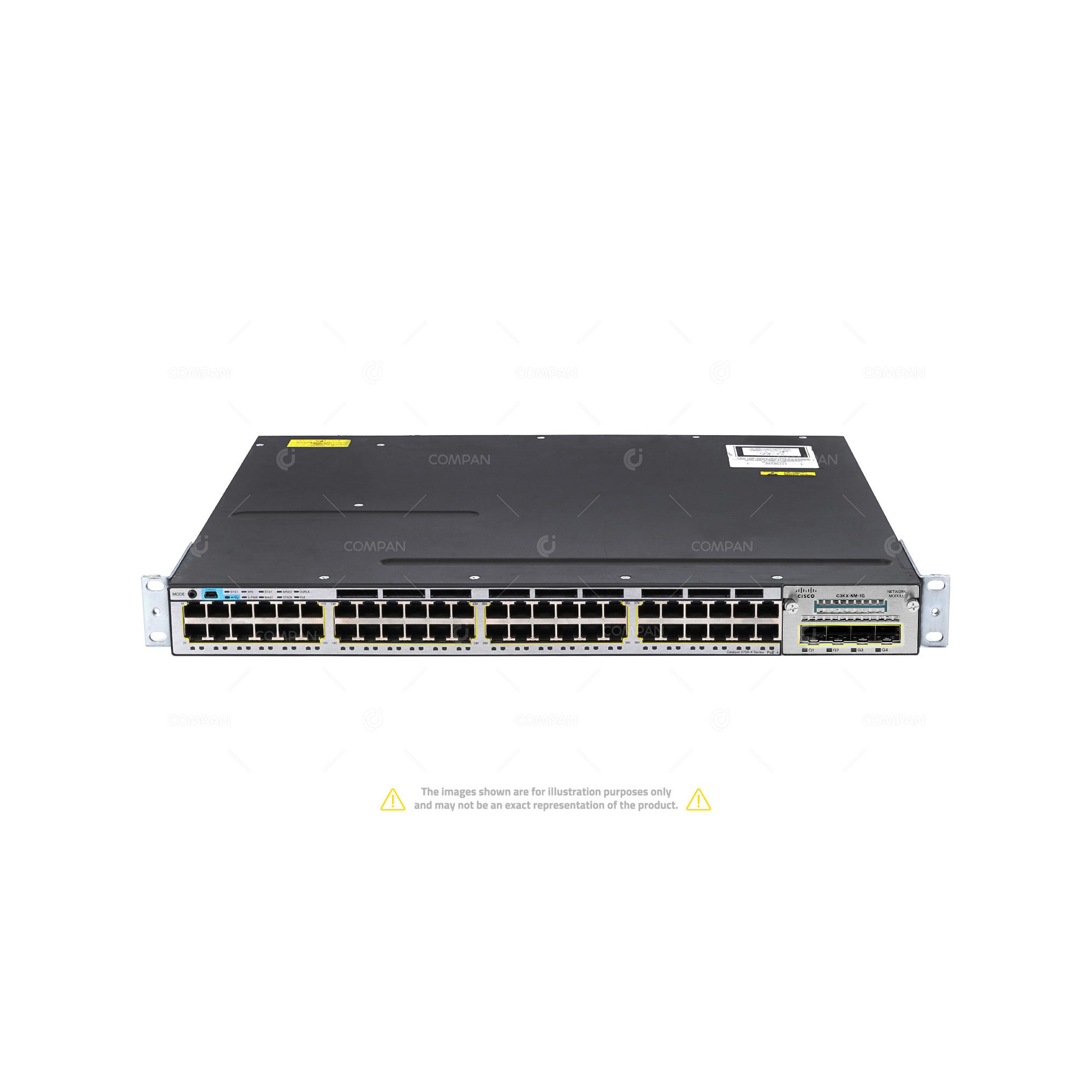

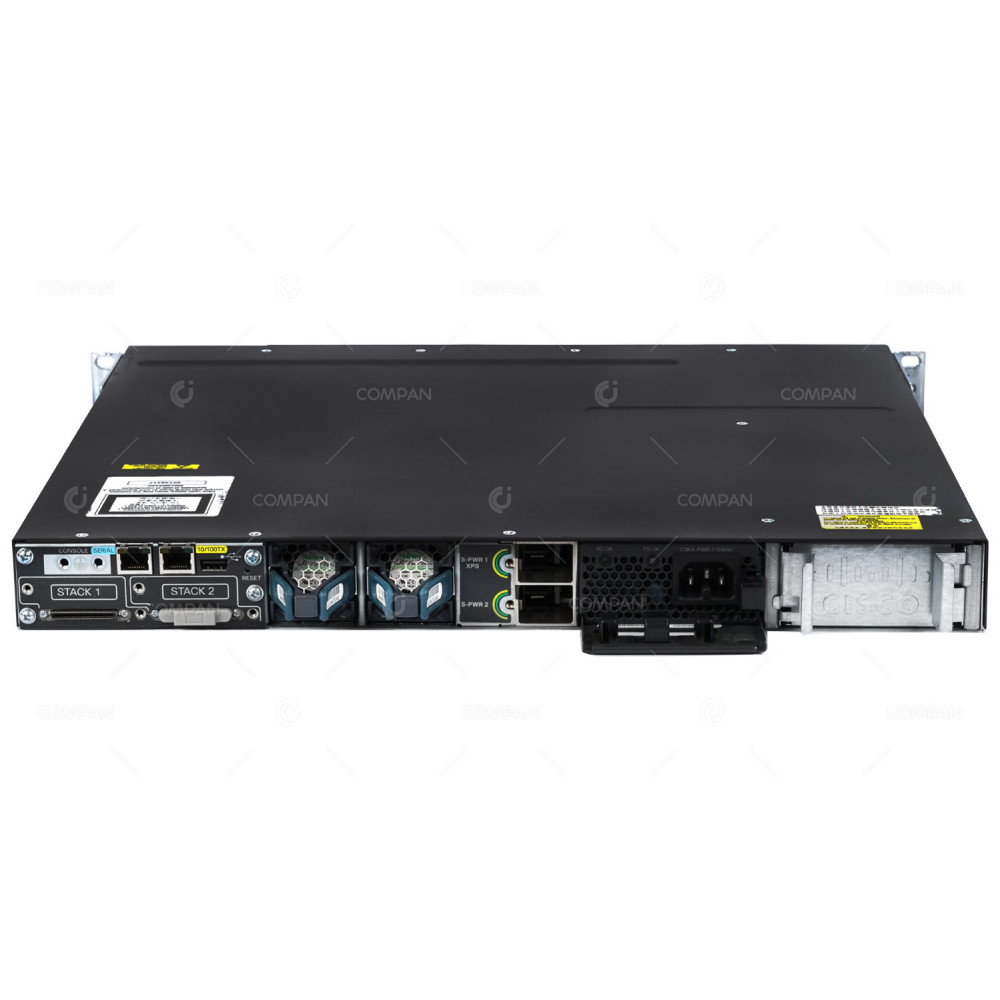

Cisco WS-C3750X-48P-E 48x RJ-45 1Gb 4x SFP 1Gb Power over Ethernet Switch
Brand:
CISCO
|
Part Number: WS-C3750X-48P-E C3KX-NM-1G
Description
Cisco WS-C3750X-48P-E 48x RJ-45 1Gb 4x SFP 1Gb IPSERVICES Power over Ethernet Switch
Cisco Catalyst 3750-X series is an enterprise-class stackable, fixed configuation switch. The switches comes with many innovation features, such as Cisco StackWise Plus technology, EnergyWise, MacSec, Cisco TrustSec and StackPower to optimize high availability, scalability, security, energy efficiency, ease of operation and investment protection. WS-C3750X-48P-E provides 48 POE+ Gigabit Ethernet ports with IP service feature set. It is identical of WS-C3750X-48P-S upgrades from IP base feature set to IP service feature set through the software license activation. Moreover, there are four types of hot-swapping uplinks network module for 3750X/3560X series that the customer can choose depending on their needs. The innovation StackWise plus technology supports up to 9 switches stacking to transform 9 physical gear into a single switch and provides up to 64Gbps system bandwidth, StackWise technology also support backward compatibility with StackWise technology, which means that 3750X can stack with old model of 3750-series switch, such as 3750E or 3750 in the same time. The StackPower technology aggregate the power supplies in the power stack and manage the power like single large power pool at feeds the single load the power stack members.
This device is an excellent choice for:
- Enterprise Access Layer Switch: Ideal for connecting end-user devices in medium to large enterprise networks. Its 48 ports support high-density deployments, and its robust Layer 2 and Layer 3 features make it suitable for handling VLANs, inter-VLAN routing, and more.
- Power over Ethernet (PoE+) Deployments: With PoE+ support (IEEE 802.3at), this switch can deliver up to 30W per port, making it perfect for powering devices like VoIP phones, wireless access points, and IP cameras without the need for separate power supplies.
- Branch Office Core Switch: Tgis model supports advanced Layer 3 routing protocols (OSPF, EIGRP, BGP), allowing it to function as a core Layer 3 switch in small to medium-sized branch offices.
- Stackable Switch Environments: Supports Cisco StackWise Plus technology, allowing you to stack up to 9 switches with a total of 64 Gbps stacking bandwidth. Great for organizations needing scalable, unified switching with redundancy and centralized management.
- Small Campus Distribution Layer: Suitable for the distribution layer in small campus networks where advanced routing and high-speed switching between access layers is needed.
- IPv6-Ready Networks Full support for IPv6 routing makes it a solid choice for networks transitioning from IPv4 to IPv6 or building dual-stack environments.
- Secure Network Edge: Supports key security features such as 802.1X port-based authentication, ACLs, DHCP snooping, and IP source guard, making it great for enforcing access control and segmentation at the network edge.
- Top-of-Rack in Small Data Centers:
Can be used in data centers with moderate traffic as a top-of-rack switch, especially with its optional 10-Gigabit uplinks for high-speed server connectivity.
Future proof Hardware
Power Up Your Connectivity
Boost your network's speed and reliability with brand-new devices. It's not just an upgrade, it's a solid foundation for your infrastructure needs, now and in the future. Enjoy faster connections for all your devices today, and rest easy knowing your network is ready for whatever comes next.
RELIABLE DELIVERY
Packaged Securely
Your product will arrive packaged carefully, according to internal standards of item protection. The item is handled professionally, you can be sure that your order will arrive in perfect condition.
ALWAYS ON TIME
With Our Own Logistics
Thanks to our own fleet of vehicles, we are able to ensure fast and reliable delivery of very large goods, such as complete server systems and data centers. We offer individual service and full control over the transport of your goods. Trust us to take care of your transport needs and deliver your products on time within Europe
SPECIFICATION
| Manufacturer | Cisco |
| Product Line | Catalyst 3750 Series |
| Model | WS-C3750X-48P-E |
| Ports | 48 x 1Gb RJ-45 |
| Uplink Ports | 4 x 1Gb SFP |
| Additional Uplink Card | C3KX-NM-1G |
| Management | Fully Managed |
| Stackable | Yes |
| Internal Ports | Not Applicable |
| Form Factor | 1U Rack Mountable |
| Layer | 3 |
| POE Standard | PoE+ |
| POE Power | 435W |
| Switching Capacity | 160 Gbps |
| LICENSE | IPSERVICES |
| Mounting | NO |
| PSU | 1x 715W (PN: C3KX-PWR-715WAC) |
| Cooling | 2x Front-to-Rear, Redundant Fans (PN: C3KX-FAN-23CFM) |
| Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
| Warranty | 1 Year |
DETAILED SPECIFICATION
| Feature / Characteristic | Specification |
|---|---|
| Ports | 48 × 10/100/1000 BASE‑T RJ‑45 (PoE+) |
| Uplink Ports | Modular: 4 × 1G/10G SFP+ (with optional network module) |
| PoE Budget | Up to 1100 W (with dual power supplies, IEEE 802.3at PoE+) |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 101.2 Mpps |
| Layer | Layer 2 and Layer 3 (IP Services) |
| VLAN IDs Supported | Up to 4,094 |
| MAC Forwarding Table | 32,000 entries |
| Jumbo Frame Support | Up to 9,216 bytes |
| Management | Web UI, CLI, SNMP, RMON, Cisco Prime, Cisco DNA (limited) |
| Stacking | StackWise Plus, up to 9 units, 64 Gbps stack bandwidth |
| Security & Access | 802.1X, DHCP Snooping, Port Security, Dynamic ARP Inspection, ACLs, RADIUS/TACACS+ |
| QoS | 8 egress queues per port, DSCP, CoS, policing, shaping, queuing |
| Diagnostics & Tools | Ping, traceroute, SPAN, RSPAN, TDR, SNMP, syslog |
| Power Consumption (Idle / Max) | 85 W / ~435 W (depending on PoE load) |
| Dimensions (H × W × D) | 4.45 cm × 44.5 cm × 46 cm (1.75″ × 17.5″ × 18.1″) |
| Weight | ~7.2 kg (15.87 lb) with one PSU |
| Mounting Options | Rack-mountable (standard 19" rack brackets included) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Humidity | 5% to 95% non‑condensing |
| Form Factor | 1U Rack-mounted switch |
| MTBF | 263,950 hours (typical) |
Specifications
- Product Line:
- Catalyst 3750 Series
- Type:
- Power over Ethernet Switch
- model:
- Cisco WS-C3750X-48P-E
- brand:
- CISCO
- Series:
- Catalyst 3750
- Switching Capacity:
- 160 Gbps
- RJ-45 PoE Ports:
- 48 x 1G
- Form Factor :
- 1U Rack Mountable
- Ports Quantity:
- 48
- Ports Interface:
- RJ-45
- Ports Speed:
- 1Gb
- Uplink Ports Quantity:
- 4
- Uplink Ports Interface:
- SFP
- Uplink Ports Speed:
- 1Gb
- Network Management Type:
- Fully Managed
- Stackable:
- Yes
- Internal Ports Quantity:
- Not Applicable
- Layer:
- 3
- POE Standard:
- PoE+
- POE Power:
- 435W
- Cooling:
- Front-to-Rear, Redundant Fans
- RAILS:
- NO
- PSU PN:
- C3KX-PWR-715WAC
- FAN PN:
- C3KX-FAN-23CFM
- PSU Quantity:
- 1
- PSU Power:
- 715W
- Fan Quantity:
- 2
