EMC 100-886-236-04 12x QSFP+ 56Gb - Infiniband Switch
Brand:
EMC
|
Part Number: 100-886-236-04
Description

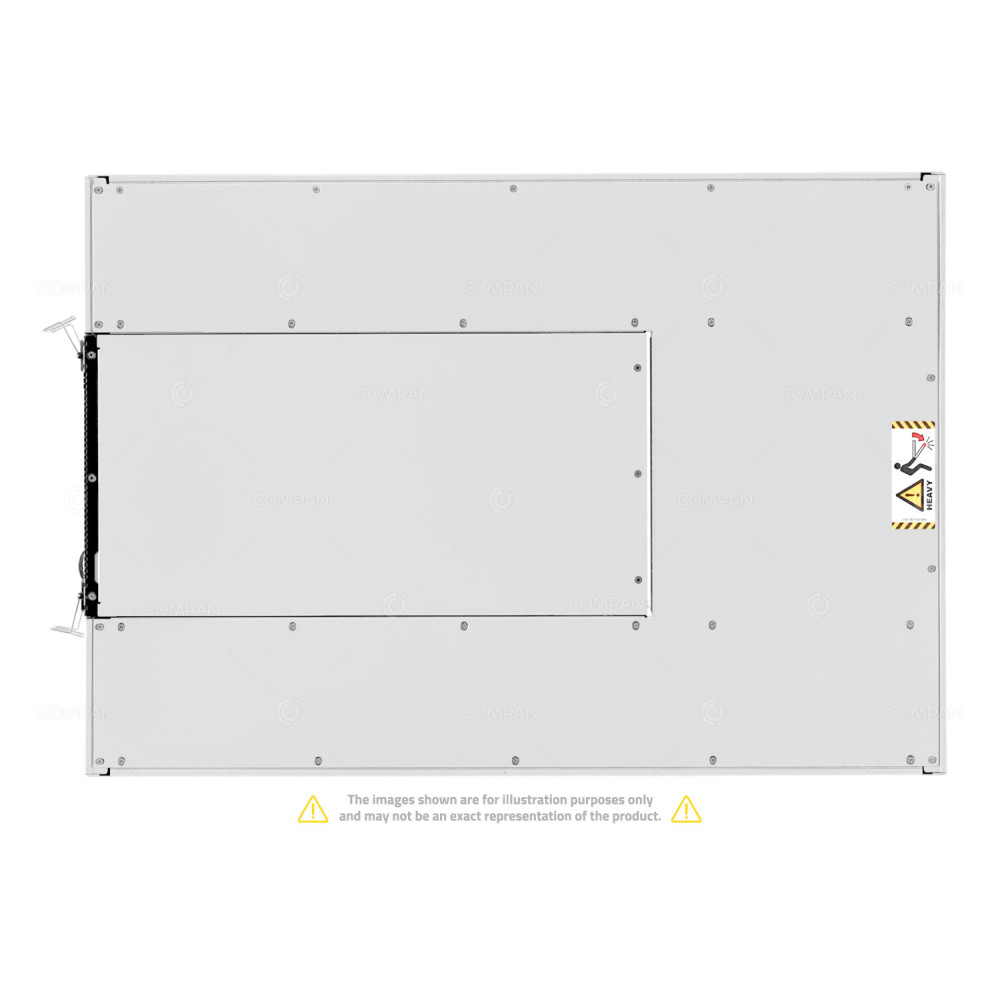

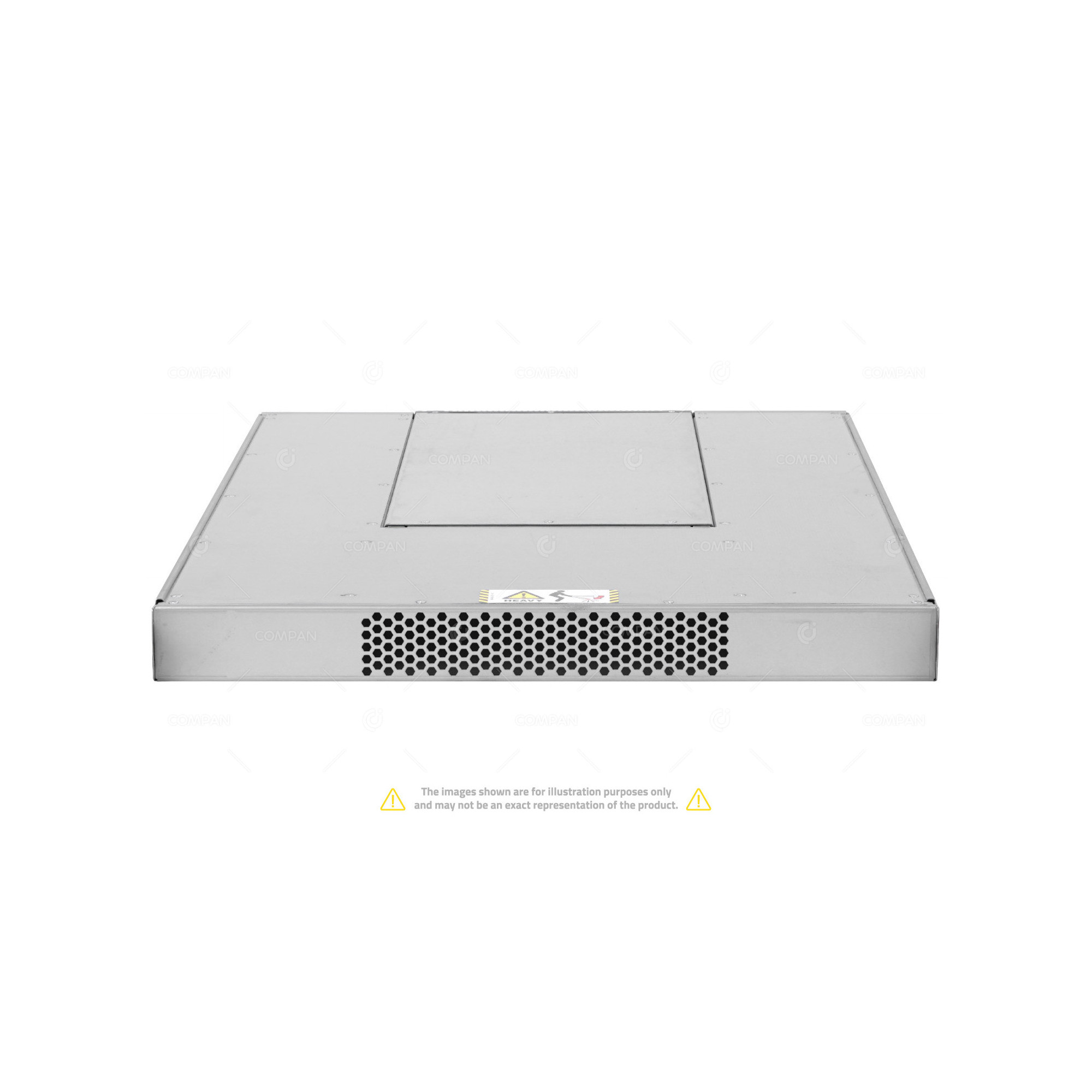

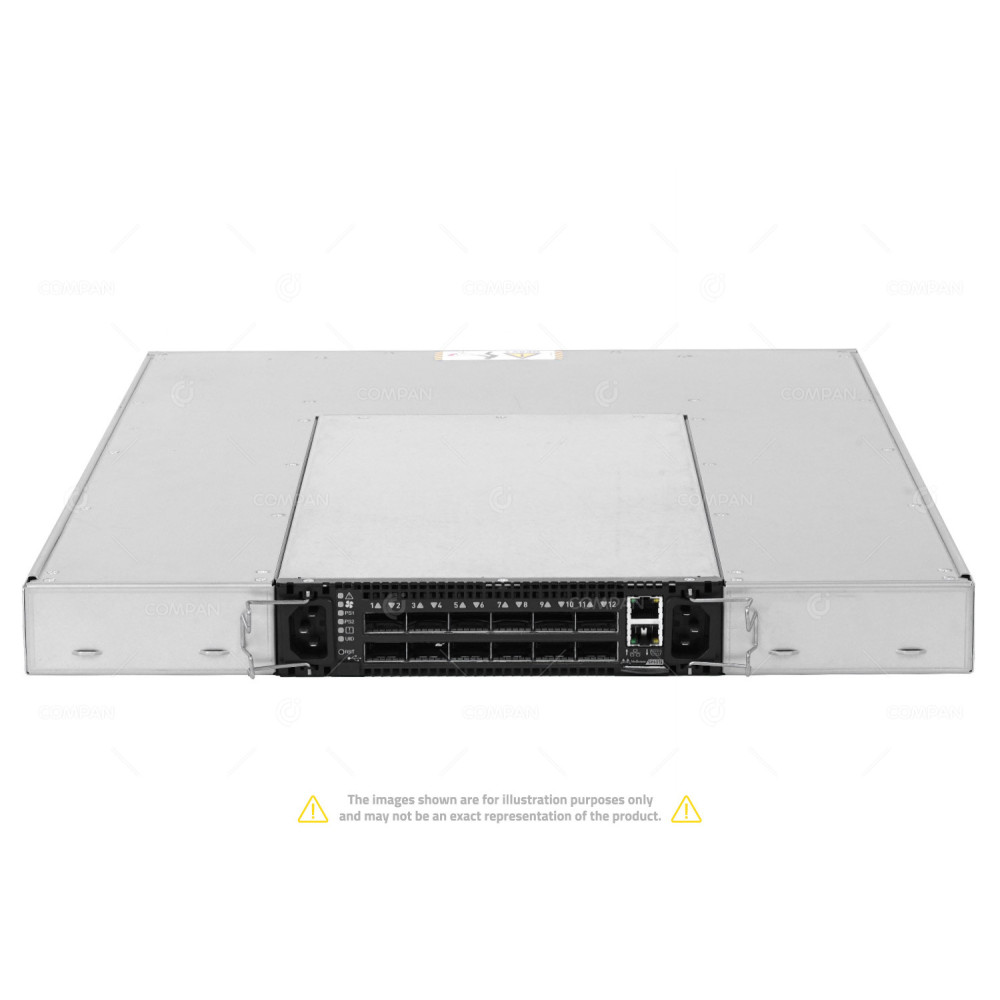

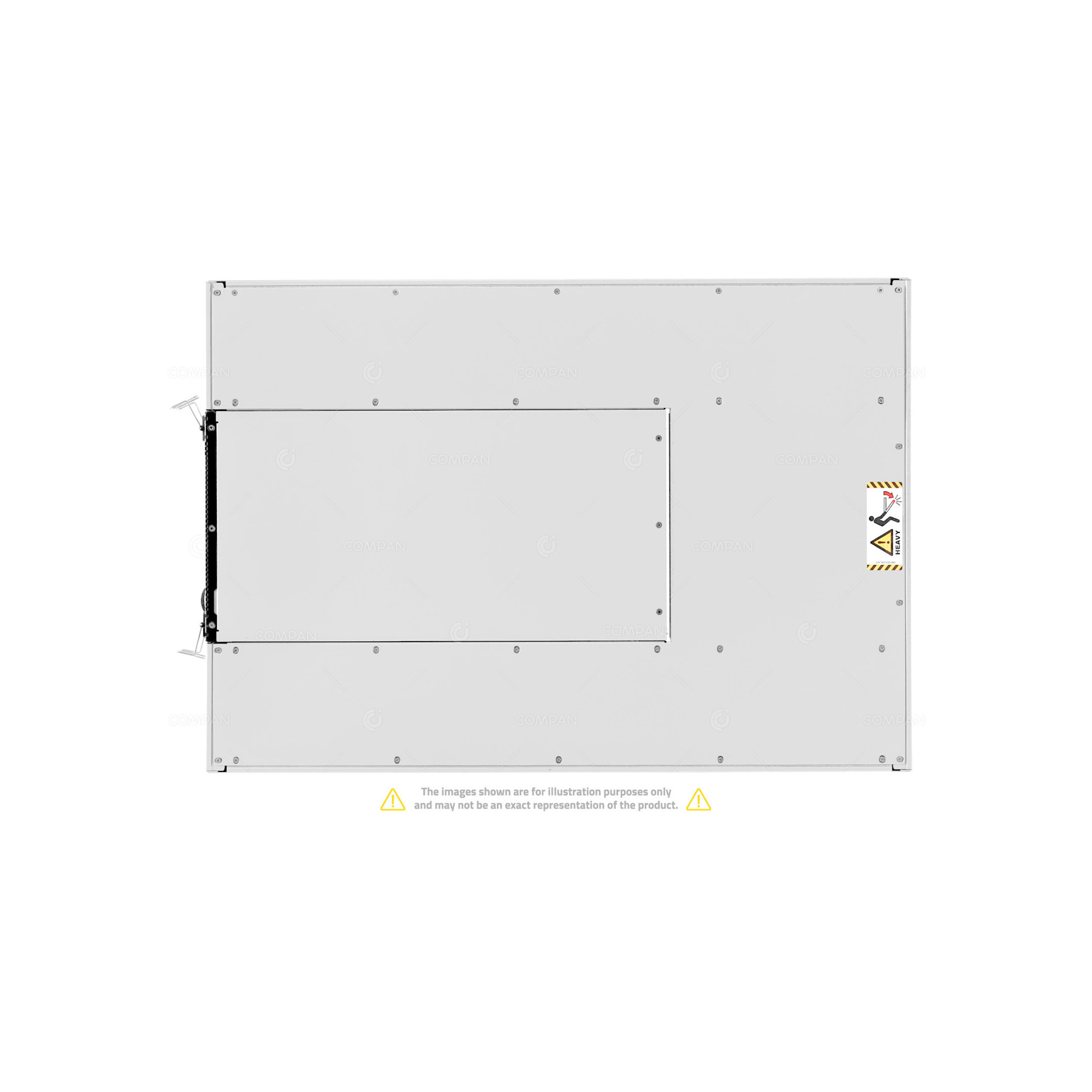

EMC 100-886-236-04 12x QSFP+ 56Gb - Infiniband Switch
The Mellanox SX6012 is a powerful InfiniBand switch meticulously engineered for the most demanding high-performance computing (HPC) and enterprise data center environments. As a key component of the Mellanox (now NVIDIA) SwitchX family, it is designed with a non-blocking architecture to ensure consistent, line-rate performance for all 12 of its 56Gb/s ports. This ultra-high-speed connectivity, combined with extremely low latency of under 200 nanoseconds, is crucial for applications that rely on rapid inter-process communication, such as parallel computing, simulation, and financial modeling.
The SX6012 serves as a foundational building block for creating scalable and efficient fabrics. Its ability to provide massive bandwidth and minimal latency makes it an ideal solution for interconnecting compute and storage nodes in large-scale clusters. It supports advanced InfiniBand features, including VLANs, congestion control, and adaptive routing, which optimize performance and resource utilization. The switch's high port density in a compact 1U form factor also helps to save valuable rack space while maximizing connectivity.
The EMC Mellanox SX6012 switch is perfect for:
- High-Performance Computing (HPC): It is a common choice for connecting compute nodes in HPC clusters, where low latency and high bandwidth are critical for inter-process communication.
- Machine Learning and AI: The switch's high-speed interconnects are essential for distributing large datasets and managing communication between GPUs in AI and deep learning environments.
- Data-Intensive Applications: It is well-suited for applications such as financial modeling, scientific research, and real-time analytics that require massive amounts of data to be processed quickly.
- Cloud and Enterprise Data Centers: It can be used as a high-speed backbone for storage and compute traffic in virtualized and cloud-based data centers where performance is a top priority.
Future proof Hardware
Power Up Your Connectivity
Boost your network's speed and reliability with brand-new devices. It's not just an upgrade, it's a solid foundation for your infrastructure needs, now and in the future. Enjoy faster connections for all your devices today, and rest easy knowing your network is ready for whatever comes next.
RELIABLE DELIVERY
Packaged Securely
Your product will arrive packaged carefully, according to internal standards of item protection. The item is handled professionally, you can be sure that your order will arrive in perfect condition.
ALWAYS ON TIME
With Our Own Logistics
Thanks to our own fleet of vehicles, we are able to ensure fast and reliable delivery of very large goods, such as complete server systems and data centers. We offer individual service and full control over the transport of your goods. Trust us to take care of your transport needs and deliver your products on time within Europe
SPECIFICATION
| Manufacturer | EMC |
| Product Line | SX6000 Family |
| Model | 100-886-236-04 |
| Ports | 12x 56Gb QSFP+ |
| Management | Fully Managed |
| Stackable | No |
| Internal Ports | Not Applicable |
| Form Factor | 1U Rack Mountable |
| Layer | 2 |
| POE Standard | No |
| POE Power | N/A |
| Switching Capacity | 1.34 Tbps |
| Mounting | NO |
| PSU | 1x 300W |
| Cooling | Active |
| Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
| Warranty | 1 Year |
| Shipping | 40€ in European Union 200€ outside European Union |
DETAILED SPECIFICATION
| Feature / Characteristic | Specification |
|---|---|
| Manufacturer | EMC (Mellanox/NVIDIA Networking) |
| Model | Mellanox SX6012 InfiniBand Switch |
| Operating System | Mellanox MLNX-OS |
| InfiniBand FDR QSFP Ports | 12 x 56Gb/s FDR InfiniBand QSFP ports |
| Flexible QSFP Breakout Support | Yes |
| Serial Console Port | 1 x RJ-45 |
| Management Ethernet Port | 1 x 10/100/1000Mb RJ-45 |
| Switching Throughput (Aggregate) | 1.344 Tb/s (non-blocking) |
| Max Message Forwarding Rate | Over 1 Billion messages/sec |
| Packet Buffer Capacity | Integrated Buffer Memory |
| Latency (Port-to-Port) | ~200ns (nanoseconds) |
| ECMP (Equal-Cost Multi-Path) Support | Yes (InfiniBand Adaptive Routing) |
| Maximum Power Consumption | Up to ~150W |
| Fans | Integrated |
Specifications
- Product Line:
- SX6000 Family
- Type:
- Infiniband Switch
- model:
- EMC SX6012
- Switching Capacity:
- 1.34 Tbps
- Form Factor :
- 1U Rack Mountable
- Ports Quantity:
- 12
- Ports Interface:
- QSFP+
- Ports Speed:
- 56Gb
- Uplink Ports Quantity:
- -
- Network Management Type:
- Fully Managed
- Stackable:
- No
- Internal Ports Quantity:
- Not Applicable
- Layer:
- 2/3
- POE Standard:
- No
- POE Power:
- N/A
- Cooling:
- Active
- RAILS:
- NO
- PSU PN:
- -
- FAN PN:
- -
- PSU Quantity:
- 1
- PSU Power:
- 300W
- Fan Quantity:
- -
- License:
- -
