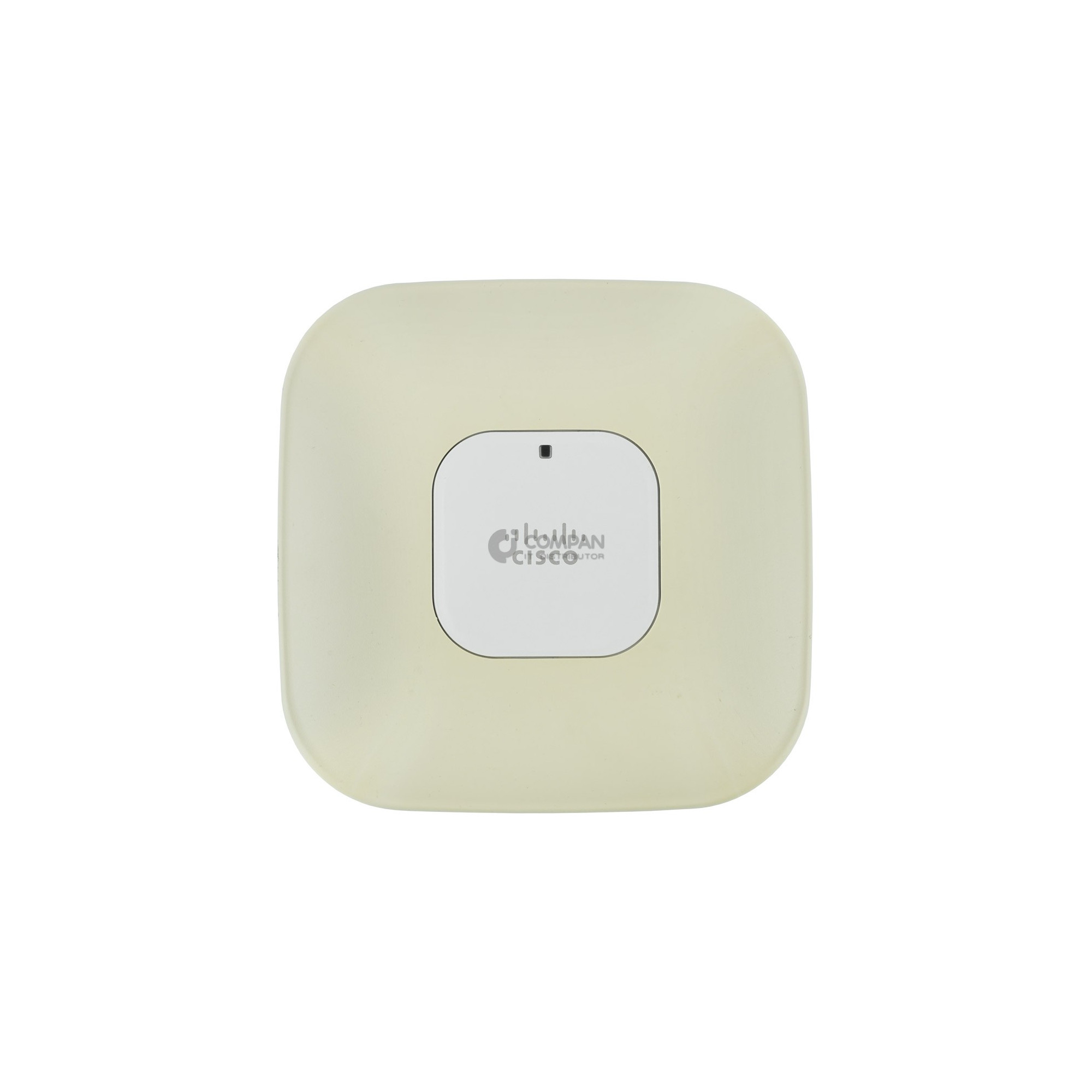

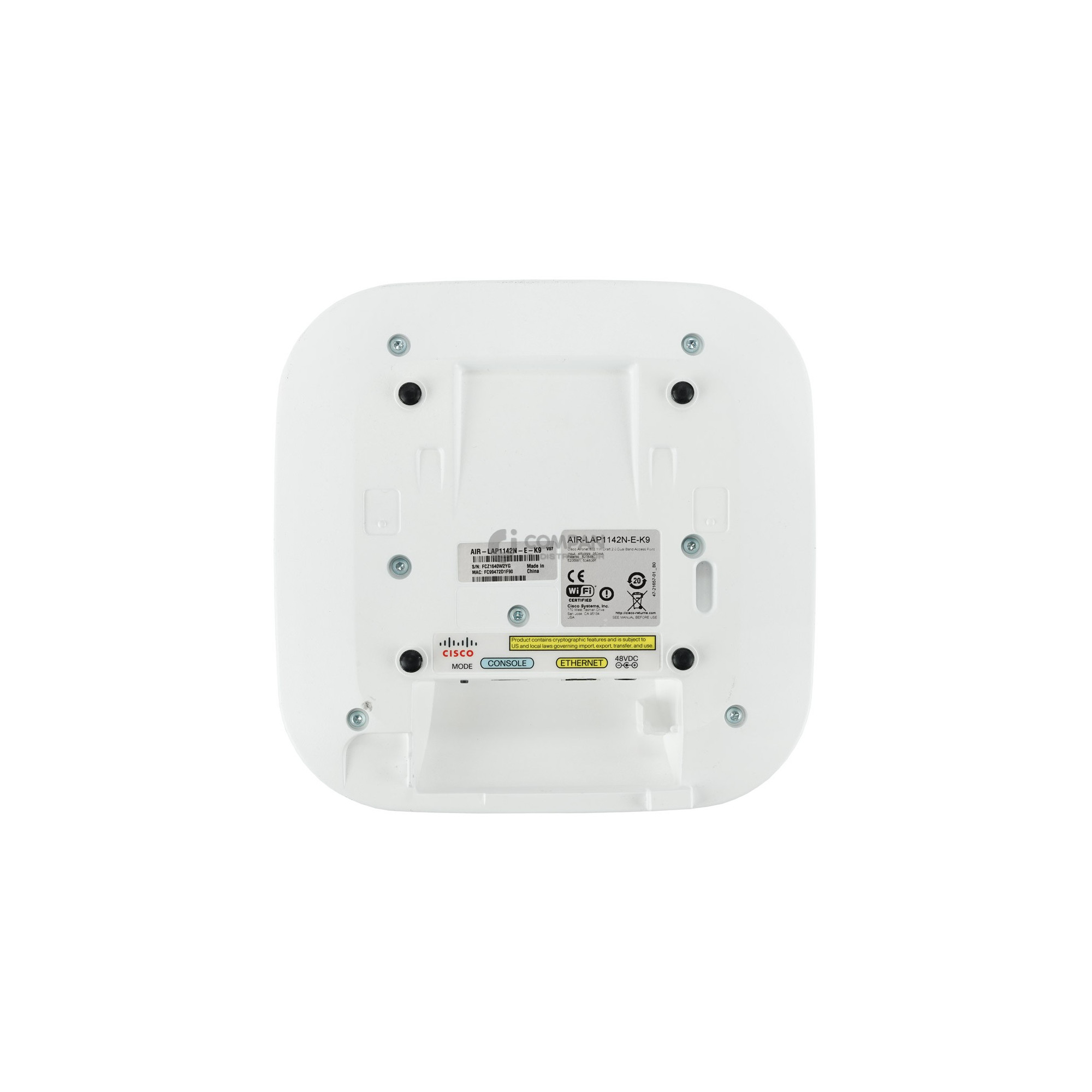

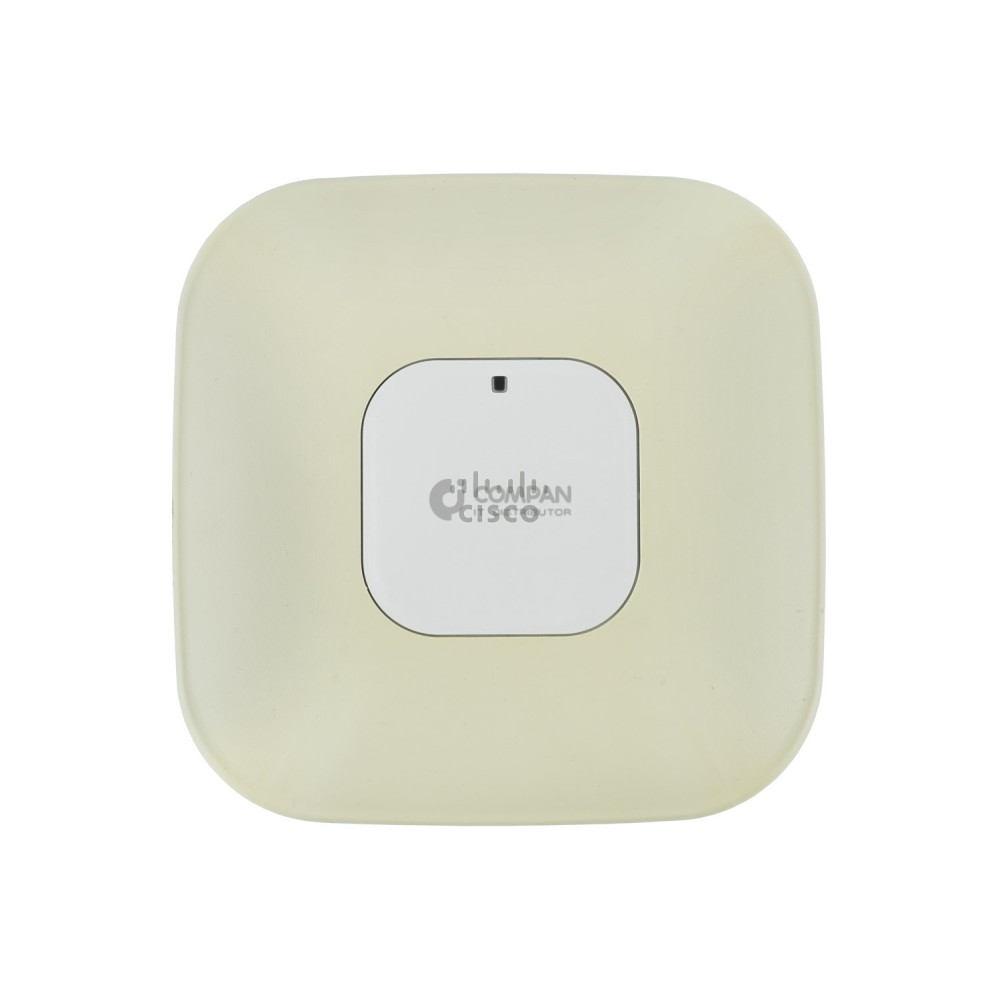

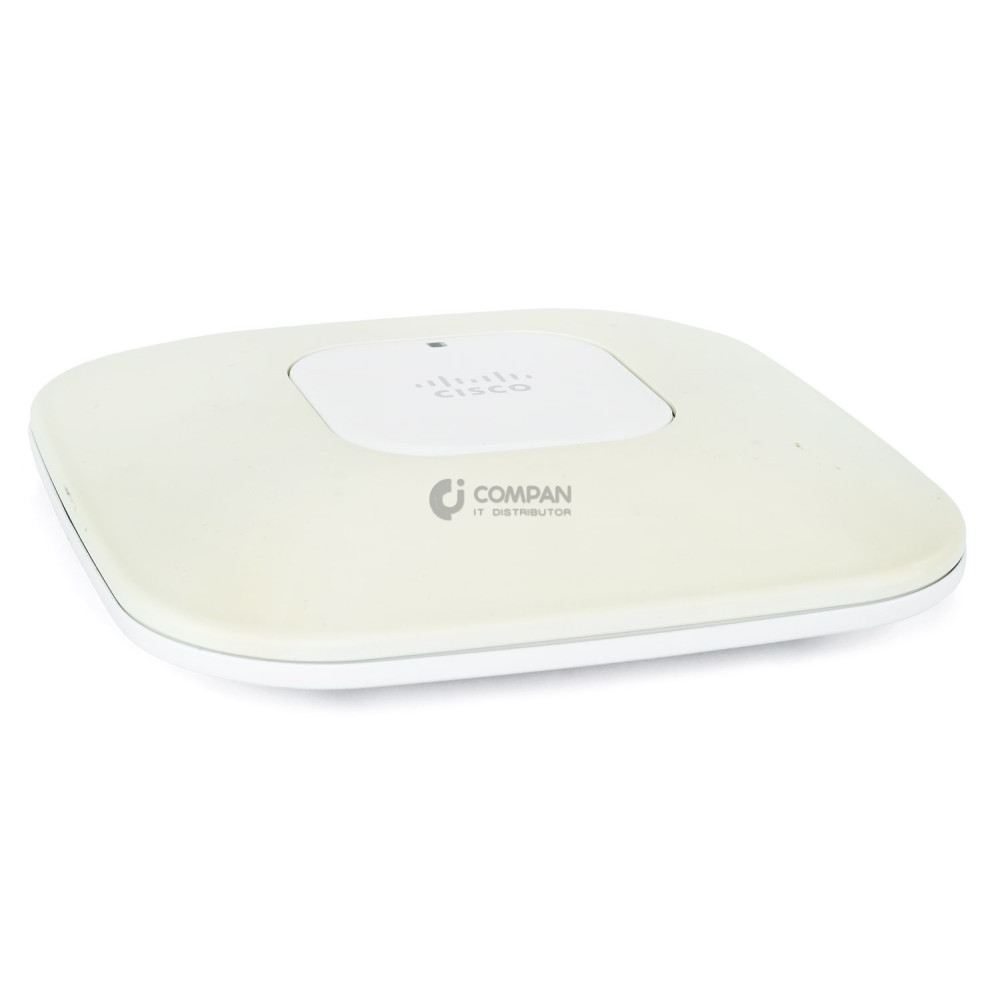

| MPN | AIR-LAP1142N-E-K9 |
| Brand | CISCO |
| Model | AIR-LAP1142N-E-K9 |
| Description | DUAL BAND CONTROLLER BASED 802.11a/g/n ACCESS POINT |
| 802.11n Capabilities | ● 2x3 multiple-input multiple-output (MIMO) with two spatial streams ● Maximal ratio combining (MRC) ● Legacy beamforming (hardware supports ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) ● Cyclic shift diversity (CSD) support |
| Antenna | Integrated ● 2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, Gain 3 dBi, horizontal beamwidth 360° |
| Interfaces | ● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ45) |
| System Memory | ● 128MB DRAM ● 32MB flash |
