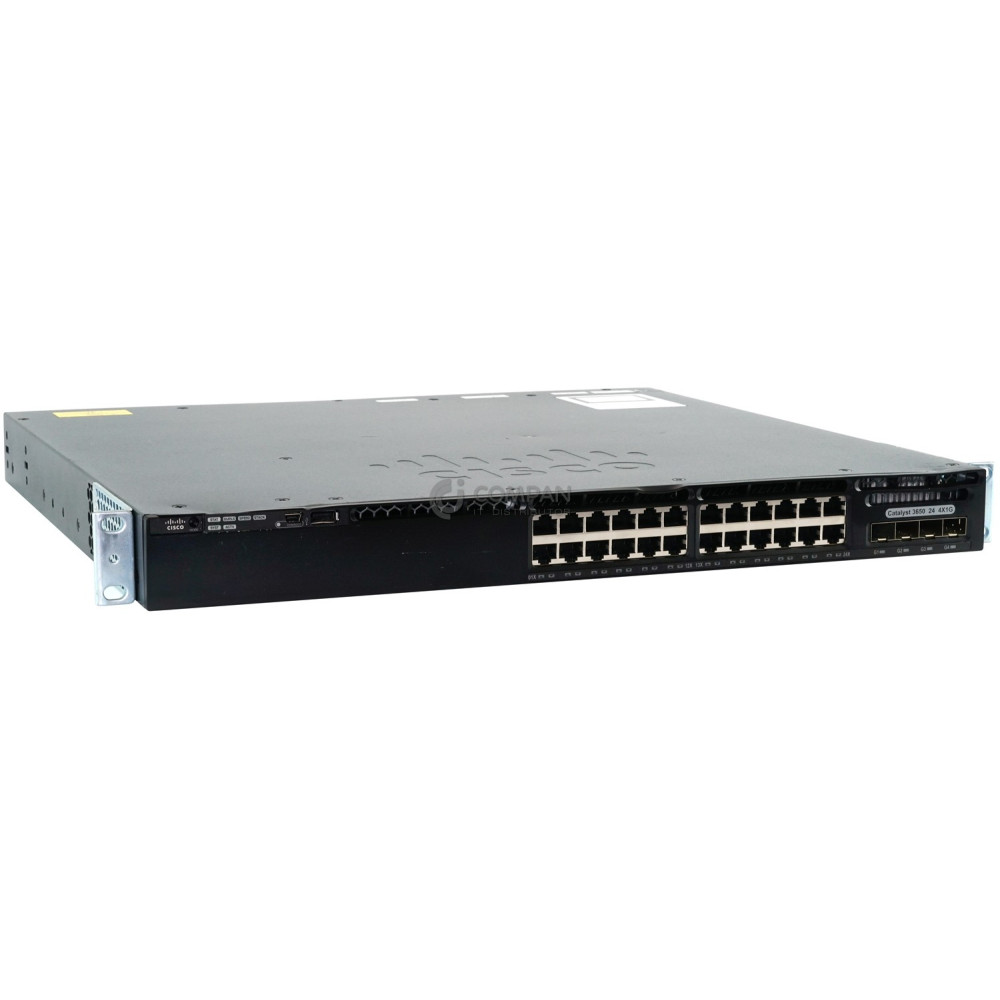

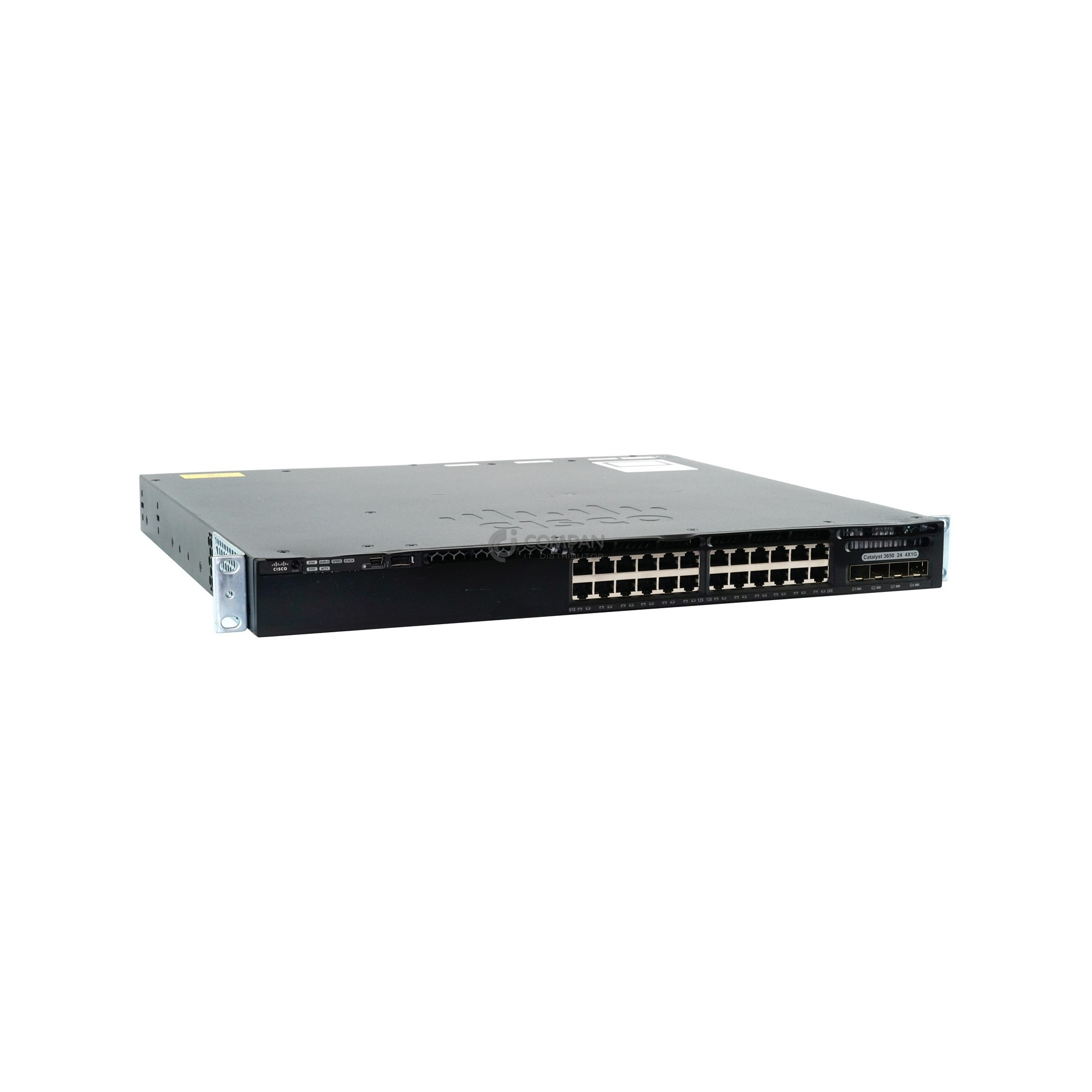

WS-C3650-24TS-L CISCO CATALYST 3650 24-PORT GIGABIT ETHERNET 4-PORT 1GB SFP SWITCH WITH DAMAGED CASE

WS-C3650-24TS-L CISCO CATALYST 3650 24-PORT GIGABIT ETHERNET 4-PORT 1GB SFP SWITCH WITH DAMAGED CASE

PN: WS-C3650-24TS-L

The switch has several layers, layer 2 (network bridge, connecting a small number of devices) or layer 4 (e.g. acts as a firewall). Multilayer switch L3

Quality of Service (QoS) Support Yes

Website management Yes

Communication

RJ-45 Ethernet ports (sockets). Basic RJ-45 switching Number of Ethernet ports: 24

The type / category of RJ-45 Ethernet port (sockets). Basic Ethernet switching RJ-45 ports type Gigabit Ethernet (10/100/1000)

Number of SFP Module slots: 4

Computer network

Network operation standard, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. Communication standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

The Full-duplex system allows communication in both directions and, unlike half-duplex, it allows it to take place simultaneously. Full Duplex Yes

IP forwarding Yes

Connection Aggregator Yes

Frequency limit Yes

MDI (Medium Dependent Interface) describes the interface (both physical and electrical) in a computer network. The Auto-MDIX interface automatically selects between MDI and MDI-X, allowing either standard or crossover cables to be connected, whether the computers are connected directly or through a hub or switch. Automatic MDI / MDI-X Yes

Virtual Local Area Network (VLAN) consists of several computers and switches. It is a computer network logically separated within another, larger LAN physical network. VLAN support Yes

Number of VLANs: 4094

The amount of data transferred per second: 92 Gbit / s routing / switching capacity

Address table size: 32,000 entries

Compatible with Jumbo Frames Yes

Security

DHCP functions DHCP server

Access Control List (ACL) Yes

IGMP snooping Yes

SSH / SSL support Yes

Multicast Support Yes
