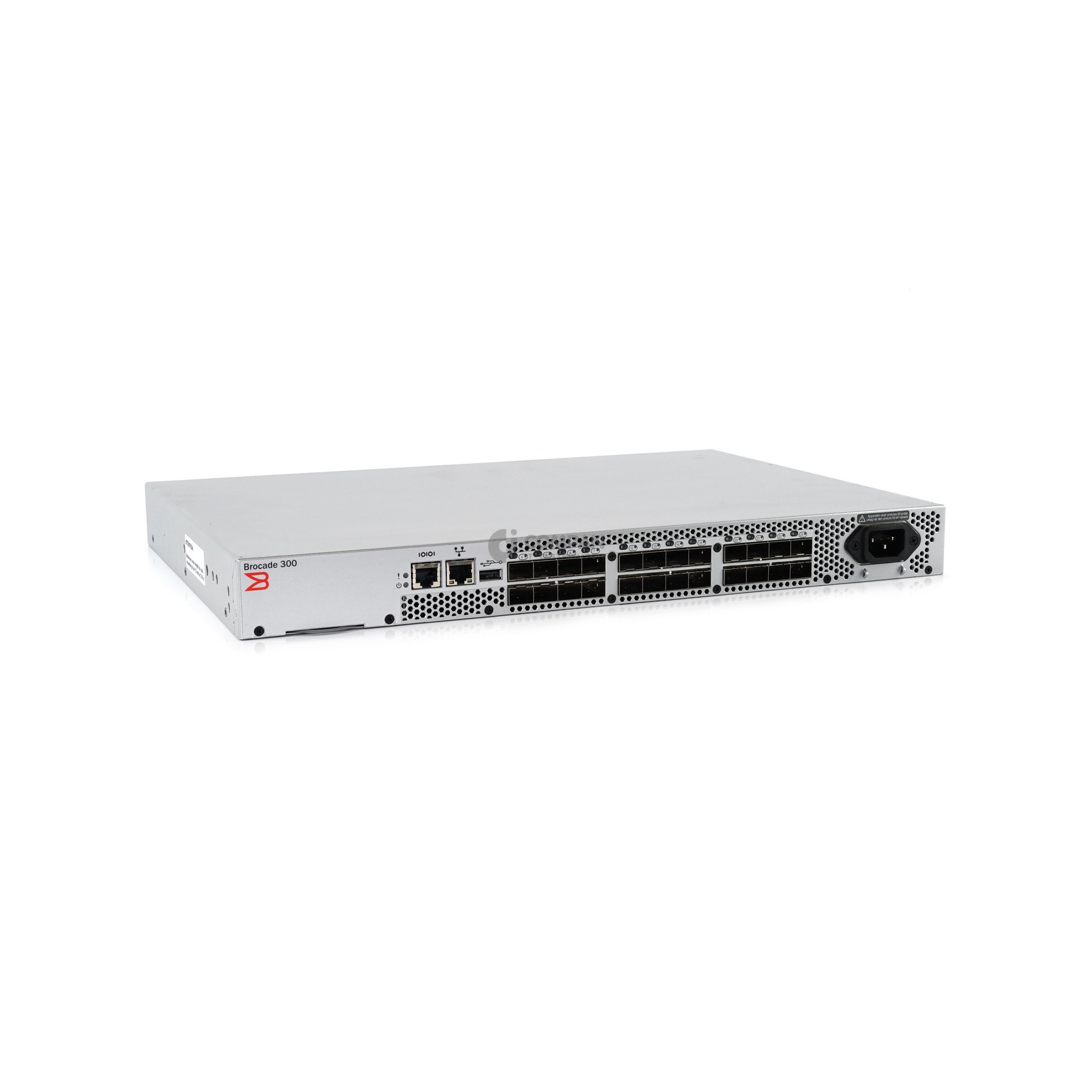

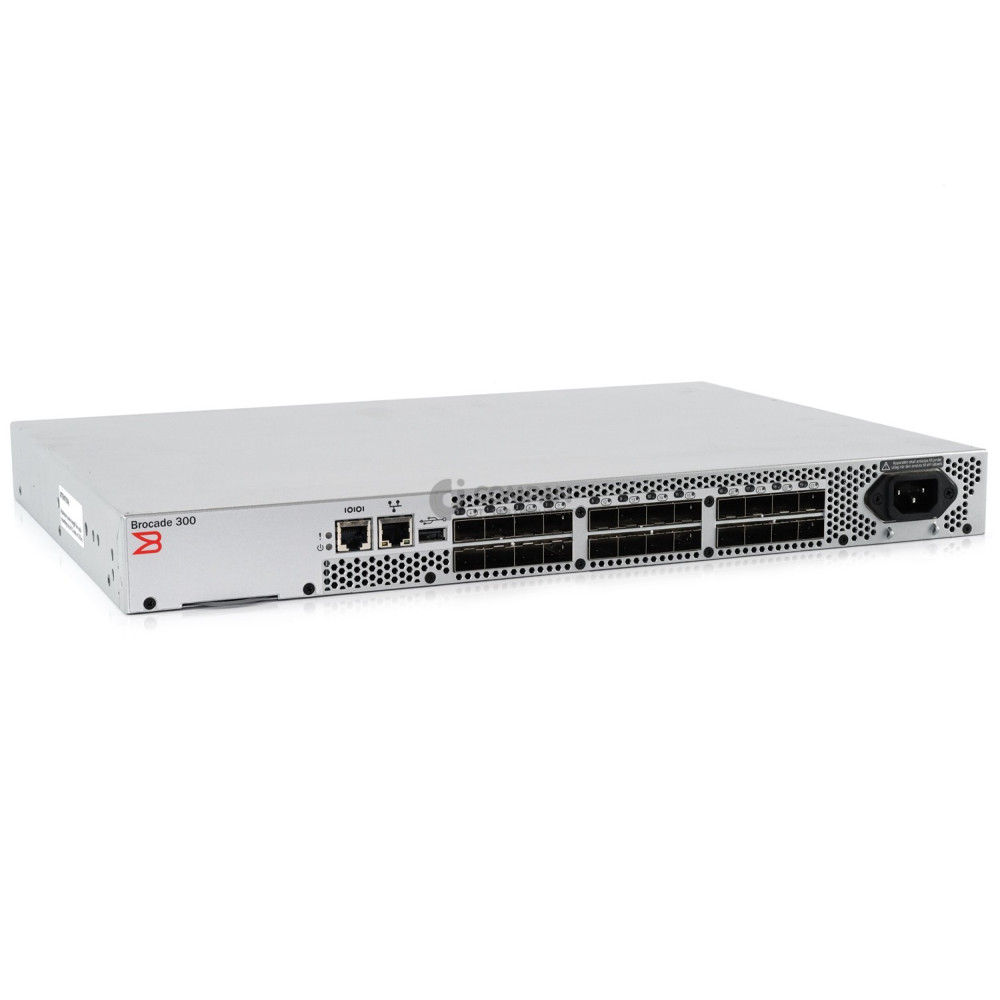

U510F DELL BROCADE 300 24-PORT 8GB FIBRE CHANNEL 24-PORTS ACTIVE SWITCH

U510F DELL BROCADE 300 24-PORT 8GB FIBRE CHANNEL 24-PORTS ACTIVE SWITCH

PN: U510F

1 x Dell Brocade 300 DL-320-0003 24-Port 8Gb FC SAN Switch 8-Ports Active

8 x 8GB SW SFP

Spec:

Fibre Channel ports

• Switch mode (default): 8-, 16-, and 24-port configurations (8-port increments through Ports on Demand [PoD] licenses); E_, F_, M_, FL_ Ports
• Brocade Access Gateway Default Port Mapping: 16 F_Ports, 8 N_Ports
•


Scalability

Full fabric architecture with 239 switches maximum

Performance

• 1.063 Gbps line speed, full duplex; 2.125 Gbps line speed, full duplex; 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; auto-sensing of 1, 2, 4, and 8 Gbps port speeds; optionally programmable to fixed port speed; speed matching between 1, 2, 4, and 8 Gbps ports

ISL Trunking

• Brocade Frame-based Trunking with up to eight 8 Gbps ports per ISL trunk with optional license; up to 64 Gbps per ISL trunk (8 ports × 8 Gbps [data rate])
• Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS
