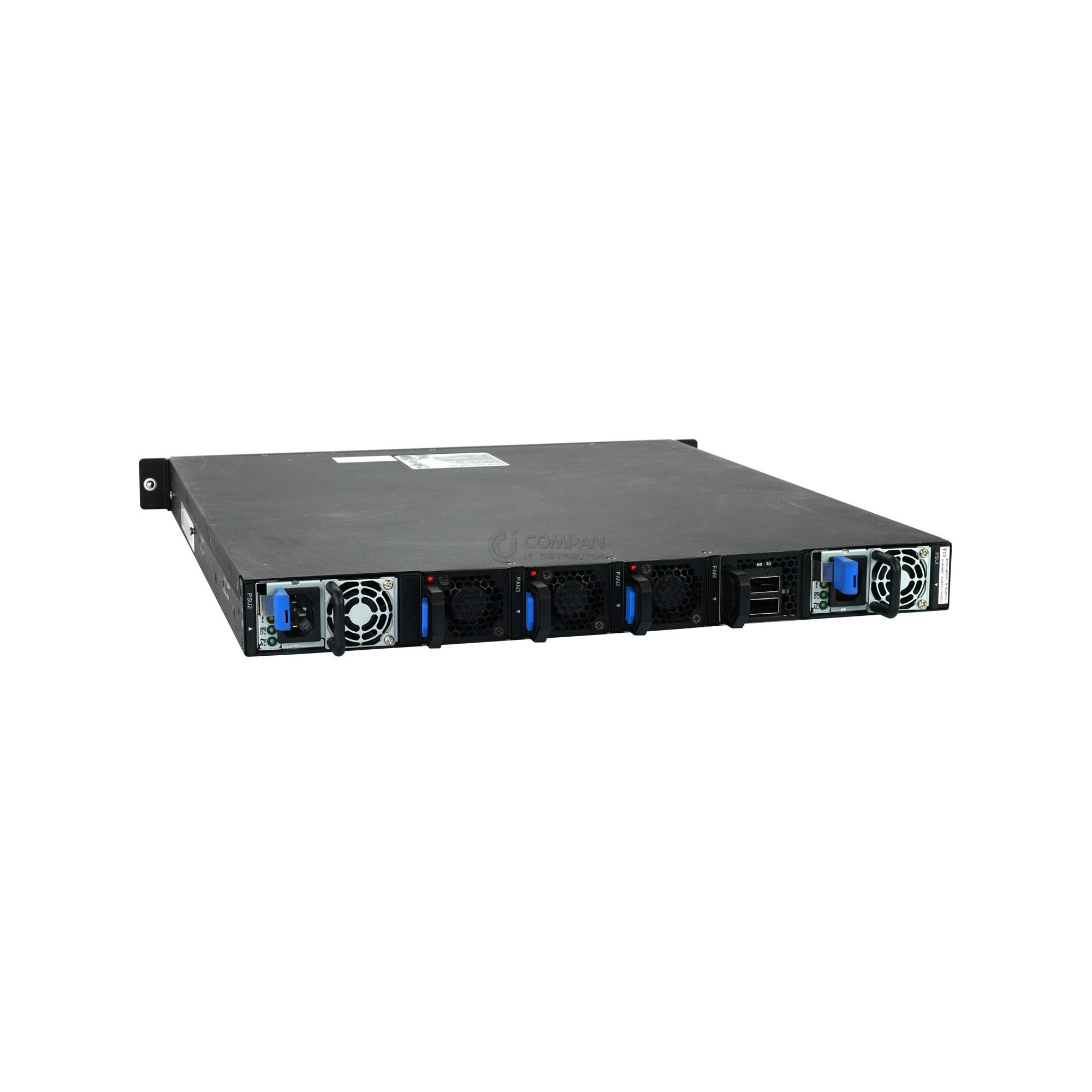

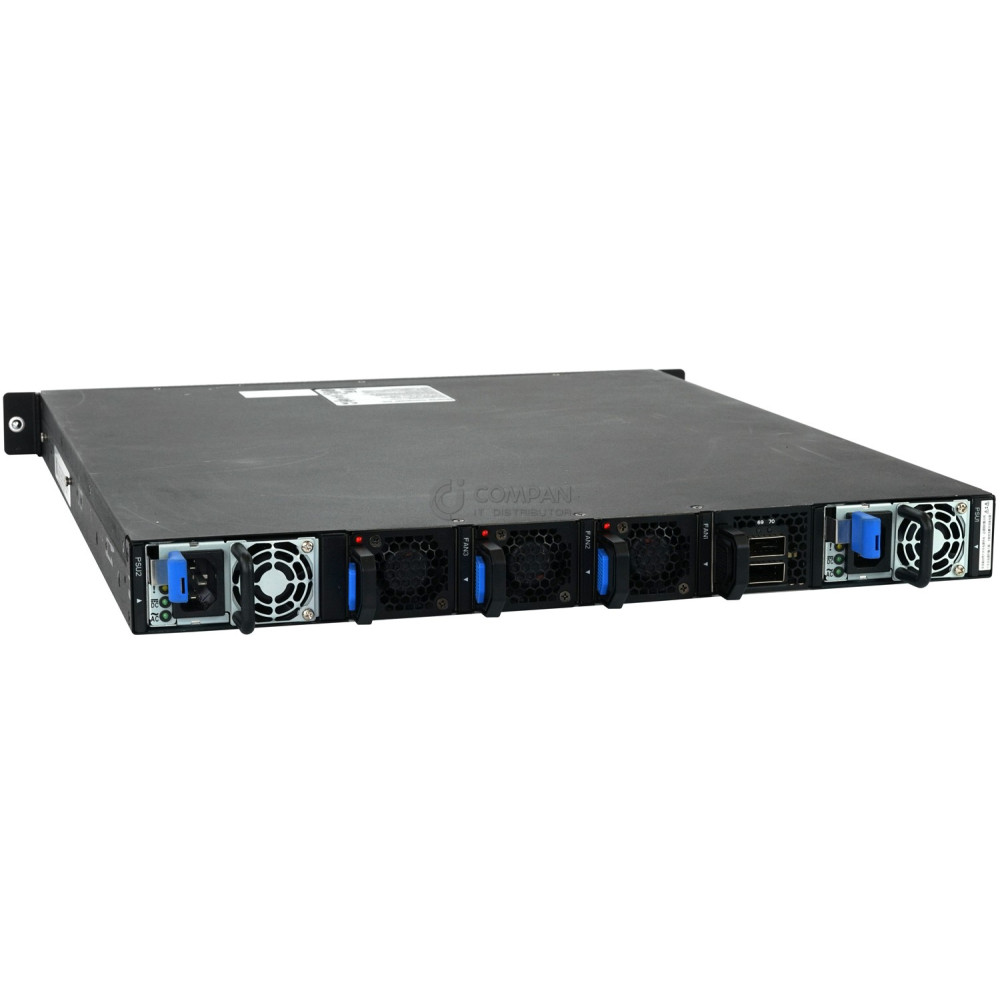

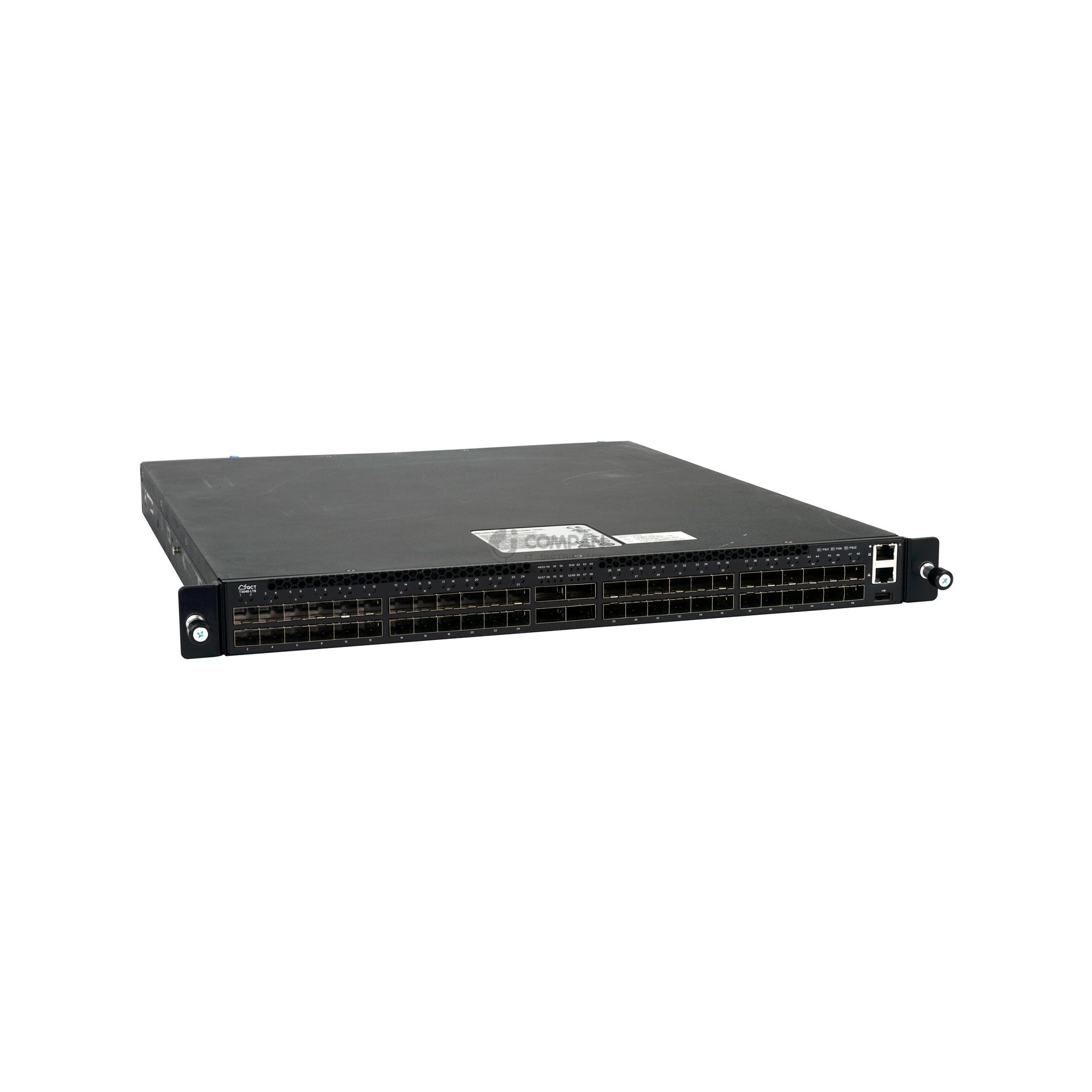

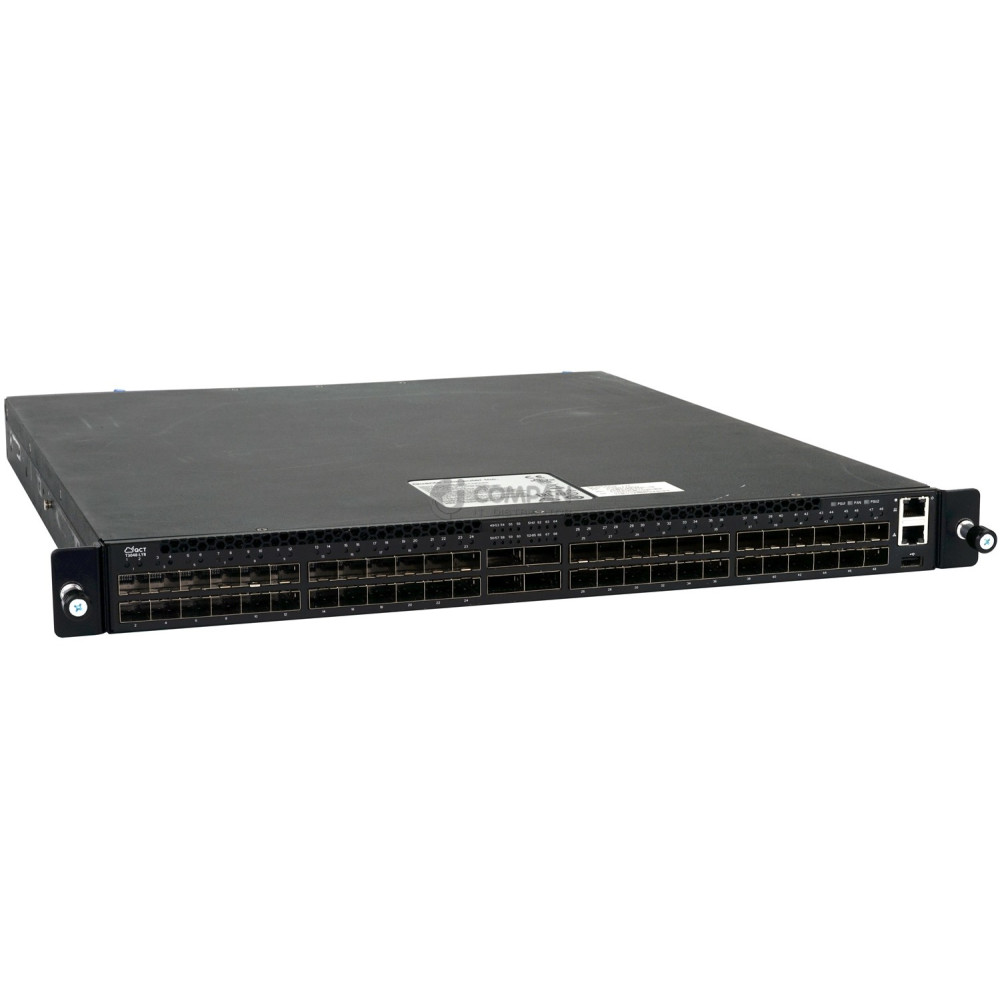

Quanta T3048-LY8 48x SFP+ 10Gb 6x QSFP+ 40Gb - Ethernet Switch
Brand:
QUANTA
|
Part Number: T3048-LY8
Description
Quanta T3048-LY8 48x SFP+ 10Gb 6x QSFP+ 40Gb - Ethernet Switch
The QuantaMesh T3048-LY8 is a high-performance, low-latency Layer 2/3 switch engineered to meet the rigorous demands of modern data centers, high-performance computing (HPC) clusters, and cloud environments. This device is a powerful solution for those building agile and scalable network fabrics.
With 48 SFP+ 10GbE ports and up to six 40GbE QSFP+ uplinks, the T3048-LY8 delivers exceptional port density in a compact 1U form factor. Its high-throughput architecture, powered by a Broadcom Trident-II ASIC, provides a switching capacity of up to 1.44 Tbps and an ultra-low latency of less than 600 nanoseconds. This ensures rapid data transfer for demanding, time-sensitive applications.
Designed for uncompromising reliability and automation, the switch features a back-to-front airflow, hot-swappable dual redundant power supplies, and redundant fans. It supports a wide array of advanced Layer 3 functionalities, including OSPF and BGP, along with cutting-edge data center features like VXLAN for network virtualization. As an open networking platform with ONIE (Open Network Install Environment) pre-loaded, it offers unparalleled flexibility, allowing network administrators to choose their preferred network operating system (NOS) from a wide range of vendors. The T3048-LY8 is a cost-effective, high-performance solution for building the next generation of disaggregated network infrastructure
This device is an excellent choice for:
- Spine-and-Leaf Architecture: The T3048-LY8 is specifically designed to function as both a leaf switch (connecting to servers and storage) and a spine switch (interconnecting leaf switches) in a modern, scalable data center fabric.
- Top-of-Rack (ToR) Deployments: Its high port density and low-latency performance make it an excellent choice for placing in a server rack to connect all the servers to the network backbone.
- Cloud and Infrastructure-as-a-Service (IaaS) Deployments: The support for VXLAN and BGP makes it ideal for building large, multi-tenant cloud networks that require scalable Layer 3 routing.
- High-Performance Computing (HPC): The switch's ultra-low latency is crucial for HPC clusters and financial applications where every nanosecond counts.
- Open Networking and Software-Defined Networking (SDN): With ONIE support, it is the perfect platform for network engineers and architects who wish to deploy disaggregated network solutions using third-party NOS options like Cumulus Linux, SONiC, or Open Network Linux (ONL).
Future proof Hardware
Power Up Your Connectivity
Boost your network's speed and reliability with brand-new devices. It's not just an upgrade, it's a solid foundation for your infrastructure needs, now and in the future. Enjoy faster connections for all your devices today, and rest easy knowing your network is ready for whatever comes next.
RELIABLE DELIVERY
Packaged Securely
Your product will arrive packaged carefully, according to internal standards of item protection. The item is handled professionally, you can be sure that your order will arrive in perfect condition.
ALWAYS ON TIME
With Our Own Logistics
Thanks to our own fleet of vehicles, we are able to ensure fast and reliable delivery of very large goods, such as complete server systems and data centers. We offer individual service and full control over the transport of your goods. Trust us to take care of your transport needs and deliver your products on time within Europe
SPECIFICATION
| Manufacturer | Quanta |
| Product Line | QuantaMesh Series |
| Model | T3048-LY8 |
| Ports | 48 x 10Gb SFP+ |
| Uplink Ports | 6 x 40Gb QSFP+ |
| Management | Fully Managed |
| Stackable | No |
| Internal Ports | Not Applicable |
| Form Factor | 1U Rack Mountable |
| Layer | 2/3 |
| POE Standard | No |
| POE Power | N/A |
| Switching Capacity | 1.44Tbps |
| Mounting | NO |
| PSU | 2x 750W |
| Cooling | 3x Rear-to-Front, Redundant Fans |
| Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
| Warranty | 1 Year |
DETAILED SPECIFICATION
| Feature / Characteristic | Specification |
|---|---|
| Ethernet Ports | 48 x 10GbE SFP+ |
| Uplink Ports | 6 x 40GbE QSFP+ |
| Management Ports | 1 x RJ-45, 1 x Micro-USB, 1 x USB Type-A |
| Switching Capacity | 1.44 Tbps |
| Forwarding Rate | 1071.43 Mpps |
| DRAM | 8 GB |
| Flash Memory | 8 GB |
| Jumbo Frame Support | Up to 9K bytes |
| MAC Address Table Size | 132,000 entries |
| Operating Layer | Layer 2/3 |
| Stacking | No |
| Airflow Direction | Back-to-front |
| Power Supplies | Hot-swappable, redundant (1+1), 750W each |
| Fans | Hot-swappable, redundant |
| Software | ONIE (Open Network Install Environment) |
Specifications
- Product Line:
- QuantaMesh Series
- Type:
- Ethernet Switch
- model:
- Quanta T3048-LY8
- brand:
- Quanta
- Switching Capacity:
- 1.44 Tbps
- Form Factor :
- 1U Rack Mountable
- Ports Quantity:
- 48
- Ports Interface:
- SFP+
- Ports Speed:
- 10Gb
- Uplink Ports Quantity:
- 6
- Uplink Ports Interface:
- QSFP+
- Uplink Ports Speed:
- 40Gb
- Network Management Type:
- Fully Managed
- Stackable:
- No
- Internal Ports Quantity:
- Not Applicable
- Layer:
- 2/3
- POE Standard:
- No
- POE Power:
- N/A
- Cooling:
- Rear-to-Front, Redundant Fans
- RAILS:
- NO
- PSU PN:
- -
- FAN PN:
- -
- PSU Quantity:
- 2
- PSU Power:
- 750W
- Fan Quantity:
- 3
- License:
- -
Warranty
All products purchased in our store come with a one-year warranty against manufacturing defects. The warranty begins on the date of purchase and applies to all items in our inventory. If you encounter any issues, please contact our customer service team for assistance. Complaints can be submitted within 14 days of discovering a defect, and a proof of purchase is required for processing the request. In the event that a complaint is approved, we will repair or replace the item with a new one. For detailed information about the complaint procedure, please refer to the "Return Policies" section on our website.
