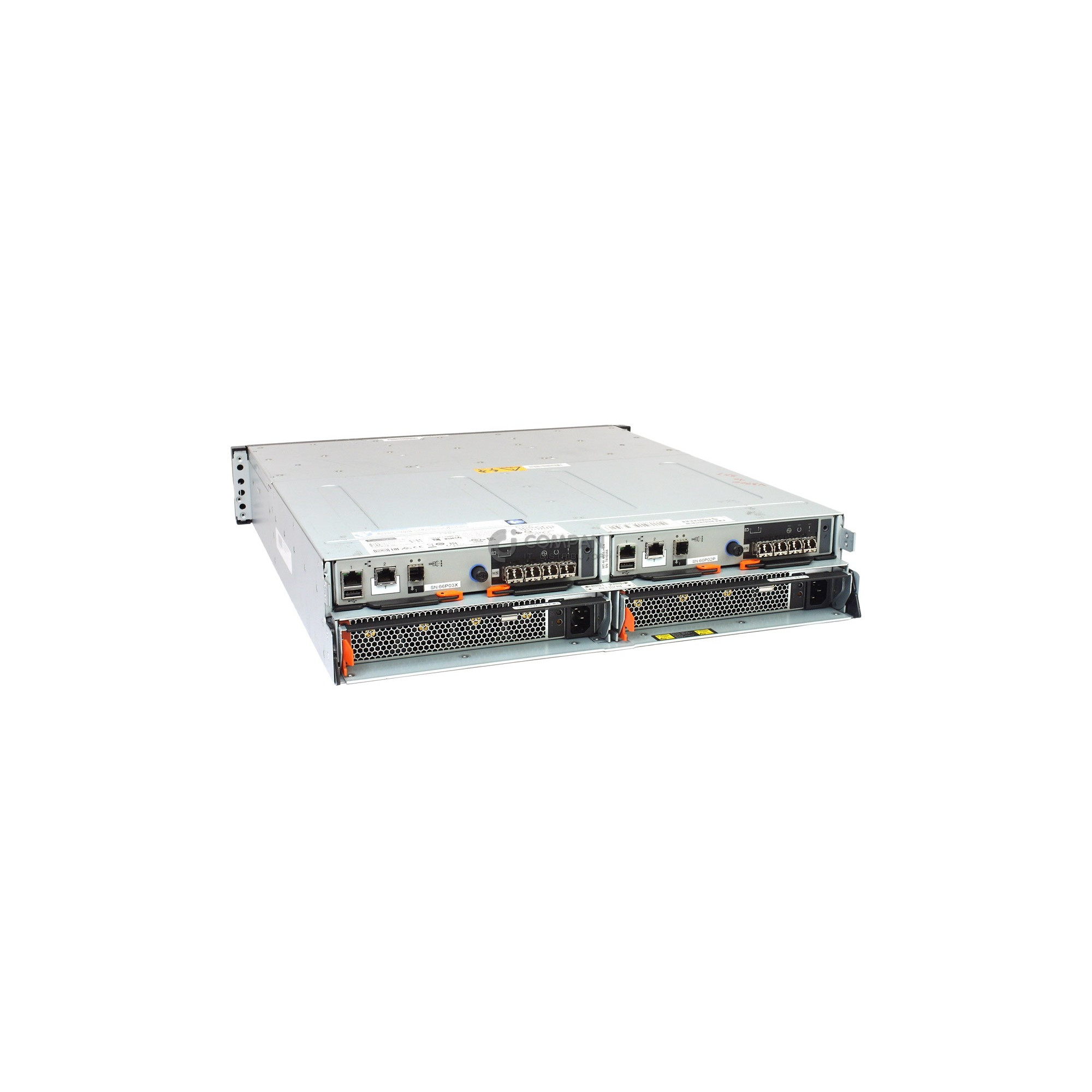

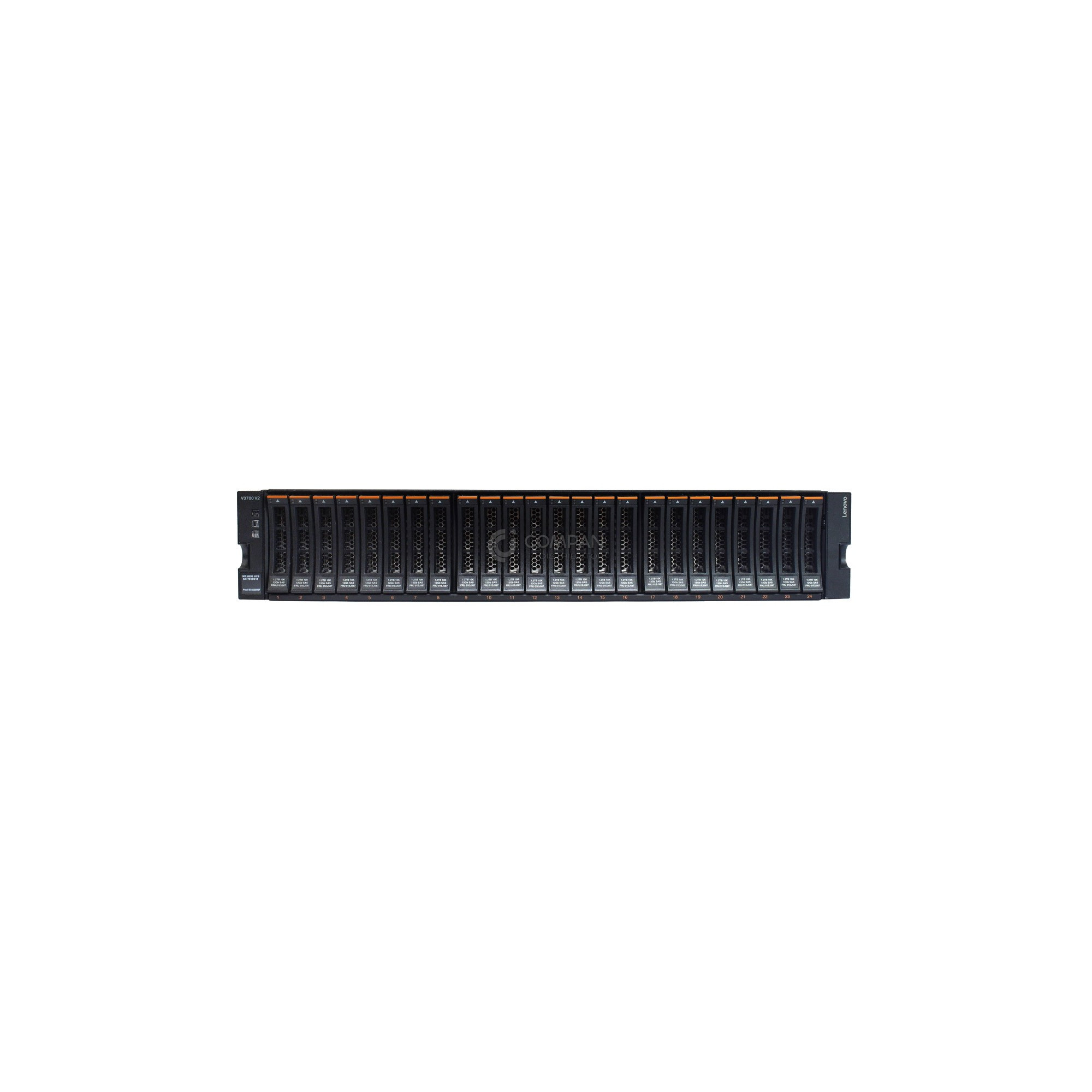

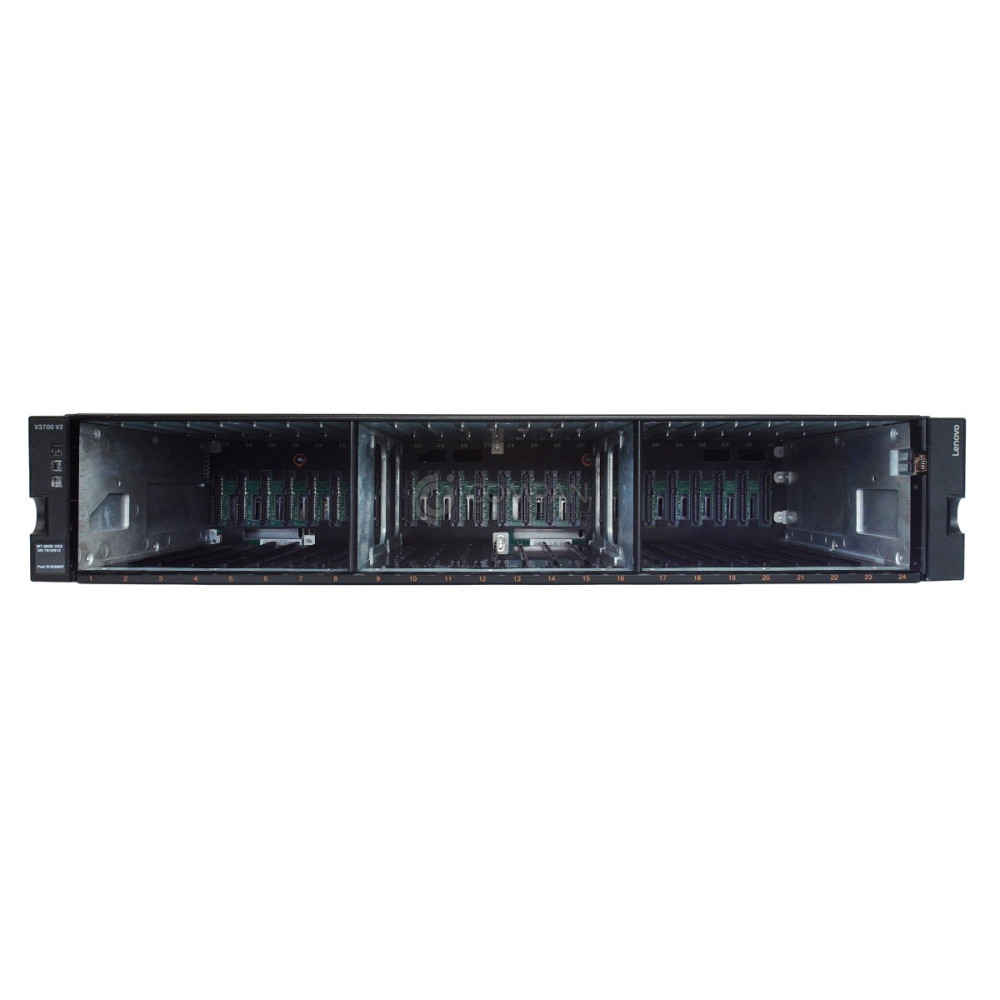

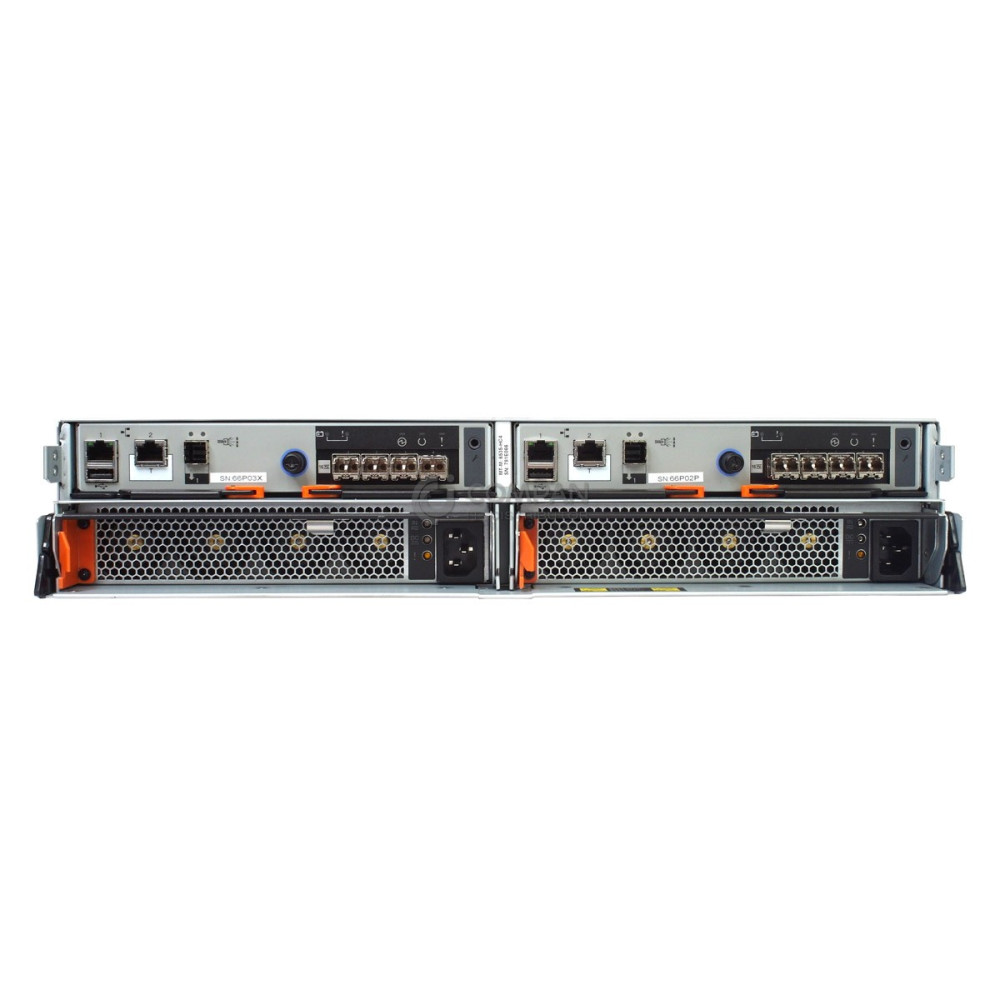

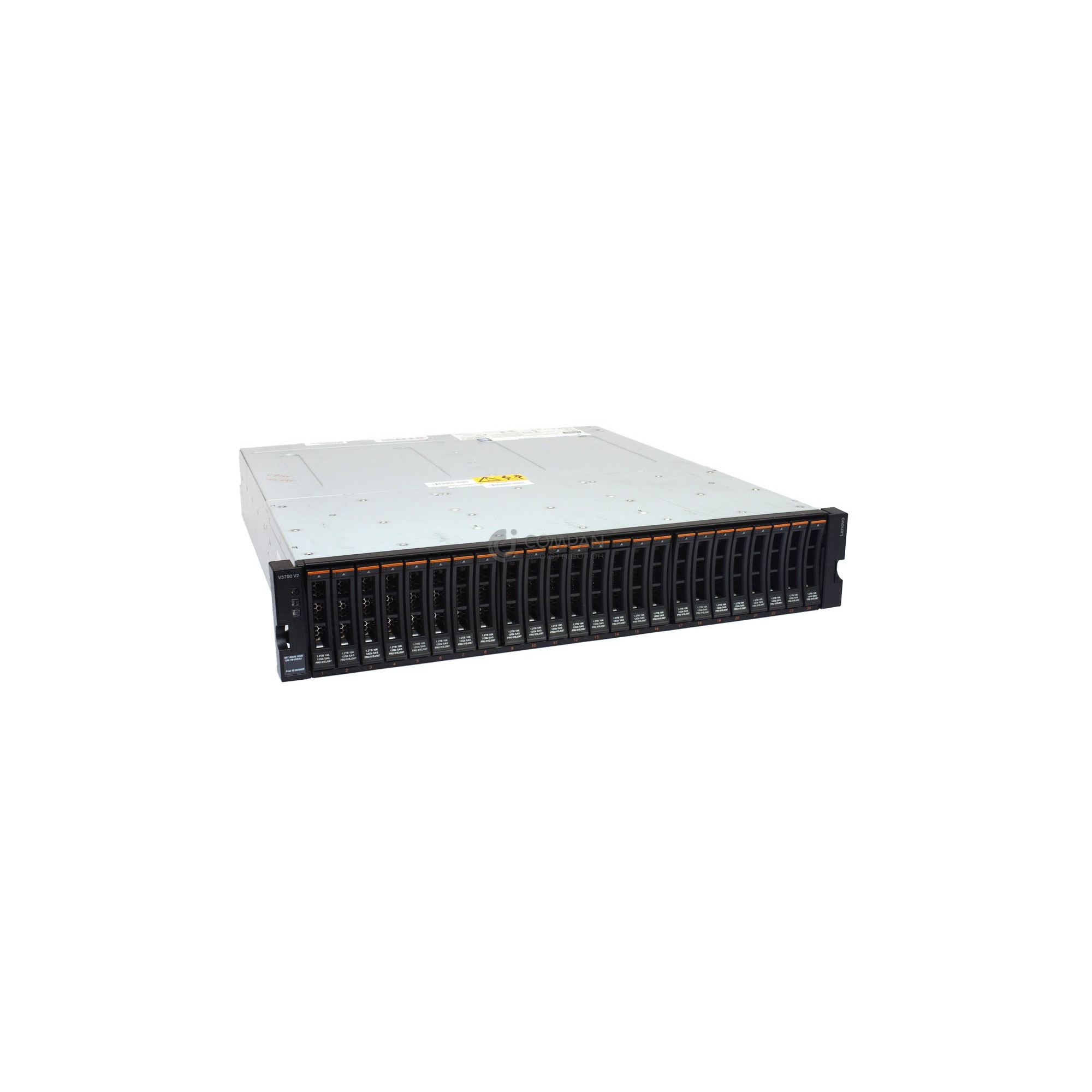

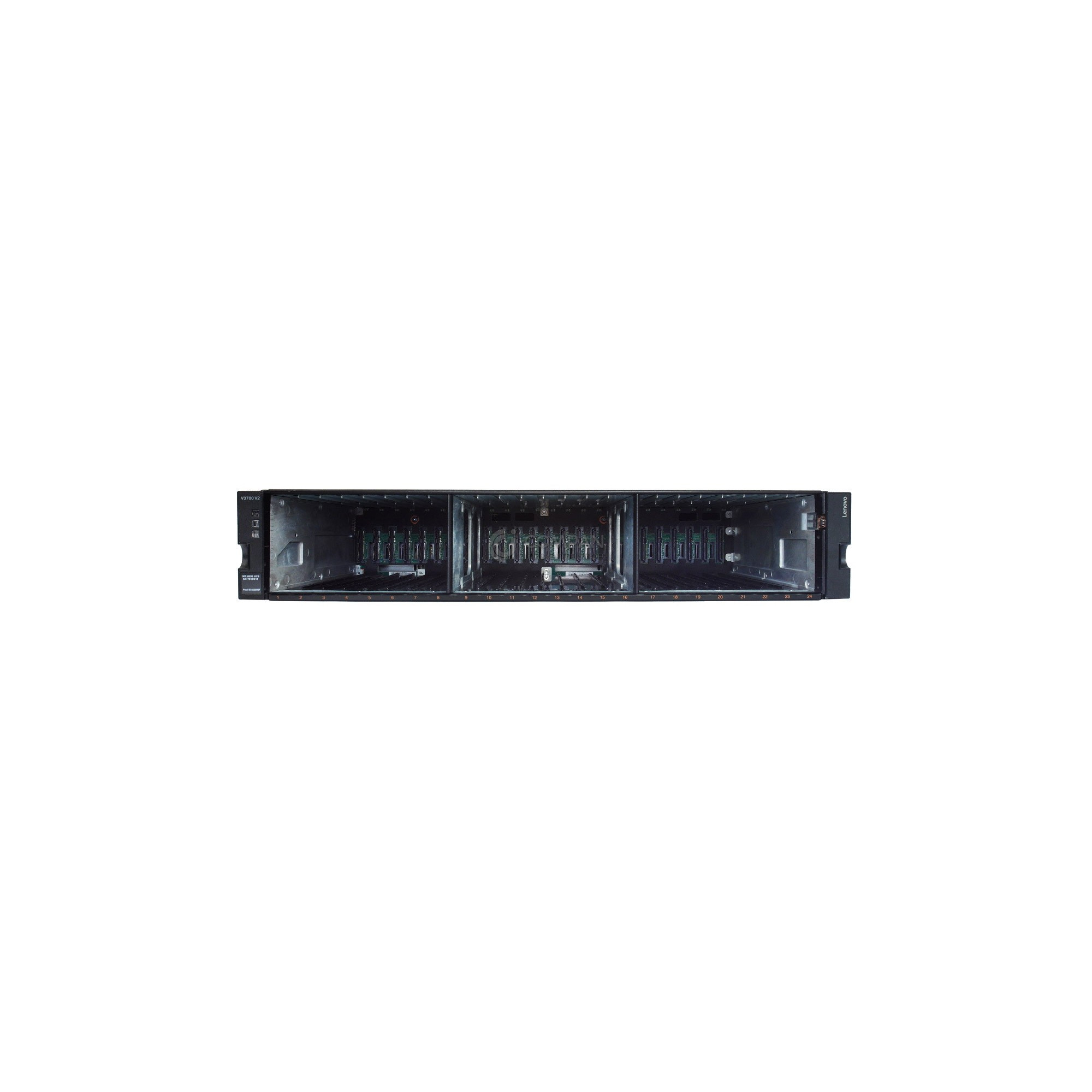

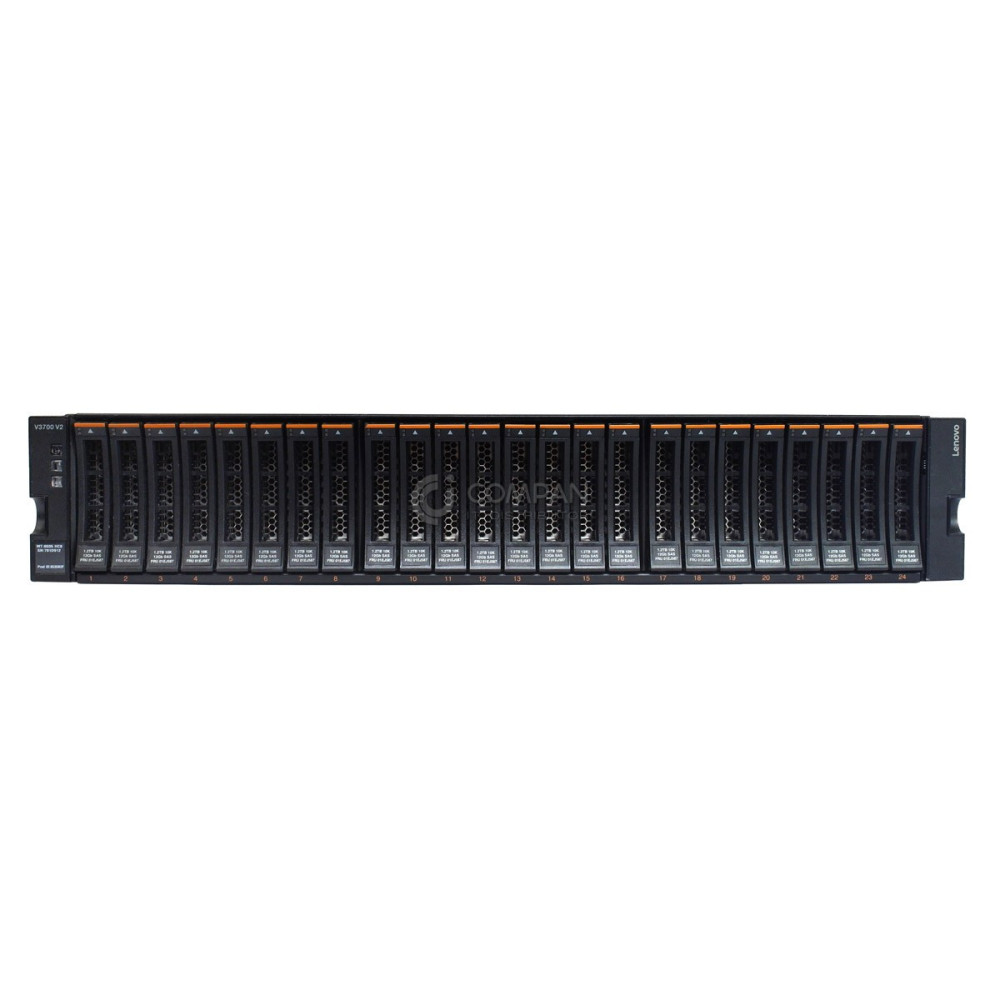

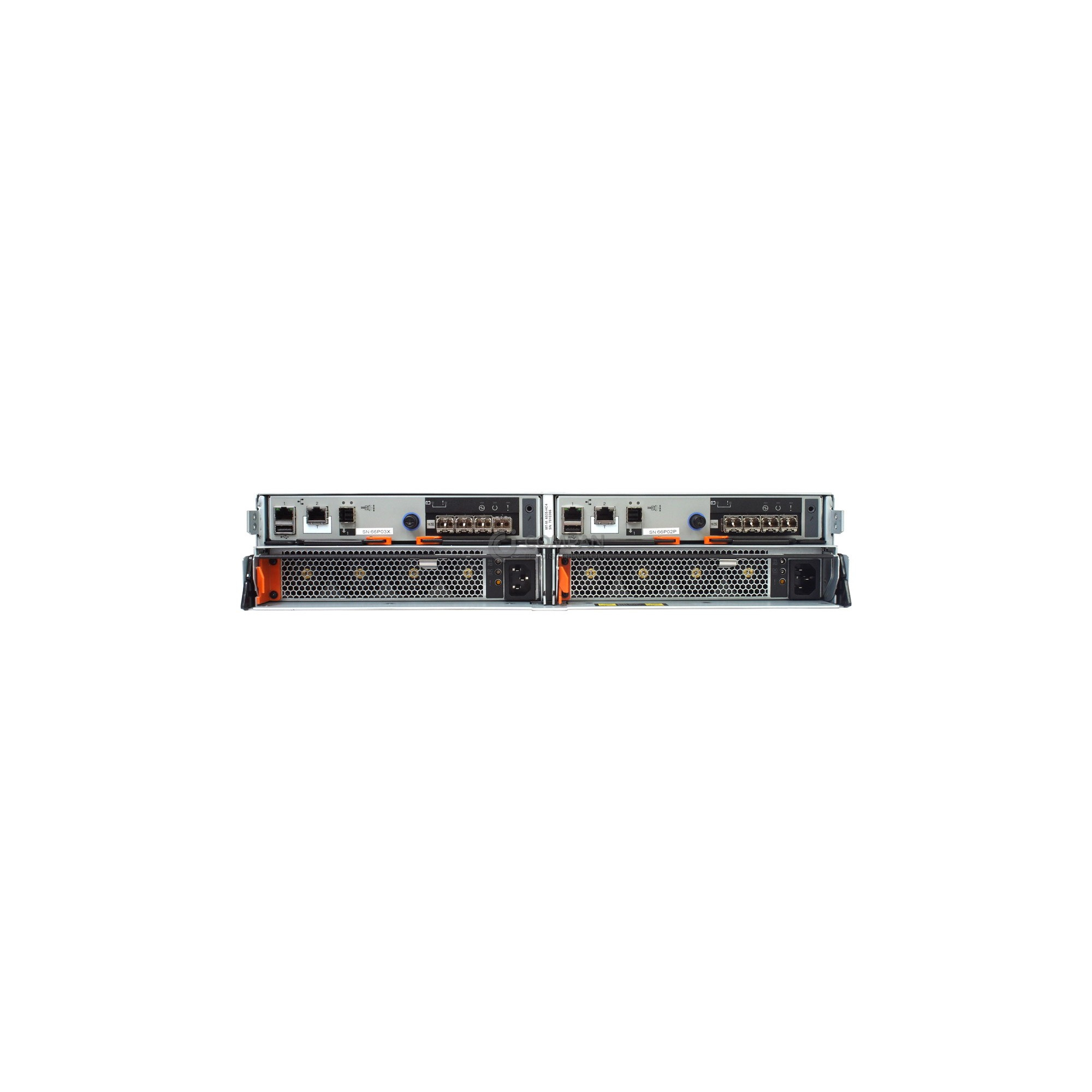

6535-HC4 / IBM STORWIZE V3700 G2 24-BAY SFF CONTROLLER ENCLOSURE

Brand: IBM | Part Number: 6535-HC4
26,999.99 zł
Tax excluded
Availability : 1 pc.
Condition: Refurbished help_outline
Warranty:  1 year


Security Policy



Delivery Policies



Return Policies

Quantity
Last items in stock

Trustpilot
  • We ship all over the world
  • All items shipped from our warehouse
  • Easy and fast ordering 24/7
  • Express international shipping in 24 hours
  • Express delivery of even 1-2 working days
If you order now, we'll ship it in:
hours
minutes
seconds
Description
NOTE:
EASY TIER & REMOTE MIRRORING EXPIRES : 17.04.2024

Manufacturer part number 6535-HC4
Brand IBM
Product type Storage
Form Factor Rack mountable 2U
Power supply 2 x 800 W AC power supply for V3700 G2
Include2 x IBM STORWIZE NODE CANISTER BATTERY MODULE
2 x IBM STORWIZE 4-PORT 16GB FC ADAPTER CARD
2 x IBM NODE CANISTER FOR STORWIZE
2 x IBM SWITCHING POWER SUPPLY 800W 80 + PLATINUM
Drive bays Up to 264 SFF drive bays per storage system:
  - 24 SFF drive bays in the control enclosure
  - 24 SFF drive bays in the expansion enclosure; up to 10 expansion enclosures
Up to 132 LFF drive bays per storage system:
  - 12 LFF drive bays in the control enclosure
  - 12 LFF drive bays in the expansion enclosures; up to 10 expansion enclosures
Intermix of SFF and LFF enclosures is supported.
Drives installed 24 x IBM 1.2TB 10K SAS 12G 2.5 SFF hot-swap
Ports 8 x 16 GbE SFP+ Fibre Channel ports
2 x SAS-3 12Gb ports
4 x 1GbE Management RJ-45 ports
RAID levels RAID 0, 1, 5, 6, 10
Controller cache 8GB per node canister
Drive technology SAS and NL SAS HDDs and SAS SSDs. Intermix of HDDs and SSDs is supported.
Drive connectivity Dual-ported 12 Gb SAS drive attachment infrastructure.

Controller unit with two node canisters (ports per one node canister):
  - 24x 12 Gb SAS internal drive ports (SFF enclosure)
  - 12x 12 Gb SAS internal drive ports (LFF enclosure)
  - 1x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion port for the attachment of the expansion enclosures

Expansion unit with two expansion canisters (ports per one expansion canister):
  - 24x 12 Gb SAS internal drive ports (SFF enclosure)
  - 12x 12 Gb SAS internal drive ports (LFF enclosure)
  - 2x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports for the daisy chained< attachment of the expansion enclosures
Drives SFF drives:
  - 300 GB, 600 GB, and 900 GB 15K rpm SAS HDDs
  - 900 GB, 1.2 TB, 1.8 TB, and 2.4 TB 10K rpm SAS HDDs
  - 2 TB 7.2K rpm NL SAS HDDs
  - 400 GB, 800 GB, 1.6 TB, and 3.2 TB SAS SSDs
  - 1.92 TB, 3.84 TB, 7.68 TB, and 15.36 TB read-optimized SAS SSDs

LFF drives:
  - 300 GB, 600 GB, and 900 GB 15K rpm SAS HDDs
  - 900 GB, 1.2 TB, 1.8 TB, and 2.4 TB 10K rpm SAS HDDs
  - 4 TB, 6 TB, 8 TB, 10 TB, and 12 TB 7.2K rpm NL SAS HDDs
Storage capacity Up to 4.055 PB (264x 15.36 TB SAS SSDs)
Host connectivity Standard ports (per control enclosure with two node canisters):
  - 4x 1 Gb iSCSI host ports (UTP, RJ-45) (2 ports per node canister)
  - 4x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (2 ports per node canister; V3700 V2 XP only)

Optional additional ports on host interface cards (per control enclosure with two node canisters):
  - 8x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (4 ports per node canister)
  - 8x 1 Gb iSCSI host ports (UTP, RJ-45) (4 ports per node canister)
  - 8x 10 Gb iSCSI or FCoE SFP+ host ports (SW fiber, LC) (4 ports per node canister)
  - 8x 16 Gb FC SFP+ host ports (SW or LW fiber, LC) (4 ports per node canister)
  - 4x 25 Gb iSCSI (RoCE) SFP28 host ports (SW fiber, LC) (2 ports per node canister)
  - 4x 25 Gb iSCSI (iWARP) SFP28 host ports (SW fiber, LC) (2 ports per node canister)
Host operating systems Microsoft Windows Server 2012, 2012 R2, and 2016; Red Hat Enterprise Linux (RHEL) 6 and 7;
SUSE Linux Enterprise Server (SLES) 11 and 12; VMware vSphere 5.1, 5.5, 6.0, and 6.5.
Standard software features Virtualization of internal storage, Thin Provisioning, Data reduction pools, One-way Data
Migration, FlashCopy snapshots (up to 64 targets), and Embedded GUI.
Performance   - Up to 168 000 / 390 000 cache read IOPS
  - Up to 65 000 / 114 000 disk read IOPS
  - Up to 17 000 / 29 000 disk write IOPS
  - Up to 32 000 / 54 000 disk mixed (70% read/30% write) IOPS
  - Up to 4.2 / 6.3 GBps sequential disk read throughput
  - Up to 1.1 / 1.7 GBps sequential disk write throughput
Configuration maximums   - Maximum number of storage pools: 1024
  - Maximum number of logical volumes: 2048
  - Maximum logical volume size: 256 TB
  - Maximum number of drives in a RAID array: 16
  - Maximum number of RAID arrays: 128
  - Maximum number of drives in a distributed RAID array: 128 (including up to 4 spares)
  - Maximum number of distributed RAID arrays: 10
  - Maximum hot spare drives: No limit
  - Maximum number of host ports: 2048
  - Maximum number of hosts: 256
  - Maximum number of host ports per one host: 32
  - Maximum number of snapshots: 2048 (requires an optional license)
  - Maximum number of remote mirroring relationships: 2048 (requires an optional license)
Cooling Redundant cooling with the fan modules that are built into power supplies.
Power supply Two redundant hot-swap 800 W AC power supplies.
Hot-swap parts Node canisters, expansion canisters, SFP+/SFP28 transceivers, drives, power supplies with fans.
Management interfaces 2x 1 GbE ports (UTP, RJ-45) in a primary/redundant configuration.
Web-based GUI; SSH CLI; SMI-S; SNMP and email notifications.
Security features Secure Socket Layer (SSL), Secure Shell (SSH), user level security, LDAP authentication
Dimensions Height: 87 mm (3.4 in.); width: 483 mm (19.0 in.); depth: 556 mm (21.9 in.)
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
