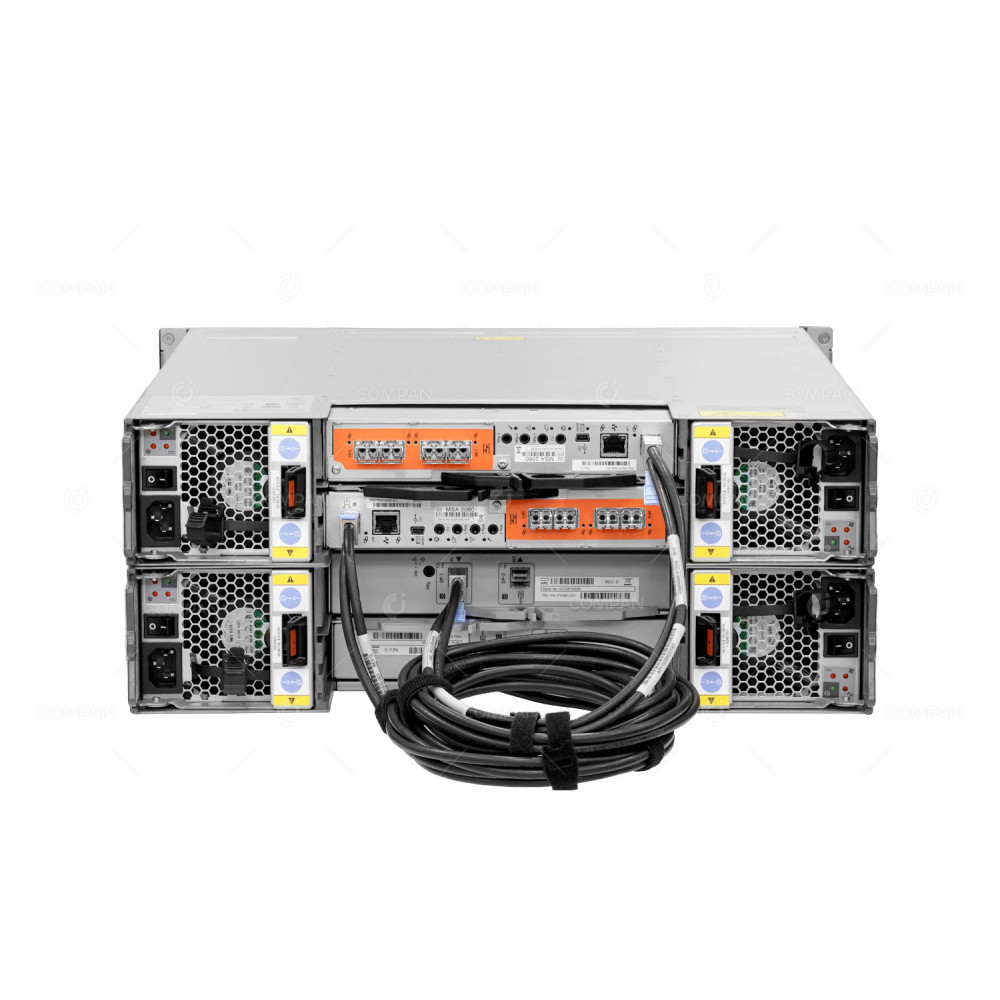

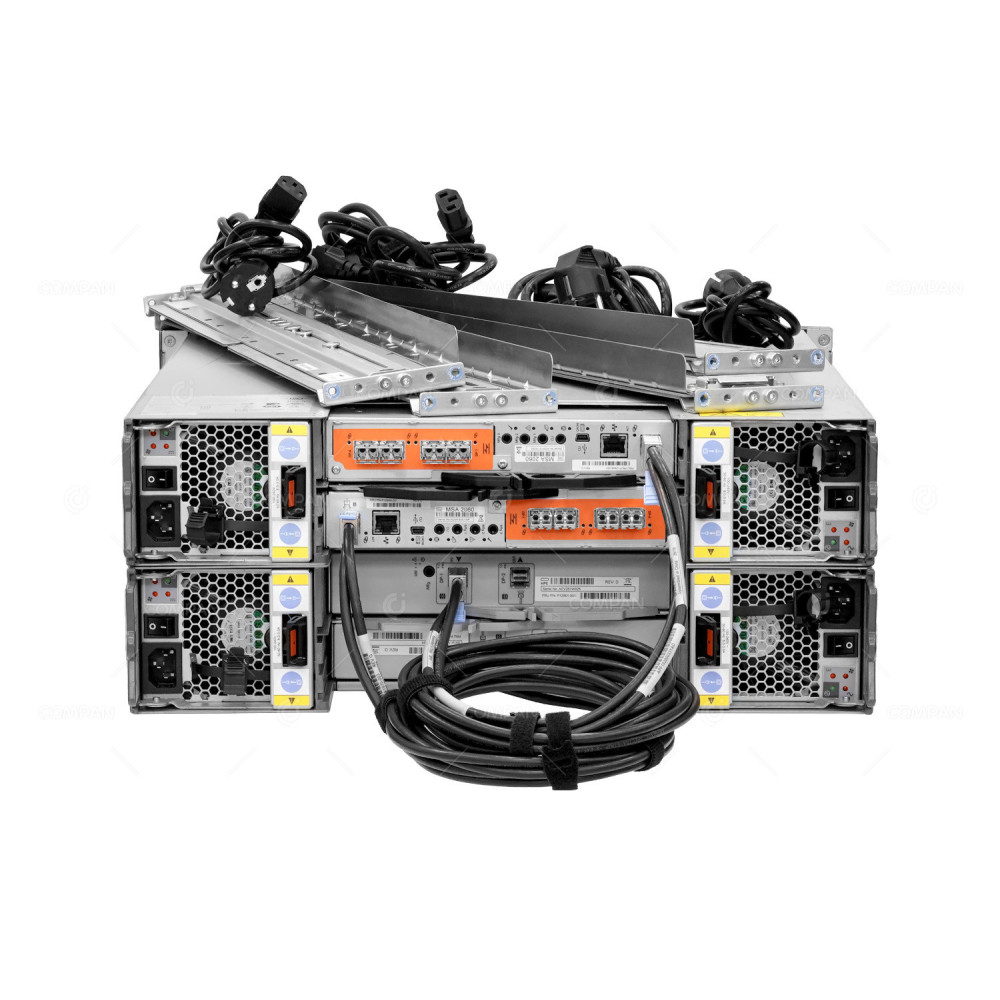

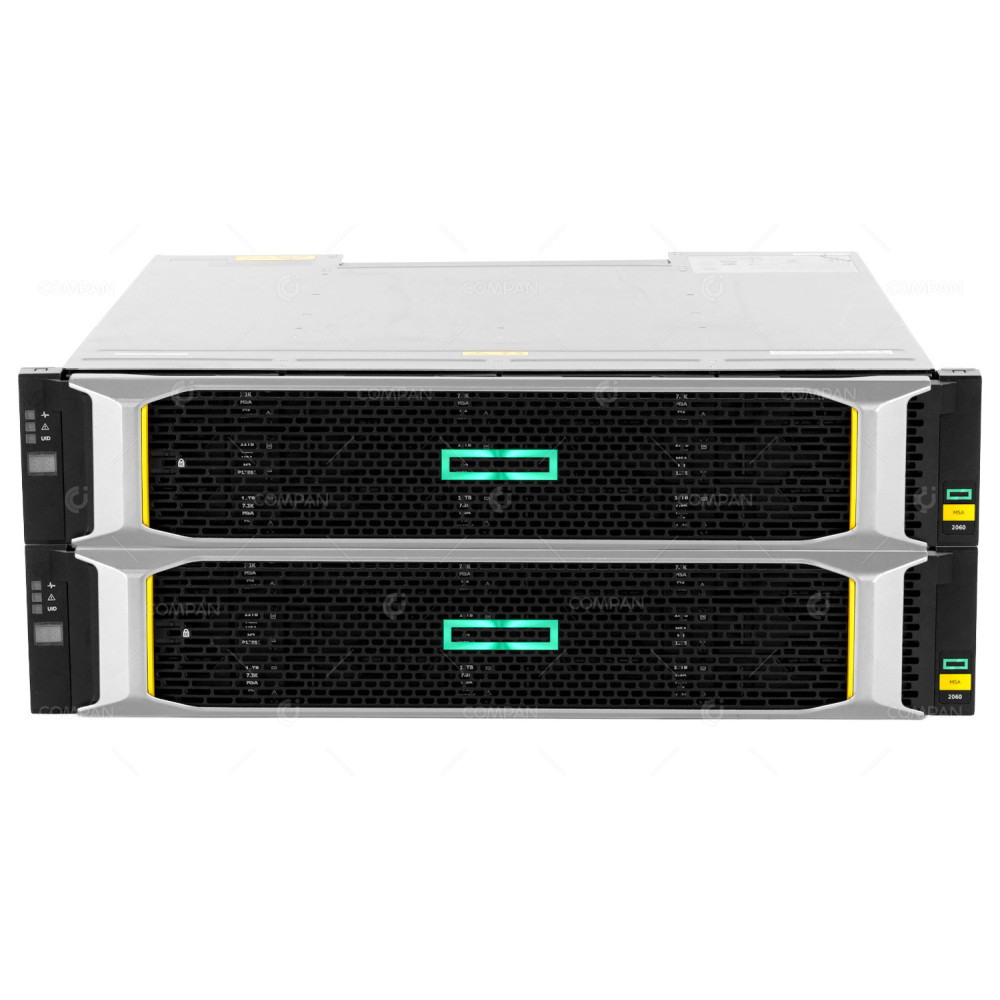

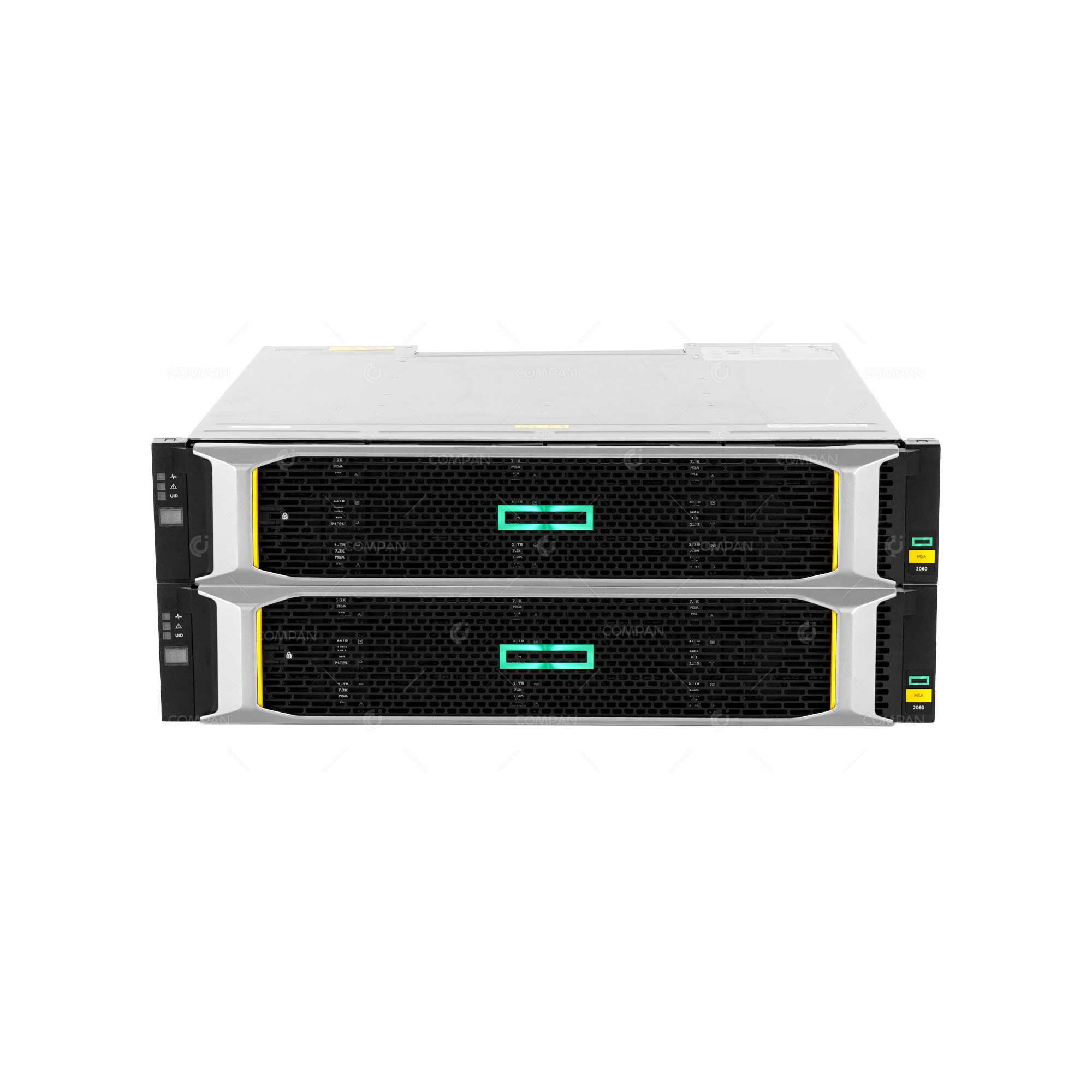

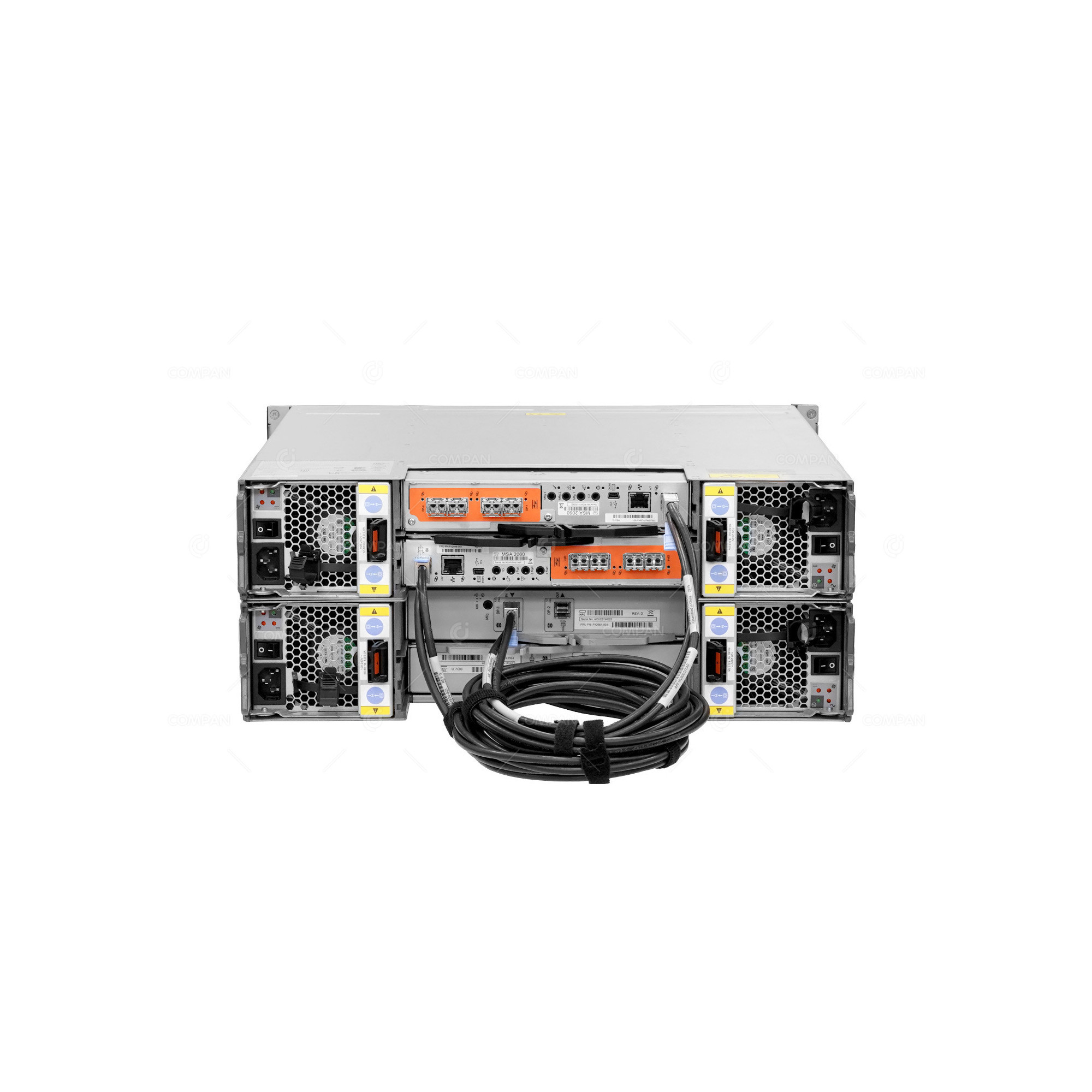

HP MSA 2060 (R0Q73A + R0Q39A) + 360TB OF STORAGE

The HPE MSA 2060 16Gb FC LFF Storage Array (R0Q73A) is a high-performance, entry-level SAN solution designed for small to medium-sized businesses requiring reliable, cost-effective, and scalable block storage. Built on the proven HPE MSA architecture, the MSA 2060 delivers exceptional performance, flexibility, and ease of use with a range of enterprise-class features at an affordable price point.

This model features dual-active controllers, each equipped with four 16Gb Fibre Channel host ports, providing a total of eight FC ports for high-availability connectivity to Fibre Channel SAN environments. The base chassis supports up to 12 large form factor (LFF) 3.5-inch drives, allowing up to 216 TB of raw capacity when populated with 18 TB drives, and can scale up to 2.16 PB with the addition of expansion enclosures.

With 24 GB of onboard cache, support for advanced data services such as automated tiering, snapshot, and remote replication, and flexible RAID options including RAID 0, 1, 5, 6, 10, and MSA-DP+, the MSA 2060 ensures high availability, data protection, and optimized performance for diverse workloads.

The HPE MSA 2060 SAS 12G LFF Drive Enclosure (R0Q39A) is a high-density, 2U rack-mountable expansion shelf designed for use with HPE MSA Gen6 storage arrays, including the MSA 2060 and MSA 1060 series. It provides scalable storage capacity by accommodating up to 12 large form factor (LFF) 3.5-inch SAS or SSD drives in a single enclosure.

Connected via 12Gb SAS links, the R0Q39A enables seamless integration with MSA controllers to expand the total raw capacity of the storage system. Each enclosure includes dual I/O modules (IOMs) and redundant hot-plug power supplies to ensure continuous availability and high fault tolerance in enterprise or SMB environments.

This enclosure is ideal for organizations looking to expand their MSA 2060 infrastructure with high-capacity storage while maintaining the performance and simplicity of the MSA ecosystem.
