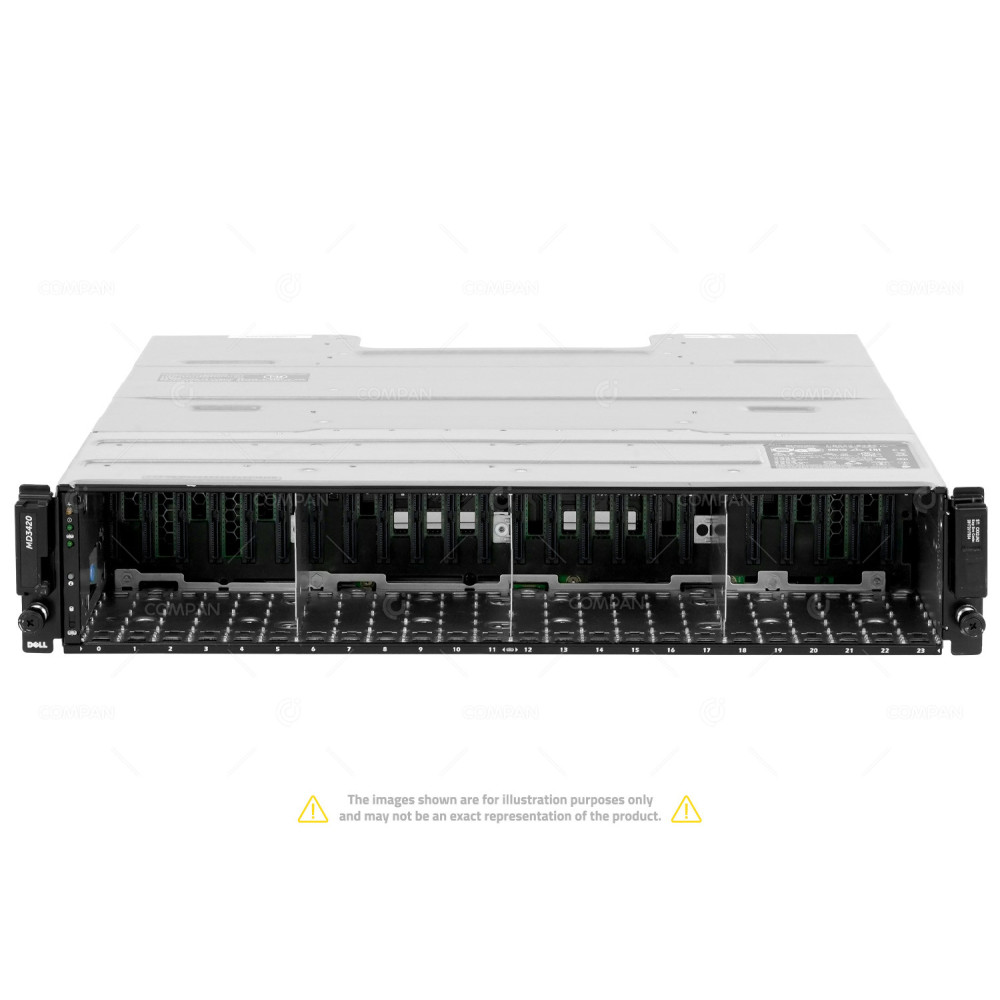

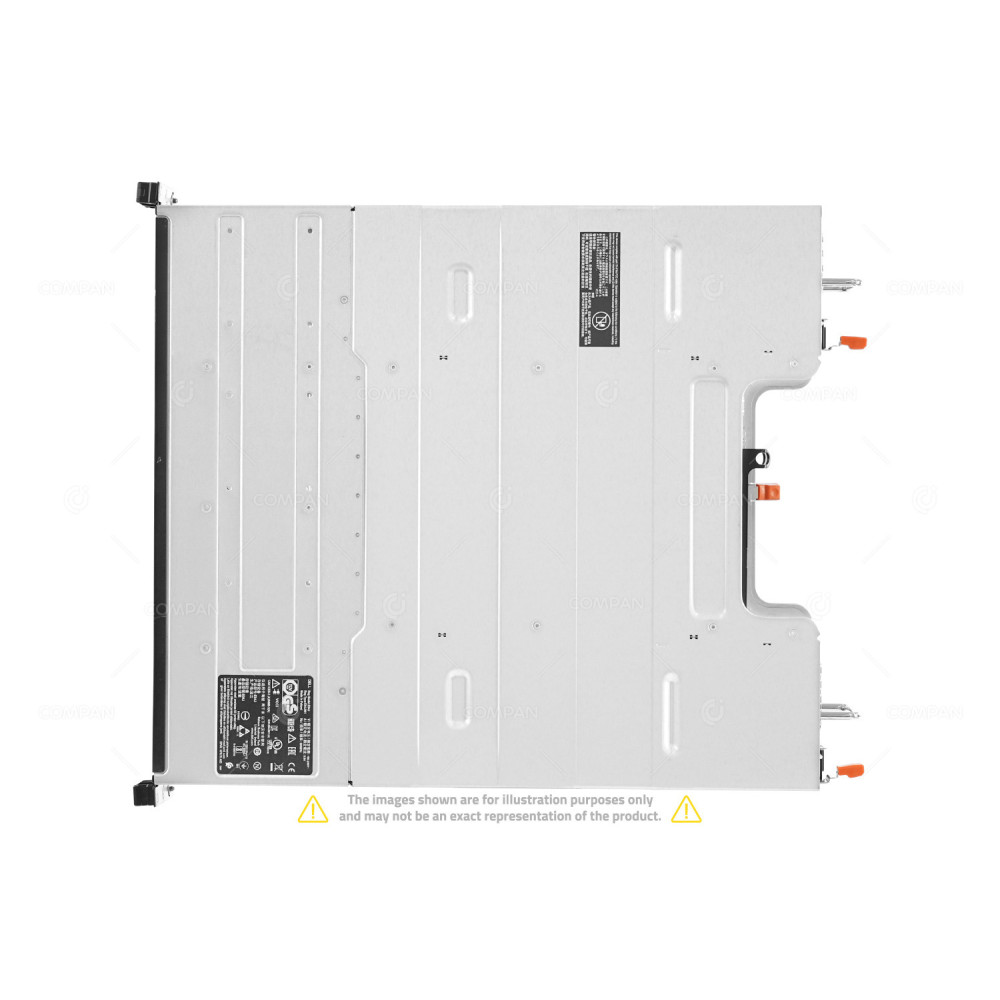

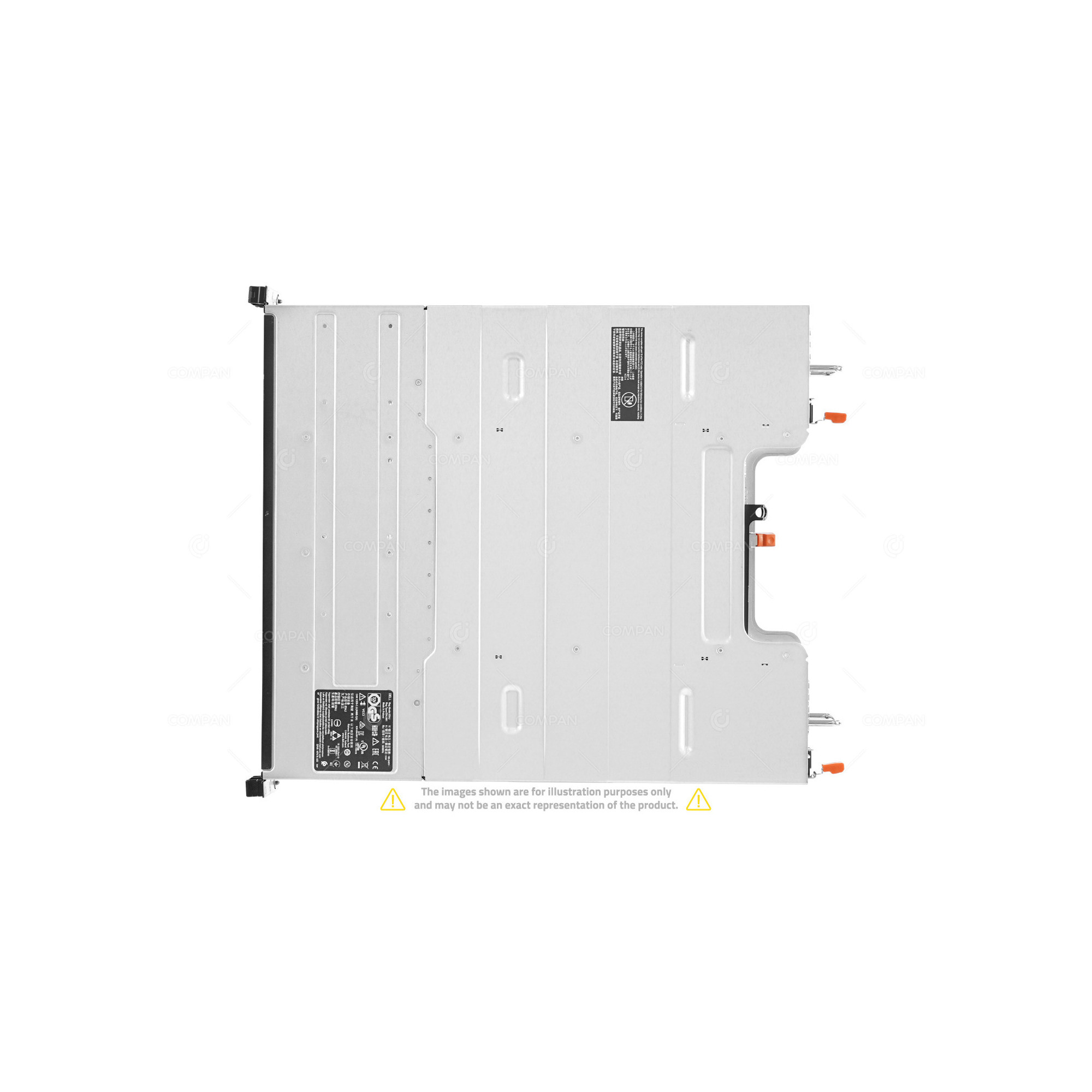

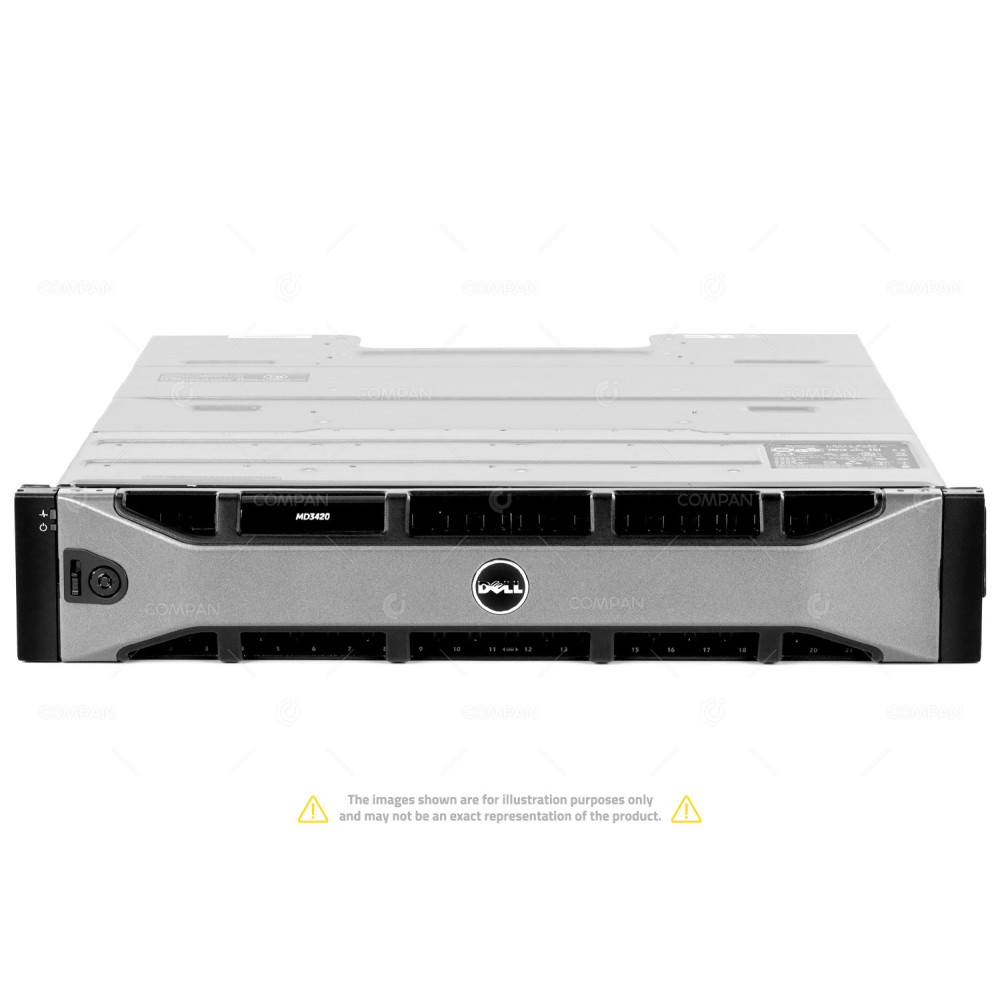

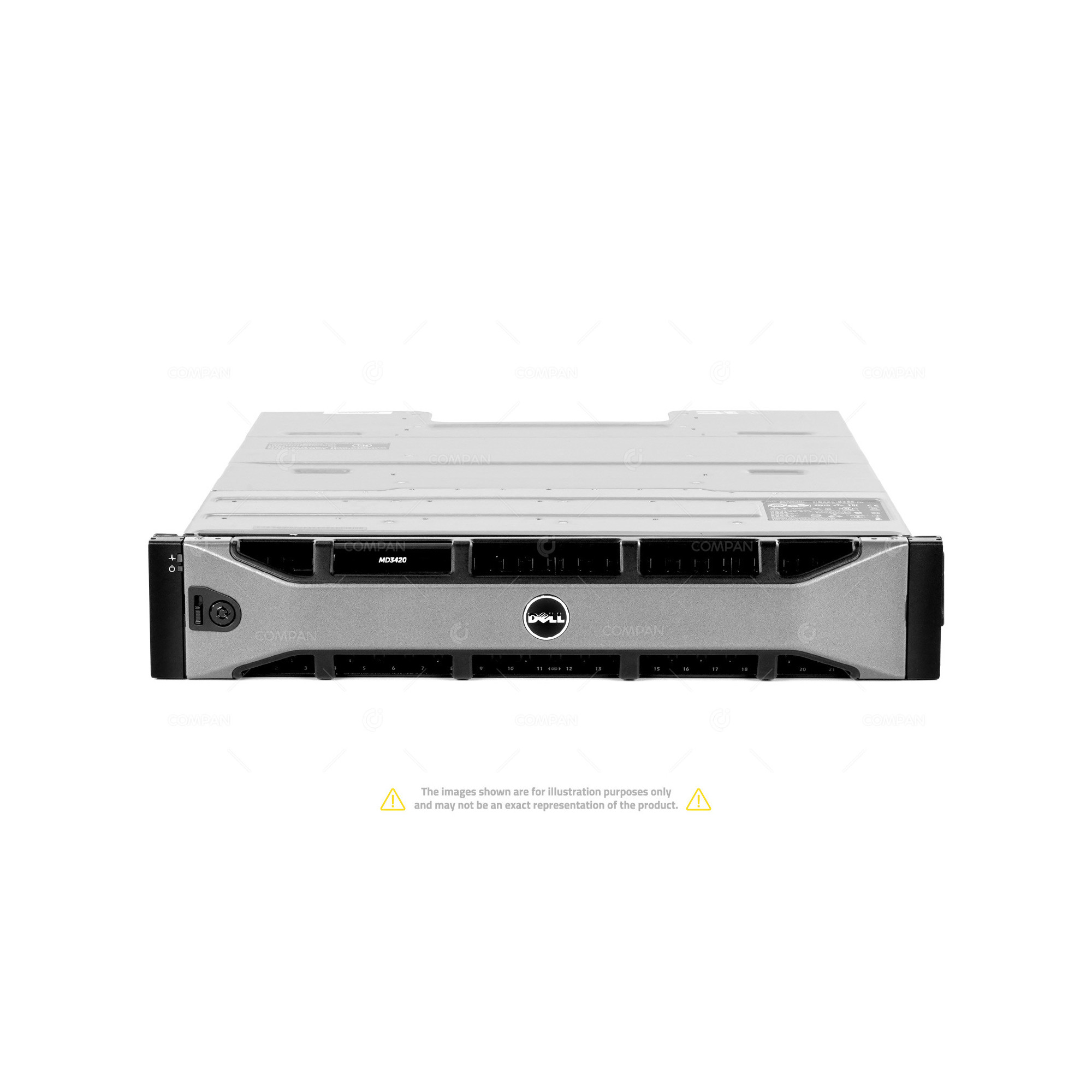

Dell PowerVault MD3420 24-bay 2.5'' SFF SAS Storage

General Information

Brand	Dell
Model	PowerVault MD3420
Product Type	SAN Storage
Form Factor	2U Rack Mountable

Storage Specification

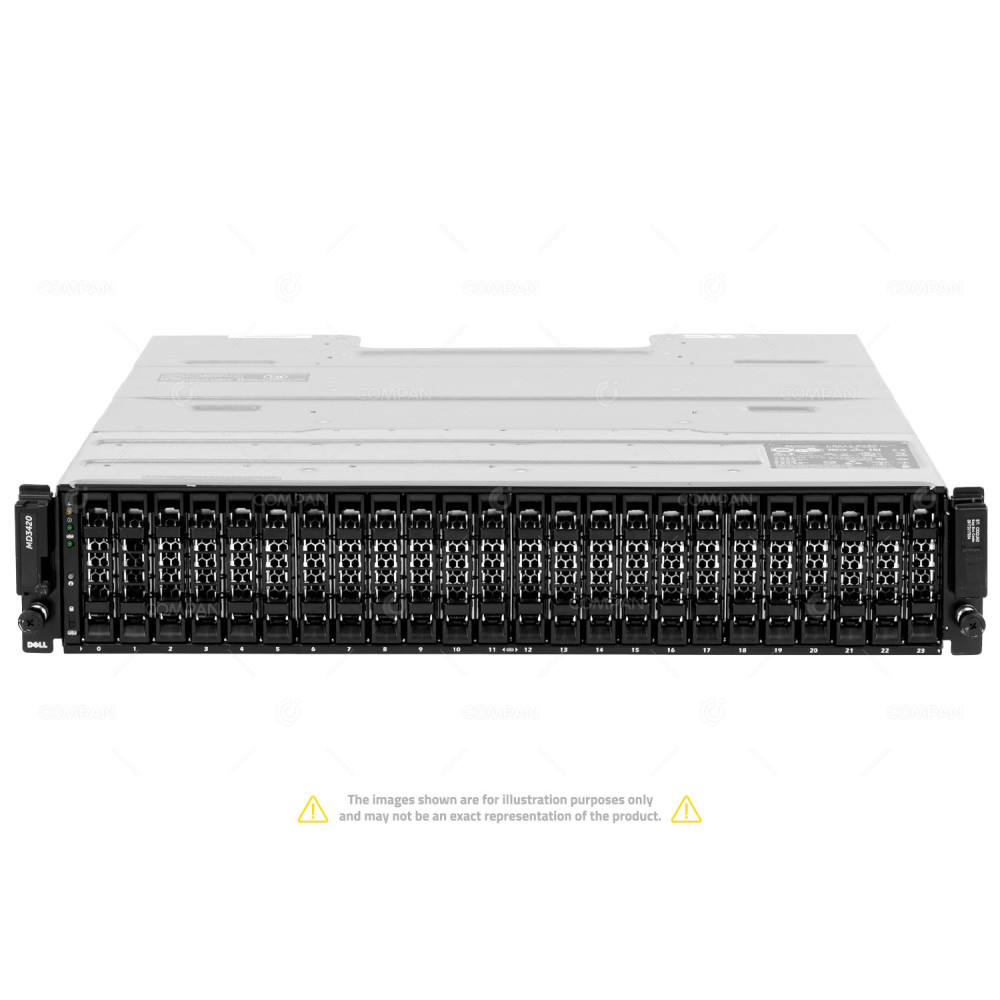

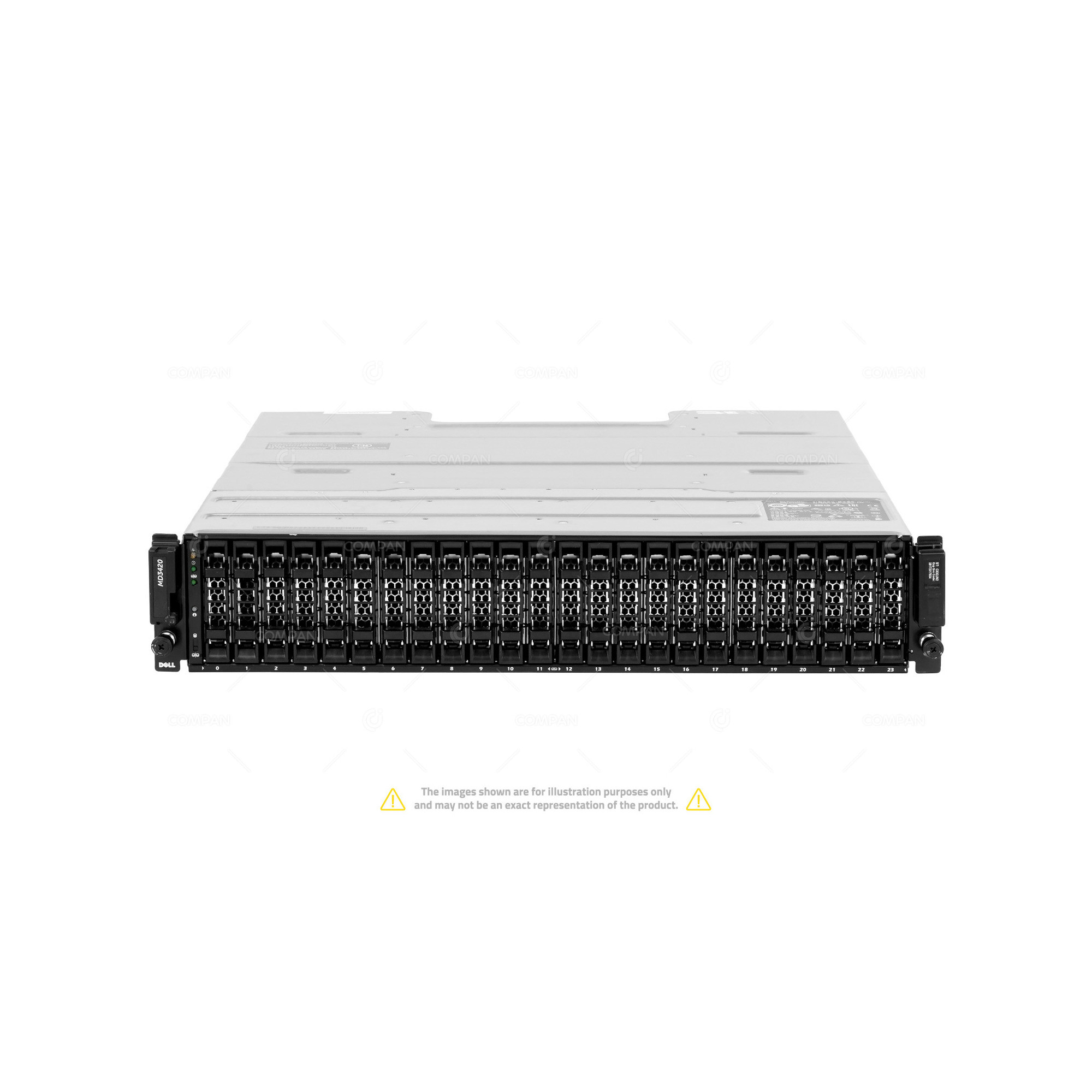

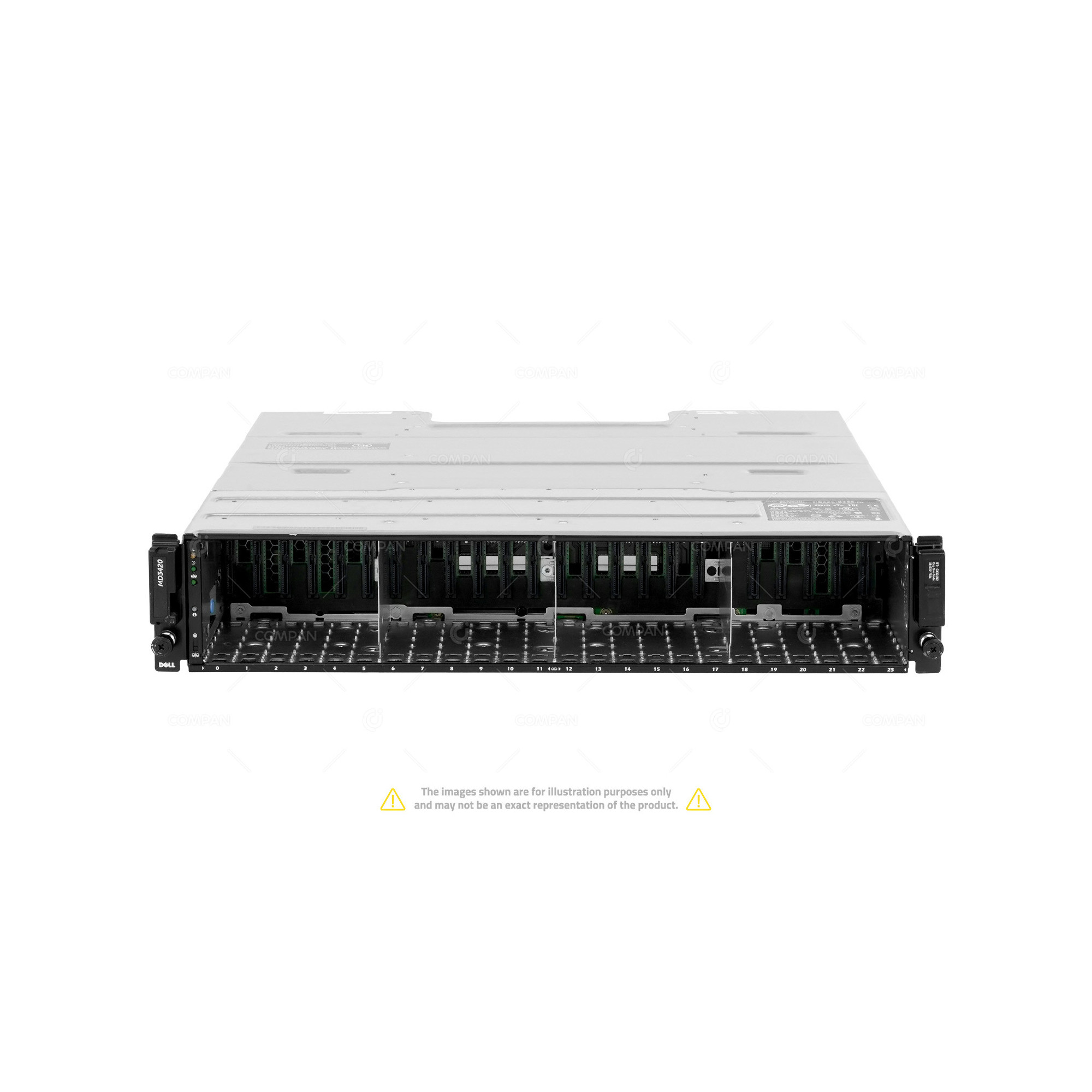

Drive Bays	24 x 2.5'' SFF
Drives Types	SAS, NL-SAS, SSD, SED
Drive Options	SAS 15K RPM: 146GB3, 300GB3, 600GB3 SAS 10K RPM: 146GB, 300GB3, 600GB3, 900GB3, 1.2TB3, 1.8TB NL-SAS 7.2K RPM: 500GB3, 1TB3, 2TB SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
Drives Installed	None
Expansion Capabilities	Up to 192 drives using MD1200 and/or MD1220 expansion enclosures Up to 180 drives using MD3060e dense enclosures
RAID levels	Support for RAID levels 0, 1, 10, 5, 6; Up to 180/1924 physical disks per group in RAID 0, 10; Up to 30 physical disks per group in RAID 5, 6; Up to 512 virtual disks; DDP

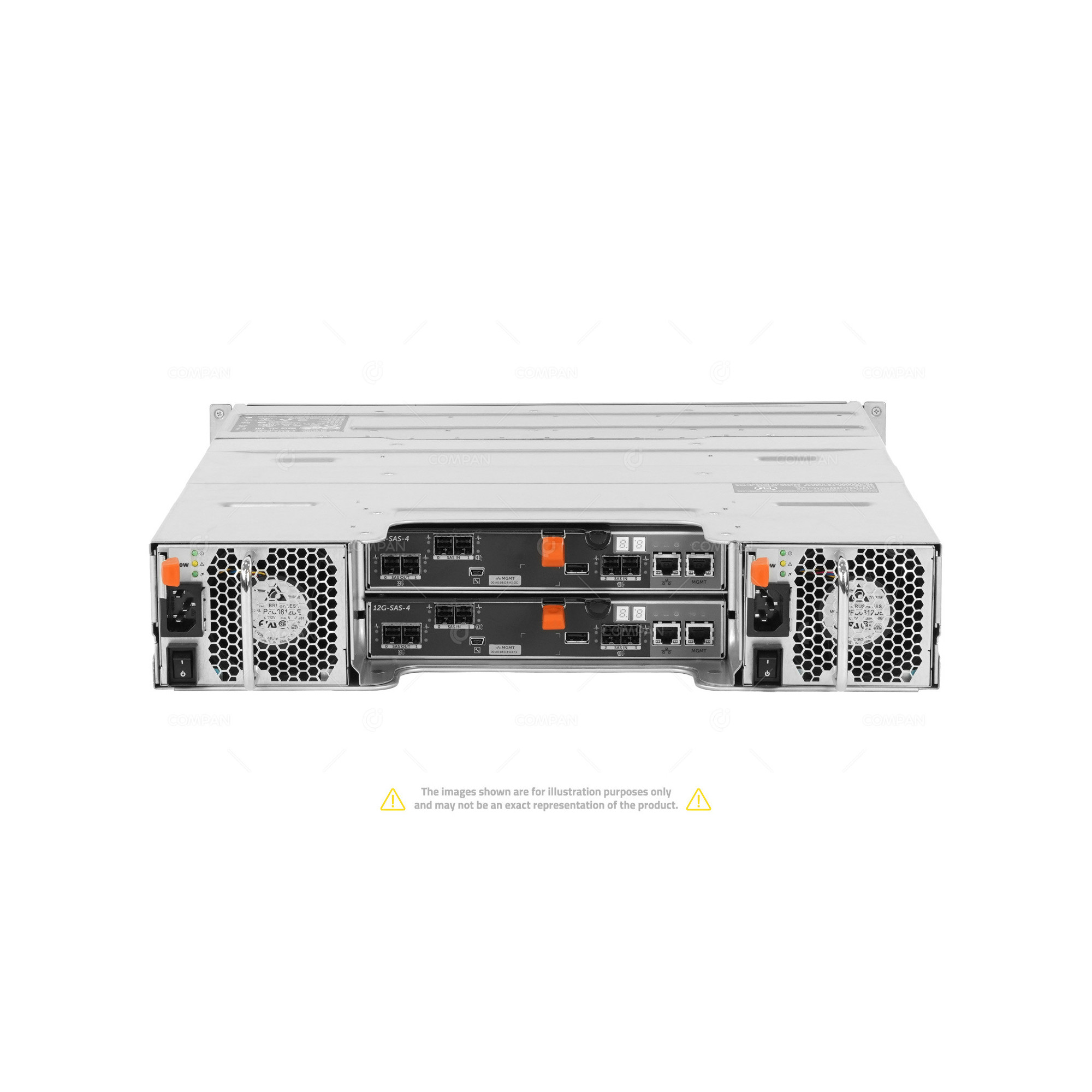

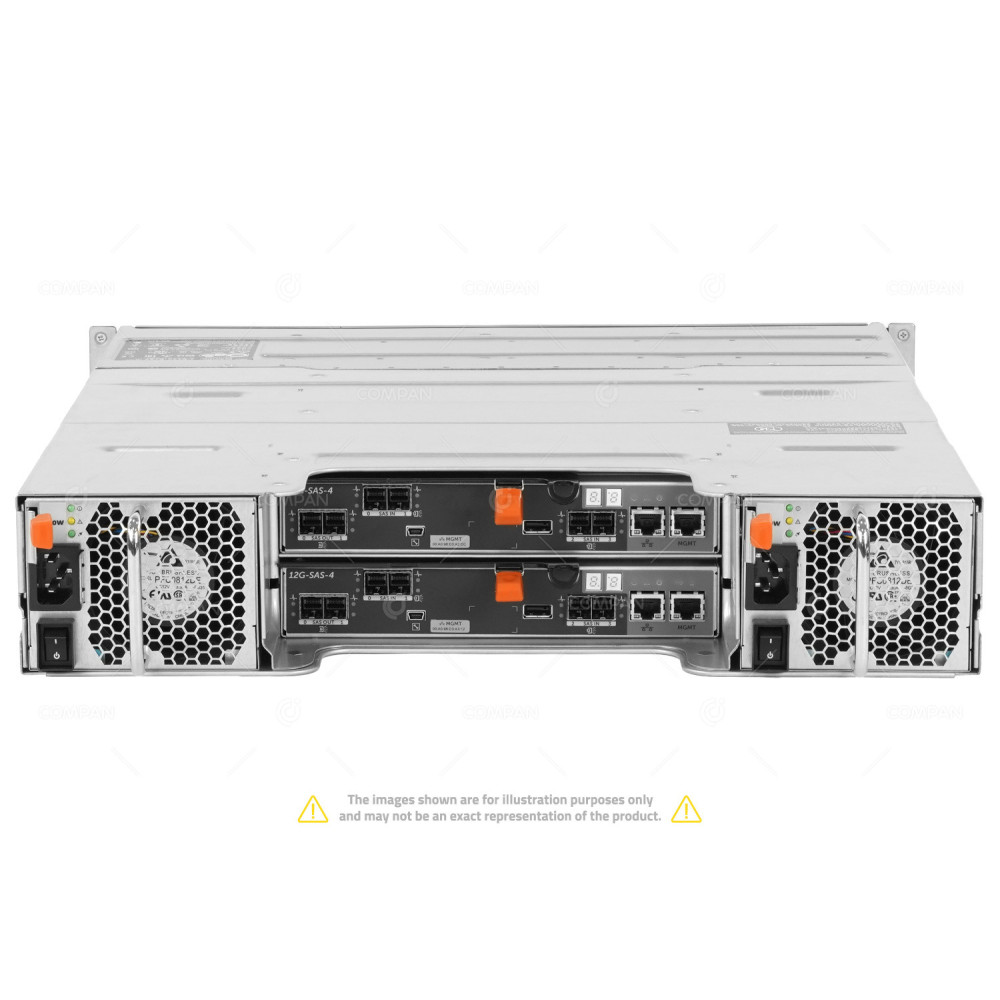

RAID Controllers Installed	2 x Quad Port 12G SAS 4GB Cache (PN: F3P10)

Environment Specification

Power	Comes with two 600W (PN: 6N7YJ) power supplies
Heat dissipation (max)	2047 BTU/hr
Temperature	Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour MD3 2U models support Fresh Air cooling, up to 35°C
Relative humidity	Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
Altitude	Operating: -16 m to 3048 m (-50 ft to 10,000 ft) (For altitudes above 2950 ft, the maximum operating temperature is derated 1°F/550

Physical Dimensions

Height x Width x Depth	8.68 cm (3.42”) x 44.63 cm (17.57”) x 50.8 cm (20”)
Maximum weight	24.2 kg
Rails	Support Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
