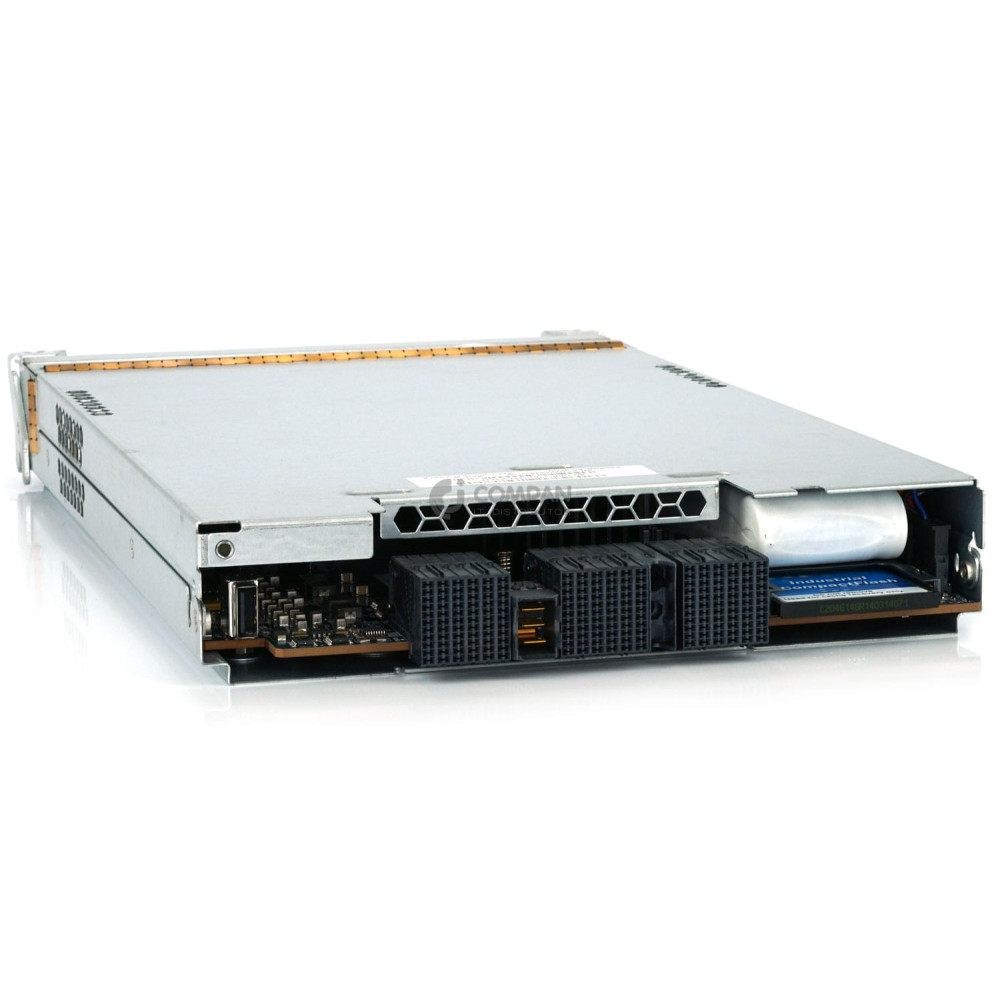

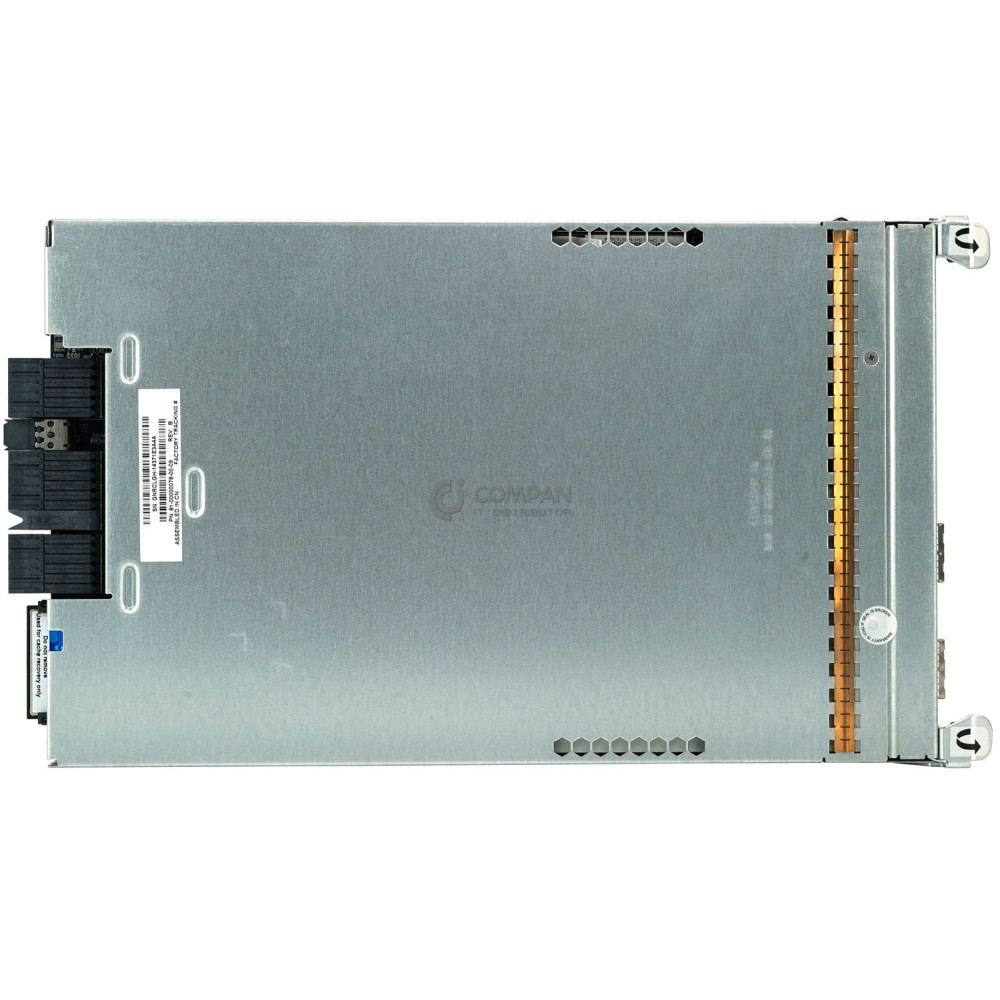

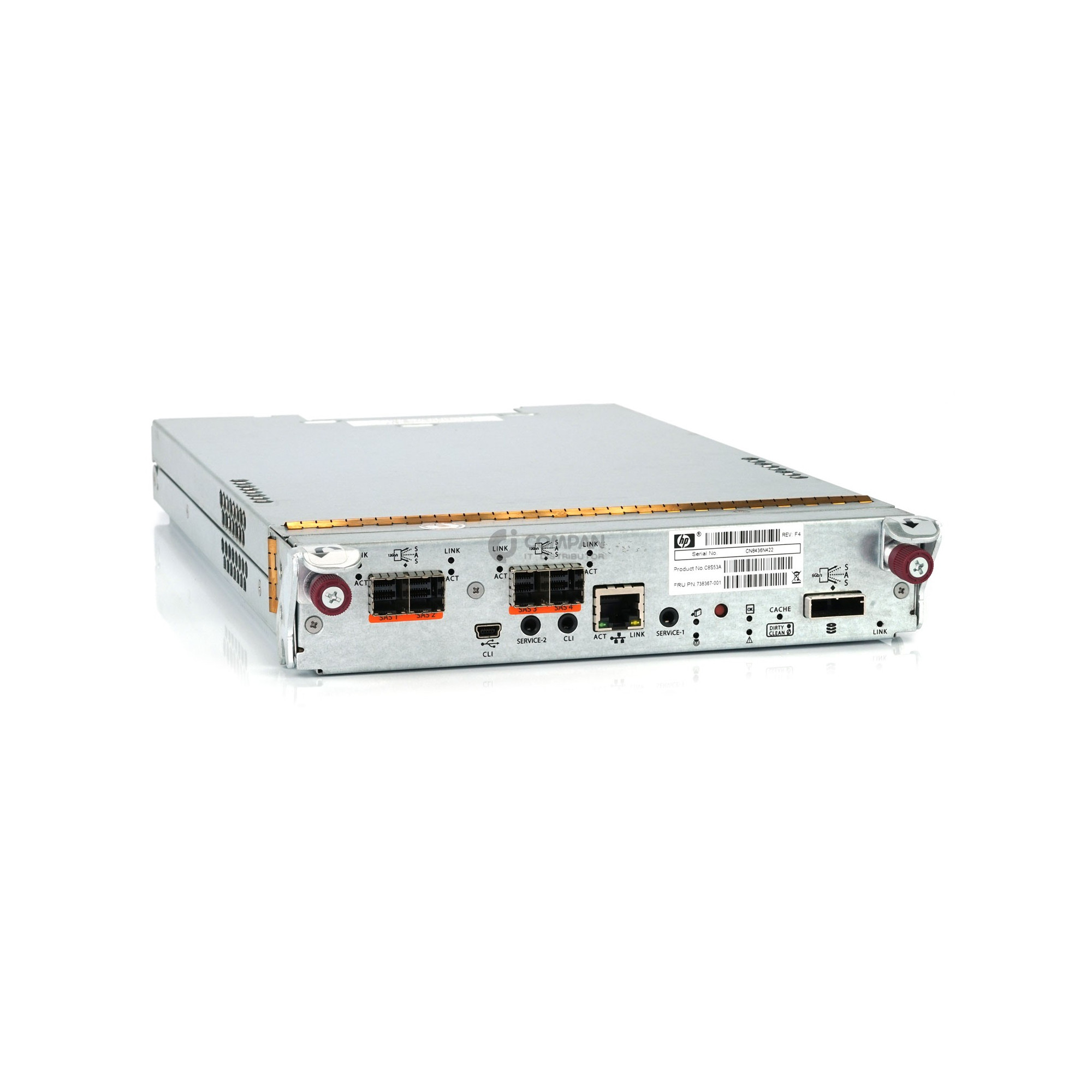

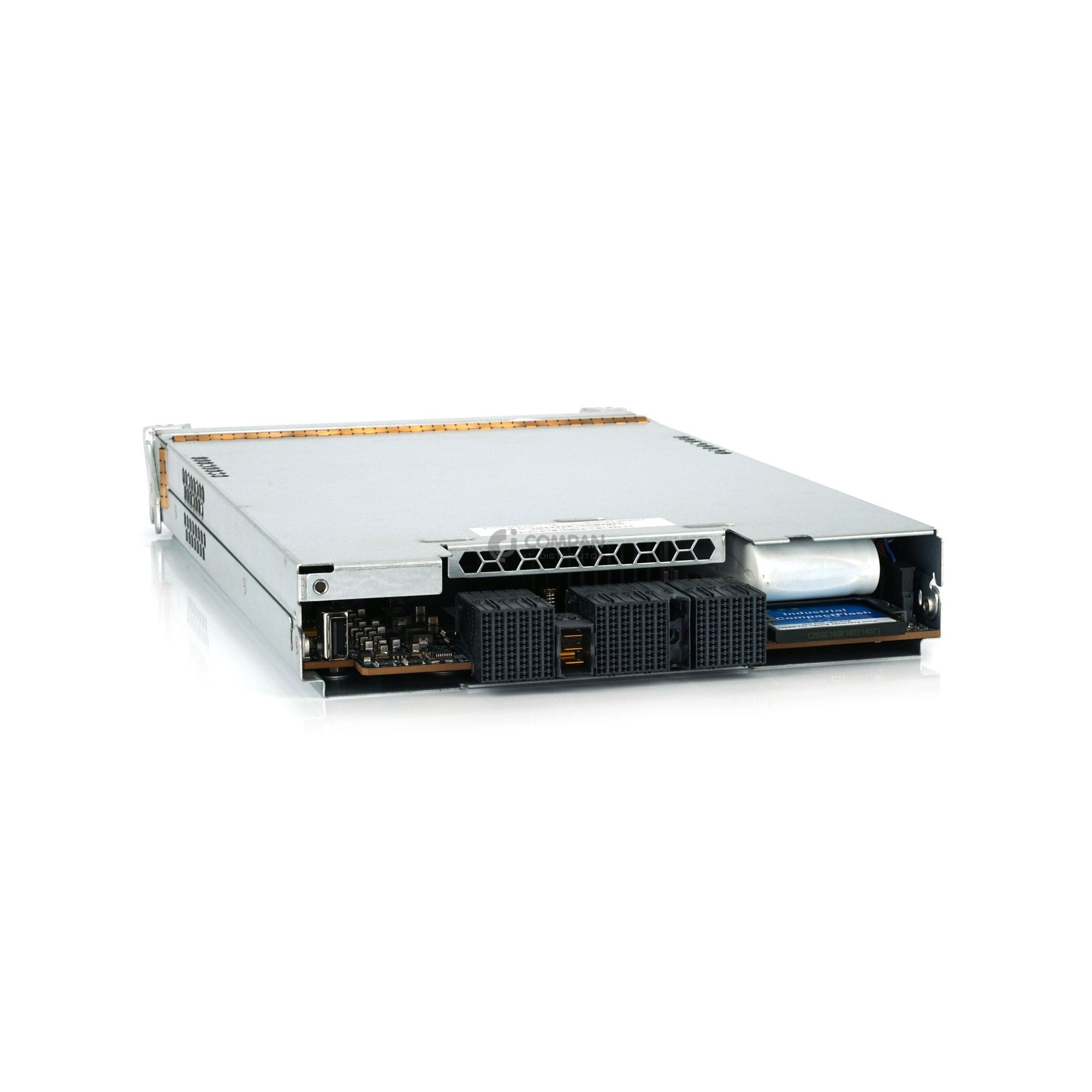

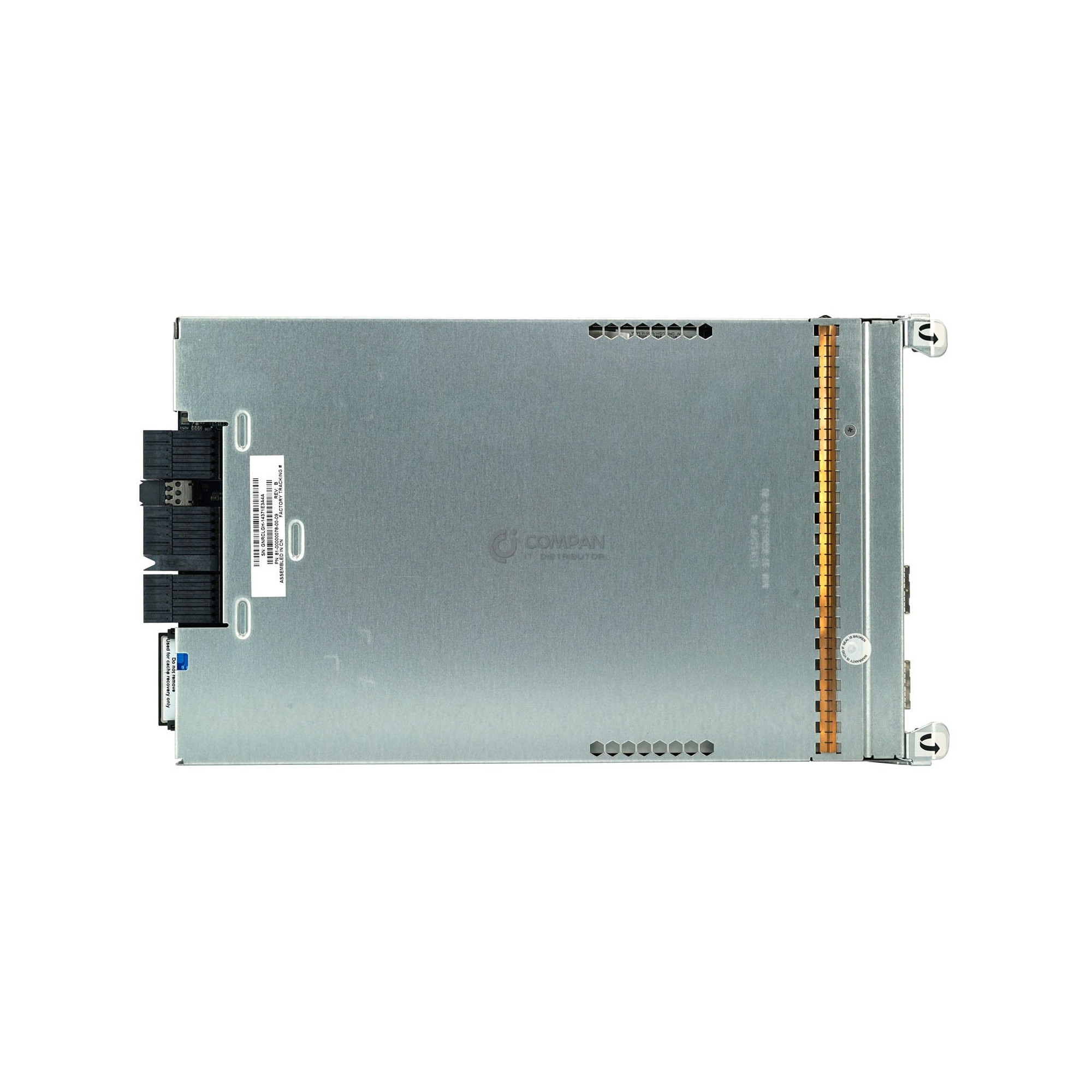

C8S53A HPE 12G SAS CONTROLLER MODULE FOR HPE STORAGEWORKS MSA2040

Compatibility Information
Designed For:	HPE Modular Smart Array 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 FC Dual Controller SFF Bundle, 2040 LFF Chassis, 2040 LFF DC-power Chassis, 2040 LFF Disk Enclosure, 2040 SAN Dual Controller LFF Storage, 2040 SAN Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Storage, 2040 SAS Dual Controller LFF Storage, 2040 SAS Dual Controller SFF Bundle

Expansion / Connectivity
Connections:	4 x SAS 12Gb/s - 36 pin 4x Shielded Mini MultiLane SAS (SFF-8644)
Interfaces:	1 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) ¦ 1 x management - RJ-45 ¦ 1 x management - mini-USB Type B

General
Device Type:	Storage controller (RAID)
Host Bus:	SAS 6Gb/s, SAS 12Gb/s

Storage Controller
Buffer Size:	4 GB
Data Transfer Rate:	600 MBps
Interface:	SAS 6Gb/s
Maximum LUNs:	512
RAID Level:	RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50
Supported Devices:	Disk array (RAID)

Technical specifications
Device type	RAID controller
Controller interface type	SAS 12G
Battery module	Yes
Controller cache memory (GB)	6th
Data transfer rate (Ethernet)	1 Gbps
Data transfer rate (SAS)	12 Gbps, 6 Gbps
RAID
RAID functionality	Yes
RAID level 0	Yes
RAID level 1	Yes
RAID level 10	Yes
RAID level 5	Yes
RAID level 50	Yes
RAID level 3	Yes
RAID level 6	Yes
connections
Extension - SAS - SFF-8088	1
Network - SAS - SFF-8644	4th
Management - Ethernet - RJ-45	1
Management - RS-232 - 3.5mm jack	3
Management - USB - Mini-USB	1

Part Options:

738367-001
