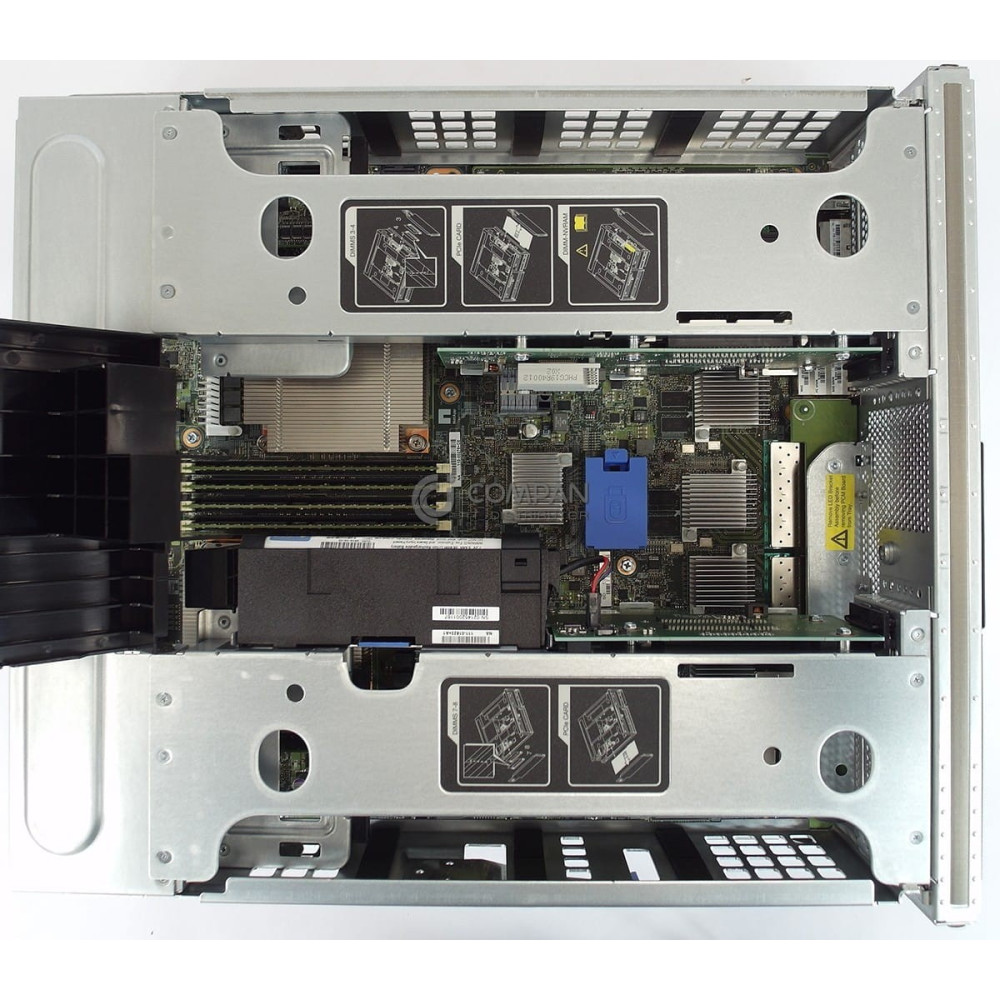

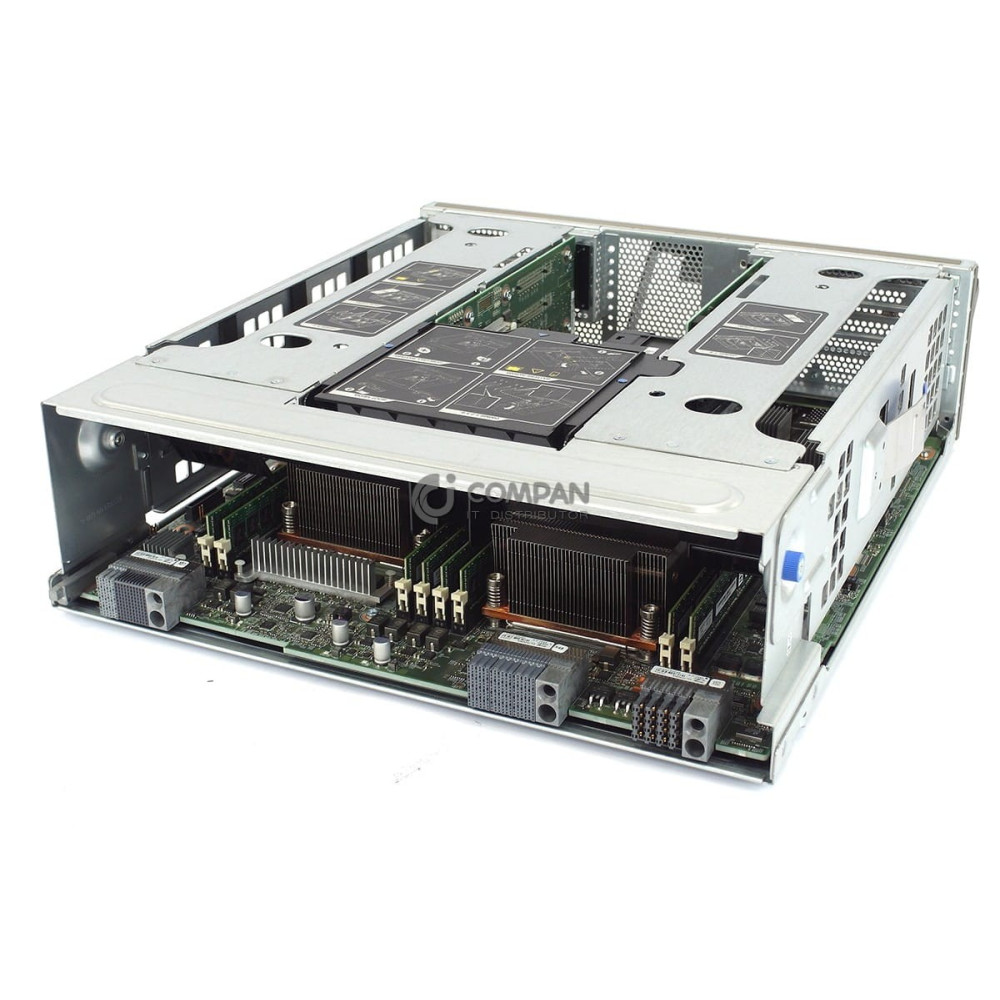

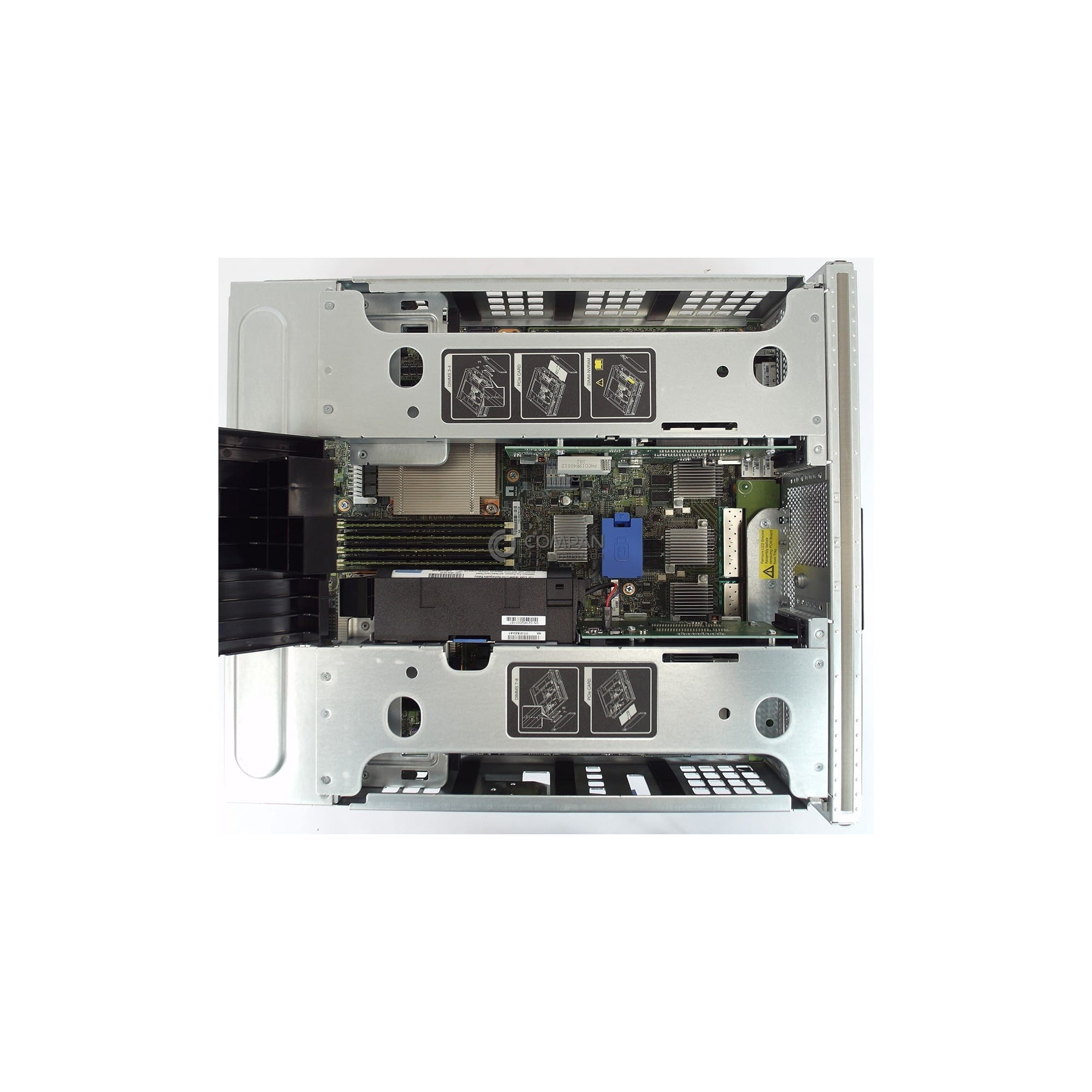

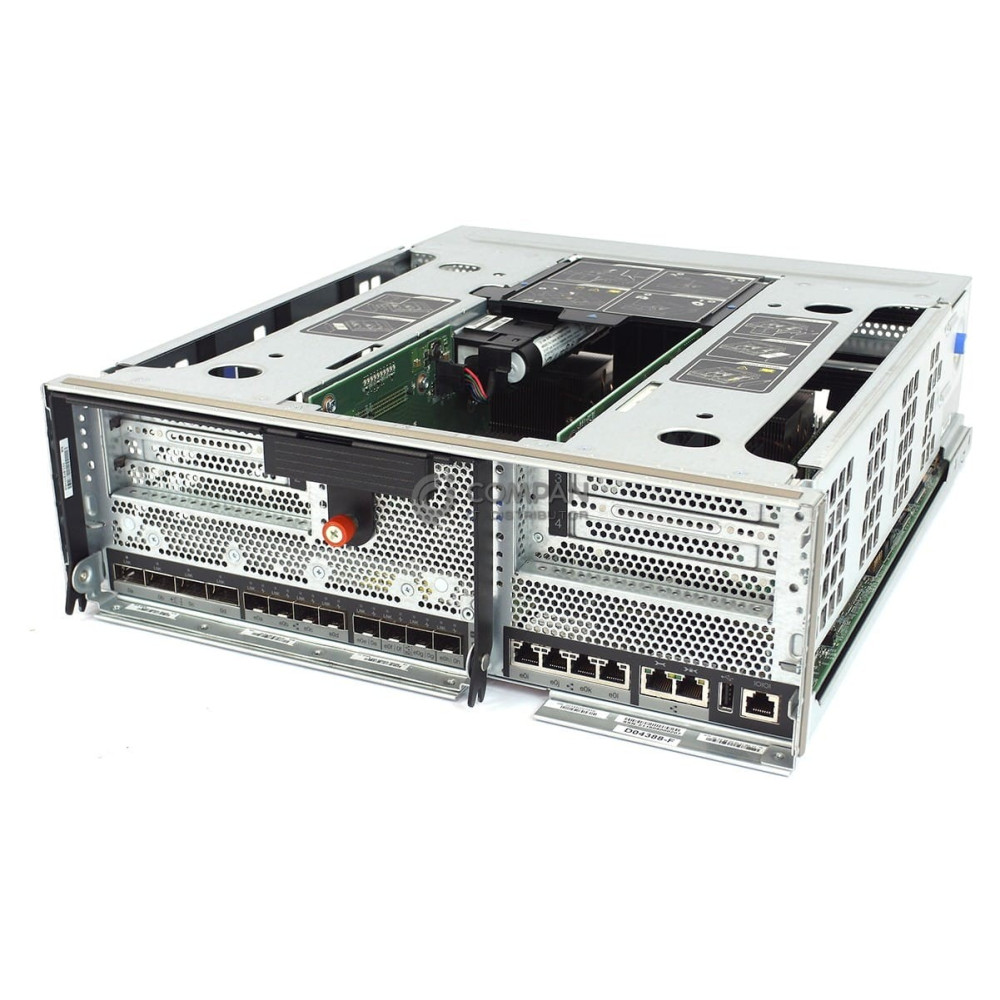

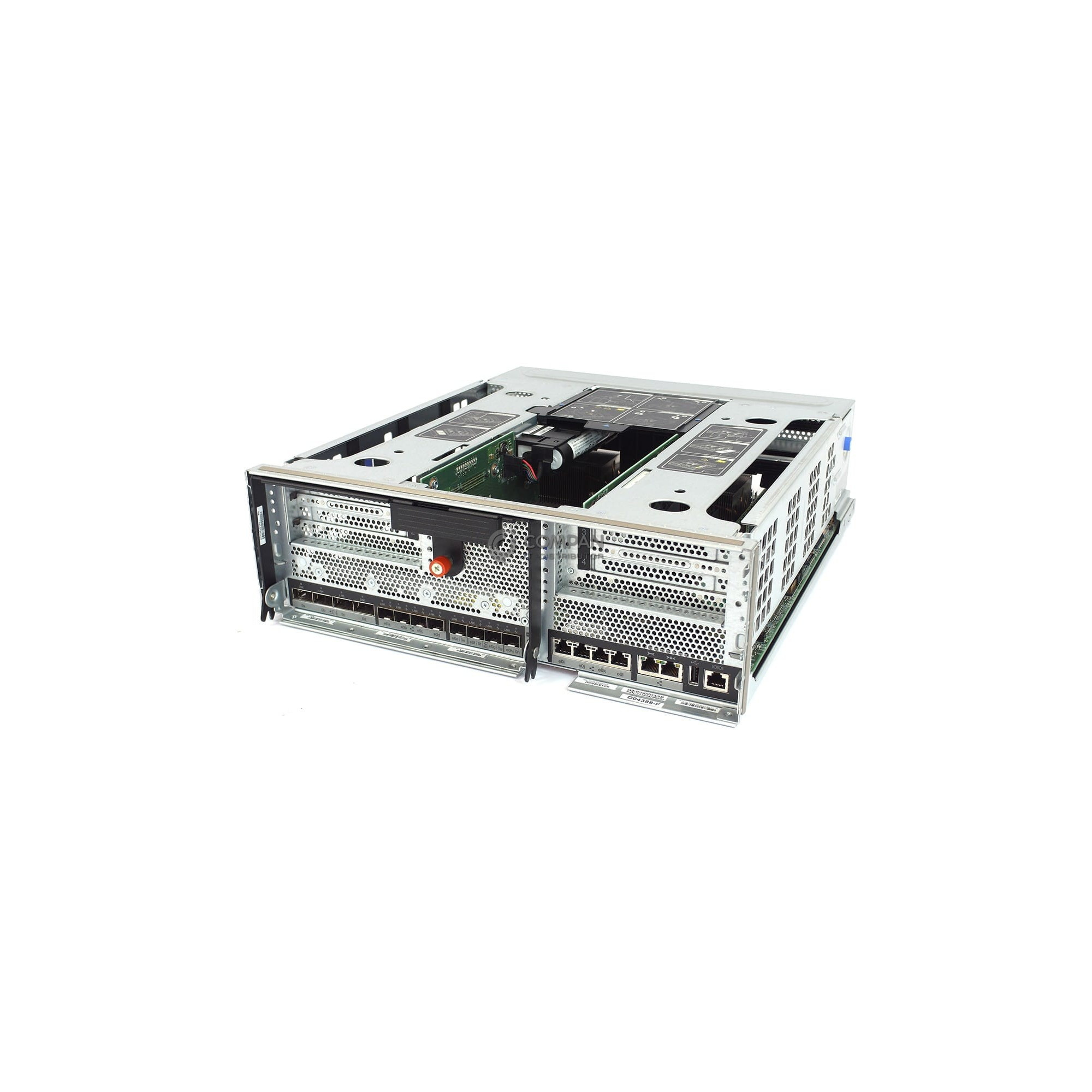

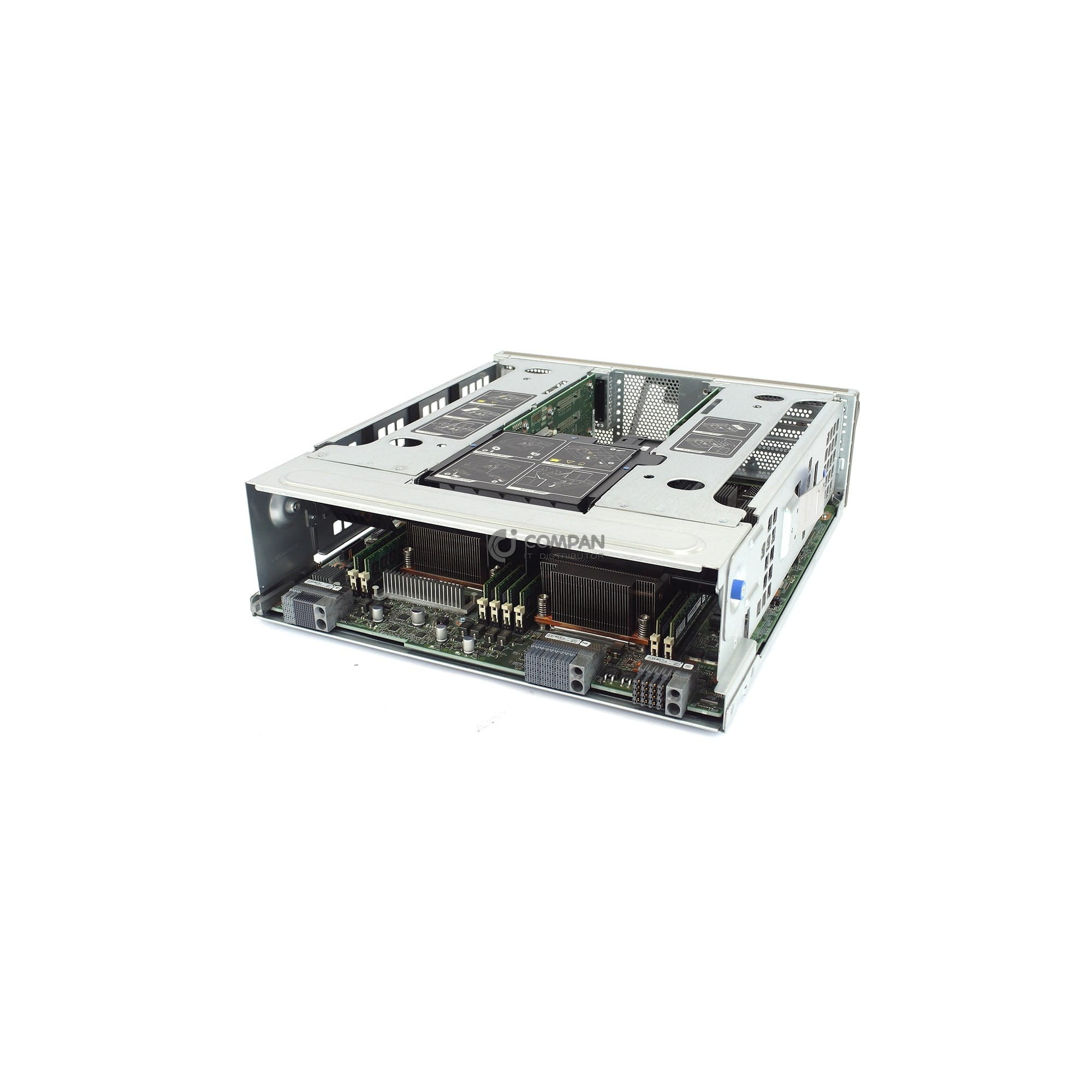

111-01210 / NETAPP CONTROLLER MODULE FOR FAS8060 / 111-01210+A4

Brand: NETAPP | Part Number: 111-01210
5,700.99 zł
Tax excluded
Availability : 1 pc.
Condition: Refurbished help_outline
Warranty:  1 year


Security Policy



Delivery Policies



Return Policies

Quantity
Last items in stock

  • We ship all over the world
  • All items shipped from our warehouse
  • Easy and fast ordering 24/7
  • Express international shipping in 24 hours
  • Express delivery of even 1-2 working days
If you order now, we'll ship it in:
hours
minutes
seconds
Description

 NETAPP CONTROLLER MODULE
Brand: NETAPP
MPN: 111-01210
Part Options: 111-01210+A4
Compatible: NETAPP FAS8060

NAS Scaling: 1-24 nodes (12 HA pairs)
Maximum drives 5,760
Maximum capacity 46PB
Maximum Flash Pool capacity 288TB
Maximum memory 576GB
SAN Scaling: 1-8 nodes (4 HA pairs)
Maximum drives 1,920
Maximum capacity 15PB
Maximum Flash Pool capacity 96TB
Maximum memory 192GB
Cluster interconnect 2 10GbE
Per HA Pair Specifications (Active-Active Dual Controller)
Maximum capacity 3840TB
Maximum Flash Pool capacity 24TB
Maximum drives 480
Controller form factor Single-enclosure HA;
2 controllers in single 3U chassis
Memory 48GB
Maximum Flash Cache 3TB
Maximum Flash Pool 24TB
Combined flash total 24TB
NVRAM 8GB
PCIe expansion slots 4
Onboard I/O: UTA2
(10GbE/FCoE, 16Gb FC)
4
Onboard I/O: 10GbE 4
Onboard I/O: GbE 4
Onboard I/O: 6Gb SAS 4
Storage networking supported FC; FCoE; iSCSI; NFS; pNFS; CIFS/SMB
OS version ONTAP 8.2.1 RC2 or higher
High-availability features Alternate Control Path (ACP); Ethernet-based service processor and ONTAP management interface; redundant hot-swappable controllers, cooling fans, power supplies, and optic
Supported configurations

Hardware cluster configurations:

  • Single-node cluster
  • Two-node switchless or switched cluster
  • Clusters of HA pairs

MetroCluster configurations for synchronous replication:

  • 2-node
  • 4-node: two x 2-node switched or switchless clusters with fabric-attached (switched) storage; 4 nodes total: a 2-node active-active cluster at each site)
  • 8-node (NAS-only): four x 2-node switched or switchless clusters with fabric-attached (switched) storage; 8 nodes total: a 4-node cluster at each site)

Consult the Interoperability Matrix Tool for FAS8000 support on earlier versions of ONTAP software.

Disk shelves supported DS2246 (2U; 24 drives, 2.5" SFF)
DS4246 (4U; 24 drives, 3.5" LFF)
DS4486 (4U; 48 drives, 3.5" LFF)
DS4243 (4U; 24 drives, 3.5" LFF) supported for upgrades only
DS14 disk shelves (mk2-AT, mk4) are supported for upgrades only
Maximum RAID group sizes RAID-TEC (triple parity, ONTAP 9)
  • SSDs and Performance HDDs: 29 (26 data disks plus 3 parity disks)
  • Capacity HDDs: 21 (18 data disks plus 3 parity disks)
RAID 6 (RAID-DP)
  • SSDs and Performance HDDs: 28 (26 data disks plus 2 parity disks)
  • Capacity HDDs: 20 (18 data disks plus 2 parity disks)
RAID 4
  • SSDs and Performance HDDs: 14 (13 data disks plus 1 parity disk)
  • Capacity HDDs: 7 (6 data disks plus 1 parity disk)
RAID 6 + RAID 1 or RAID 4 + RAID 1 (SyncMirror)
Operating systems supported Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux, Oracle Solaris, AIX, HP-UX, Mac OS, VMware, ESX
Max. number of LUNs FAS8020/FAS8040: 8,192 (ONTAP 9 and 8.3.x)
FAS8060/FAS8080: 12,288 (ONTAP 9 and 8.3.x)
7-mode, all FAS8000 systems: 2048
Number of supported SAN hosts FAS8020/FAS8040: 4,096 (ONTAP 9 and 8.3.x)
FAS8060/FAS8080: 8,192 (ONTAP 9 and 8.3.x)
7-mode, all FAS8000 systems: Up to 512 hosts per HA pair
FlexVol volumes (In hardware clusters) Up to 1,000 per controller; (7-mode) up to 500 per controller
Snapshot copies Up to 255,000 per controller
Maximum volume size 70TB
Maximum aggregate size 324TB
Maximum Port Count (Includes Integrated Ports and PCIe Expansion Slots)
FC target ports (16Gb autoranging) 12
FC target ports (4Gb or 8Gb) 20
FCoE target ports, UTA (max.) 12
10GbE ports (max.) 16
GbE ports (max.) 20
6Gb/12Gb SAS ports (max.) 20
FC initiator ports (max.) 20
Maximum Adapters
Dual 10GbE (optical or copper) 4
Dual 10Gbase-T (RJ-45,CAT 6A-E) 4
Quad GbE (copper) 4
Dual 10GbE/FCoE 16Gb FC Unified Target Adapter 2 (UTA2, optical or copper for 10GbE/FCoE deployments, optical for 16Gb FC) 4
8Gb FC target 4
Flash Cache Performance Acceleration Module (2TB) 0
Flash Cache Performance Acceleration Module (1TB) 2
Flash Cache Performance Acceleration Module (512GB) 4
Quad 6Gb SAS storage HBA 4
Quad 12Gb SAS storage HBA 4
Quad 4Gb FC storage/tape HBA (fiber) 4
System Environmental Specifications
Thermal Rating (at 200V) 1,205 BTU (typical)
1,450 BTU (worst case)
Weight (heaviest) 74.08lb.
Height 3U
Width 19" IEC rack-compliant (17.6", 44.7cm)
Depth 24.3" (28.9" with cable management)
Operating temperature, altitude, and relative humidity 10°C to 40°C (50°F to 104°F); at <= 3,000m (at <= 10,000') elevation; 20% to 80% relative humidity, noncondensing (28°C wet bulb temperature)
Nonoperating temperature and relative humidity -40°C to 70°C (-40°F to 158°F); 5% to 95% relative humidity, noncondensing, in original container
Operating acoustic noise FAS8020:
  • Declared sound power (LwAd) per ISO 9296: 7.8 Bel
  • Sound pressure (LpAm) (bystander positions): 62.6 dB
FAS8040/FAS8060:
  • Declared sound power (LwAd) per ISO 9296: 7.6 Bel
  • Sound pressure (LpAm) (bystander positions): 62.4 dB
FAS8080 EX:
  • Declared sound power (LwAd) per ISO 9296: 7.5 Bel @ normal operating conditions (at 23°C and at sea level)
Compliance RoHS-compliant (PDF)
Safety/emissions/immunity Safety: EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, CU, BIS, BSMI, SONCAP, NRCS LOA (South Africa)

Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI


Warranty

The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
