Coraid Supermicro SRX6300 S4 2x Xeon E5-2620 8GB RAM 36 Bay 12x 4TB Server
Brand:
SUPERMICRO
|
Part Number: SRX6300-S4-36LFF_12x4TB
Description

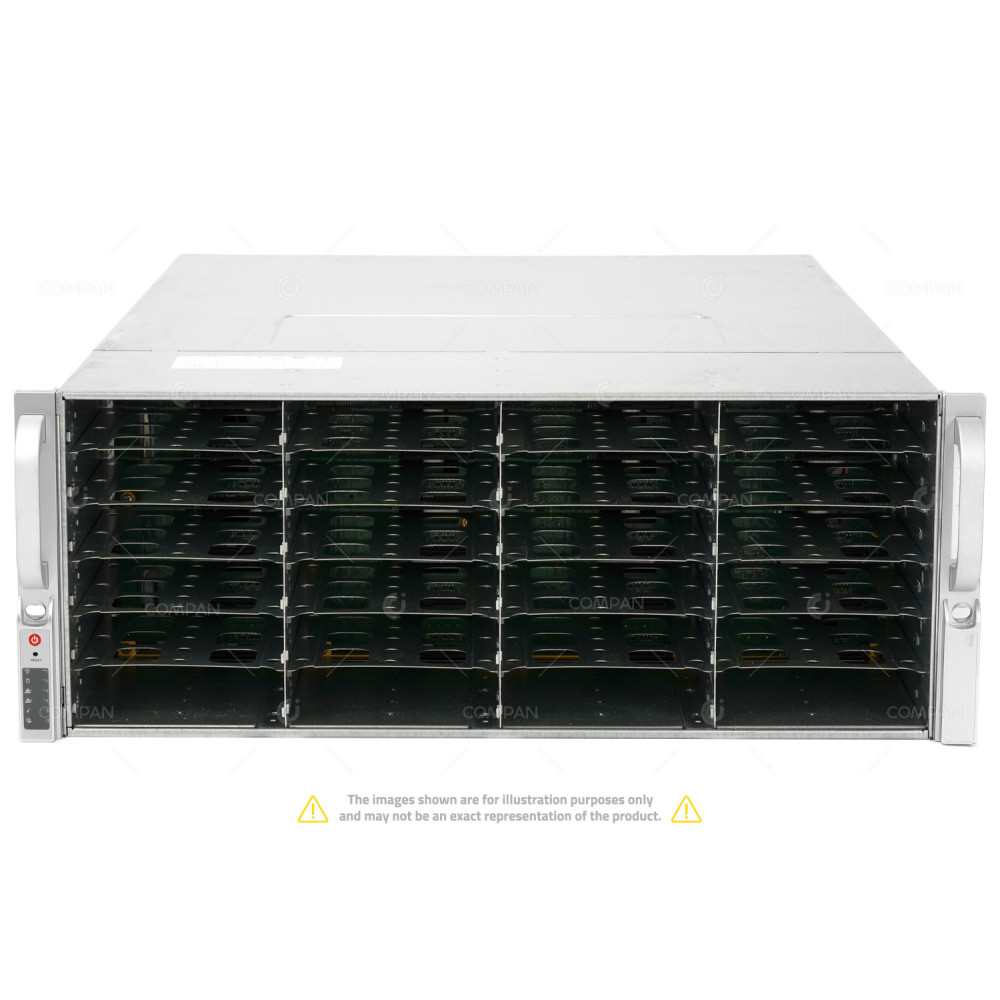

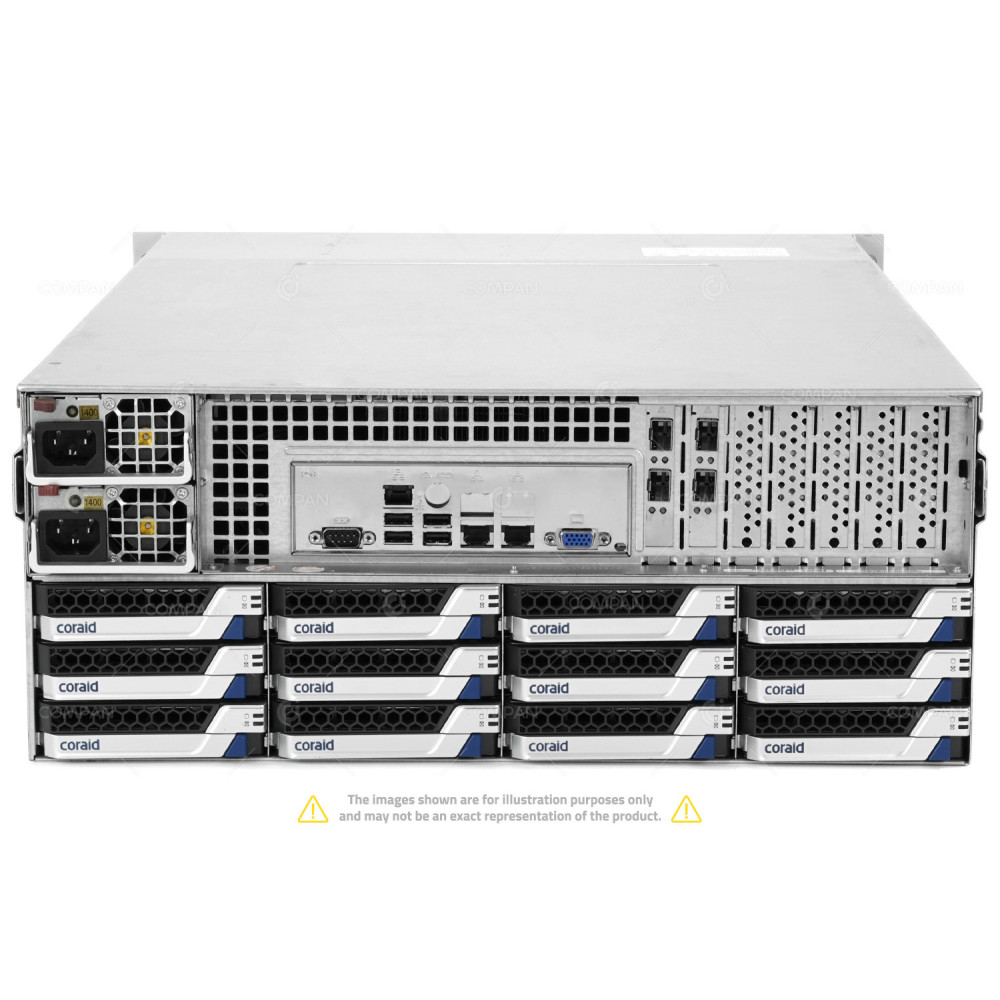

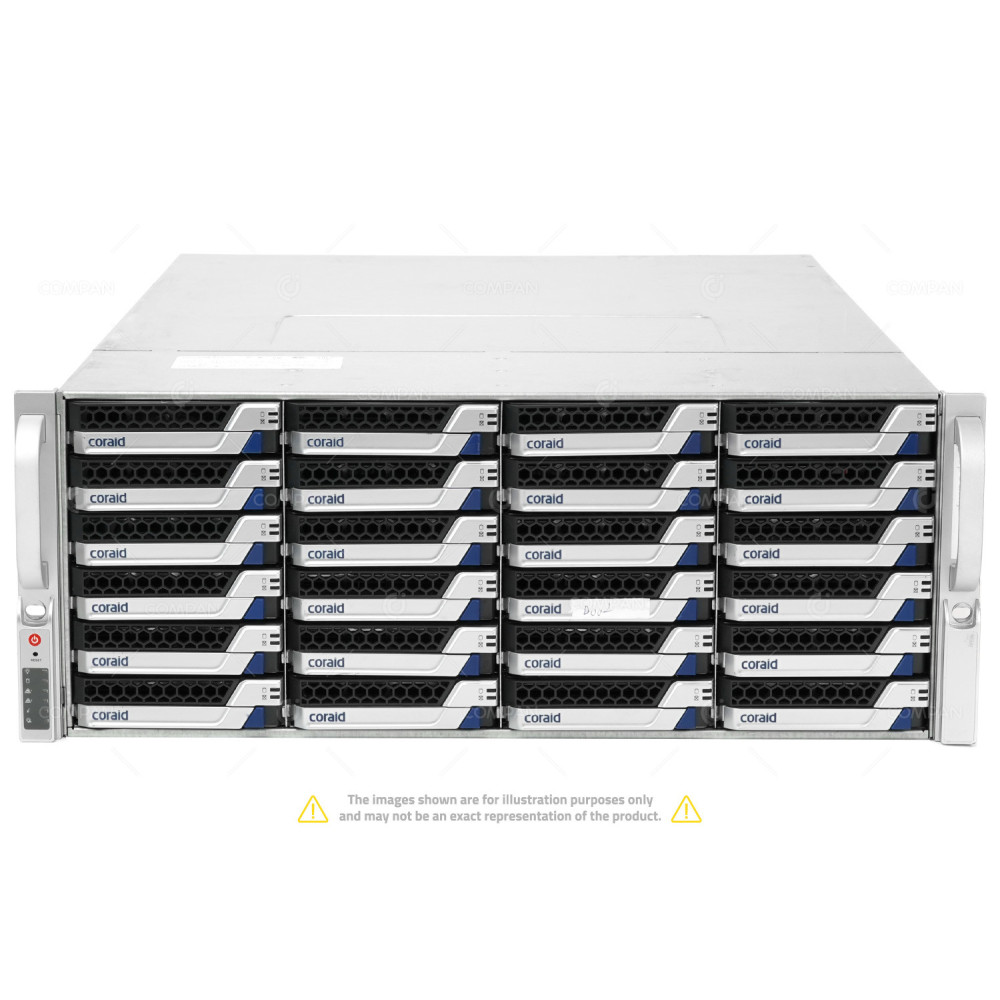

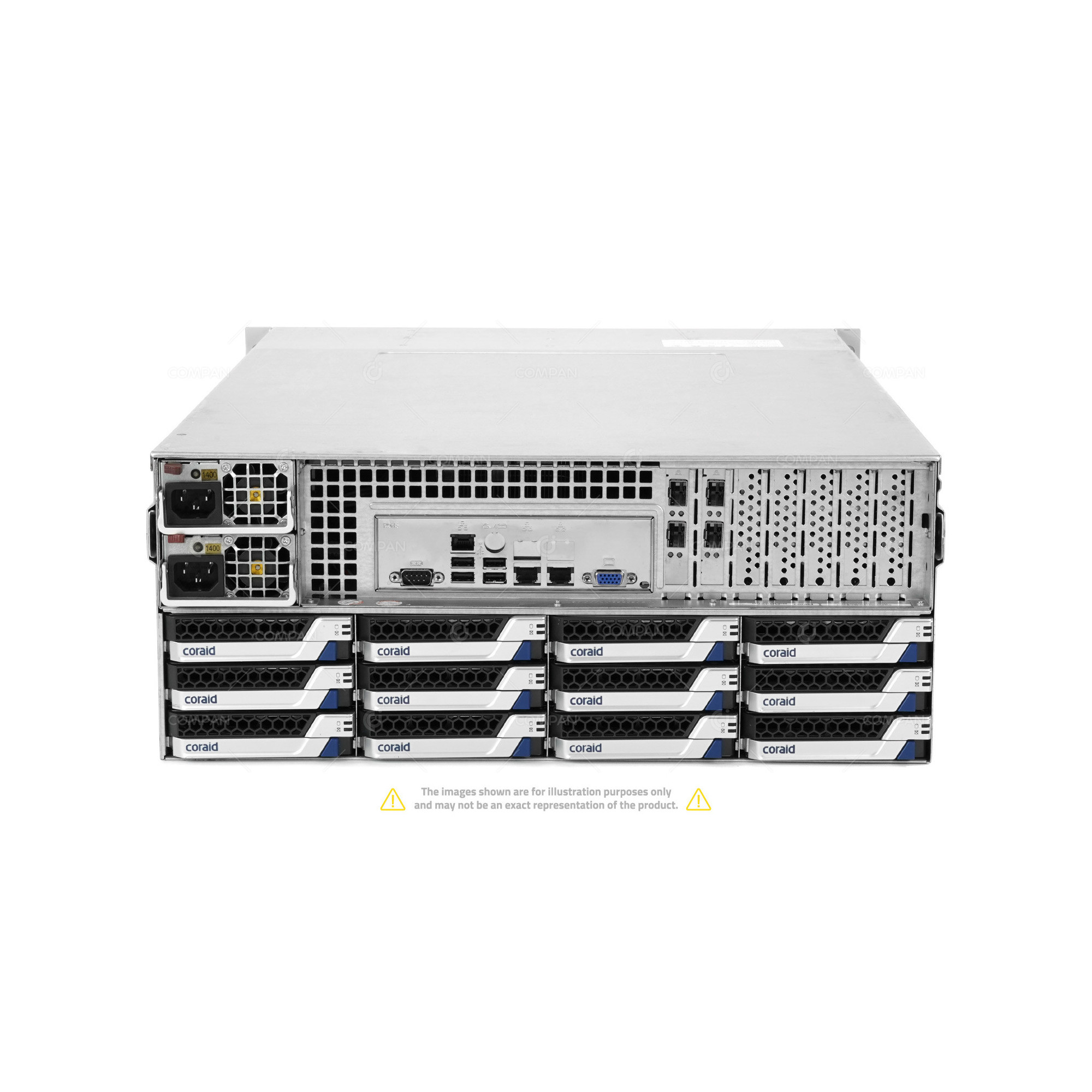

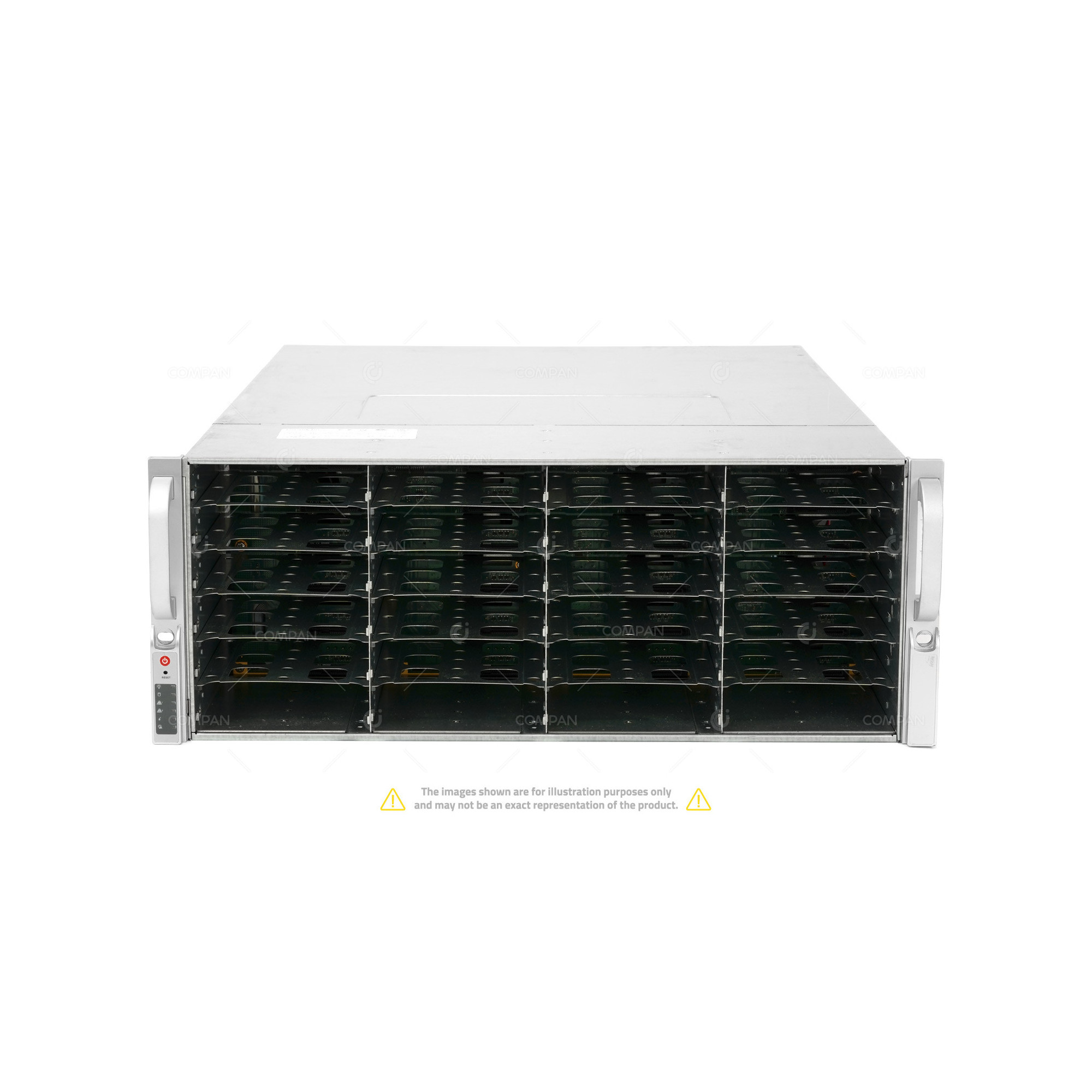

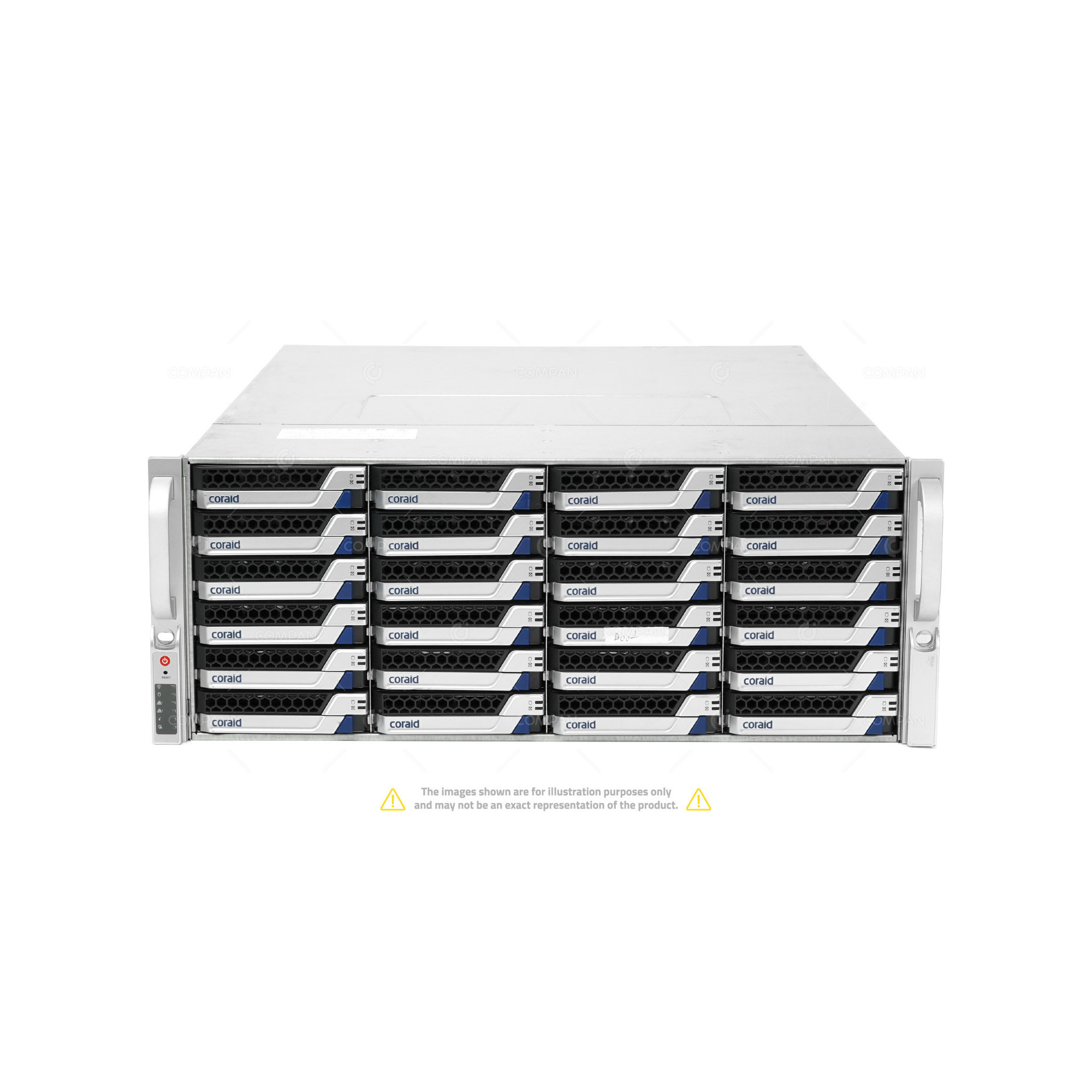

The Coraid EtherDrive SRX is a 4U server made on Supermicro base (Chassis CSE-847). It offers 36 drive bays for hot-swappable 3.5" SAS/SATA SSD & HDD, with 24 drive bays in front and 12 drives in back. Server can be easily converted into NAS storage with drives configured individually or in RAID sets. Both are presented to initiators as logical storage devices accessible using the ATA-over-Ethernet (AoE) protocol.
Coraid SRX6300 in this auction does not come with installed OS.
CONTACT US FOR CUSTOMIZED CONFIGURATION
GENERAL INFORMATION
Manufacturer | Coraid (by Supermicro) |
Model | SRX6300 S4 36LFF, CSE-847 Chassis |
Form Factor | Rack 4U |
Processor | Intel Xeon E5-2600 v1/v2 family processors |
Processor Sockets | 2x LGA2011 Sockets |
Memory | 16x DDR3 DIMM Slots |
Chipset | Intel C602 |
Remote management | IPMI 2.0 |
Storage Slots | 36x 3,5" LFF Drive Bays, HDD/SSD SATA/SAS Drives |
SPECIFICATION
Manufacturer Part Number | SRX6300-S4-36LFF |
Installed CPU | 2x Intel Xeon E5-2620 2.00GHZ 6 Core 15MB Cache 95W TDP |
Installed Memory | 8GB RAM DDR3 |
Installed HDD | 12x 4TB |
Installed Adapters | 5x Supermicro 6G SAS PCIE 3.0 X8 RAID Controller Low Profile 2x Supermicro Dual Port 10GB SFP+ PCIE 2.0 X8 Ethernet Adapter Low Profile |
Power Supply | 2x Supermicro 1400W 80 Plus Gold Power Supply |
Rails | Rails Kit Included |
AUCTION DETAILS
Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
Warranty | 1 Year |
Shipping | 80€ in European Union 200€ outside European Union |
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
