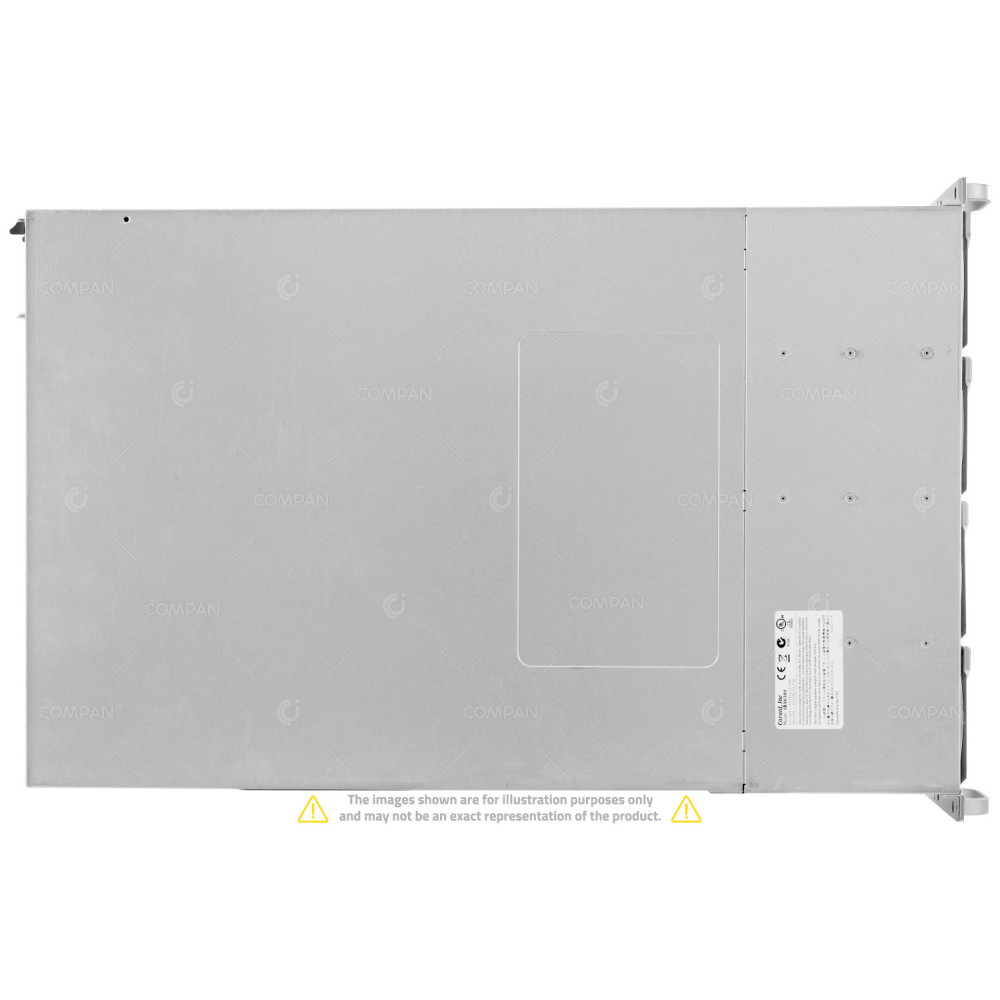

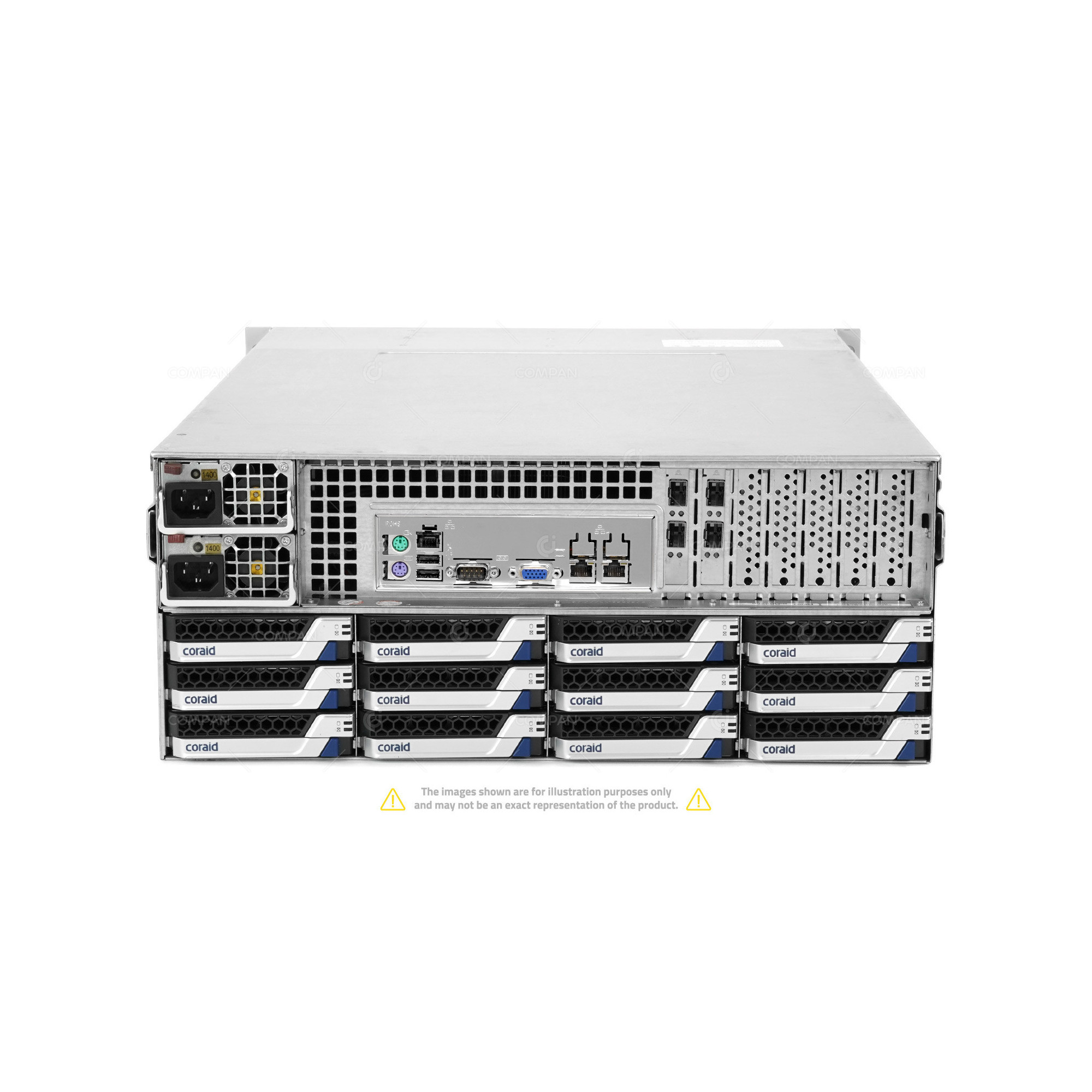

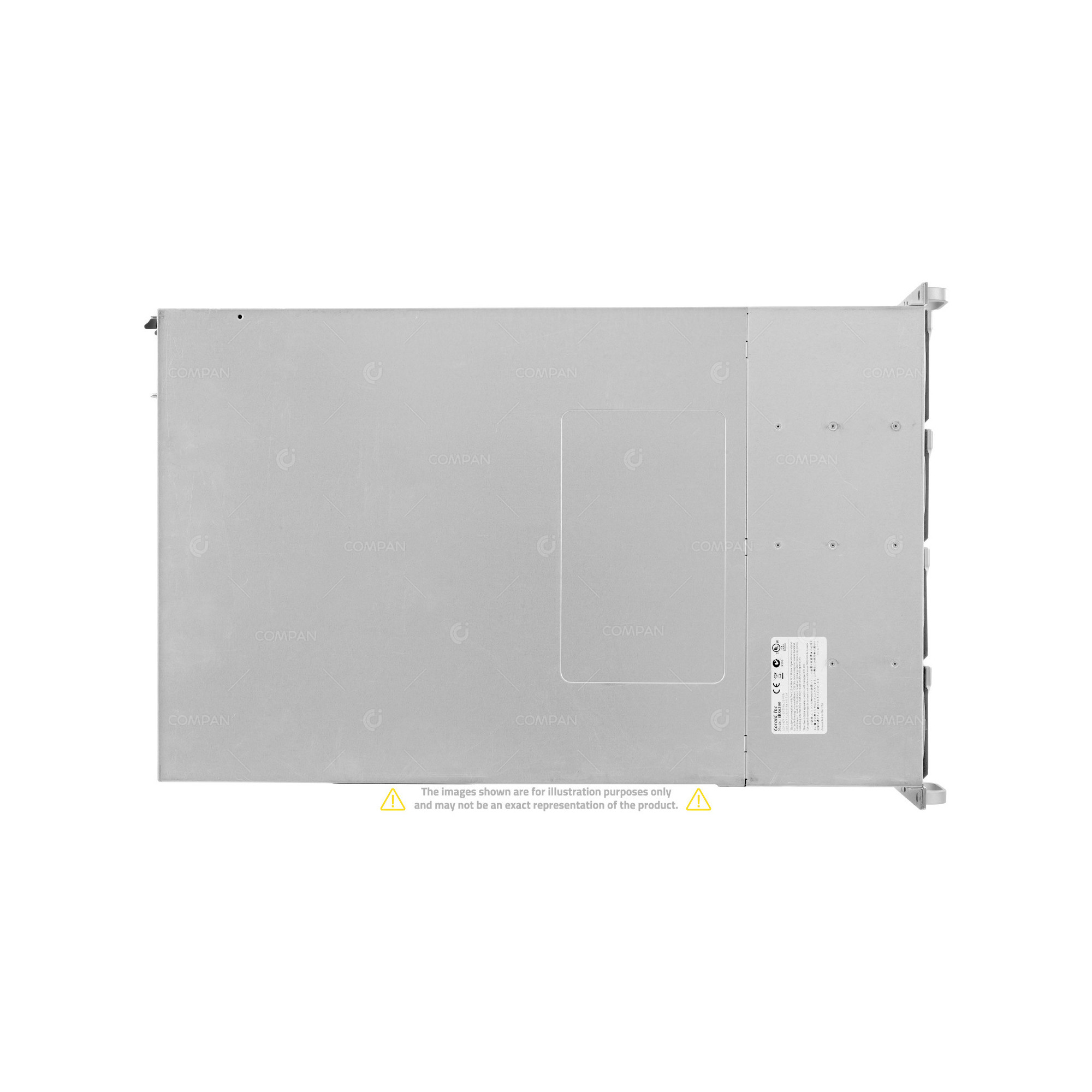

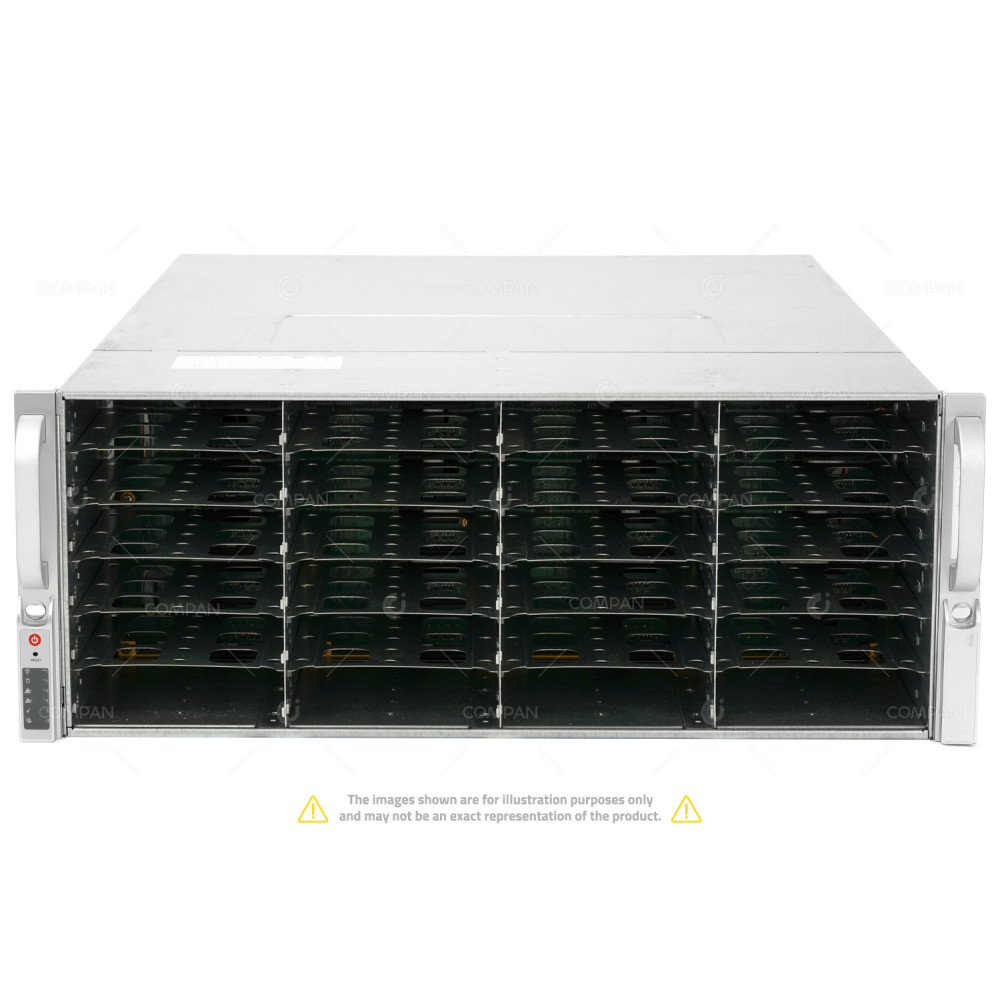

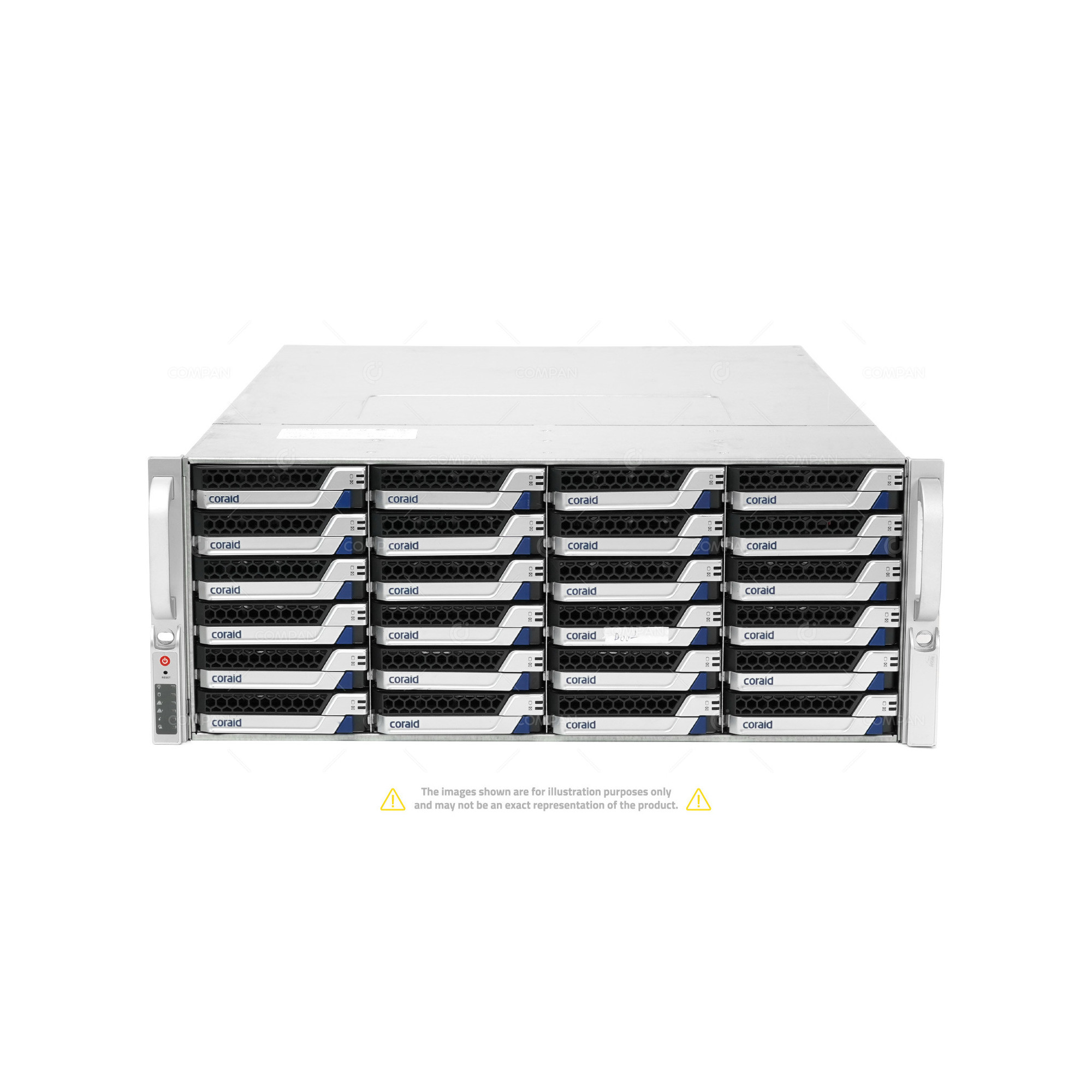

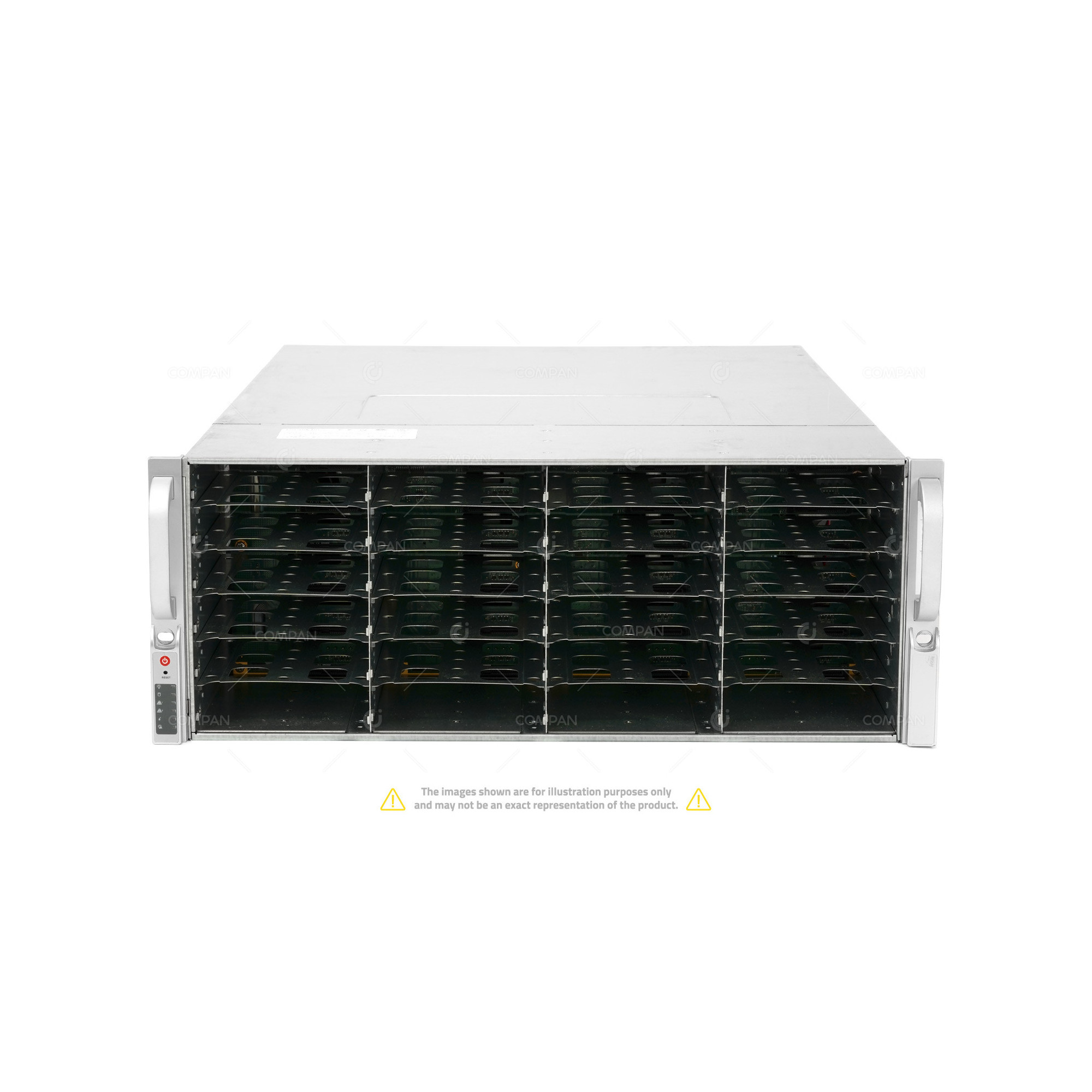

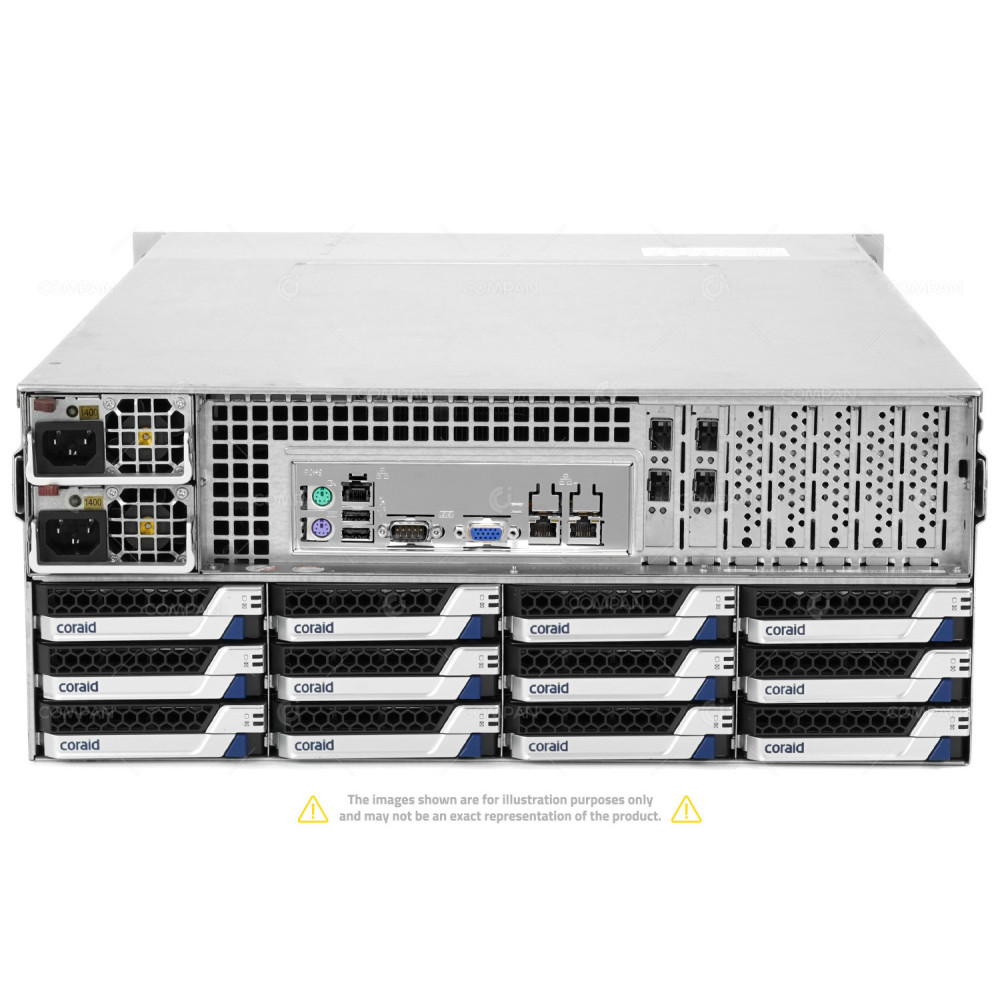

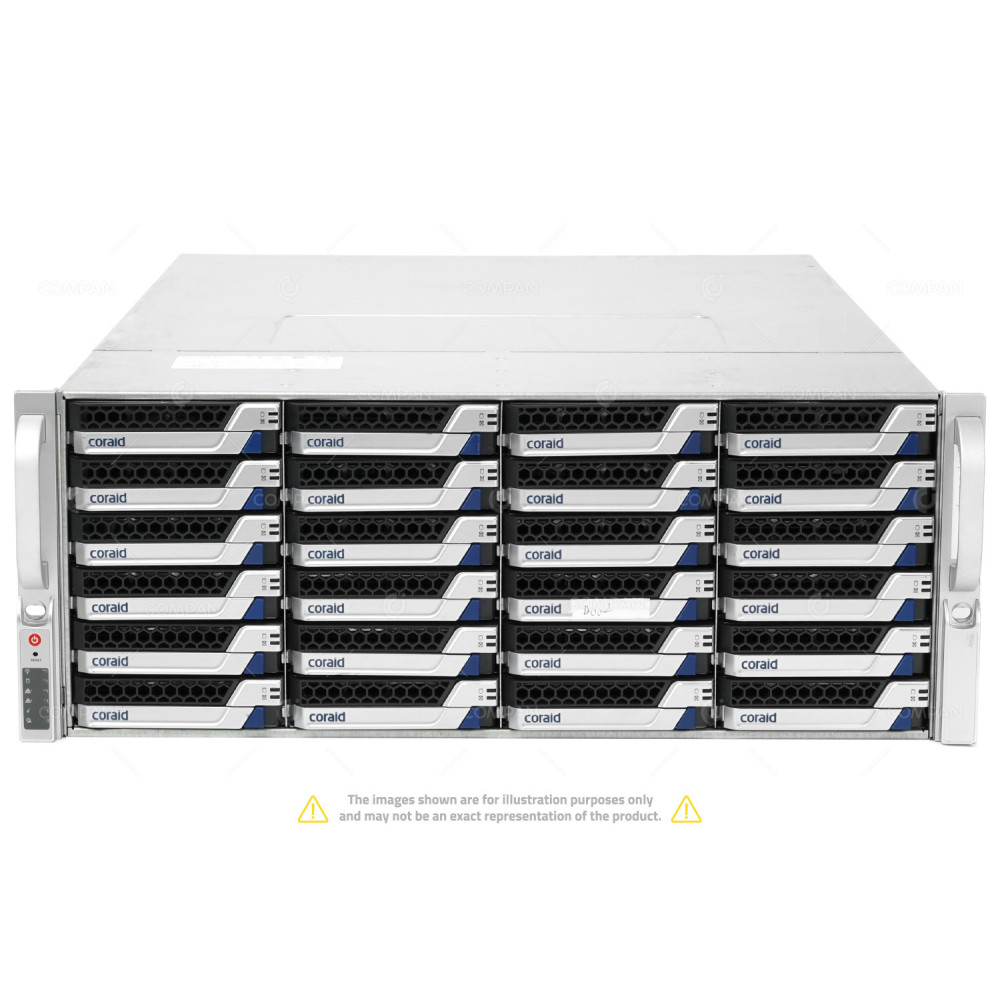

Coraid Supermicro SRX4200 S2 1x Xeon X5650 6GB RAM 36x 8TB 3,5" LFF Server
Brand:
SUPERMICRO
|
Part Number: SRX4200-S2-36LFF
Description
The Coraid EtherDrive SRX is a 4U server made on Supermicro base (Chassis CSE-847). It offers 36 drive bays for hot-swappable 3.5" SAS/SATA SSD & HDD, with 24 drive bays in front and 12 drives in back. Server can be easily converted into NAS storage with drives configured individually or in RAID sets. Both are presented to initiators as logical storage devices accessible using the ATA-over-Ethernet (AoE) protocol.
Coraid SRX4200 in this auction does not come with installed OS.
CONTACT US FOR CUSTOMIZED CONFIGURATION
GENERAL INFORMATION
Manufacturer | Coraid (by Supermicro) |
Model | SRX4200 S2 36LFF, CSE-847 Chassis |
Form Factor | Rack 4U |
Processor | Intel Xeon E5500, E5600 series processors |
Processor Sockets | 2x LGA1366 Sockets |
Memory | 12x DDR3 DIMM Slots |
Chipset | Intel 5520 Chipset |
Remote management | IPMI 2.0 |
Storage Slots | 36x 3,5" LFF Drive Bays, HDD/SSD SATA/SAS Drives |
SPECIFICATION
Manufacturer Part Number | SRX4200-S2-36LFF |
Installed CPU | 1x Intel Xeon X5650 @ 2.66GHZ 6 Core 12MB Cache 95W TDP |
Installed Memory | 6GB DDR3 Memory |
Installed HDD | 36x 8TB HDD 3.5" |
Installed Adapters | 5x Supermicro 3G SAS/SATA PCIE X4 2 PORT SFF-8087 Software RAID Controller 1x Supermicro Dual Port 10GB SFP+ PCIE 2.0 X8 Ethernet Adapter Low Profile |
Power Supply | 1x Supermicro 1400W 80 Plus Gold Power Supply |
Rails | Rails Kit Included |
AUCTION DETAILS
Condition | A used item that has been kept in perfect conditions in a large data center. Looks like new, with no signs of use. Comes from a legitimate source. |
Warranty | 1 Year |
Shipping | 80€ in European Union 200€ outside European Union |
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
