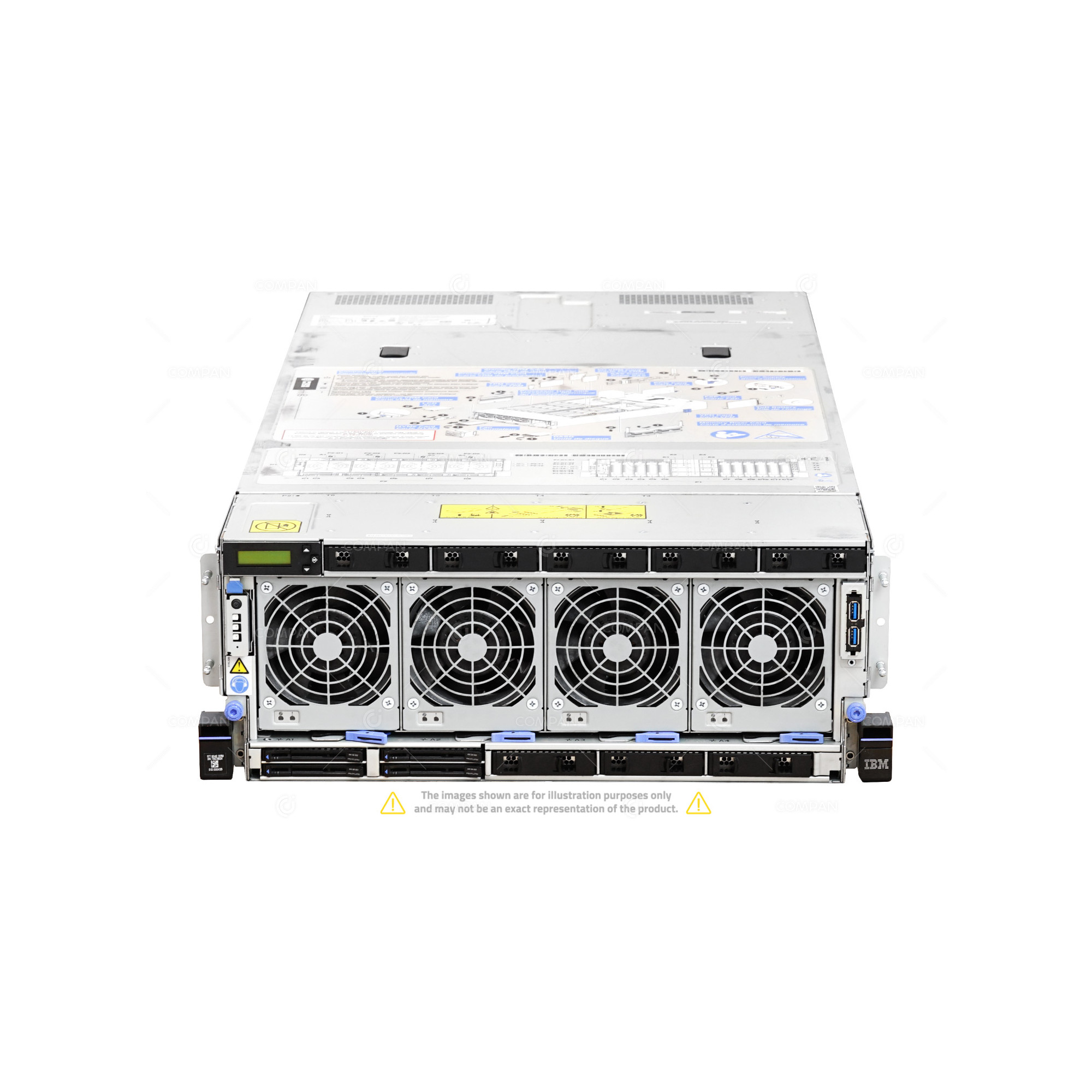

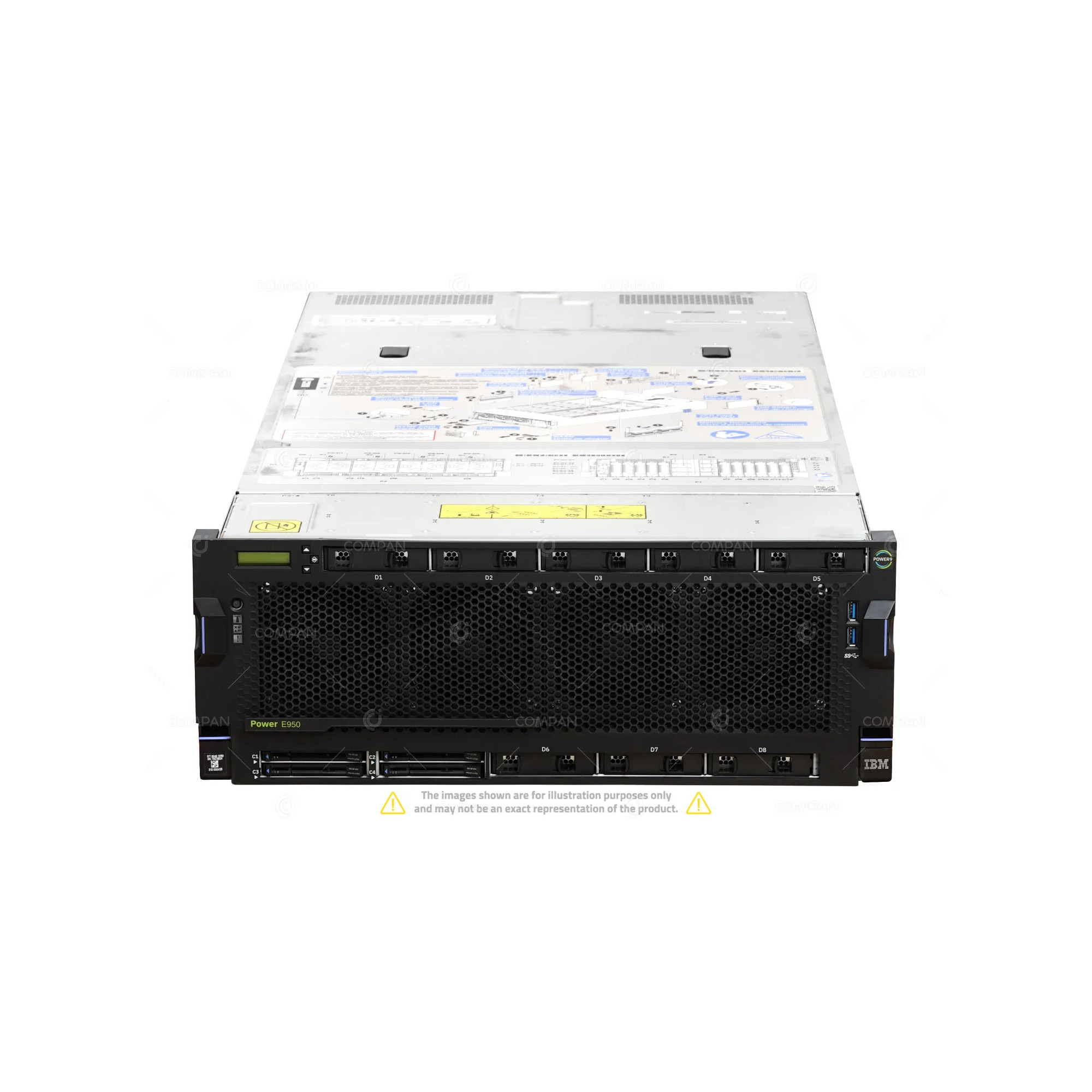

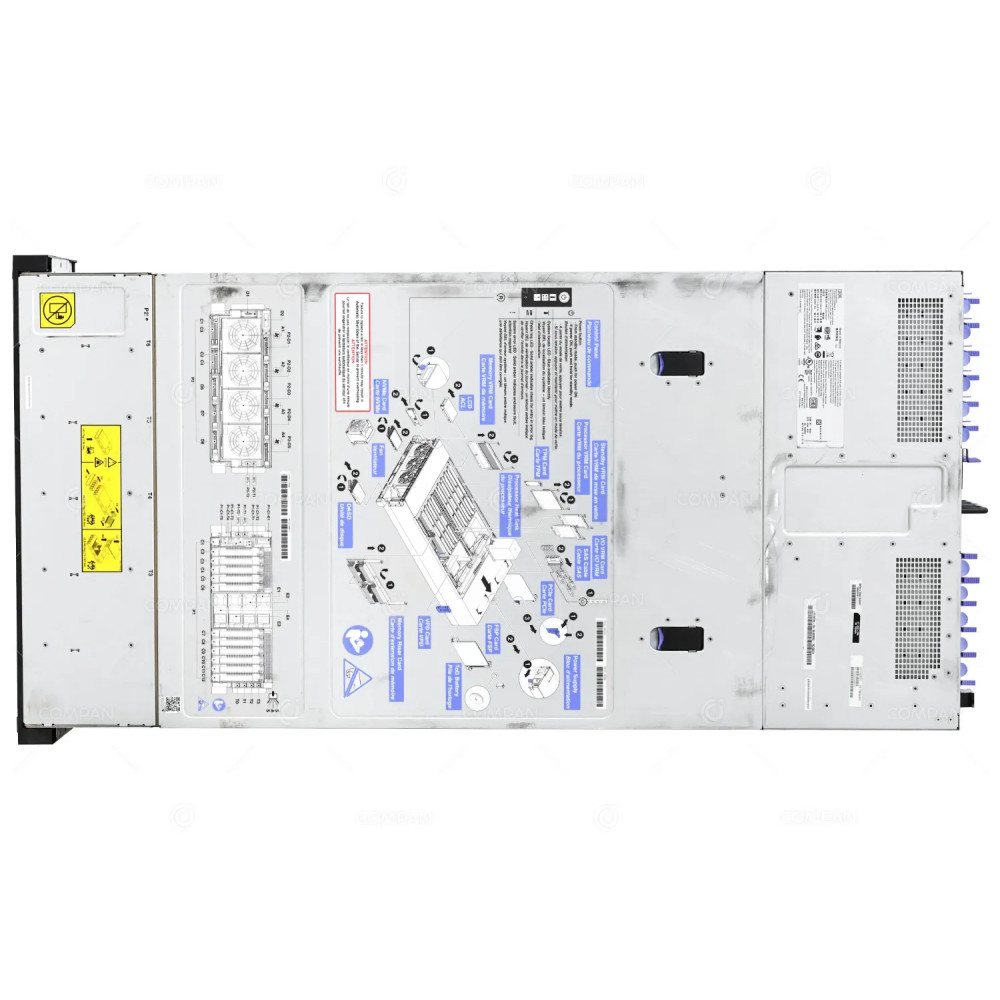

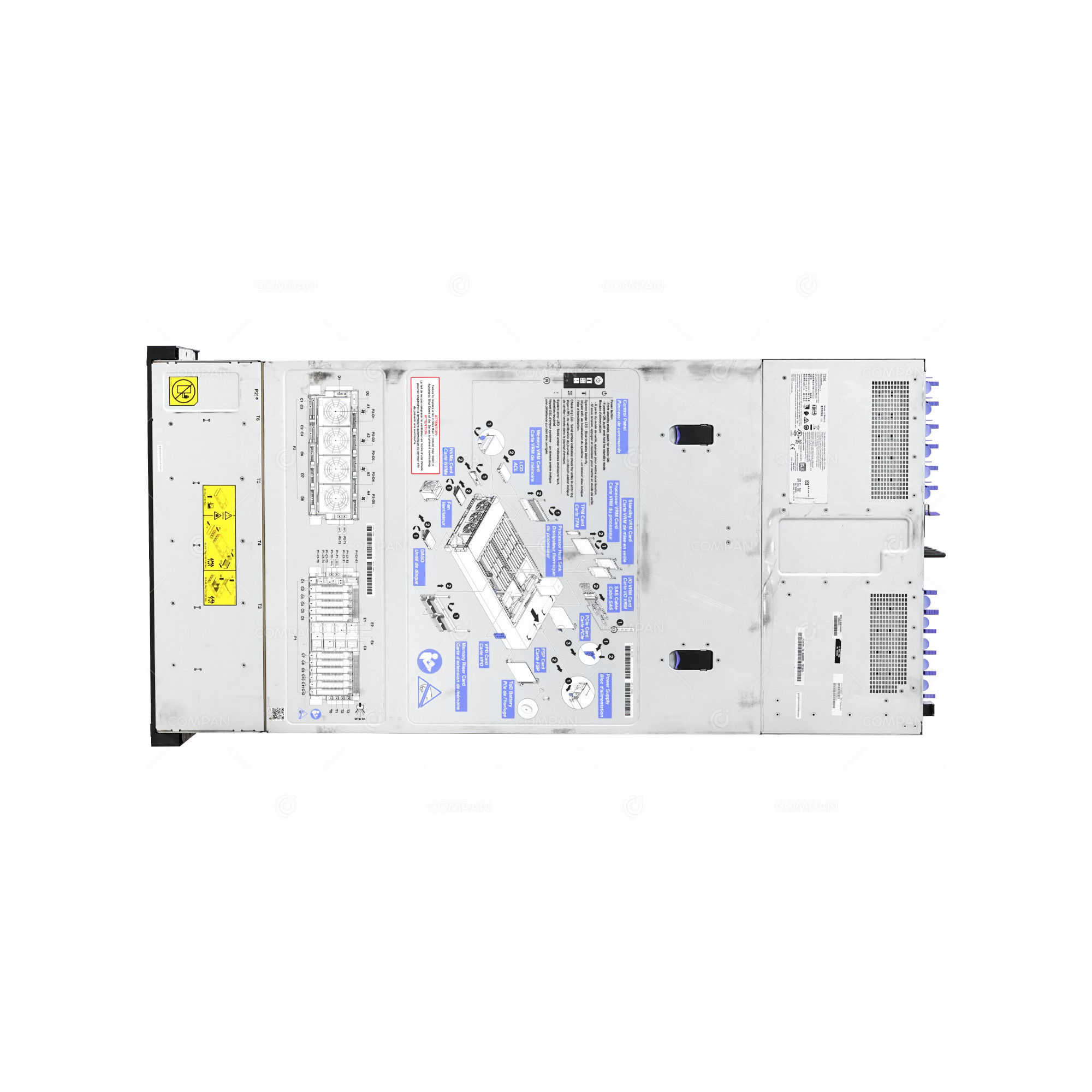

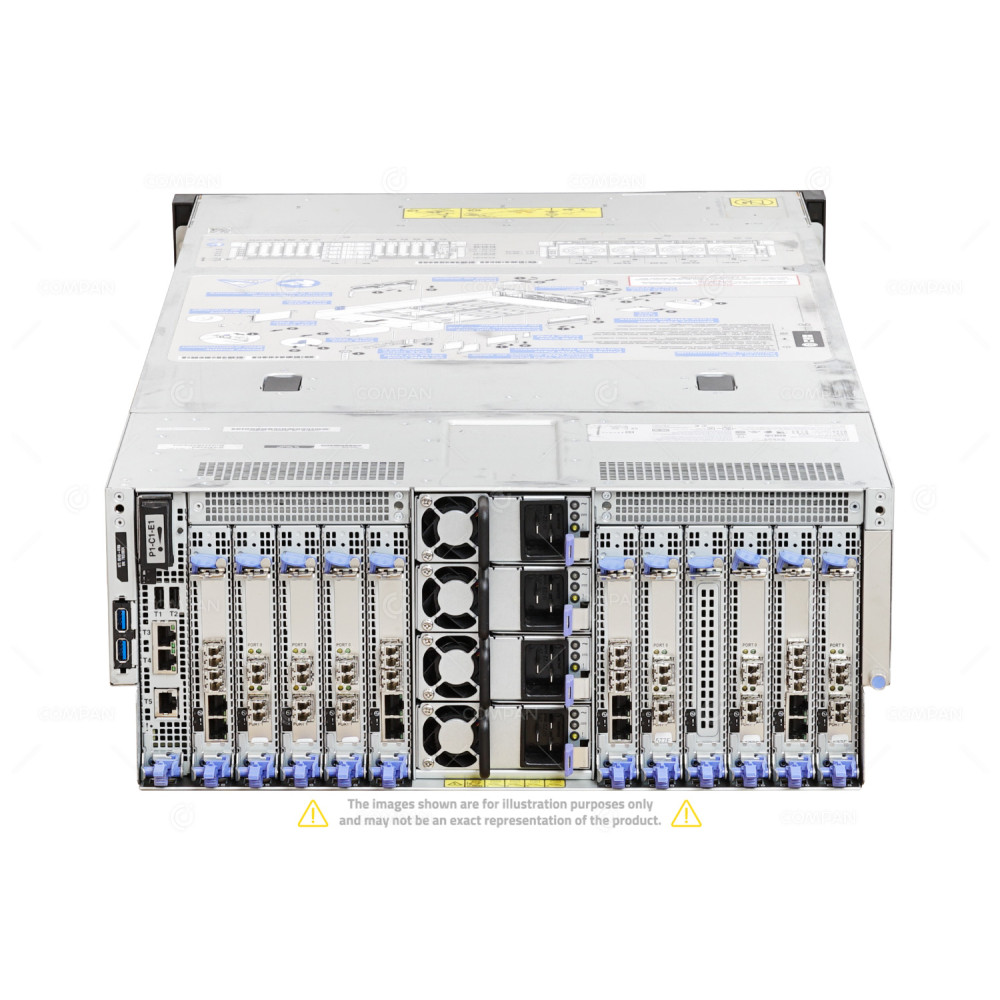

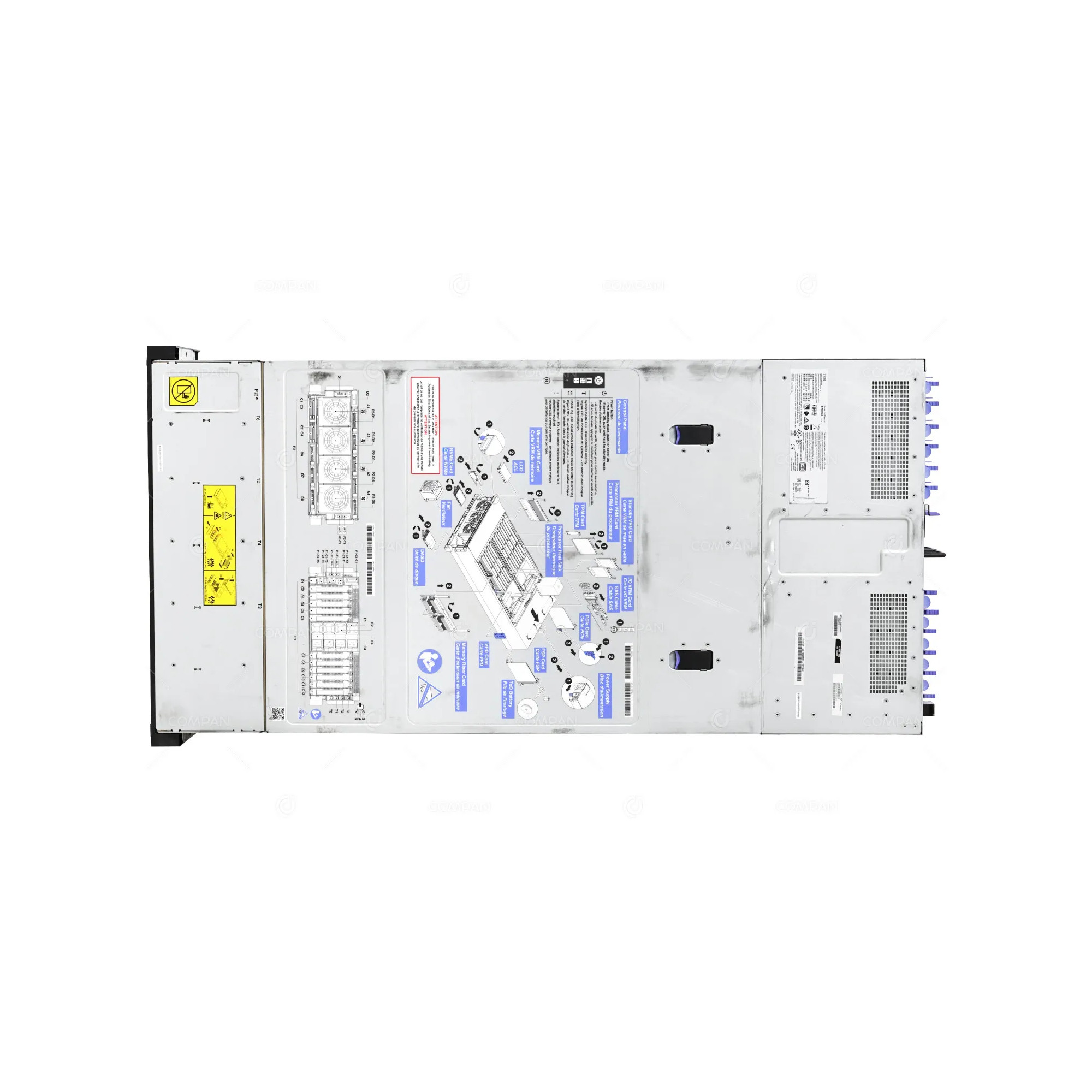

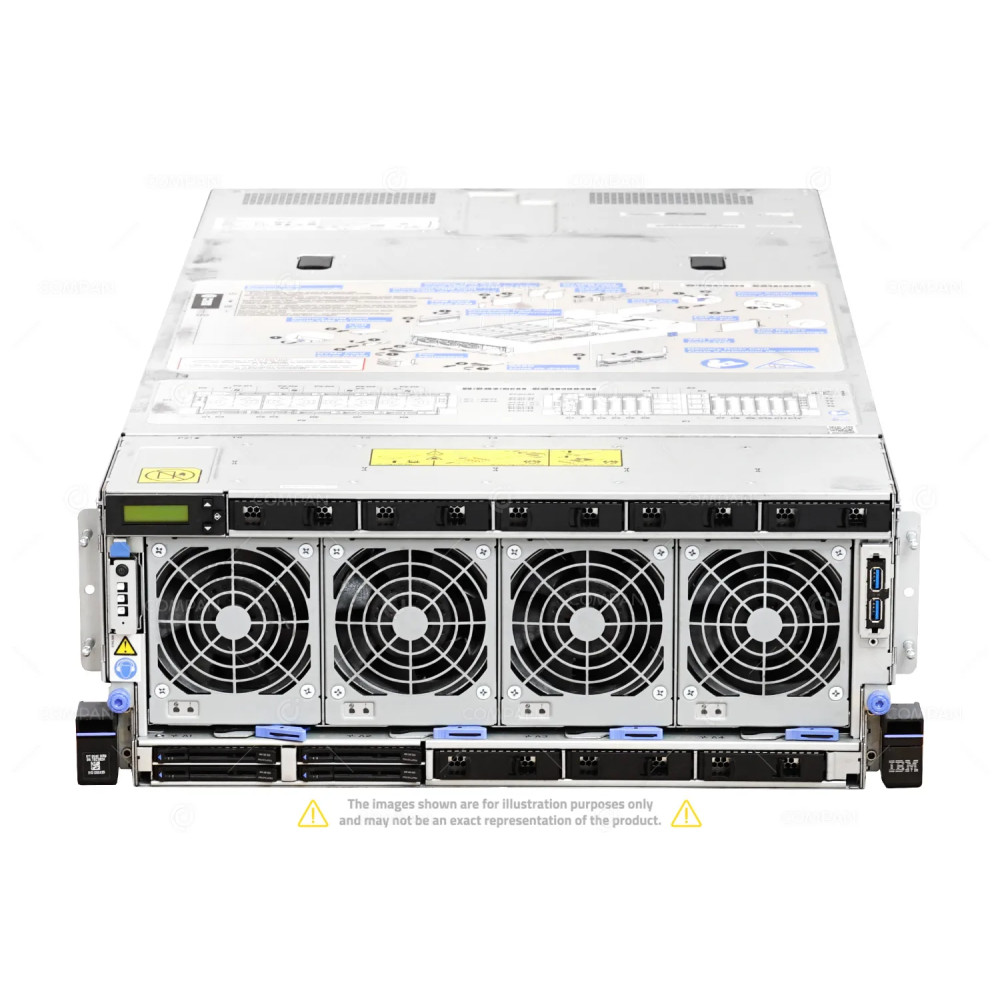

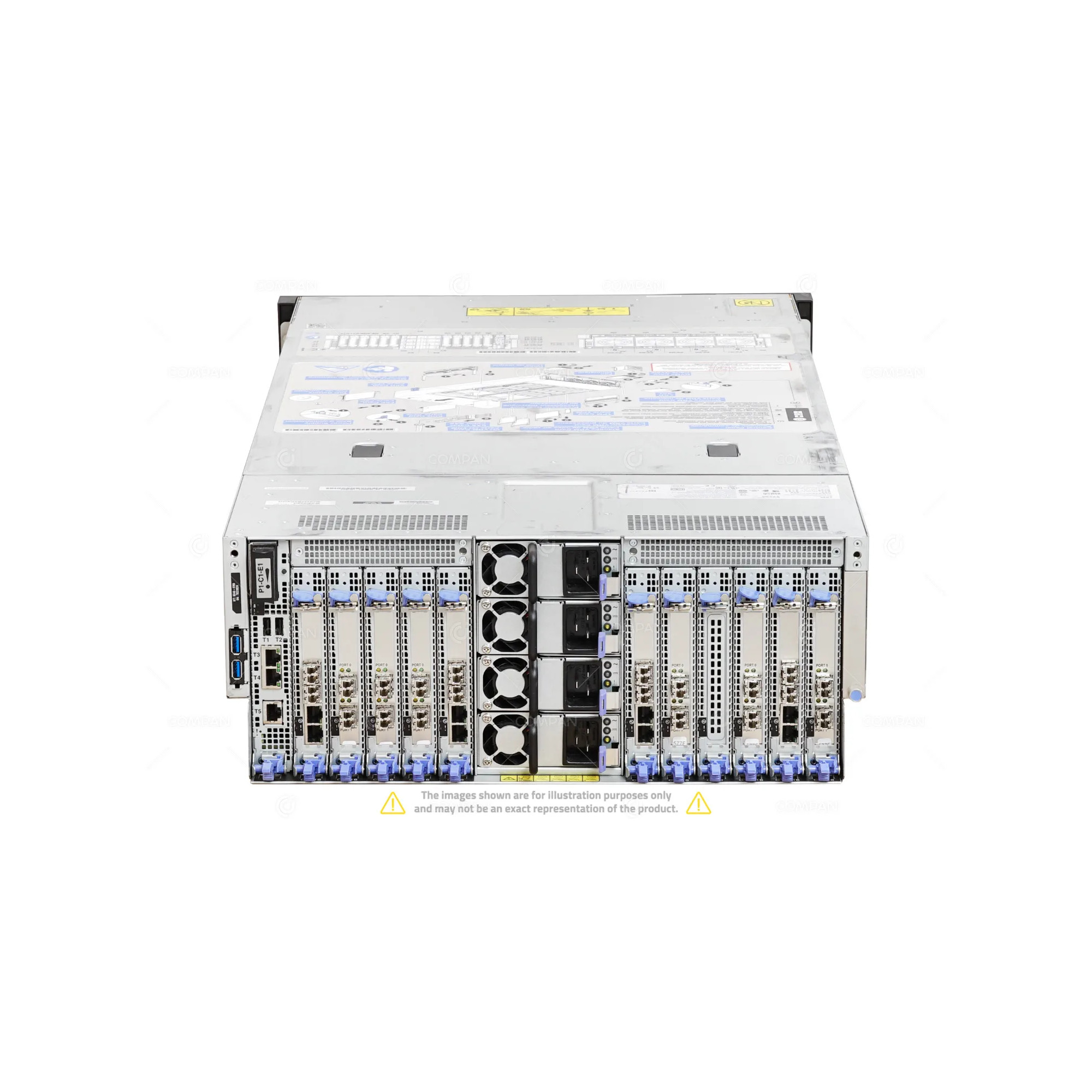

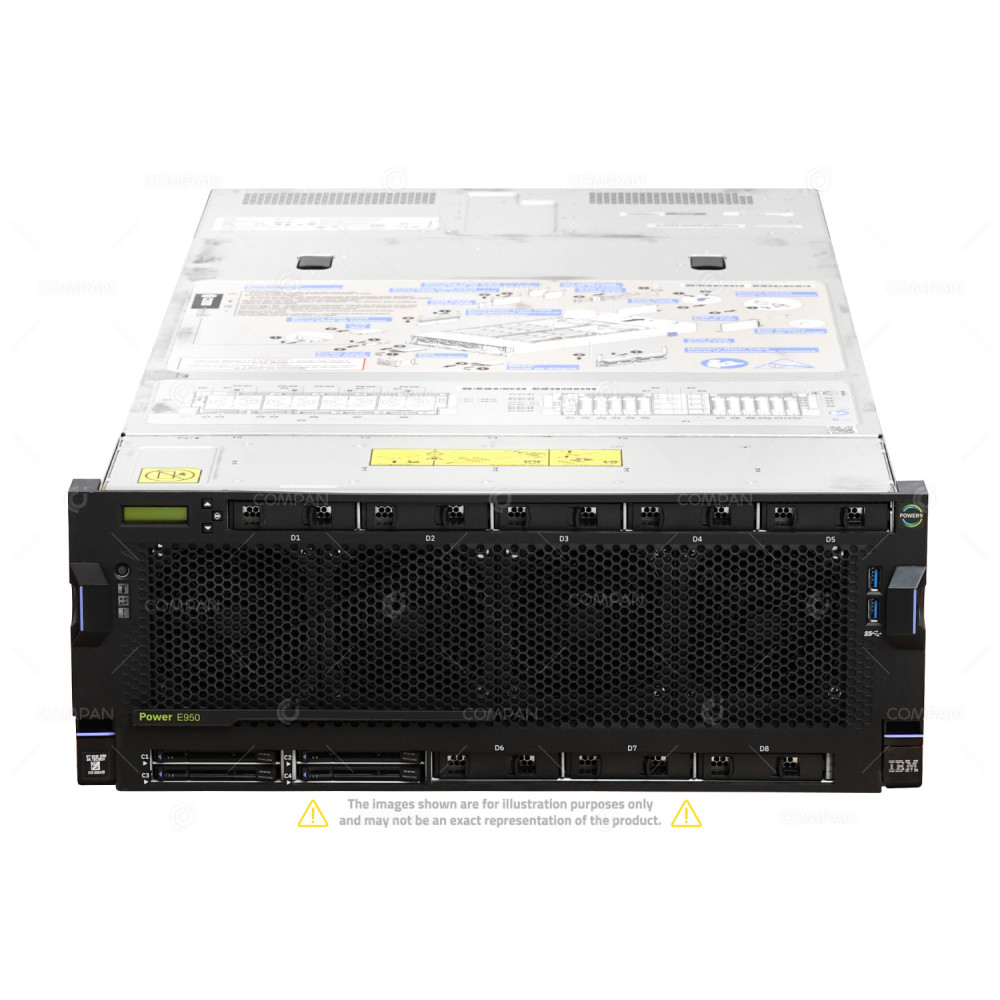

IBM Power System E950 9040-MR9 32-Core 3.5GHz 1536GB 4x 800GB SSD NVME U.2
IBM Power System E950 9040-MR9 32-Core 3.5GHz 1536GB 4x 800GB SSD NVME U.2
The IBM Power9 E950 (9040-MR9) is a high-performance server designed for enterprise computing. Powered by IBM Power9 processors, it delivers exceptional processing power and scalability for complex workloads and data-intensive applications. With up to 48 cores, 96 threads per system and up to 64TB of DDR4 memory, it enables parallel processing and improved performance. The server offers flexible storage options and comprehensive I/O capabilities for high-speed data transfers. Advanced virtualization technologies enhance resource partitioning and workload consolidation. Compatible with IBM AIX, IBM i, and various Linux distributions, the Power9 E950 ensures compatibility with different software environments. Reliability features such as redundant components and fault tolerance minimize system downtime, ensuring continuous operation. In summary, the IBM Power9 E950 (9040-MR9) is a powerful and scalable server, providing organizations with the performance, flexibility, and reliability needed for demanding workloads and data-intensive applications.
CONTACT US FOR CUSTOMIZED CONFIGURATION
SPECIFICATION
Manufacturer | IBM |
Manufacturer Part Number | 9040-MR9 |
Model | Power System E950 |
Form Factor | Rack 4U Server |
Type of processor | POWER9 8 Core 3.5 GHz (PN: 02CL950, 5C34) |
Total Cores | 32 Core (4x 8 Core) |
Type of memory | 32 GB DDR4-2666v ISDIMM (PN:78P4198, 324F) |
Total memory | 1536 GB (48x 32GB) |
Installed HDD | 4x 800GB SSD NVME U.2 (PN: 01LU763) |
Vital product data card | 1x VPD (PN:01DH220, 563F) |
Memory module riser card | 4x 16-sltot (PN:02EA865, 2C62) |
Expansion Cards | 6x 2-PORT 16GB FC (PN: 577F) 4X 2-PORT 1GB 2-PORT 10GB (PN: 2B93) |
Power supply | 4x 2000W (PN: 00RY772, 51DE) |
COD PROCESOR INFORMATION
Installed processors | 32 Cores |
Activated processors | 28 Cores |
Inactive processors | 4 Cores |
COD MEMORY INFORMATION
Installed memory | 1536 GB |
Activated memory | 1024 GB |
Inactive memory | 512 GB |
VET CAPABILITY
AIX allowed | True |
RPA I/O hosting | True |
AIX diagnostic | True |
Subprocessor partitioning | True |
LPAR creation allowed | True |
Live partition mobility | True |
- Processor Type:
- POWER9
- Product Line:
- Power System
- Model:
- E950
- Form Factor:
- Rack 4U
- Number of Processors:
- 4
- Processor Manufacturer:
- IBM
- Processor Speed:
- 3.50 GHz
- RAM Size:
- 1536 GB
- Memory Type:
- DDR4
