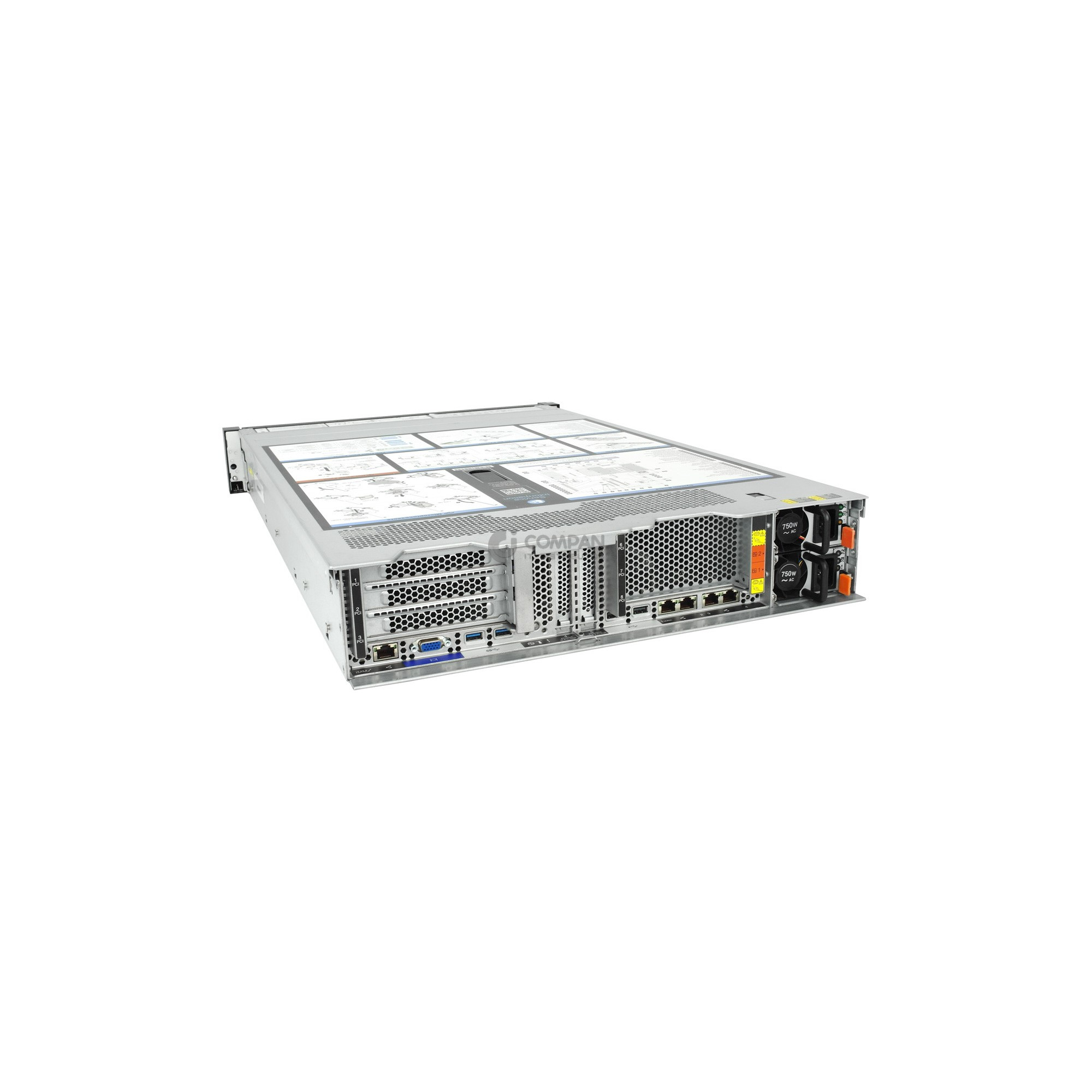

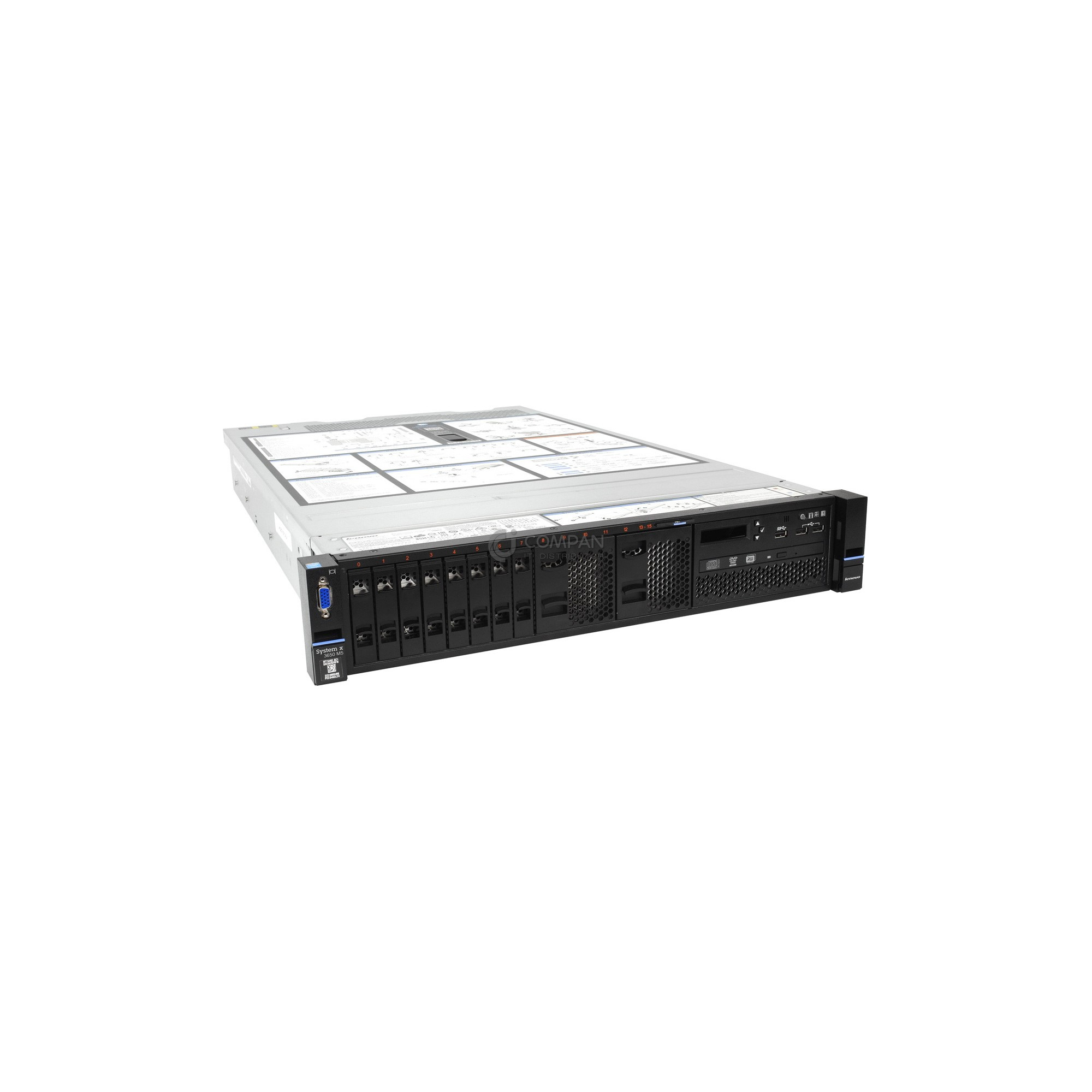

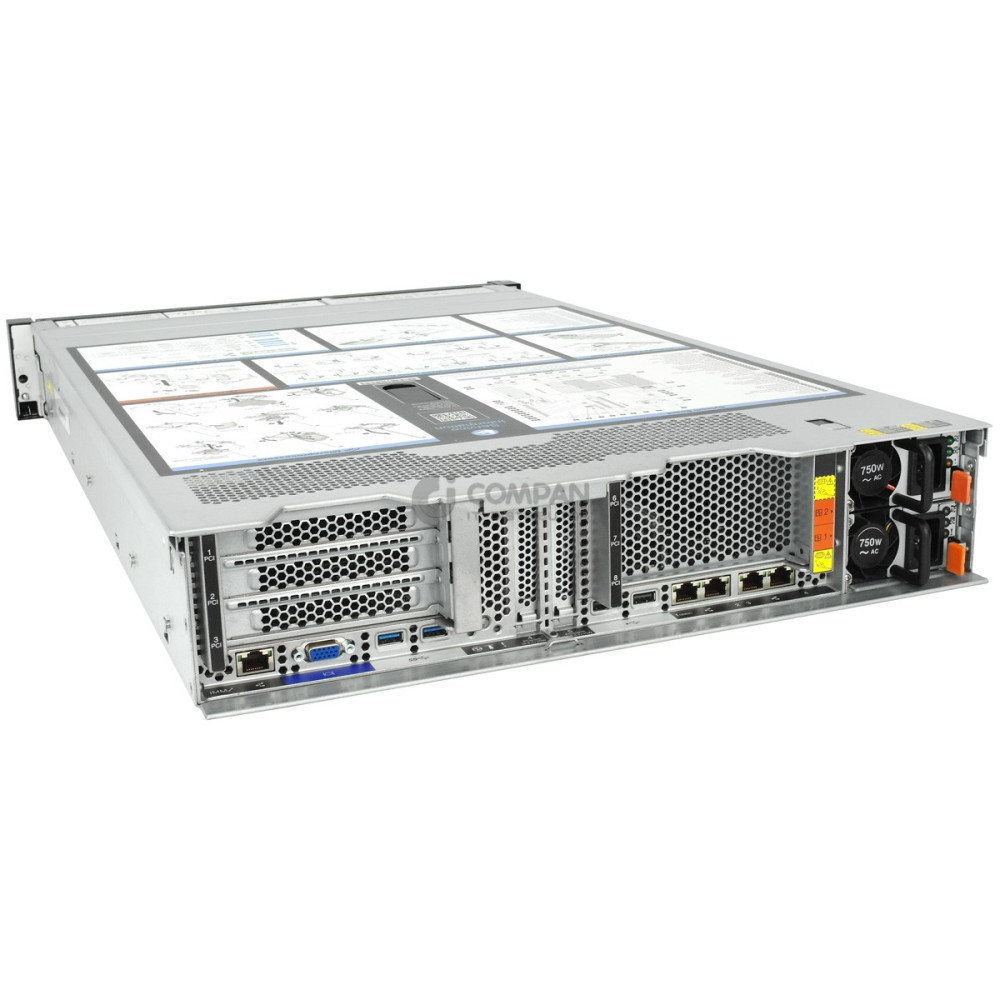

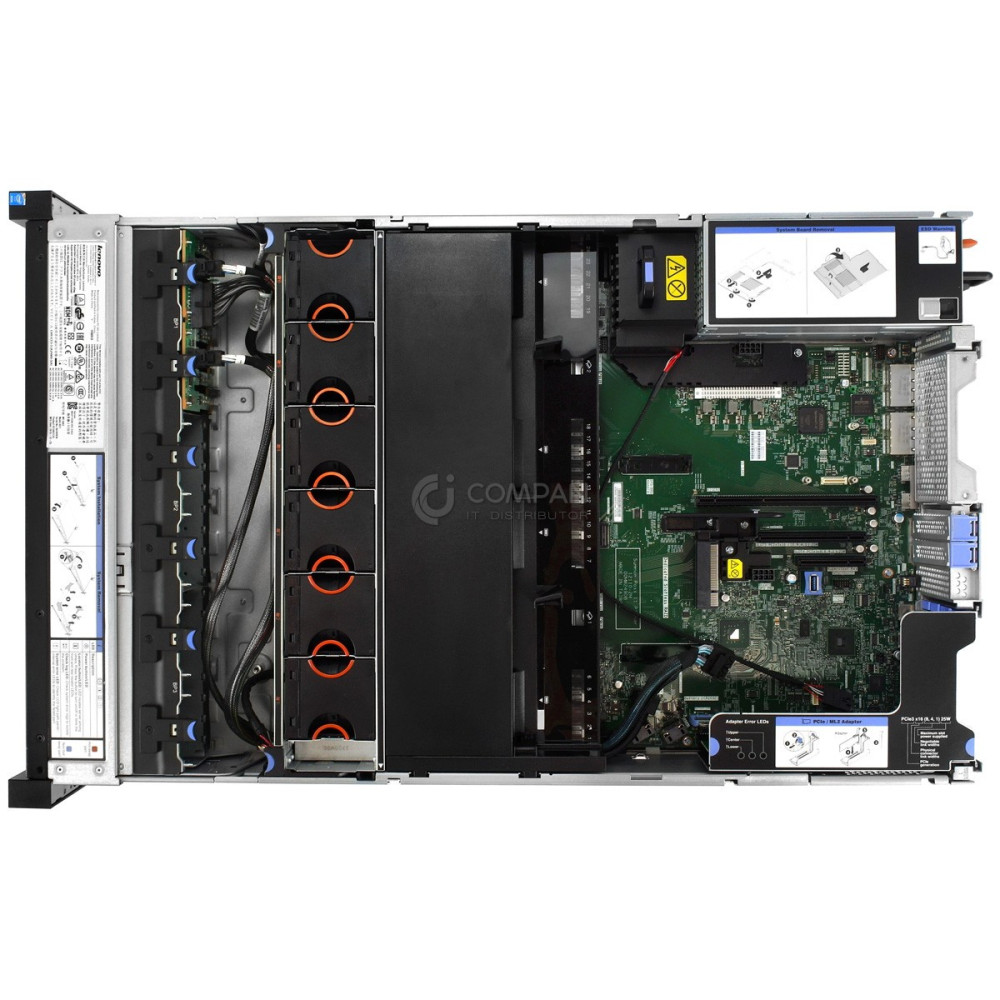

X3650 M5-8SFF LENOVO SYSTEM X3650 M5 2X INTEL XEON E5-2680 V3 @ 2.50GHZ RAM 128GB(8X 16GB DDR4 8X 2133MHZ ) SERVERAID M5210 IMM advanced license
Improves productivity by offering superior system performance with the Intel Xeon processor E5-2600 v4 product family with up to 22-core processors, up to 55 MB of L3 cache, up to 2400 MHz memory speeds, and up to 9.6 GT/s QPI interconnect links.
Support for up to two processors, 44 cores, and 88 threads allows to maximize the concurrent execution of multithreaded applications.
Intelligent and adaptive system performance with energy efficient Intel Turbo Boost Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
The System x3650 M5 provides many features to simplify serviceability and increase system uptime:
- Tool-less cover removal provides easy access to upgrades and serviceable parts, such as processors, memory DIMMs, and adapter cards.
- The server offers hot-swap drives supporting RAID redundancy for data protection and greater system uptime.
- The server offers redundant hot-swap power supplies and hot-swap redundant fans to provide availability for business-critical applications.
- The new Next Gen light path diagnostics LCD display panel simplifies servicing, speeds up problem resolution, and helps improve system availability.
Powerful systems management features simplify local and remote management of the System x3650 M5 and deliver enterprise-class data protection:
- The server includes an Integrated Management Module II (IMM2.1) to monitor server availability and perform remote management.
- An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
- Lenovo XClarity Administrator offers comprehensive hardware management tools that help to increase uptime, reduce costs and improve productivity through advanced server management capabilities.
- An integrated Trusted Platform Module (TPM) enables advanced cryptographic functionality such as digital signatures and remote attestation.
- System x Trusted Platform Assurance, an exclusive set of System x security features and practices, establishes a solid security foundation for workloads by delivering firmware that is securely built, tested, digitally signed and verified prior to execution.
- The server offers enterprise-class data protection with optional self-encrypting drives.
- Industry-standard AES NI support offers faster, stronger encryption.
- Intel Execute Disable Bit functionality can help prevent certain classes of malicious buffer overflow attacks when combined with a supporting operating system.
- Intel Trusted Execution Technology provides enhanced security through hardware-based resistance to malicious software attacks, allowing an application to run in its own isolated space, protected from all other software running on a system.
Specification
| General Information |
|
|
Manufacturer Part Number
| X3650 M5-8SFF |
| Manufacturer Part Option
|
8871-AC1
|
|
Brand
| Lenovo |
|
Product Type
| Server |
|
Form Factor
| Rack Mountable 2U |
|
Include
|
1x Lenovo mainboard for X3650 M5
1x Lenovo ServeRAID M5210 controller |
| CPU Specification |
|
|
CPU Socket
|
Dual socket LGA 2011-3 |
| Processors Supported
|
supports Intel® Xeon® processor E5-2600 v4/ v3 family |
|
Number of Processors Installed
|
2 |
| Processor Model
| Intel Xeon E5-2680 V3 |
| Processor Manufacturer Part Number
| SR1XP
|
| Processor Brand
|
Intel |
| Base Frequency | 2.50 GHz
|
| Turbo Frequency | 3.30 GHz
|
| Total Cores | 12 |
| Total Threads | 24 |
| Cache | 30 MB |
| TDP | 120 W
|
| Memory Specification |
|
| Number of Memory Slots | 24 |
|
Memory Maximum
| Up to 1.5 TB LRDIMM
UP to 768 GB RDIMM |
| Maximum Memory Speed |
2400 MHz
|
| Memory Type Supported |
DDR4 |
| Memory Installed | 128GB (8 x 16GB) |
| Memory Type | DDR4-2133 |
| Storage Specification |
|
| Storage | No drives installed |
| Storage Bays | 8 x 2,5" |
