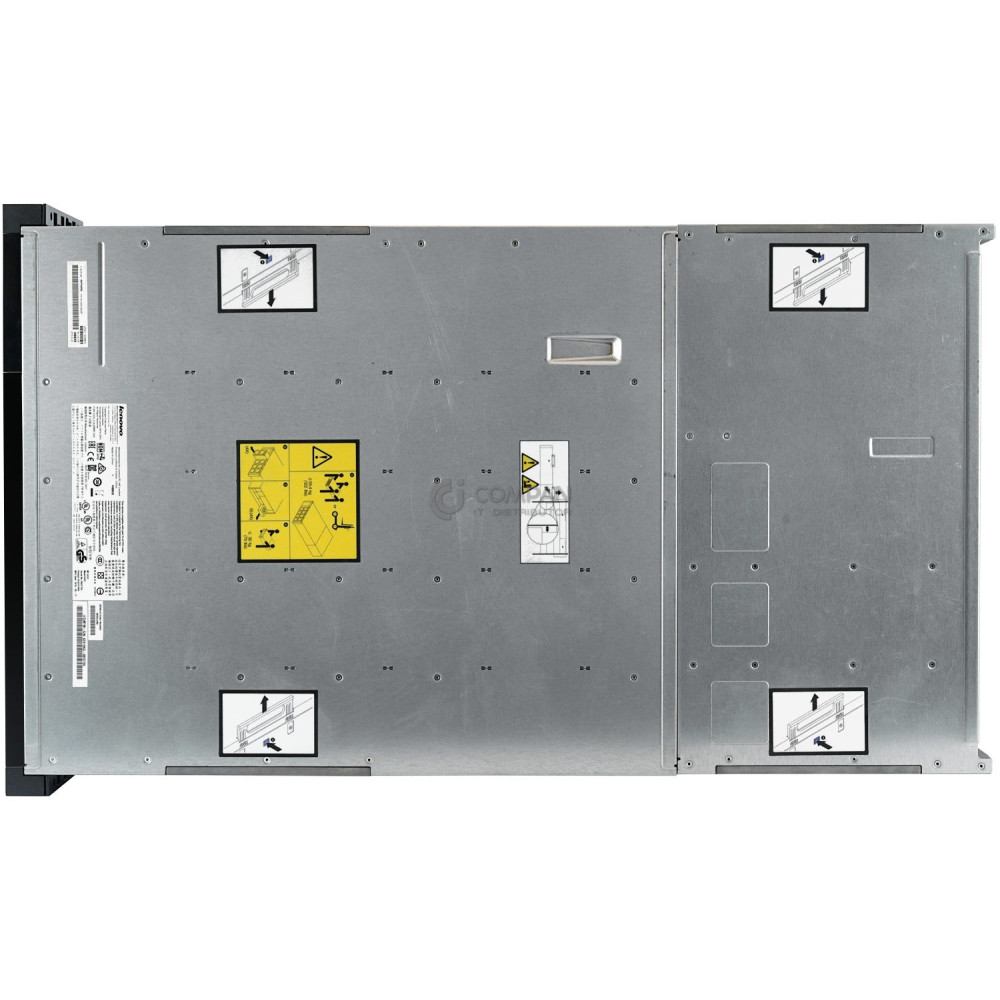

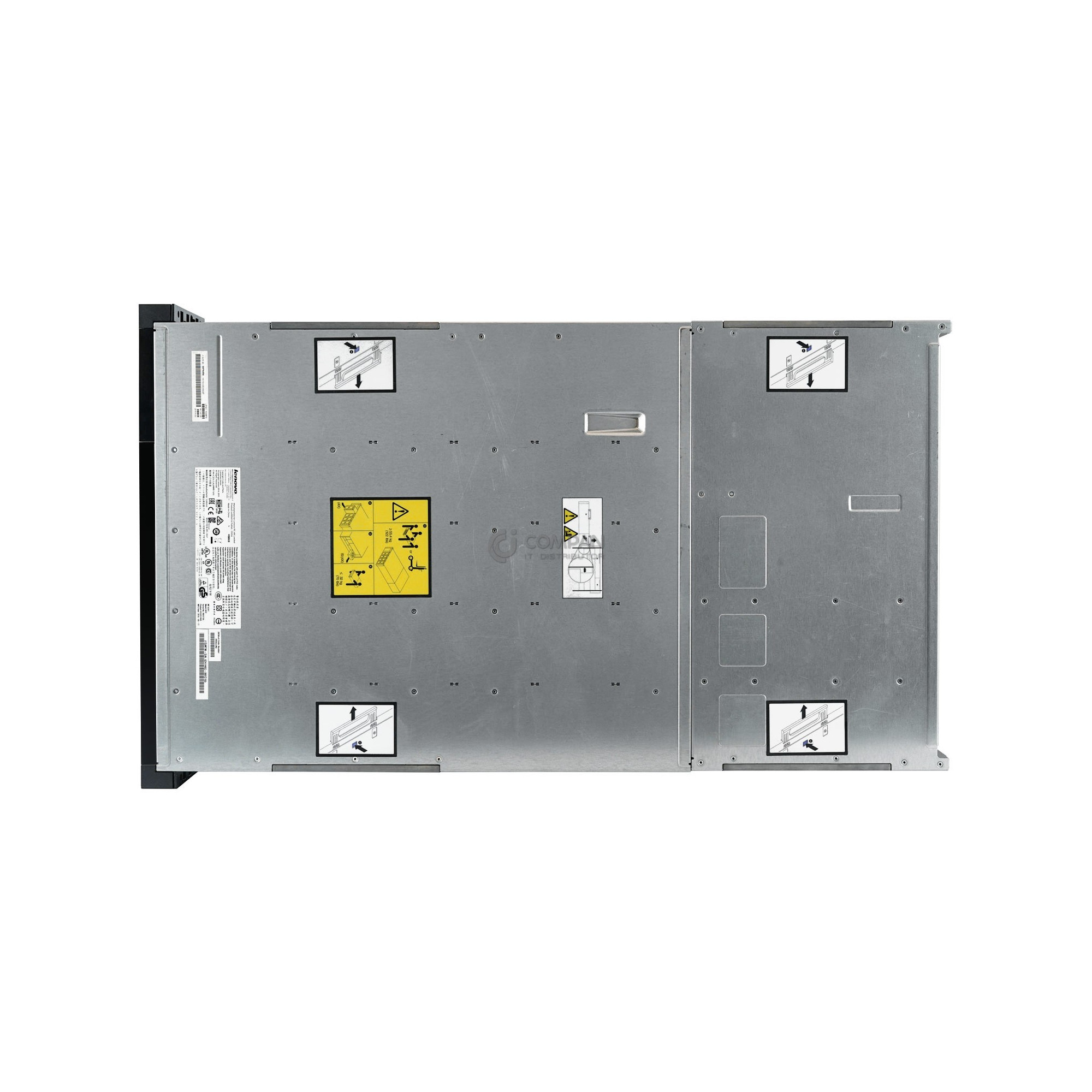

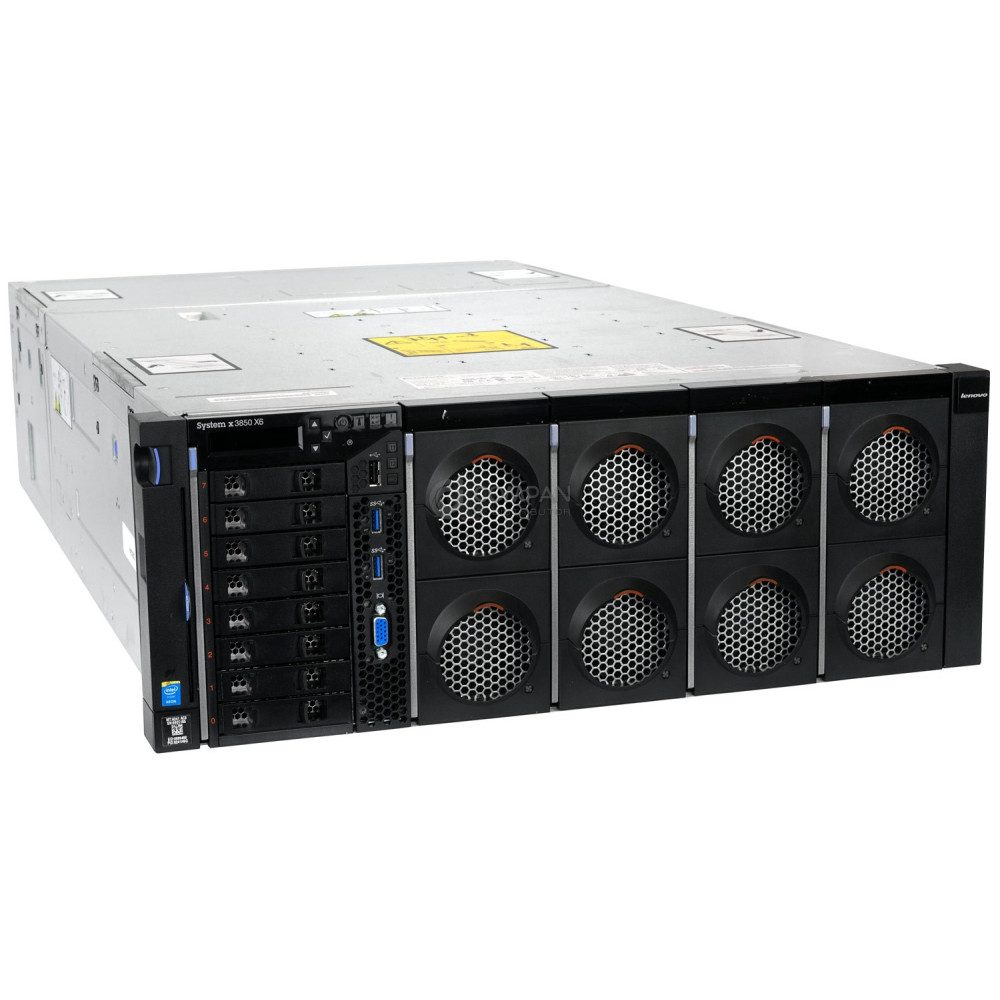

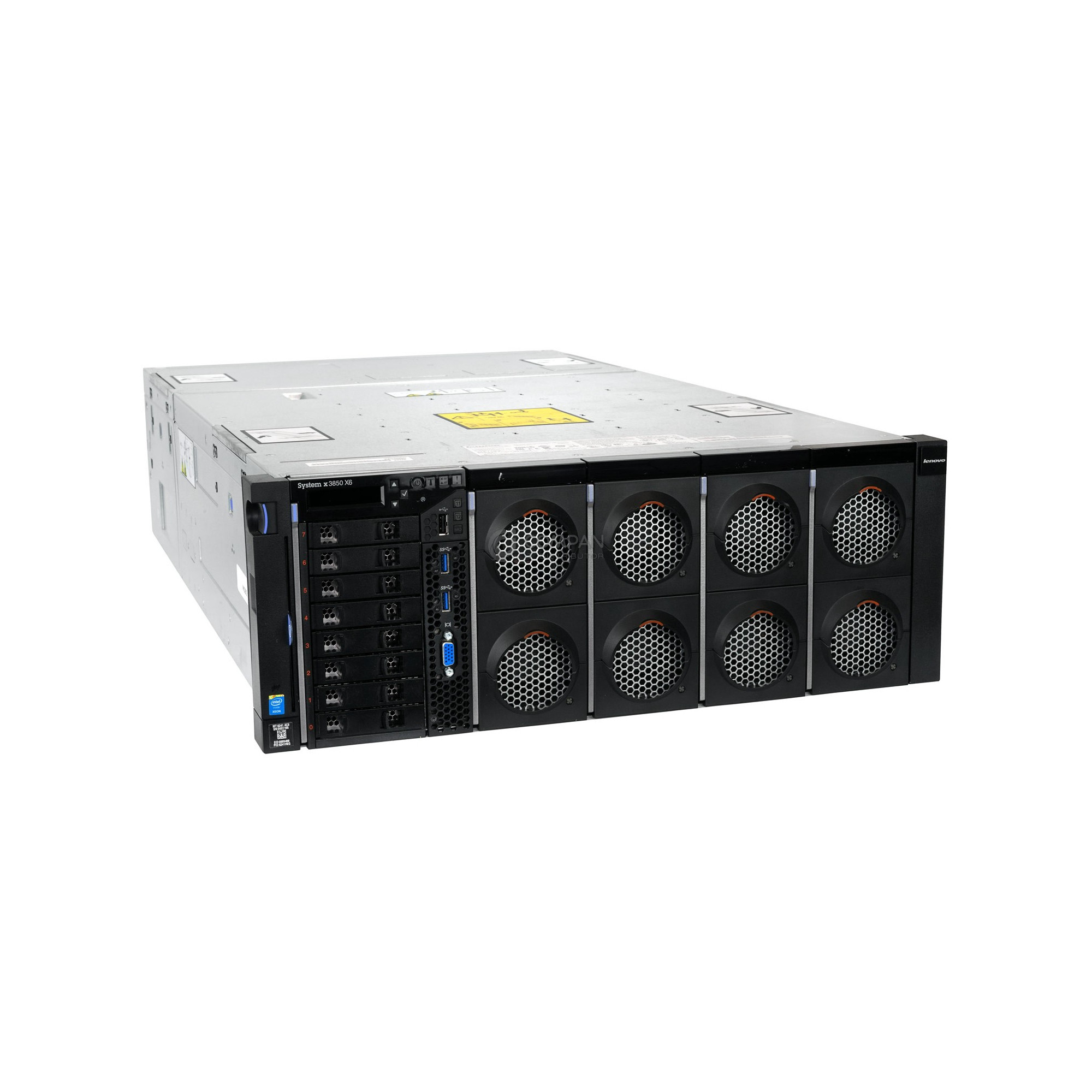

X3850 X6-4SFF LENOVO SYSTEM X3850 X6 4X INTEL XEON E7-4880 V2 @ 2.50GHZ RAM 1TIB(32X 32GB DDR3 32X 1600MHZ ) 2X 300GB(2X SAS )
Brand:
LENOVO
|
Part Number: X3850 X6-4SFF_26997
Description
X3850 X6-4SFF LENOVO SYSTEM X3850 X6 4X INTEL XEON E7-4880 V2 @ 2.50GHZ RAM 1TIB(32X 32GB DDR3 32X 1600MHZ ) 2X 300GB(2X SAS )
Fast application performance
- Supports DDR4 memory at speeds up to 1866 MHz, or DDR3 memory at speeds up to 1600 MHz
- Supports up to 96 DIMM sockets, with 24 DIMMs per processor.
- Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows processor cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
- Intel Hyper-Threading Technology boosts performance for multi-threaded applications by enabling simultaneous multi-threading within each processor core, up to two threads per core.
- Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads.
- Intel Advanced Vector Extensions (AVX) improves floating-point performance for compute-intensive technical and scientific applications.
- Supports a 12 Gbps SAS RAID portfolio.
- The usage of solid-state drives (SSDs) instead of, or along with, traditional spinning drives (HDDs) can improve I/O performance. An SSD can support up to 100 times more I/O operations per second (IOPS) than a typical HDD.
- Optional support for high-performance PCIe-attached NVMe Flash Storage solid-state drives (SSDs) can significantly improve I/O performance.
- PCI Express 3.0 I/O adapter slots that improve the theoretical maximum bandwidth by almost 100% (8 GTps per link using 128b/130b encoding) compared to the previous generation of PCI Express 2.0 (5 GTps per link using 8b/10b encoding).
- With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor. This integration helps reduce I/O latency and increase overall system performance.
- Support for up to two graphics processing units (GPUs) and co-processors to maximize computing power.
- Energy-efficient electronic components help lower operational costs, including highly efficient 900 W AC and 1400 W AC power supplies with 80 PLUS Platinum certification.
- The server is Energy Star 2.0 compliant
Agile system design
- The server provides many scalability and flexibility features:
- Innovative module "book" design for each of the three subsystems: Compute Books, Storage Book, and I/O Books. Front and rear access means that you can easily scale the system by adding components without removing the entire server from the rack.
- The modular book design also allows clients to create the configuration that fits their application and environment needs, which reduces acquisition costs while giving them the flexibility to grow and modify their configuration later.
- The book design also means that subsystem upgrades are simpler, quicker to perform, and have a lower impact on the rest of the server.
- Using 128 GB 3DS RDIMMs, the server supports up to 12 TB of memory.
- Up to 16x 1.8-inch SSD bays, or up to eight 2.5-inch bays, provide a flexible and scalable all-in-one platform to meet your increasing demands.
- Offers up to 11 PCIe slots plus a dedicated Mezzanine LOM (ML2) adapter slot. Most slots are PCIe 3.0 to maximize I/O scalability.
- PCIe slots are implemented in I/O Books to maximize modularity. Choose from Half-length I/O Books or Full-length I/O Books, depending on the adapters that you need to deploy.
- Most components are common between the four-socket x3850 X6 and eight-socket x3950 X6, making for a simple upgrade path with minimal parts on the floor.
Specification
| Manufacturer Part Number | X3850 X6-4SFF |
| Manufacturer Part Option | 6241-AC1 |
| Brand | Lenovo |
| Product Type | Server |
| Form Factor | Rack Mountable 4U |
| Include |
1 x IBM storage I/O book card FOR X3850 X6 4 x Lenovo compute book DDR3 V2/V3 CPU for X3850 X6 2 x IBM 3 slot PCIE3 riser card with cage for X3850 X6 2 x IBM rear hot-swap fan module for Sysyem X3850 X6 8 x IBM X3850 X6 compute book hot-swap front fan module 1 x IBM read I/O board plannar and cage for System X3850 X6 4 x IBM heatsink for System X3850 X6 |
| CPU Socket | Dual socket LGA 2011 |
| Processors Supported | supports Intel® Xeon® E7 processors |
| Number of Processors Installed | 4 |
| Processor Model | Intel Xeon E7-4880 V2 |
| Processor Manufacturer Part Number | SR1GM |
| Processor Brand | Intel |
| Base Frequency | 2.50 GHz |
| Turbo Frequency | 3.10 GHz |
| Total Cores | 15 |
| Total Threads | 30 |
| Cache | 37,5 MB |
| TDP | 130 W |
| Number of Memory Slots | 96 |
| Memory Maximum | Up to 6 TB |
| Maximum Memory Speed | 1600 MHz |
| Memory Type Supported | DDR3 |
| Memory Installed | 1TB (32 x 32GB) |
| Memory Type | DDR3-1600 |
| Storage | 2 x 300 GB SAS |
| Storage Bays | 4 x 2,5 inch |
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
