- Out-of-Stock

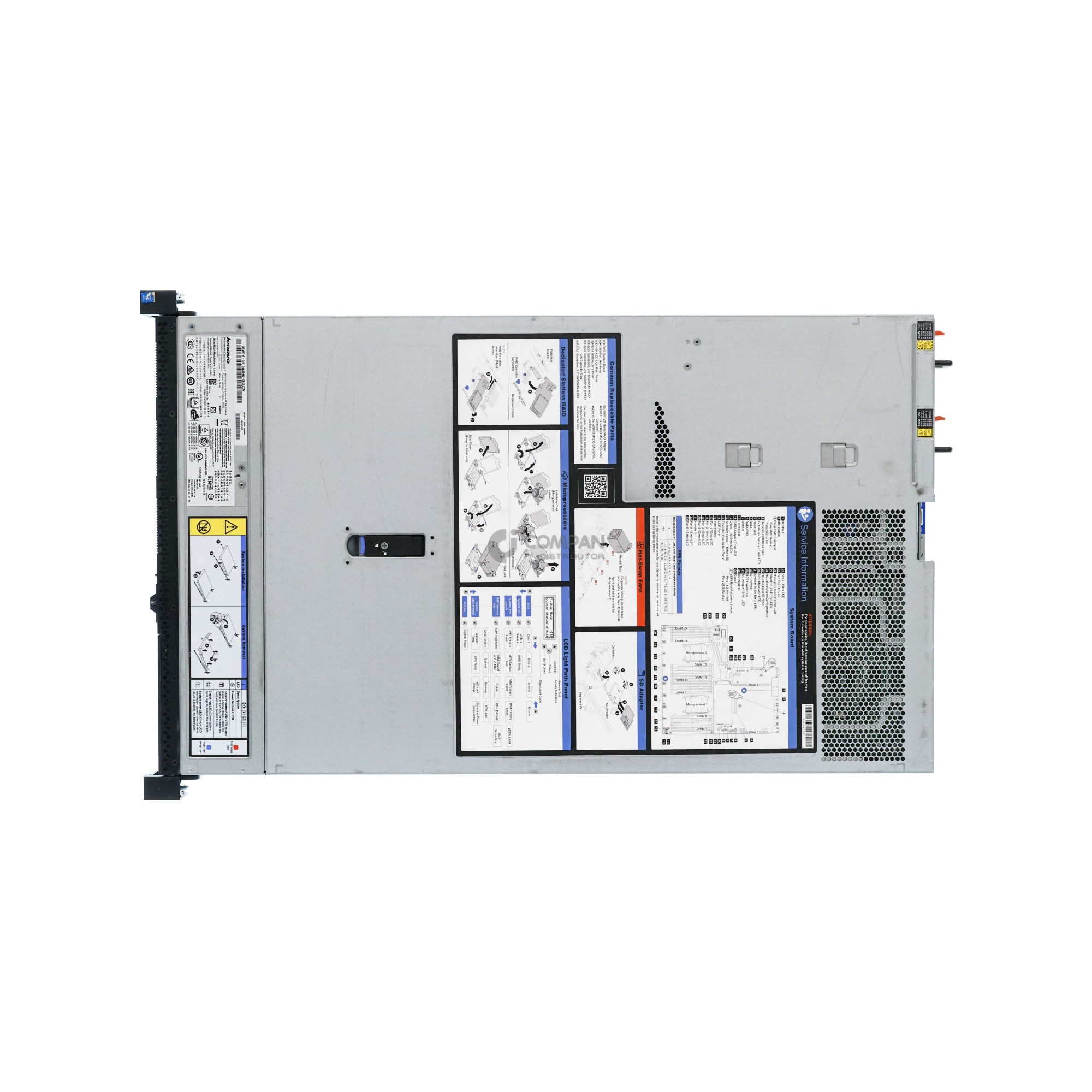

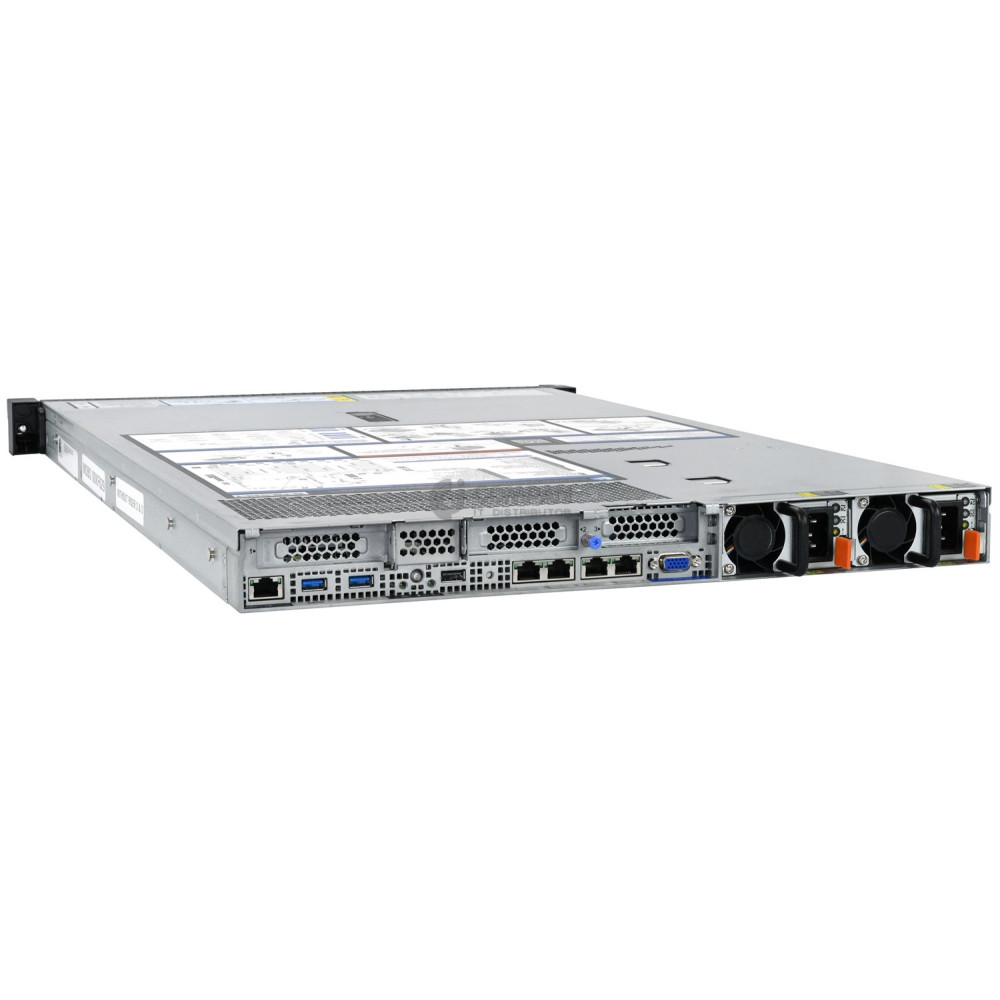

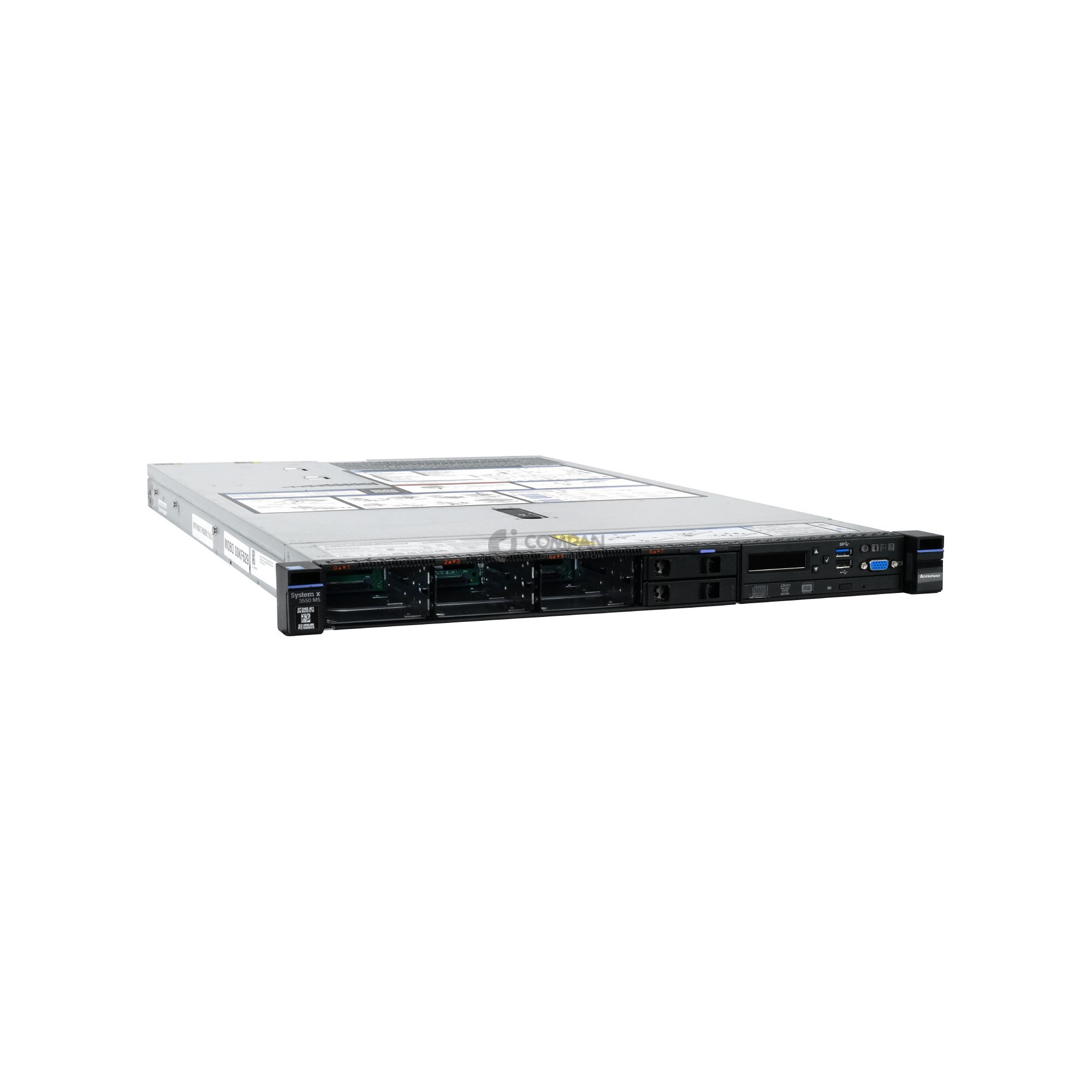

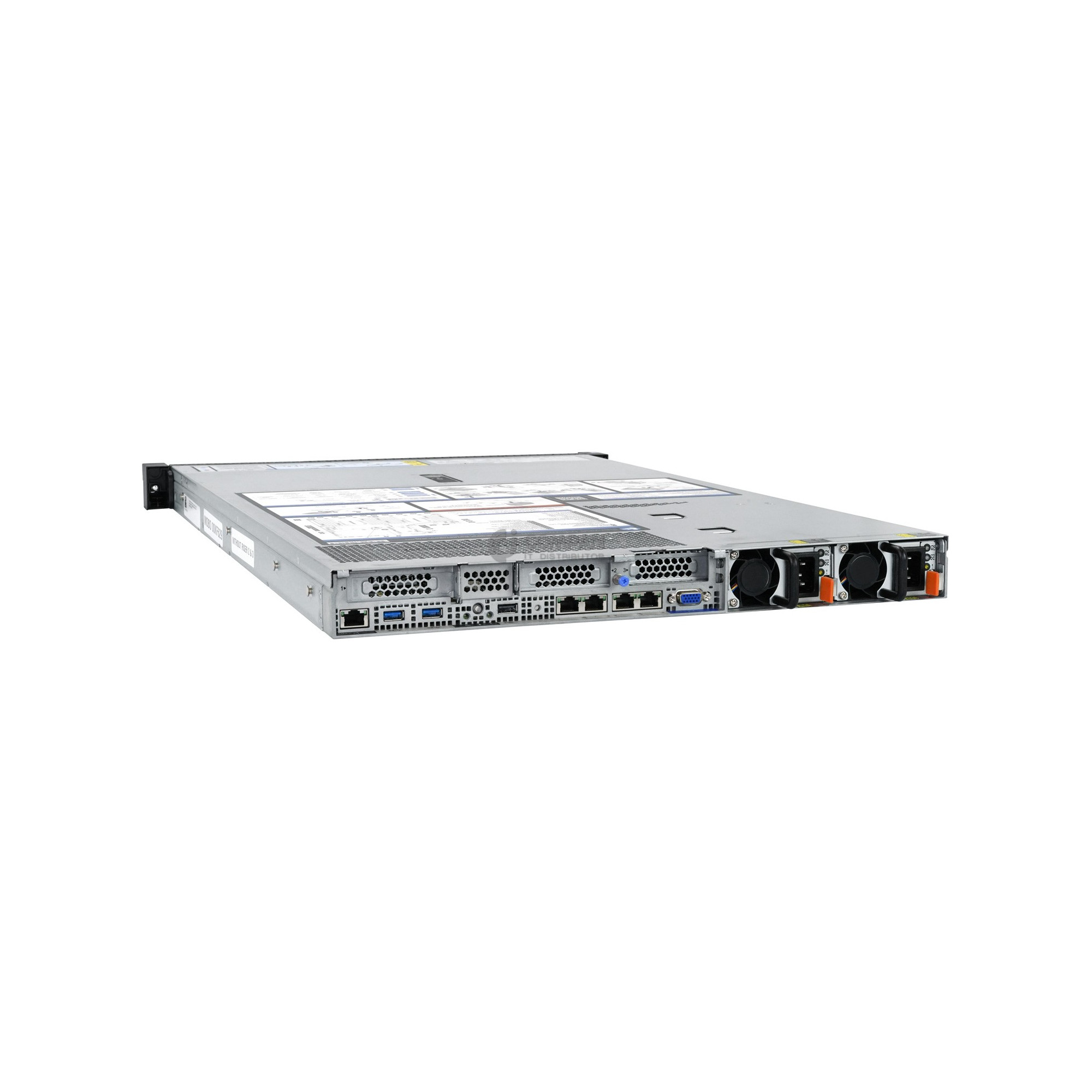

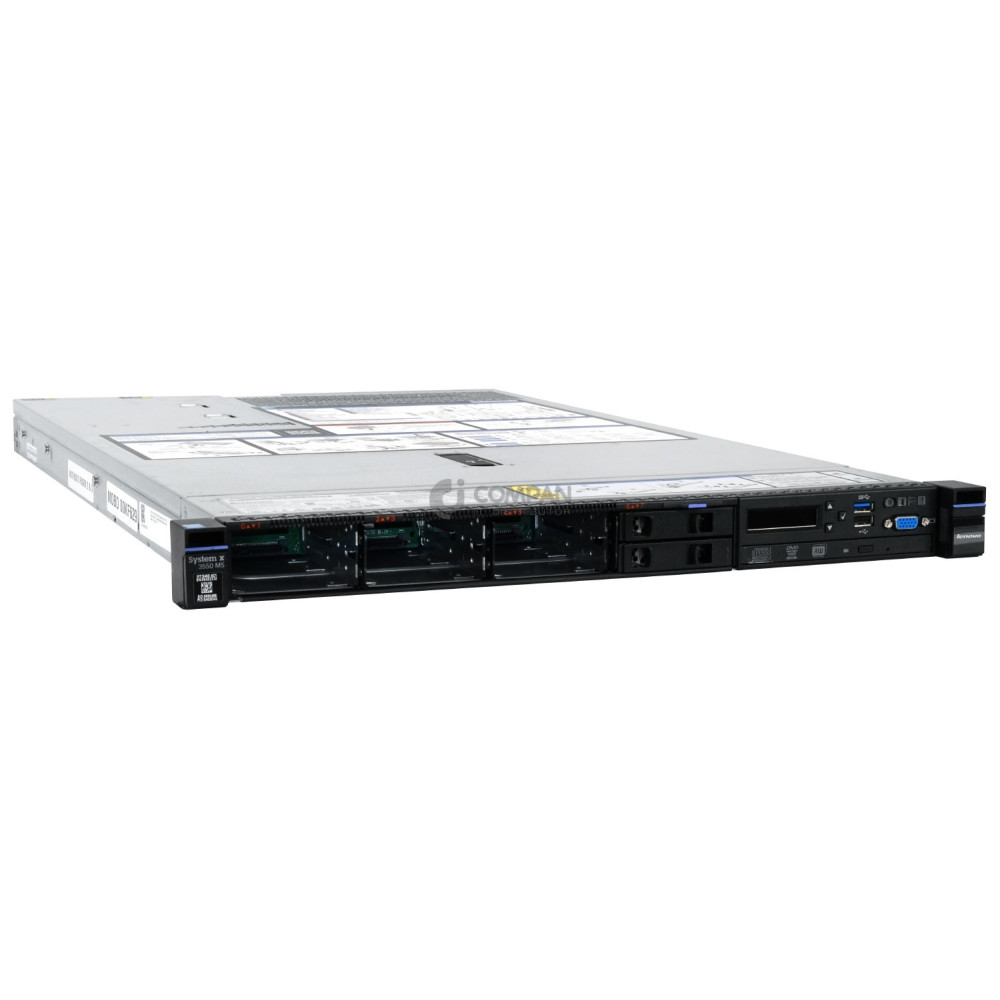

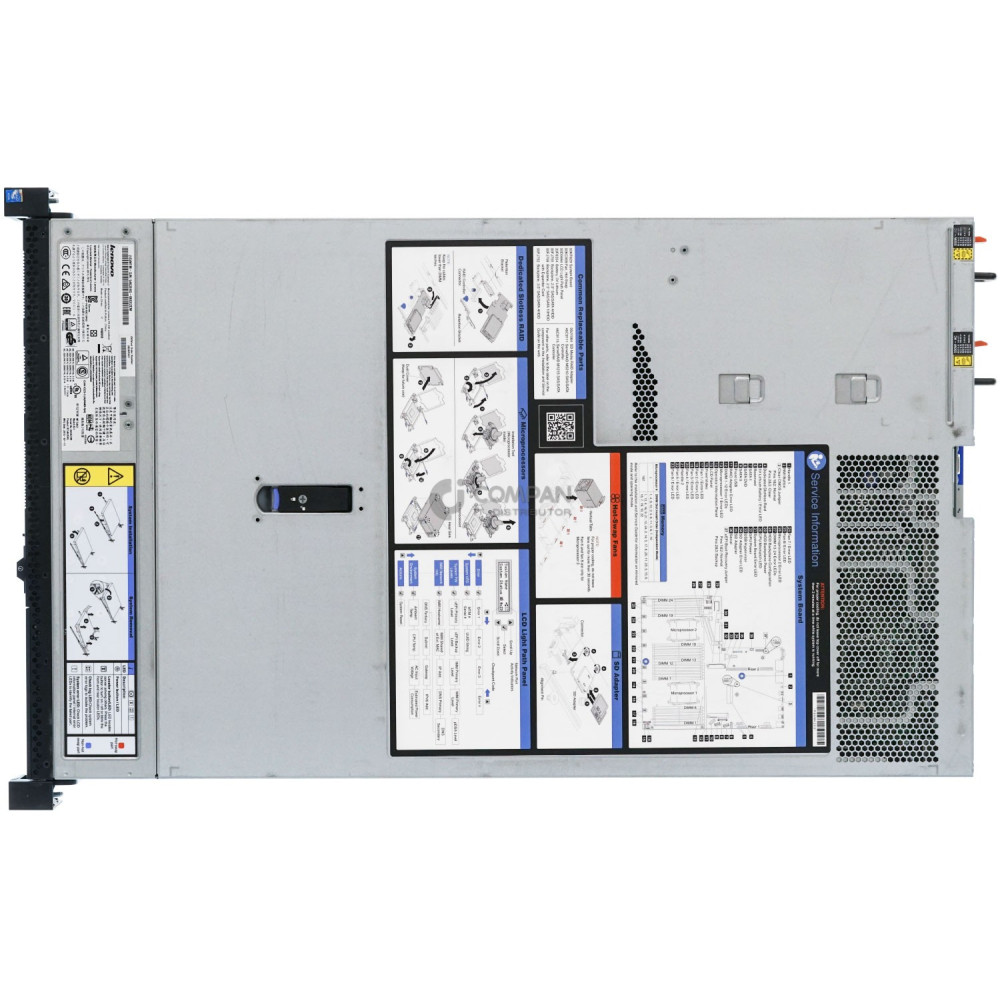

LENOVO X3550 M5-8SFF 2X INTEL XEON E5-2680 V4 512GB RAM(16X 32GB 16X 2133MHZ) 2X PSU SERVERAID M5210
Manufacturer Part Number | X3550 M5-8SFF |
Form Factor | 1U Rack |
Included Items |
2x PSU 1x ServeRAID M5210 MegaRAID SAS controller 1x IBM VFA5 ML2 Dual Port 10 GBE SFP+ Adapter RAILS |
CPU Specifications | |
Supported Processor | Up to two Intel® Xeon® processors E5-2600 v4 series with up to 22-cores each |
Processor Installed | 2x Intel Xeon E5-2680 V4 |
Manufacturer Part Number | SR2N7 |
Brand | Intel |
Product Type | CPU |
Base Frequency | 2.40 GHz |
Turbo Frequency | 3.30 GHz |
Total Cores | 14 |
Total Threads | 28 |
Memory Maximum | 1.5 TB |
Memory Type | DDR4 1600/1866/2133/2400 |
Socket | FCLGA2011-3 |
Cache | 35 MB |
TDP | 120 W |
Max PCI Express Lines | 40 |
Memory Specifications | |
Max Memory Size | Up to 1.5TB – 2400MHz with 64GB TruDDR4 Memory LRDIMMs (RDIMM/LRDIMM) |
Memory Types | DDR4 |
Total Memory Slots | 24 |
Memory Installed | 512GB (16x 32GB 16x 2133MHz) |
ECC Memory Supported | Yes |
Storage Specifications | |
Disk Bays | Up to 8 front 2.5-inch HDDs or SSDs |
Maximum Internal Storage | Up to 46TB |
RAID Support | 12Gbps dedicated RAID slot with support for hardware RAID 0, 1, 10 with optional RAID 5, 50, 6, 60 |
Storage Controller | ServeRAID M5210 MegaRAID SAS controller |
