Supermicro SYS-6029TP-HTR Server / X11DPT-PS / 8x Xeon Gold 6138 / 2048GB DDR4
Brand:
SUPERMICRO
|
Part Number: CSE-827HQ+-R2K20BP2_8
Description

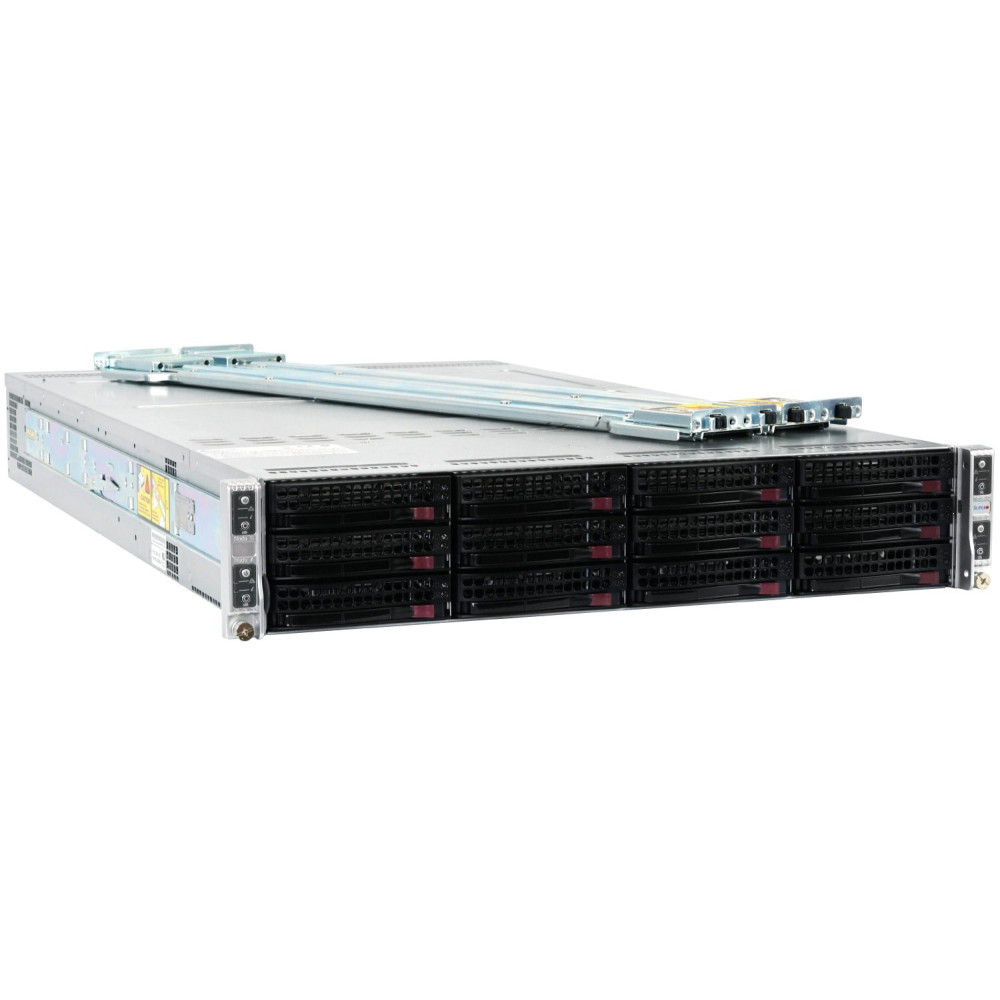

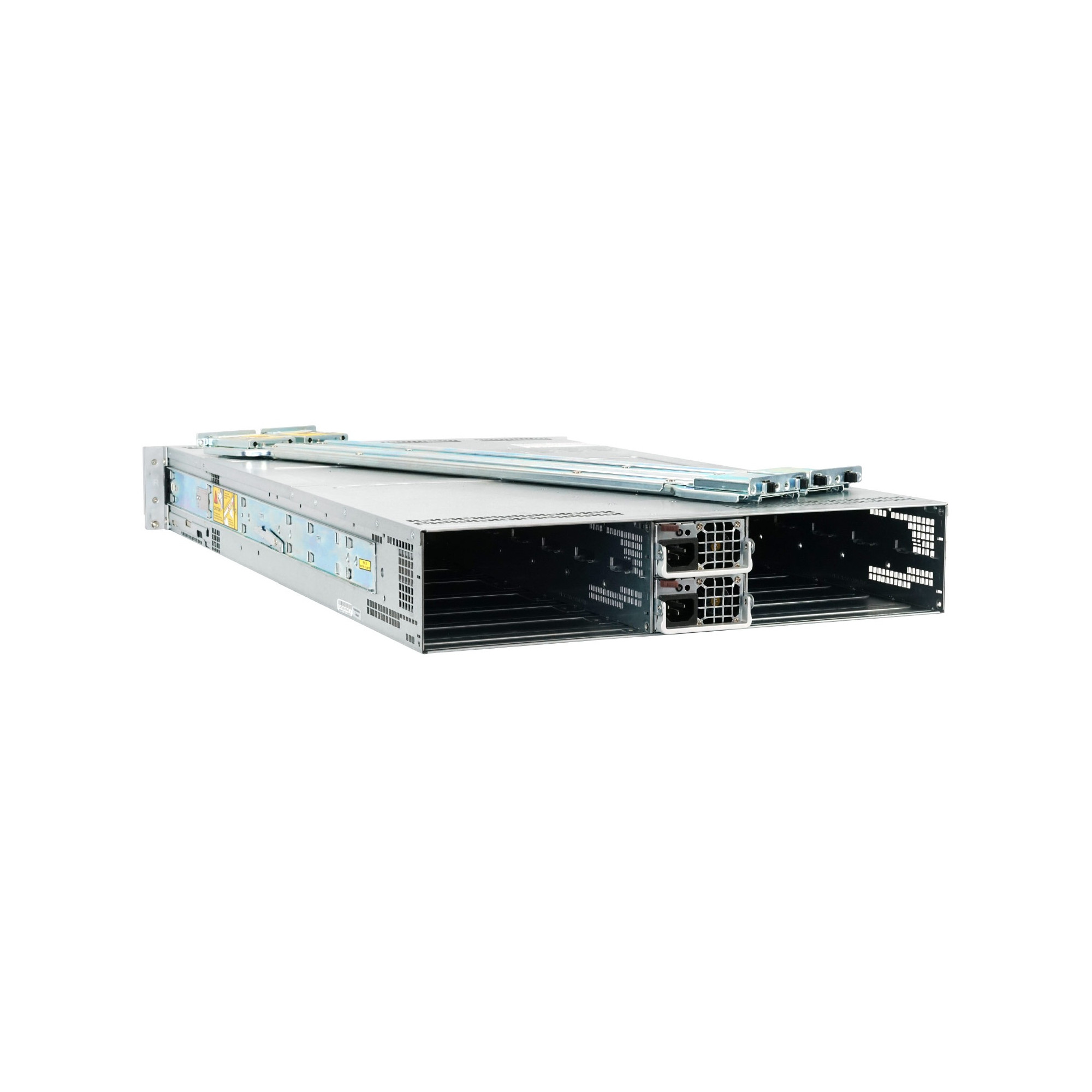

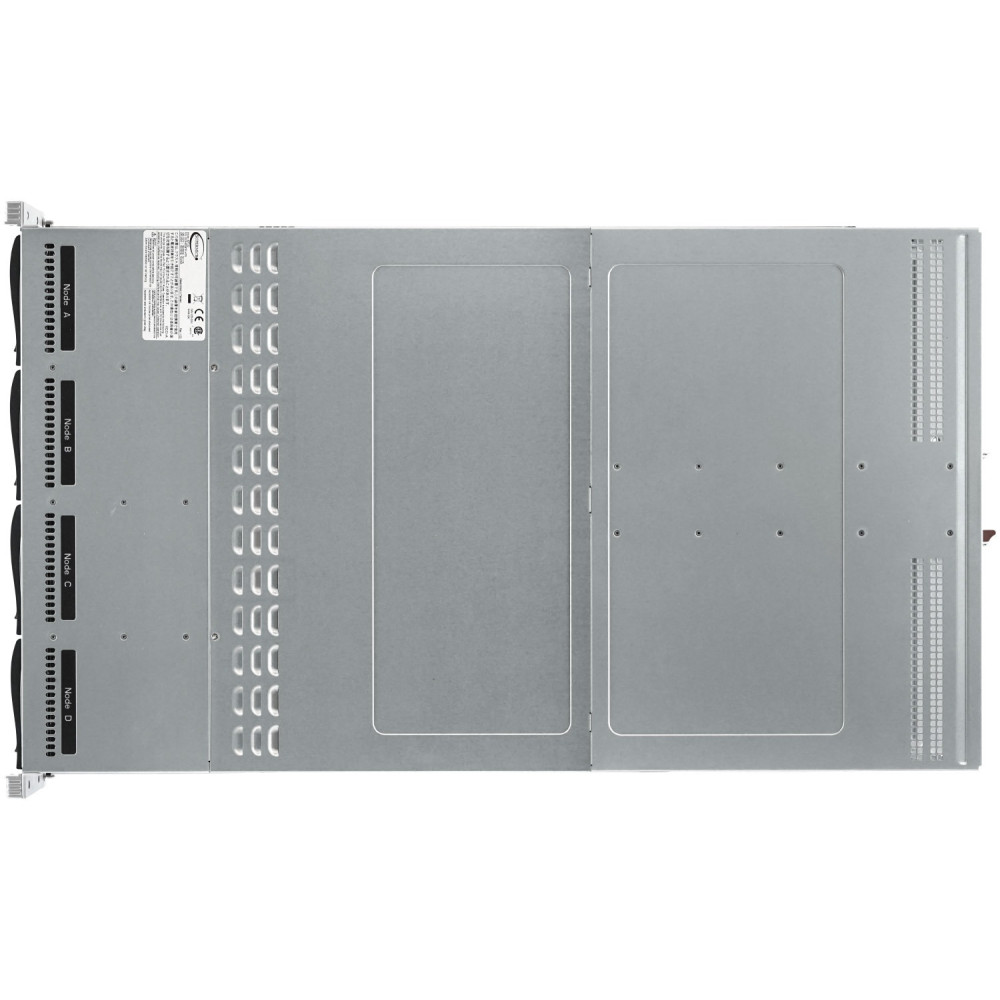

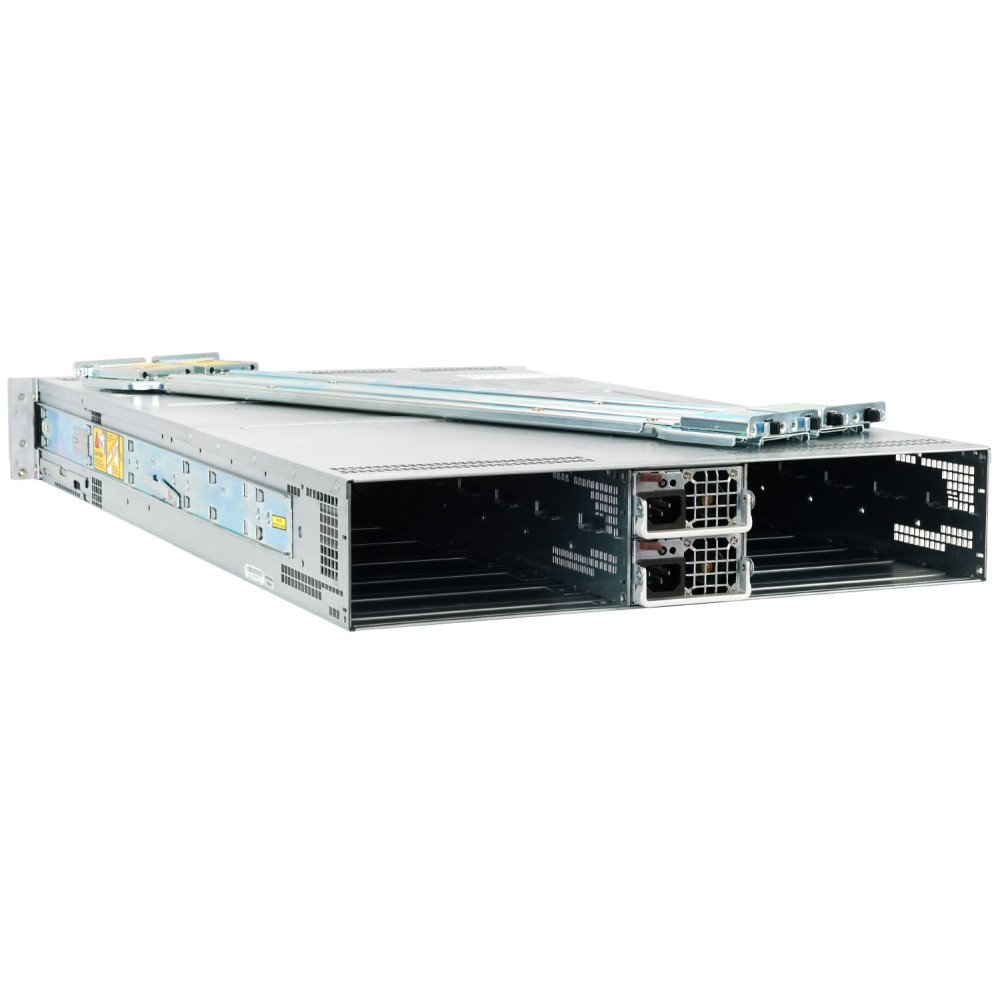

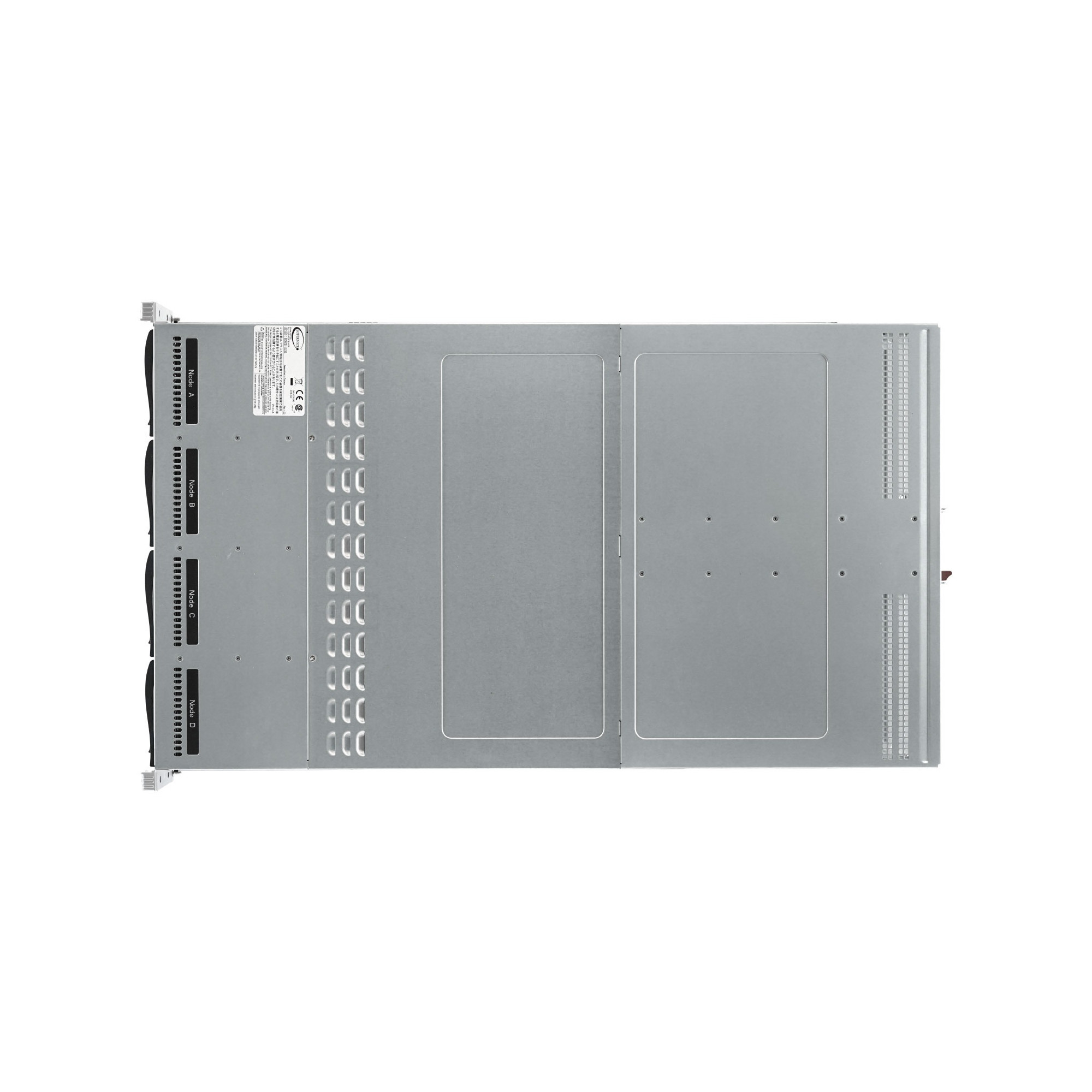

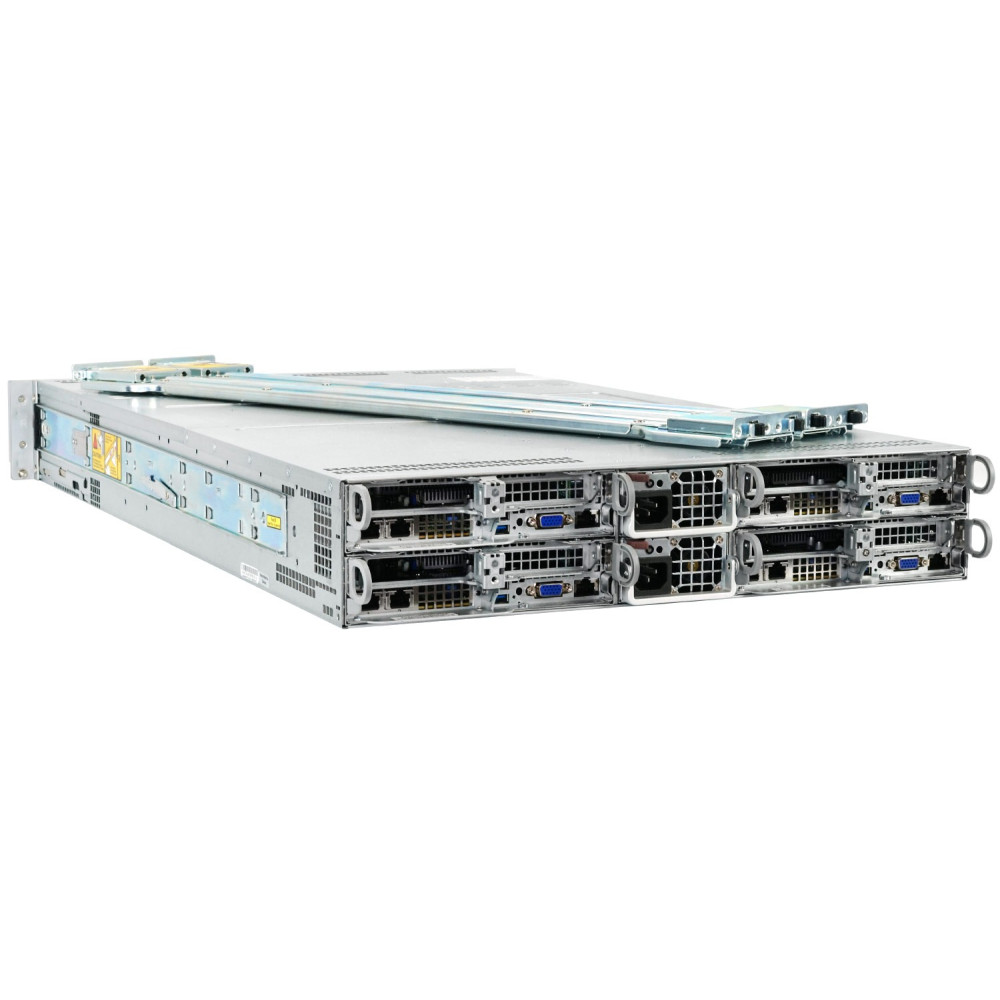

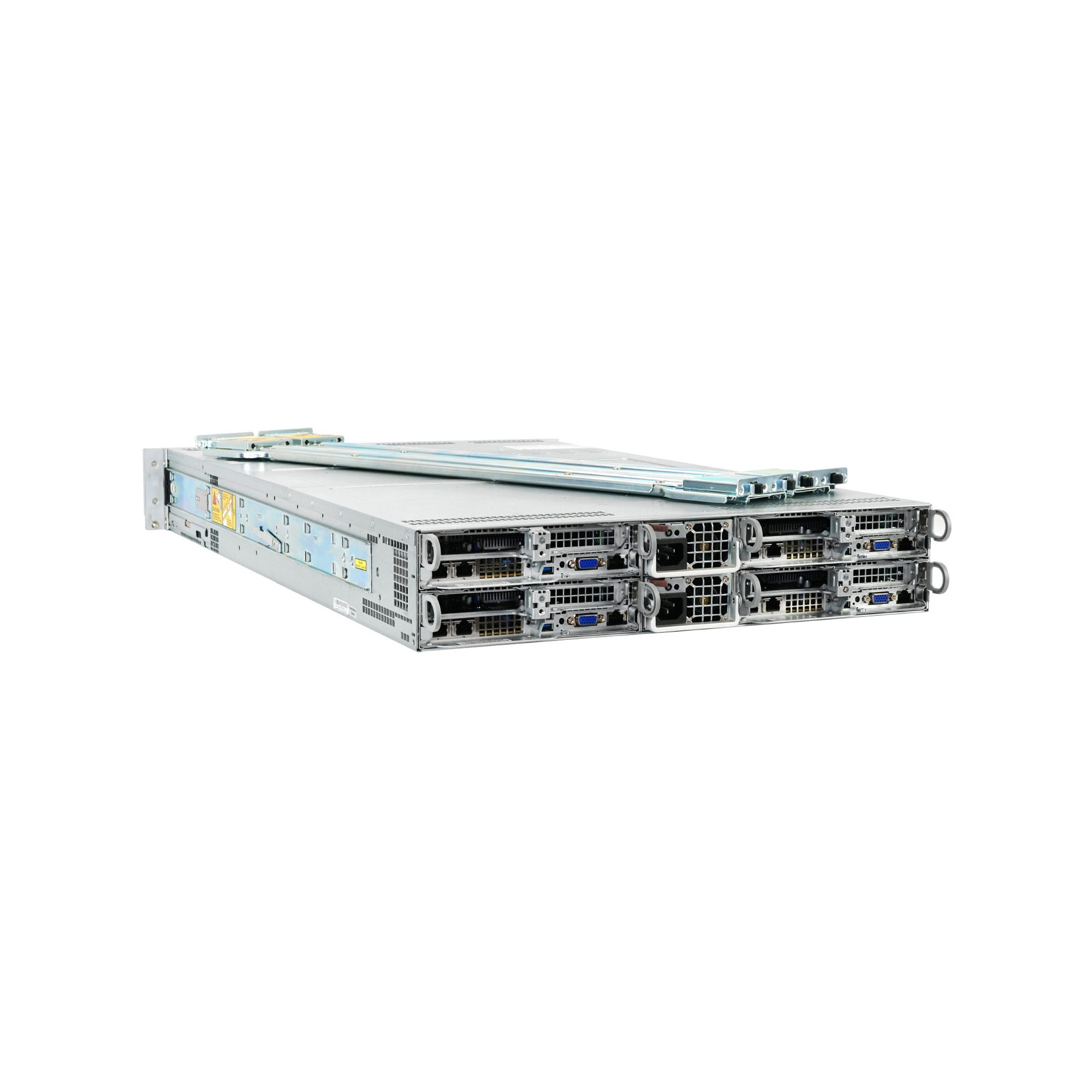

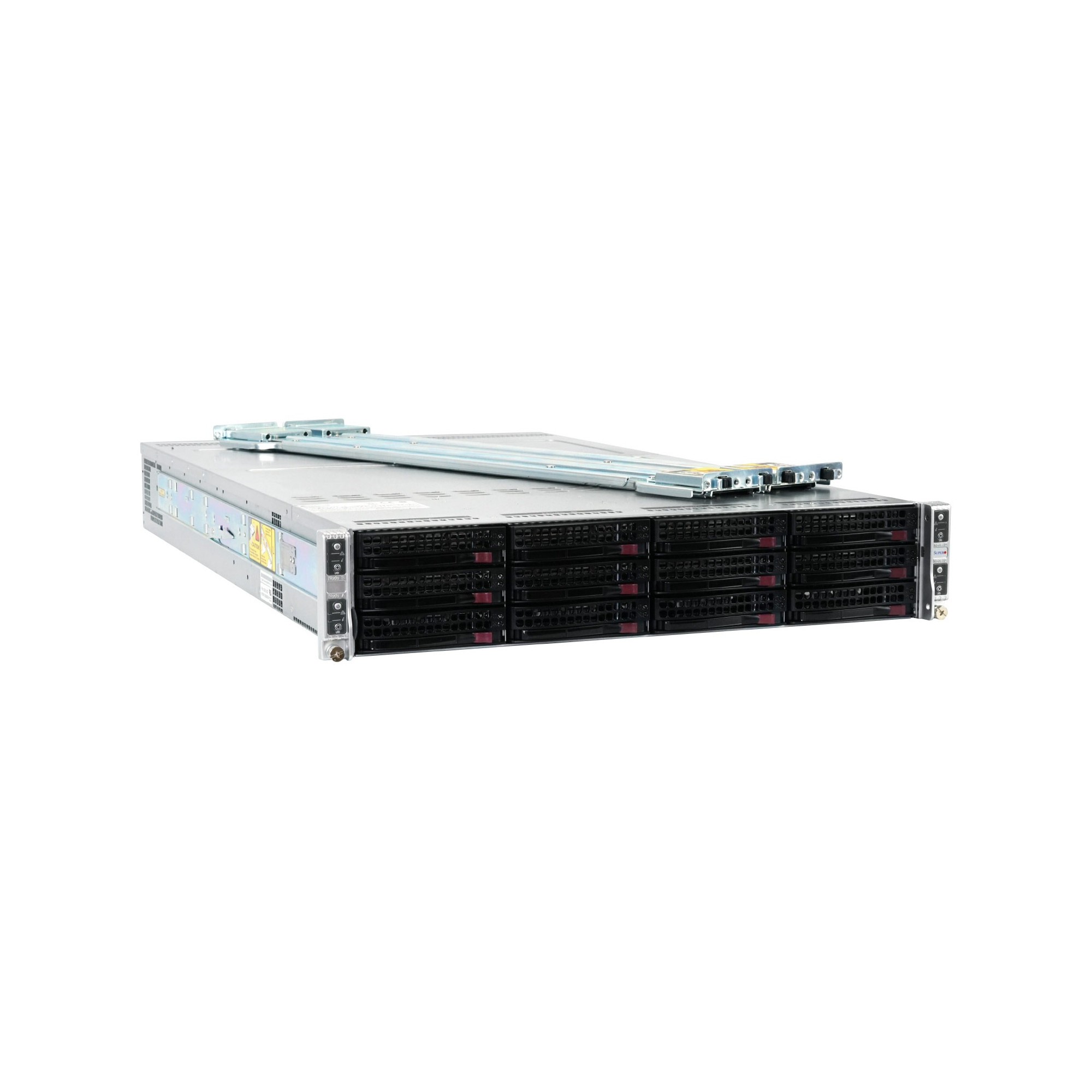

Supermicro Ultra SuperServer SYS-6029TP-HTR
The Supermicro Ultra SuperServer SYS-6029TP-HTR is a high-performance server system designed for enterprise-level applications such as cloud computing, virtualization, and data analytics. This is a powerful and flexible server system that can meet the demands of high-performance computing and data-intensive applications.
CPU: 8x INTEL XEON GOLD 6138 CPU PROCESSOR 20 CORE 2.00GHZ ( 2x in each node )
RAM: 2048GB RAM ( 512GB in each node )
Redundant 2200W Power Supplies
Full set of HDD caddies for storage deployment
Motherboard (Four per System) | |
Super X11DPT-PS | |
Processor (per Node) | |
CPU: |
Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s |
Cores | Up to 28 Cores |
System Memory (per Node) | |
Memory Capacity | - 16 DIMM slots - Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM - Supports Intel® Optane™ DCPMM |
Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
On-Board Devices (per Node) | |
Chipset | Intel® C621 chipset |
SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 support |
Network Controllers | Barebones and Complete System must have at least one SIOM or network card installed per node |
Graphics | ASPEED AST2500 BMC |
Input / Output (per Node) | |
SATA | 6 SATA3 (6Gbps) ports |
LAN | 1 RJ45 Dedicated IPMI LAN port |
USB | 2 USB 3.0 ports (rear) |
VGA | 1 VGA port |
Serial Port / Header | 1 Fast UART 16550 port / 1 Header (internal) |
Others |
- 2 SuperDOM support on the motherboard - 1 NVMe or 2 SATA M.2 (22x80/60/42 mm) support with option part: AOC-SMG3-2H8M2 - M.2 and SuperDOM are for OS boot and they cannot coexist |
Chassis | |
Form Factor | 2U Rackmount |
Dimensions and Weight | |
Width | 17.25" (438mm) |
Height | 3.47" (88mm) |
Depth | 28.5" (724mm) |
Weight |
- Gross Weight: 90 lbs (40.9kg) - Net Weight: 72 lbs (32.7 kg) |
Expansion Slots (per Node) | |
PCI-Express |
- 2 PCI-E 3.0 x16 Low-profile slots - 1 SIOM card support |
Drive Bays (per Node) | |
Hot-swap | 6 Hot-swap 2.5" SATA3 drive bays |
System Cooling | |
Fans | 4 Heavy duty 8cm PWM fans with optimal fan speed control |
Power Supply | |
2200W Redundant Power Supplies with PMBus. |
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
