- Out-of-Stock
General Information | |

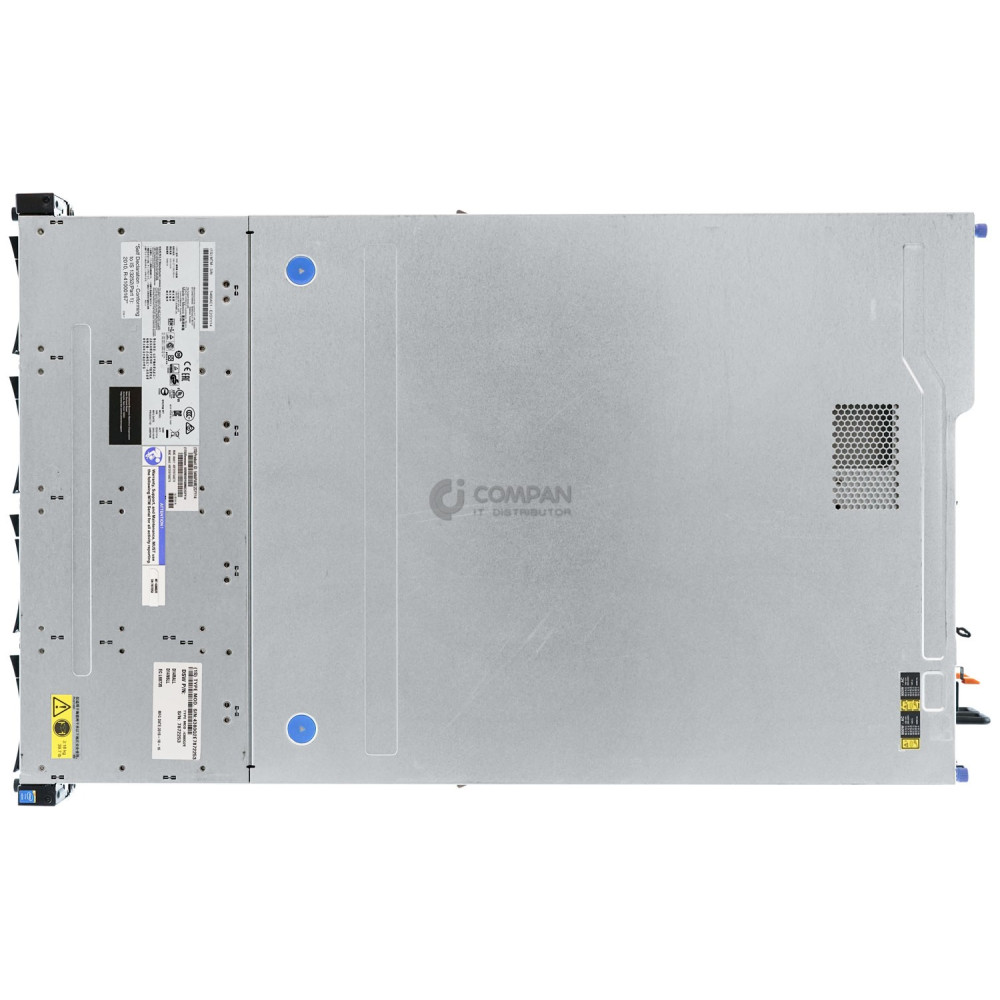

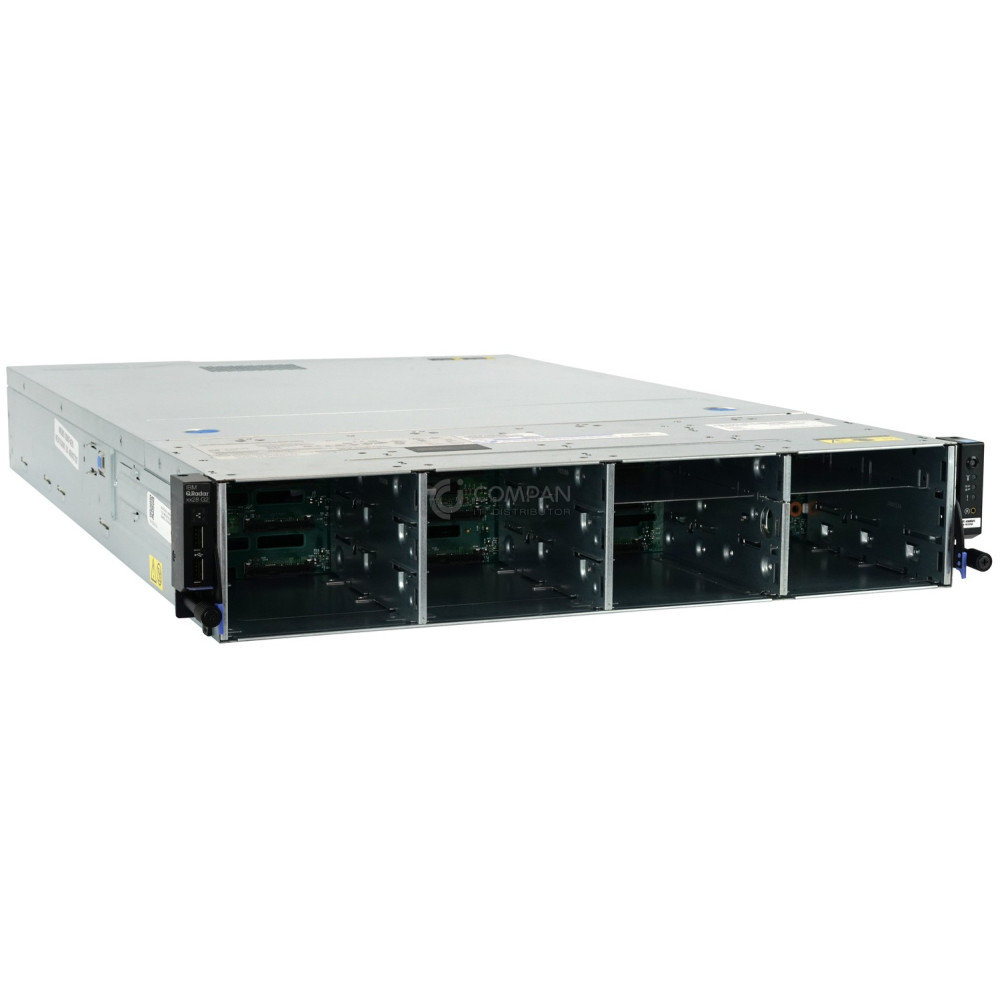

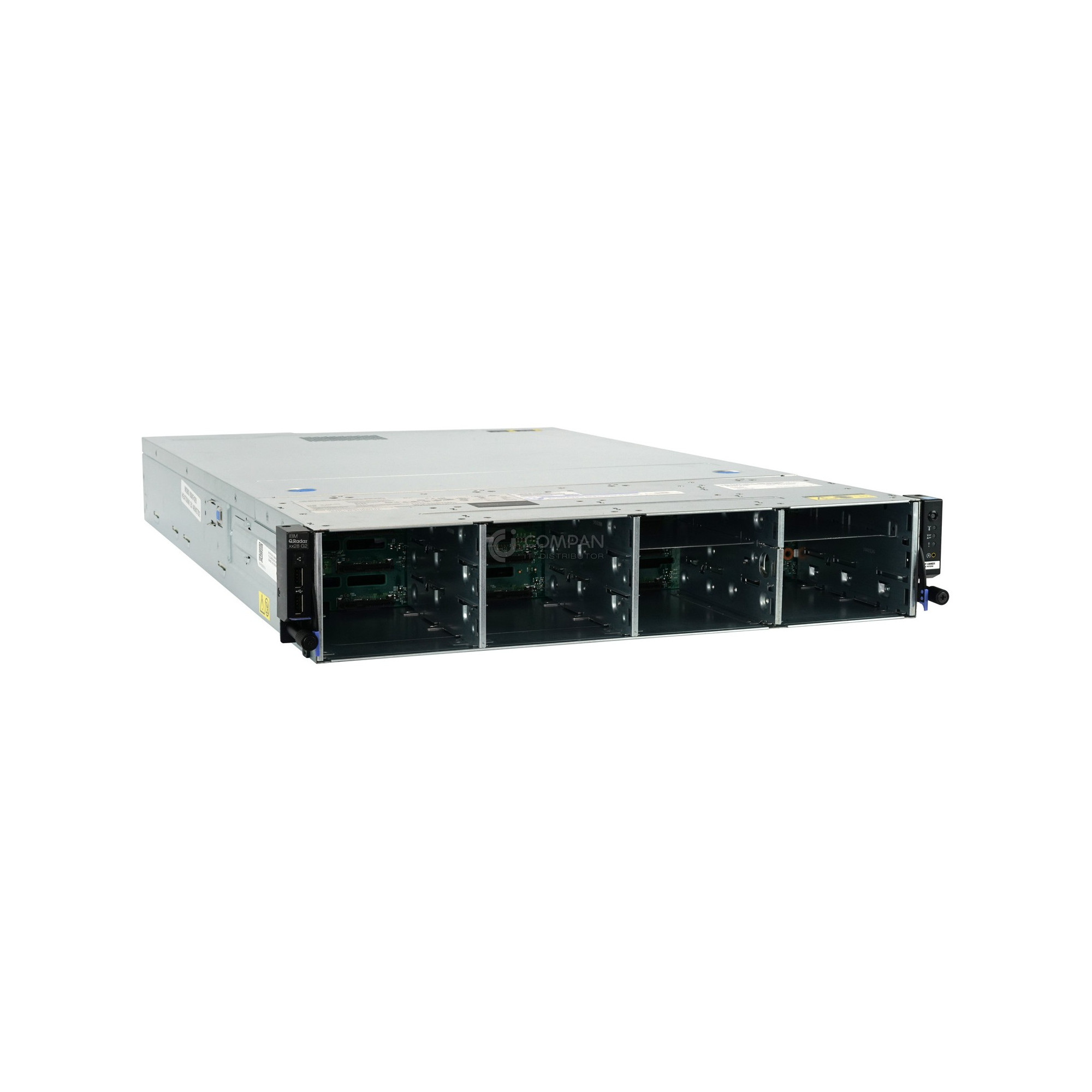

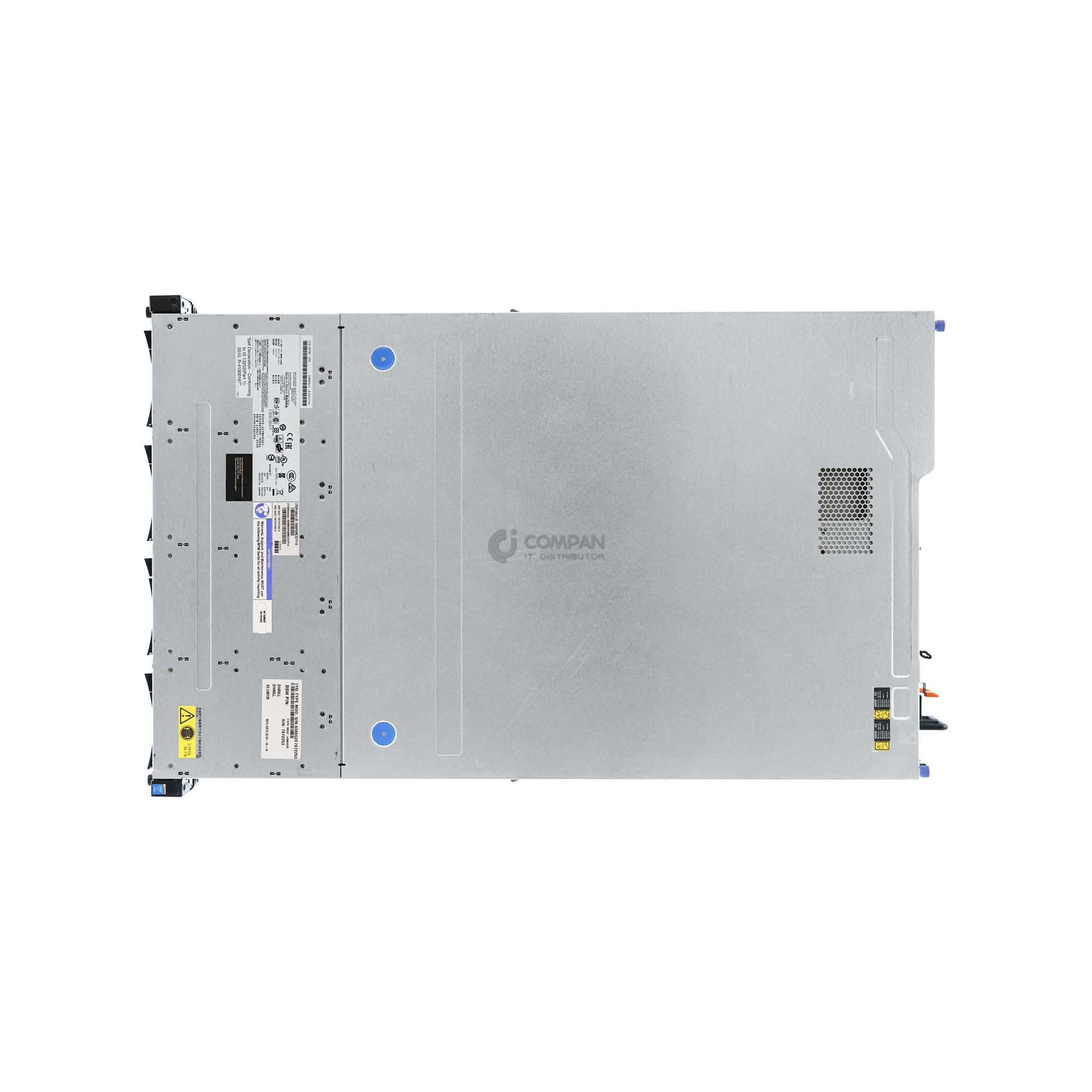

Manufacturer Part Number | X3650 M4-12LFF |
Manufacturer Part Option | 5466-AC1 |
Inside |

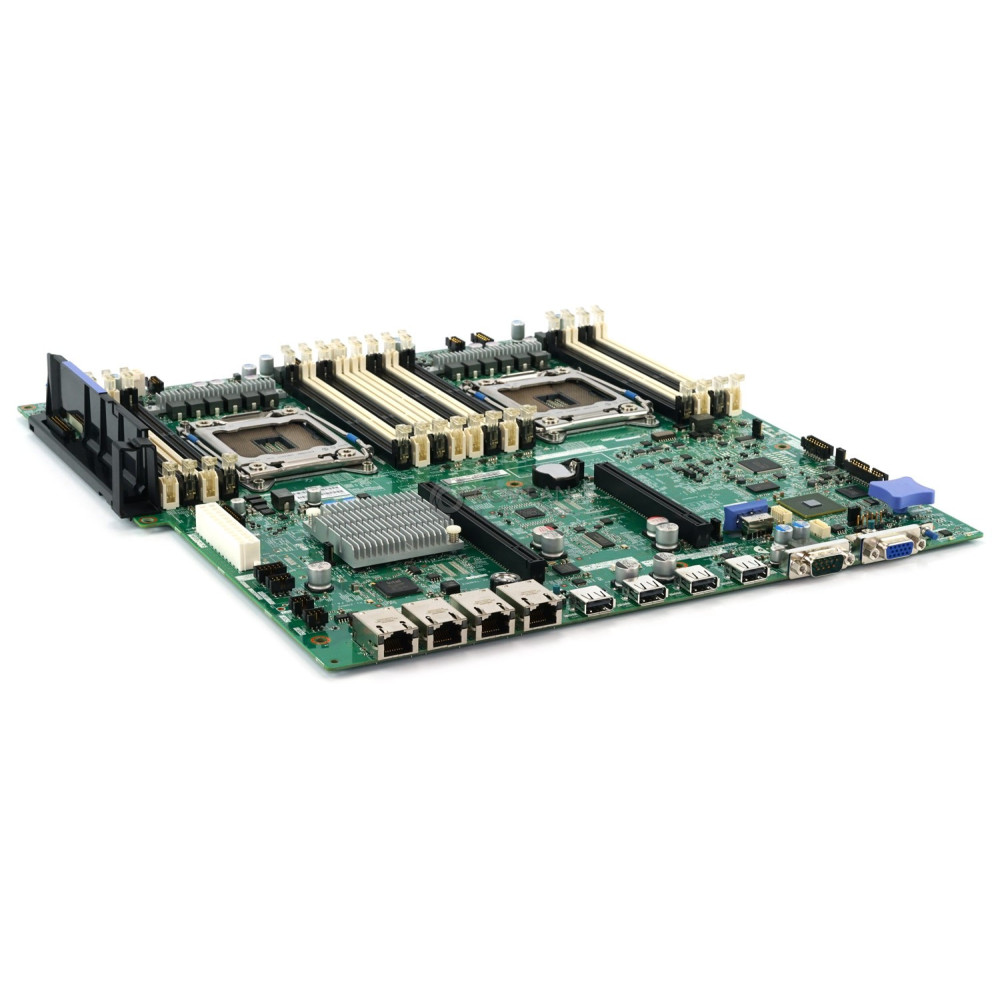

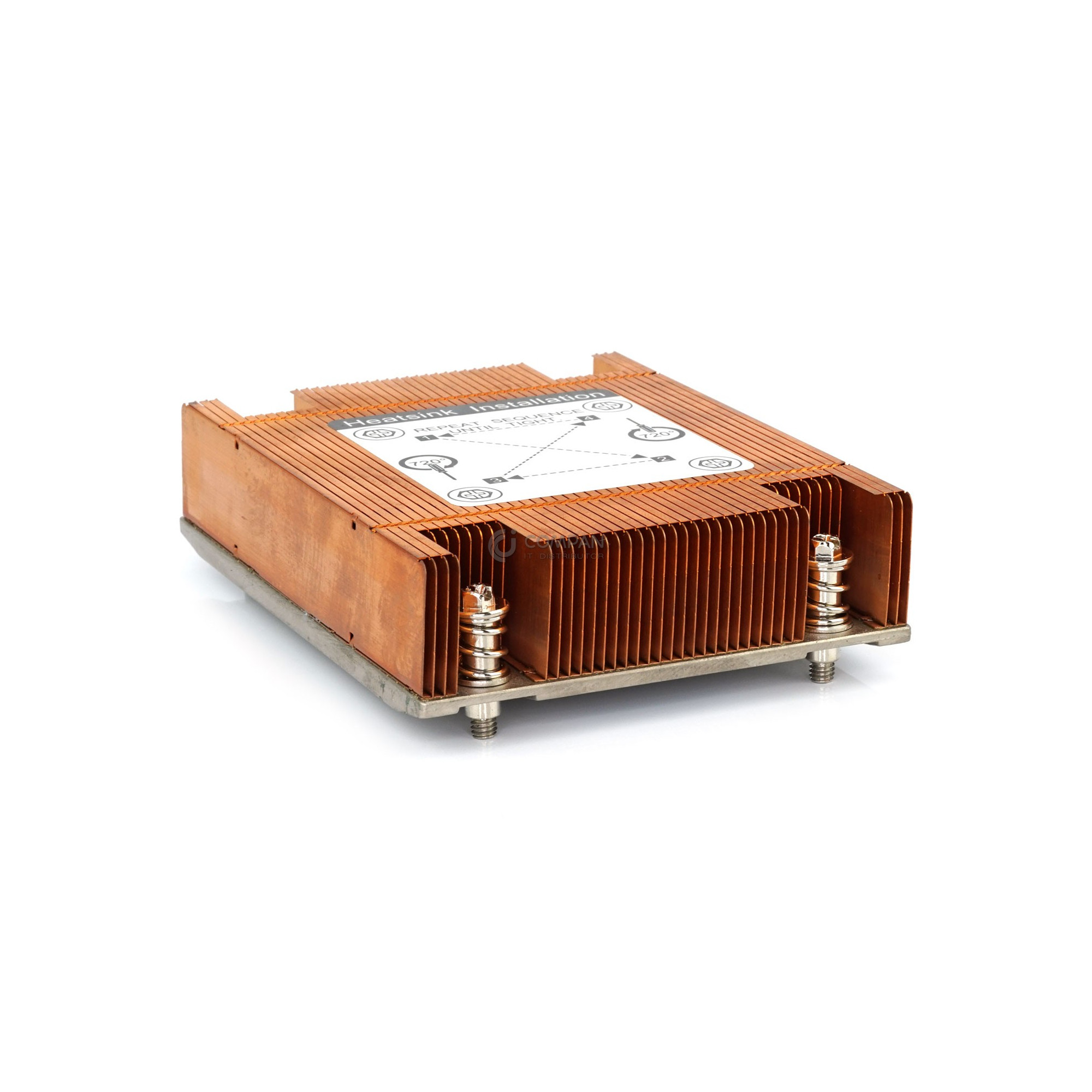

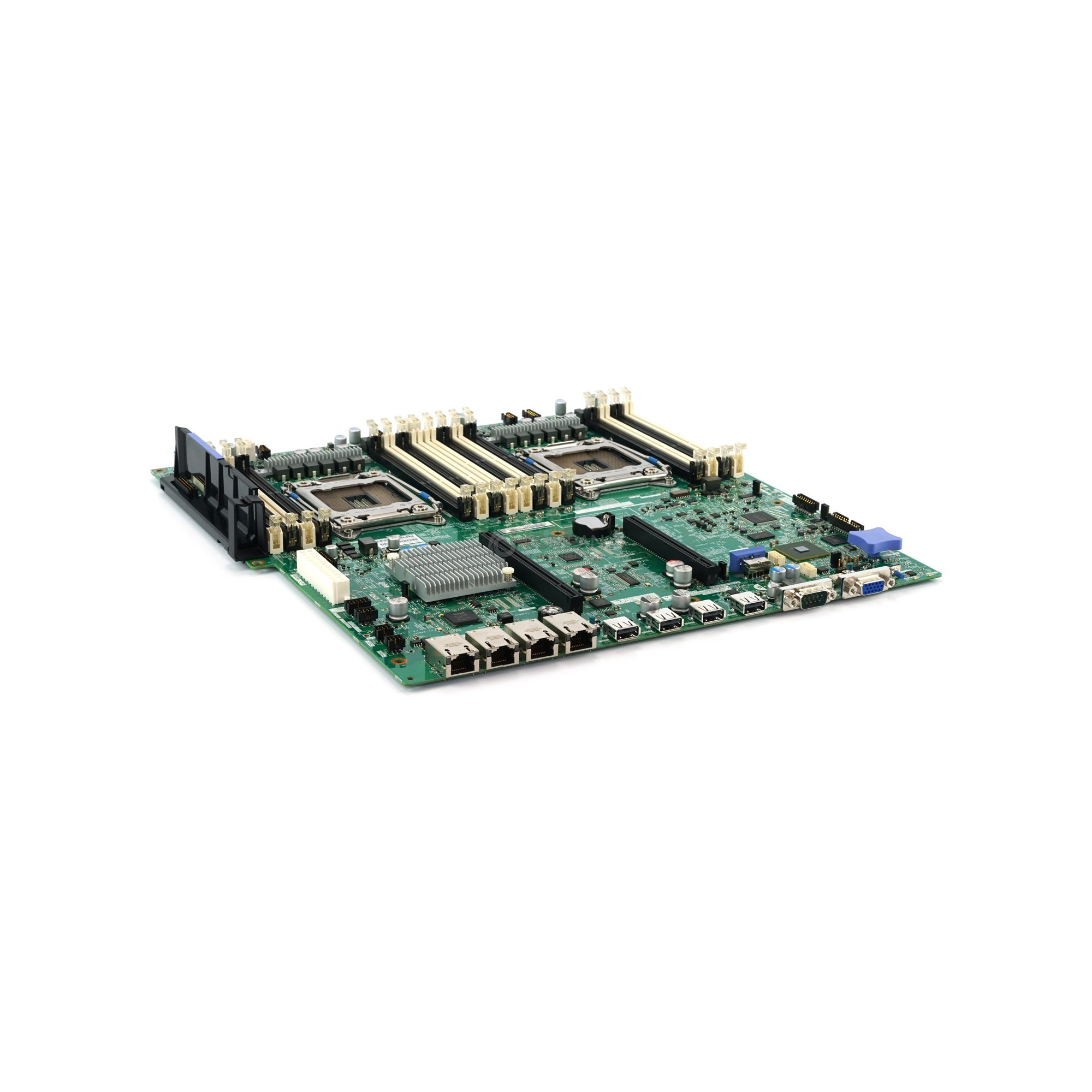

1X IBM MAINBOARD FOR SYSTEM X3650 M4 2X IBM HEATSINK 130W FOR SYSTEM X3650 M4 |
Brand | IBM |
Product Type | SERVER |
Technical Information | |
Form Factor | Rack- Mountable 2U |
Chipset | Intel C602J |
Processor | 2x Intel Xeon E5-2680 @ 2.80 GHz |
Memory |
Up to 24 DIMM sockets (12 DIMMs per processor). RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1866 MHz. |
Memory max |
RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors UDIMMs: Up to 128 GB with 16x 8 GB UDIMMs and two processors HyperCloud DIMMs: Up to 768 GB with 24x 32 GB DIMMs and two processors LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors |
Memory protection |
ECC Chipkill Memory mirroring Memory rank sparing |
Maximum internal storage |
Up to 28.8 TB with 1.8 TB 2.5" SAS HDDs Up to 16 TB with 1 TB 2.5" NL SAS/SATA HDDs Up to 25.6 TB with 800 GB 1.8" SATA SSDs Up to 25.6 TB with 1.6 TB 2.5" SAS/SATA SSDs Up to 36 TB with 6 TB 3.5" NL SAS/SATA HDDs Intermix of SAS/SATA is supported |
RAID support |
6 Gb SAS/SATA: RAID 0, 1, 10 with integrated M5110e or optional M5110; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5110e or M5110 with 512 MB or 1 GB cache upgrades. 12 Gb SAS/SATA: RAID 0, 1, 10 with optional M5210; optional upgrades to RAID 5, 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with 1 GB or 2 GB cache upgrades. |
Network interfaces | Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two embedded 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume PCIe slot). |
Ports |
Two USB 2.0 and one DB-15 video on front Four USB 2.0, one DB-15 video, one DB-9 serial, one RJ-45 systems management, four RJ-45 GbE network ports, two optional RJ-45 or SFP+ 10 GbE network ports on rear. Two internal USB ports (for embedded hypervisor and internal tape drive). |
