- Out-of-Stock

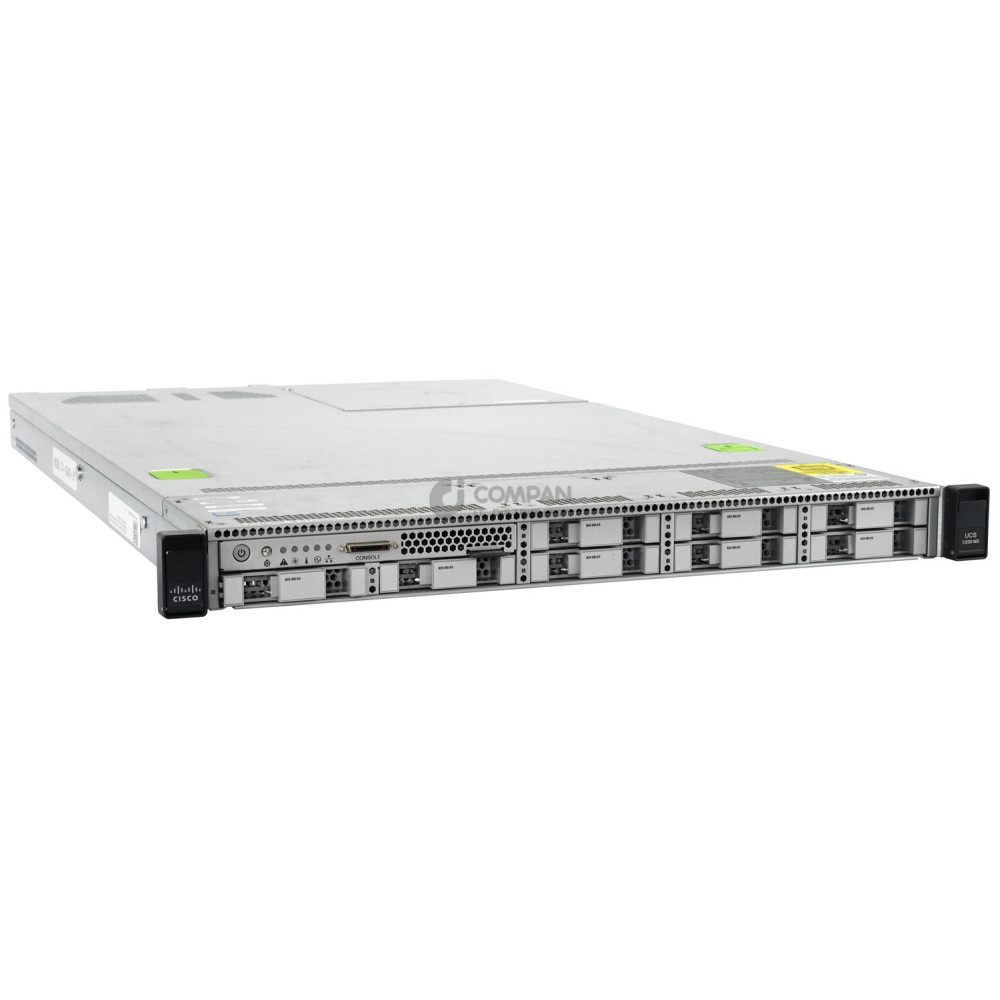

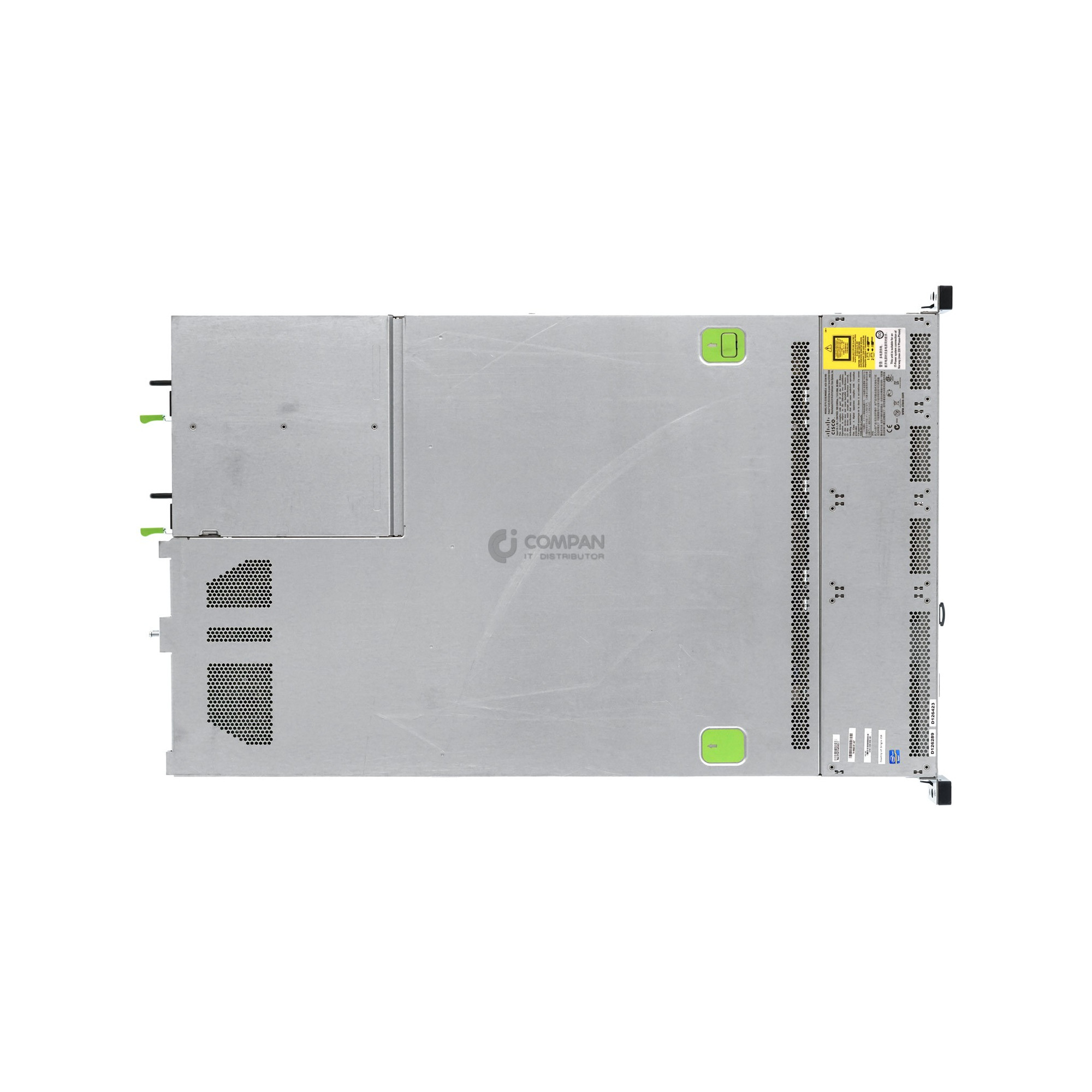

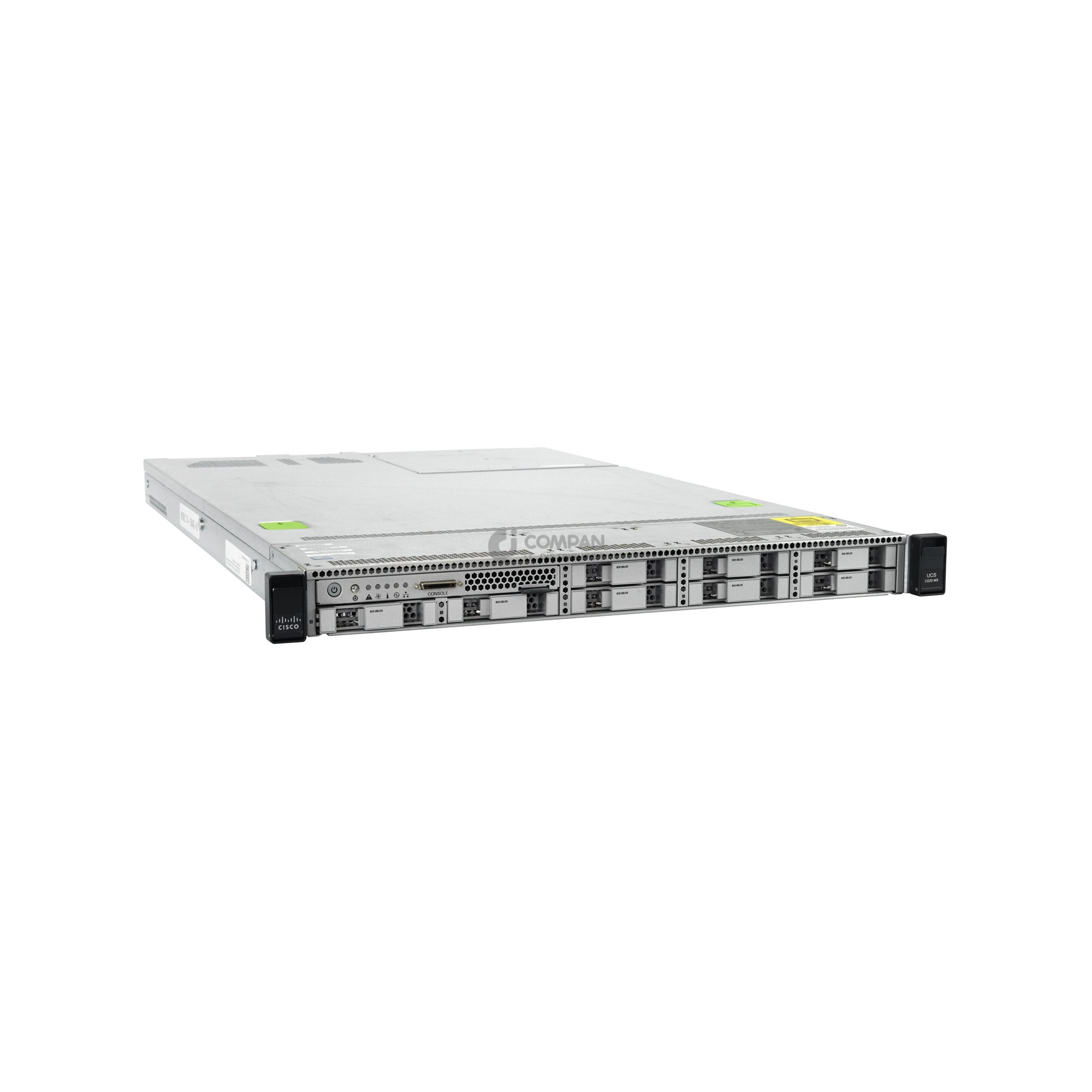

UCSC-C220-M3S-8SFF CISCO SYSTEMS INC 2X INTEL XEON E5-2640 0 @ 2.50GHZ RAM 96GB(8X 8GB 8X 4GB DDR3 16X 1333MHZ ) 1X 300GB(1X SAS)
UCSC-C220-M3S-8SFF CISCO SYSTEMS INC 2X INTEL XEON E5-2640 0 @ 2.50GHZ RAM 96GB(8X 8GB 8X 4GB DDR3 16X 1333MHZ ) 1X 300GB(1X SAS)
PN: UCSC-C220-M3S-8SFF
1X MAINBOARD FOR CISCO UCSC-C220-M3S
Specs:
Feature | Benefit |
10-Gbps unified network fabric | ● Low-latency, lossless, 10-Gbps Ethernet and industry-standard FCoE and native Fibre Channel fabric ● Wire-once deployment model in which changing I/O configurations no longer means installing adapters and recabling racks and switches ● Fewer interface cards, cables, and upstream network ports to purchase, power, configure, and maintain |
Virtualization optimization | ● Cisco Data Center VM-FEX and Adapter-FEX technologies, I/O virtualization, and Intel Xeon processor E5-2600 and E5‑2600 v2 product family features, extending the network directly to virtual machines ● Consistent and scalable operational model ● Increased security and efficiency with reduced complexity ● Capability to move virtual machine security features and policies from rack to rack or rack to blades |
Unified management (when integrated into Cisco UCS) | ● Entire solution managed as a single entity with Cisco UCS Manager, improving operational efficiency and flexibility ● Service profiles and templates that implement role- and policy-based management, enabling more effective use of skilled server, network, and storage administrators ● Automated provisioning and increased business agility, allowing data center managers to provision applications in minutes rather than days by associating a service profile with a new, added or repurposed Cisco UCS C220 M3 server ● Capability to move service profiles from rack server to another rack server, or blade to rack server, or rack to blade server in minutes instead of hours or days |
Hot-swappable SAS, SATA, or SSD drives | ● Up to 4 LFF or 8 SFF front-accessible, hot-swappable, internal SAS, SATA, or SSD drives, providing redundancy options and ease of serviceability ● Balanced performance and capacity to best meet application needs: ◦ SATA SSDs ◦ 15,000-RPM SAS drives for highest performance ◦ 10,000 RPM SAS drives for high performance and value ◦ 7200-RPM SATA drives for high capacity and value |
RAID 0, 1, 5, 6, 10, 50, and 60 support | A choice of RAID controllers provides data protection for up to 8 SAS, SATA, or SSD drives in PCIe and mezzanine card form factors. |
Cisco UCS C-Series Integrated Management Controller (CIMC) | ● Web user interface for server management; remote keyboard, video, and mouse (KVM); virtual media; and administration ● Virtual media support for remote CD and DVD drives as if local ● Intelligent Platform Management Interface (IPMI) 2.0 support for out-of-band management through third-party enterprise management systems ● Command-line interface (CLI) for server management |
Fast-memory support | 16 DIMM slots supporting DDR3 1866-MHz memory for optimal performance |
Redundant fans and power supplies | ● Dual-redundant fans and hot-swappable, redundant power supplies for enterprise-class reliability and uptime ● Power efficiency through Cisco Common Form-Factor Platinum Power Supplies (450W and 650W) |
Support for up to 2 PCIe 3.0 slots | ● Flexibility, increased performance, and compatibility with industry standards ● PCIe 3.0 slots, which are estimated to substantially increase the bandwidth over the previous generation and offer more flexibility while maintaining compatibility with PCIe 2.0 ● I/O performance and flexibility with one x8, half-height and half-length slot and one x16, full-height and half‑length slot |
