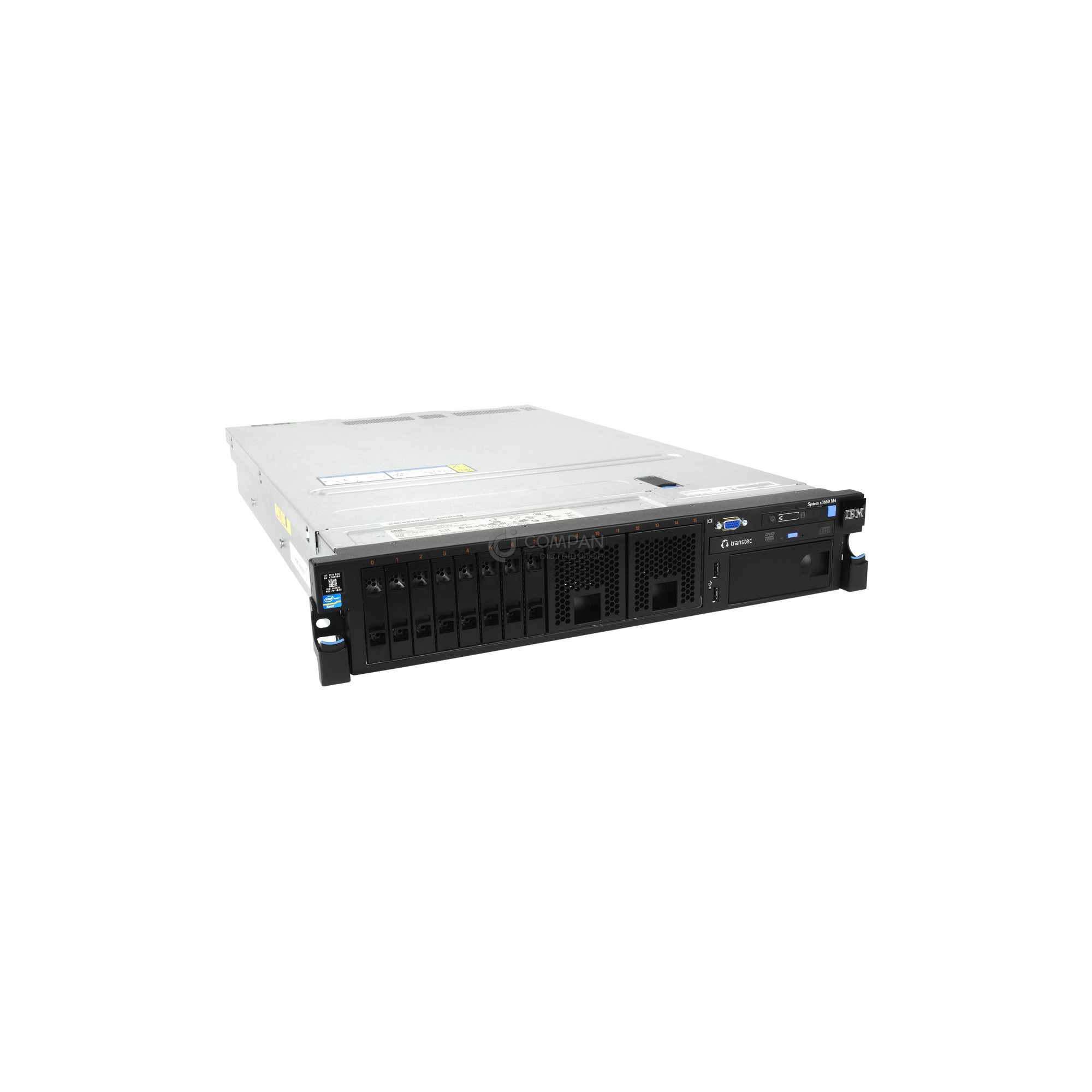

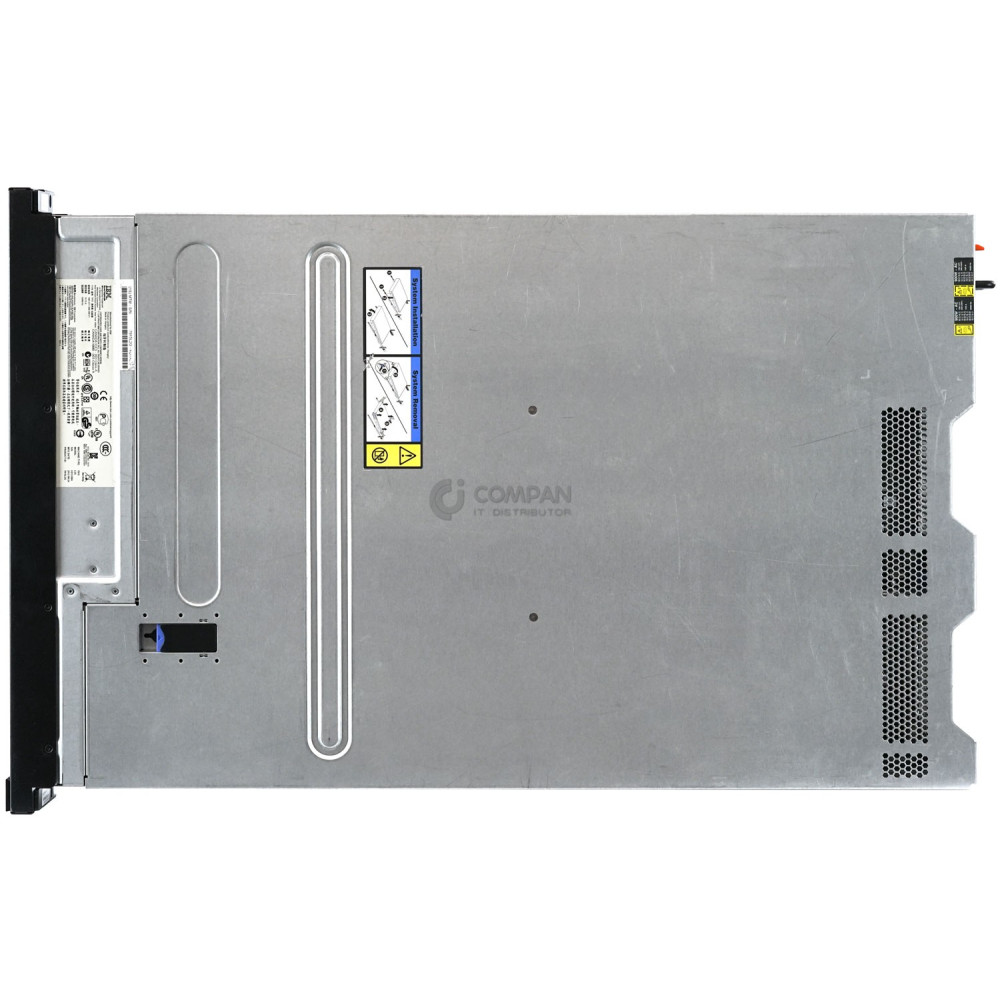

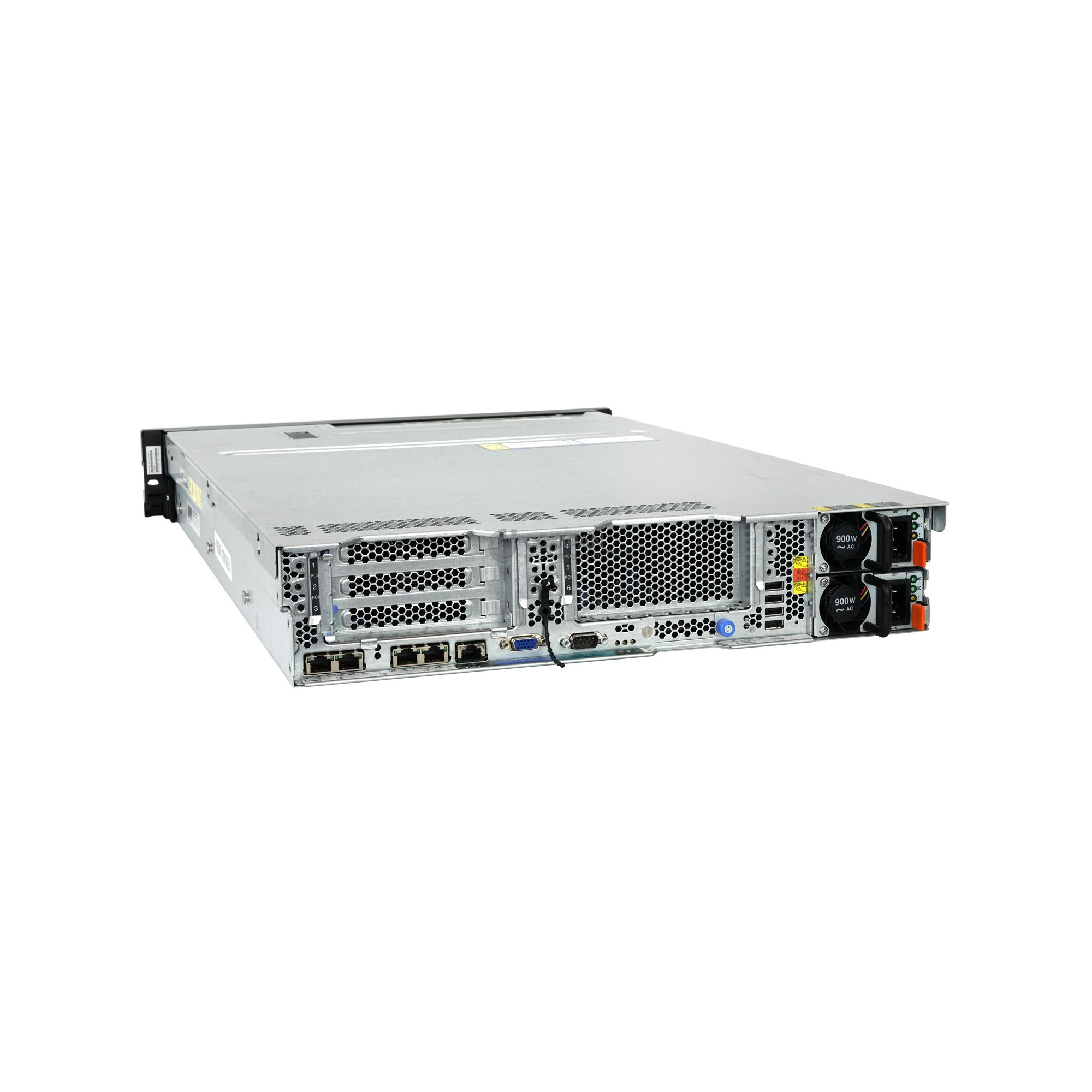

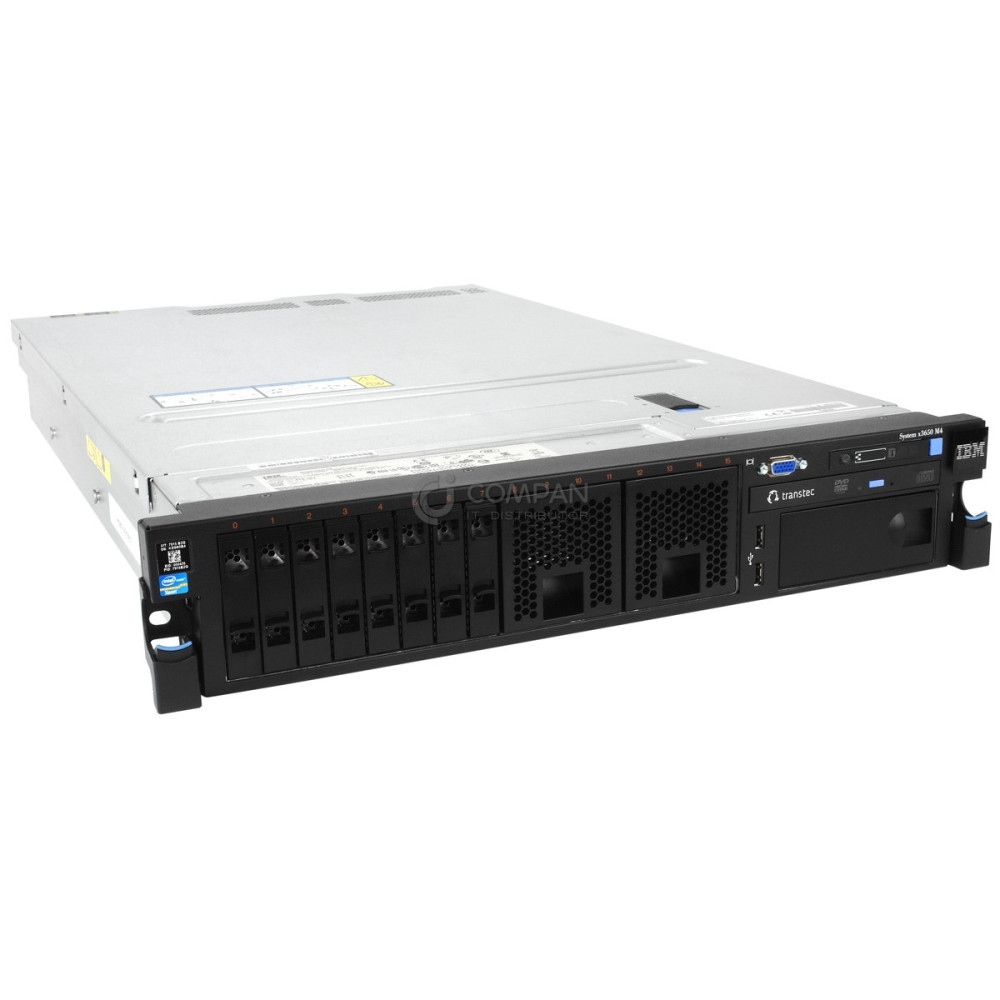

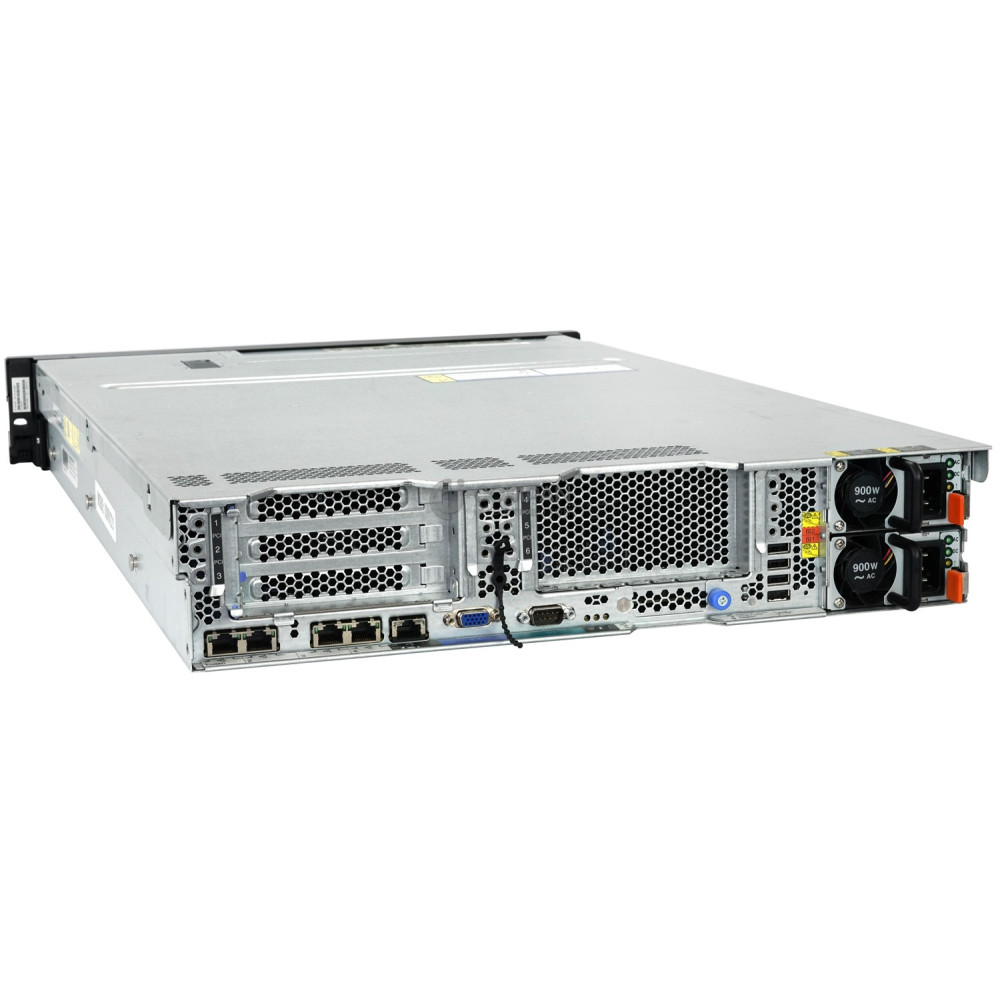

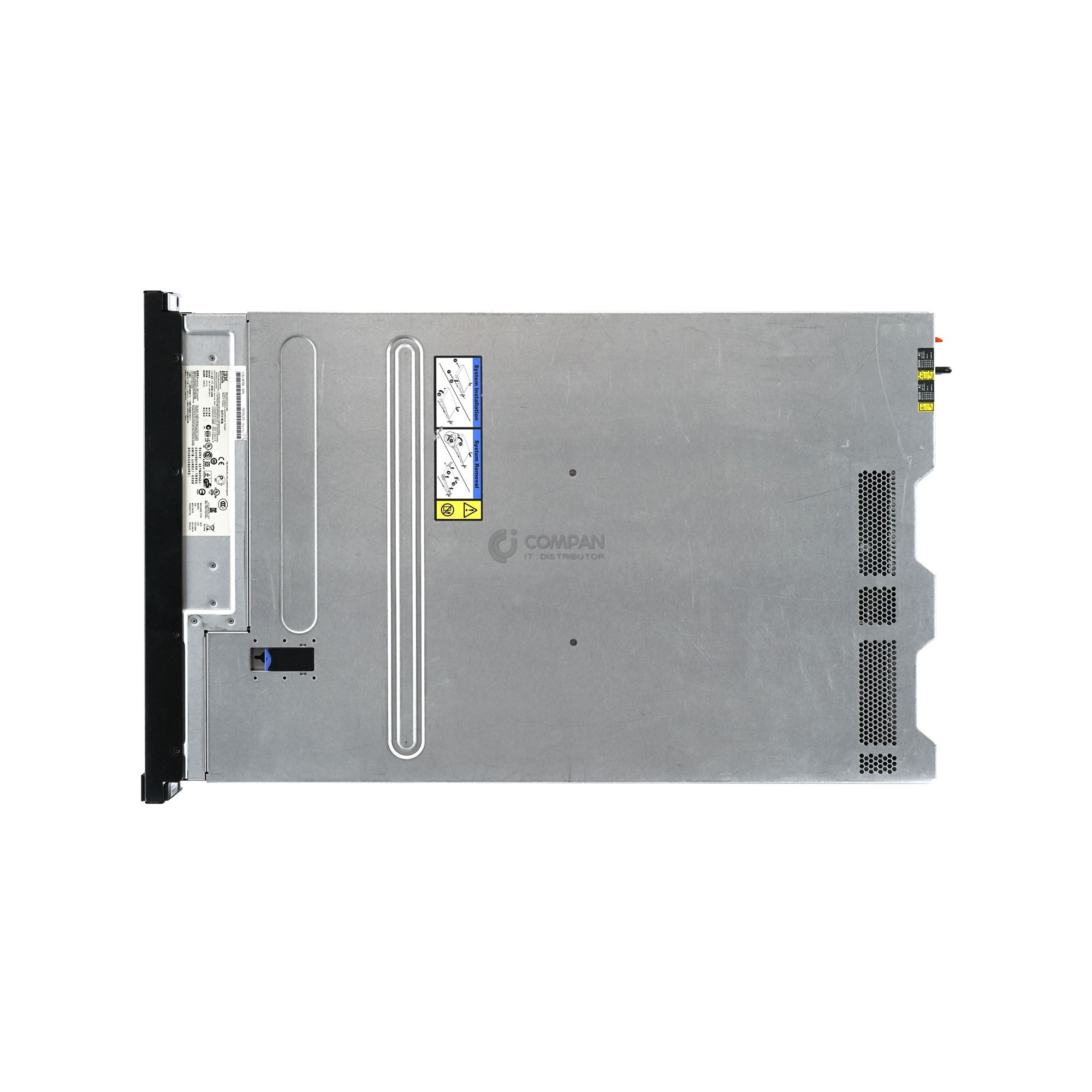

X3650 M4-8SFF IBM SYSTEM X3650 M4 2X INTEL XEON E5-2630 V2 @ 2.60GHZ RAM 32GB(4X 8GB DDR3 4X 1600MHZ ) 2X 147GB2X 600GB(4X SAS)

Components

Specification

Form factor

2U Rack.

Processor

Up to two Intel Xeon processor E5-2600 v2 product family CPUs with 12 cores (up to 2.7 GHz) or ten cores (up to 3.0 GHz) or eight cores (up to 3.3 GHz) or six cores (up to 3.5 GHz) or four cores (up to 3.5 GHz). Two QPI links up to 8.0 GT/s each. Up to 1866 MHz memory speed. Up to 30 MB L3 cache.

Chipset

Intel C602J.

Memory

Up to 24 DIMM sockets (12 DIMMs per processor).

RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1866 MHz.

Memory maximums

• With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors

• With UDIMMs: Up to 128 GB with 16x 8 GB UDIMMs and two processors

• With HyperCloud DIMMs: Up to 768 GB with 24x 32 GB DIMMs and two processors

• With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors

Memory protection

ECC, Chipkill, memory mirroring, and memory rank sparing.

Disk drive bays

Up to 32 1.8" SSD bays, or 16 2.5" hot-swap SAS/SATA bays, or up to six 3.5" hot-swap SAS/SATA bays, or up to eight 2.5" Simple Swap SATA bays, or up to six 3.5" Simple Swap SATA bays.

Maximum internal storage

Up to 28.8 TB with 1.8 TB 2.5" SAS HDDs, up to 16 TB with 1 TB 2.5" NL SAS/SATA HDDs, up to 25.6 TB with 800 GB 1.8" SATA SSDs, up to 25.6 TB with 1.6 TB 2.5" SAS/SATA SSDs, or up to 36 TB with 6 TB 3.5" NL SAS/SATA HDDs. Intermix of SAS/SATA is supported.

RAID support

•6 Gb SAS/SATA: RAID 0, 1, 10 with integrated M5110e or optional M5110; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5110e or M5110 with 512 MB or 1 GB cache upgrades.

•12 Gb SAS/SATA: RAID 0, 1, 10 with optional M5210; optional upgrades to RAID 5, 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with 1 GB or 2 GB cache upgrades.

Optical drive bays

One bay for optional DVD-ROM or Multiburner drive.

Tape drive bays

Optional Tape Enablement Kit is available to support one DDS5, DDS6, or RDX internal USB tape drive.
