- Out-of-Stock
General Information | |

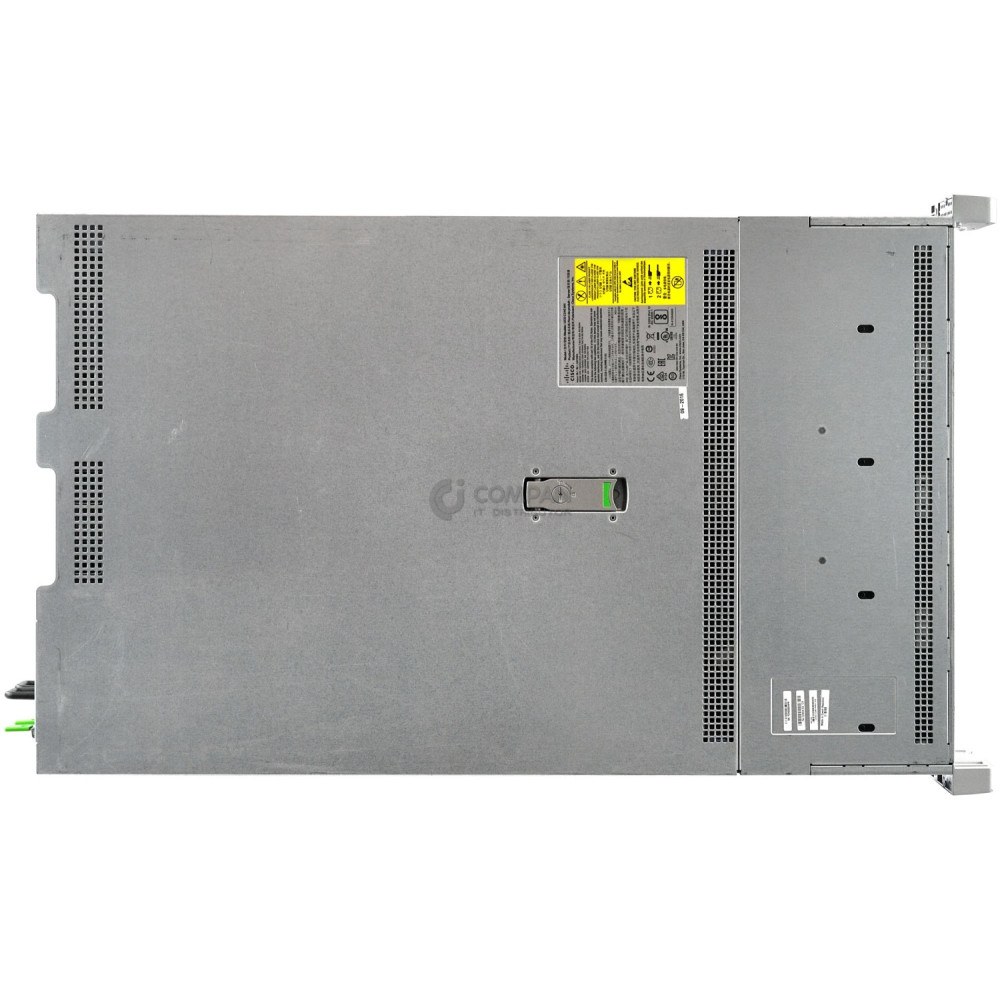

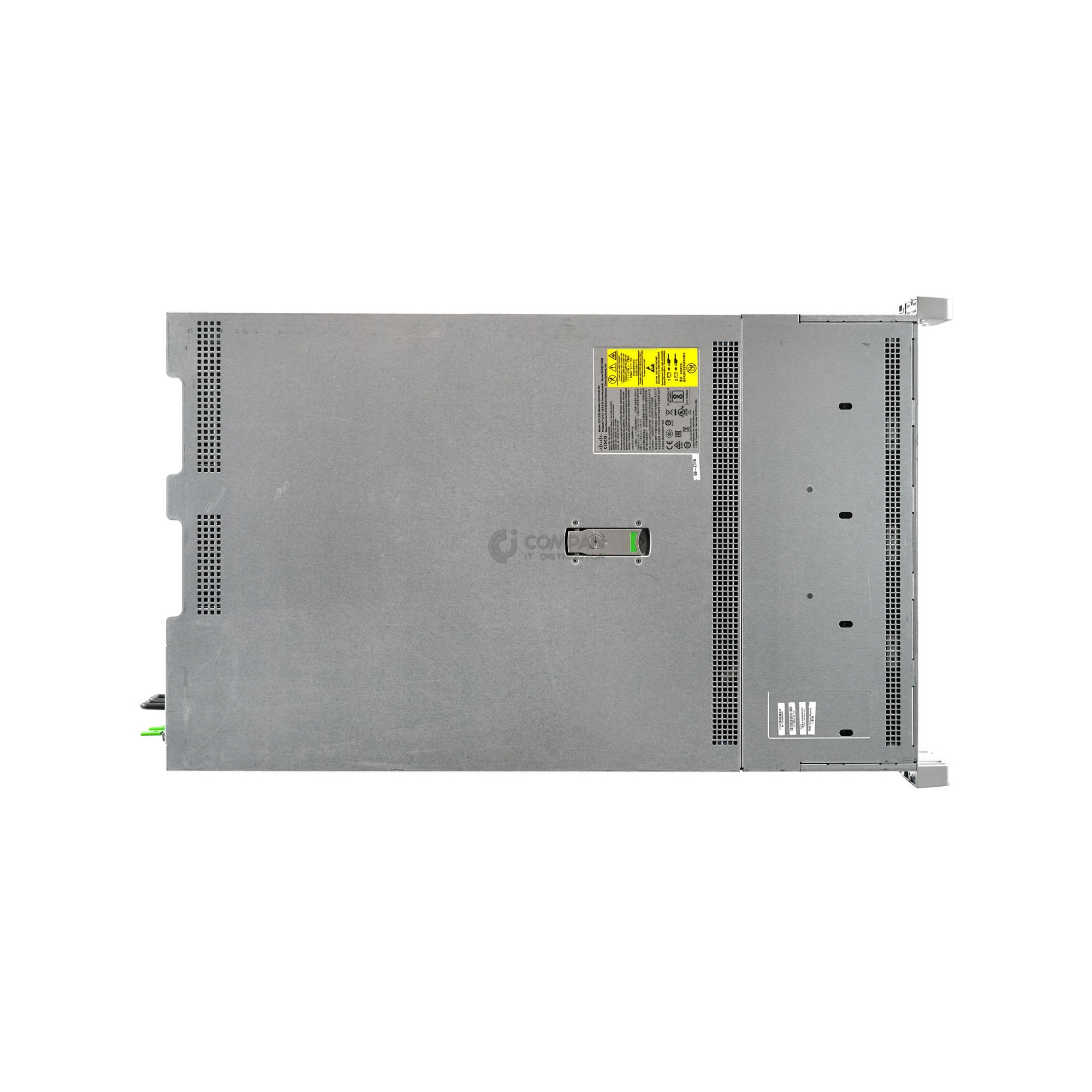

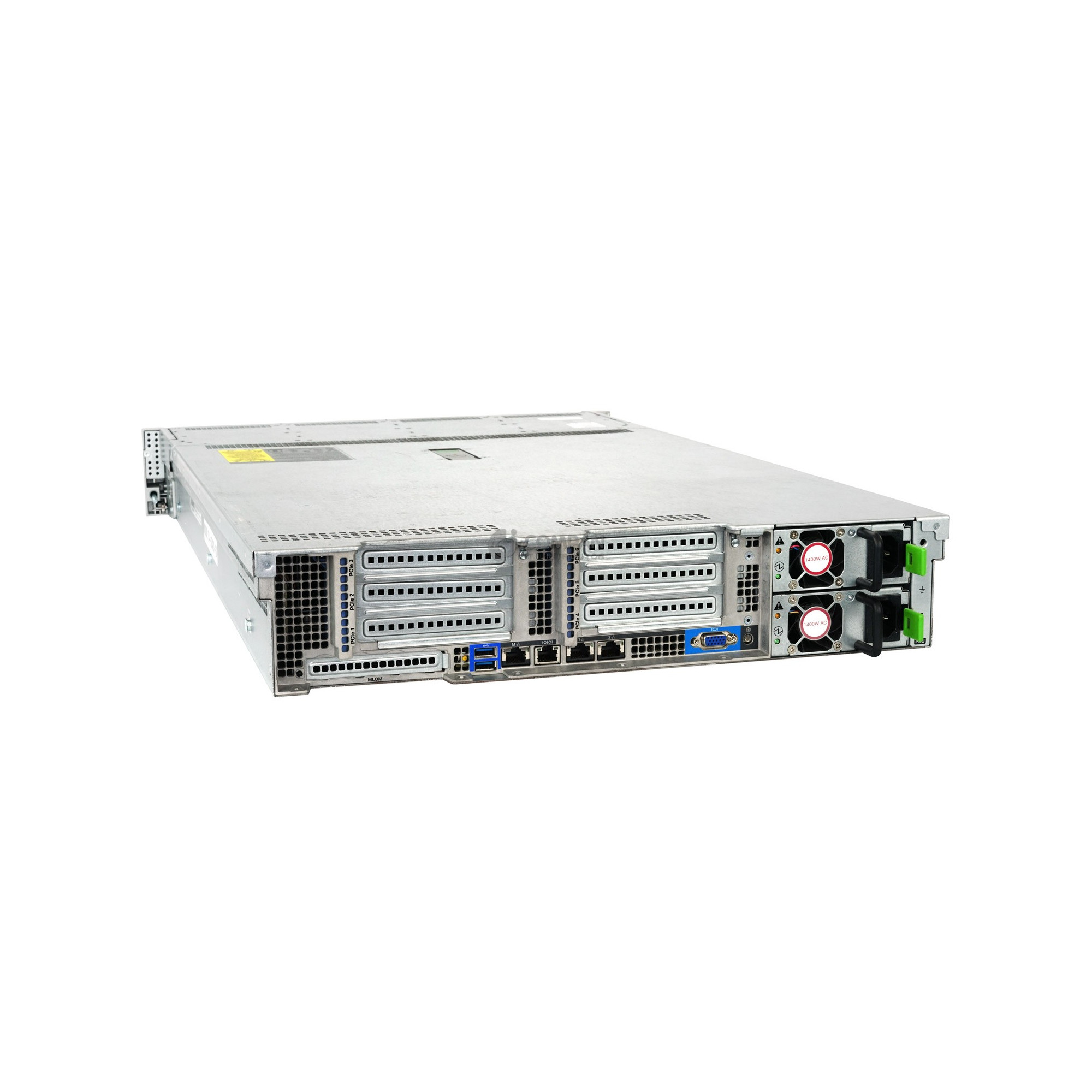

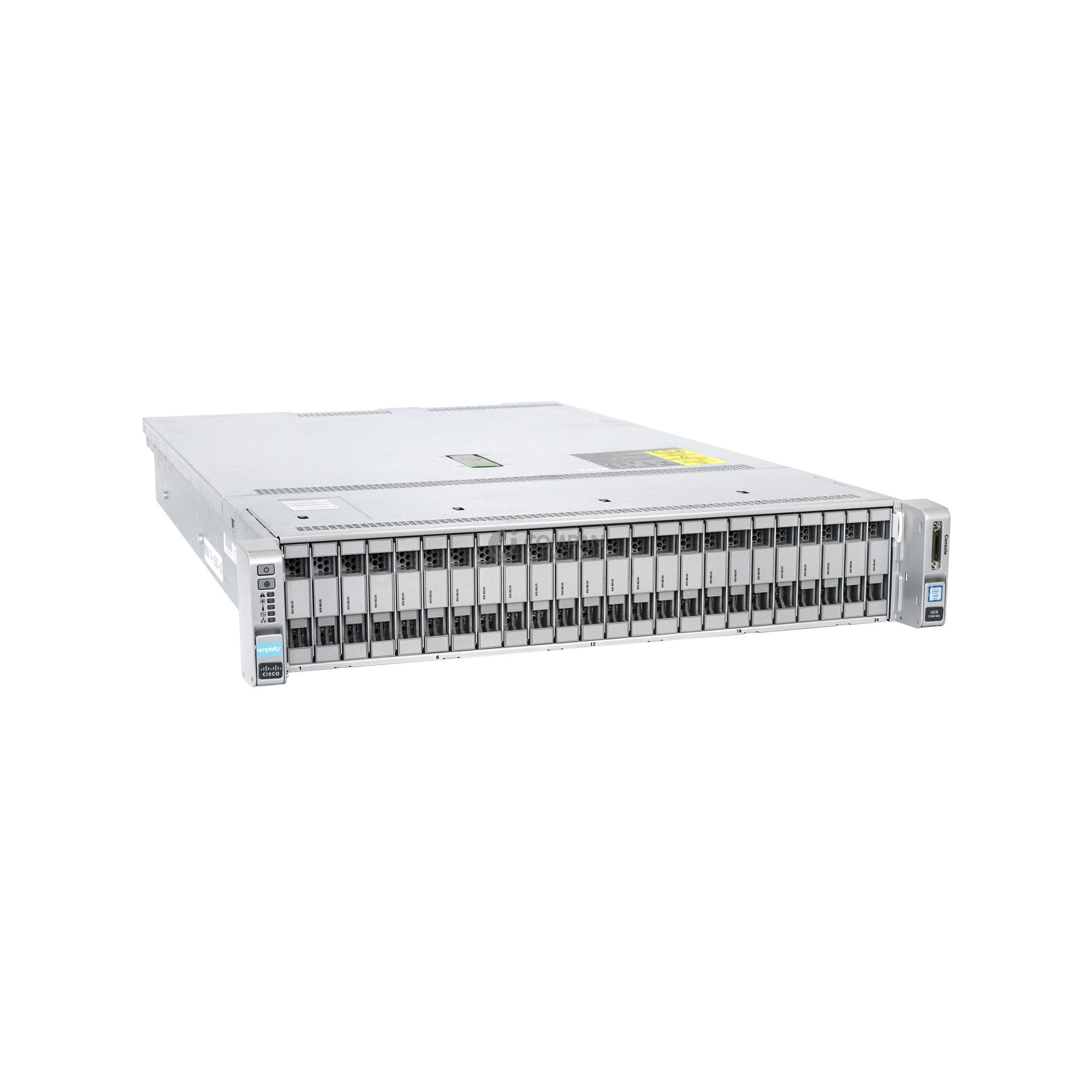

Manufacturer Part Number | UCS C240 M4-24SFF |
Inside |
1X CISCO MAINBOARD FOR UCS C240 M4 2X CISCO HEATSINK FOR UCS C240 M4 |
Brand | CISCO |
Product Type | SERVER |
Technical Information | |
Regulatory Compliance |
Products should comply with CE Markings per directives 2004/108/EC and 2006/95/EC |
Safety |
UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 GB4943 2001 |
Form Factor | Rack- Mountable (2U) |
CPU | One or two Intel Xeon E5-2600 v3 or v4 series processor family CPUs |
Chipset | Intel® C610 series chipset |
Memory | 24 slots for registered ECC DIMMs (RDIMMs) or load-reduced DIMMs (LRDIMMs) |
Security |
Power-on password Keyboard password QuickLock, Network Server Mode Serial interface control Administrator's password iLO 3 (Integrated Lights-Out 3) has 12 customizable user accounts and SSL encryption iLO 3 can be disabled via a Global Setting iLO Advanced supports directory services integration |
Expansion slots |
Up to six PCIe slots (on two riser cards) Riser 1 (PCIe slots 1, 2, and 3), controlled by CPU 1 Option A: Two slots available. Slot 1 = full height, 3/4 length, x8, NCSI1. Slot 2 = full height, full length, x16, NCSI, GPU capable. NCSI is supported on only one slot at a time. Option B: Three slots available. Slot 1 = full height, 3/4 length, x8. Slot 2 = full height, full length, x8, NCSI. Slot 3 = full height, full length, x8. Option C: Two slots available. Slot 1 = full height, 3/4 length, x8, NCSI. Slot 2 = full height, full length, x16, NCSI. In addition, the riser contains two connectors for connecting up to two SATA boot drives. Riser 2 (PCIe slots 4, 5, and 6), controlled by CPU 2. Three slots available. Slot 4 = full height, 3/4 length, x8, NCSI. Slot 5 = full height, full length, x16, NCSI, GPU capable. Slot 6 = full height, full length, x8. NCSI is supported on only one slot at a time. |
