- Out-of-Stock
General Information | |

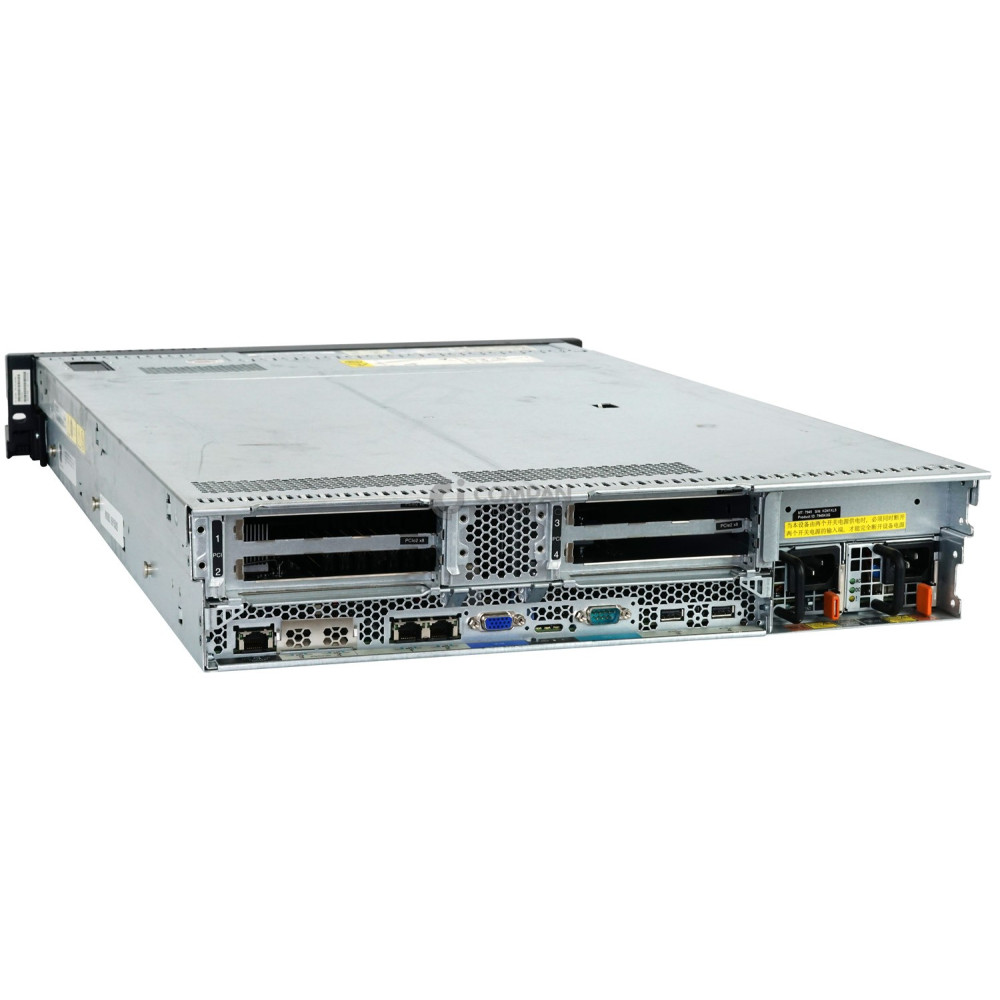

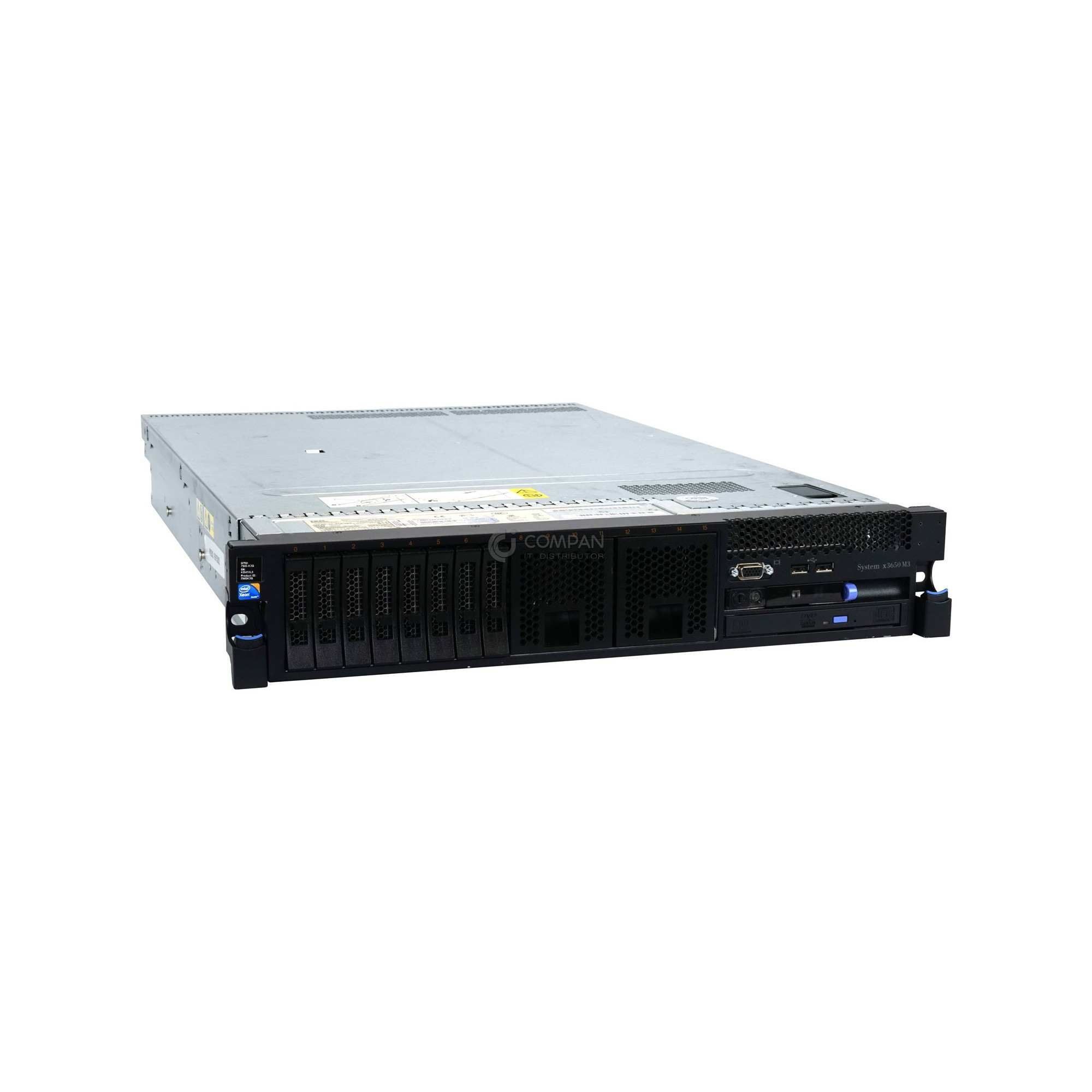

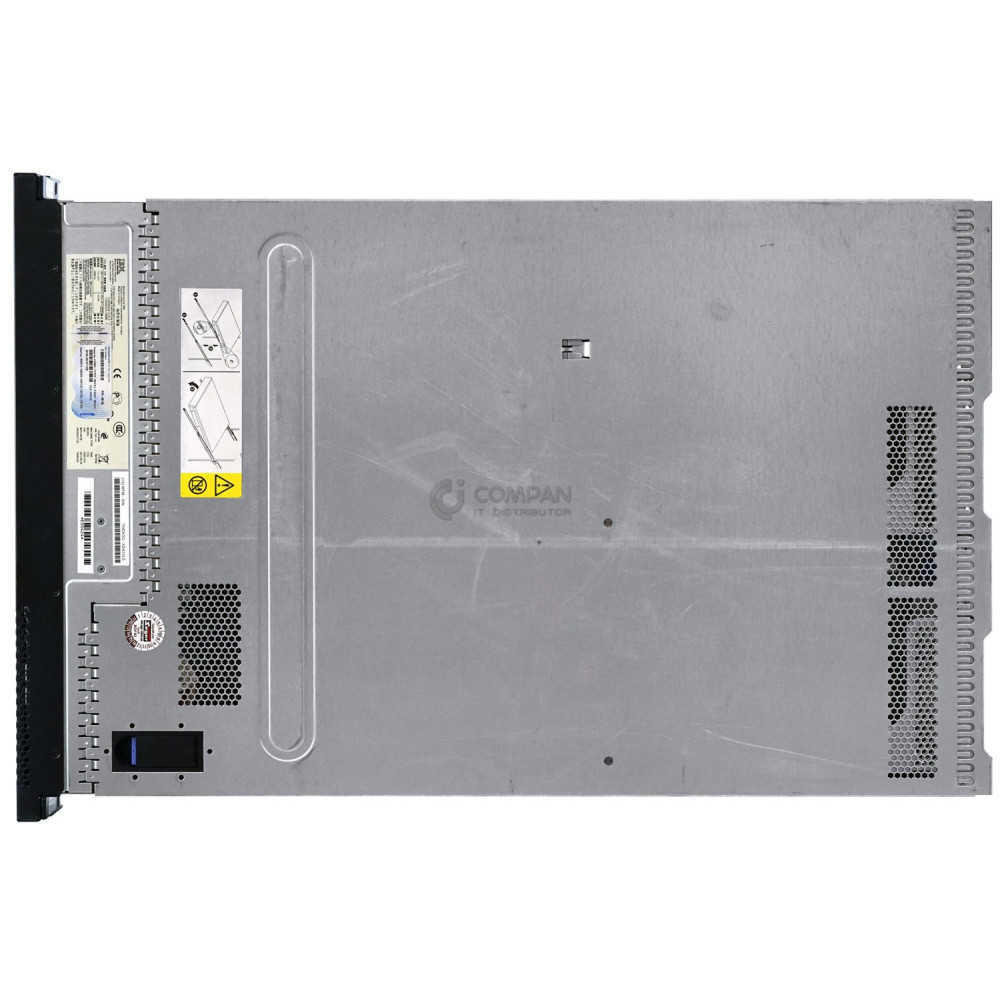

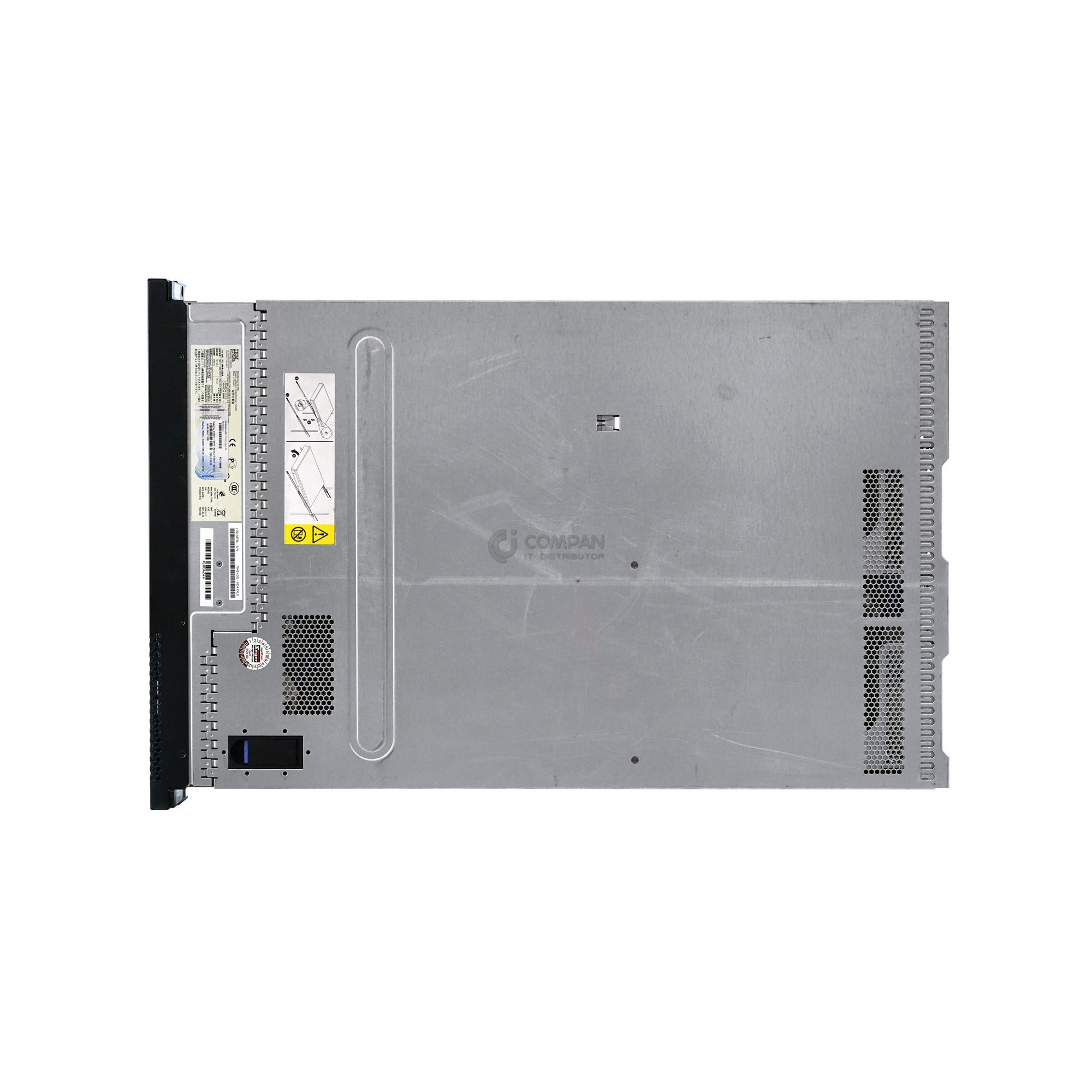

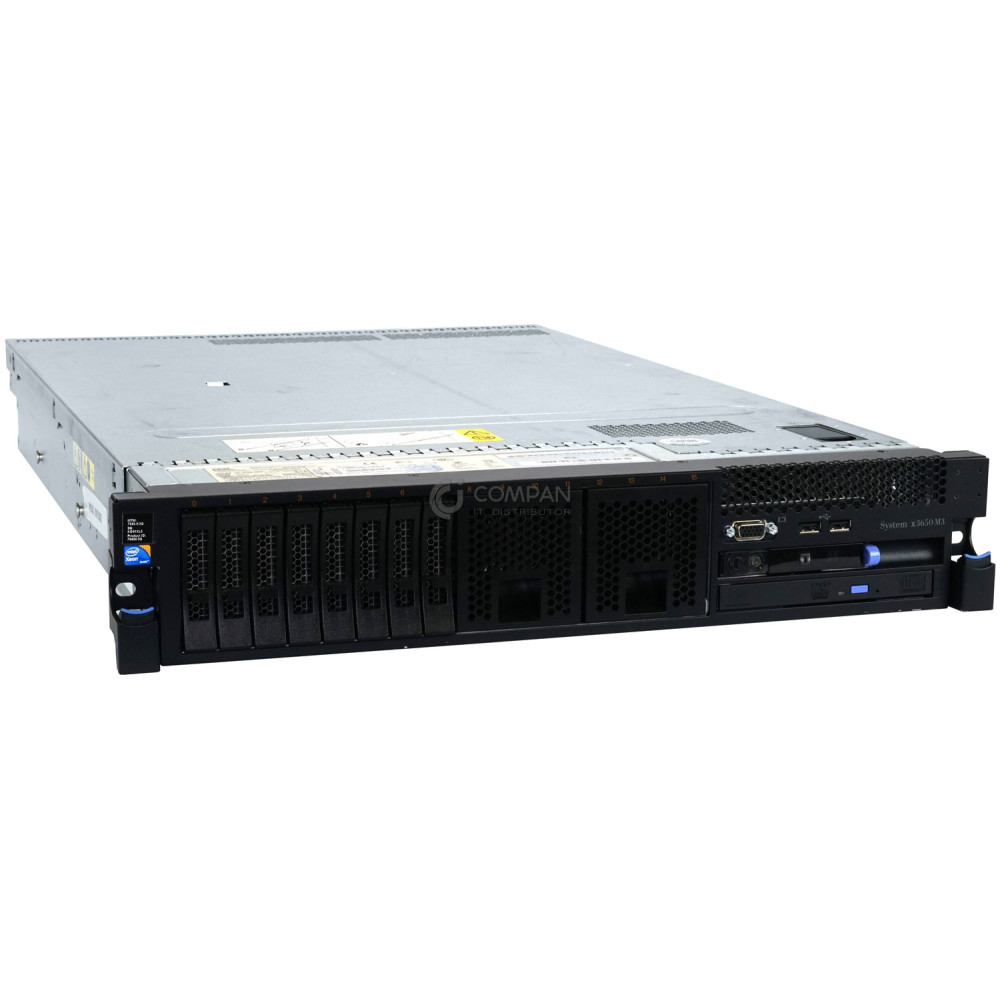

Manufacturer Part Number | X3650 M3-8SFF |
Manufacturer Part Option | 7945-N2G |
Inside |
2X INTEL XEON X5675 @ 3.07GHZ(6-CORES) RAM 96GB(12X 8GB OTHER) 2X 147GB(2X SAS) |
Brand | IBM |
Product Type | SERVER |
Technical Information | |
Form Factor | Rack- mountable 2U |
Chipset | Intel 5520 |
Processor | 2x Intel Xeon X5675 @ 3.07 GHz (6 Cores) |
Memory Protection |
ECC ChipKill (for x4-based memory DIMMs) Memory mirroring Memory sparing |
Memory |
Up to 18 DIMM sockets (9 DIMMs per processor). Up to 288 GB with 16 GB DDR3 RDIMMs and 18 populated DIMM slots (up to 144 GB with 9 DIMMs per processor), or up to 48 GB with 4 GB DDR3 UDIMMs and 12 populated DIMM slots (up to 24 GB with 6 DIMMs per processor) |
Disk drive bays | Up to 16 2.5" hot-swap SAS/SATA HDDs or solid-state drives |
Maximum internal storage |
Up to 25.6 TB with 1.6 TB SSDs Up to 19.2 TB with 1.2 TB SAS HDDs Up to 16.0 TB with 1 TB SATA HDDs Intermix of SAS/SATA/SSD is supported |
RAID support |
RAID 0, 1, 1E with ServeRAID-BR10il v2 or M1015 RAID 0, 1, 5, 10, 50 with M5014 or M5015 Optional upgrade to RAID 5 is available for M1015 Optional upgrade to RAID 6, 60 is available for M5014/M5015 |
PCI Expansion slots |
Up to 5 (up to 4 available, one slot is dedicated to RAID controller), dependant on the riser cards used (three different riser cards are available: 2x PCI-E x8 Gen 2, 1x PCI-E x16 Gen 2, and 2x PCI-X 64 bit/133 MHz). Up to two riser cards are supported. |
External ports |
Two USB 2.0 and one DB-15 video on front. Two USB 2.0, one DB-15 video, one DB-9 serial, one RJ-45 systems management, up to 4 RJ-45 network ports (2 standard, 2 optional) on rear. One internal USB port for embedded hypervisor. |
Dimensions (H W D) | 8,5 x 44,3 x 69,8 cm |
