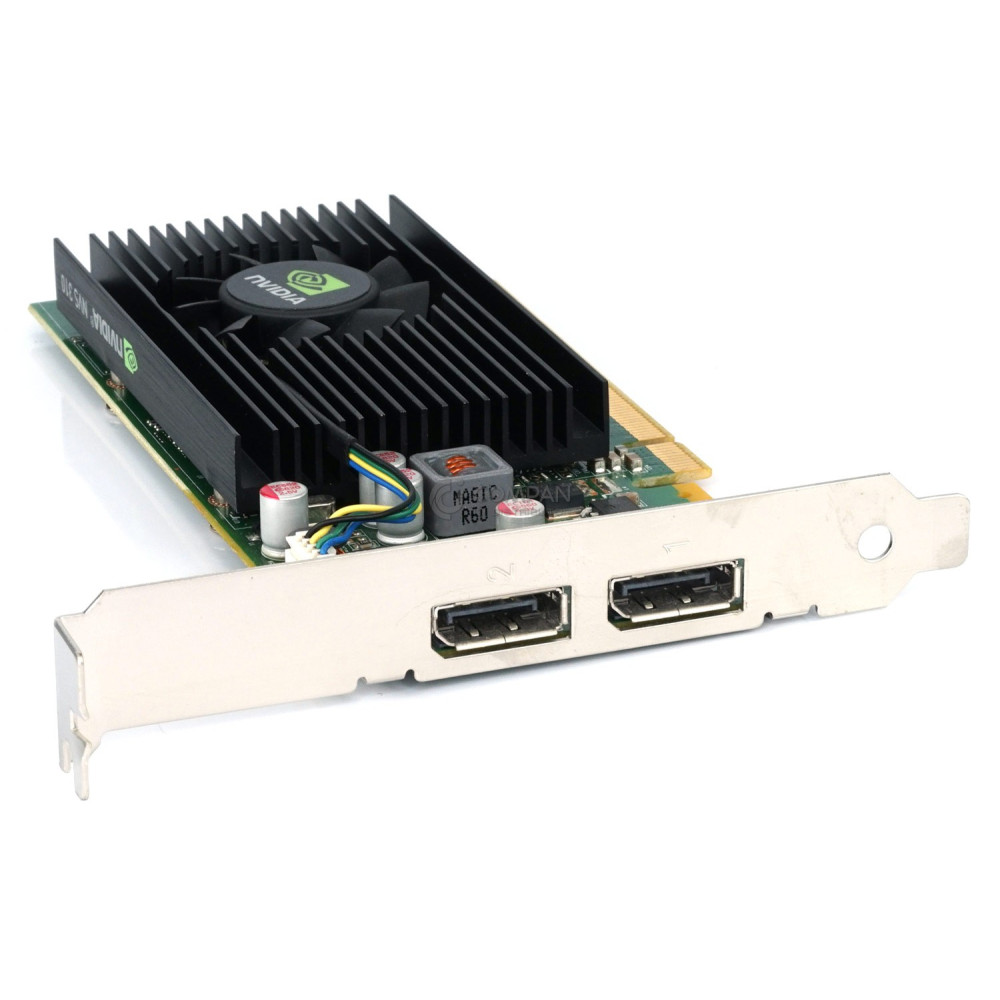

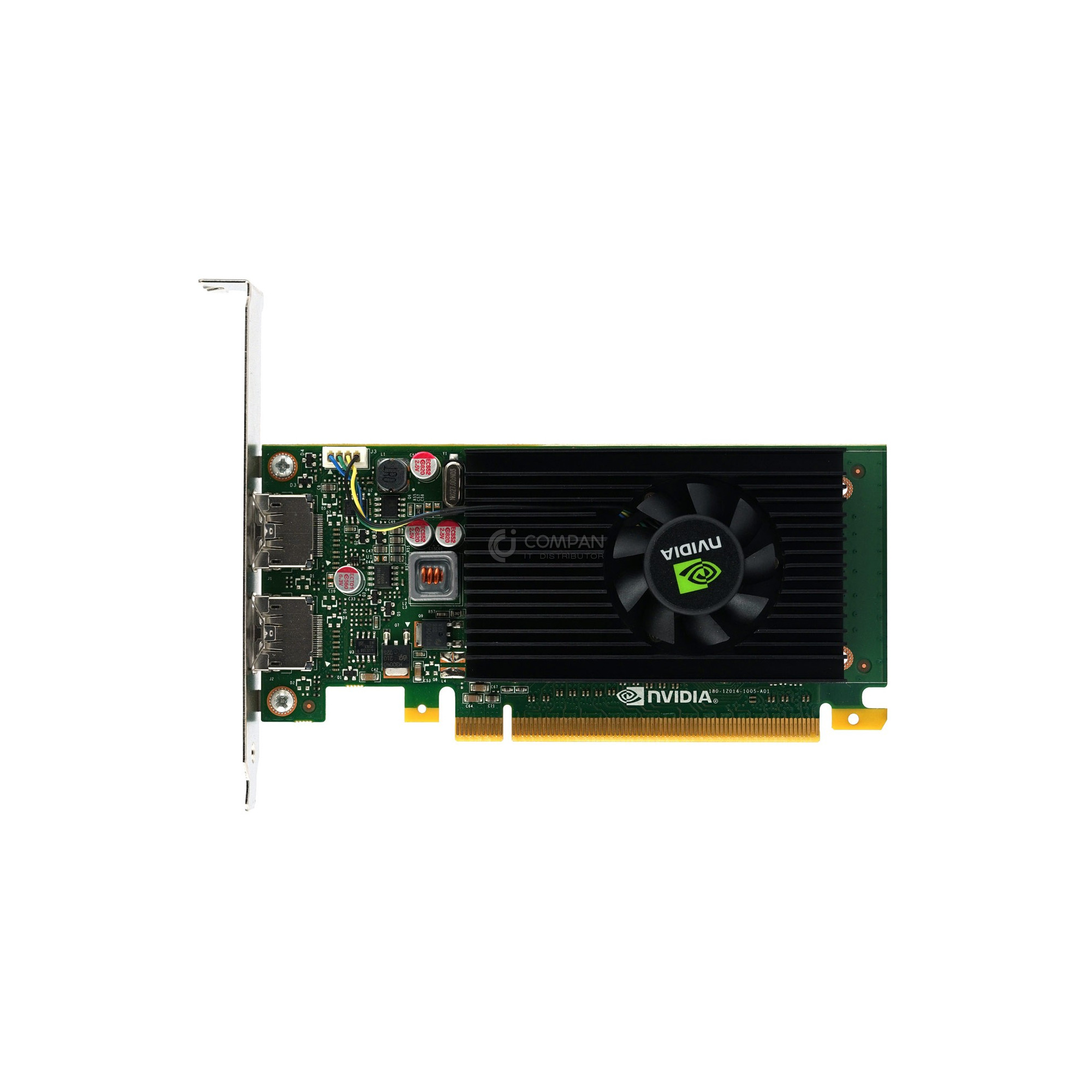

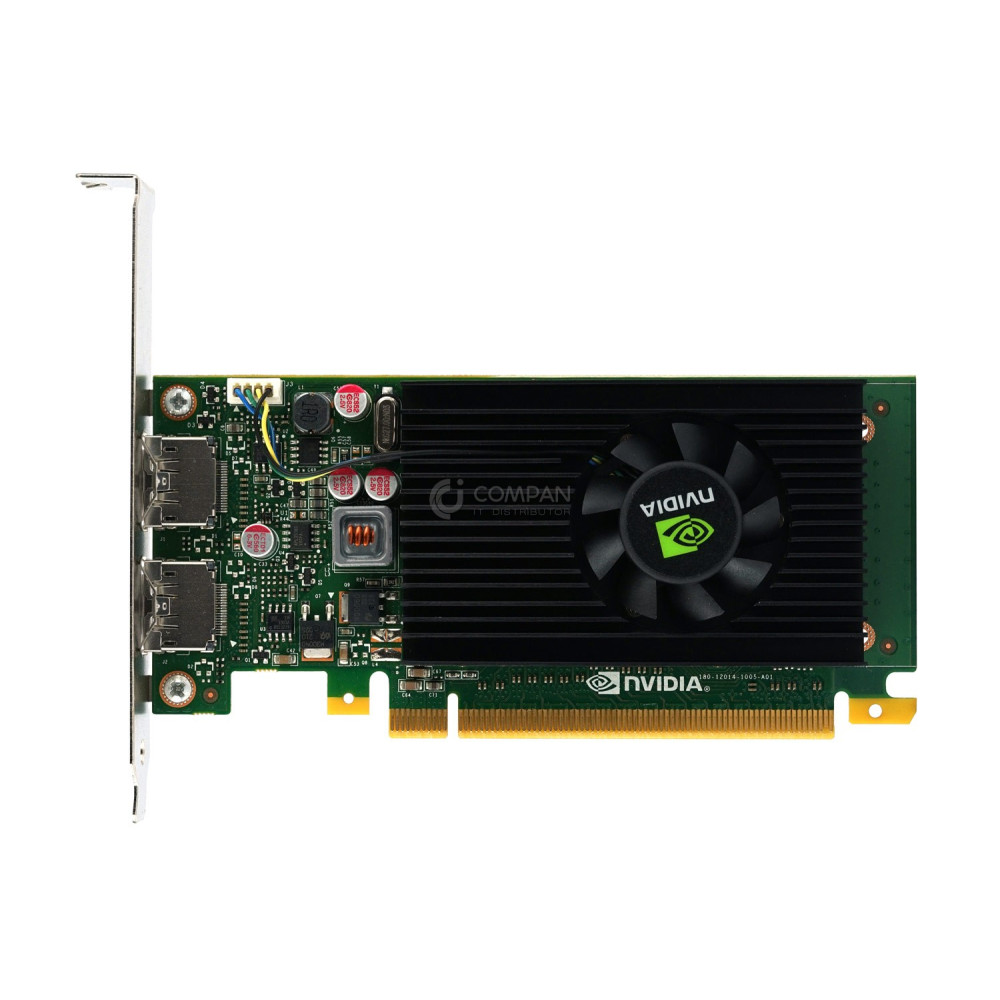

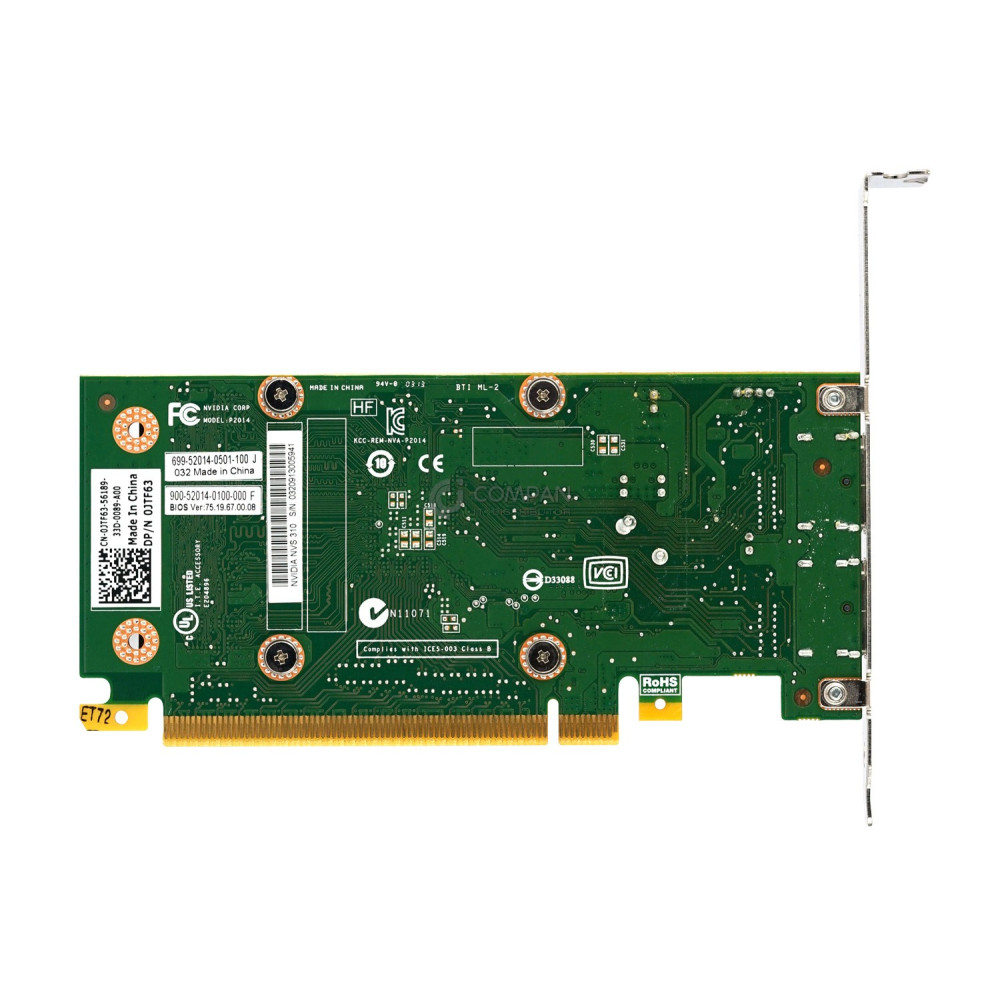

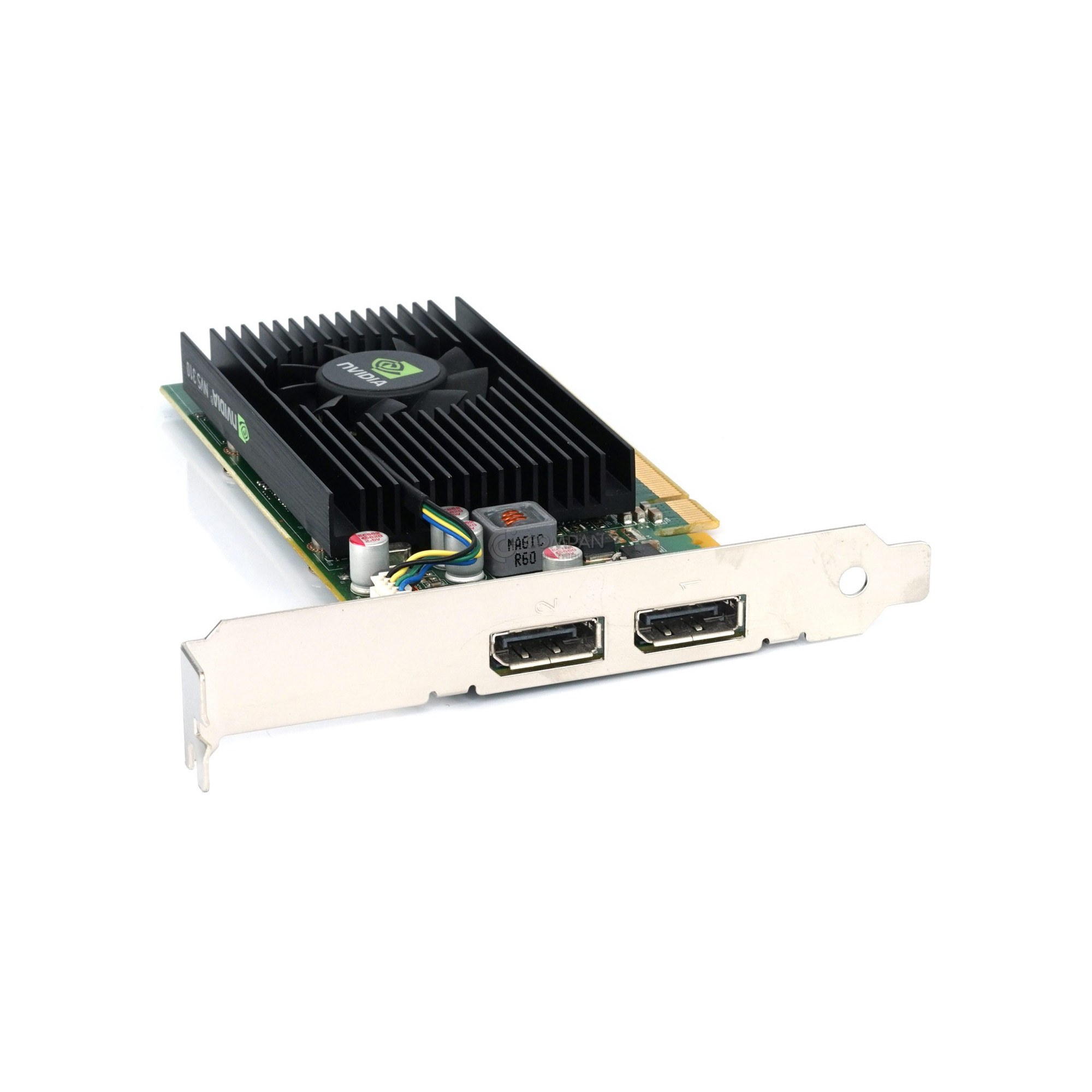

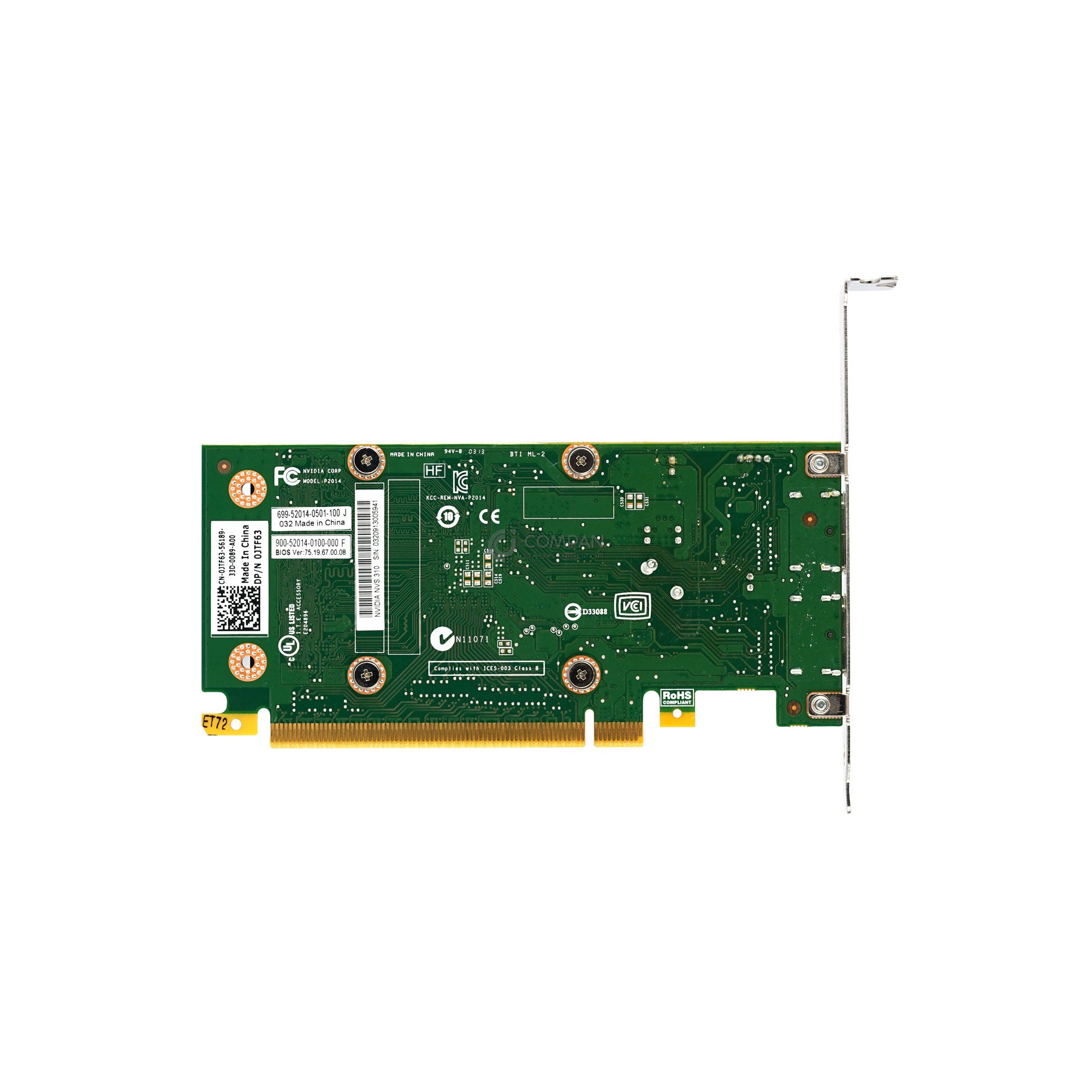

JTF63 / DELL NVIDIA QUADRO NVS 310 512MB PCIE X16 2X DISPLAY PORT / 0JTF63
Brand:
DELL
|
Part Number: JTF63
Description
Nvidia Quadro GPUs are a series of high-end graphics processing units designed primarily for use in professional workstations and servers. They are optimized for demanding computational tasks, such as 3D modeling, simulation, scientific visualization, and high-performance computing (HPC) applications. Quadro GPUs are based on the same architecture as Nvidia's consumer-grade GeForce GPUs, but they are built with additional features and capabilities that make them better suited for professional workloads. They have larger memory capacities, more advanced memory management features, and support for specialized software applications used in industries such as architecture, engineering, and medical imaging.
Manufacturer Part Number | JTF63 |
Manufacturer Part Options | 0JTF63 |
Brand | DELL |
Product Type | GRAPHICS CARD |
Chipset/GPU Model | NVIDIA QUADRO NVS 310 |
Chipset Manufacturer | NVIDIA |
CUDA Parallel Processor Cores | 48 |
Memory Configuration | 512MB |
Memory Interface | DDR3 |
Memory Interface Width | 64 BIT |
Memory Bandwidth | 14 GB/S |
Bus Support | PCI-E 2.0 |
Physical Bus Interface | PCI-E 2.0 X16 |
Supported Technologies | NVIDIA UNIFIED ARCHITECTURE, NVIDIA UNIFIED DRIVER ARCHITECTURE ( UDA ), PCI EXPRESS 2.0 COMPLIANCE, ULTRA QUIET SOLUTION, COMPATIBILITY WITH INDUSTRY STANDARD ARCHITECTURES, NVIDIA MOSAIC TECHNOLOGY, NVIDIA HIGH DEFINITION VIDEO TECHNOLOGY, MICROSOFT WINDWOS 7 SUPPORT, ENERGY STAR ENABLING DESIGN, INTELLIGENT POWER MANAGEMENT, NVIDIA CUDA, DIRECTCOMPUTE, OPENACC, PCI.E 2.0, 12 PIXELS PER CLOCK RENDERING ENGINE, SCALABLE GEOMETRY ARCHITECTURE, HARDWARE TESSELLATION ENGINE, NVIDIA GIGA THREAD ENGINE, SHADER MODEL 5.0, OPENGL 4.1, DIRECTX 11 |
Maximum Display Digital Resolution | 2560 X 1600 ( VIA DP TO DL DVI ADAPTER ), 1920 X 1200 ( VIA DP TO SL DVI ADAPTER ) |
Maximum Display Analog Resolution | 1920 X 1200 ( VIA DP TO VGA ADAPTER ) |
Display Connectors | TWO DISPLAY PORTS DP |
Max Power Consumption | 19.5W |
Cooling System | HEATSINK: ONE HIGH QUALITY, VARIABLE SPEED ACTIVE FANSINK |
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
