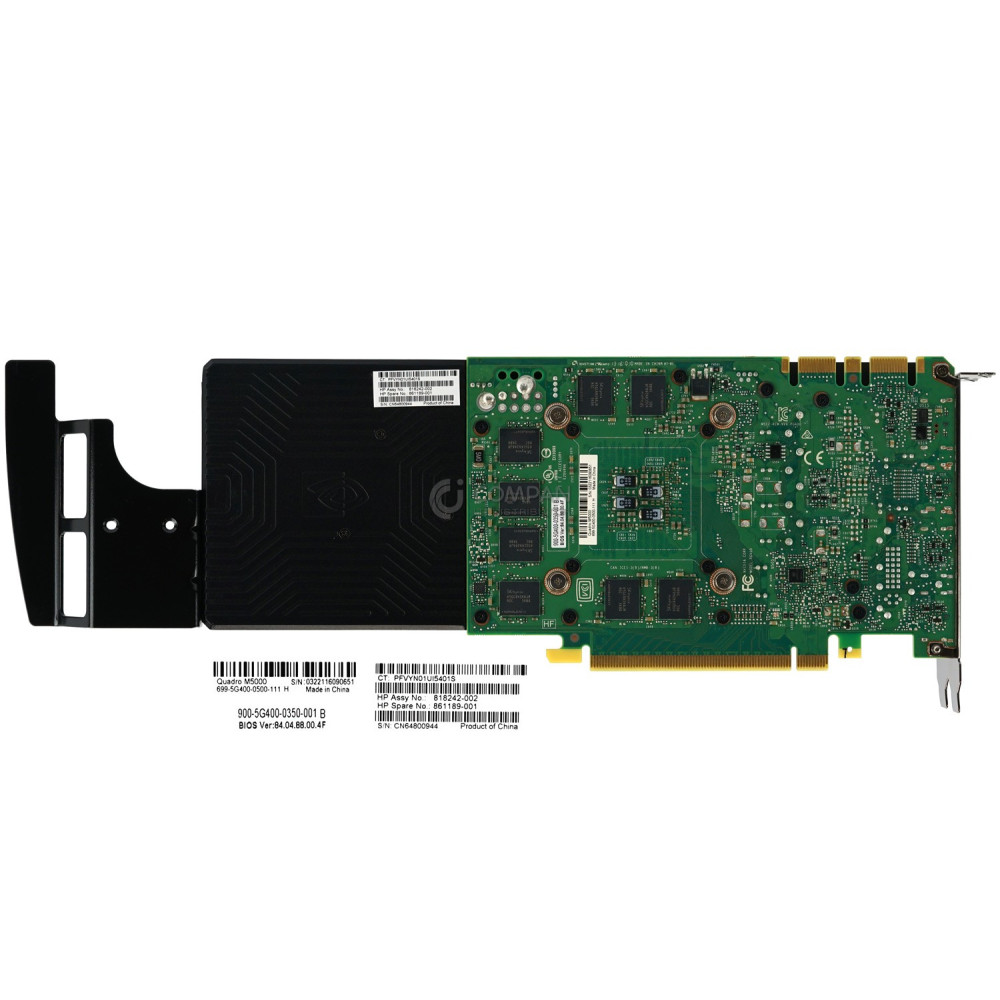

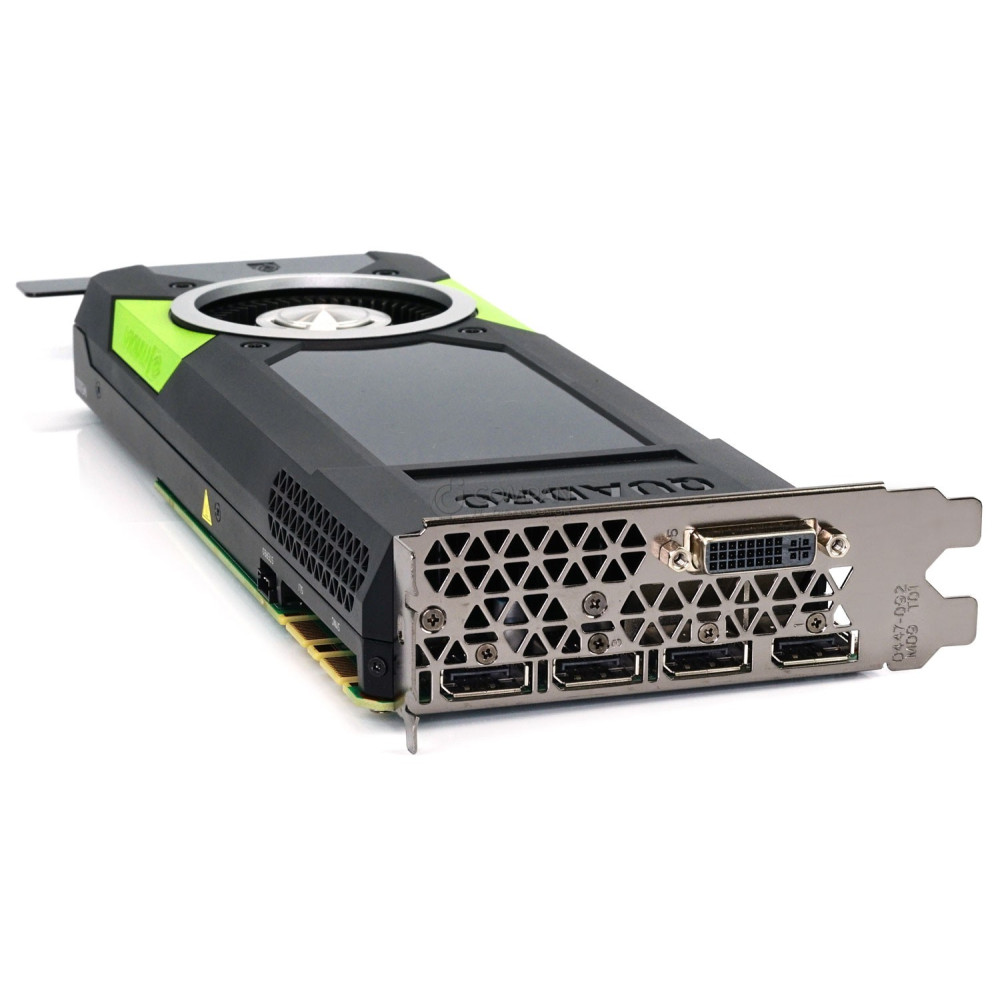

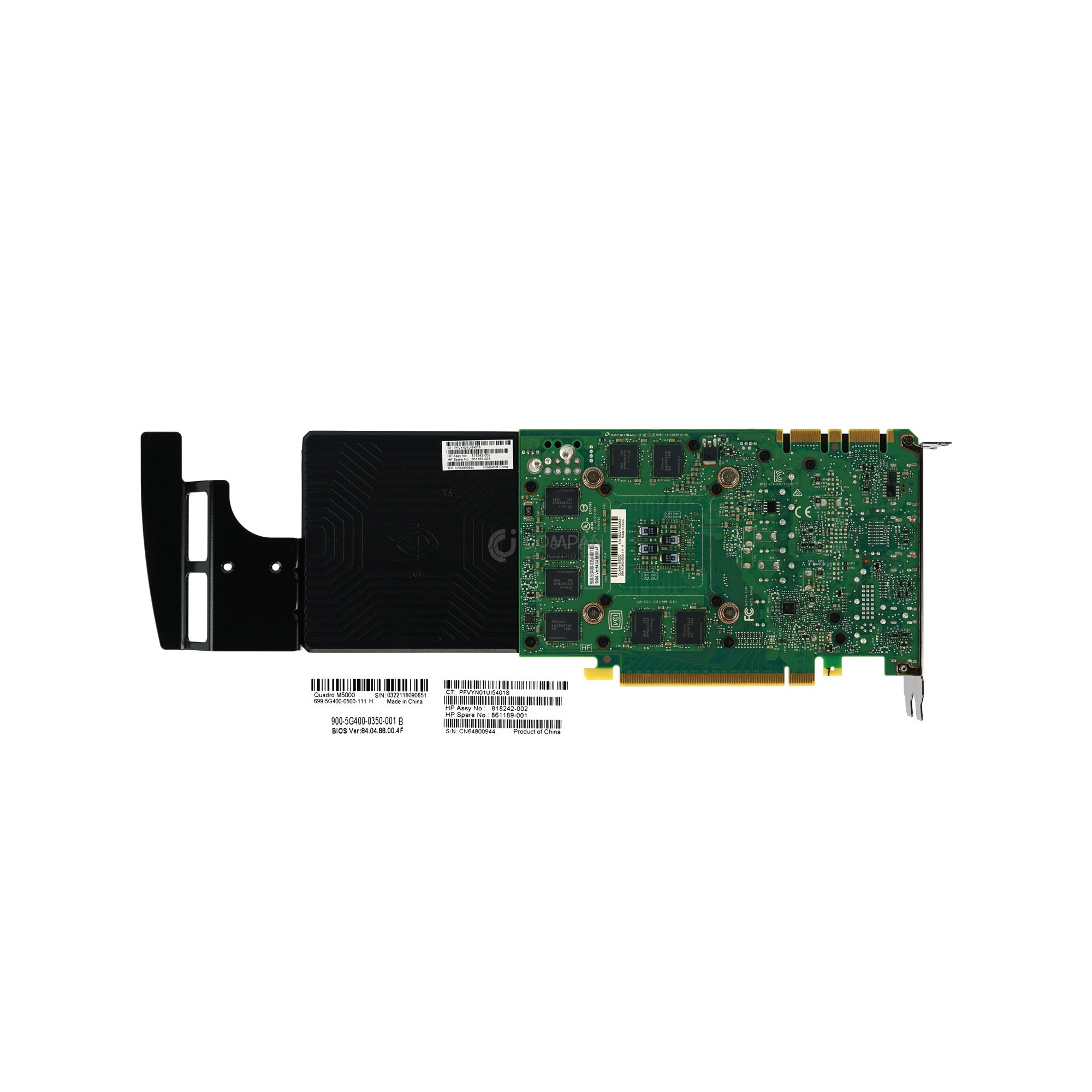

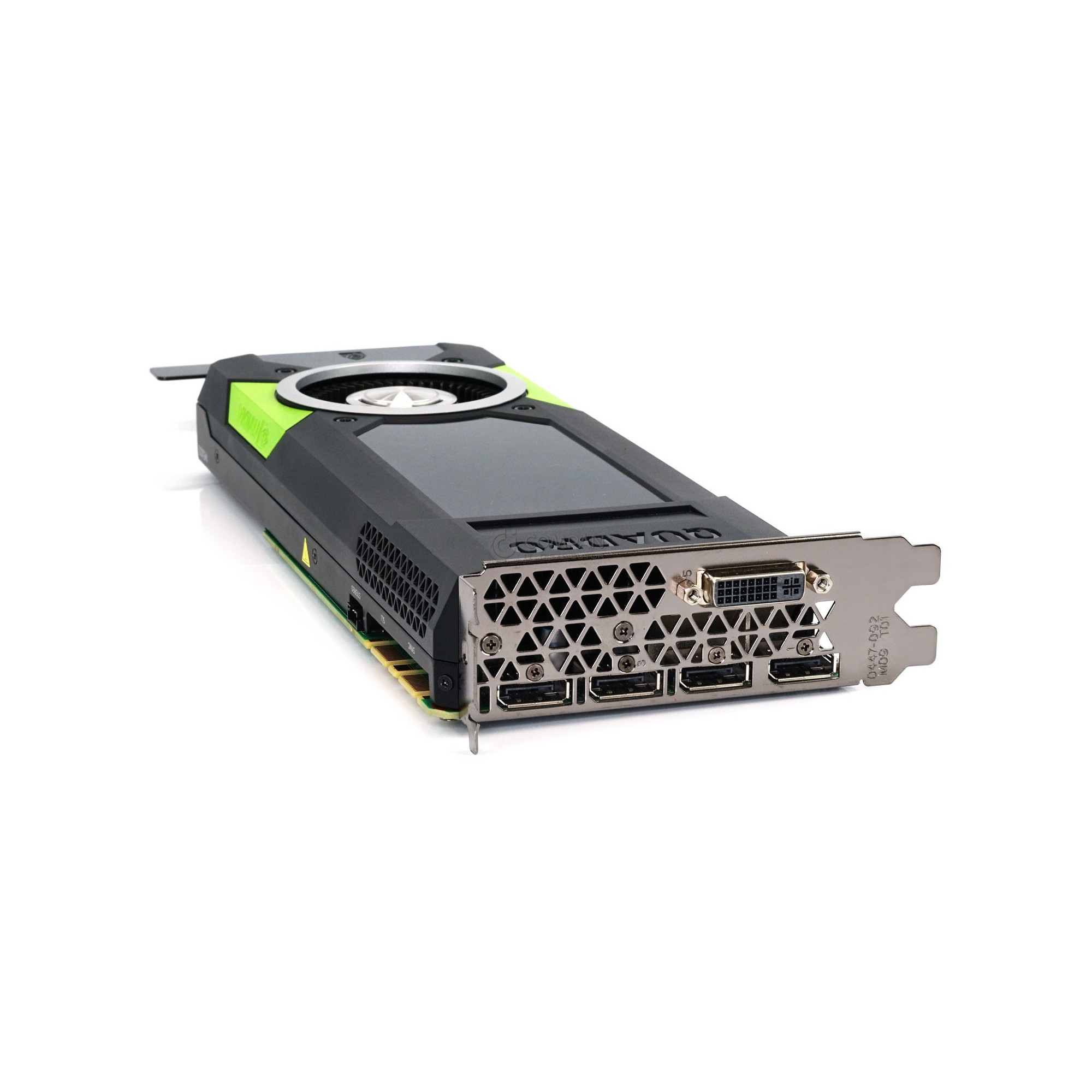

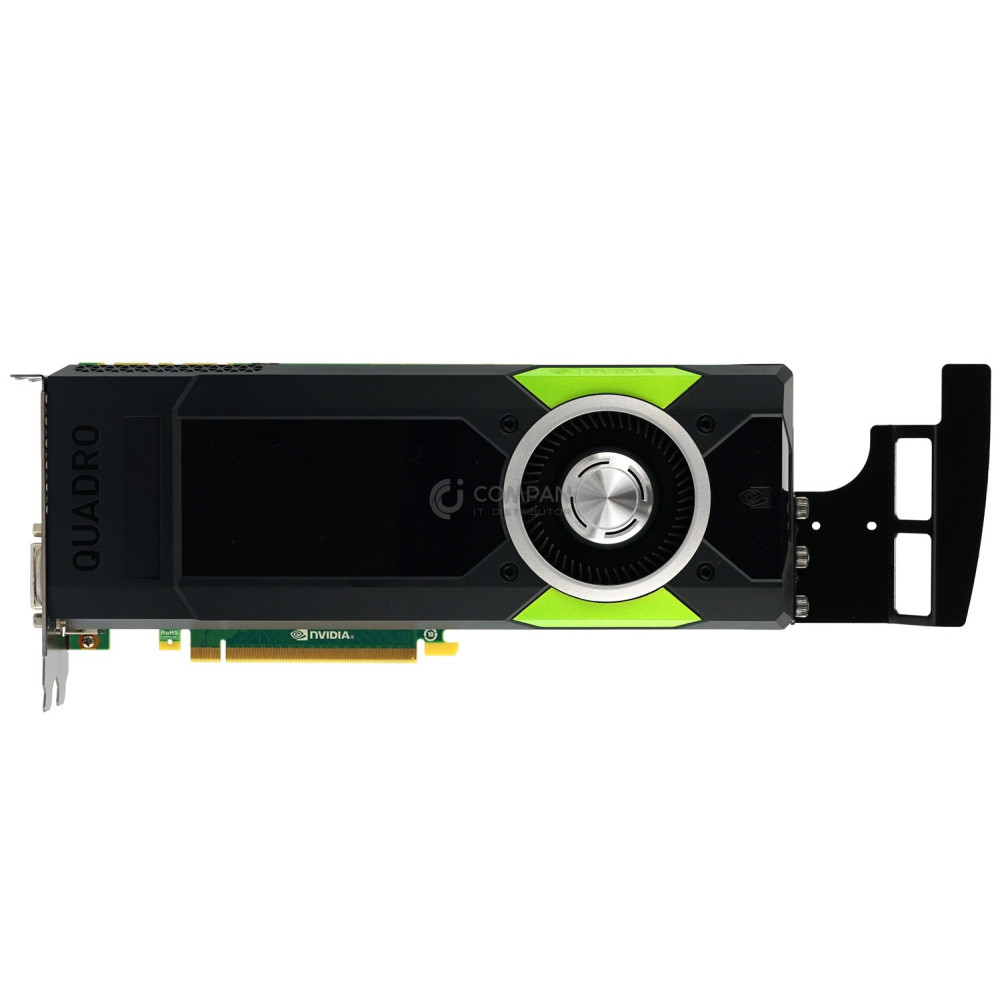

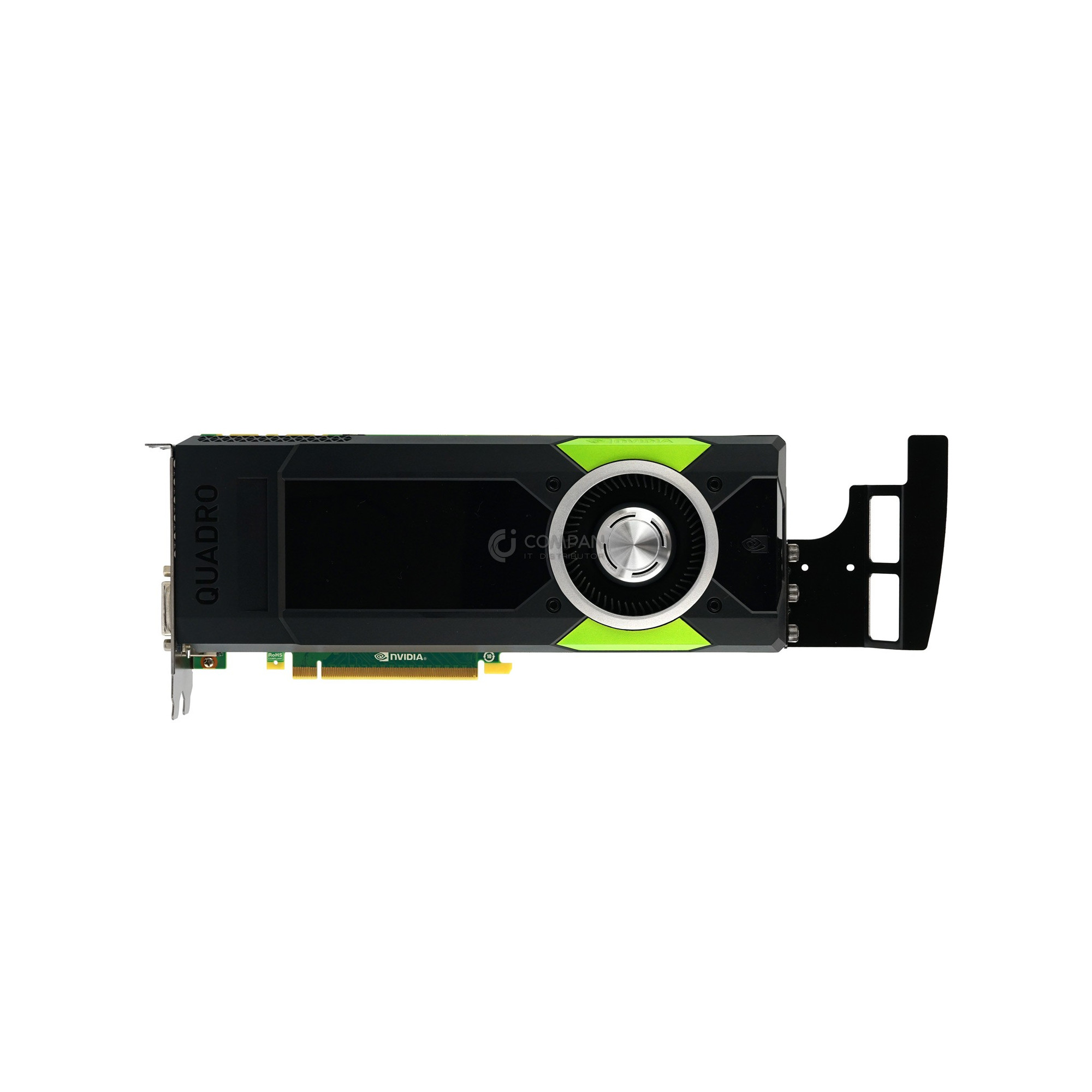

861189-001 / HP NVIDIA QUADRO M5000 8GB GDDR5 PCIE 3.0 X16 FOR Z800 Z820 Z840
Brand:
NVIDIA
|
Part Number: 861189-001
Description
Nvidia Quadro GPUs are a series of high-end graphics processing units designed primarily for use in professional workstations and servers. They are optimized for demanding computational tasks, such as 3D modeling, simulation, scientific visualization, and high-performance computing (HPC) applications. Quadro GPUs are based on the same architecture as Nvidia's consumer-grade GeForce GPUs, but they are built with additional features and capabilities that make them better suited for professional workloads. They have larger memory capacities, more advanced memory management features, and support for specialized software applications used in industries such as architecture, engineering, and medical imaging.
General Information | |
Manufacturer Part Number | 861189-001 |
Manufacturer Part Options | 818242-002 |
Brand | HP |
Product Type | GRAPHICS CARD |
Technical Information |
|
Chipset/GPU Model | NVIDIA Quadro M5000 |
Chipset Manufacturer | NVIDIA |
CUDA Cores | 2048 |
GPU Clock | 861 MHz |
Boost Clock | 1038 MHz |
Single Precicion Performance | 4 TFLOPS |
Memory Configuration | 8GB |
Memory Interface | GDDR5 |
Memory Interface Width | 256 BIT |
Memory Bandwidth | 211 GB/S |
Memory Clock | 1653 MHz |
Bus Support | PCI-E 3.0 |
Physical Bus Interface | PCI-E 3.0 X16 |
Supported Technologies | NVIDIA CUDA CORE TECHNOLOGY, SHADER MODEL 5.0, OPENGL 4.5, DIRECTX 12.0, DIRECTCOMPUTE, OPENCL, 3D STEREO SUPPORT, NVIDIA GPUDIRECT SUPPORT, QUAD SYNC COMPATIBLE, NVIDIA NVIEW DESKTOP, HDCP SUPPORT NVIDIA MOSAIC |
Operating Systems | MICROSOFT WINDOWS 7, MICROSOFT WINDOWS 8, MICROSOFT WINDOWS 8.1, MICROSOFT WINDOWS 10, LINUX |
Maximum DP 1.2 Resolution | UP TO 4 DISPLAYS 4096 X 2160 X 30 BPP AT 60HZ ( VIA DISPLAYPORTS DP ) |
Maximum DVI-I Resolution | 2560 X 1600 X 32 BPP AT 60HZ |
Maximum VGA Resolution | 2048 X 1536 X 32 BPP AT 85HZ |
Display Connectors | ONE DUAL LINK DVD-I CONNECTOR, FOUR DISPLAYPORTS DP |
Additional Connectors | ONE SLI CONNECTOR , ONE SYNC CONNECTOR , ONE STEREO 4 PIN |
Power Connectors | ONE 6 PIN POWER CONNECTOR |
Max Power Consumption | 250W |
Max GPU Temperature | 94 IN C |
Recomended System Power | 600W |
Cooling System | ACTIVE FANSINK |
Form Factor | DUAL SLOT, FULL LENGTH, FULL HEIGHT |
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
