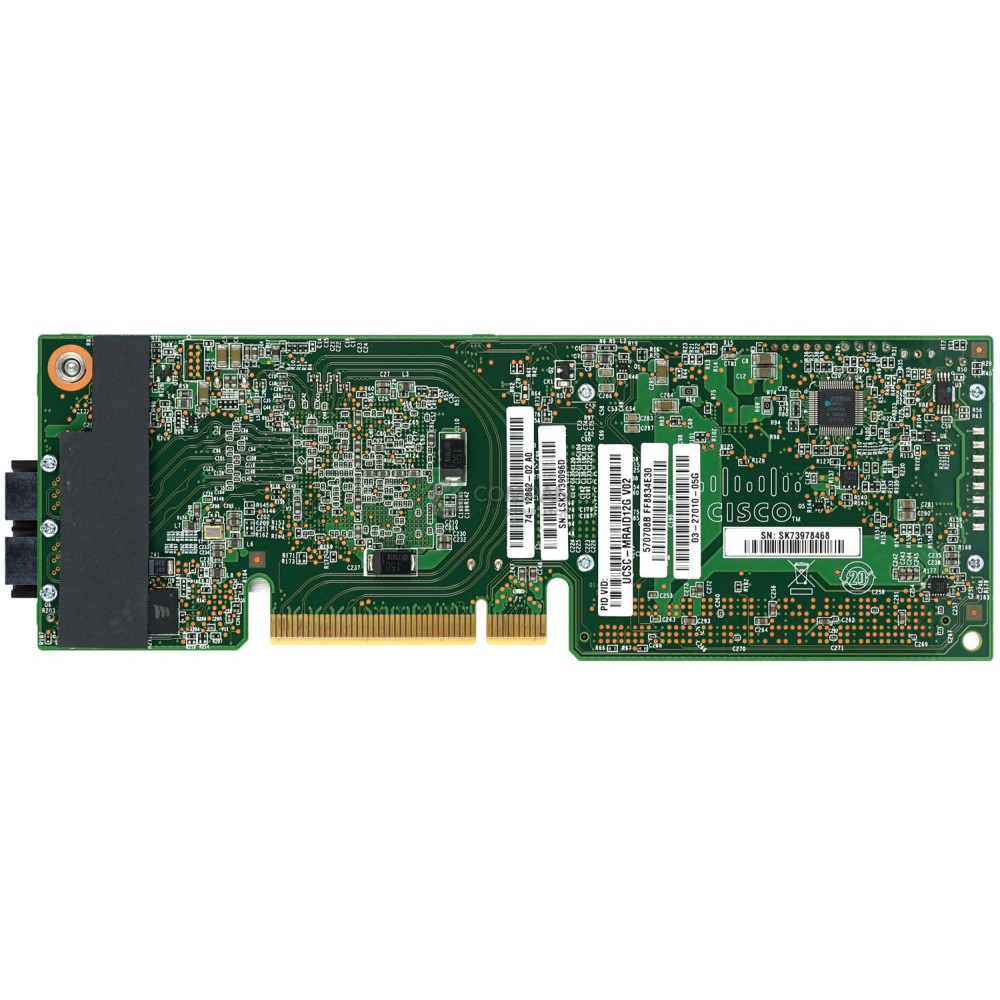

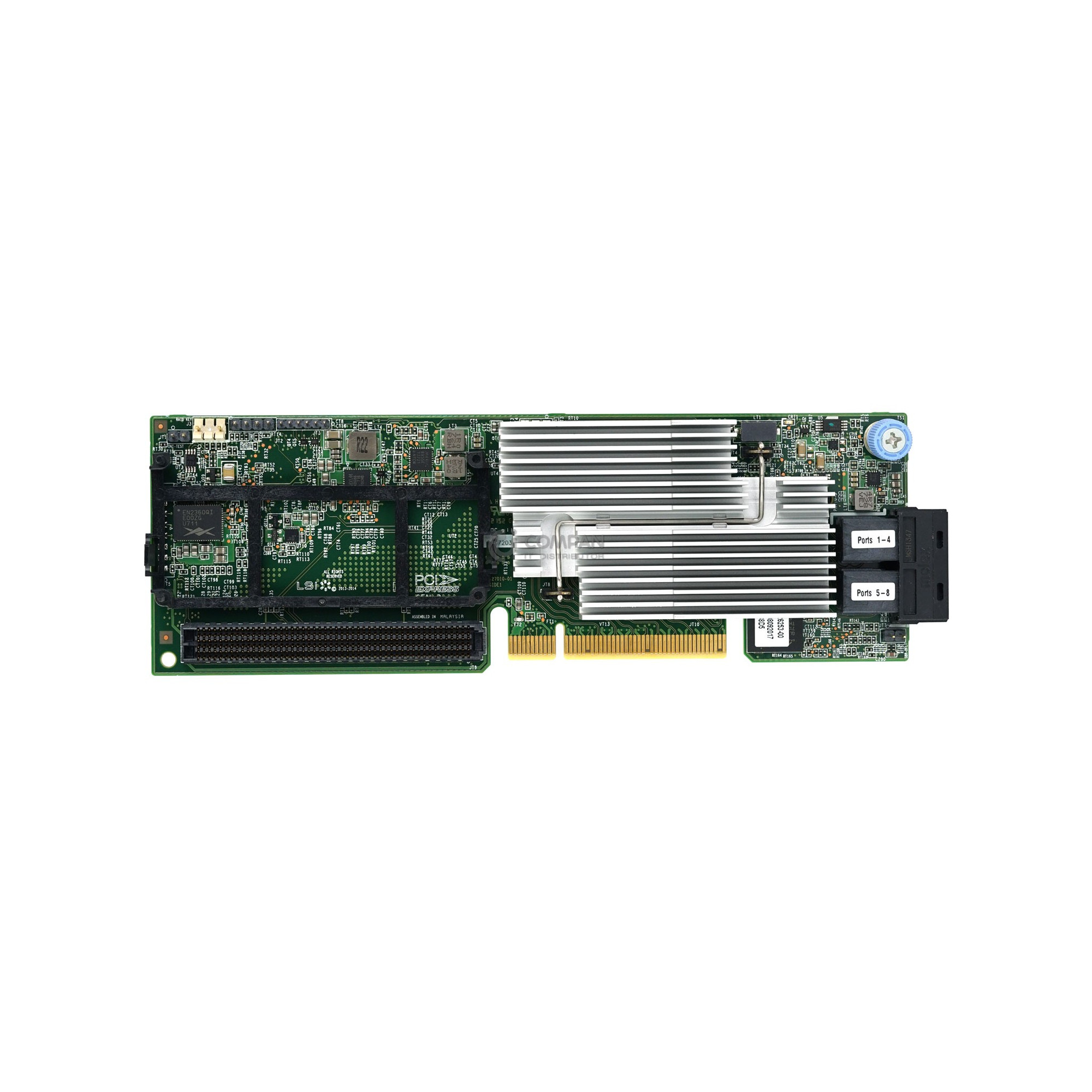

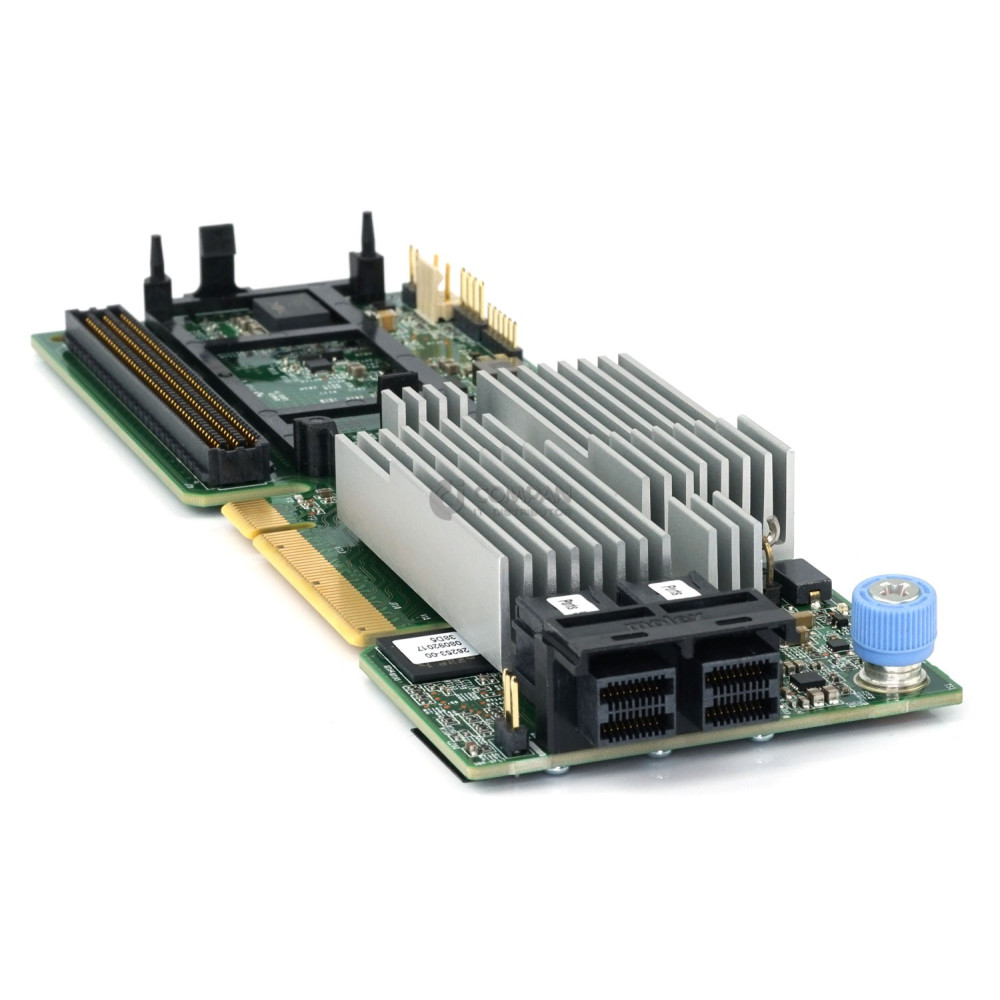

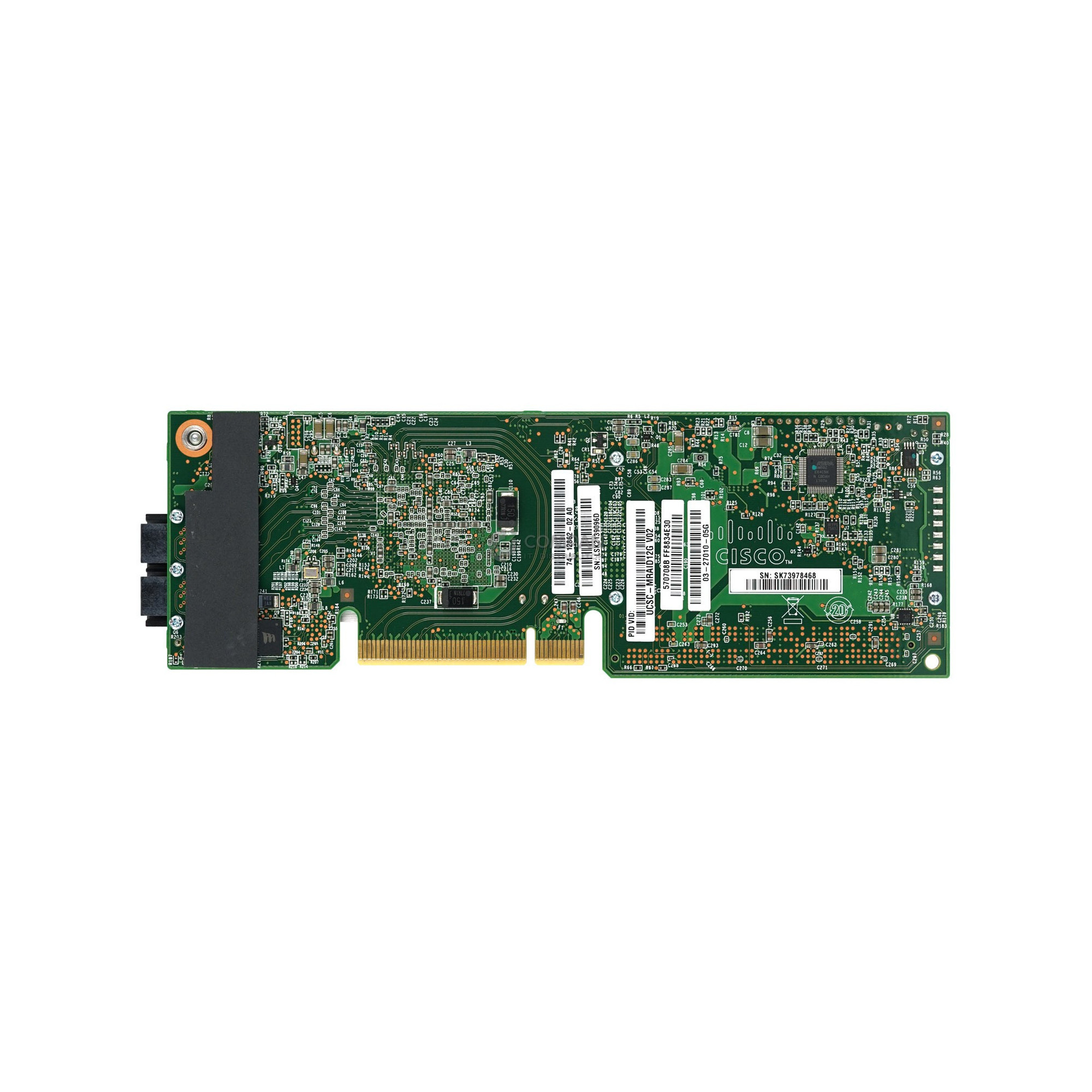

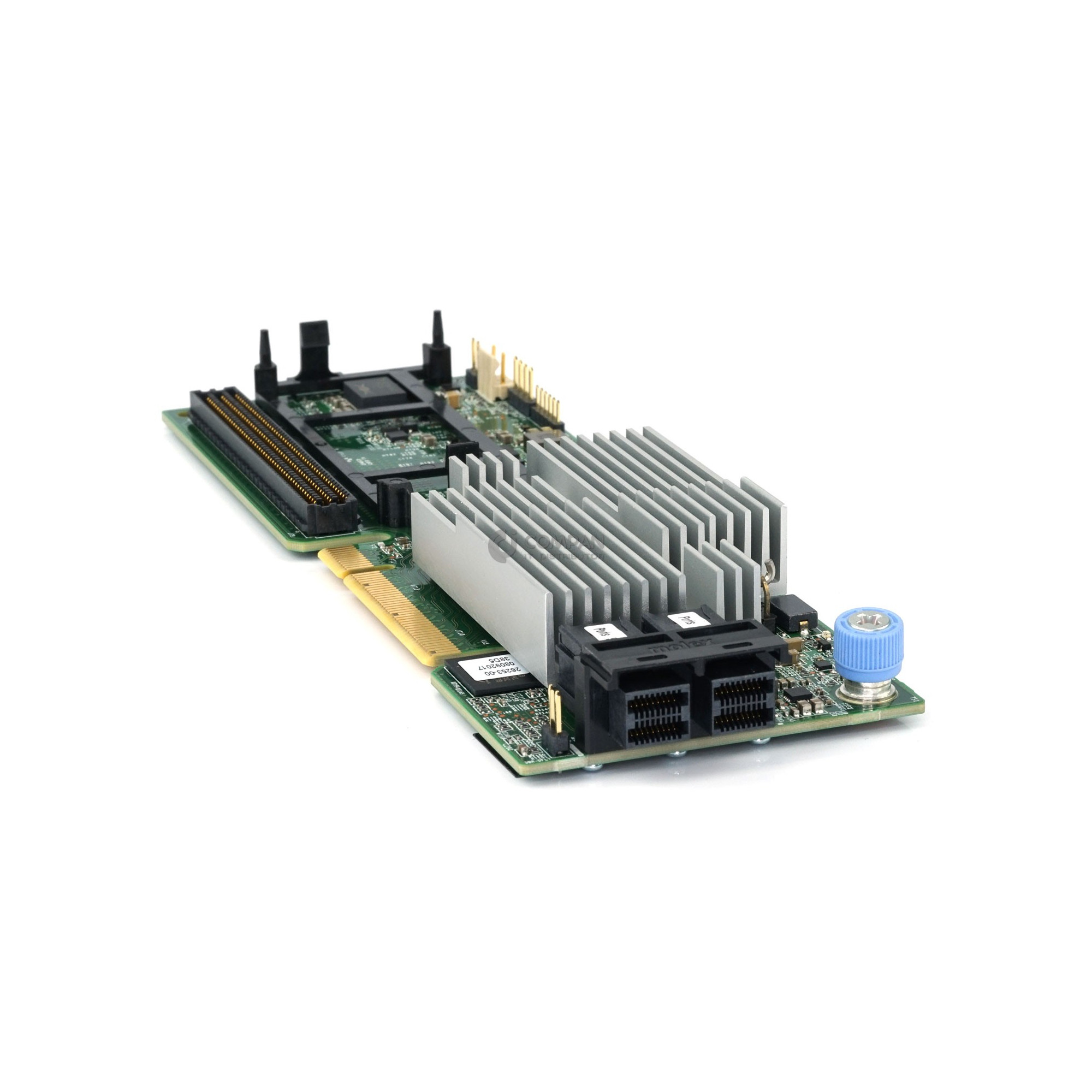

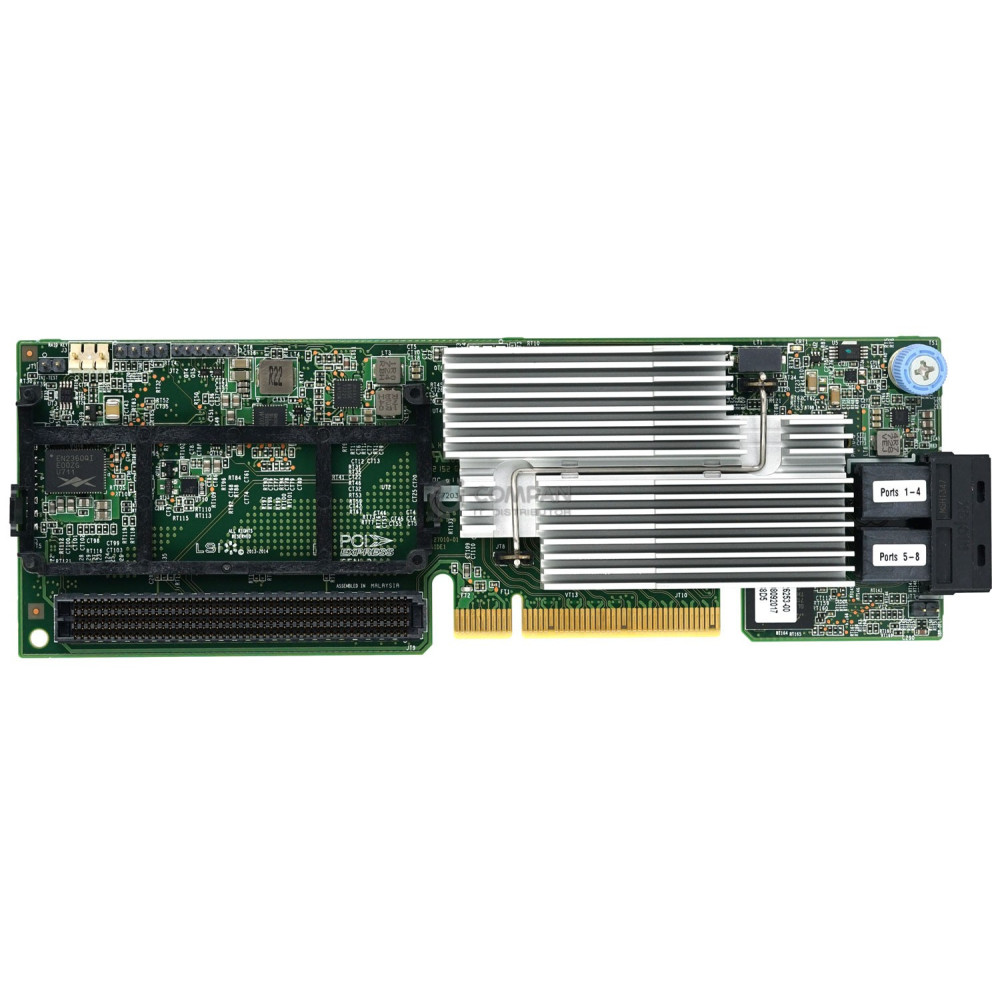

UCSC-MRAID12G / CISCO UCS 12G SAS MODULAR 8-PORT RAID CONTROLLER
Brand:
CISCO
|
Part Number: UCSC-MRAID12G
Description
A RAID controller allows your computer to treat an array of drives as a single logical unit, speeding up data storage and providing redundancy in case one drive fails. The Cisco UCSC‑MRAID12G Modular Raid Controller is built to manage up to 24 internal Mini‑SAS-connected drives at 12 Gb/s for your Cisco UCS Server via its high-speed PCI Express connection.
This device does not come with a cache or battery.
Manufacturer Part Number | UCSC-MRAID12G |
Manufacturer Part Option | 74-12862-01, 03-27010-05C, 74-12862-02 |
Brand | Cisco |
Product Type | Controller |
Type | Storage Controller RAID |
Connector Interface Type | SAS 12Gb/s |
Data Transfer Rate | 12 GB/s |
Form Factor | Plug-In Card |
Ports | 2x Internal Mini SAS |
Drive Support | Up to 24 Drives |
RAID Level | 0, 1, 10, JBOD (5, 6 if FBWC) |
Compatible With | Cisco |
Warranty
The product is covered by a one-year warranty. If you need an extension or warranty care, please contact us.
