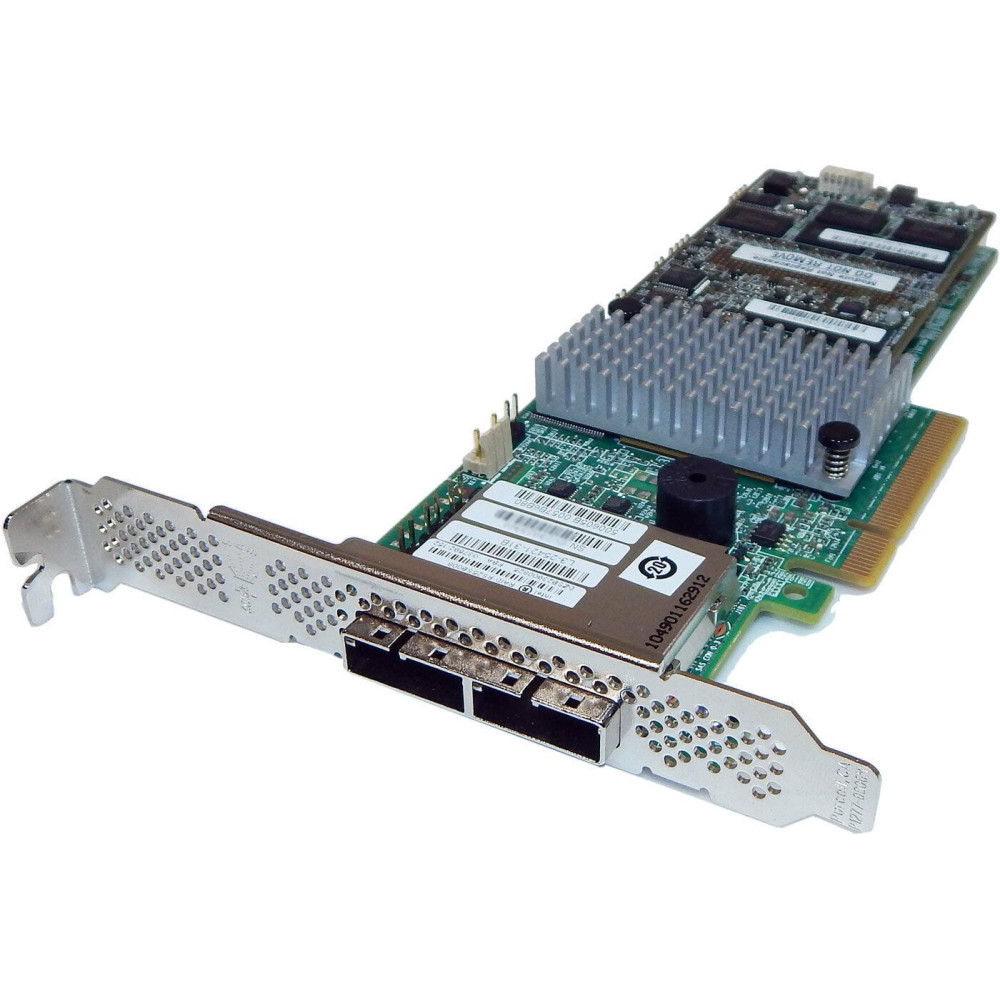

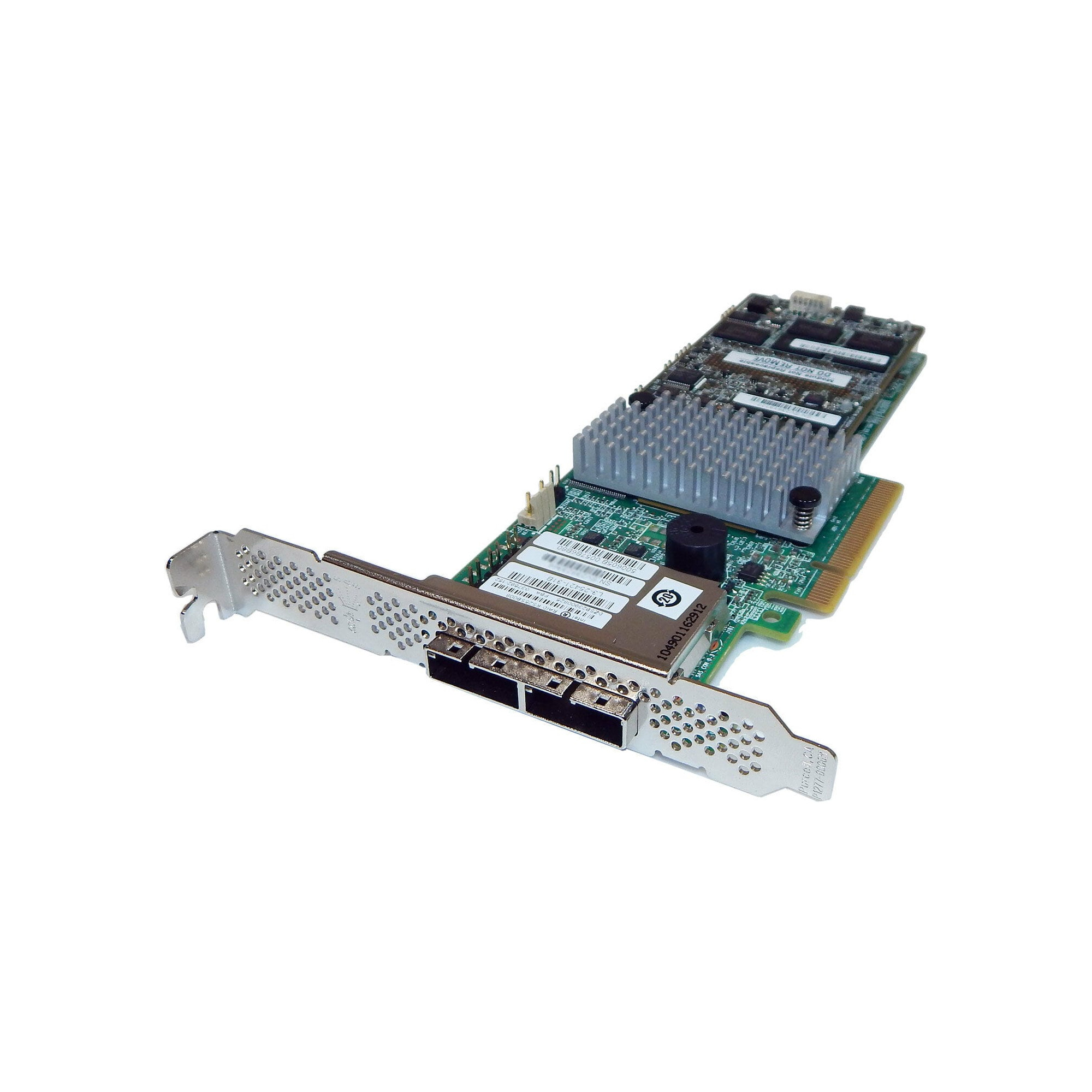

RS25SB008 INTEL 6GB SAS/SATA RAID CONTROLLER PCI-E - L3-25421-42A, L3-25421-42B, SYM-370-2062-01

RS25SB008 INTEL 6GB SAS/SATA RAID CONTROLLER PCI-E - L3-25421-42A, L3-25421-42B, SYM-370-2062-01
Brand: INTEL
Description: 6GB SAS/SATA RAID CONTROLLER PCI-E

Specifications
Product Code	RS25SB008
Essentials
Board form factor	Low-profile MD2
Data transfer rate	6 Gb / s
Supported devices	SAS / SATA
Supported operating systems	Windows*, Linux*, Solaris*, VMware*
Compatible battery backup options	Maintenance-free backup unit (MFBU) included with controller
RAID level supported	0, 1, 5, 6, 10, 50, 60
# of ports internal	0
# of ports external	8
# of devices supported	240
Embedded memory	1 GB
PCI Express* (PCIe*) host interface	PCIe 3.0 x8
I / O processor model	LSI2208*
Connector orientation	Top
Extended warranty available for purchase (select countries)	Yes
Additional features	Support for premium feature options
Included items	Intel RAID Controller, MFBU offload cache module, cache offload module cable, Quick Start User Guide; one standard and one low profile bracket. No SAS cables are included.
Compatible Products Lists
Compatible servers / workstation boards	Intel Server Board S2600JF
	Intel Server Board S2600JFQ
	Intel Server Board S2400SC2
	Intel Server Board S2400EP2
	Intel Server Board S2400EP4
	Intel Server Board S1400FP2
	Intel Server Board S1400SP2
	Intel Server Board S1400SP4
	Intel Server Board S2600WP
	Intel Server Board S2600WPQ
	Intel Compute Module HNS2600WP
	Intel Compute Module HNS2600WPQ
	Intel Compute Module HNS2600JFQ
	Intel Compute Module HNS2600JF
	Intel Compute Module HNS2600JFF
	Intel Server Board S2600JFF
	Intel Server Board S2600WPF
	Intel Compute Module HNS2600WPF
	Intel Server Board S1400FP4
	Intel Server Board S1200V3RPL
	Intel Server Board S1200V3RPS
	Intel Server Board S1200V3RPO
	Intel Server Board S1200V3RPM
Compatible systems	Intel Server System R1304GZ4GC
	Intel Server System R1208GZ4GC
	Intel Server System R1208GL4DS
	Intel Server System R1208GZ4GCSAS
	Intel Server System R2208GZ4GC
	Intel Server System R2216GZ4GC
	Intel Server System R2308GZ4GC
	Intel Server System R2208GL4GS
	Intel Server System R2308GL4GS
	Intel Server System R2312GL4GS
	Intel Server System R2224GZ4GCSAS
	Intel Server System R2312GZ4GCSAS
	Intel Server System H2312JFKR
	Intel Server System H2312JFQKR
	Intel Server System H2312JFJR
	Intel Server System H2312JFQJR
	Intel Server System H2216JFKR
	Intel Server System H2216JFQKR
	Intel Server System H2216JFJR
	Intel Server System H2216JFQJR
	Intel Server System R2208LT2HKC4
	Intel Server System R2304LH2HKC
	Intel Server System P4304SC2SFEN
	Intel Server System P4304SC2SHDR
	Intel Server System P4308SC2MHGC
	Intel Server System R1304SP2SFBN
	Intel Server System R1304SP2SHBN
	Intel Server System R1304SP4SHOC
	Intel Server System H2312WPJR
	Intel Server System H2312WPQJR
	Intel Server System H2312WPKR
	Intel Server System H2312WPQKR
	Intel Server System H2216WPJR
	Intel Server System H2216WPQJR
	Intel Server System H2216WPKR
	Intel Server System H2216WPQKR
	Intel Server System R2216GZ4GCLX
	Intel Server System R2308SC2SHFN
	Intel Server System R2308SC2SHDR
	Intel Server System R2312SC2SHGR
	Intel Server System H2312JFFJR
	Intel Server System H2216JFFJR
	Intel Server System H2312JFFKR
	Intel Server System H2216JFFKR
	Intel Server System H2312WPFJR
	Intel Server System H2216WPFJR
	Intel Server System H2312WPFKR
	Intel Server System H2216WPFKR
	Intel Server System R2224GZ4GC4
	Intel Server System R2312GZ4GC4
	Intel Server System R1304GL4DS9
	Intel Server System R2308GL4DS9
	Intel Server System R2208GL4DS9
	Intel Server System R1208GZ4GS9
	Intel Server System R1304GZ4GS9
	Intel Server System R2208GZ4GS9
	Intel Server System R2308GZ4GS9
	Intel Server System R2312GZ4GS9
	Intel Server System R1304RPSSFBN
	Intel Server System R1304RPOSHBN
	Intel Server System R1208RPOSHOR
	Intel Server System P4308RPLSHDR
	Intel Storage System JBOD2312S2SP
	Intel Storage System JBOD2224S2DP
Intel Server System R1208RPMSHOR
Intel Server System R1304RPMSHOR
Compatible spares, accessories, and services	Intel RAID Extended Warranty
Compatible RAID	Intel RAID SSD Cache with Fast Path* I / O

Variations: L3-25421-42A, L3-25421-42B, SYM-370-2062-01

Part Options:

L3-25421-42A, L3-25421-42B, SYM-370-2062-01, G37692-153
