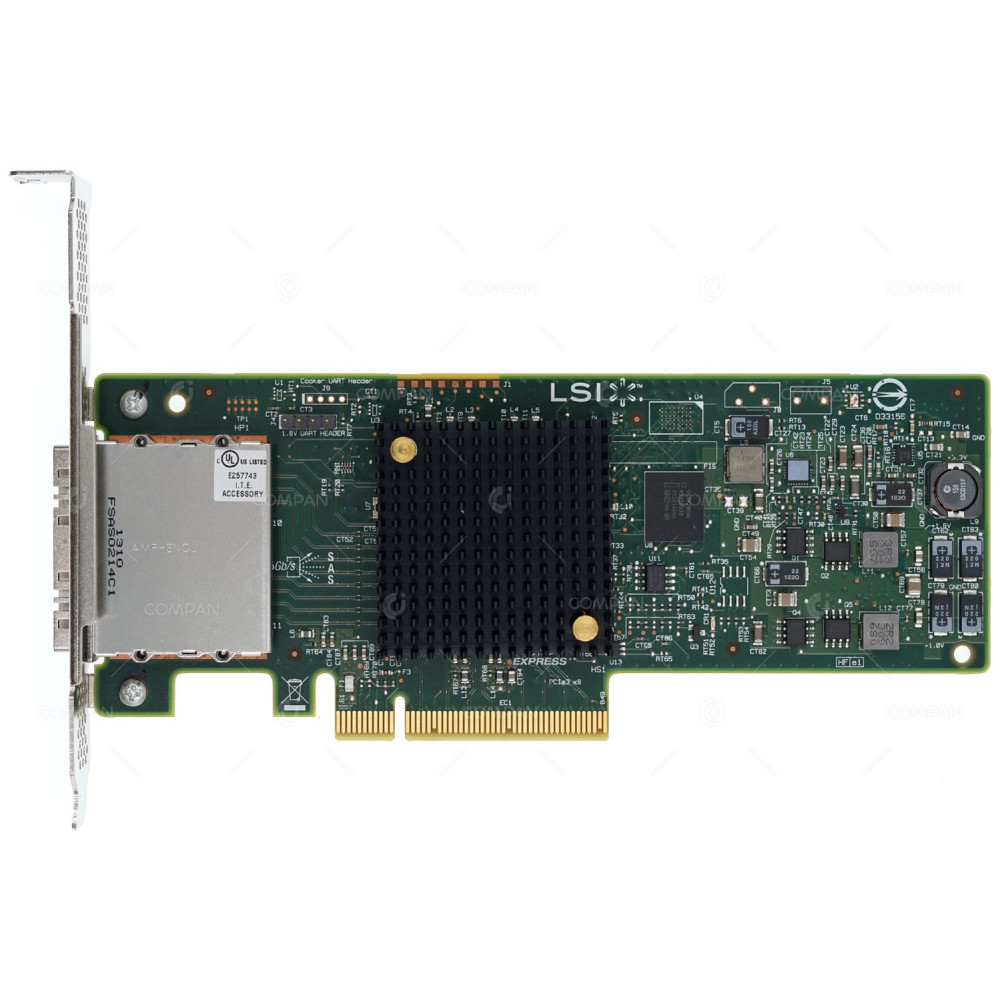

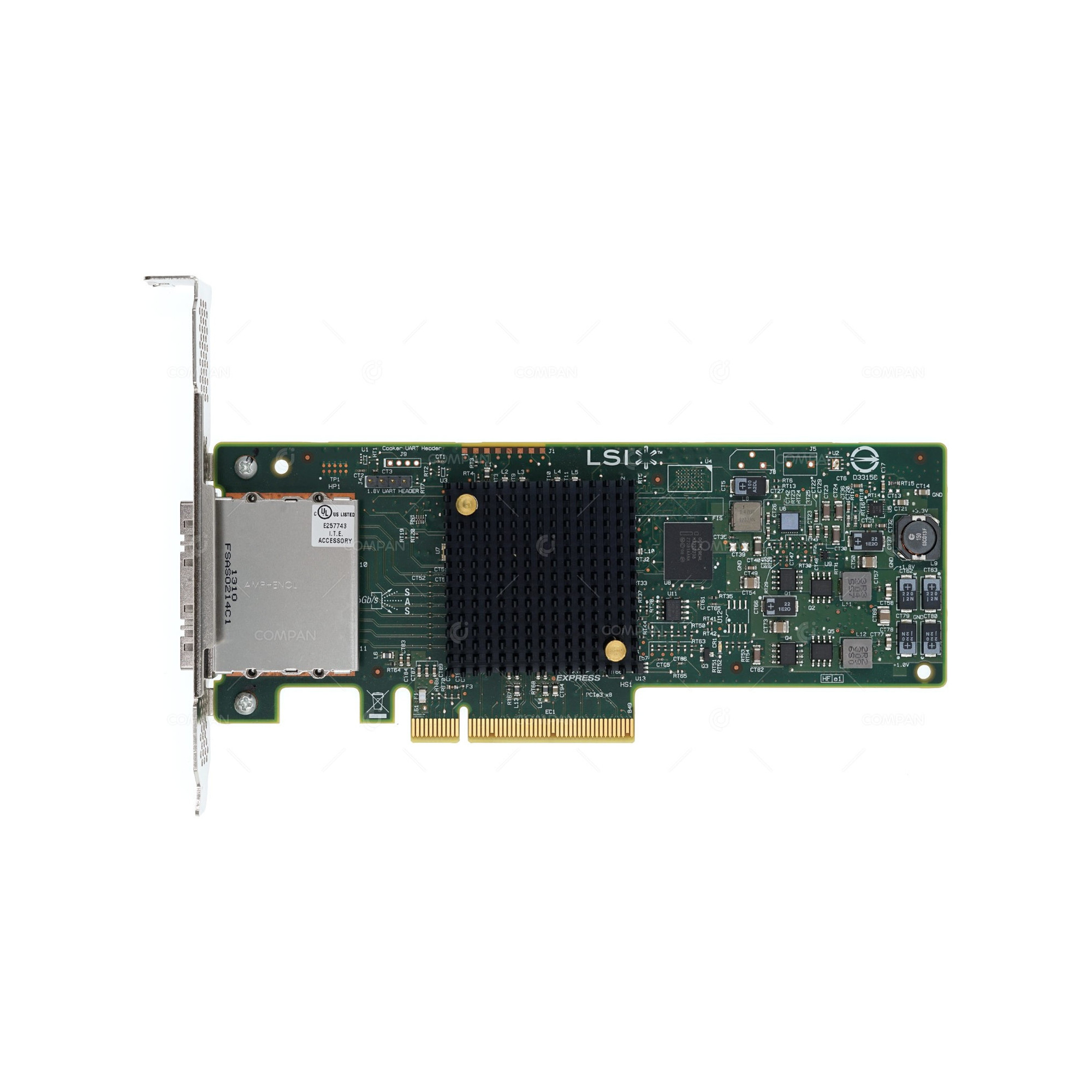

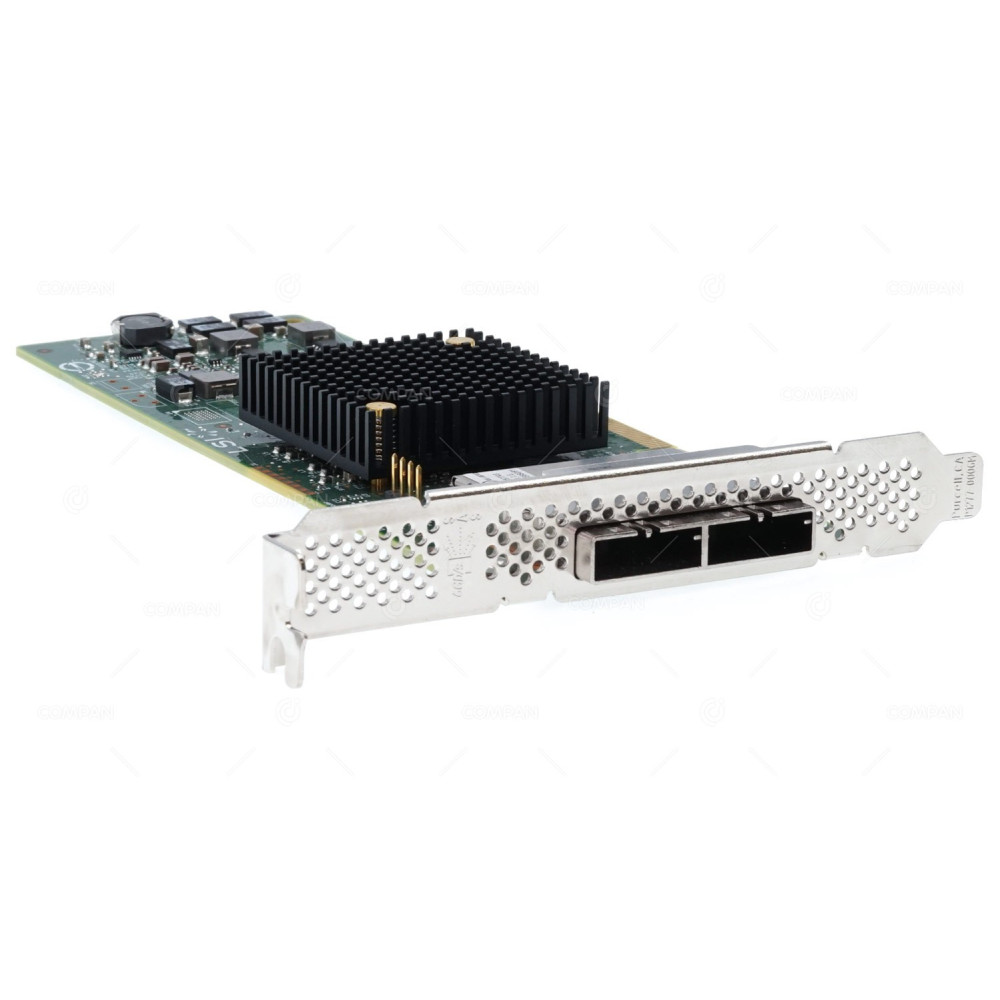

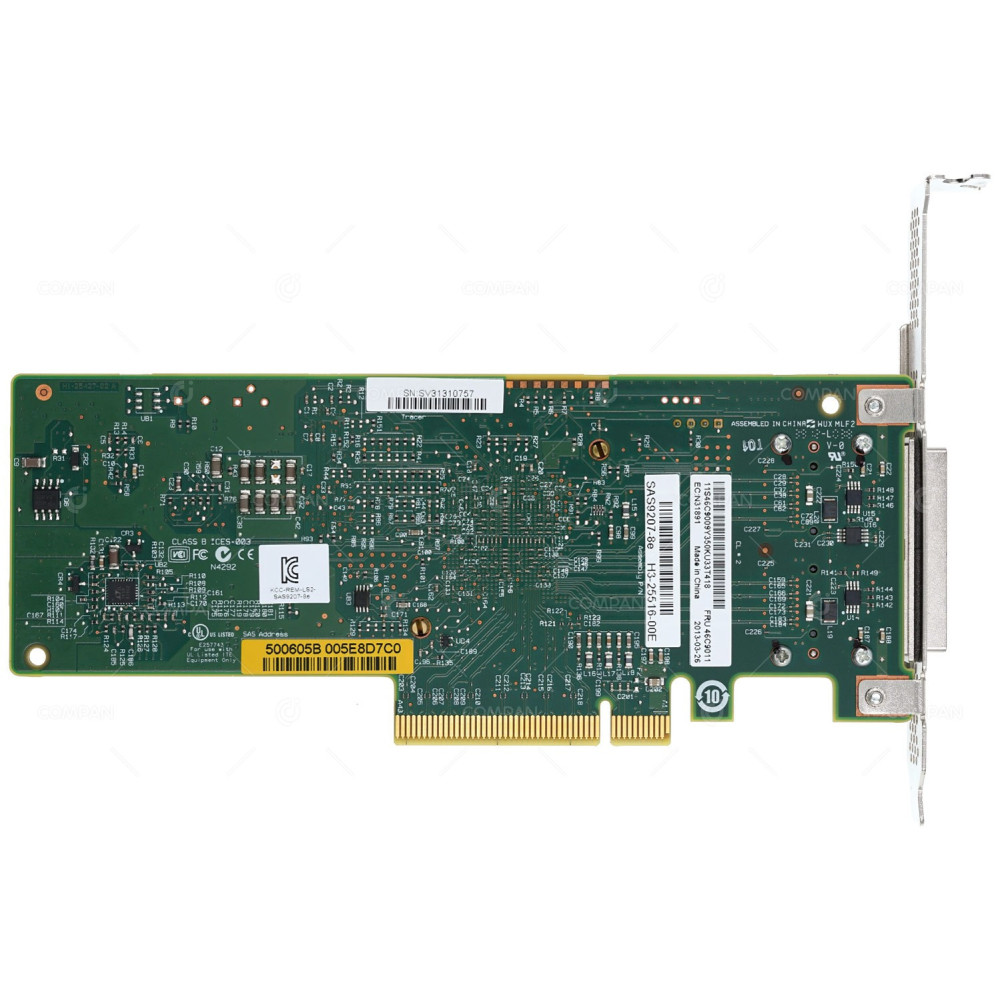

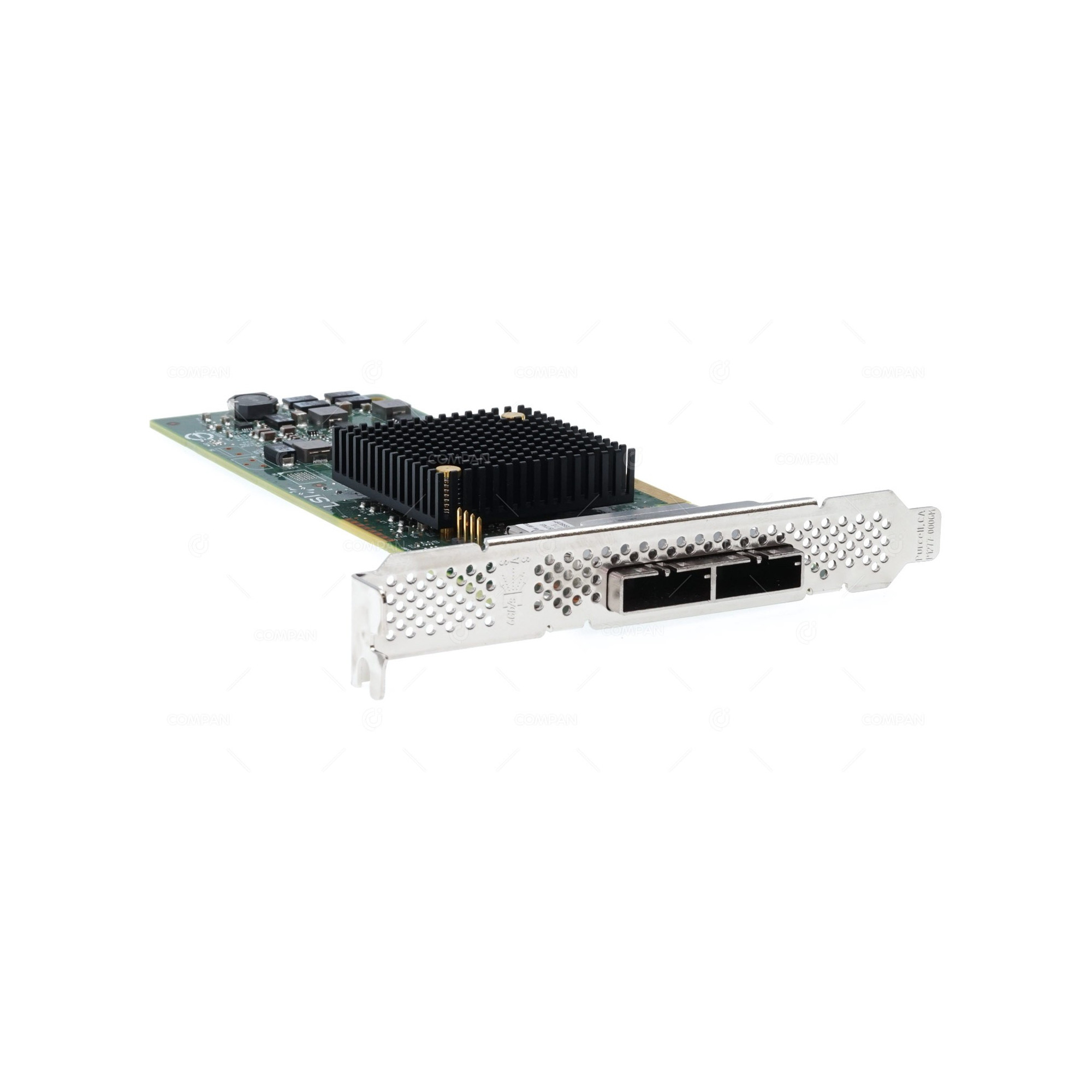

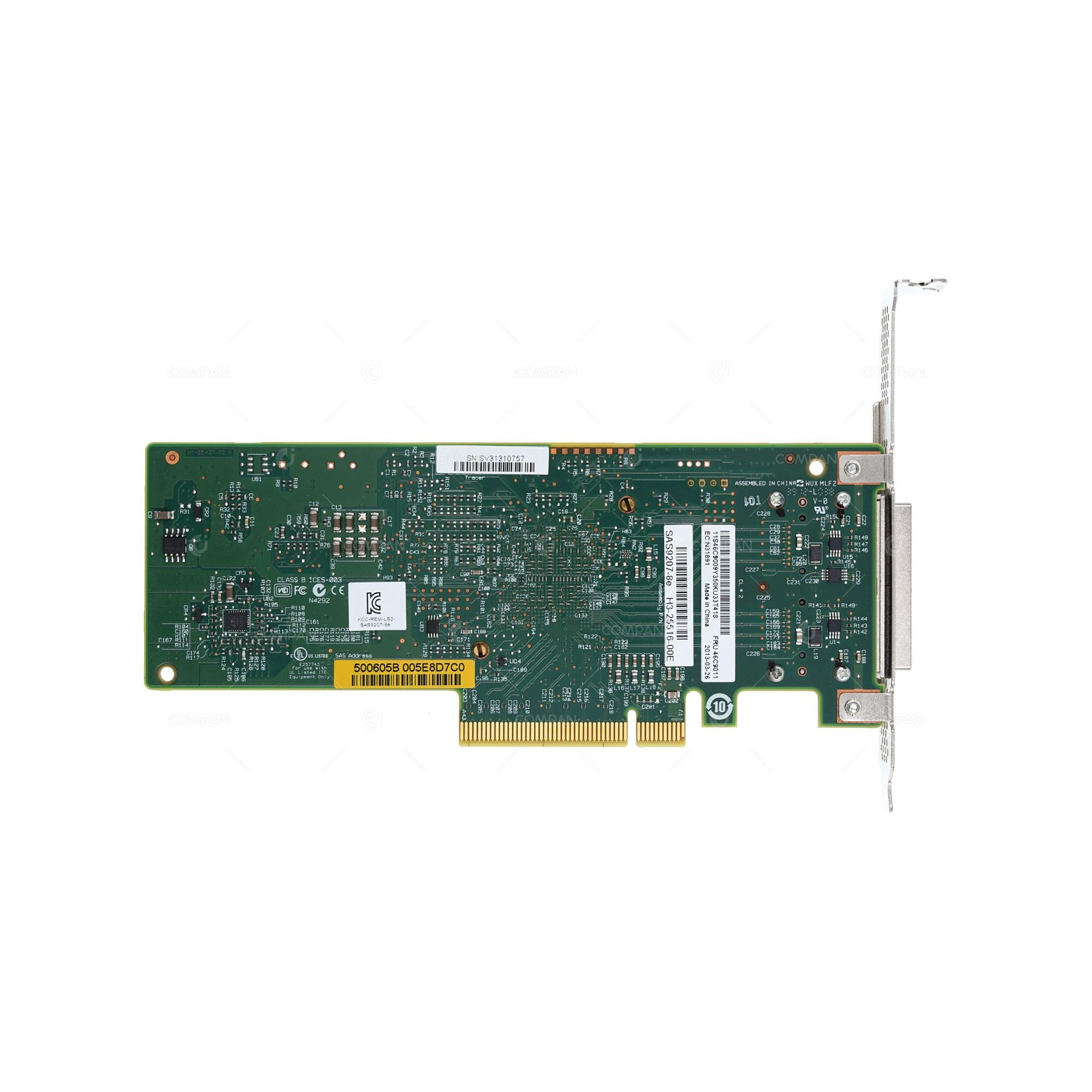

46C9011 IBM N2125 SAS SATA PCI-E 6G CONTROLLER - H3-25516-00E, SAS9207-8E

46C9011 IBM N2125 SAS SATA PCI-E 6G CONTROLLER - H3-25516-00E, SAS9207-8E
Brand: IBM
Description: N2125 SAS SATA PCI-E 6G CONTROLLER

Operational conditions
Operating relative humidity (H-H)	8 - 93 %
Operating temperature (T-T)	5 - 40 °C
Weight & dimensions
Weight	220 g
Width	167.6 mm
Depth	17.27 mm
Height	68.68 mm
Ports & interfaces
Host interface	PCIe
Connector(s)	8 x SAS+SATA, 2 x mini-SAS
Design
Certification	UL cUL IEC60950 EMC FCC TUV CE VCCI BSMI C-tick KC
Purpose	Server
Internal	True
Features
Chipset	LSI SAS2308
Data transfer rate (max)	6 Gbit/s

Variations: H3-25516-00E, SAS9207-8E

Part Options:

h3-25516-00e, sas9207-8e
