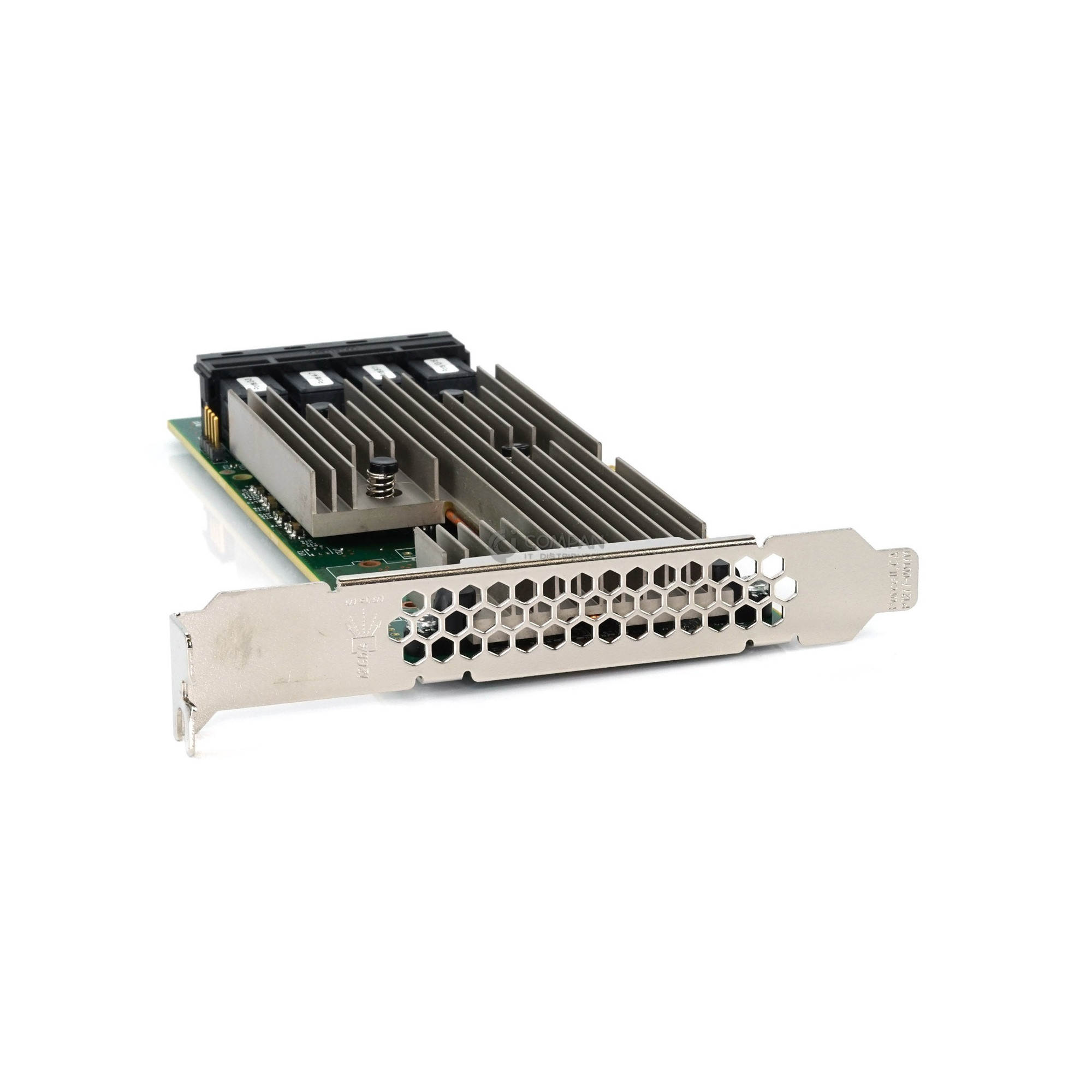

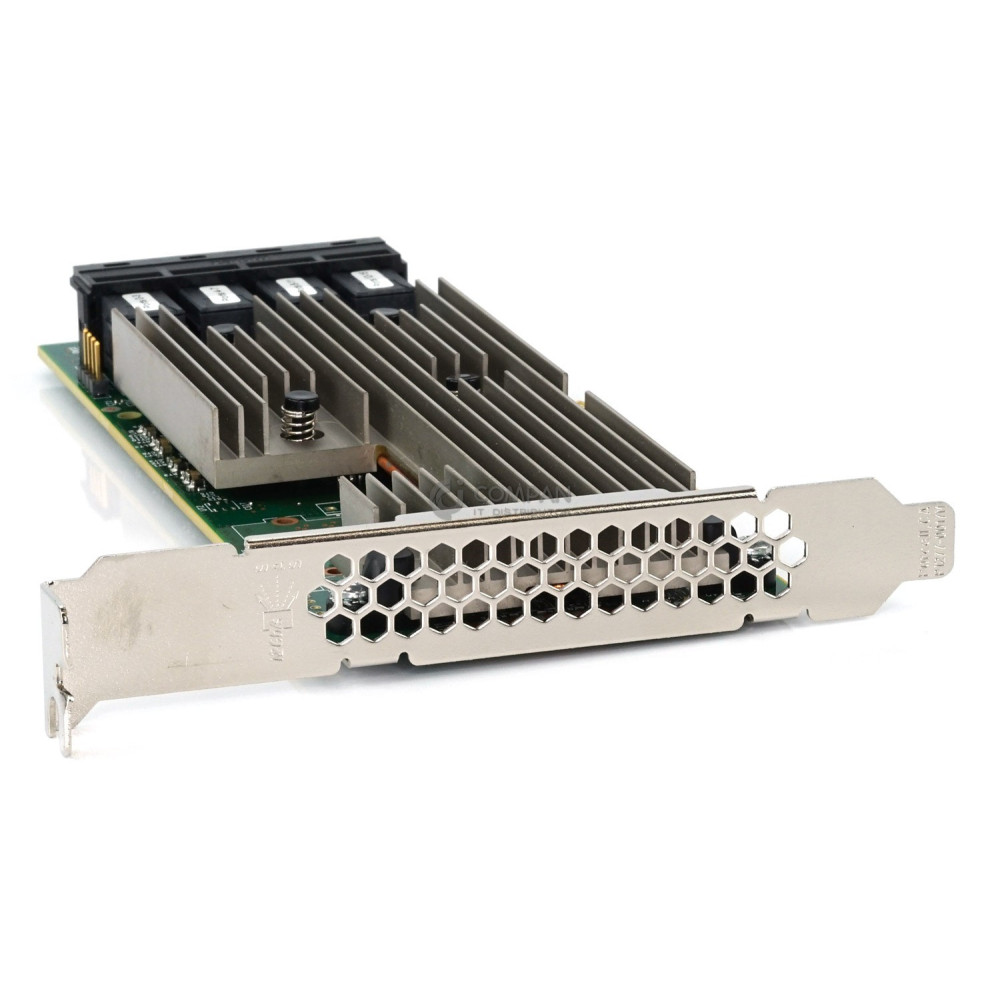

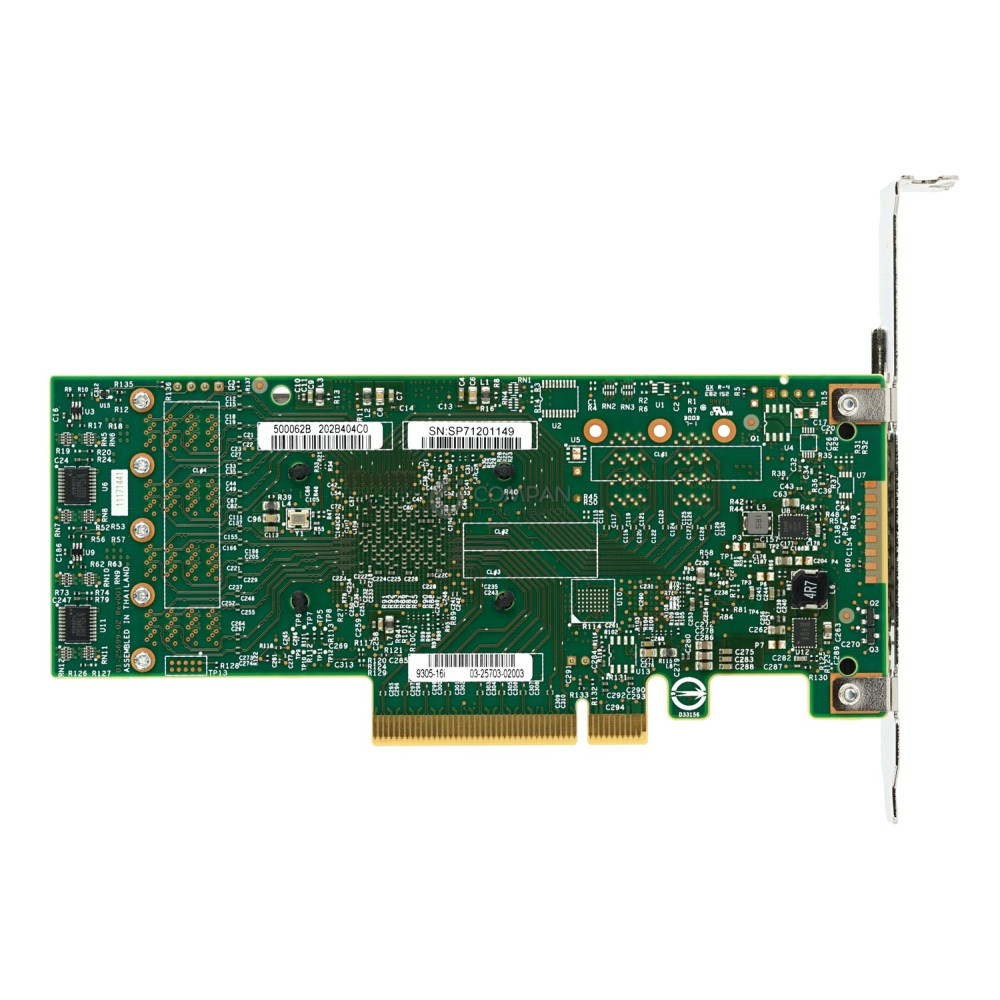

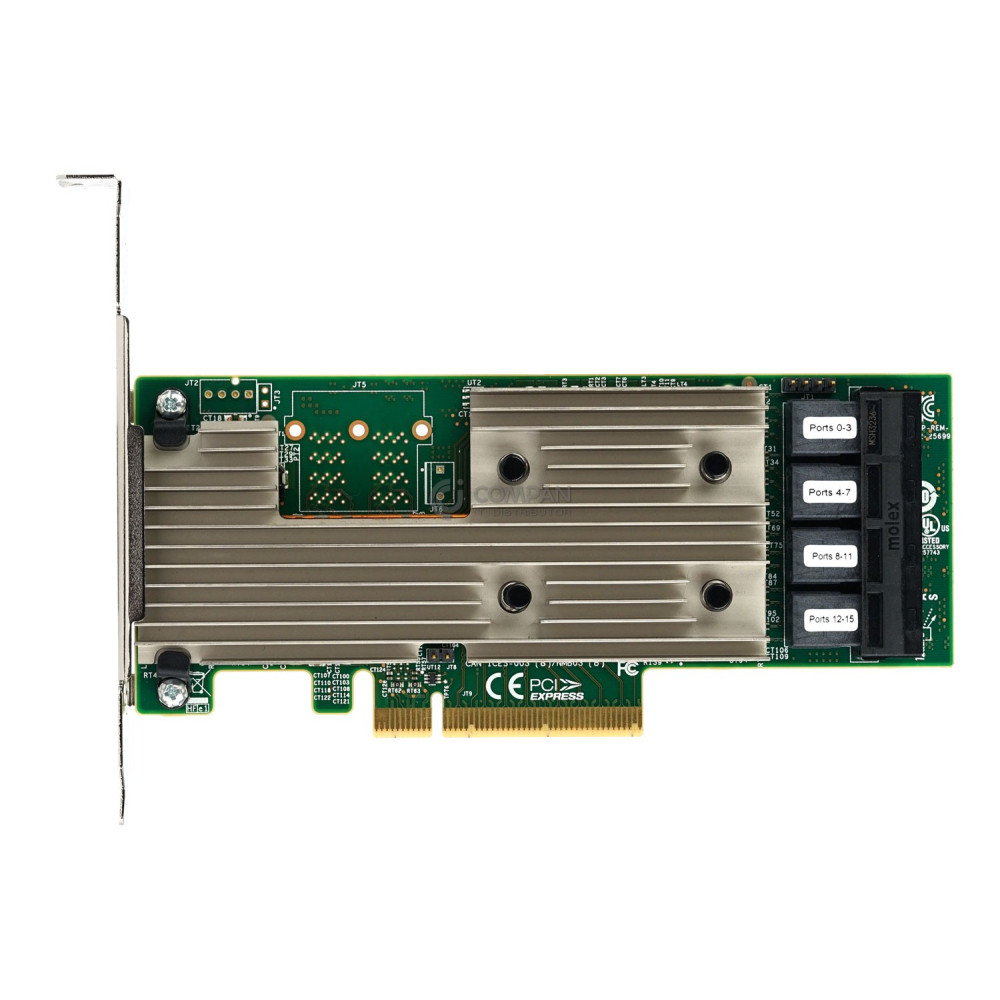

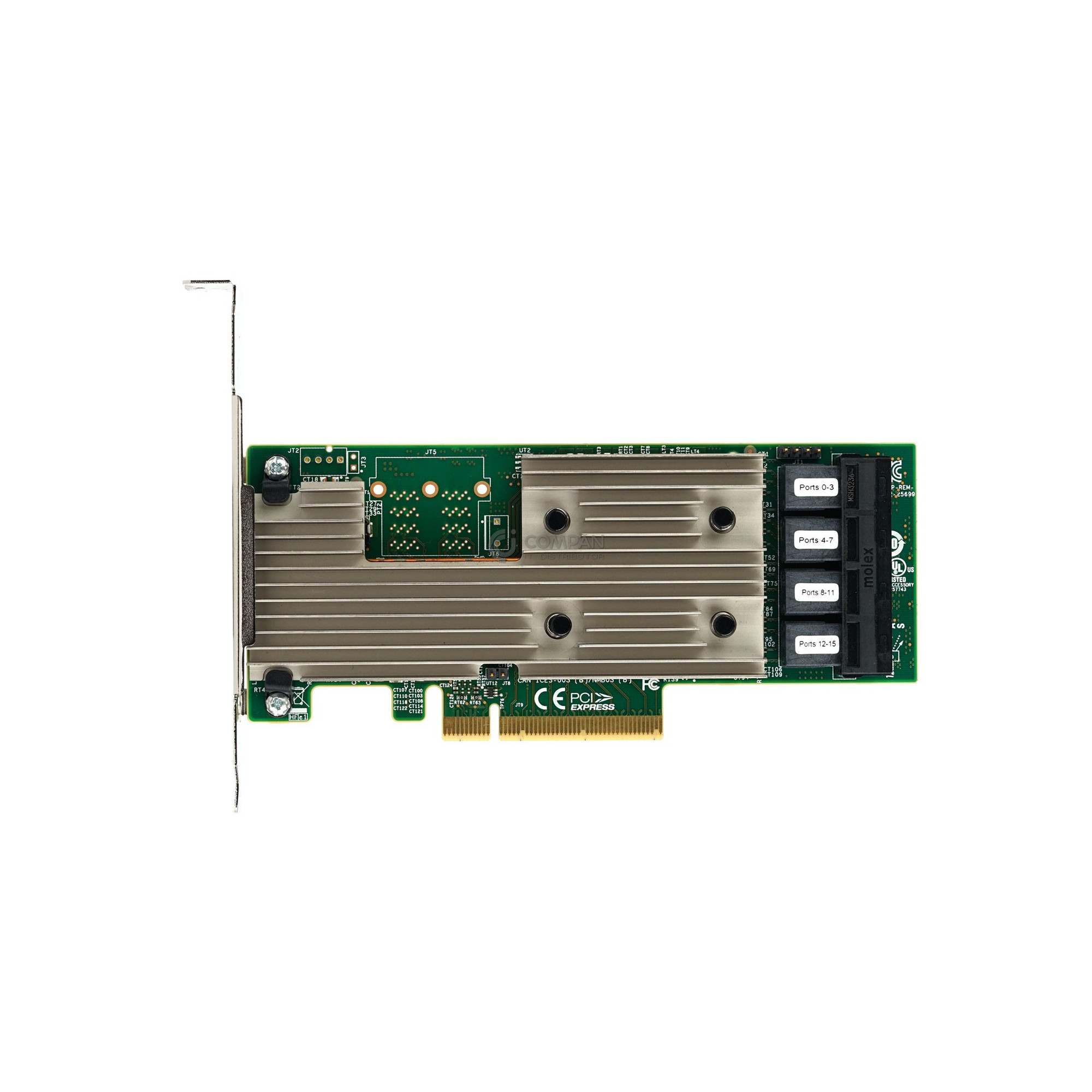

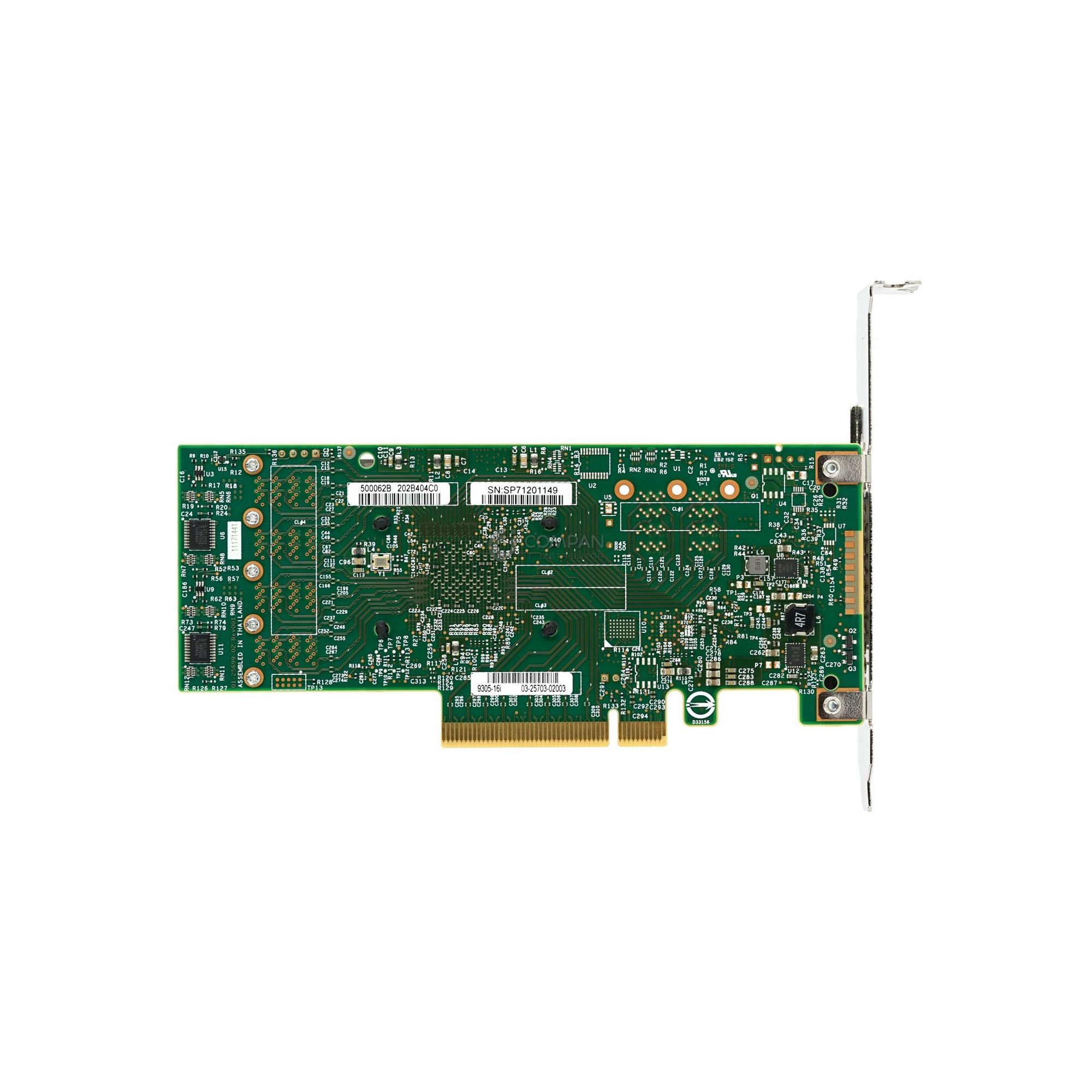

9305-16I LSI LOGIC 12G SAS 16-PORT PCI-E 3.0 RAID CONTROLLER
Brand:
LSI LOGIC
|
Part Number: 9305-16I
Description
9305-16I LSI LOGIC 12G SAS 16-PORT PCI-E 3.0 RAID CONTROLLER
Brand: LSI LOGIC
Description: 12G SAS 16-PORT PCI-E 3.0 RAID CONTROLLER
Brand: LSI LOGIC
Description: 12G SAS 16-PORT PCI-E 3.0 RAID CONTROLLER
Designed for large-scale, data-intensive applications, the SAS 9305-16i 12Gb/s SAS HBA is ideal for increased connectivity and maximum performance for high-end servers and appliances with internal storage.
With performance of over 1.5 million input-output operations per second (IOPS), this adapter delivers the performance and scalability needed by critical applications.
- Connects up to 1024 SAS and SATA devices with 16 internal 12Gb/s SAS ports
- Provides maximum connectivity and performance for high-end servers and applications.
- Support critical applications with the bandwidth of PCIe® 3.0 connectivity
- Achieve more than 1.5 million IOPS for performance-sensitive applications
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Brackets | Full height and low profile |
| Cable Support | Passive Copper, Active Optical |
| Data Transfer Rates | 12Gb/s SAS-3 Compliant |
| Host Bus Type | x8 lane PCI Express® 3.0 |
| Internal Connectors | 4 Mini-SAS HD SFF8643 |
| Internal Ports | 16 |
| I/O Controller | SAS3224 |
| Management Software | MegaRAID Storage Manager (MSM), StorCLI (Command-Line Interface), LSI Storage Authority (LSA), HII UEFI Human Interface Infrastructure), CTRL-R |
| Operating Humidity | 20% to 80% Non-condensing |
| Operating Temperature°C | 0°C to 55°C |
| Operating Voltage (V) | +12V +/-8% |
| PCI Power | Typical: 16.2W |
| Regulatory Certifications | Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), RoHS, Safety: EN60950, WEEE |
| Warranty | 3 years, free advanced technical support and advanced replacement option |
| What's in the box | 9305-16i HBA & documentation CD |
