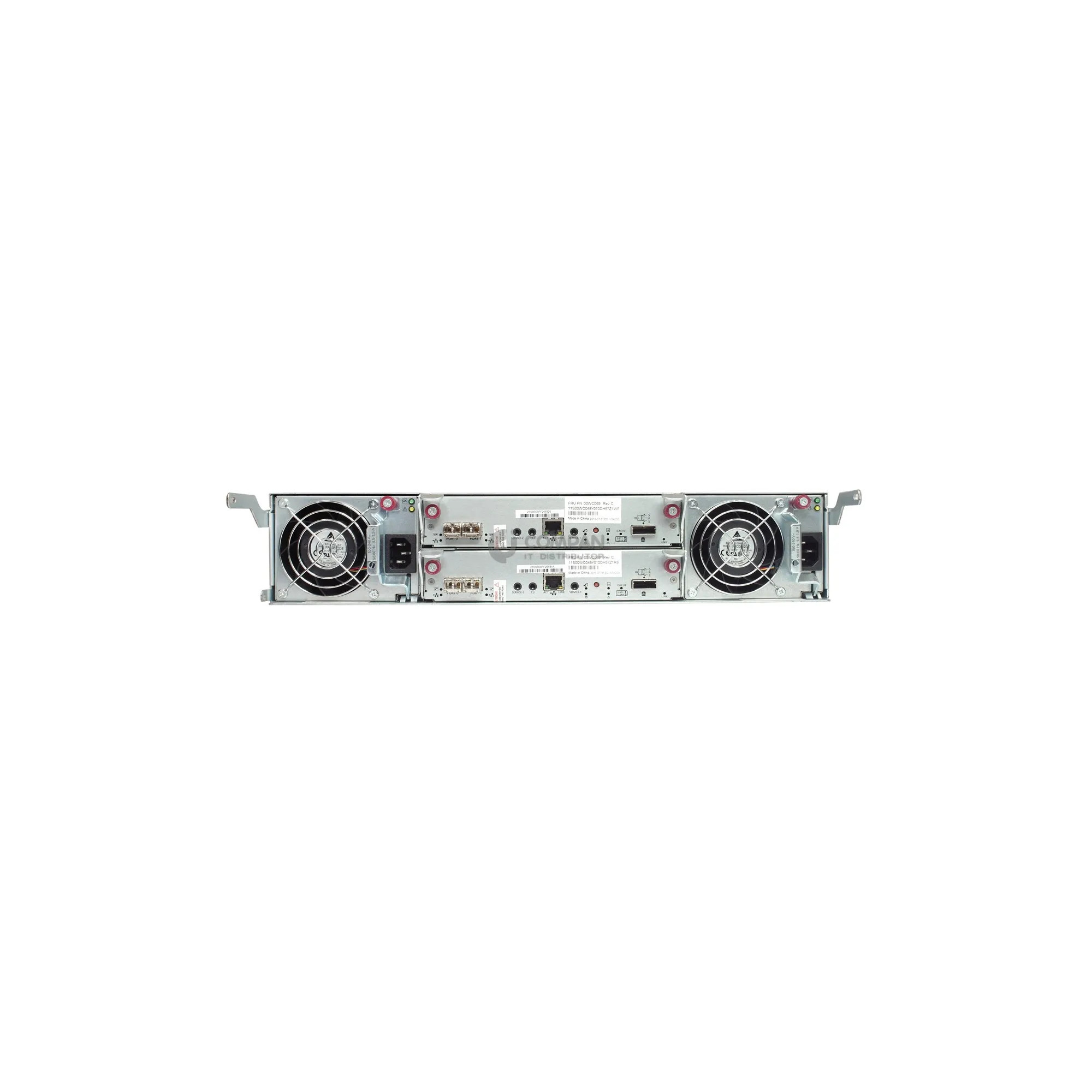

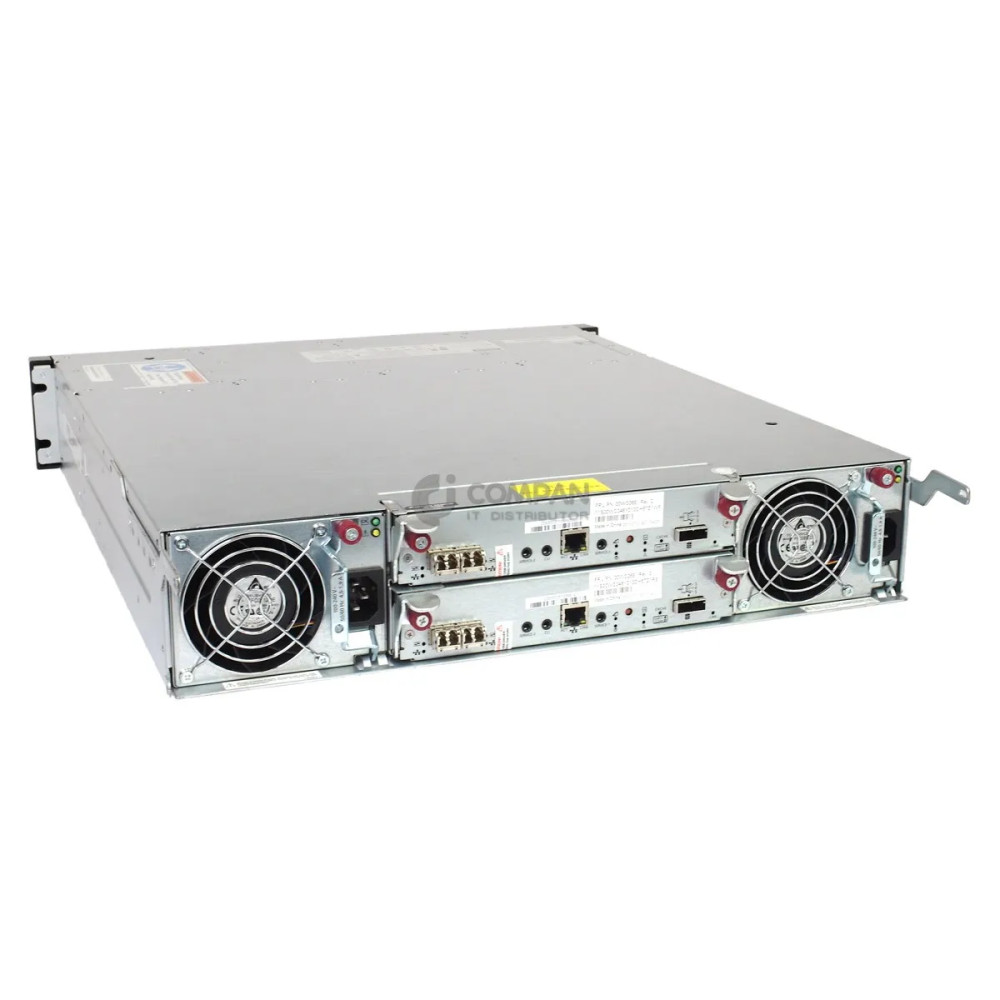

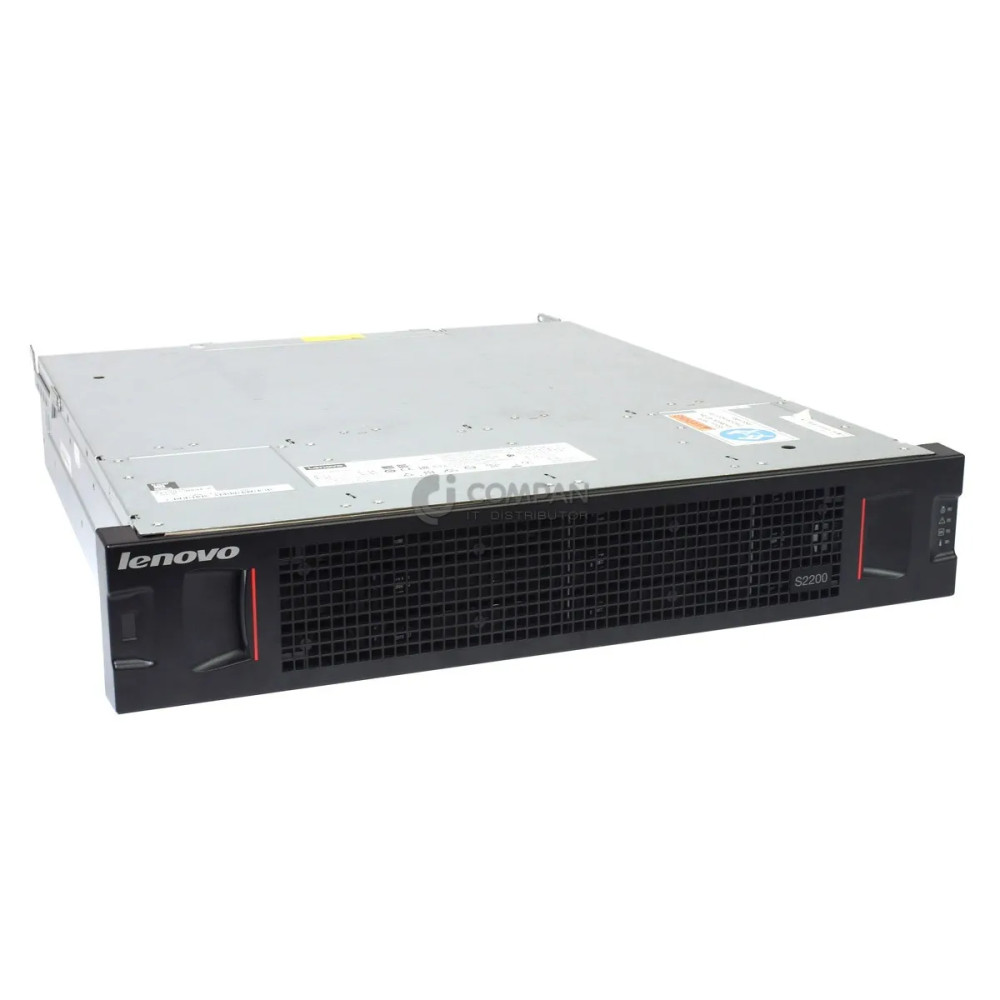

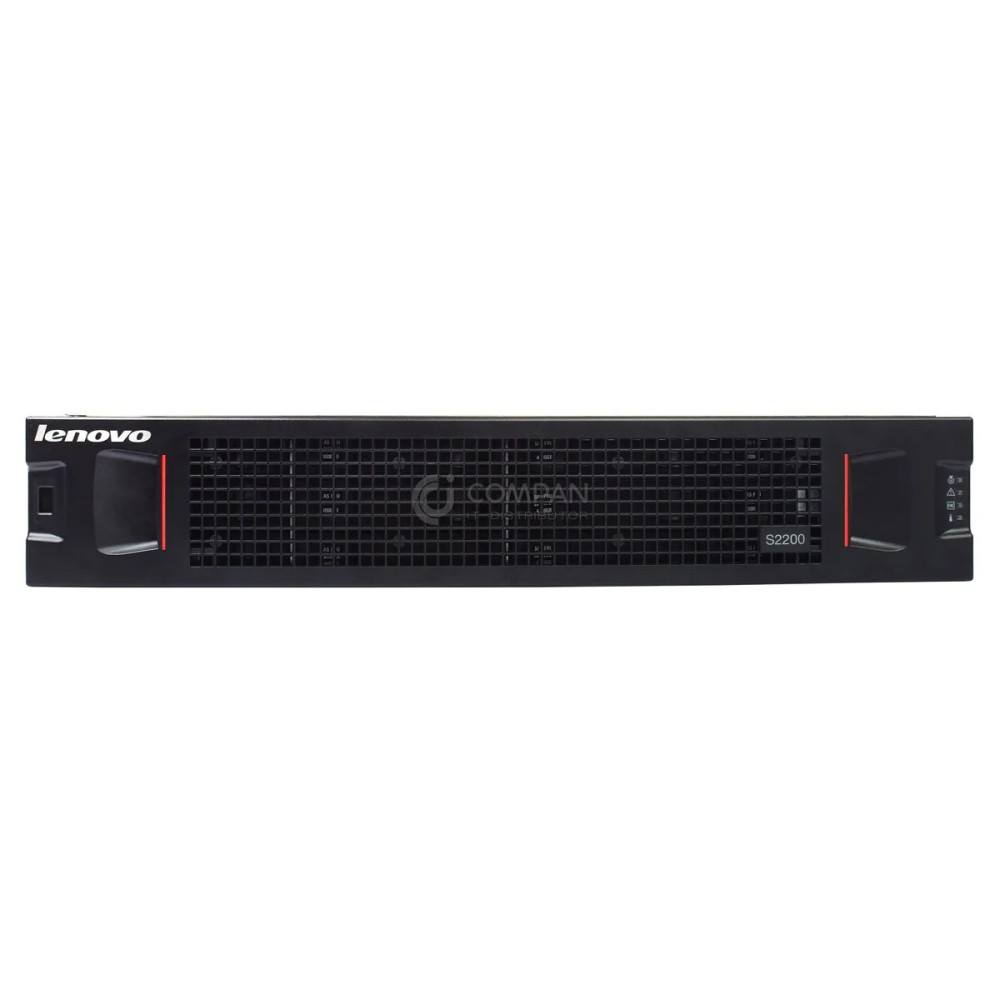

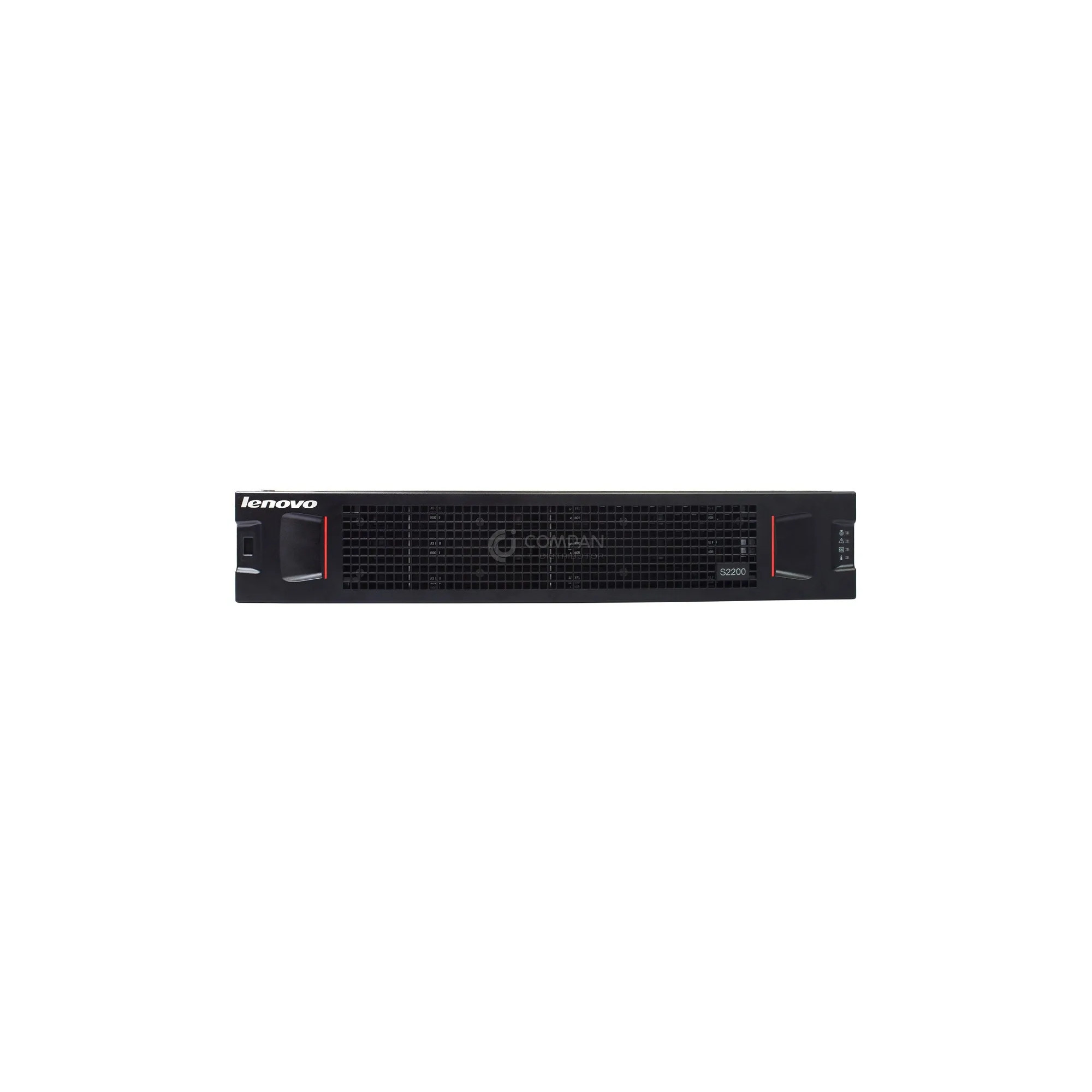

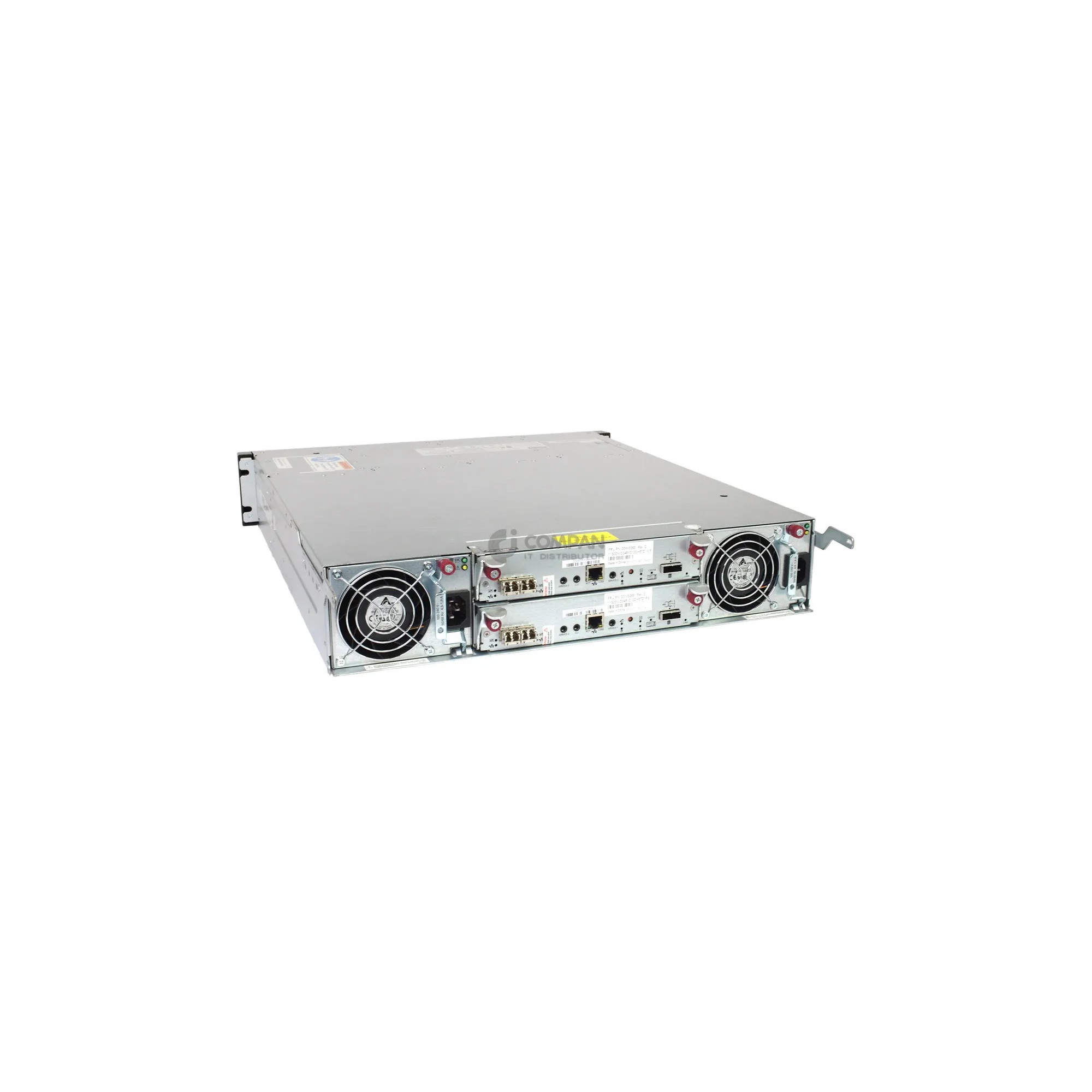

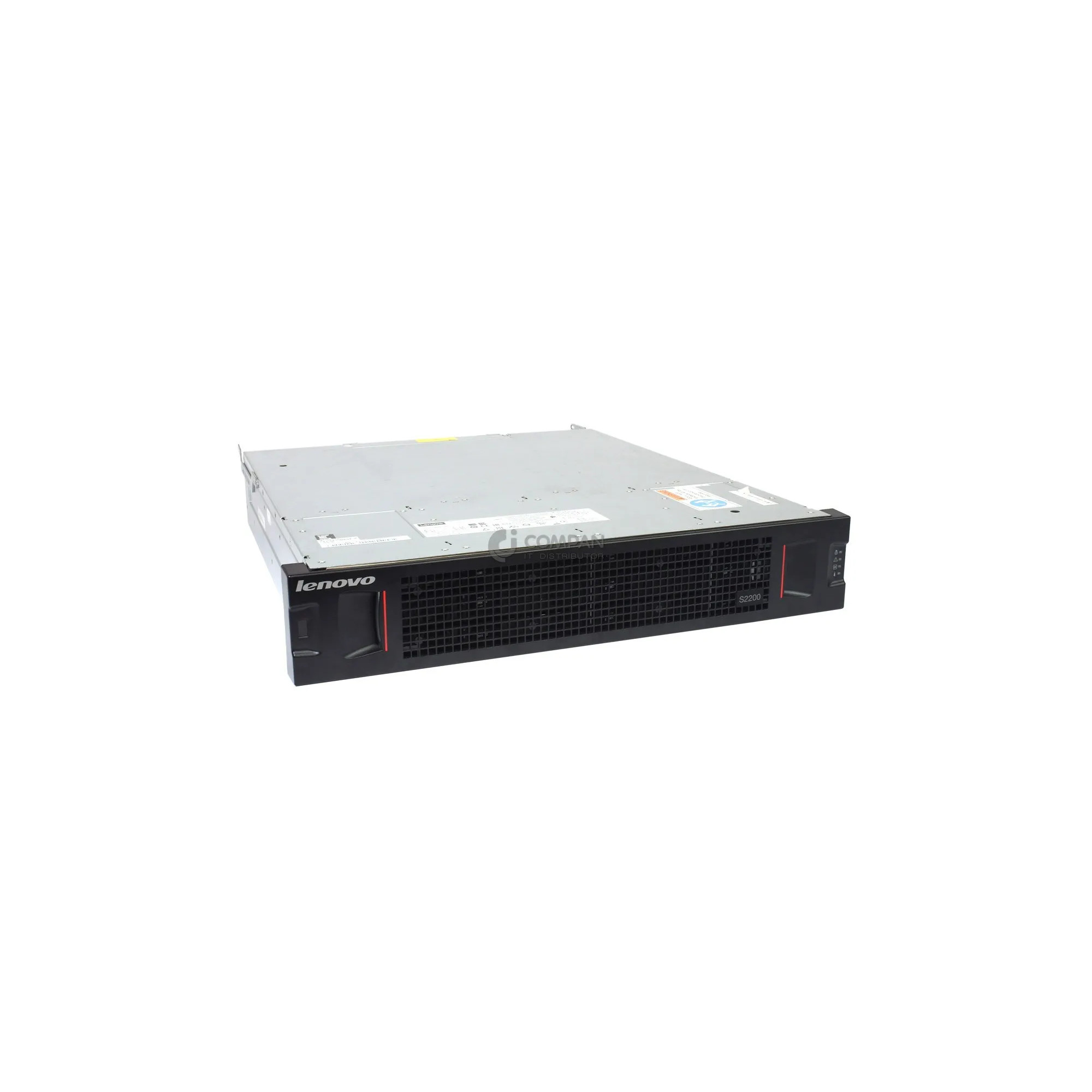

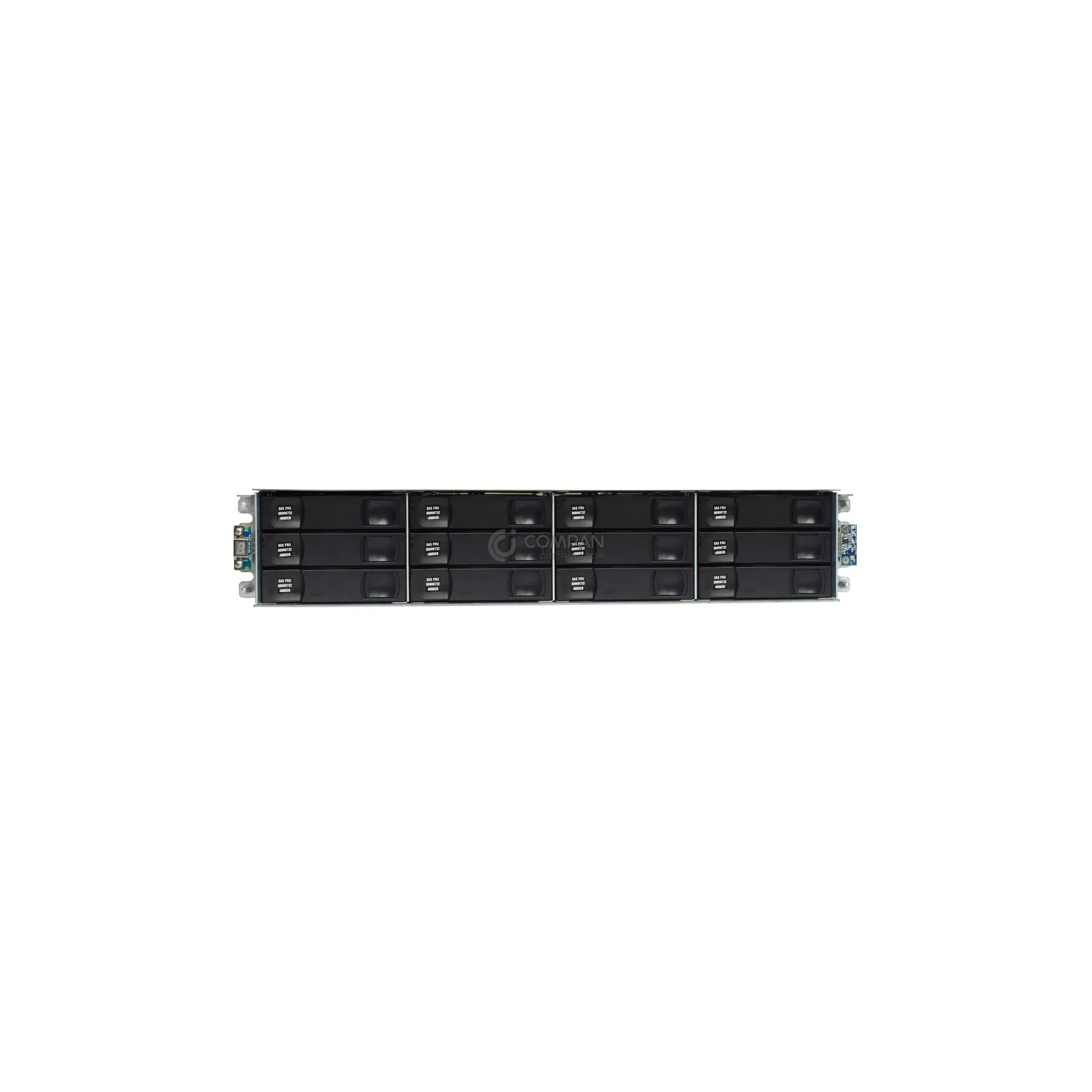

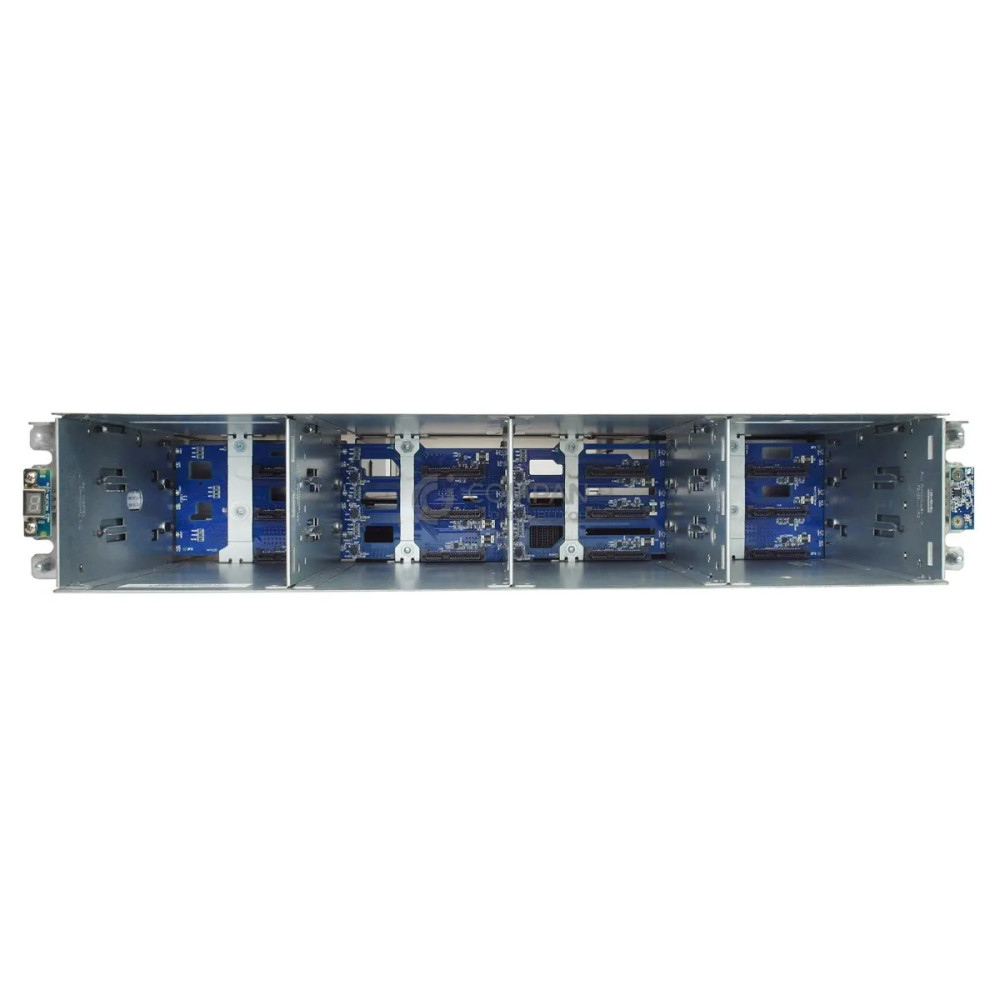

LENOVO STORAGE S2200 12 BAY LFF CONTROLLER ENCLOSURE
Marke:
LENOVO
|
Numer produktu: 6411-HC1
Opis
LENOVO STORAGE S2200 12 BAY LFF CONTROLLER ENCLOSURE 6411-HC1
Specification
| Manufacturer part number | 6411-HC1 |
| Model | S2200 |
| Brand | Lenovo |
| Product type | Storage |
| Form factor | Rack mountable 2U |
| Include |

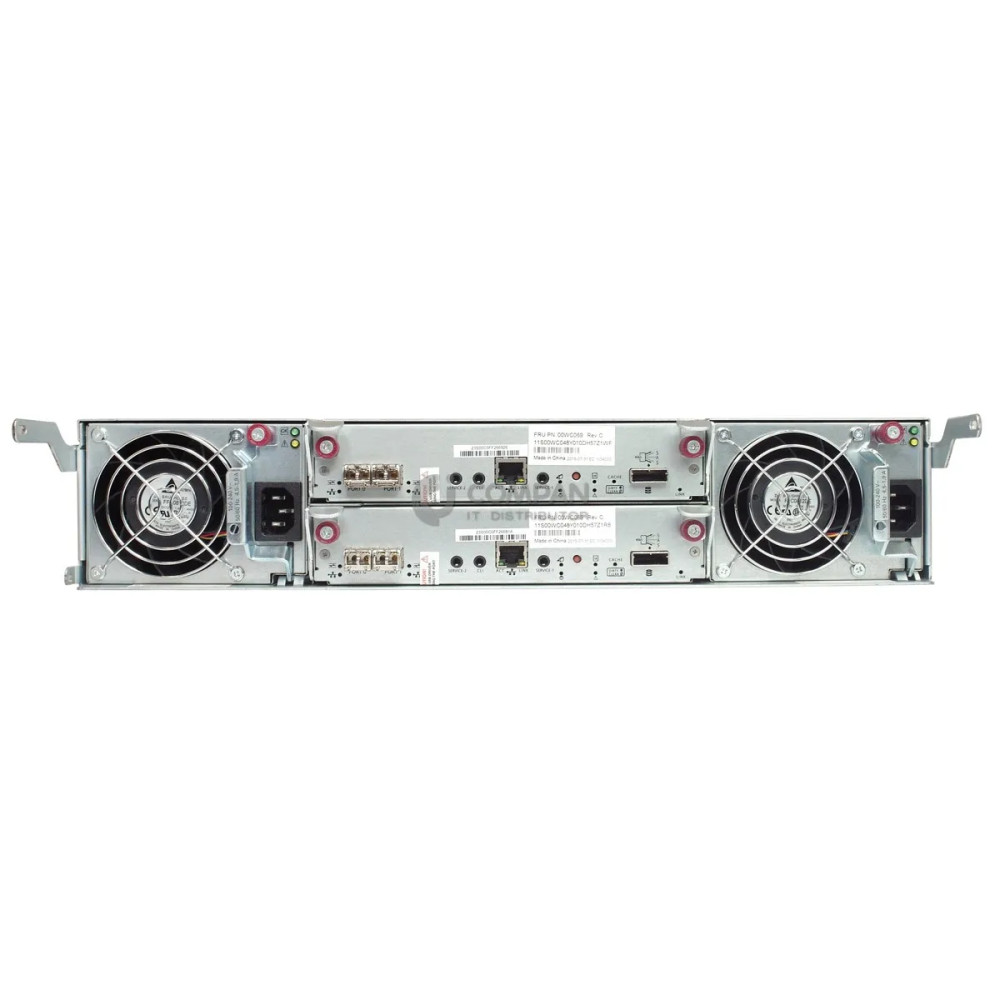

2 x Lenovo 595W power supply for S2200 2 x Lenovo storage FC/ISCSI RAID controller for S2200 |
| RAID levels | RAID 1, 5, 6, 10 |

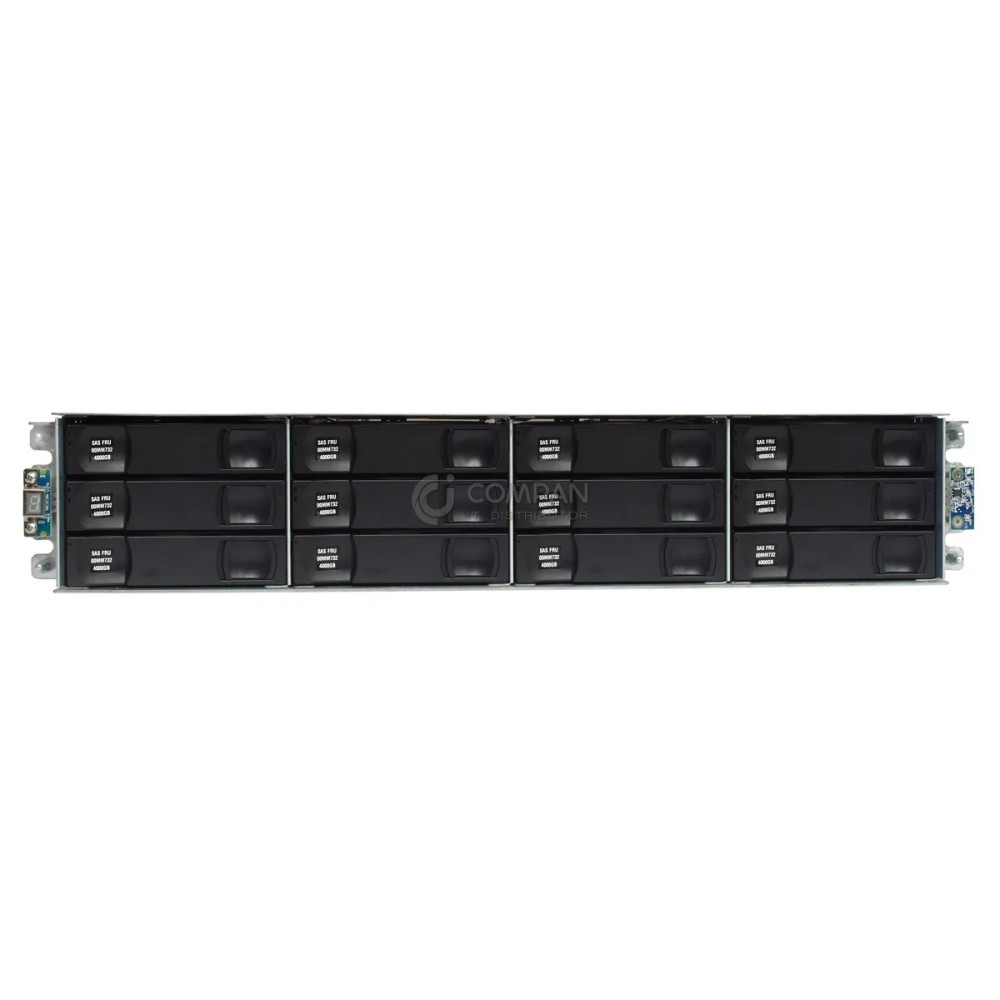

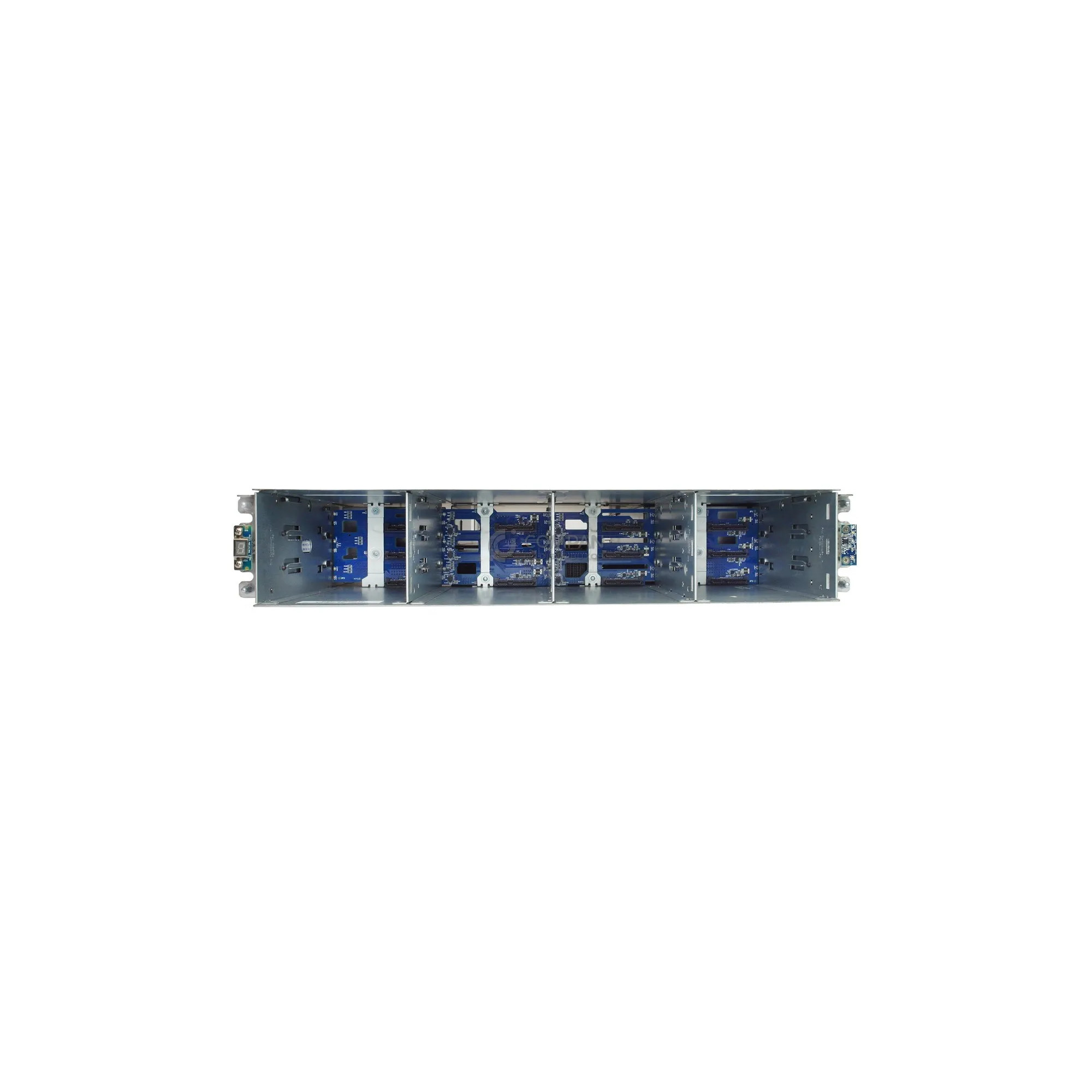

| Drive bays |
Up to 96 SFF drive bays per system: - 24 SFF drive bays in the S2200 controller enclosure - 24 SFF drive bays in the E1024 drive expansion enclosure; up to 3x E1024 enclosures Up to 48 LFF drive bays per system: - 12 LFF drive bays in the S2200 controller enclosure - 12 LFF drive bays in the E1012 drive expansion enclosure; up to 3x E1012 enclosures Intermix of SFF and LFF enclosures is supported. |
| Drive technologies | SAS and NL SAS HDDs and SEDs; eMLC SAS SSDs. Intermix of HDDs and SSDs is supported. Intermix of SEDs with HDDs or SSDs is not supported. |
| Drive connectivity |
Dual-ported 6 Gb SAS drive attachment infrastructure.
Controller enclosure with one or two RAID controllers (ports per one controller): - 24x 6 Gb SAS internal drive ports (SFF chassis) - 12x 6 Gb SAS internal drive ports (LFF chassis) - 1x 6 Gb SAS x4 (Mini-SAS SFF-8088) expansion port for the attachment of the external drive enclosures Drive expansion enclosure with one or two expansion modules (ports per one module): - 24x 6 Gb SAS internal drive ports (SFF chassis) - 12x 6 Gb SAS internal drive ports (LFF chassis) - 2x 6 Gb SAS x4 (Mini-SAS SFF-8088) expansion ports (IN and OUT) for the daisy chained attachment of the external drive enclosures |
| Drives |
SFF drives: - 400 GB, 800 GB, and 1.6 TB SAS SSDs (3 DWD and 10 DWD) - 400 GB and 800 GB SAS SED SSDs (10 DWD) - 3.84 TB SAS SSDs (1 DWD) - 300 GB and 600 GB 15K rpm SAS HDDs - 600 GB, 900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS HDDs - 1 TB and 2 TB 7.2K rpm NL SAS HDDs LFF drives: - 400 GB SAS SSDs (10 DWD) - 600 GB and 900 GB 10K rpm SAS HDDs - 2 TB, 4 TB, 6 TB, 8 TB, and 10 TB 7.2K rpm NL SAS HDDs |
| Storage capacity | Up to 480 TB (48x 10 TB NL SAS HDDs) |
| Host connectivity |
S2200 FC and iSCSI controller: 2x SFP/SFP+ CNC host ports CNC host port options (per RAID controller): - 2x 1 Gb iSCSI SFP (1 Gb speed, UTP, RJ-45) - 2x 10 Gb iSCSI SFP+ (1/10 Gb speeds, SW fiber optics, LC) - 2x 8 Gb FC SFP+ (4/8 Gb speeds, SW fiber optics, LC) - 2x 10 Gb iSCSI SFP+ DAC cables |
| Performance |
Dual controller configuration: - Up to 80,000 random read IOPS (4 KB blocks) - Up to 3.3 GBps sequential read throughput (512 KB blocks) - Up to 2.4 GBps sequential write throughput (512 KB blocks) |
| Configuration maximums |
Per system: - Maximum number of virtual storage pools: 2 (1 per controller) - Maximum number of logical volumes (total/mapped): 2,048/1,024 - Maximum logical volume size: 128 TB - Maximum number of drives in a drive group: 16 - Maximum number of drive groups: 32 - Maximum global spares: 16 - Maximum number of initiators: 8,192 (1,024 per port) - Maximum number of hosts in a host group: 256 - Maximum number of host groups: 32 - Maximum number of initiators per host: 128 |
Gwarancja
Produkt objęty jest roczną gwarancją. Jeśli potrzebują Państwo przedłużenia opieki gwarancyjnej lub jej rozszerzenia, prosimy o kontakt.
