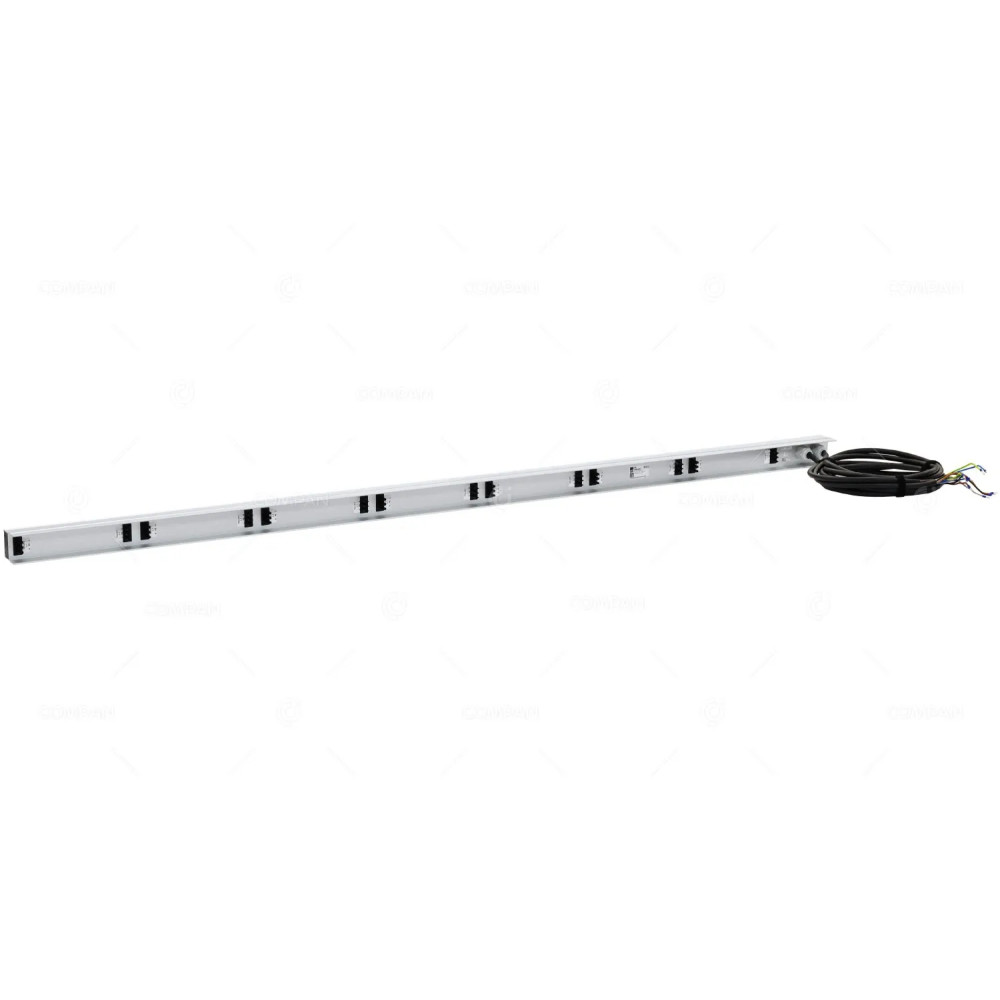

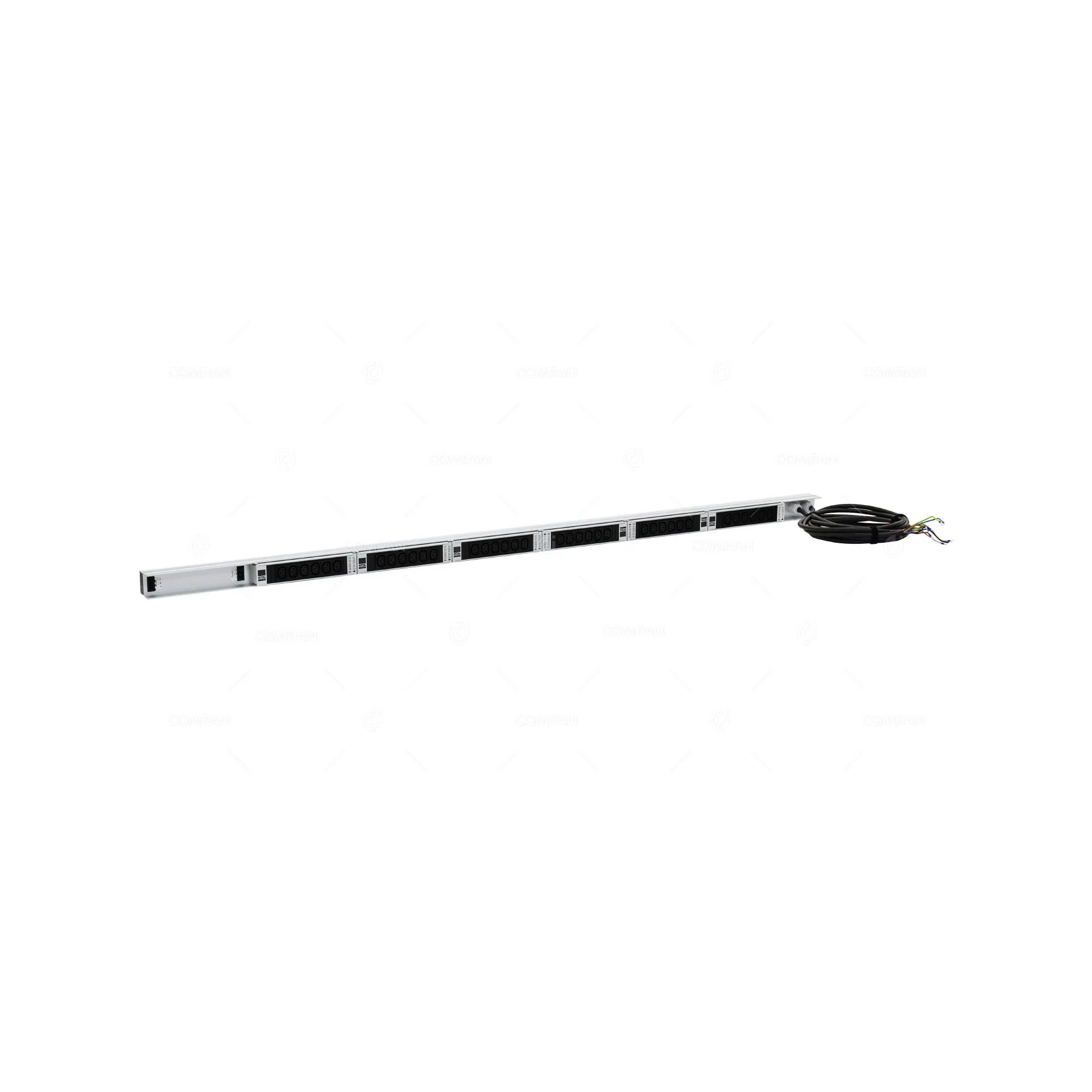

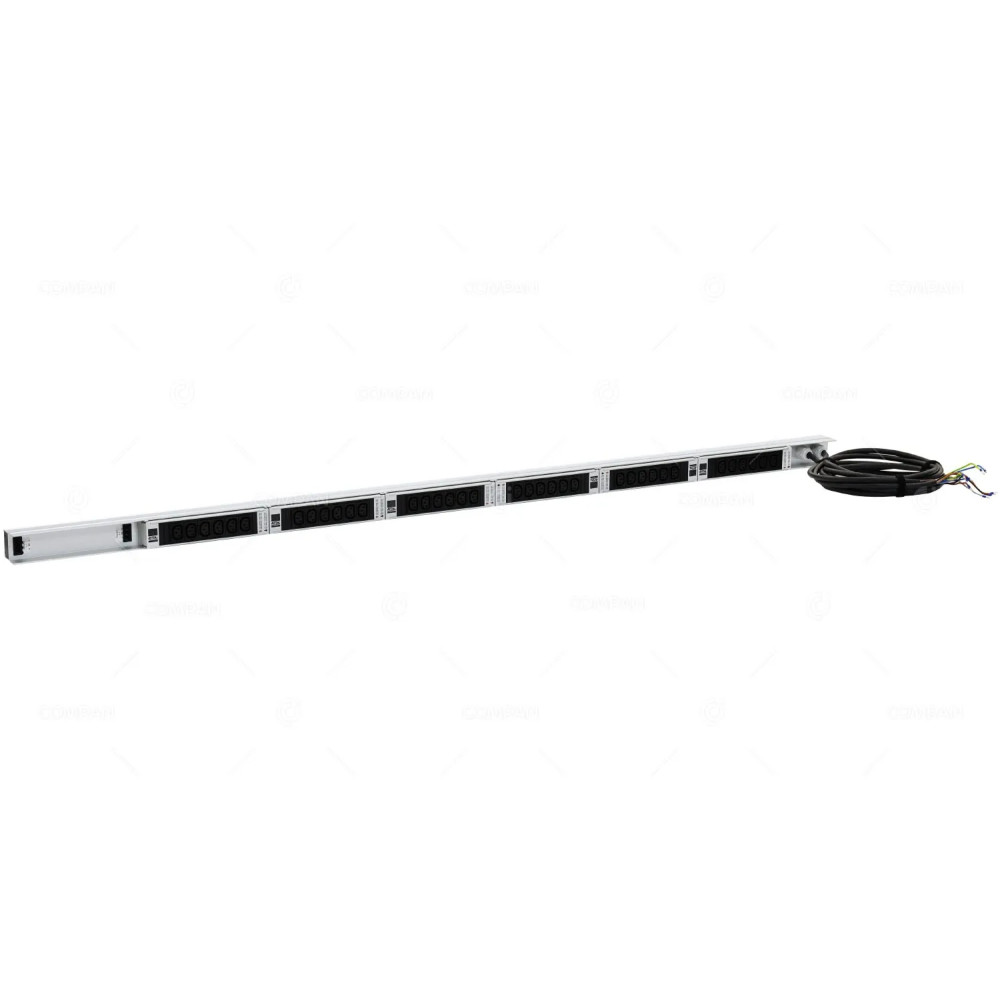

DK 7856.006 RITTAL PSM BUSBAR 3-PHASE REDUNDANT INFEED MAXIMUM CURRENT OF 16 A/32 A 7-WAY WITH 6 PSM SOCKET MODULES 6X IEC 320 SOCKET C13
Marka:
RITTAL
|
Numer produktu: DK 7856.006
Opis
Specification
RITTAL PSM BUSBAR 3-PHASE REDUNDANT INFEED MAXIMUM CURRENT OF 16 A/32 A 7-WAY WITH 6 PSM SOCKET MODULES 6X IEC 320 SOCKET C13
| Manufacturer Part Number | DK 7856.006 |
| Manufacturer Part Option | 7856, 7856.006 |
| Type | PSM BUSBAR |

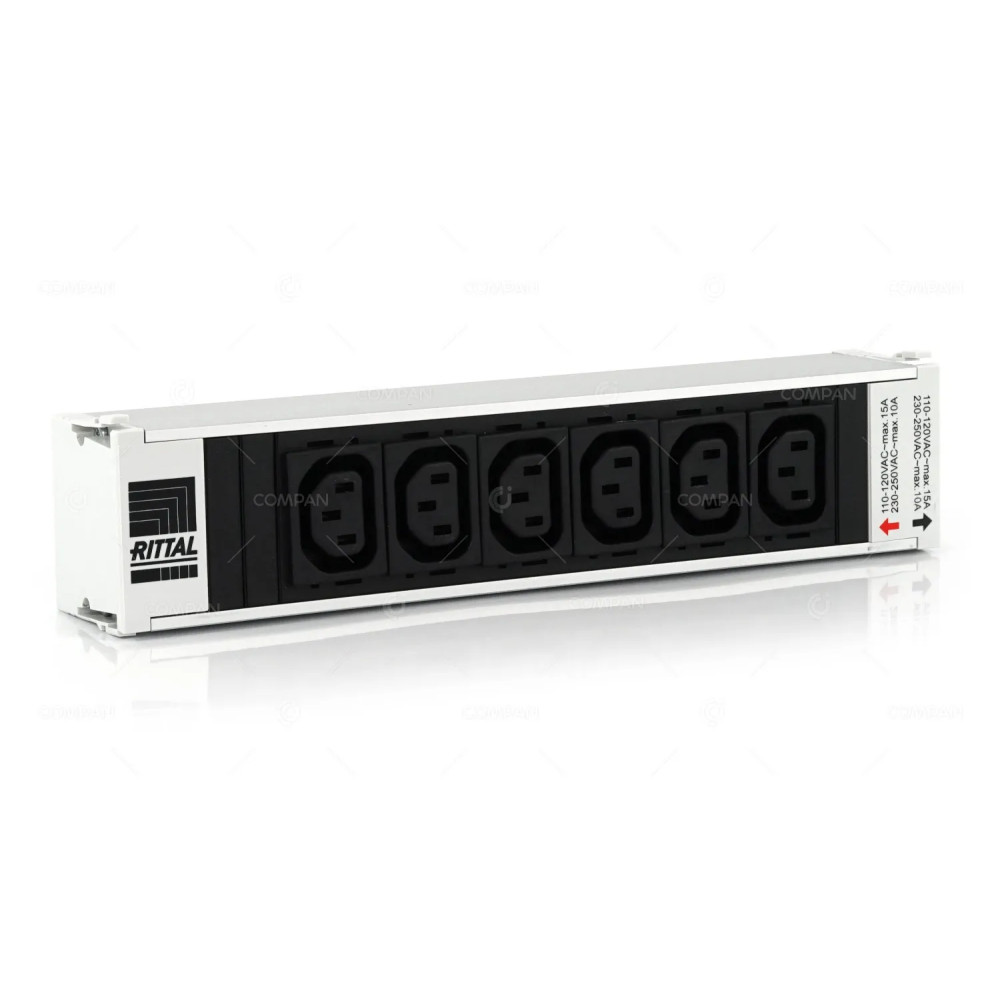

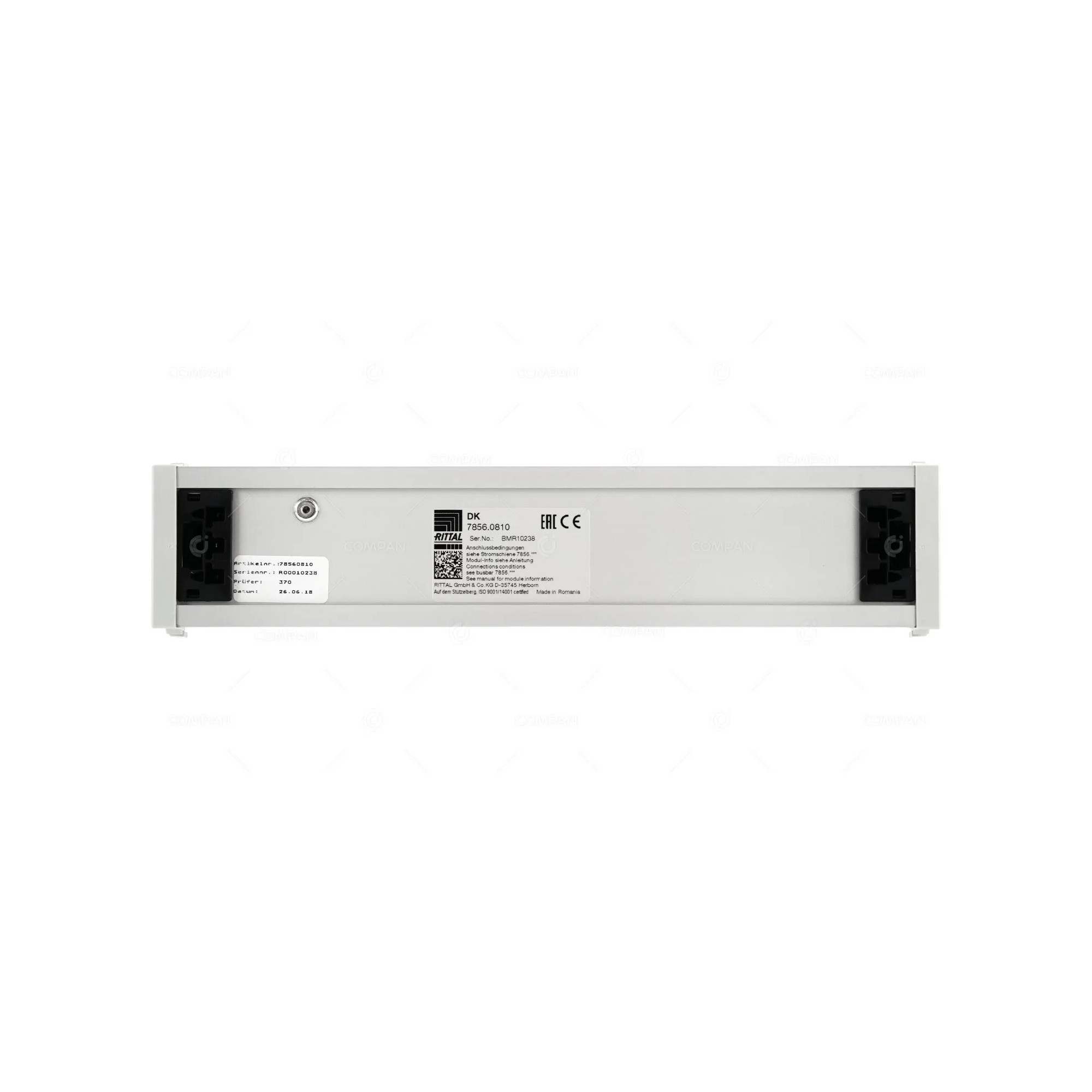

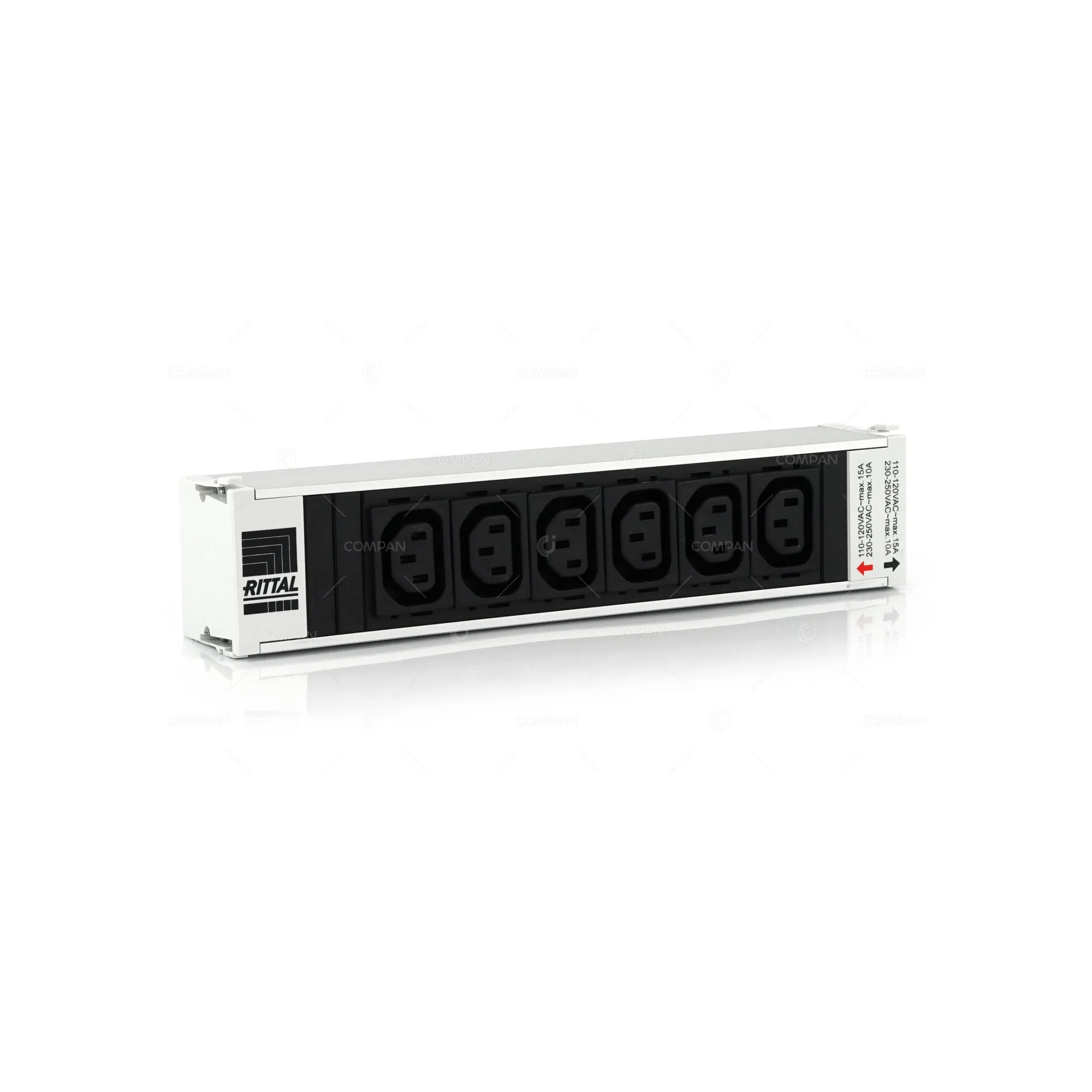

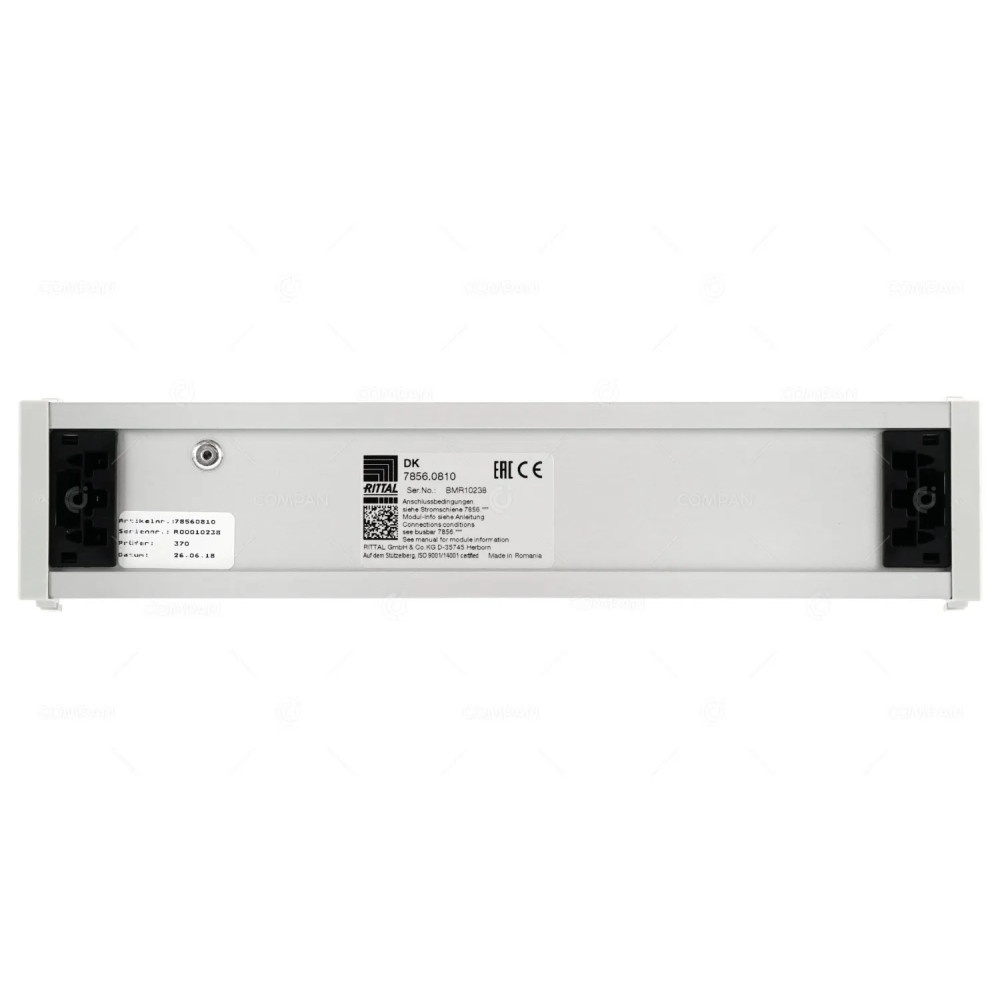

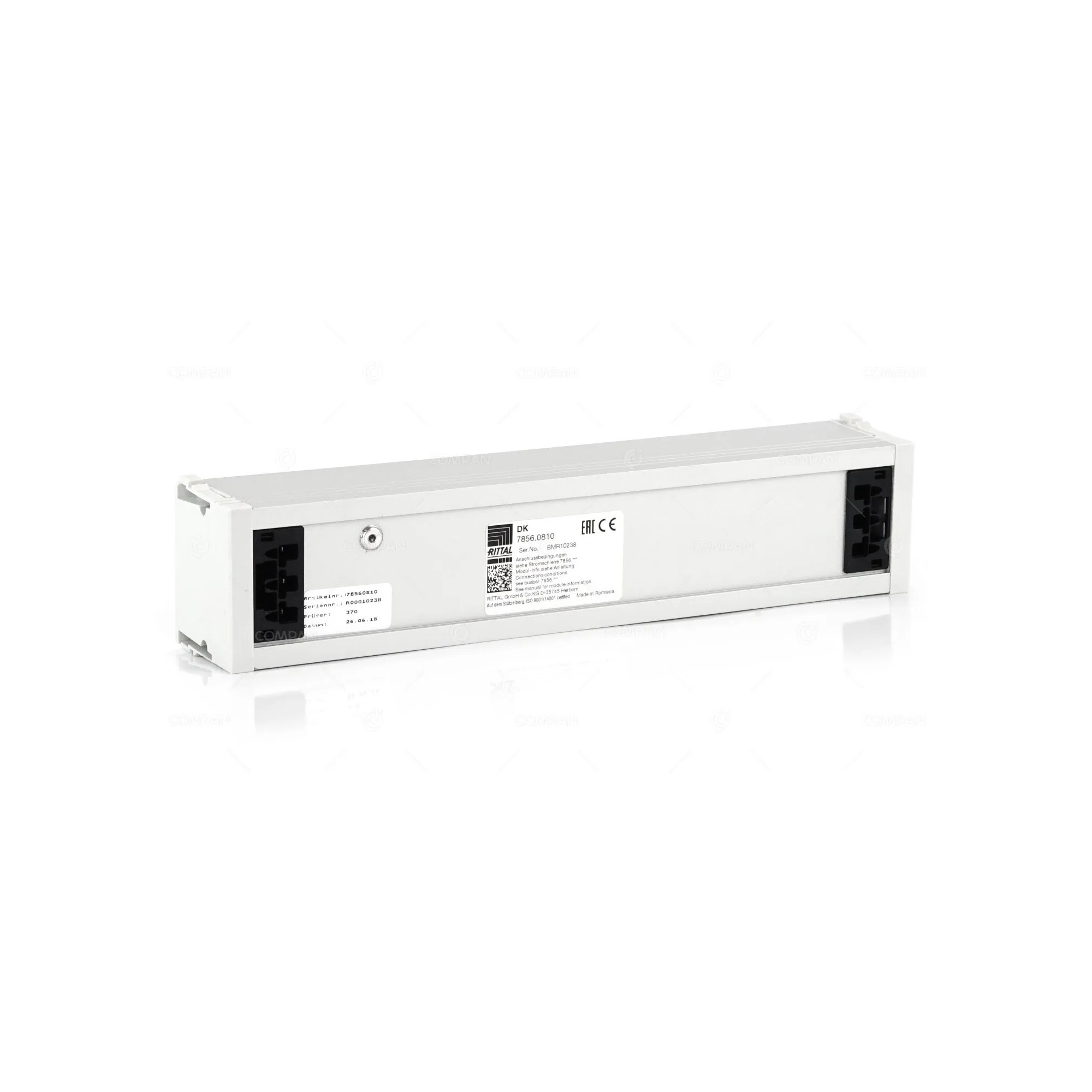

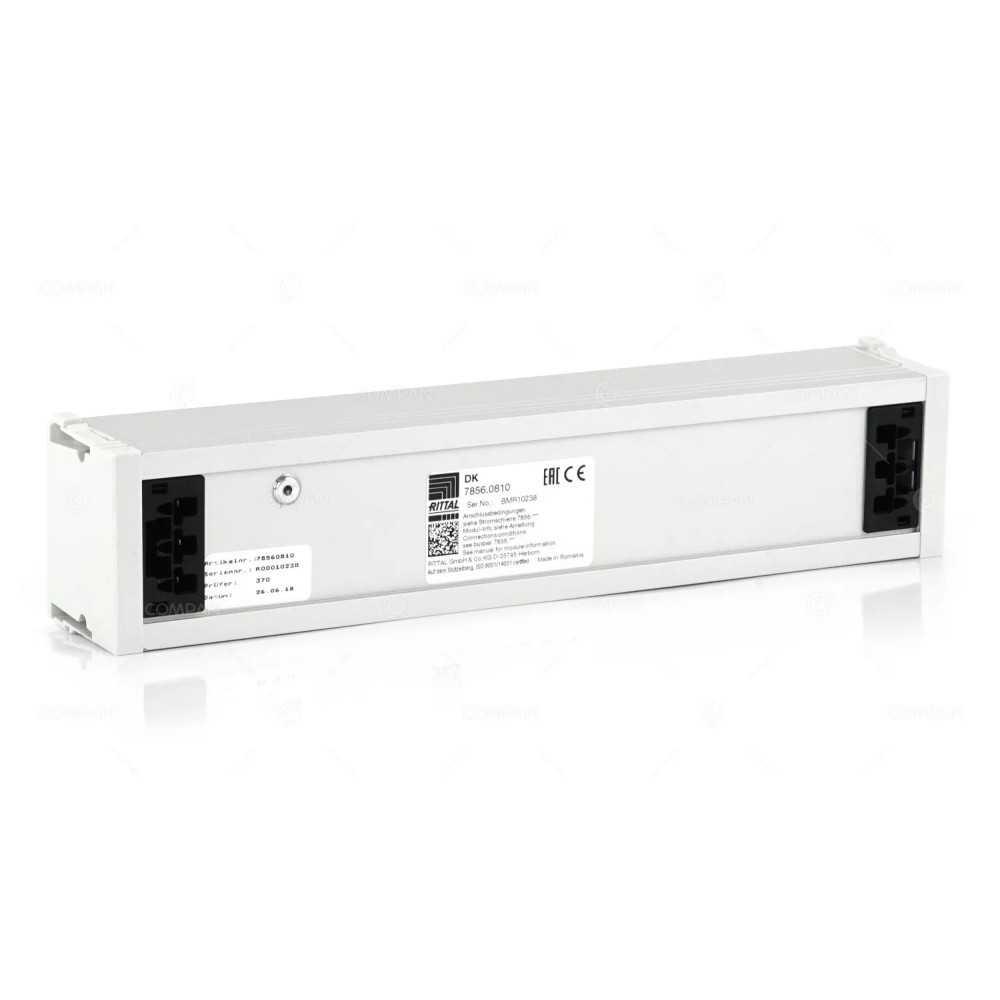

| Include | 6X DK 7856.0810 RITTAL PSM SOCKET MODULE 6X IEC 320 SOCKET C13 |
| Product description | The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. This can even be done whilst the system is operational, because the support section is shock hazard-protected. |
| Benefits | Modules may be retrofitted whilst operational. |
| Material | Aluminium section, natural anodised |
| Length of connection cable | 3 m |
| Type of electrical connection | CEE |
| Phases per infeed | 3~ |
| Rated current (max.) | 16 A |
| Module slots (max.) | 7 |
| Technical specifications | Each plug-in module picks off a phase on the support rail, either from infeed or from the redundant infeed, depending on the direction of connection. Depending on the design, single-/3-phase construction with a maximum current of 2 x (3 x 16 A/32 A). 3-phase redundant infeed supported. The redundant circuit is completely separate from the 3 phases of the support rail. Modules may be equipped with integral overcurrent protection, so that only the affected module is deactivated in the event of an excessively high current. The other modules remain operational. |
| To fit | Enclosure type: TS 8 TS IT VX IT Height: 2,000 mm |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Storage temperature range | -20 °C...60 °C |
| Packs of | 1 pc(s). |
| Weight/pack | 6.122 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177616189 |
| ETIM 7.0 | EC000215 |
| ECLASS 8.0 | 27371306 |
| Product description | DK PSM busbar, 7-way, 3~, 16 A, Infeed: 2, For H: 2000 mm |
Gwarancja
Produkt objęty jest roczną gwarancją. Jeśli potrzebują Państwo przedłużenia opieki gwarancyjnej lub jej rozszerzenia, prosimy o kontakt.
