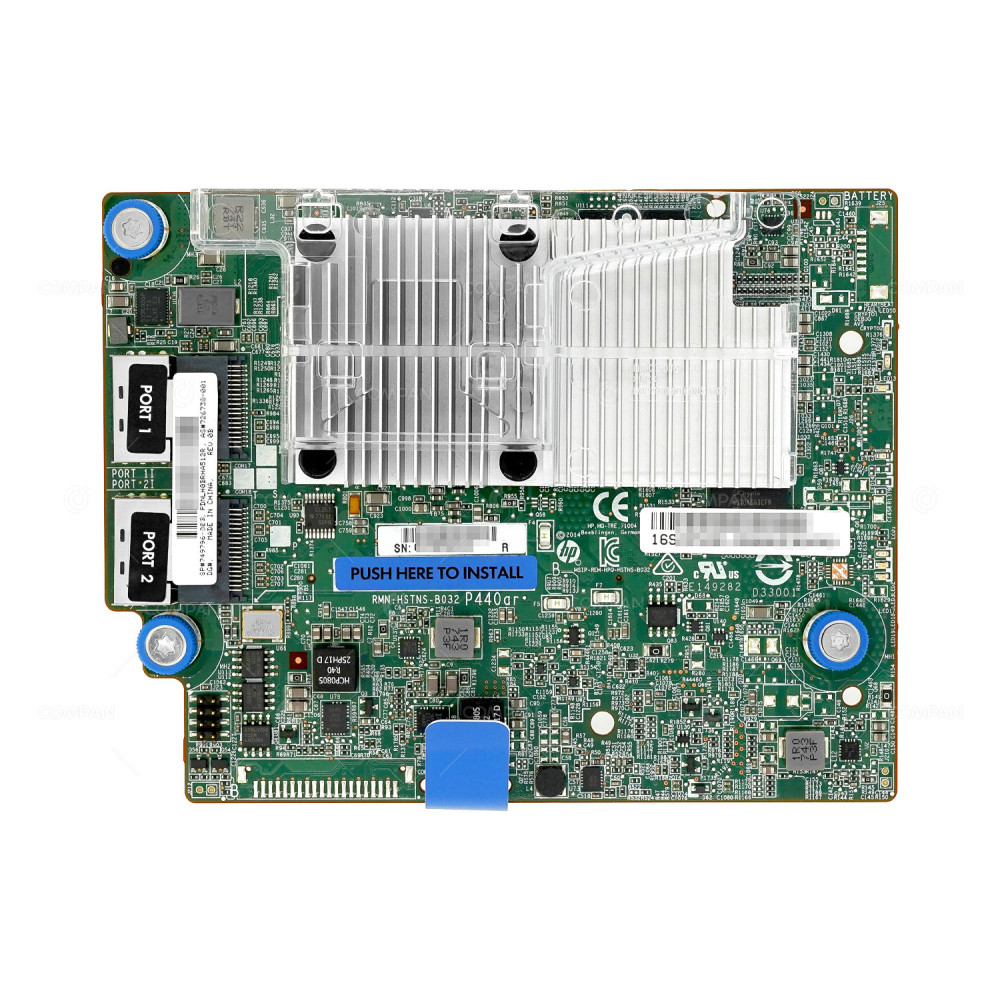

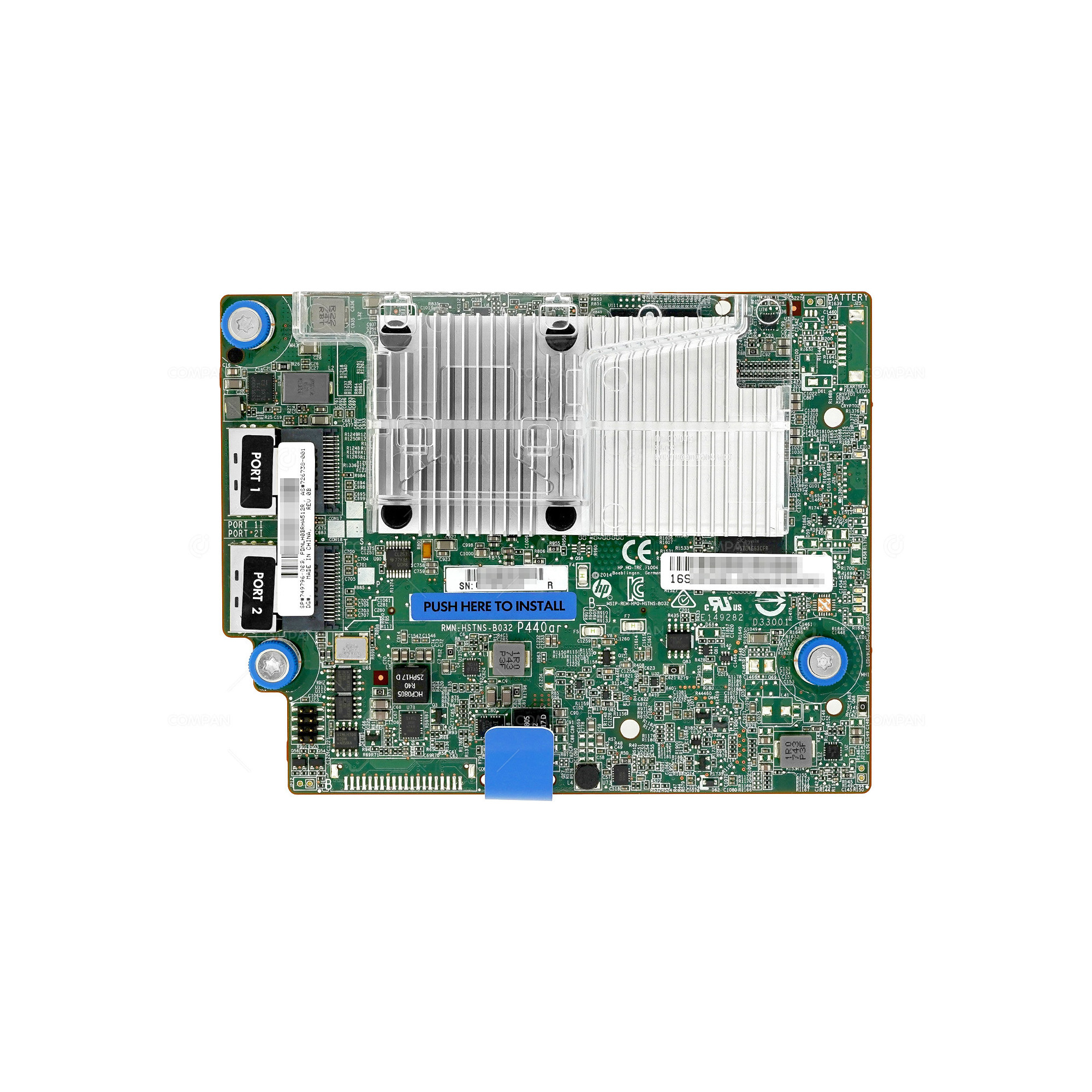

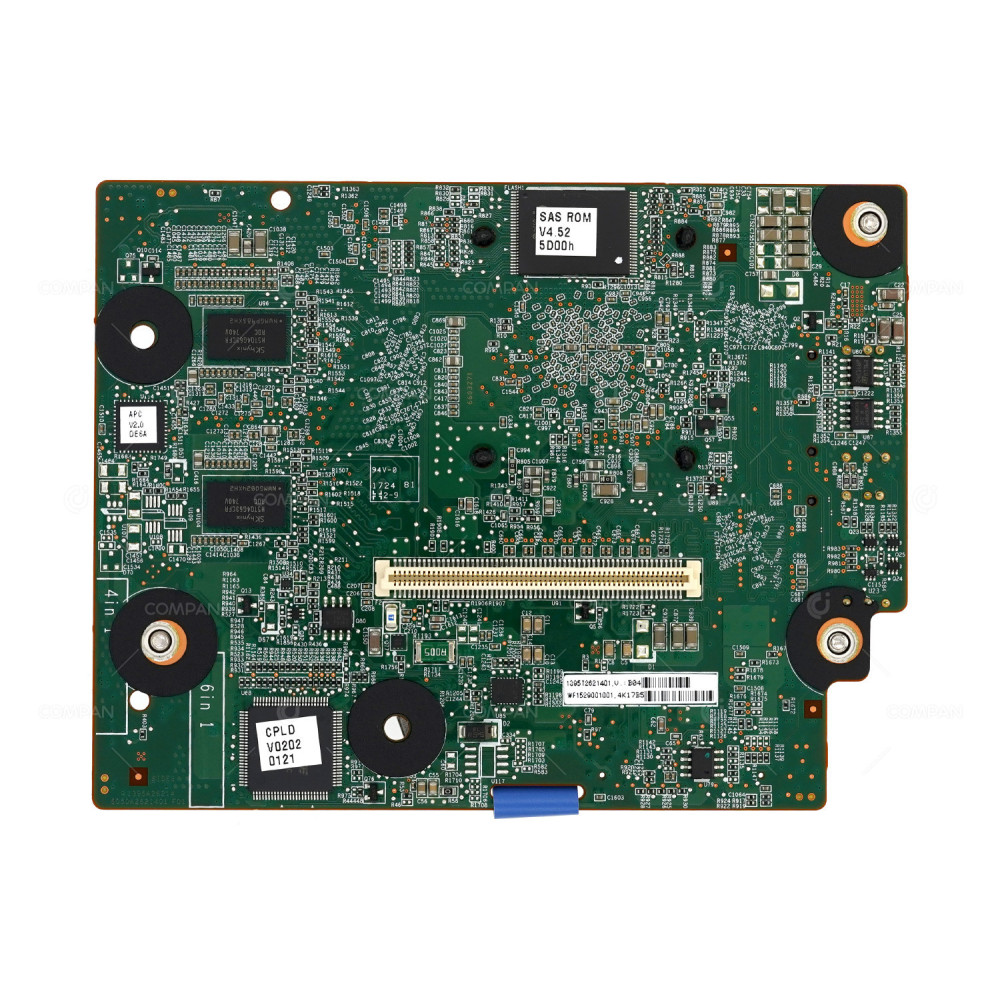

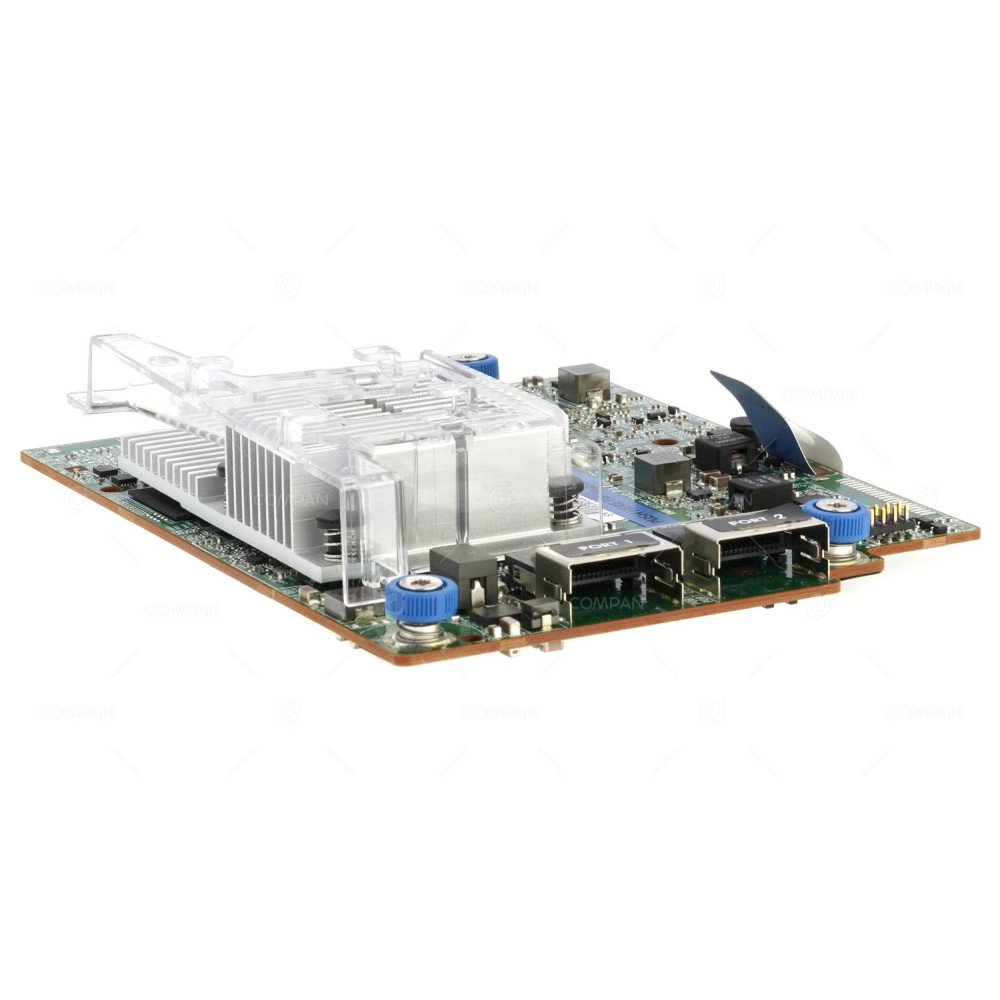

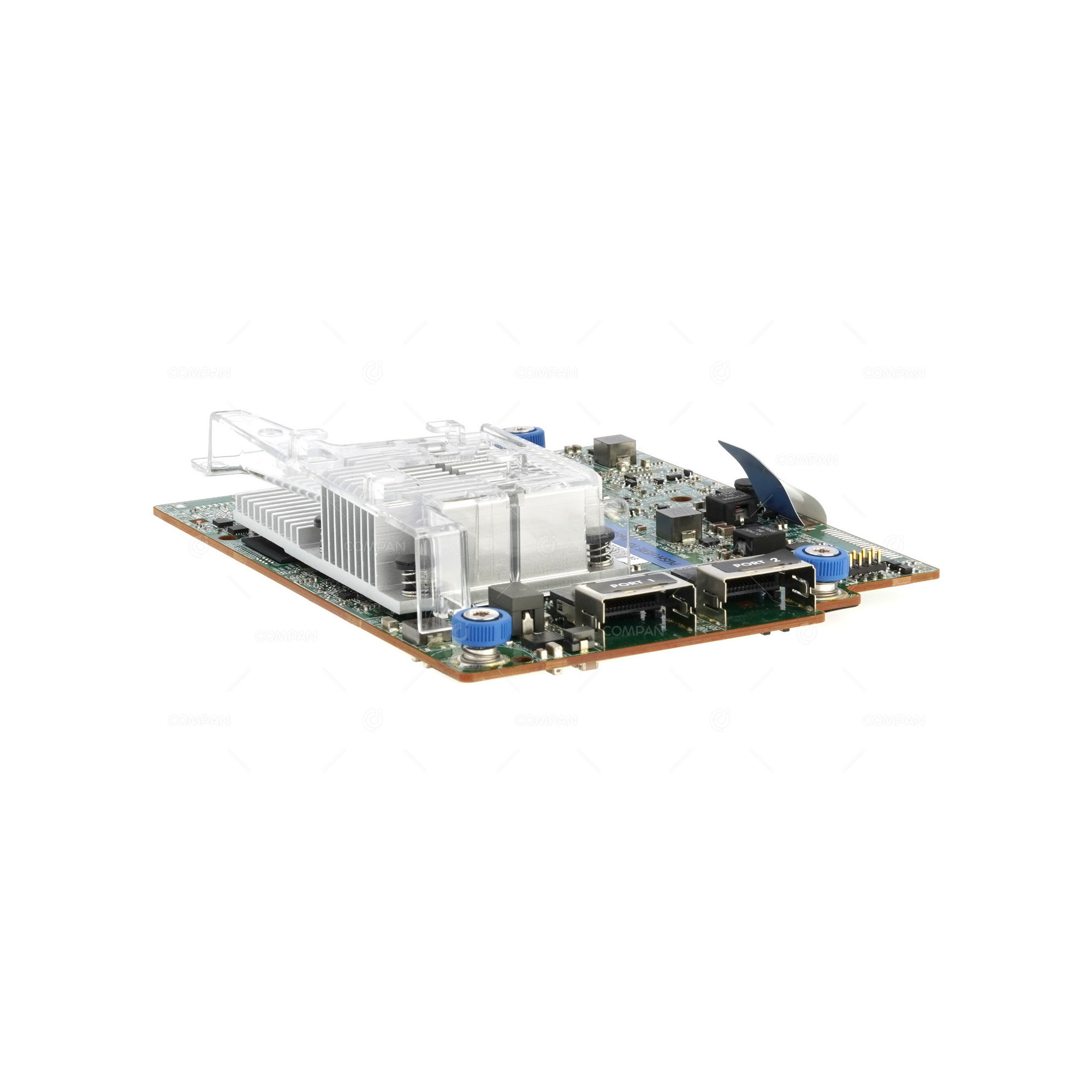

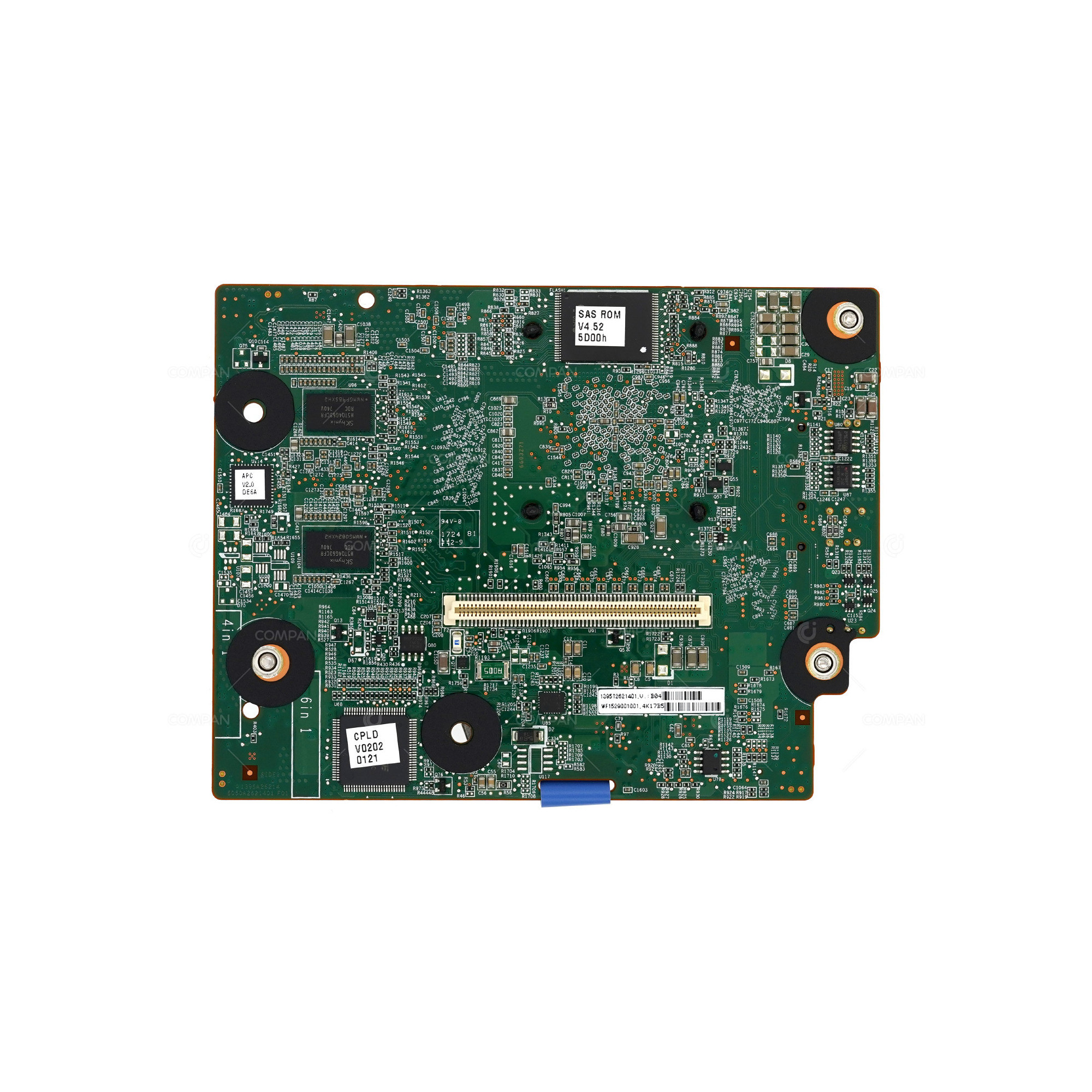

749796-002 HP SMART ARRAY P440AR 2GB FBWC 12GB 2-PORTS INT SAS CONTROLLER FOR DL380 G9 - 726738-001

Marka: HP | Numer produktu: 749796-002
1 919,99 zł
Netto
Dostępność : 1 szt.
Stan: Refurbished help_outline
Gwarancja:  1 rok


Polityka bezpieczeństwa



Zasady dostawy



Zasady zwrotu

Ilość
Ostatnie sztuki w magazynie

Trustpilot
  • Wysyłamy na cały świat
  • Wszystkie przedmioty wysyłane z naszego magazynu
  • Łatwe i szybkie zamawianie 24/7
  • Ekspresowa wysyłka międzynarodowa w 24h
  • Ekspresowa dostawa wynosząca nawet 1-2 dni roboczych
Jeśli zamówisz teraz wyślemy za:
godzin
minut
sekund
Opis
749796-002 HP SMART ARRAY P440AR 2GB FBWC 12GB 2-PORTS INT SAS CONTROLLER FOR DL380 G9 - 726738-001
Brand: HP
Description: SMART ARRAY P440AR 2GB FBWC 12GB 2-PORTS INT SAS CONTROLLER

 Standard Features
 Key Features
  • Storage interface (SAS/SATA)
    • 8 physical links across 2 x4 internal ports
    • 12Gb/s SAS, 6Gb/s SATA technology
    • Mix-and-match SAS and SATA drives to the same controller
    • Support for SAS tape drives, SAS tape autoloaders and SAS tape libraries
  • 2 GiBytes Flash-Backed Write Cache (FBWC)
  • PCI Express Gen3 x8 link
  • RAID 0, 1, 10, 5, 50, 6, 60, 10 ADM (Advanced Data Mirroring)
  • RAID or HBA mode
  • Legacy and UEFI boot operation
  • Up to 200 physical drives
  • Up to 64 logical drives
  • HPE SmartCache (optional license)
  • HPE Secure Encryption (optional license)
  • HPE SSD Smart Path
  • VMware Virtual SAN certified
  • Rapid Parity Initialization (RPI)
  • Rapid rebuild
  • Drive Erase
  • Performance Optimization-Degraded Reads and Read Coalescing
  • Power Efficiency
  • Seamless upgrades to and from other HPE Smart Array controllers
  • Flexible Smart Array controller (Daughter Card)
    • Dimension: 5.3 x 4.1 x 1.2 in (13.46 x 10.414 x 3.05 cm)
 Ports
  • Internal: 8 SAS/SATA physical links across 2 x4 ports
 Performance
  • 12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane)
  • 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane)
  • PCI Express Gen3 x8 link width
  • 2 GiBytes 72-bit wide DDR3-1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
  • Read ahead caching
  • Write-back caching
 Online Management Features
  • Online array expansion
  • Online capacity expansion
  • Online logical drive extension
  • Online RAID level migration
  • Online stripe size migration
  • Online mirror split, recombine, and rollback
  • Online active drive replacement
  • Online drive firmware upgrade
  • Online and high performance offline Rapid Parity Initialization (RPI)
  • Unlimited global online spares assignment
  • User selectable expand and rebuild priority
  • User selectable RAID level and stripe size
  • User selectable read and write cache sizes
  • Supports Predictive Spare Activation
 Fault Prevention

The following features offer detection of possible failures before they occur, allowing preventive action to be taken:

  • S.M.A.R.T. (Self Monitoring Analysis and Reporting Technology) was first developed by HPE which detects possible hard disk failure before it occurs, allowing replacement of the component before failure occurs.
  • Drive Parameter Tracking monitors drive operational parameters, predicting failure and notifying the administrator.
  • Dynamic Sector Repairing continually performs background surface scans on the hard disk drives during inactive periods and automatically remaps bad sectors, ensuring data integrity.
  • Smart Array Cache Tracking monitors integrity of controller cache, allowing pre-failure preventative maintenance.
 Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure

  • Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating.
  • On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically.
  • DRAM ECC detects and corrects data bit errors
 HPE SmartCache  The HPE SmartCache feature is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads. The HPE SmartCache architecture is flexible and supports any HPE ProLiant Gen9 supported HDD for bulk storage and any HPE ProLiant Gen9 supported SSD as an accelerator. HPE SmartCache is deployed and managed using the HPE Smart Storage Administrator (HPE SSA). HPE SmartCache is an optional license (see Related Options for more information on the license).
 HPE Secure Encryption

HPE Secure Encryption is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data at rest on any bulk storage attached to the HPE Smart Array controllers including data on the cache memory of the controller. HPE Secure Encryption is an optional license per server requiring encryption enablement (see Related Options for more information on the license).

The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Master key per controller that is managed by the user. Remote Key Management Mode is for enterprise wide deployments from just a few servers to thousands of servers.
 HPE SSD Smart Path The HPE SSD Smart Path feature included in the Smart Array software stack improves Solid State Disk (SSD) read performance. With up to 4x better SSD read performance, HPE SSD Smart Path chooses the optimum path to the SSD and accelerates reads for all RAID levels and RAID 0 writes. HPE SSD Smart Path requires updated firmware, drivers, and configuration utility available at: . HPE SSD Smart Path is ideal for read intensive workloads and is included as a base feature on HPE Smart Array P-series controllers.
 Warranty

The warranty for this device is 3 years parts only.

Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HPE Support Center or refer to your HPE Server Documentation.

Warranty Upgrade Options

  • Response - Upgrade on-site response from next business day to same day 4 hours
  • Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
  • Duration - Select duration of coverage for a period of 1, 3, or 5 years
  • Warranty upgrade options can come in the form of Care Packs, which are sold at the HPE System level to which this product attaches.



Compatibility



Server Support

HPE ProLiant DL360 Gen9

HPE ProLiant DL380 Gen9

HPE ProLiant DL560 Gen9



HPE ProLiant ML350 Gen9
Operating Systems

Microsoft Windows Server

Microsoft Windows Hyper-V Server

VMware vSphere ESXi

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

Oracle Solaris

Oracle Linux

Canonical Ubuntu

CentOS

Wind River

Citrix XenServer
Storage Management Software Suite

HPE Smart Storage Administrator (HPE SSA)

Comprehensive management for HPE Smart Storage products with advanced scripting and diagnostic features and simplified and intuitive interface and functionality. For more information please visit:

HPE Systems Insight Manager

Powerful server and server options/storage manager tool with configuration/diagnostic utilities

HPE Storage Management Utility

Offers the simplest method for configuring the storage system via Initial System Configuration Wizard


Variations: 726738-001
Compatibile With: DL380 G9
Gwarancja
Produkt objęty jest roczną gwarancją. Jeśli potrzebują Państwo przedłużenia opieki gwarancyjnej lub jej rozszerzenia, prosimy o kontakt.
