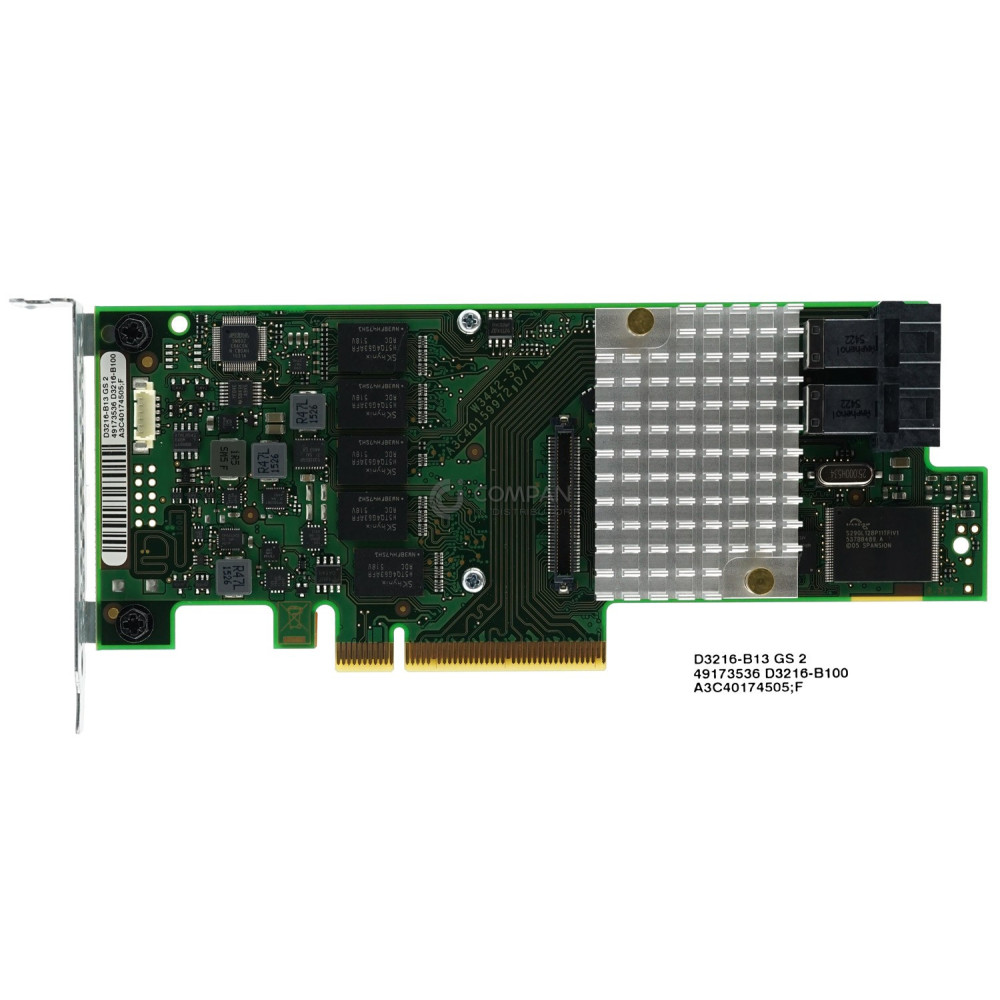

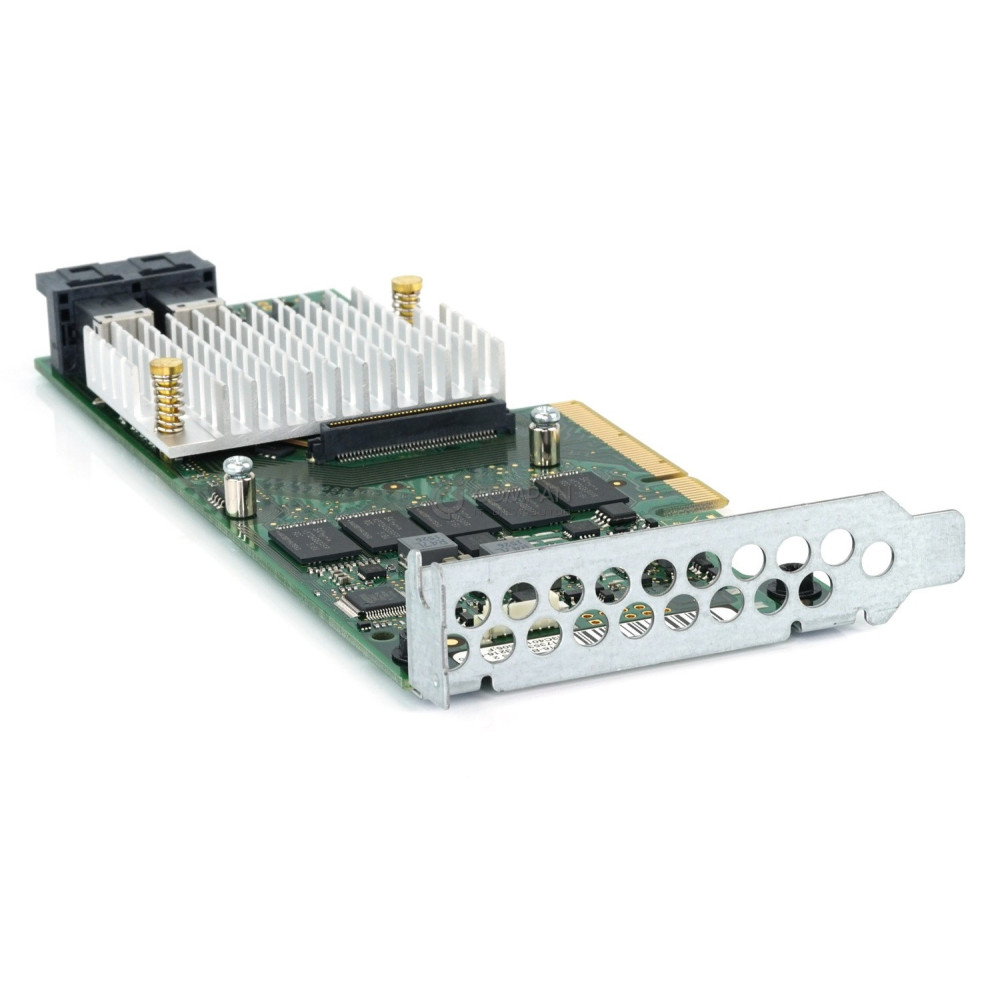

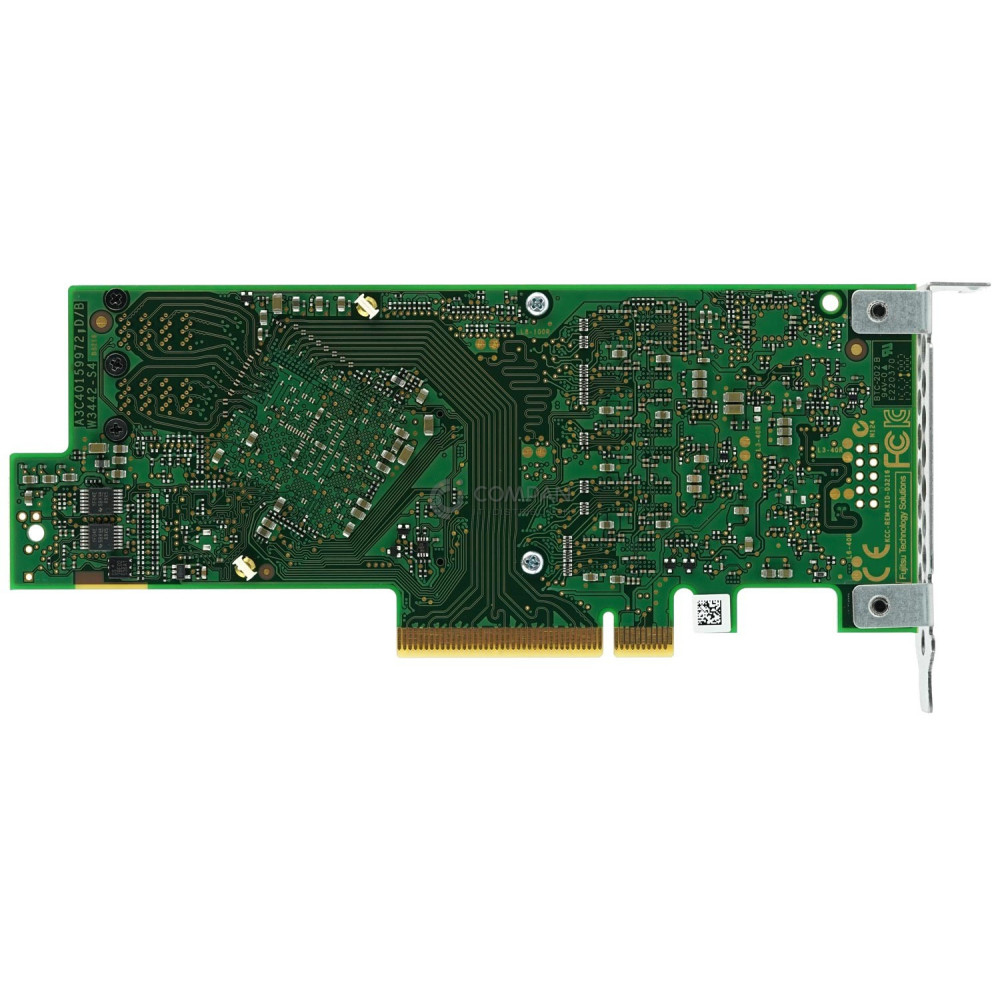

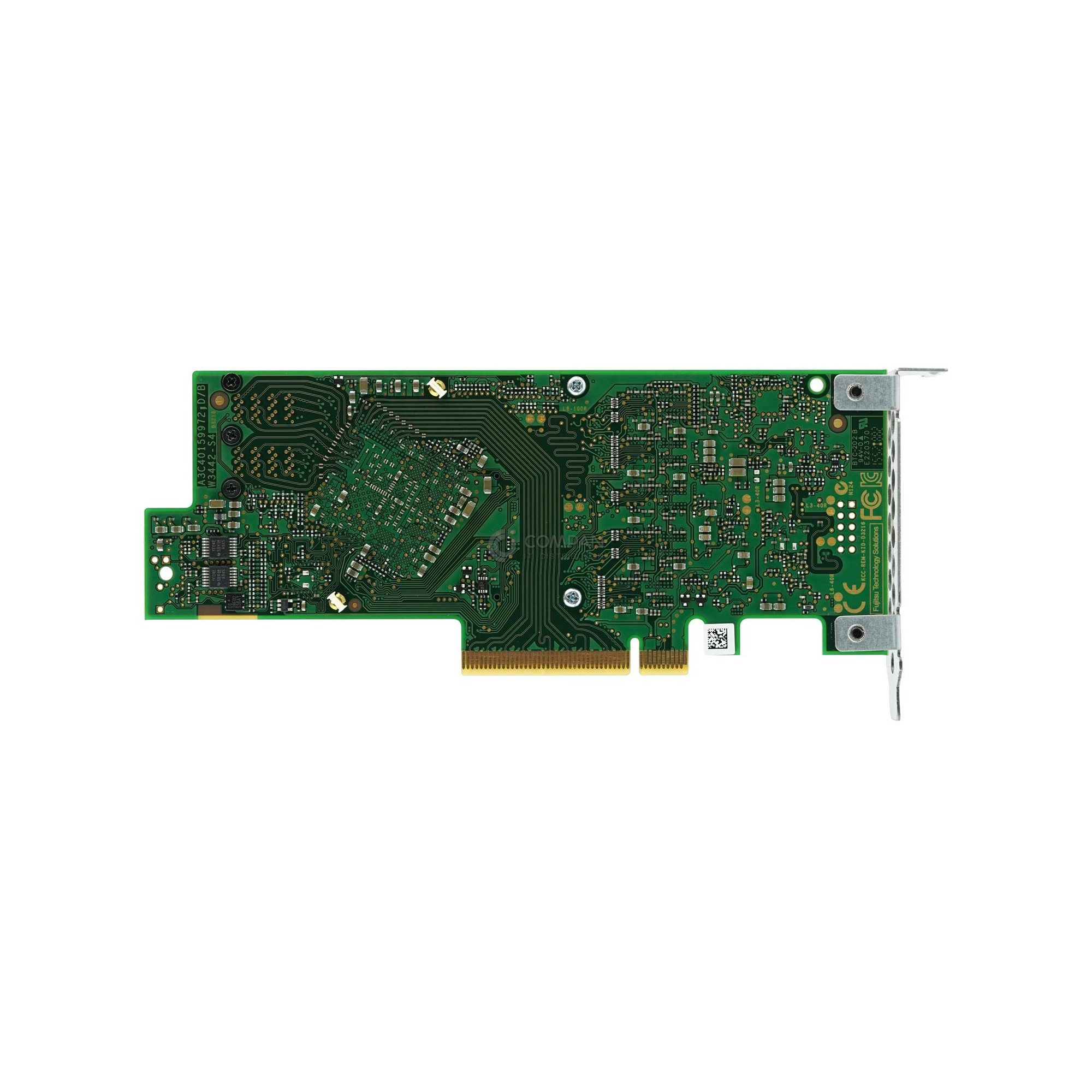

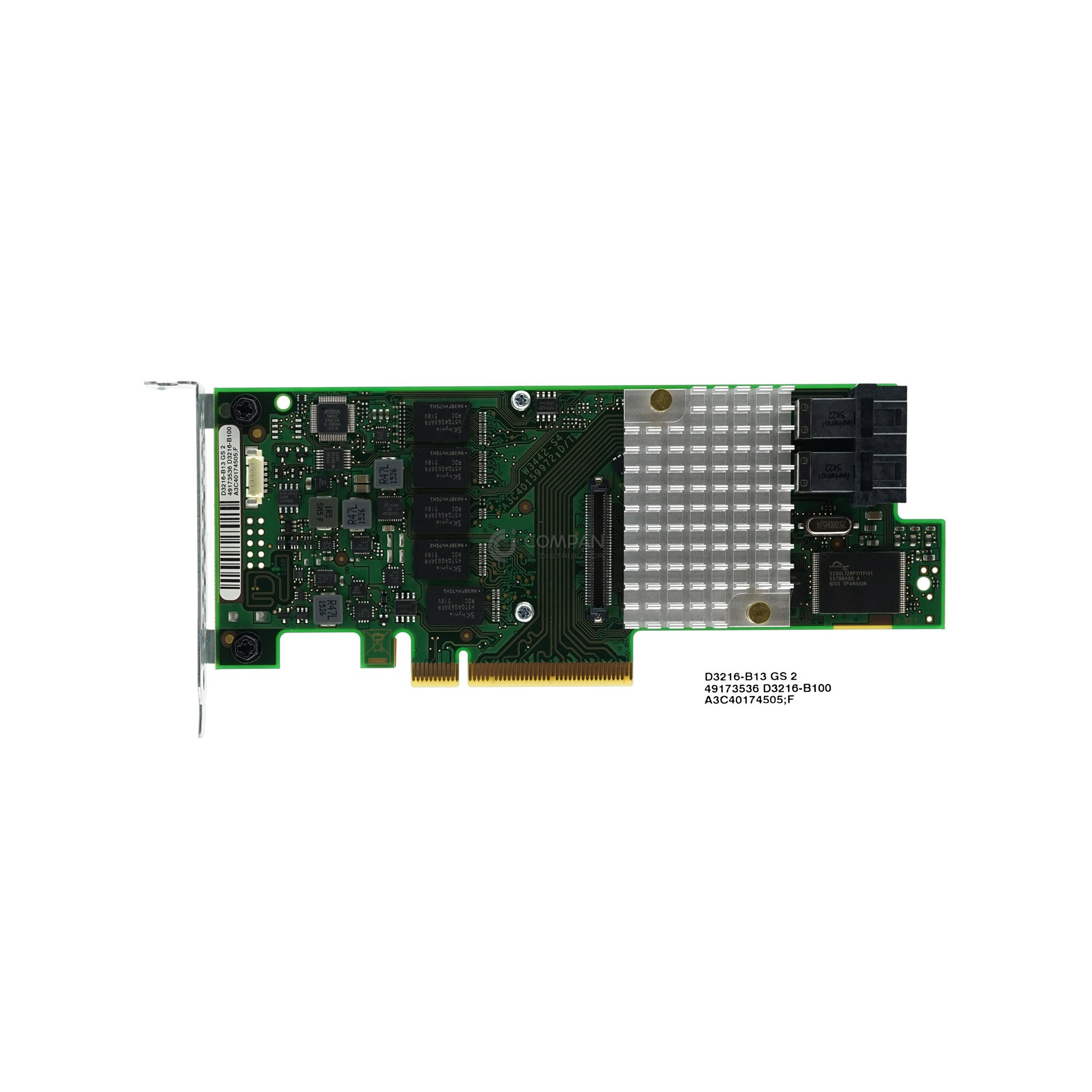

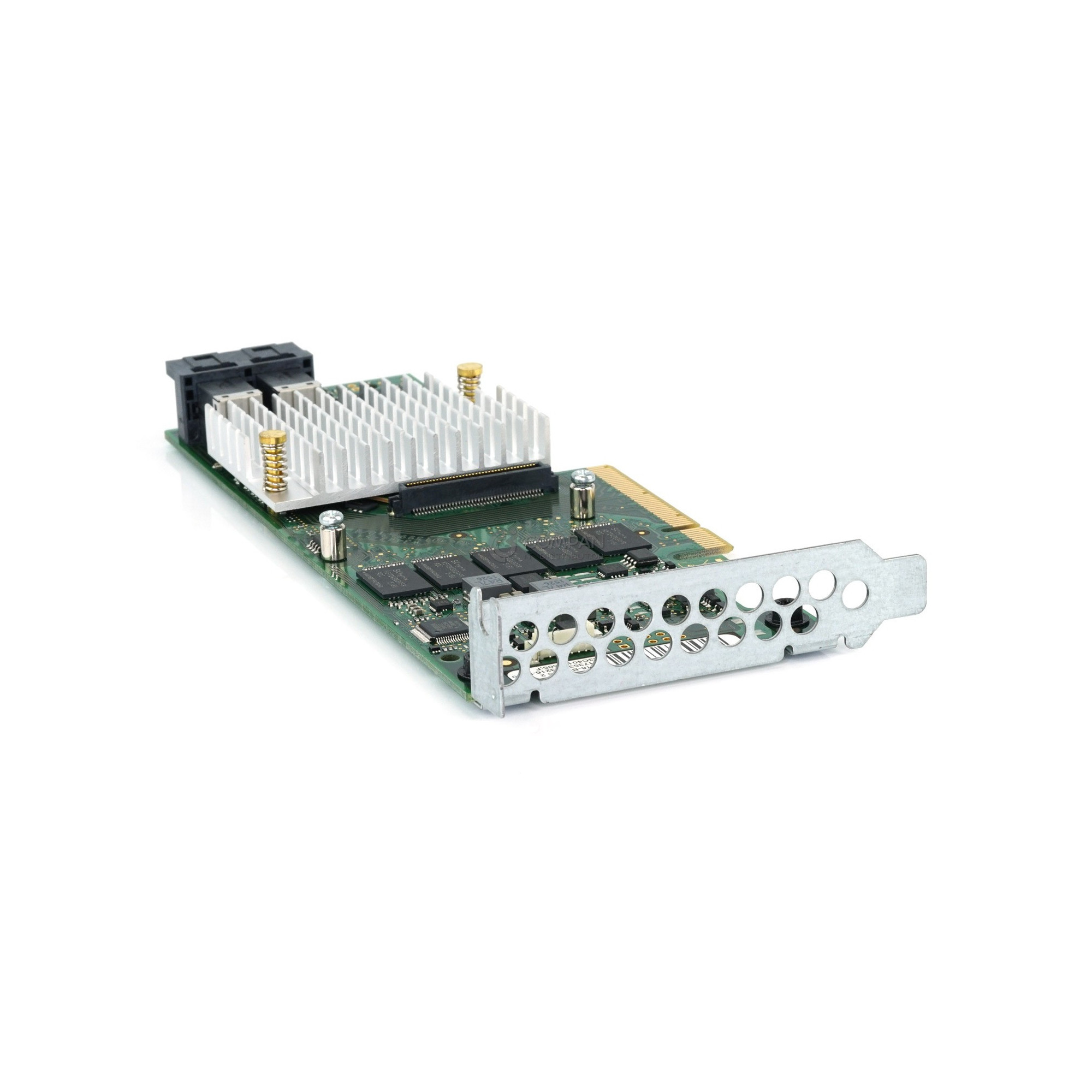

D3216-B13 LP FUJITSU D3216-B100 EP420I MEGARAID CONTROLLER LOW PROFILE - A3C40174505 LP, D3216-B100 LP

- SAS/SATA RAID Controller based on LSI MegaRAID SAS3108

- for internal SAS/SATA HDD and SSD

- RAID levels: 0, 1, 10, 5, 50, 6, 60

- 2 GB cache

- Please note: a subsequent change from an SAS 2.0 controller or onboard controller to an SAS 3.0 controller (or vice versa) may require the use of an SAS cable (the SAS cables are different depending on the PRIMERGY system. Please check your system's user manual)

1 x SAS cable PRIMERGY RX2540 8.9 cm (3.5"): If your PRIMERGY system is only equipped with an onboard SATA controller, please also order the following cable required for a RAID controller: Ref. no. S26361-F3210-L325

2. SAS cable PRIMERGY RX2530 M4: If your PRIMERGY system is only equipped with an onboard SATA controller, please also order the following cable required for a RAID controller: Ref. No.S26361-F1592-L100

3. SAS cable PRIMERGY 8 x 6.4 cm (2.5") RX2530 M5: If your PRIMERGY system is only equipped with an onboard SATA controller, please also order the following cable required for a RAID controller: Reference number BDL:RX2530_8X25_U

4. SAS cable PRIMERGY RX2540 4/M4/M5 8.9 cm (3.5"): If your PRIMERGY system is only equipped with an onboard SATA controller, please also order the following cable required for a RAIDcontroller: Ref. no.: S26361-F3120-L101

5. SAS cable PRIMERGY RX2540 4/M4/M5 6.4 cm (2.5"): If your PRIMERGY system is only equipped with an onboard SATA controller, please also order the following cable required for a RAID controller: Ref. No.S26361-F3120-L100

For certified/approved Fujitsu PRIMERGY systems

- TX1320 M4

- TX1330 M4

- RX1330 M4

- TX2550 M4

- TX2550M5

- RX2520 M4

- RX2530M4

- RX2530 M5

- RX2540M4

- RX2540M5

- RX4770 M4
