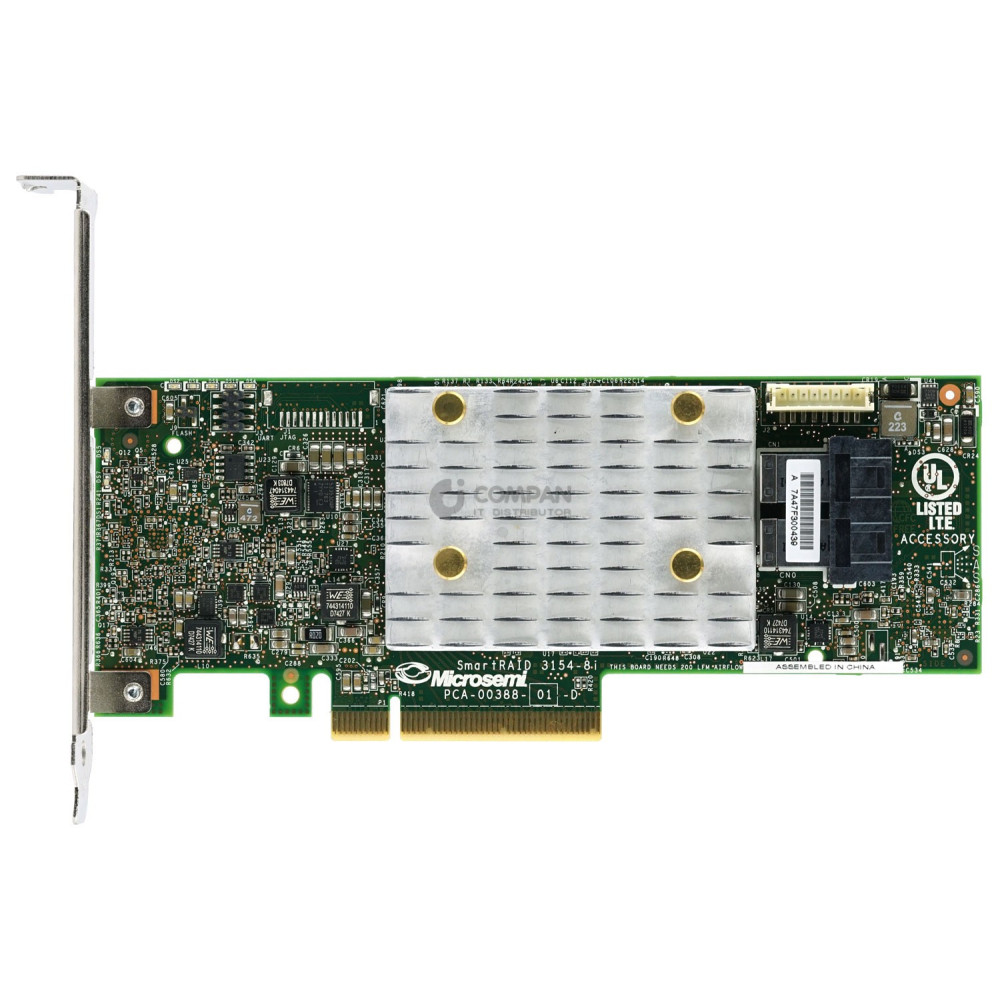

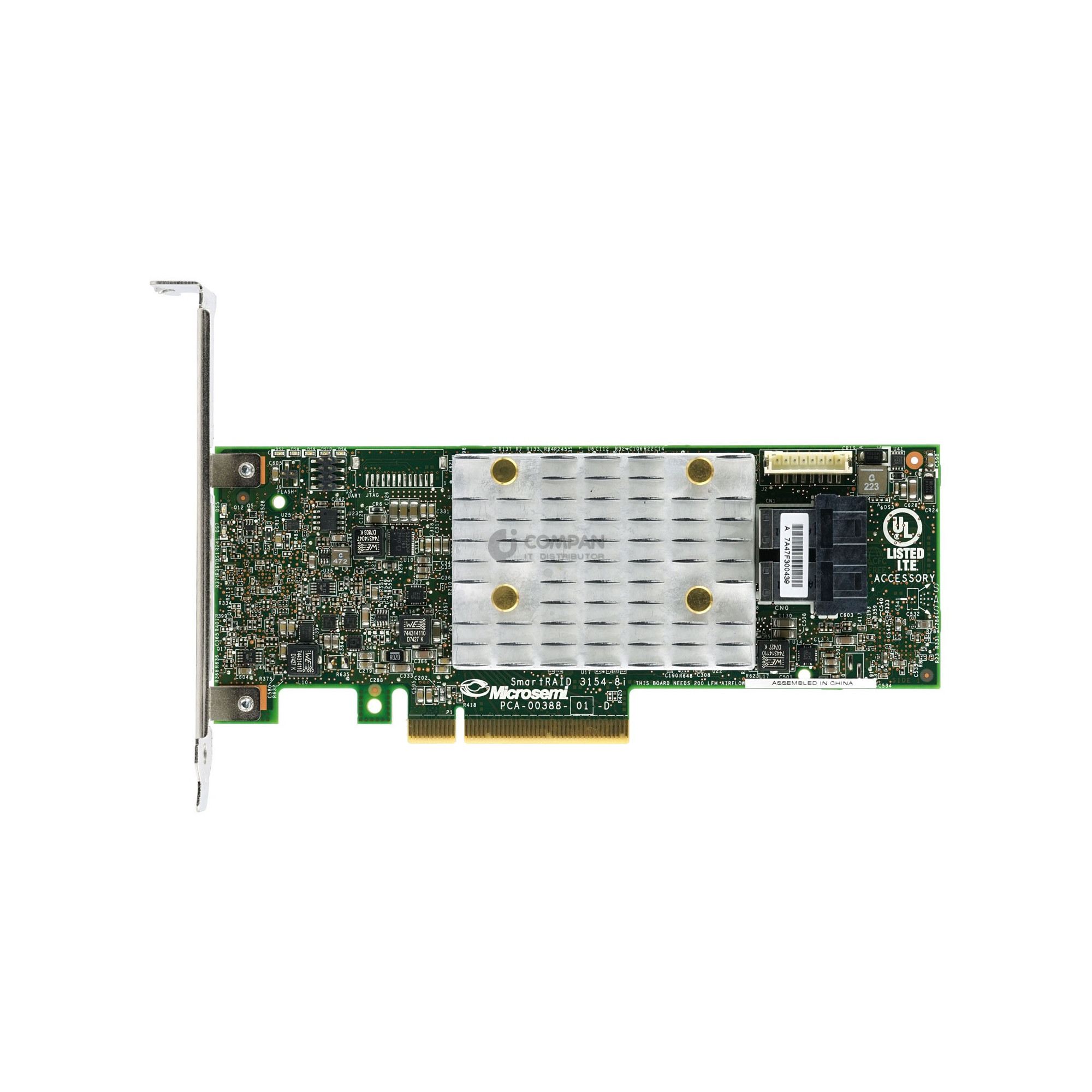

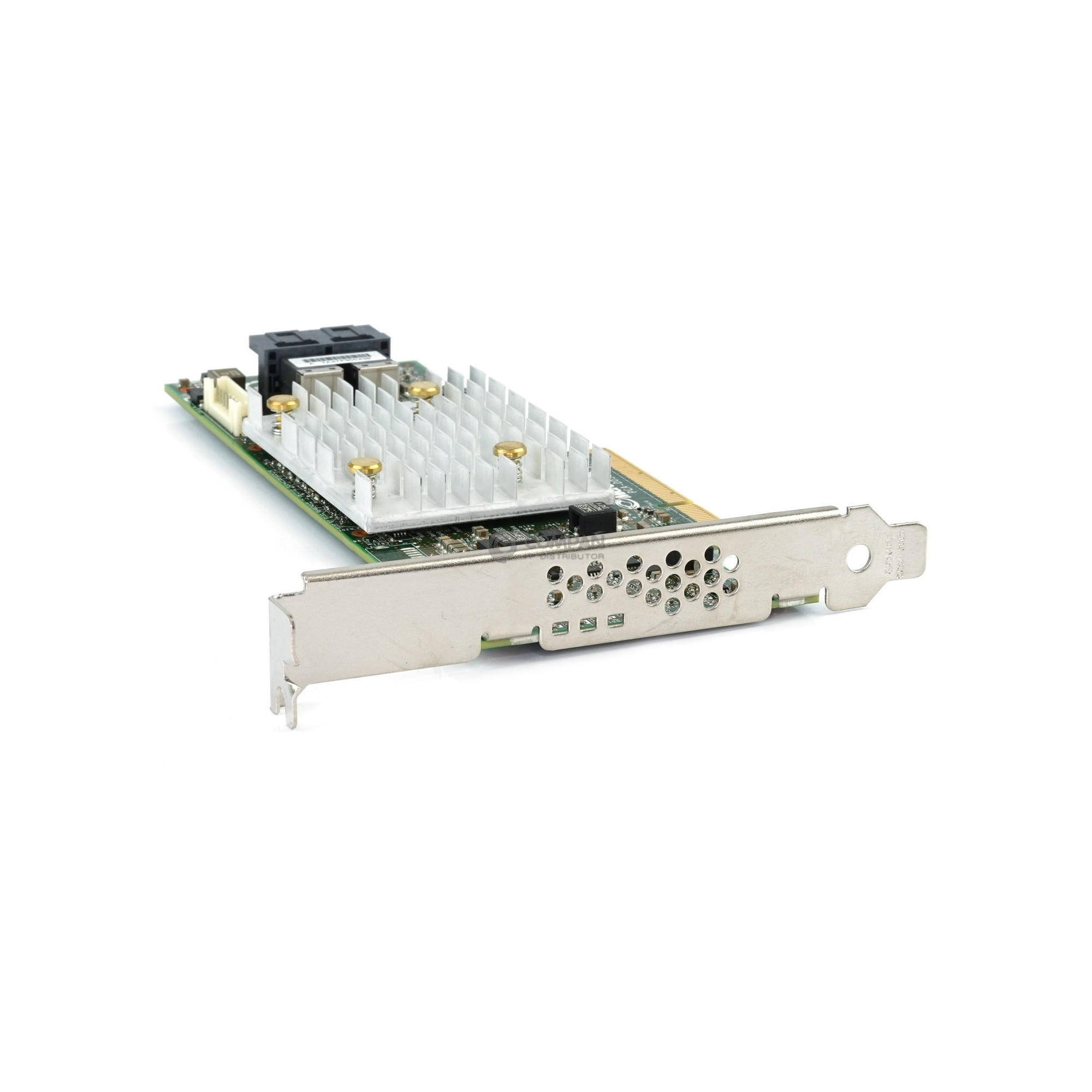

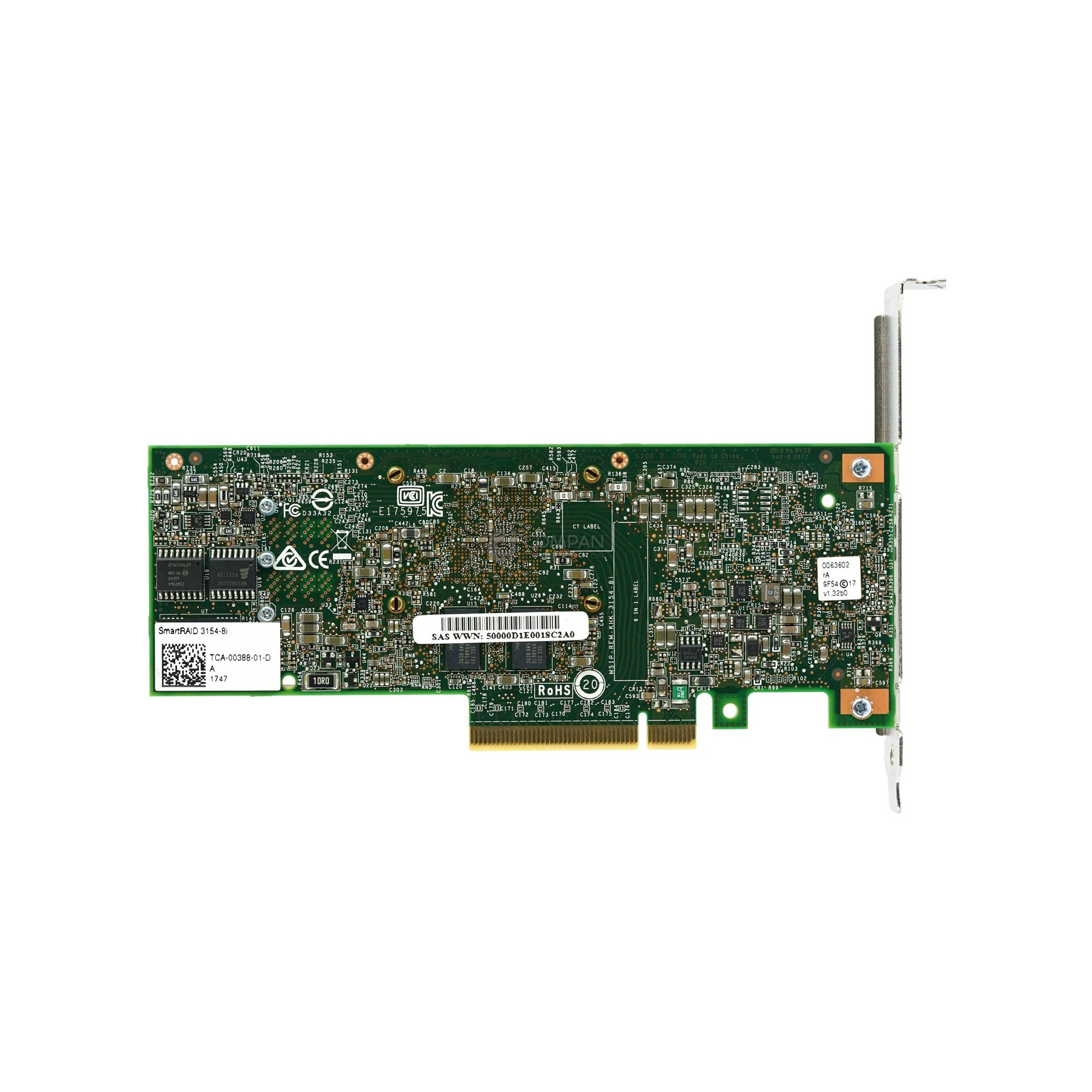

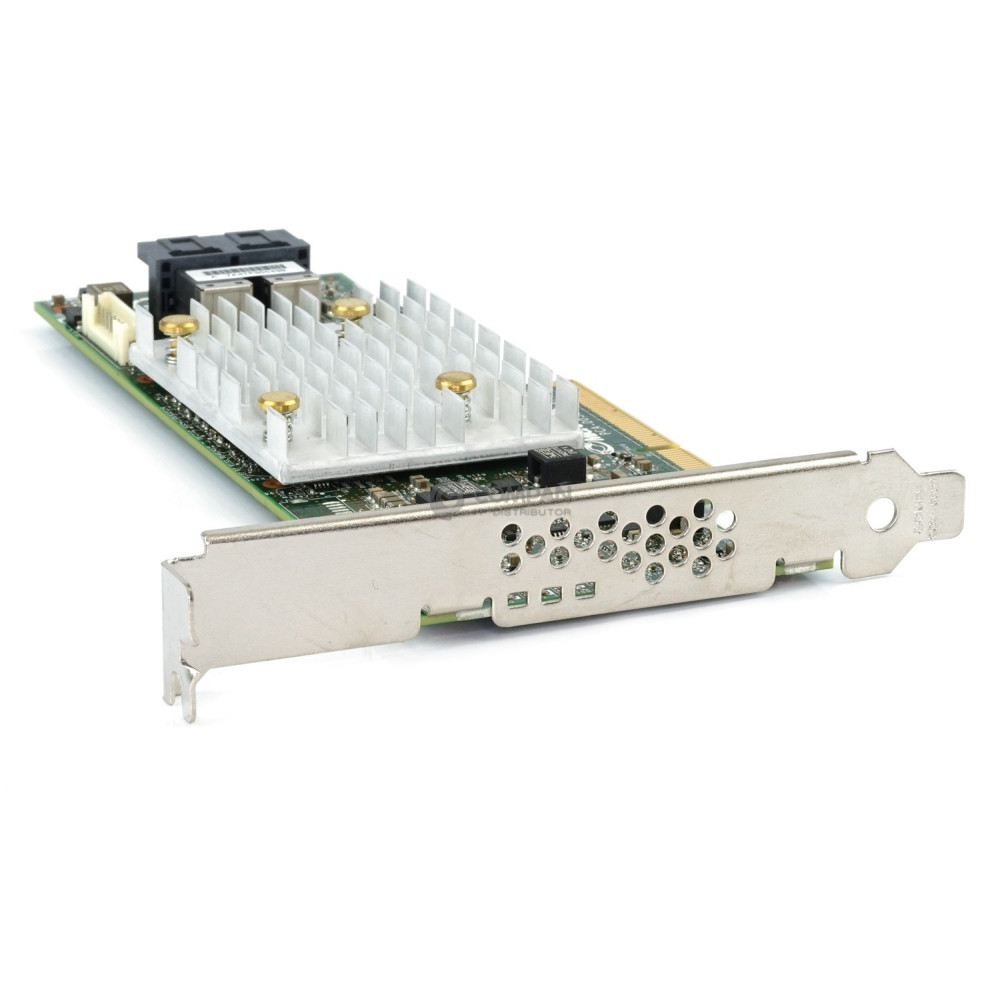

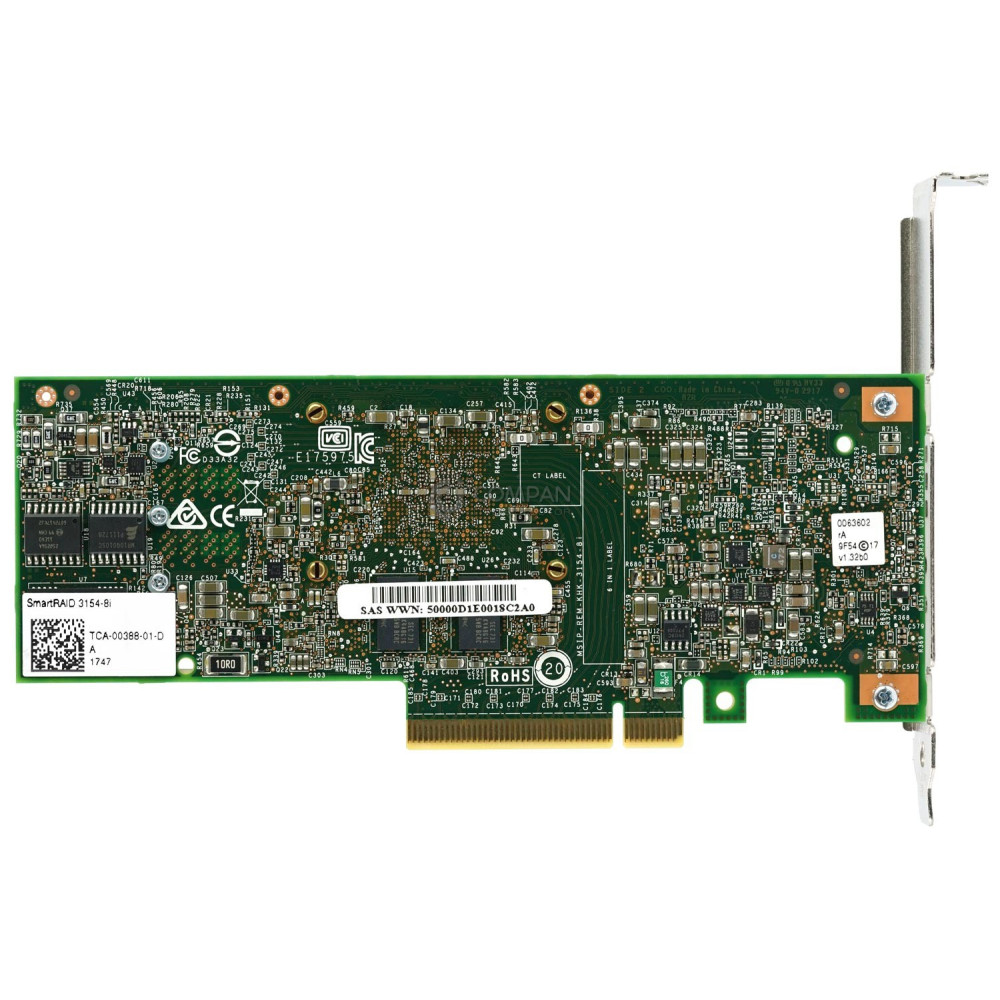

3154-8I MICROSEMI SMARTRAID 3154-8I CONTROLLER - TCA-00388-01-D, PCA-00388-01
Brand:
MICROSEMI
|
Part Number: 3154-8I
Description
3154-8I MICROSEMI SMARTRAID 3154-8I CONTROLLER - TCA-00388-01-D, PCA-00388-01
Brand: MICROSEMI
Description: SMARTRAID 3154-8I CONTROLLER
Variations: TCA-00388-01-D, PCA-00388-01
Brand: MICROSEMI
Description: SMARTRAID 3154-8I CONTROLLER
Variations: TCA-00388-01-D, PCA-00388-01
| Operating System | |
| Microsoft Windows Red Hat Linux SUSE Linux Debian Linux Ubuntu Linux Solaris FreeBSD VMware ESXi Citrix XenServer For a detailed list see ASK Answer ID 17449. |
|
| CPU Architecture | |
| Intel, AMD, Cavium ThunderX2 (ARM) | |
| Benefits | |
| • Ideal for enabling 12 Gbps storage capabilities in performance-hungry server and workstation platforms, without compromising proven Microsemi reliability • Provides high I/O transaction and high bandwidth processing solutions that reduce energy consumption and maintenance costs • Accelerates storage with up to 4 GB of highspeed DRAM cache with integrated cache protection (SmartRAID 315x SKUs only) |
|
| Key RAID Features | |
| • maxCache 4.0 caching software (all SmartRAID 315x products with cache protection) • Mixed mode allows devices connected to the same adapter to be used in RAID and HBA modes simultaneously • Adapter dynamic power management to save up to 30% power • Supports up to 256 SAS or SATA devices using SAS expanders • Support for native 4K sector SAS and SATA devices in addition to 512-byte sector devices • RAID ADM through triple mirroring, move array, and split mirroring • Quick initialization • Online capacity expansion • Copyback hot spare • Dynamic caching algorithm • Native command queuing (NCQ) • Background initialization • Hot-plug drive support • RAID level migration • Hot spares—global, dedicated, and pooled • Automatic/manual rebuild of hot spares • SES and SGPIO enclosure management • Configurable stripe size • S.M.A.R.T. support • BMC support • Dynamic sector repair • Staggered drive spin-up • Bootable array support • Support for tape devices, autoloaders • Smart PQI driver with multip queue and MSI-X support for all device drivers for all supported operating systems • Secure boot support for the uEFI host BIOS • USB image available on storage.microsemi.com/en-us/support/start to boot maxView GUI from any USB device for enhanced GUI-based setup and offline maintenance |
|
| Management Utilities | |
| maxView Storage Manager • Web based GUI Management utility • OS Support: Windows, Linux, VMware • Remote configuration, monitoring & notification • Remote firmware updates • SMI-S Support • SMTP ARCCONF • Command-line interface BIOS Configuration Utility (CTRL+A) • Legacy configuration utility • Flashable BIOS support uEFI BIOS Configuration Utility • Flashable BIOS support • HII GUI support ROM-based uEFI BIOS Configuration Utilities • HII-based pre-boot GUI configuration utility • Arcconf CLI for uEFI shell • Flashable BIOS support |
|
| Data Transfer Rate | |
| 12 Gbps per port | |
| Bus System Interface | |
| 8-lane PCIe Gen3 | |
| Form Factor | |
| MD2 – Low Profile | |
| Cache | |
| 4 GB DDR4/2100 MHz | |
| Connector Configuration | |
| Two internal mini SAS HD (SFF-8643) | |
| Package Contents | |
| • SmartRAID 3154-8i adapter • Additional low profile vented bracket |
|
| Physical Size | |
| 2.535"H x 6.6"L (64mm x 167mm) | |
| Operating Temperature | |
| 0 °C to 55 °C with 200 LFM airflow. Note: This adapter contains a powerful RAID processor that requires adequate airflow to operate reliably. Only install this card into server or PC chassis with at least 200 LFM airflow. Temperature measured 1 inch from RAID adapter. |
|
| Regulatory Certification | |
| CE, FCC, UL, C-tick, VCCI, KCC, CNS | |
| Environmental Compliance | |
| RoHS | |
| Mean Time Before Failure (MTBF) | |
| 1.37 million hours at 40°C | |
Specifications
- Part Options:
- TCA-00388-01-D, PCA-00388-01
